一种故障检测与抗差估计协同的AUV容错导航算法

肖睿彬; 马铁锋; 胡友峰

doi:10.11993/j.issn.2096-3920.2025-0156

一种故障检测与抗差估计协同的AUV容错导航算法

doi: 10.11993/j.issn.2096-3920.2025-0156

中国船舶集团有限公司第七〇五研究所, 云南昆明, 650106

详细信息

作者简介:
肖睿彬(2001-), 男, 在读硕士, 助理工程师, 主要研究方向为无人水下航行器组合导航与故障诊断技术

中图分类号: TJ630; U666.1
计量
- 文章访问数: 69
- HTML全文浏览量: 56
- PDF下载量: 58
- 被引次数: 0
出版历程
- 收稿日期: 2025-11-12
- 修回日期: 2025-12-16
- 录用日期: 2025-12-25
- 网络出版日期: 2026-01-12

A Fault-Tolerant Navigation Algorithm for AUVs Based on Collaborative Fault Detection and Robust Estimation

The 705 Research Institute, China Shipbuilding Industry Corporation Limited, Kunming 650106, China

摘要

摘要: 自主水下航行器(AUV)组合导航系统在面对多普勒测速仪(DVL)缓变故障时, 传统自适应滤波算法因噪声估计与故障检测机制相互冲突, 难以实现有效容错。为此, 文中提出一种融合长短期记忆(LSTM)网络故障检测与变分贝叶斯自适应卡尔曼滤波(VBAKF)/IGG-III抗差滤波的协同容错导航方法。该方法通过LSTM网络实现对缓变故障早期特征的有效识别; 在确认故障后将滤波器由VBAKF切换至IGG-III抗差滤波模式, 动态构造等价权矩阵以抑制故障量测影响; 故障结束后恢复VBAKF以维持最优估计。实验结果表明, 在DVL发生缓变故障时, 所提方法的导航精度优于几种主流滤波算法, 有效抑制了状态估计失真, 提升了AUV组合导航系统在不确定水下环境中的定位精度和鲁棒性。
- 自主水下航行器 /
- 容错导航算法 /
- 组合与导航 /
- 长短期记忆 /
- 卡尔曼滤波 /
- 抗差估计
Abstract: In the integrated navigation system of autonomous undersea vehicles(AUVs), traditional adaptive filtering algorithms struggle to achieve effective fault tolerance against slowly varying faults of the Doppler velocity log(DVL) due to the conflict between noise estimation and fault detection mechanisms. To address this issue, this paper proposed a collaborative fault-tolerant navigation method fusing a long short-term memory(LSTM) network-based fault detection with a variational Bayesian adaptive Kalman filter(VBAKF) and IGG-III robust filtering. The proposed method utilized the LSTM network to effectively identify the early characteristics of slowly varying faults. Upon fault confirmation, the filter switched from the VBAKF to the IGG-III robust filtering mode and dynamically constructed equivalent weight matrices to suppress the influence of faulty measurements. After the fault ended, the VBAKF was restored to maintain optimal estimation. Experimental results demonstrate that in the event of DVL slowly varying faults, the proposed method achieves higher navigation accuracy than several mainstream filtering algorithms, effectively suppresses state estimation distortion, and enhances the positioning precision and robustness of the integrated navigation system of AUVs in uncertain underwater environments.
- autonomous underwater sea /
- fault-tolerant navigation algorithm /
- integrated navigation /
- long short-term memory /
- Kalman filter /
- robust estimation

HTML全文

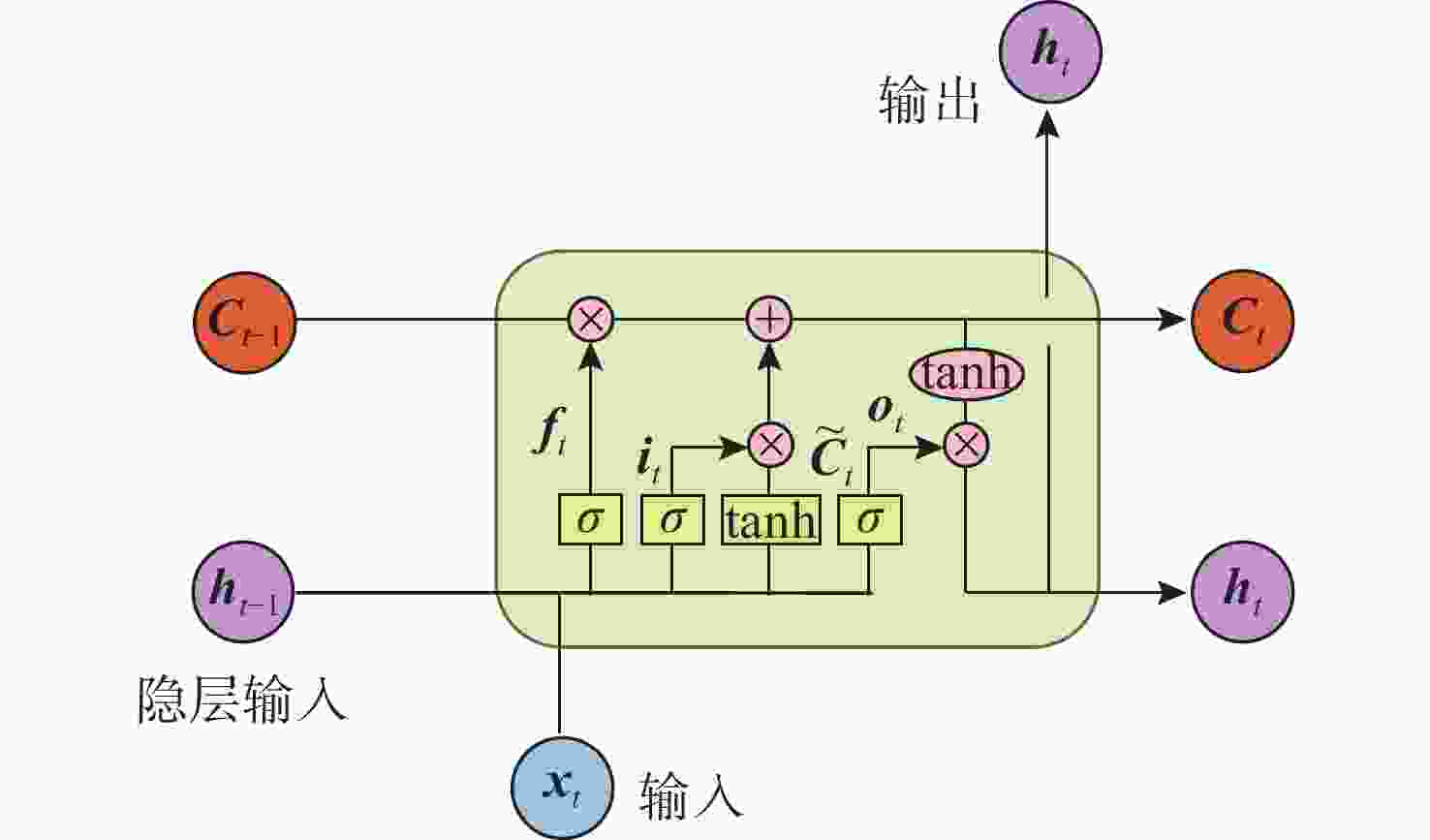

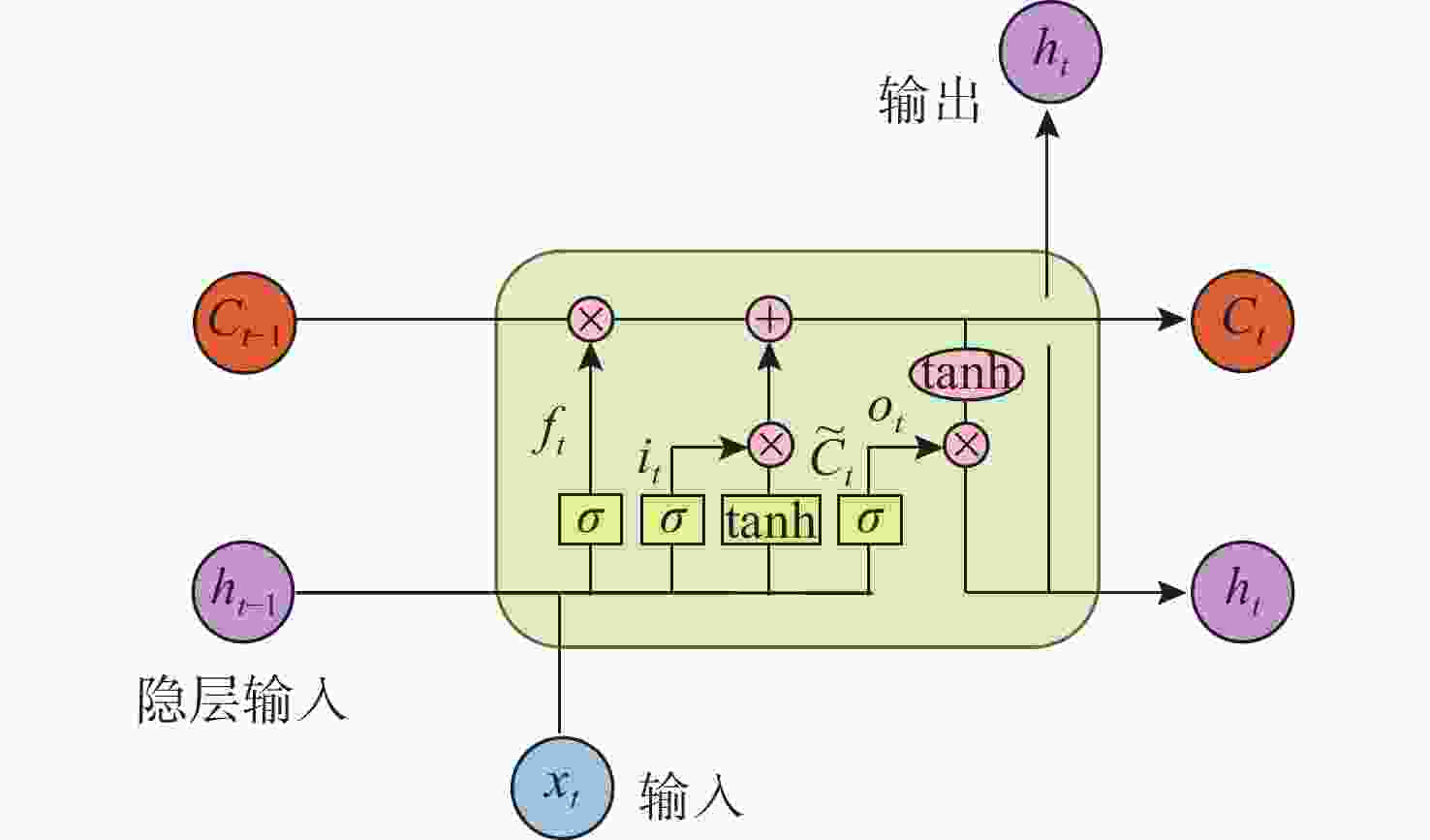

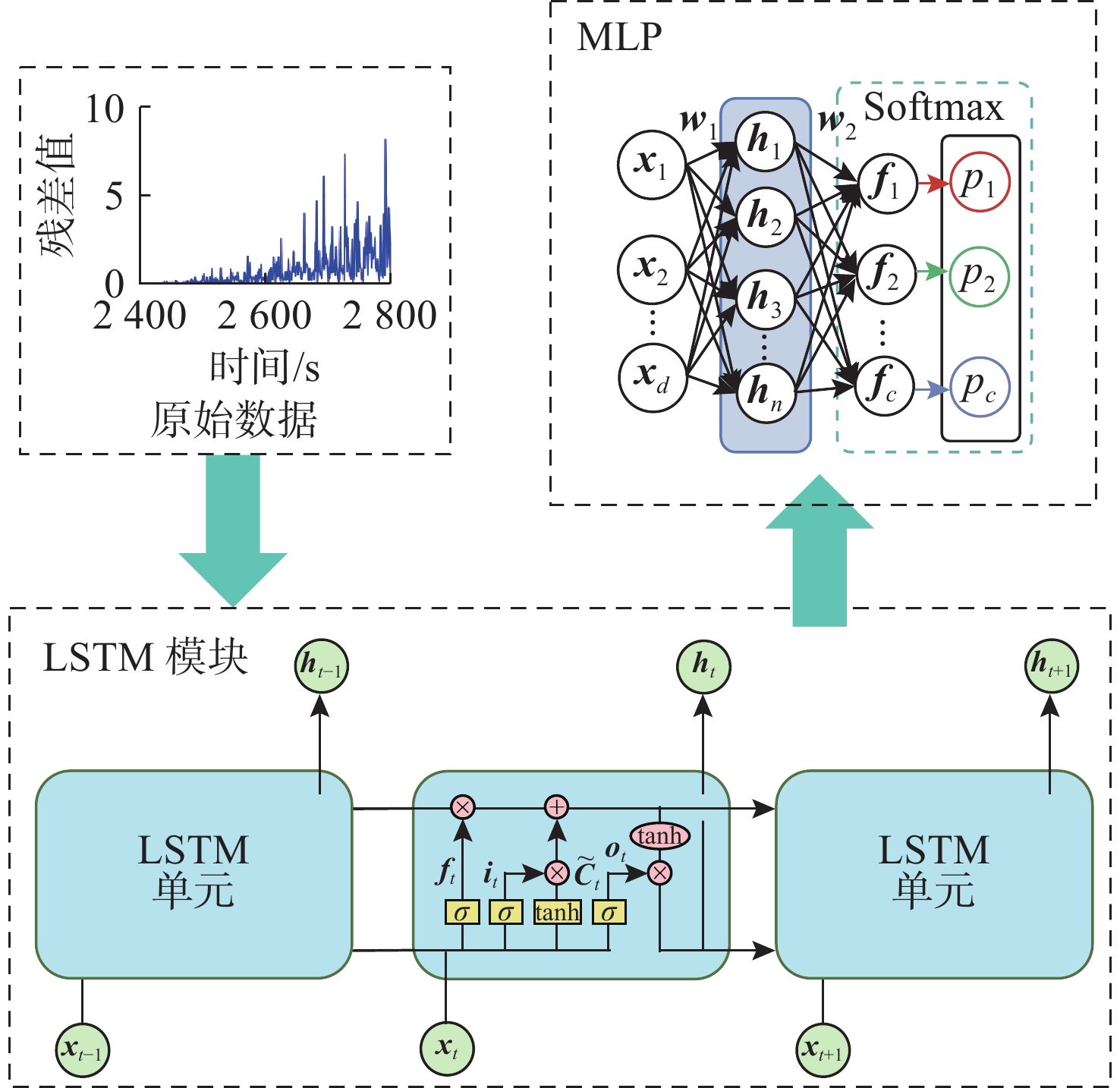

图 1 LSTM结构图

Figure 1. Structure diagram of LSTM

下载: 全尺寸图片幻灯片

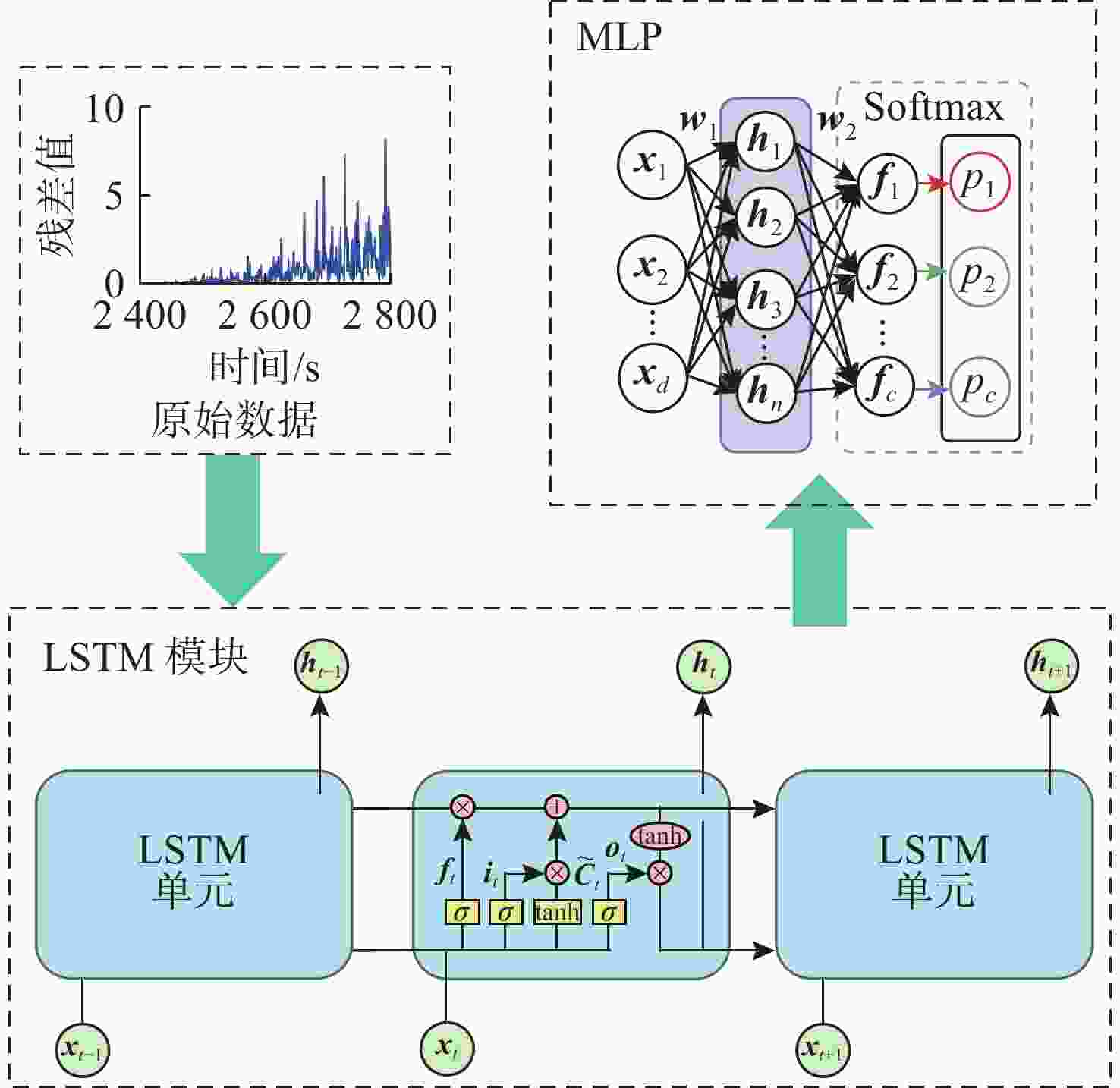

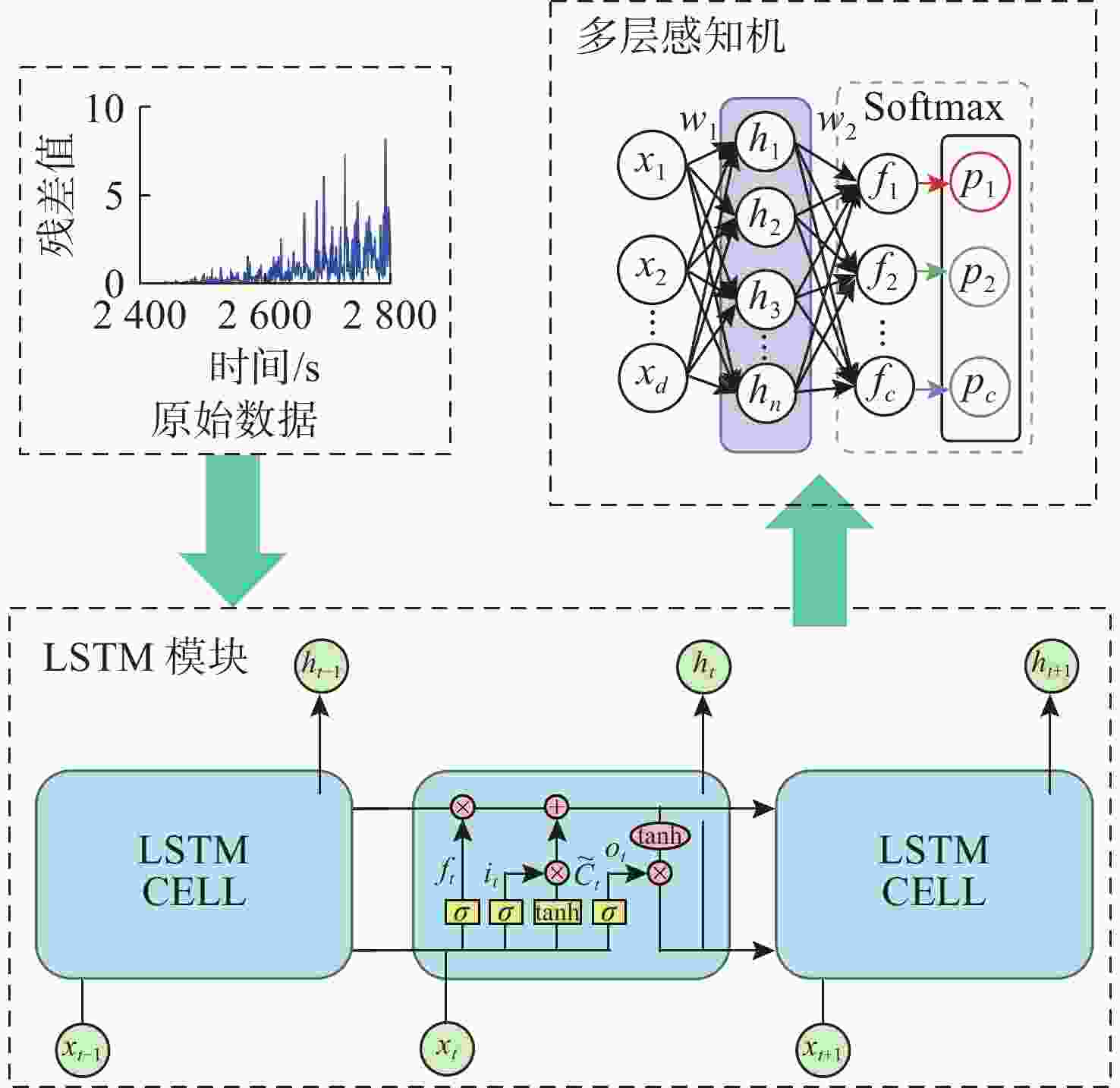

图 2 LSTM故障检测处理流程

Figure 2. Flow chart of LSTM fault detection

下载: 全尺寸图片幻灯片

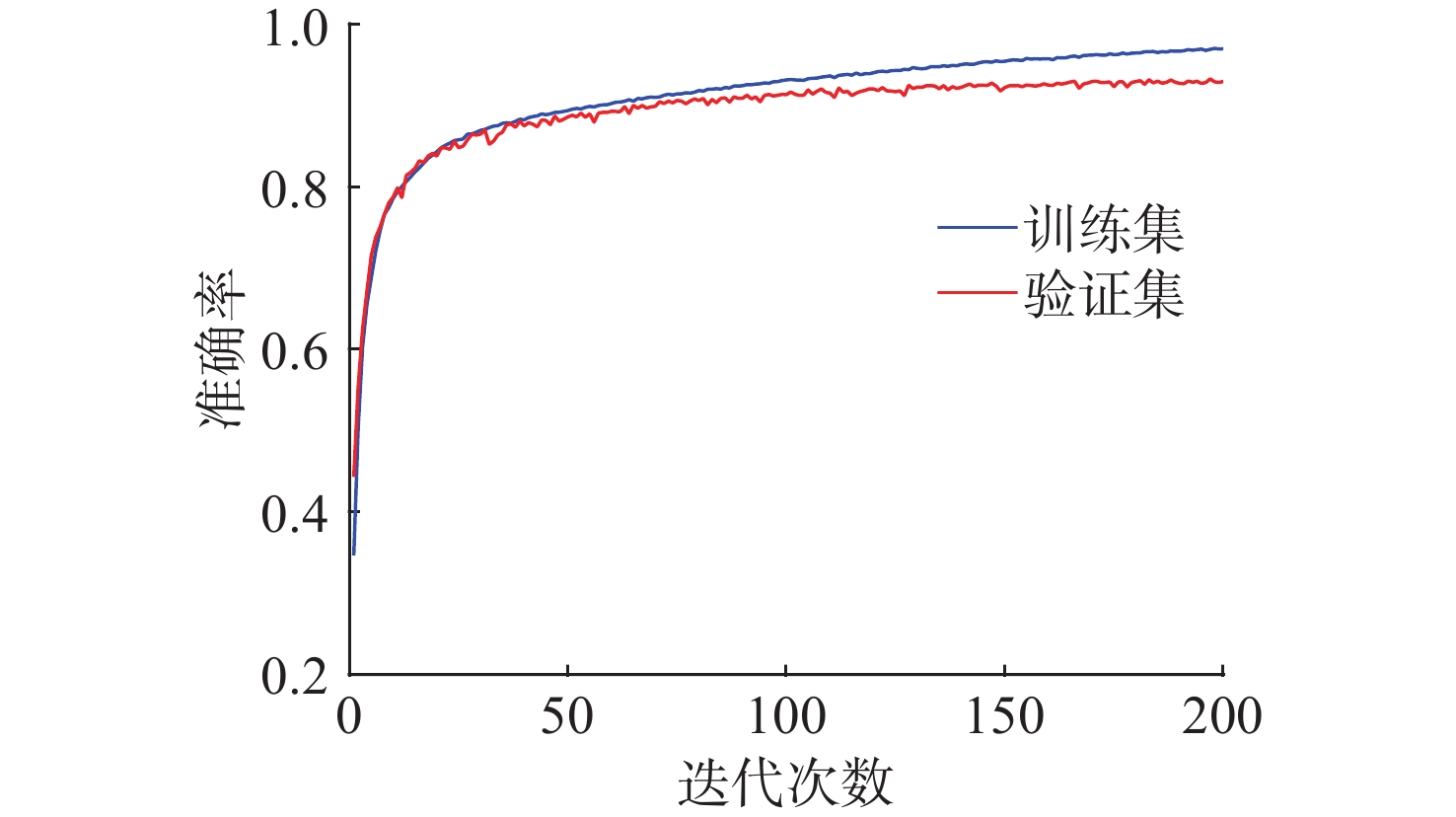

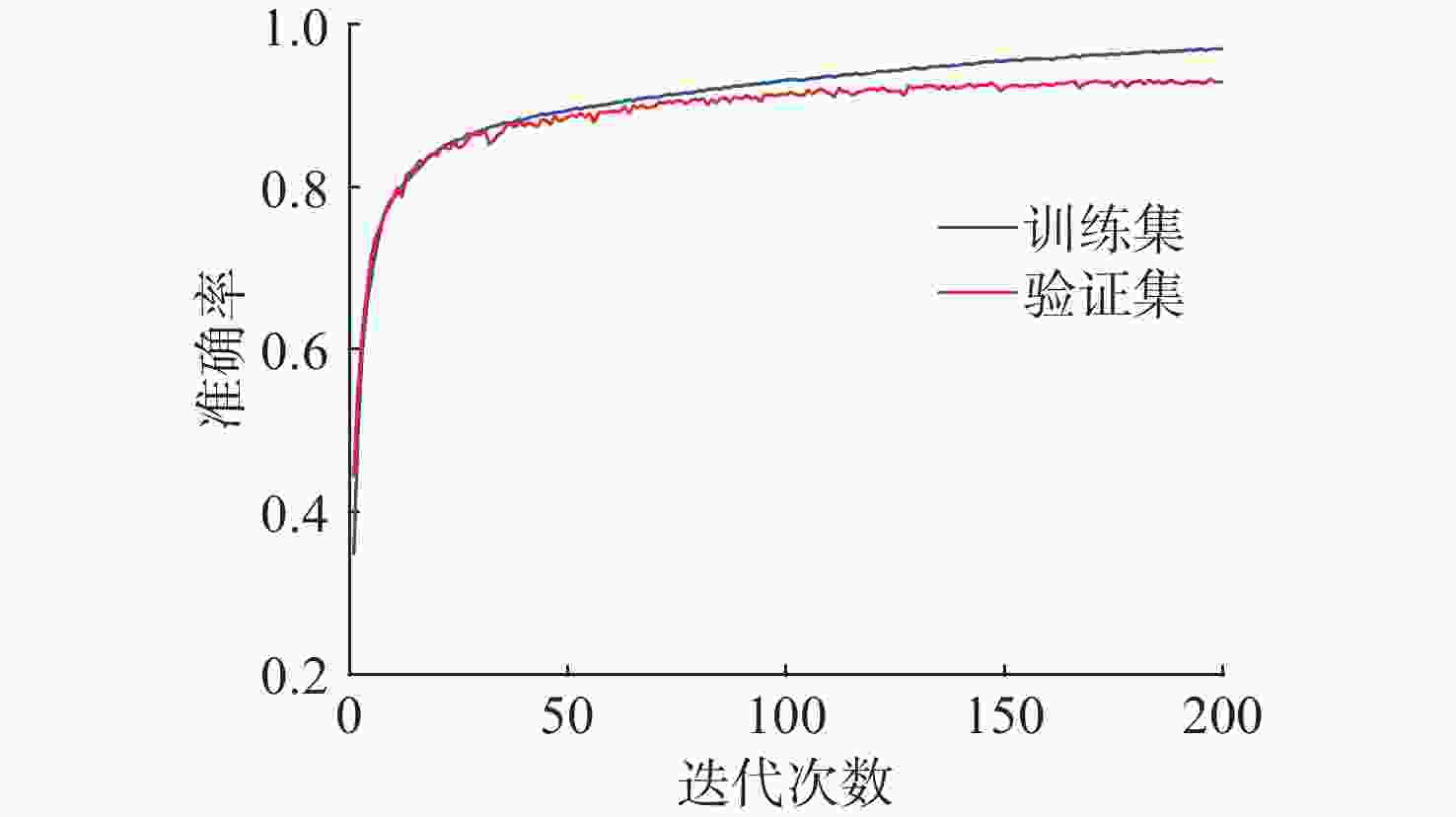

图 3 LSTM训练准确率曲线

Figure 3. Curves of LSTM training accuracy

下载: 全尺寸图片幻灯片

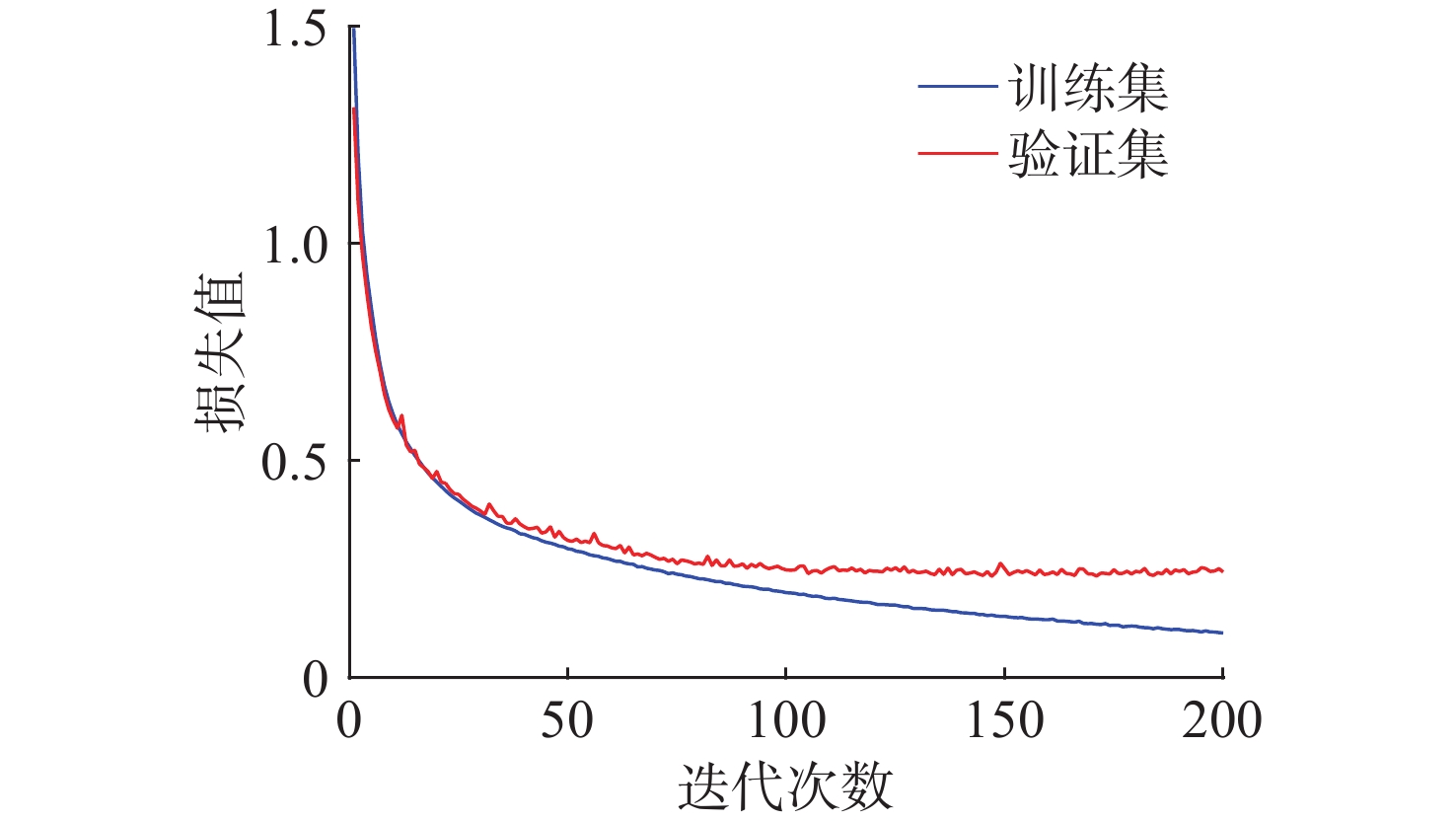

图 4 LSTM训练损失值曲线

Figure 4. Curves of LSTM training loss

下载: 全尺寸图片幻灯片

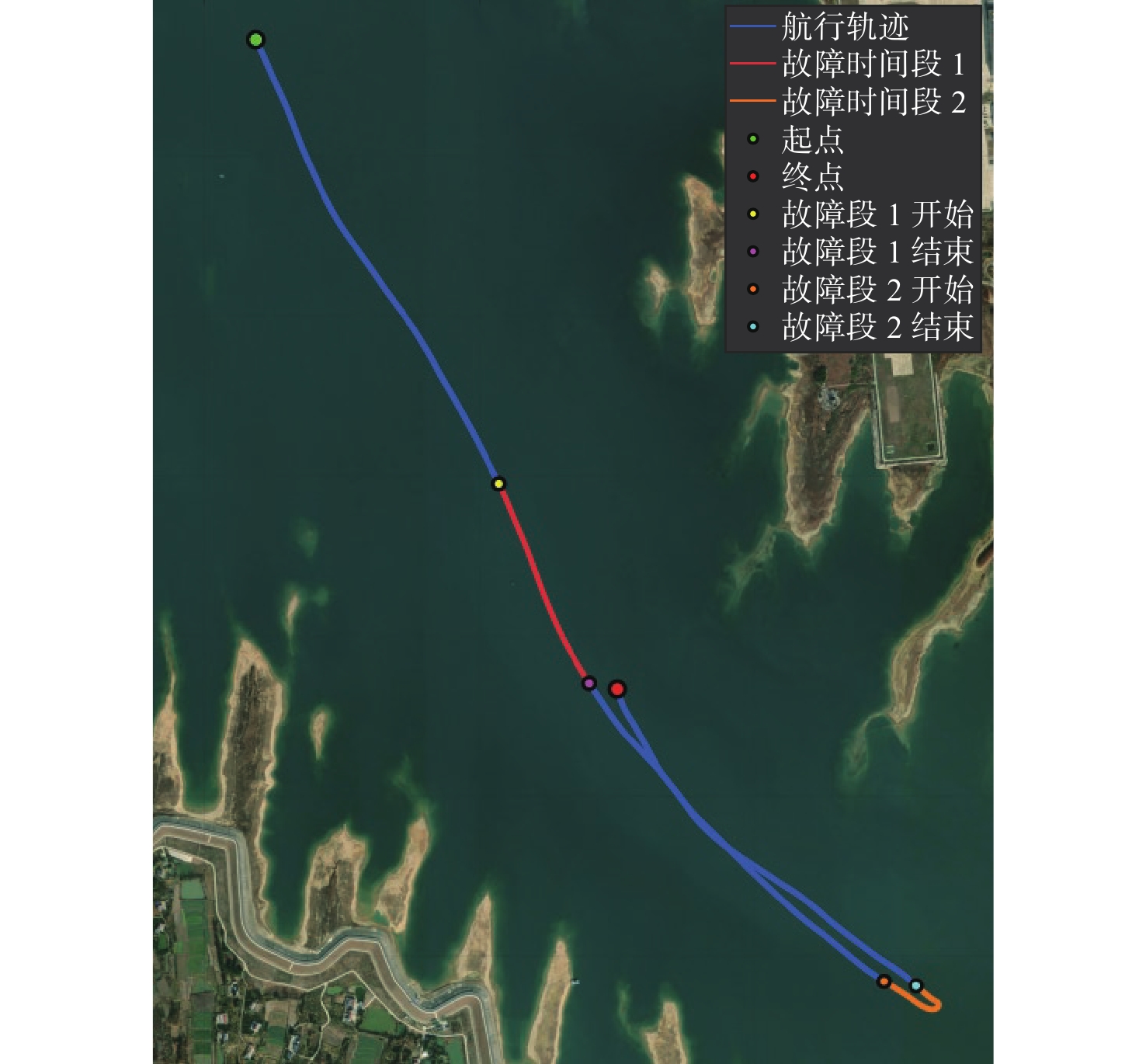

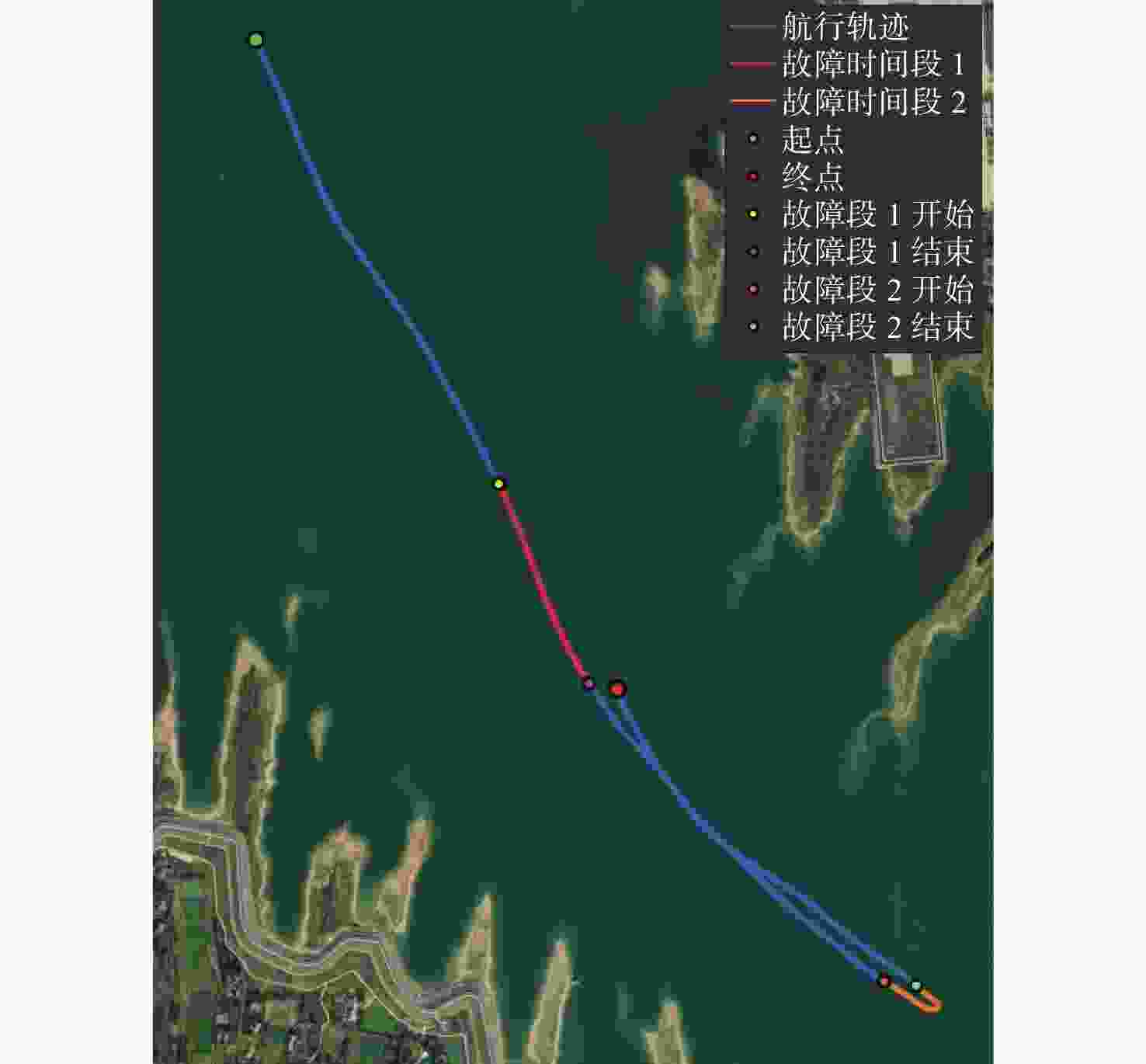

图 5 AUV航行轨迹图

Figure 5. AUV navigation trajectory

下载: 全尺寸图片幻灯片

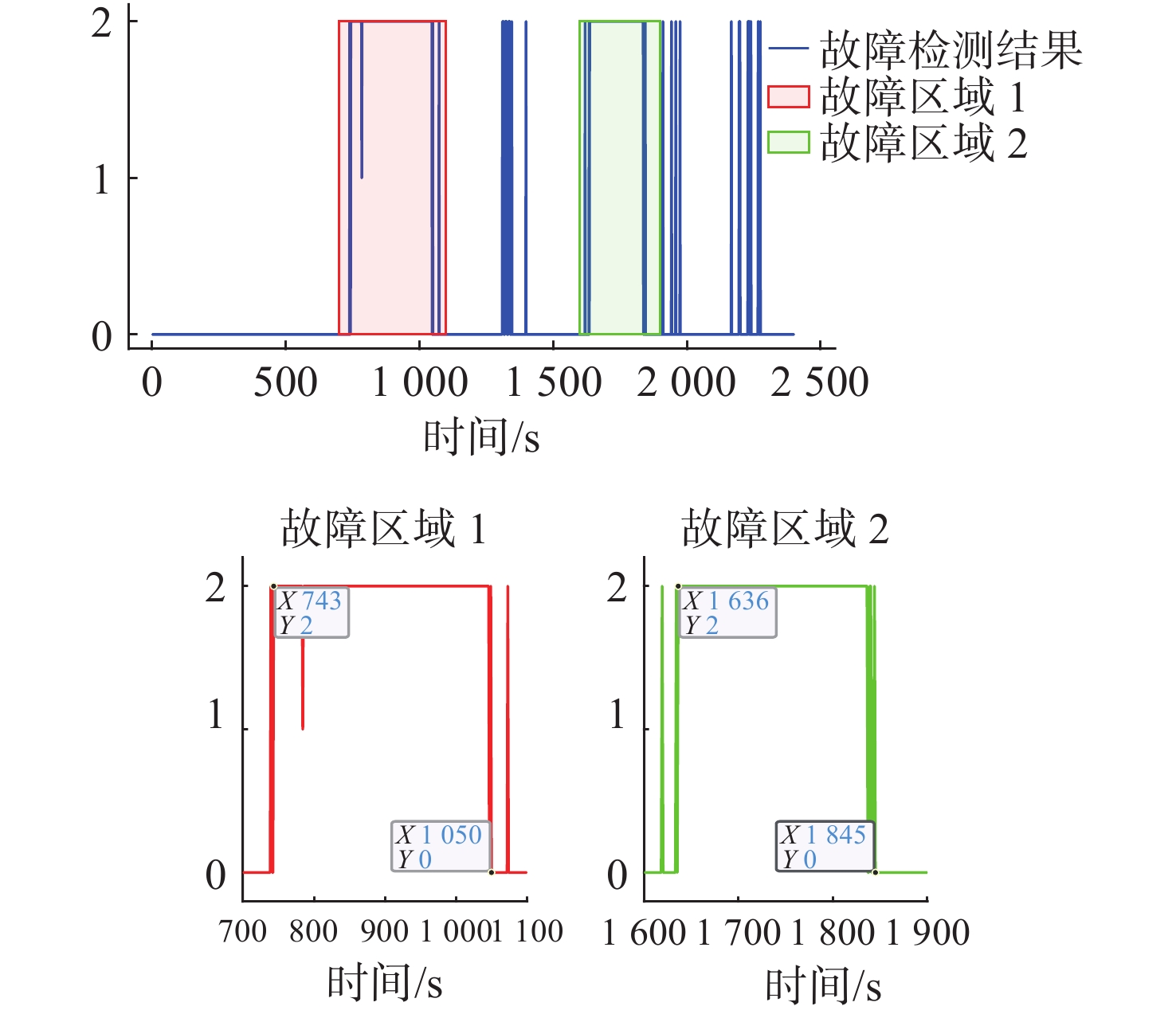

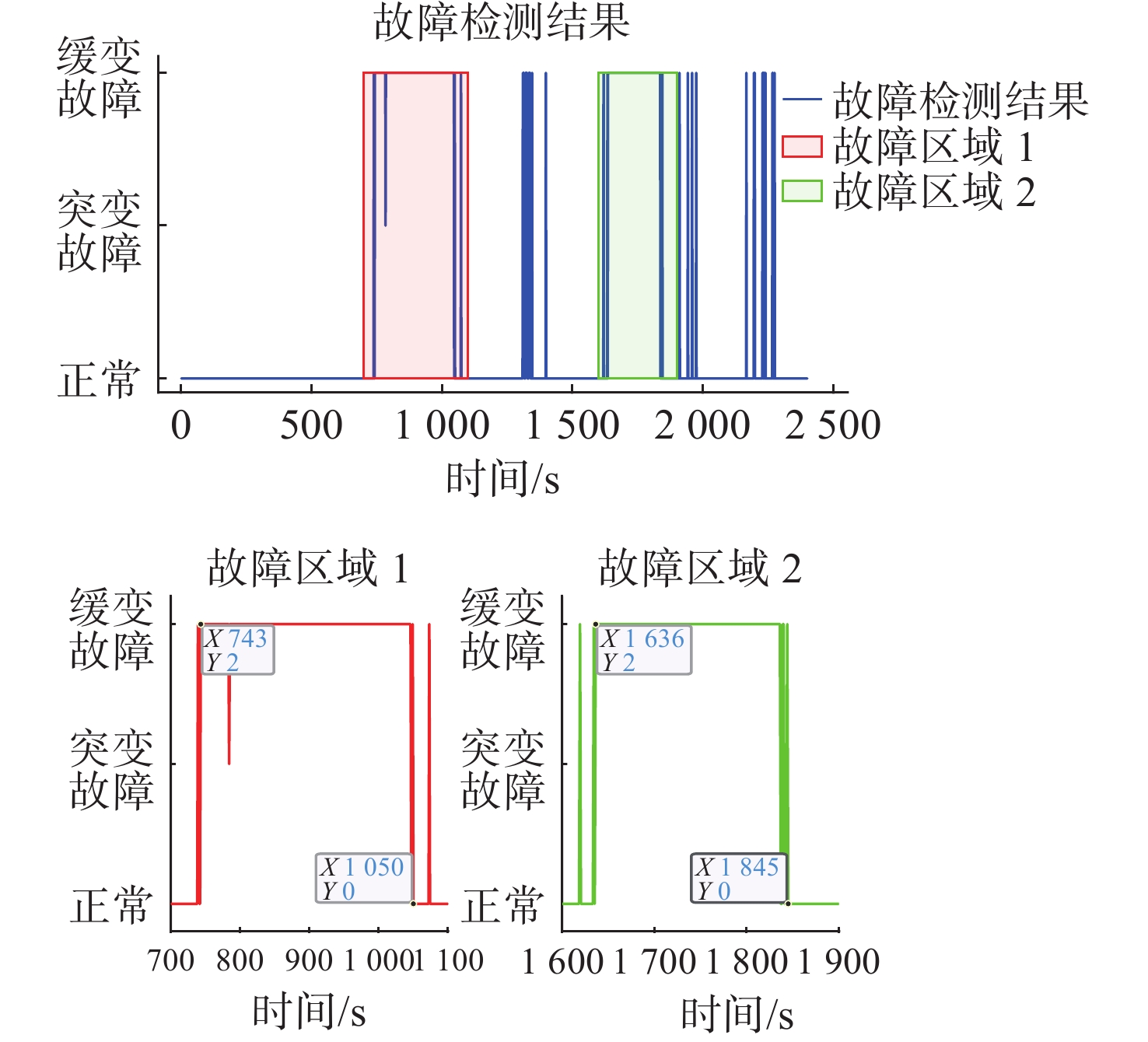

图 6 LSTM故障检测结果

Figure 6. Fault detection results of LSTM

下载: 全尺寸图片幻灯片

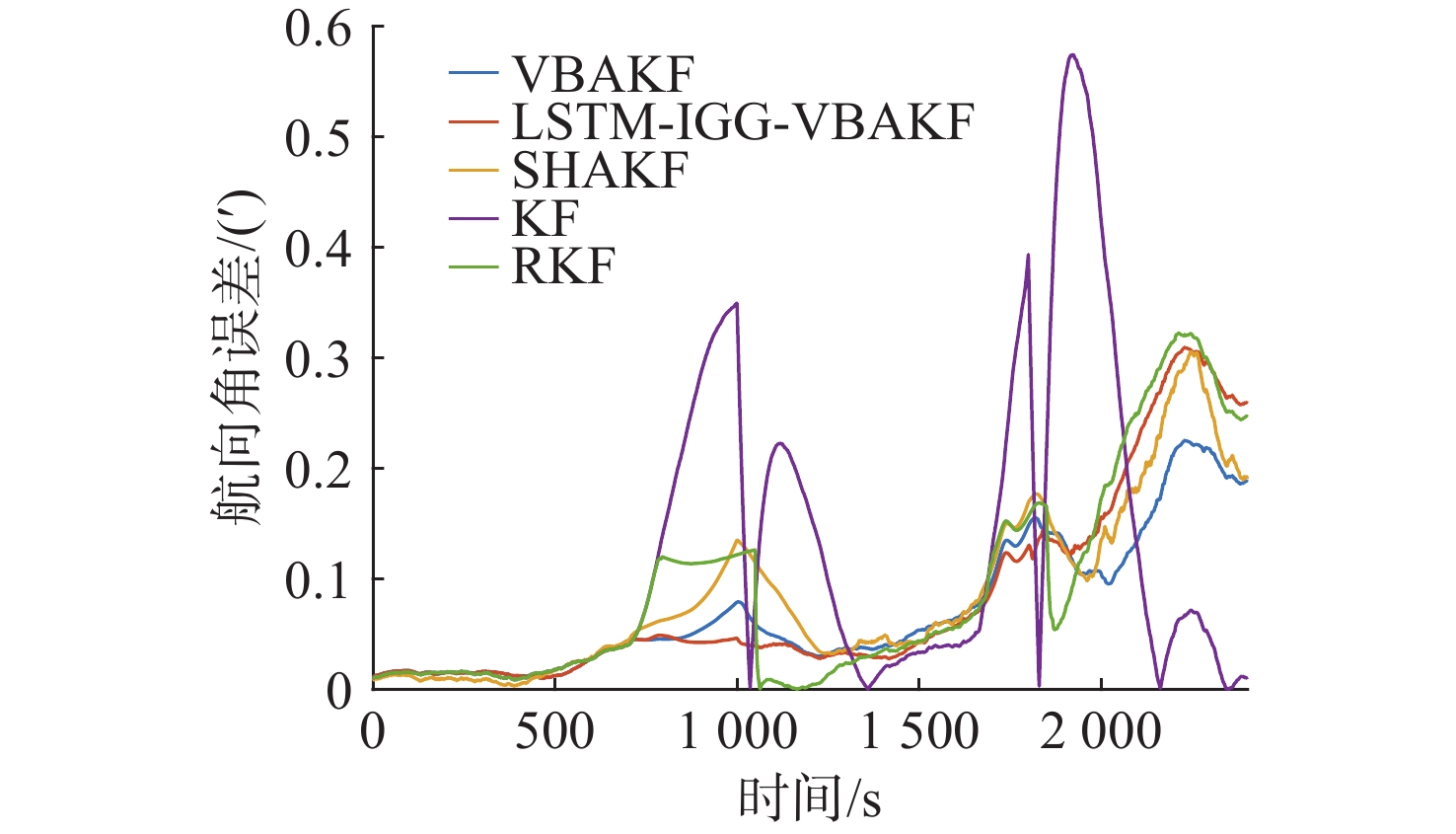

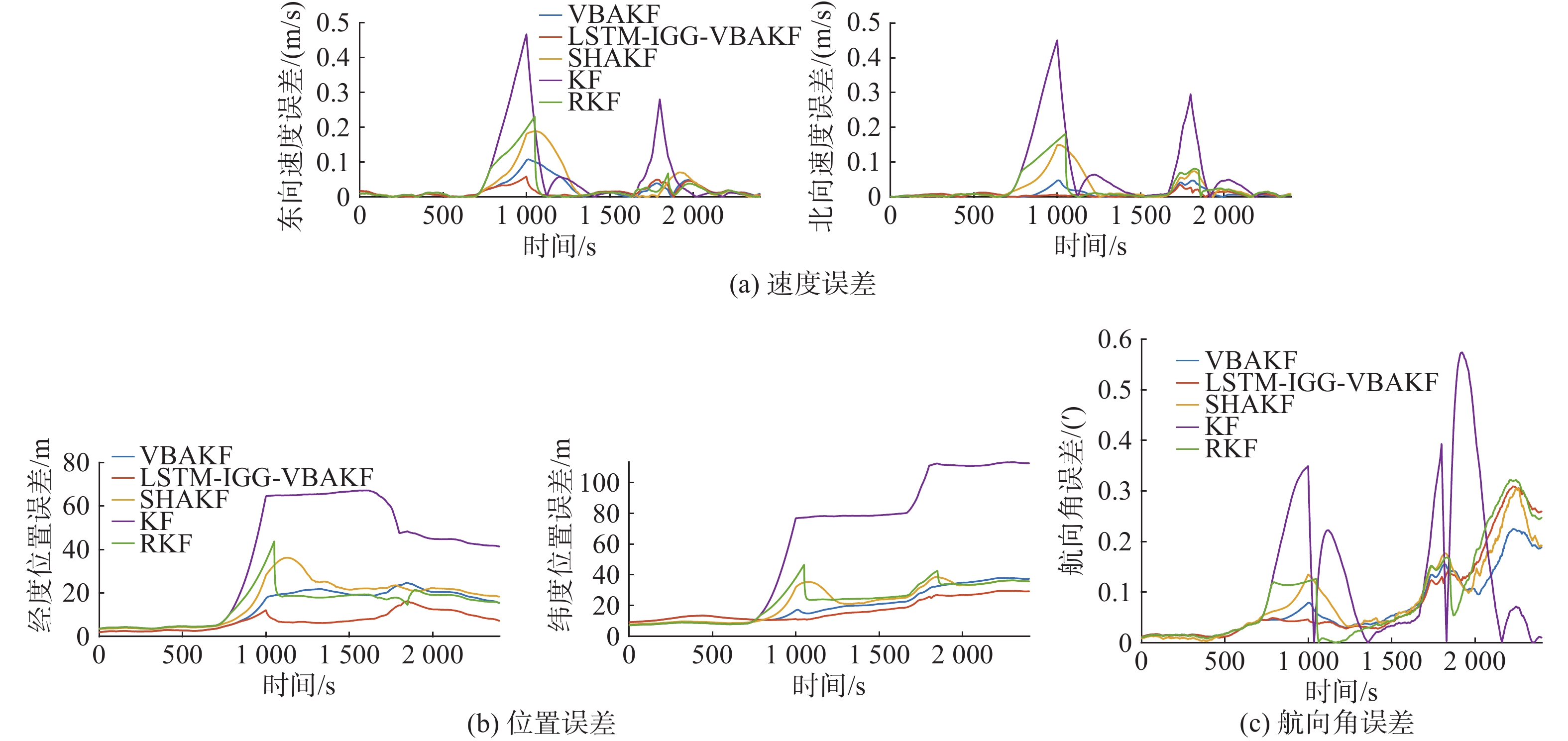

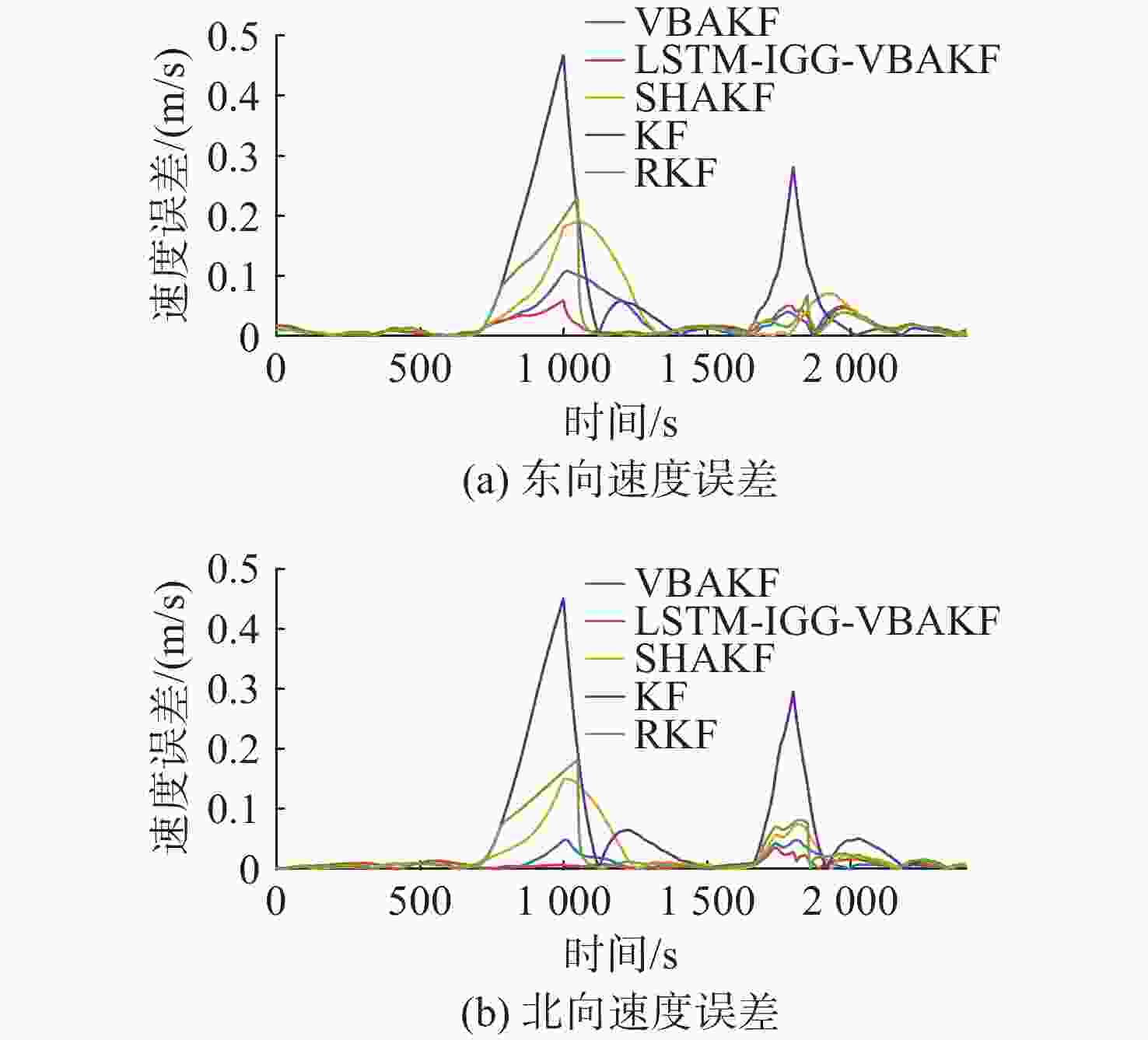

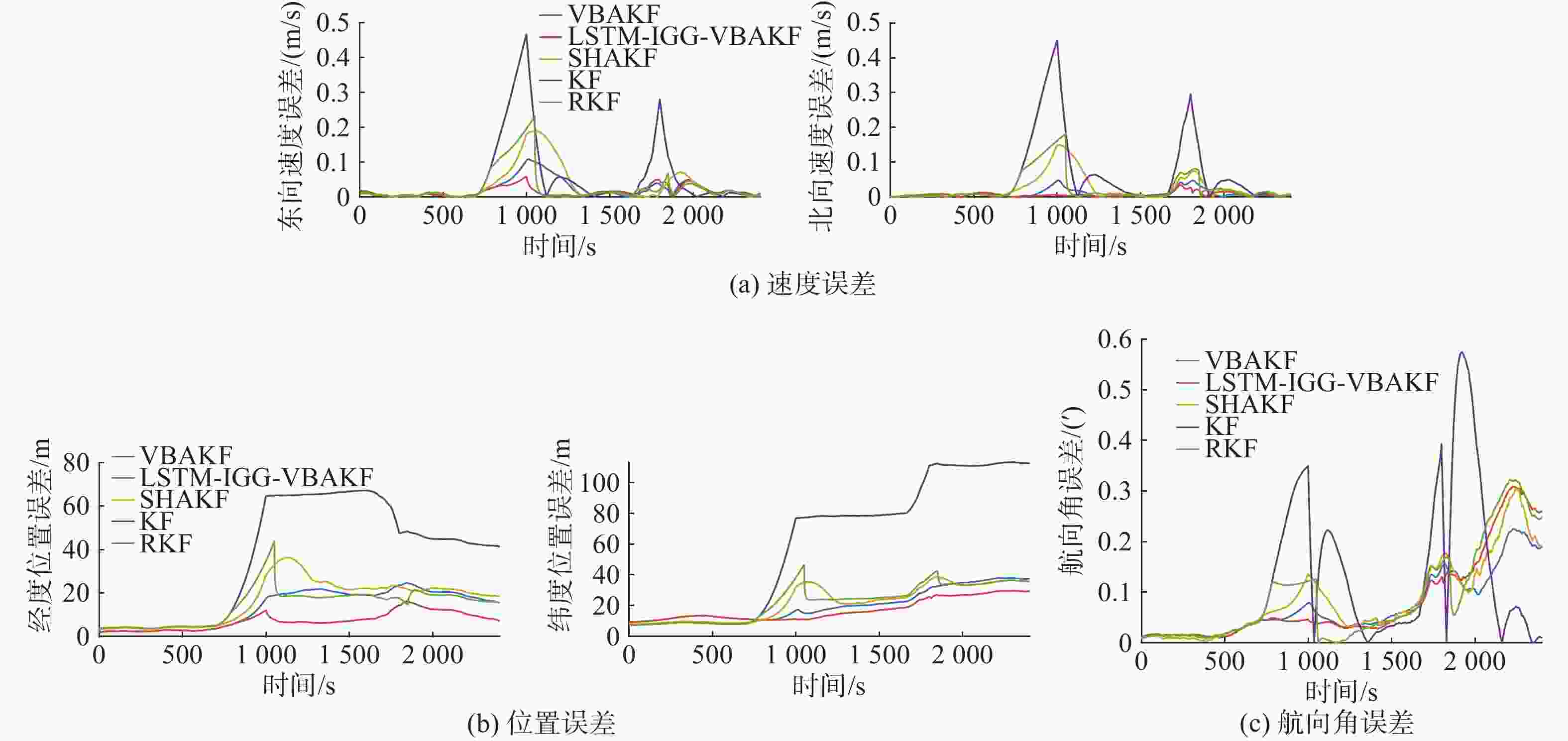

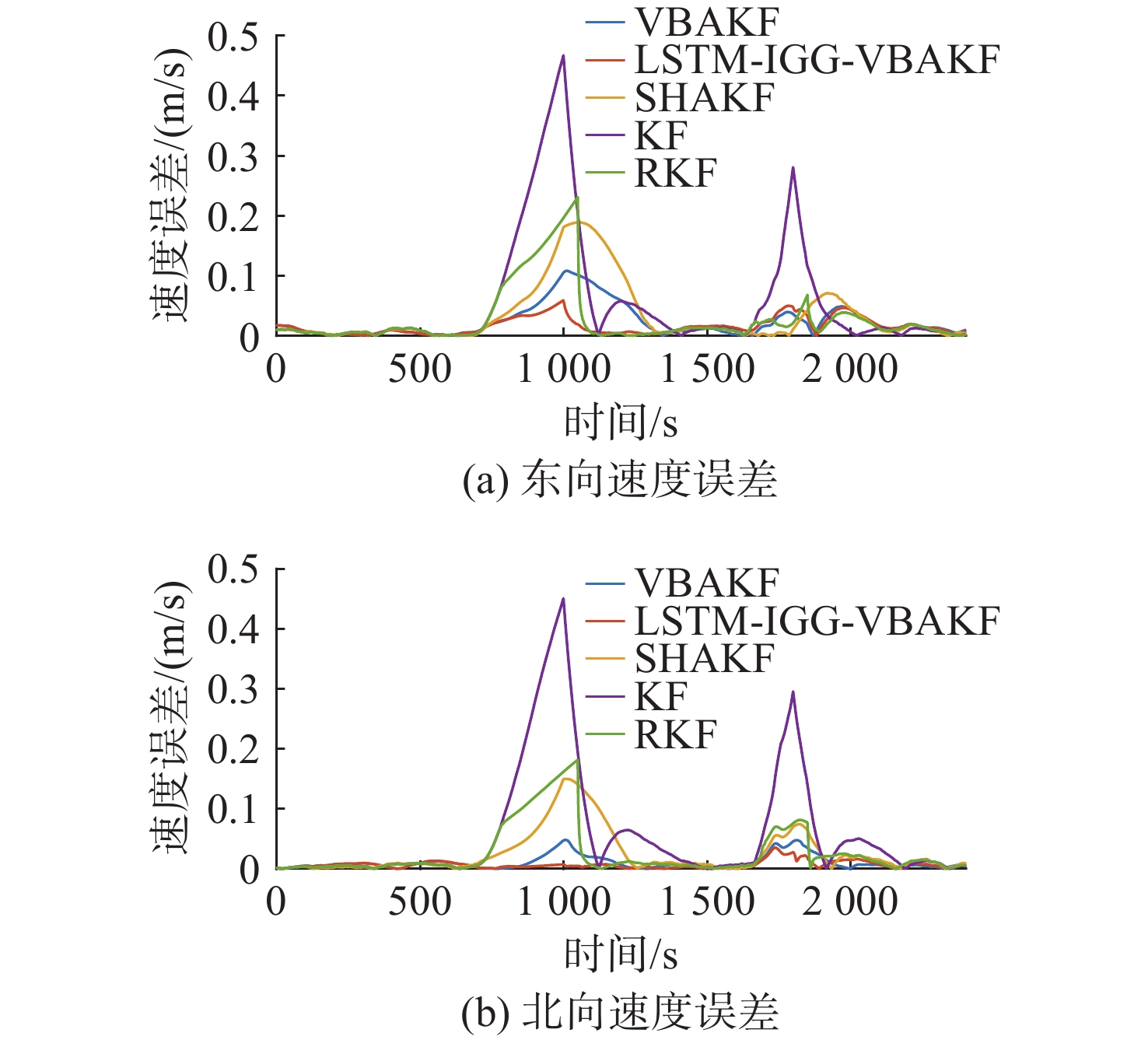

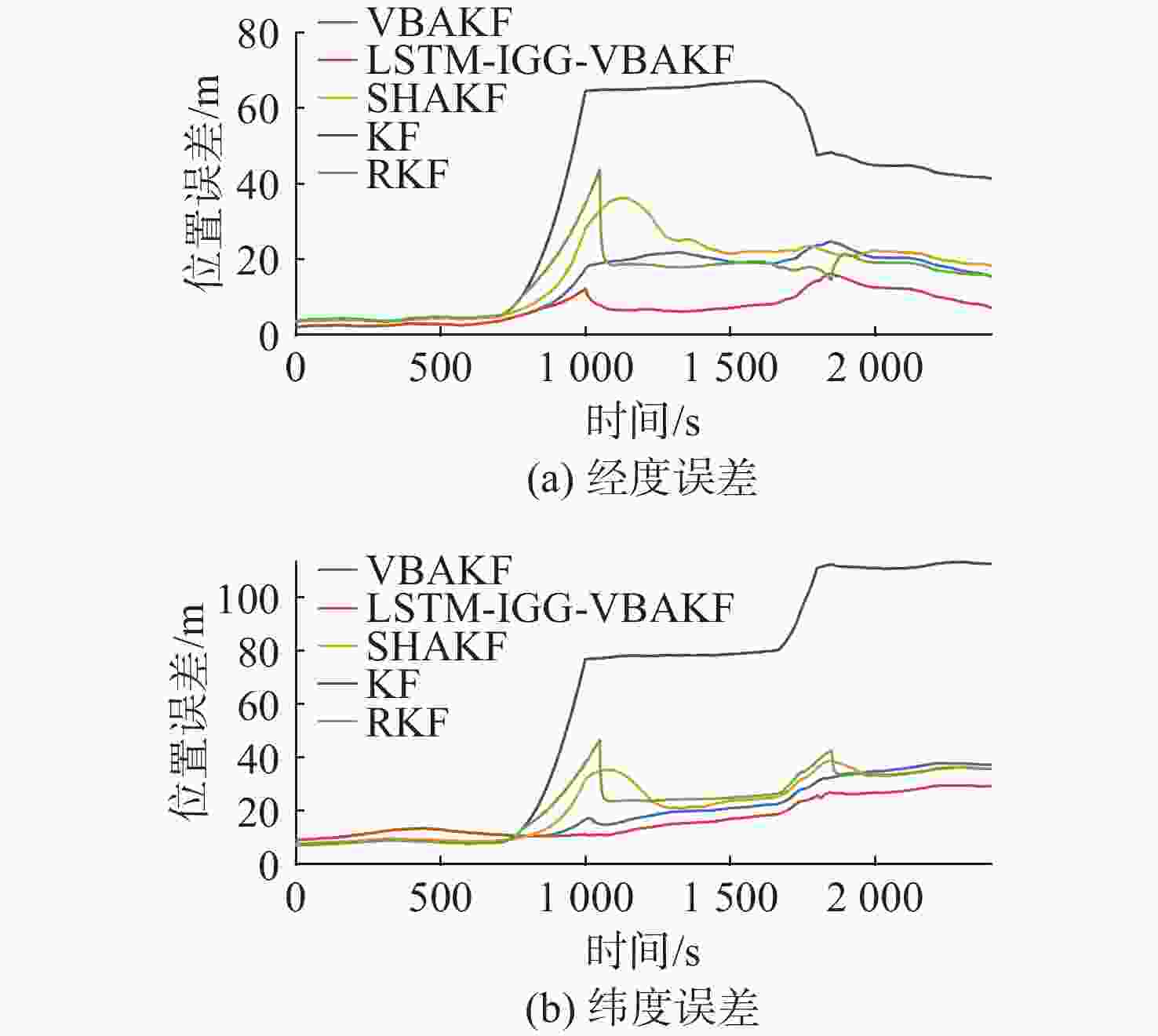

图 7 误差曲线

Figure 7. Error curves

下载: 全尺寸图片幻灯片

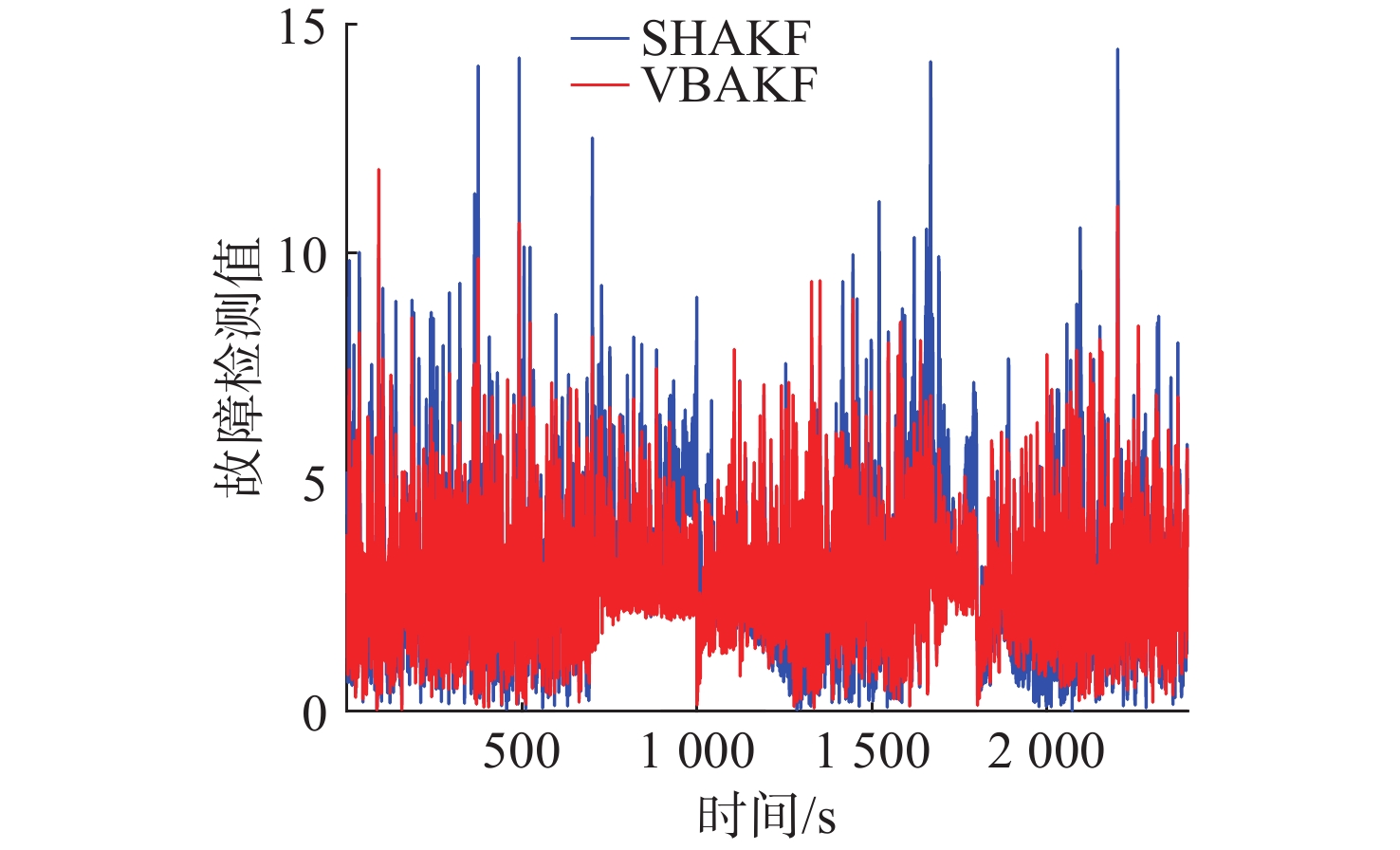

图 8 自适应滤波算法故障检测值曲线

Figure 8. Fault detection value curves of adaptive filtering algorithm

下载: 全尺寸图片幻灯片

表 1 故障类型

Table 1. Type of faults

故障类型	数学模型
突变故障	$f(t)=5 r_0 n(t) $
线性缓变故障	$f(t)=\alpha\left(t-t_0\right) n(t) $
二次方缓变故障	$ f(t)=\alpha\left(t-t_0\right)^2 n(t) $
周期性缓变故障	$ f(t)=\alpha \sin \left(t-t_0\right) n(t) $
对数型缓变故障	$ f(t)=\alpha \ln \left(1+\left(t-t_0\right)\right) n(t) $

下载: 导出CSV

表 2 LSTM模型测试集评价指标

Table 2. Evaluation index of LSTM model test set

故障类型	精确率	召回率	F1分数
系统正常	0.976 6	0.967 2	0.971 9
突变故障	0.956 3	0.985 0	0.970 4
线性故障	0.858 9	0.843 2	0.851 0
二次方故障	0.902 8	0.910 7	0.906 7
周期性故障	0.987 4	0.993 7	0.990 5
对数型故障	0.916 1	0.902 5	0.909 3
算数平均	0.933 0	0.933 7	0.933 3
加权平均	0.933 4	0.933 7	0.933 5

下载: 导出CSV

表 3 算法结果对比

Table 3. Comparison of algorithm results

算法	东向速度误差/(m/s)	北向速度误差/(m/s)	经度误差/m	纬度误差/m	航向角误差/(′)
KF	0.112 1	0.113 4	44.98	74.34	0.18
RKF	0.054 8	0.048 7	16.55	25.45	0.13
SHAKF	0.060 8	0.044 0	19.44	24.87	0.11
VBAKF	0.035 2	0.015 3	15.86	22.82	0.09
LSTM-IGG-VBAKF	0.021 0	0.009 1	8.17	18.45	0.12

下载: 导出CSV
