仿生锯齿结构对环形螺旋桨水动力噪声特性影响规律研究

毛鑫培; 刘鹏; 柳江; 康鲁迪; 金辉; 殷逸冰

doi:10.11993/j.issn.2096-3920.2025-0141

仿生锯齿结构对环形螺旋桨水动力噪声特性影响规律研究

doi: 10.11993/j.issn.2096-3920.2025-0141

青岛理工大学机械与汽车工程学院, 山东青岛, 266520

基金项目: 国家自然科学基金(62501348, 62401312); 中央引导地方科技发展资金项目(2024YD012); 国防科工局稳定支持项目(WDZC20245150310).

详细信息

作者简介:
毛鑫培(2002-), 男, 在读硕士, 主要研究方向为水动力噪声抑制

通讯作者:
刘鹏(1990-), 男, 博士研究生, 教授, 主要研究方向为振动噪声控制与智能运维.

中图分类号: TJ630; U664.33
计量
- 文章访问数: 3
- HTML全文浏览量: 2
- PDF下载量: 3
- 被引次数: 0
出版历程
- 收稿日期: 2025-10-13
- 修回日期: 2025-11-04
- 录用日期: 2025-11-06
- 网络出版日期: 2026-03-26

Research on the influence of biomimetic serrated structure on the hydrodynamic noise characteristics of toroidal propeller

School of Mechanical and Automotive Engineering, Qingdao University of Technology, Qingdao 266520, China

摘要

摘要: 环形螺旋桨因其在推进效率与噪声控制方面的潜力而成为研究前沿, 其中仿生学原理为噪声抑制提供了新颖的技术路径。然而, 仿生改性在水下螺旋桨领域的应用研究仍相对缺乏。为此, 文中研究旨在探究仿生锯齿结构对环形螺旋桨水动力噪声的影响机理。受猫头鹰翼缘锯齿的声学特性启发, 依据环形螺旋桨参数化建模方法, 设计了具有后缘锯齿特征的仿生变体。基于计算流体动力学(CFD)与FW-H声类比理论, 系统性分析了不同锯齿尺寸下的螺旋桨流场特性及非空化噪声声场变化规律。研究结果表明: 仿生结构对螺旋桨的宽带噪声分量具有调制作用, 在径向观测平面内可实现0.3~1.5 dB的降噪量; 在桨叶叶尖与中段后方区域, 降噪效果显著依赖于锯齿尺寸与工作转速, 即高转速下噪声幅值有效降低, 而低转速下特定区域噪声反而略有增加。文中研究阐明了仿生锯齿参数对噪声的影响规律, 为低噪声水下推进器的仿生设计提供了理论依据与优化方向。
- 环形螺旋桨 /
- 仿生改性 /
- 锯齿状后缘 /
- 水动力噪声 /
- FW-H声类比
Abstract: The toroidal propeller has emerged as a research hotspot owing to its potential for enhancing propulsion efficiency and achieving effective noise control. Biomimetic principles offer a novel technical approach to noise reduction. However, the application research of biomimetic modification in the field of underwater propellers is still relatively scarce. Therefore, this study aims to explore the mechanism of the influence of biomimetic serrated structures on the hydrodynamic noise of toroidal propellers. Inspired by the acoustic characteristics of owl wing-edge serrations and based on the parametric modeling method of toroidal propeller, a biomimetic variant with trailing-edge serration features was designed. Based on computational fluid dynamics(CFD) and the FW-H acoustic analogy theory, the characteristics of the propeller flow field and the variation patterns of non-cavitation noise under different serration sizes were systematically analyzed. The research results show that the biomimetic structure has a modulation effect on the broadband noise components of the propeller, achieving a noise reduction of 0.3 to 1.5 dB within the radial observation plane; in the area of the blade tip and the rear part of the middle section, the noise reduction effect is significantly dependent on the serration size and the operating speed. That is, at high rotational speeds, the noise amplitude is effectively reduced, while at low rotational speeds, the noise in specific areas slightly increases. This study elucidated the influence of bionic serrated parameters on noise, providing a theoretical foundation and optimization direction for the bionic design of low-noise underwater propellers.
- toroidal propeller /
- biomimetic modification /
- serrated trailing edges /
- hydrodynamic noise /
- FW-H acoustic analogy

HTML全文

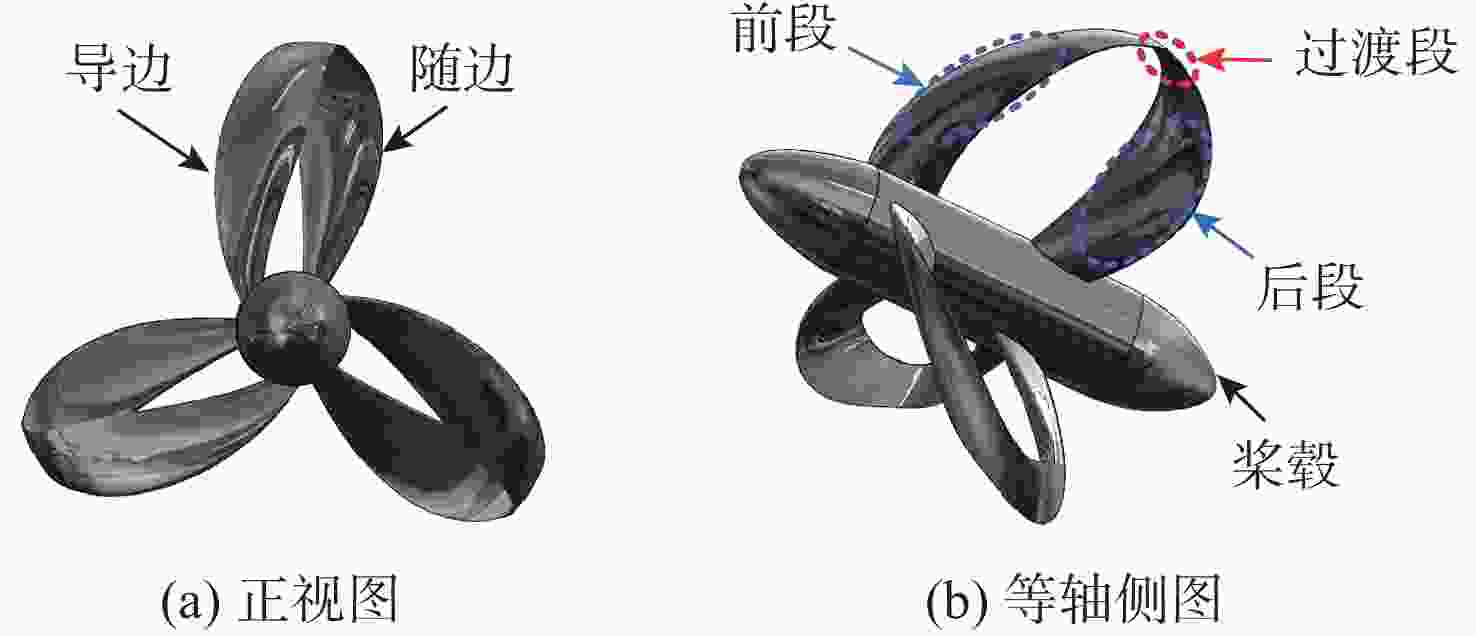

图 1 环形螺旋桨基模

Figure 1. Basic mode of annular propeller

下载: 全尺寸图片幻灯片

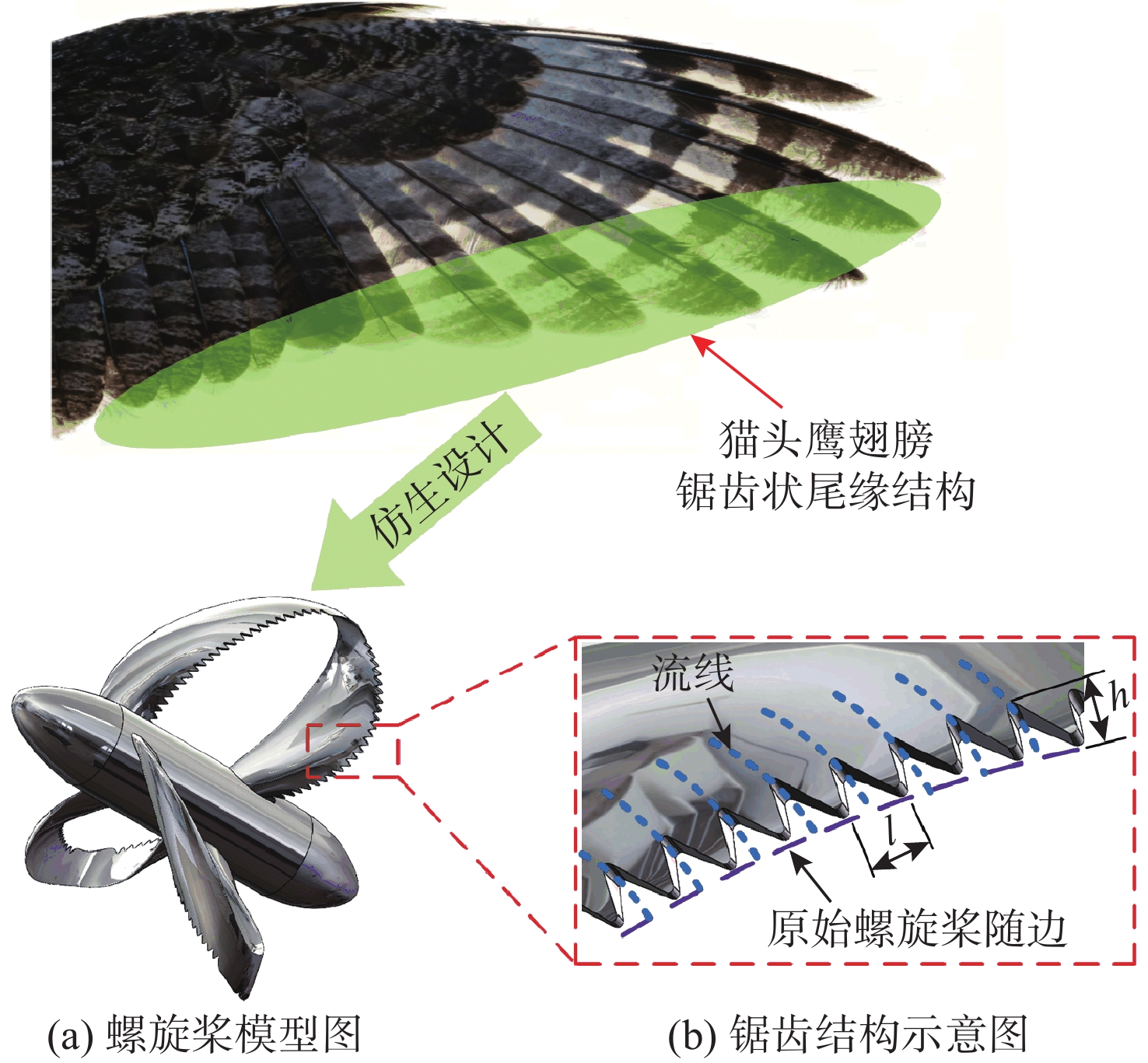

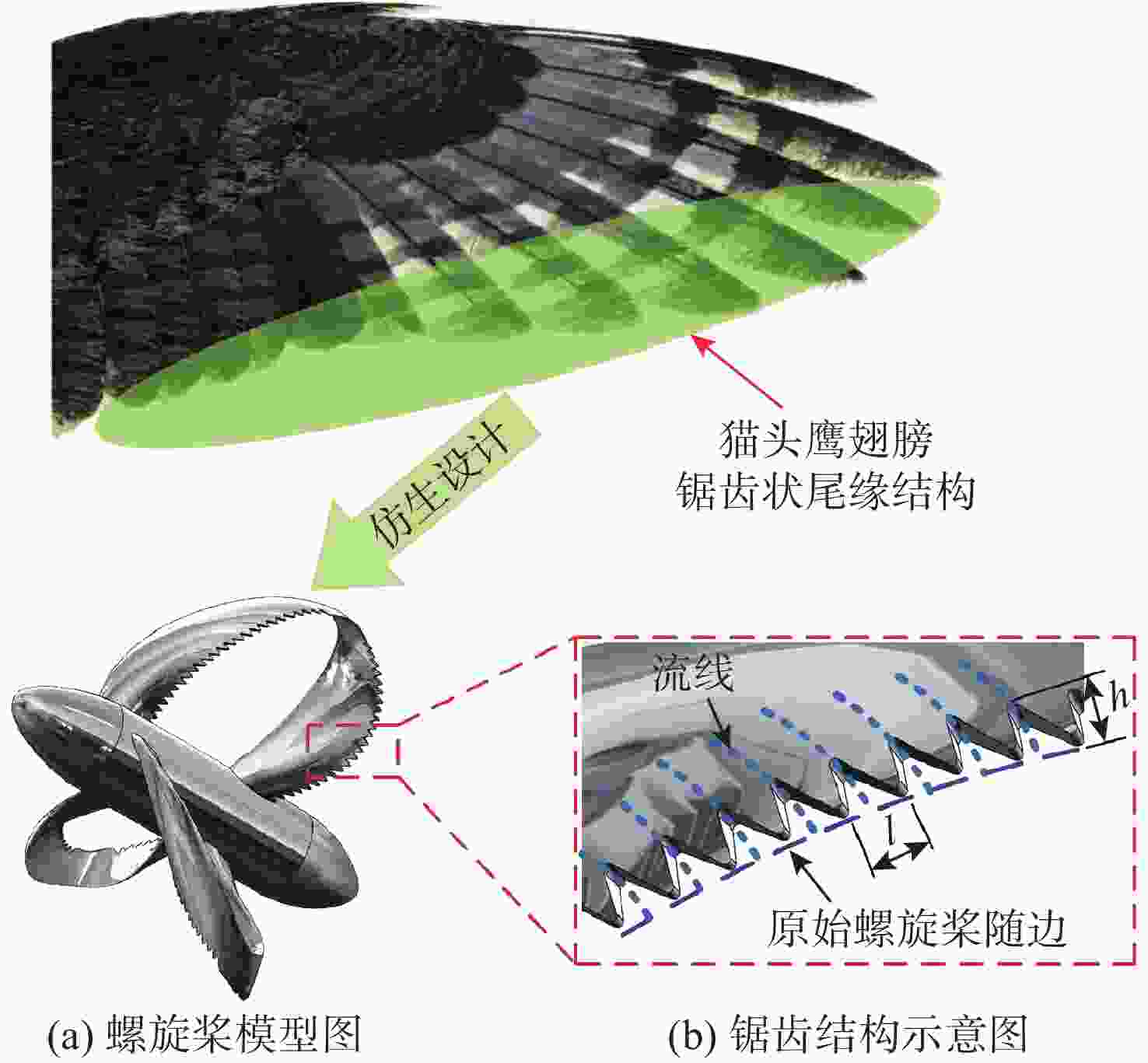

图 2 带有仿生锯齿结构的环形螺旋桨

Figure 2. Annular propeller with bionic sawtooth structure

下载: 全尺寸图片幻灯片

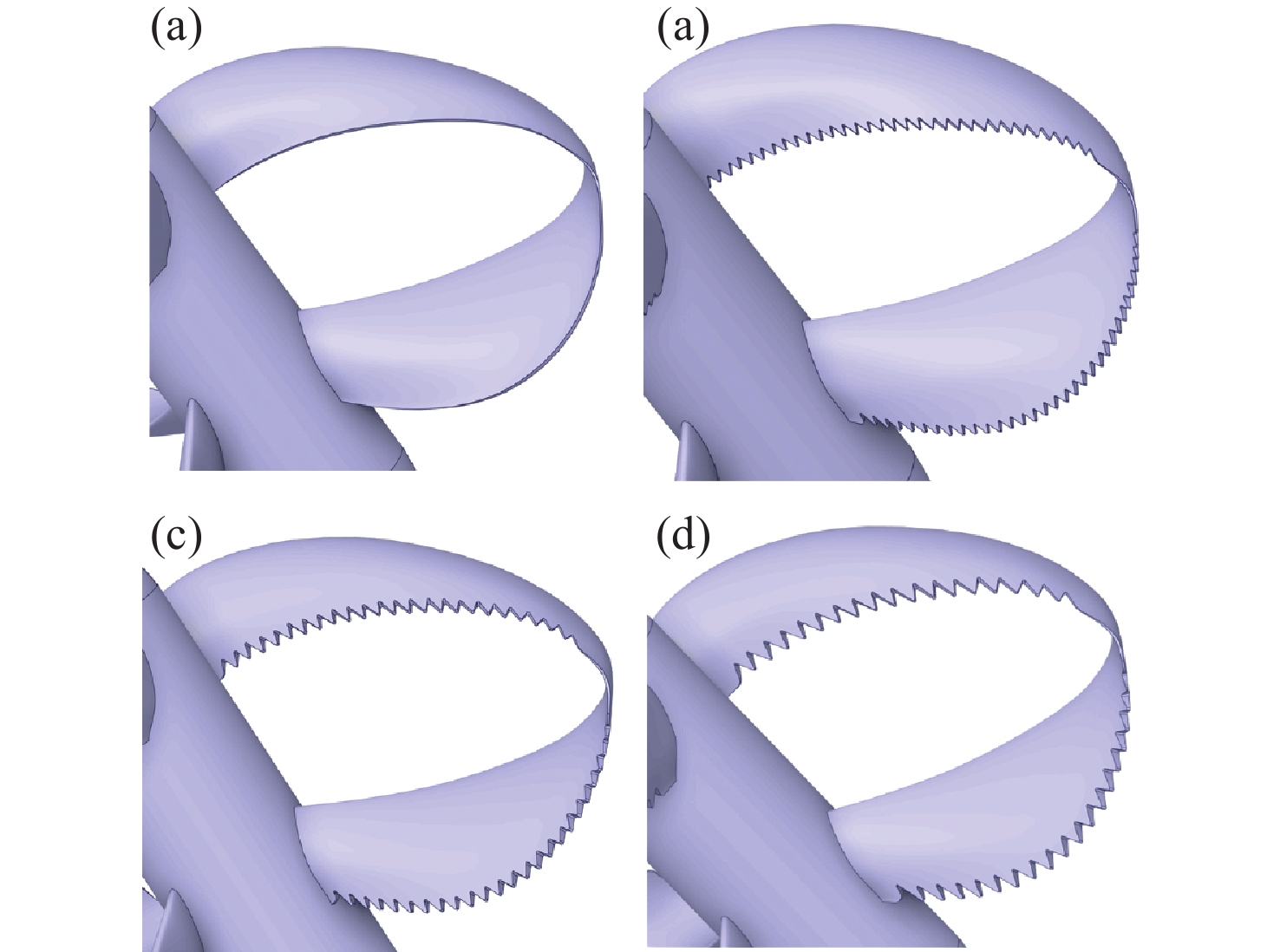

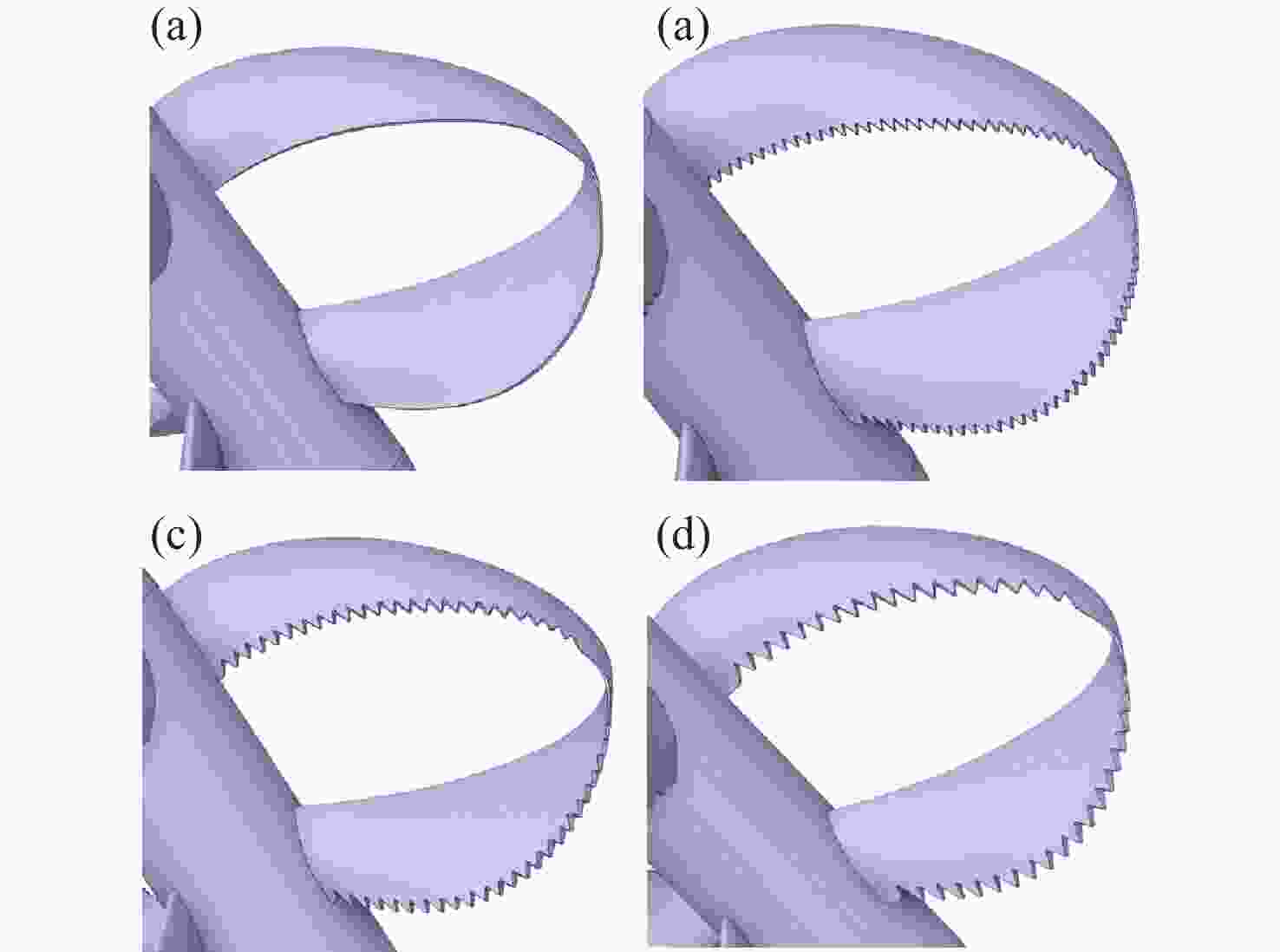

图 3 计算模型锯齿结构对比图

Figure 3. Comparison diagram of saw tooth structure of calculation model

下载: 全尺寸图片幻灯片

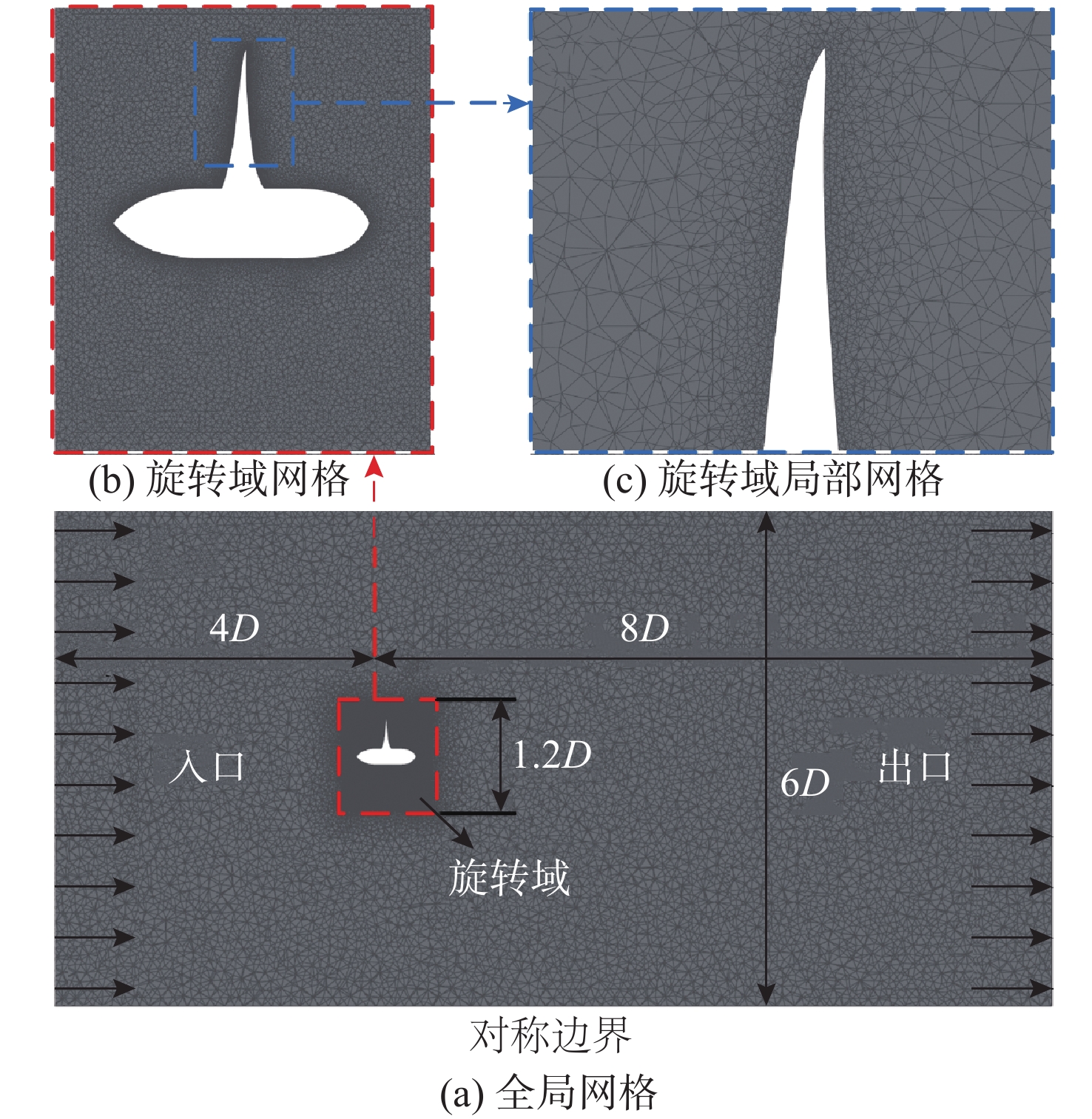

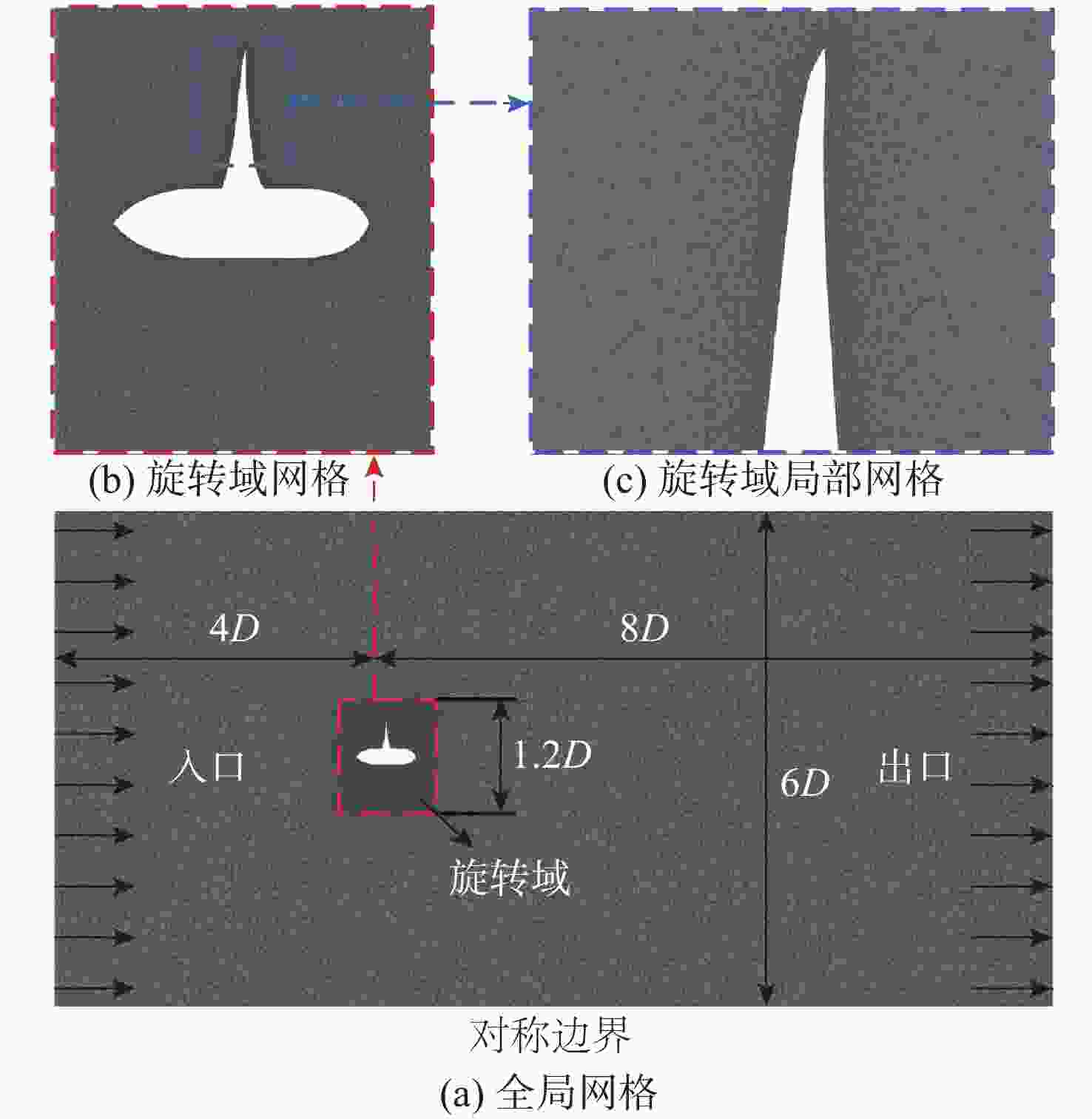

图 4 网格划分模型

Figure 4. Meshing models

下载: 全尺寸图片幻灯片

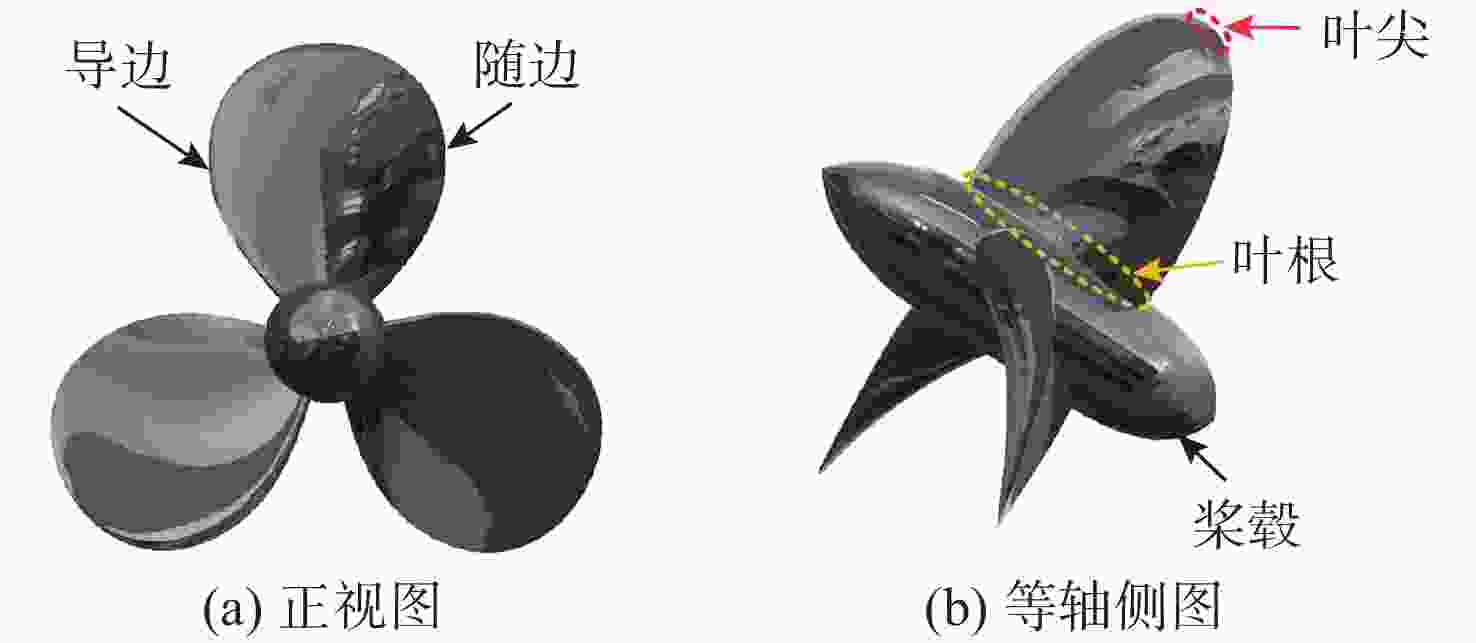

图 5 DTMB P4119螺旋桨模型图

Figure 5. DTMB P4119 propeller model diagram

下载: 全尺寸图片幻灯片

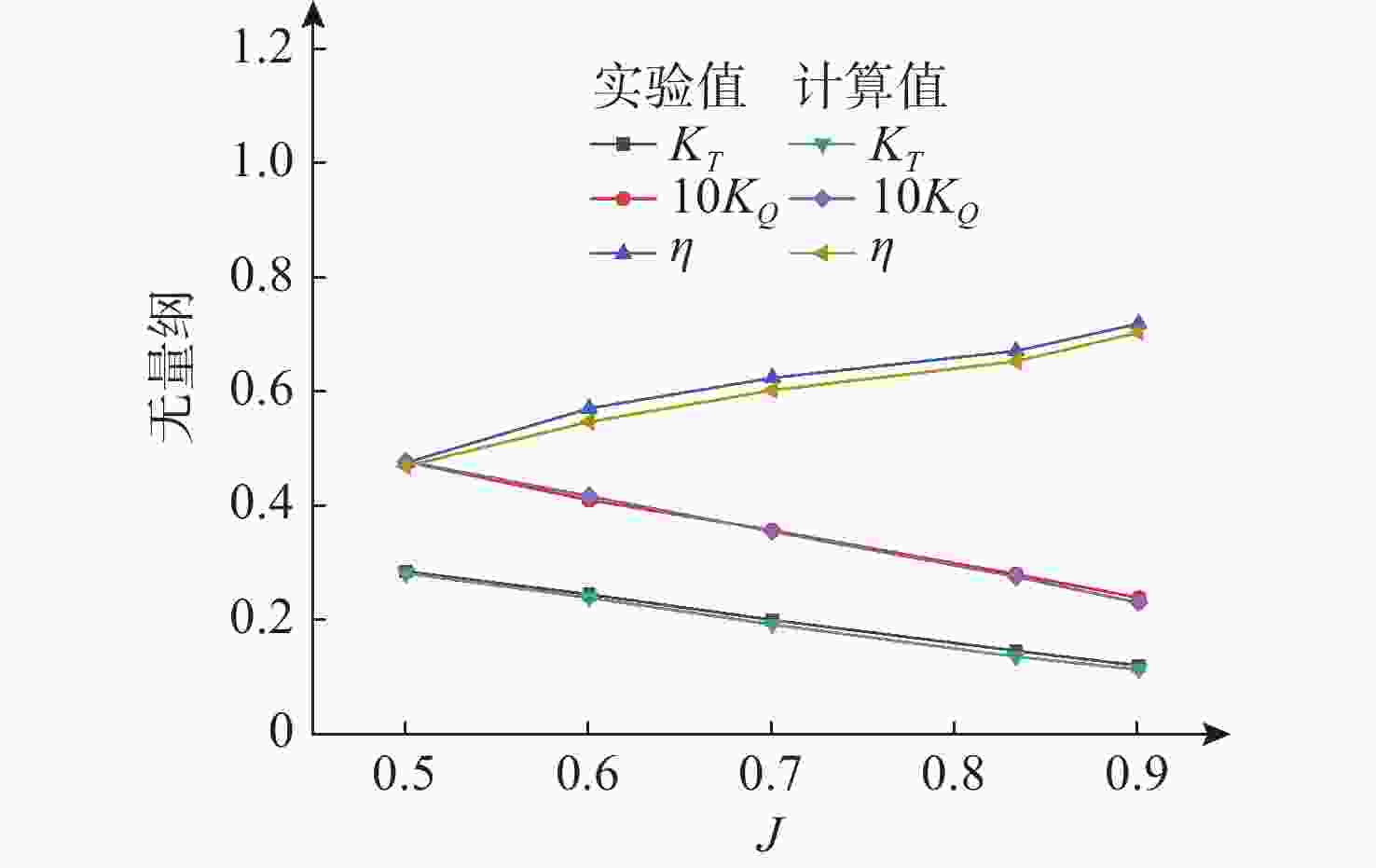

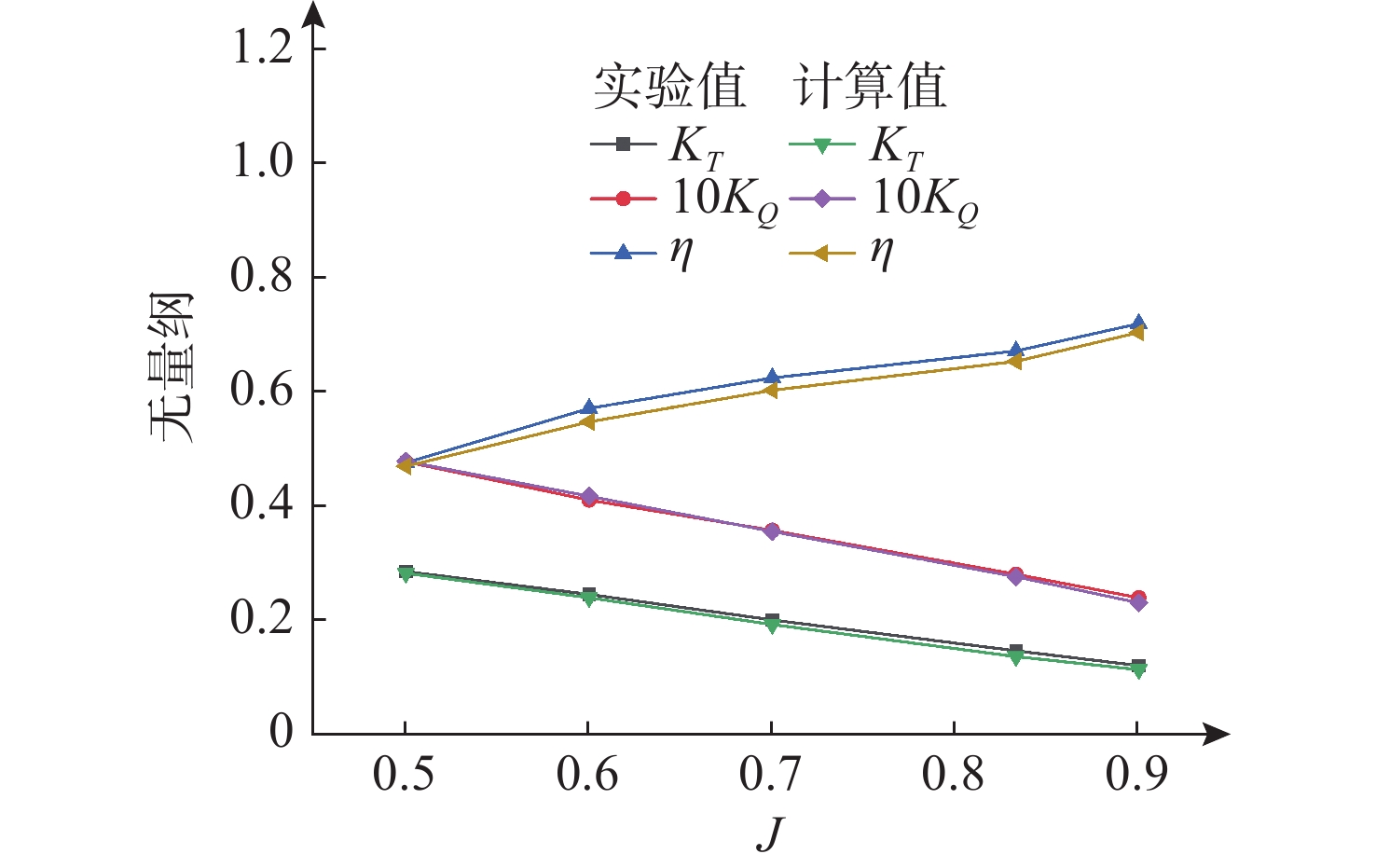

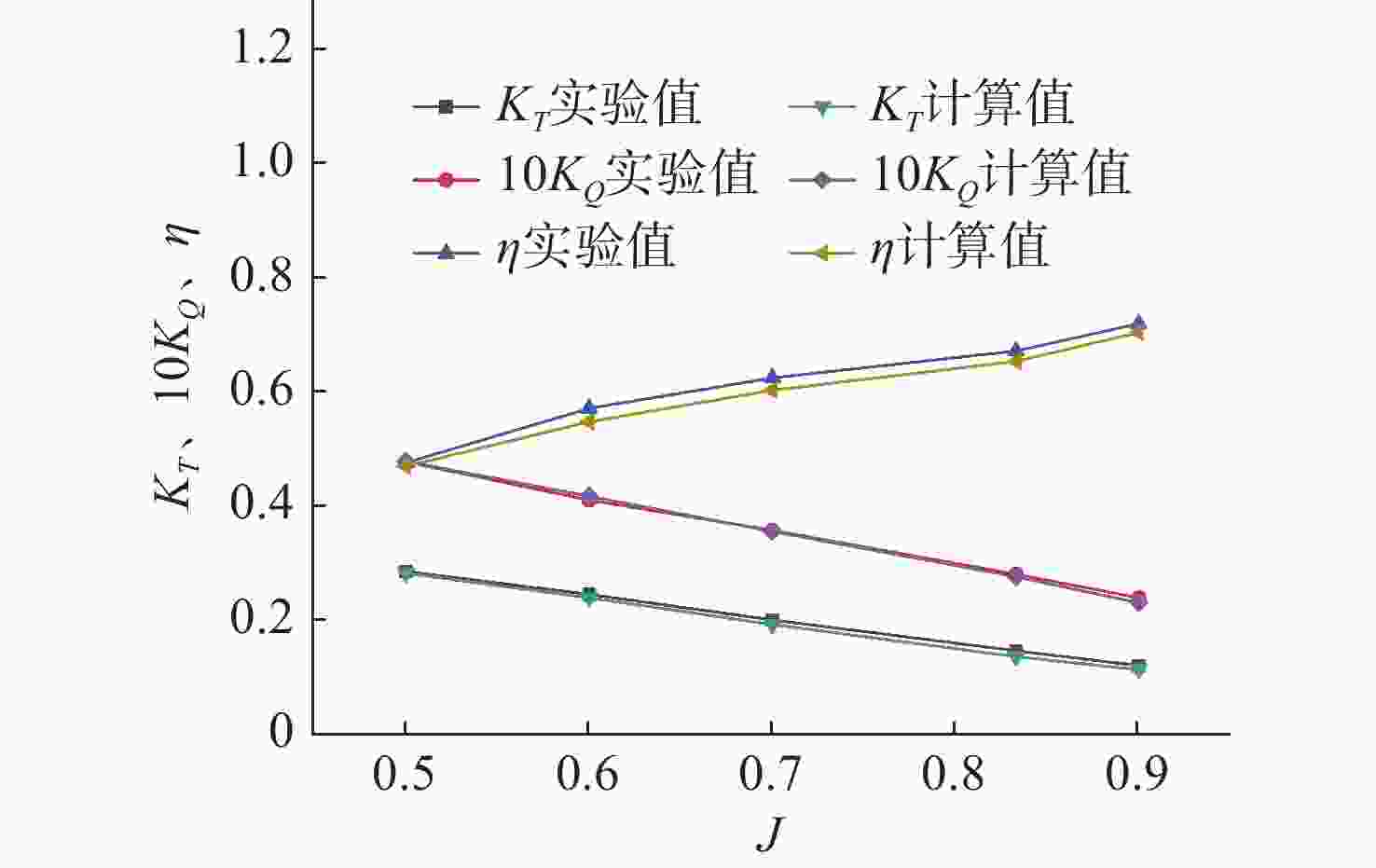

图 6 DTMB P4119螺旋桨淌水性能曲线

Figure 6. DTMB P4119 propeller open water performance curves

下载: 全尺寸图片幻灯片

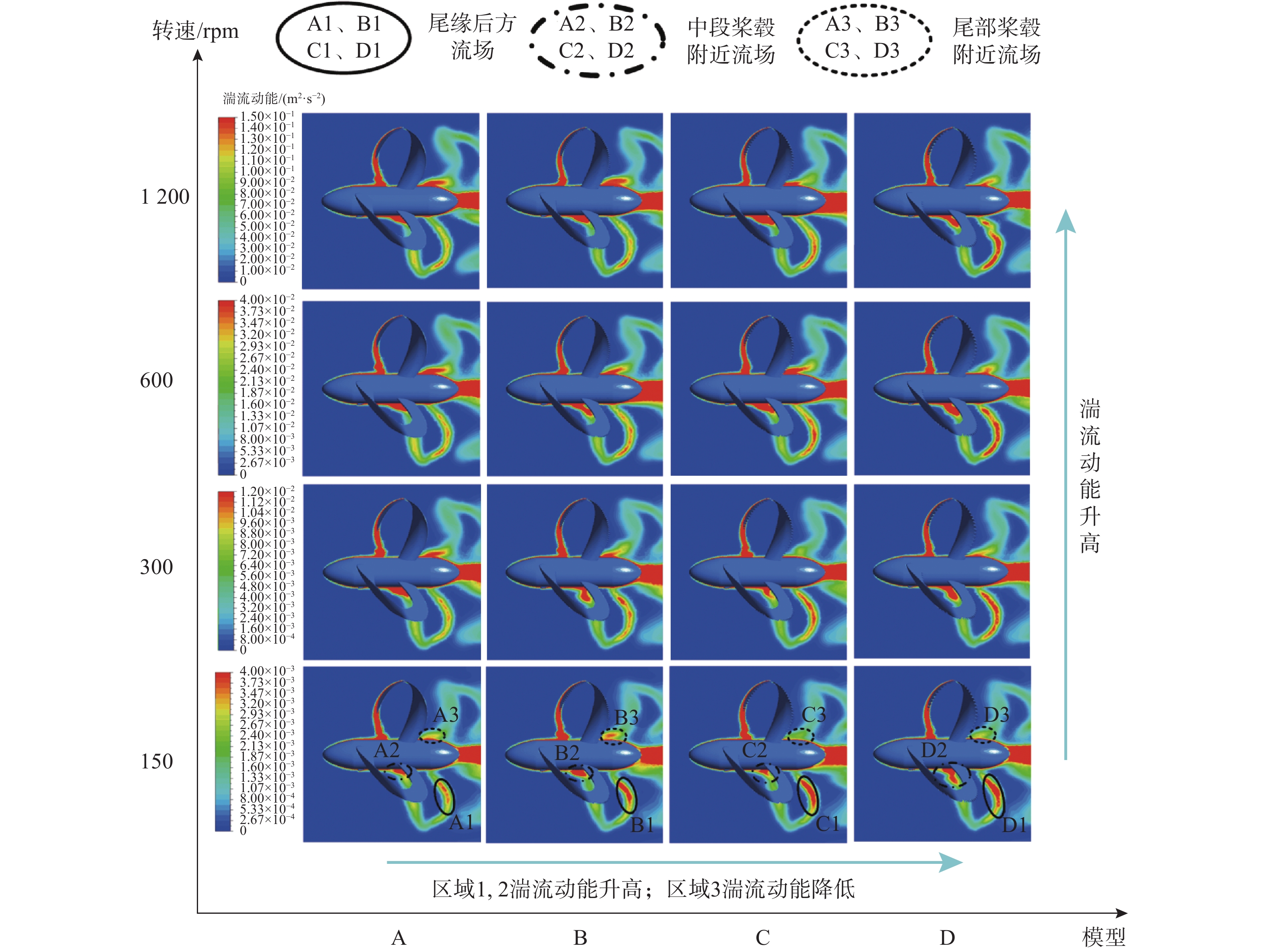

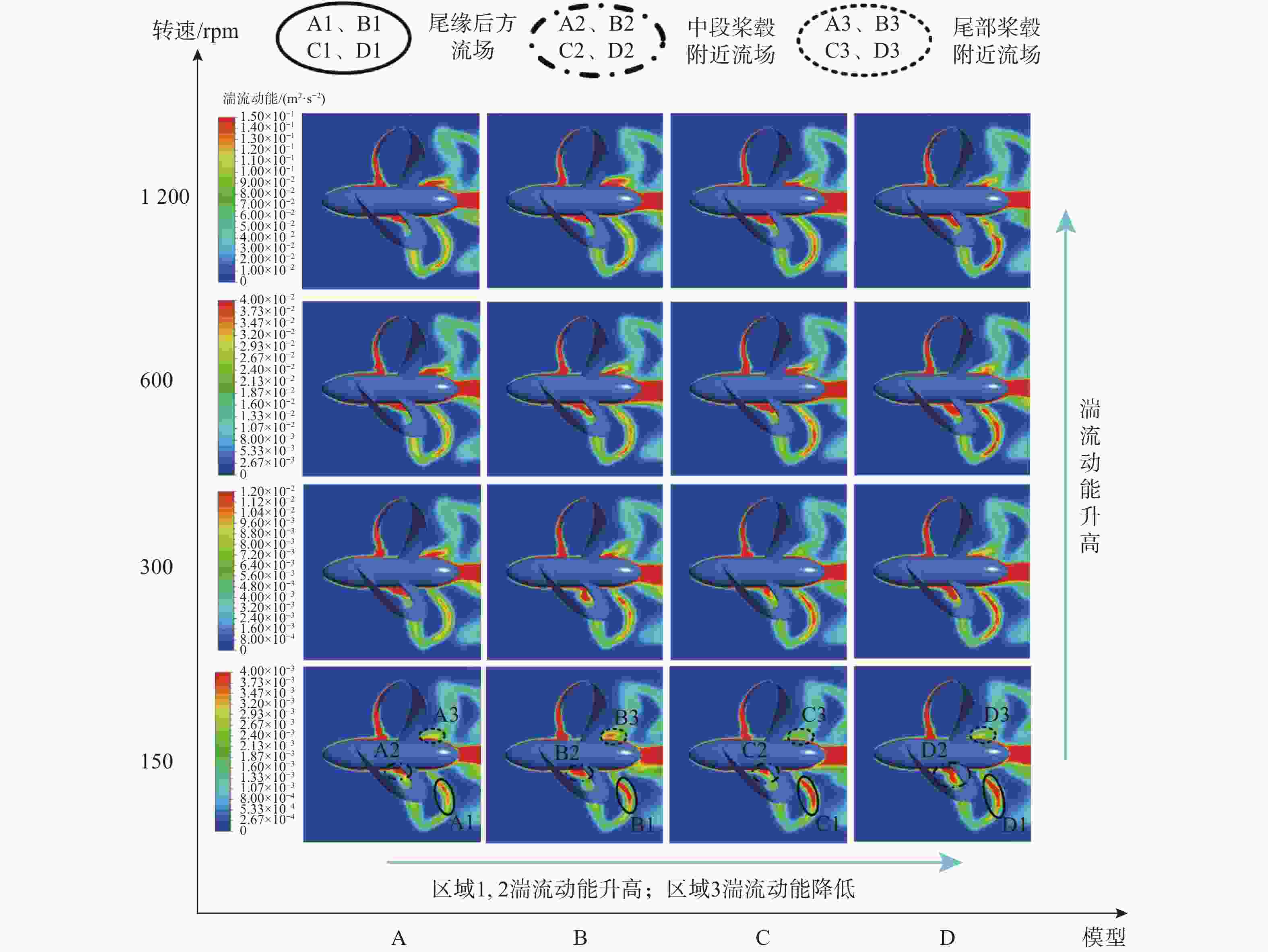

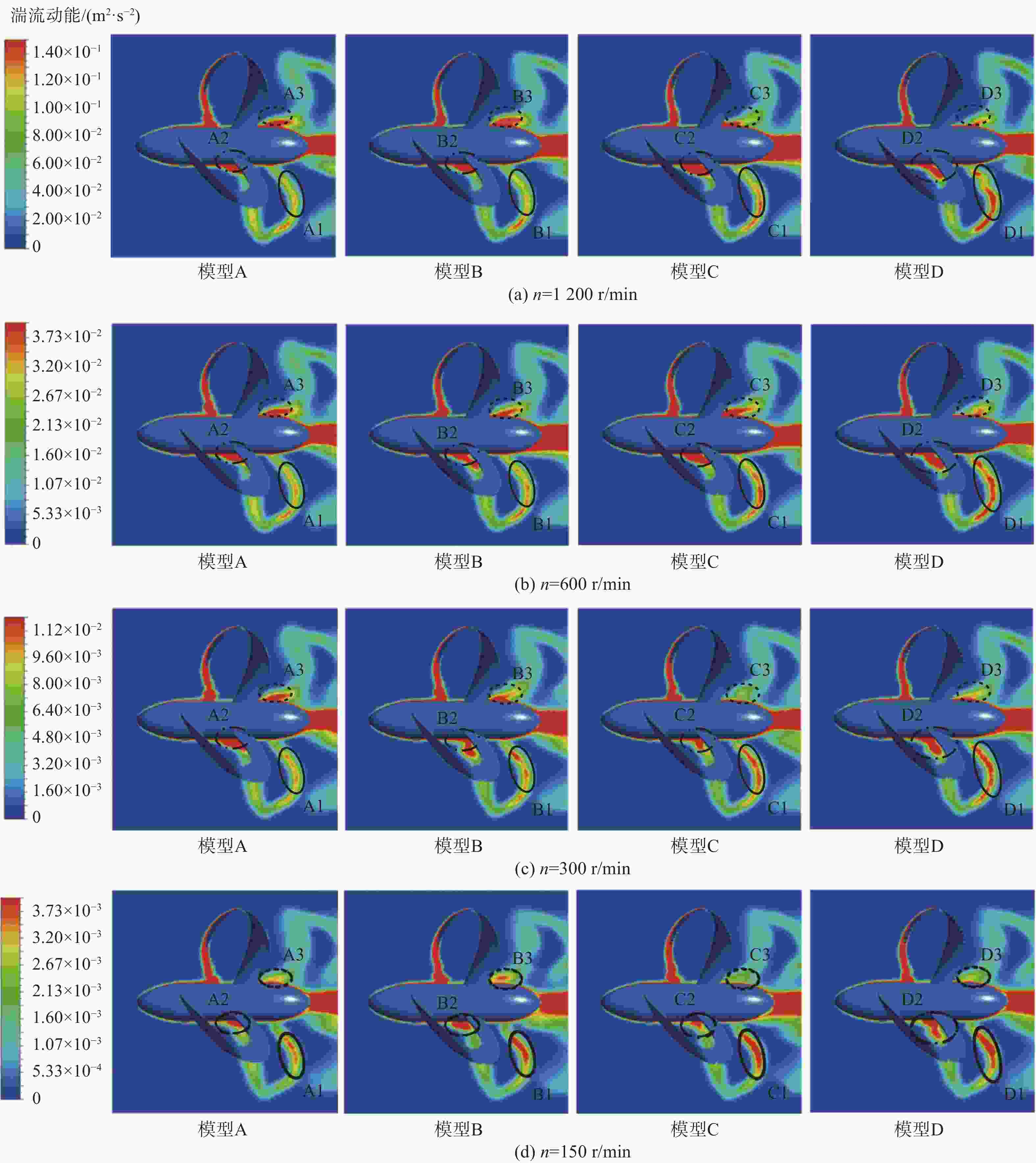

图 7 旋转域中心平面(Y=0)湍流动能图

Figure 7. Rotational domain center plane (Y=0) turbulent kinetic energy diagram

下载: 全尺寸图片幻灯片

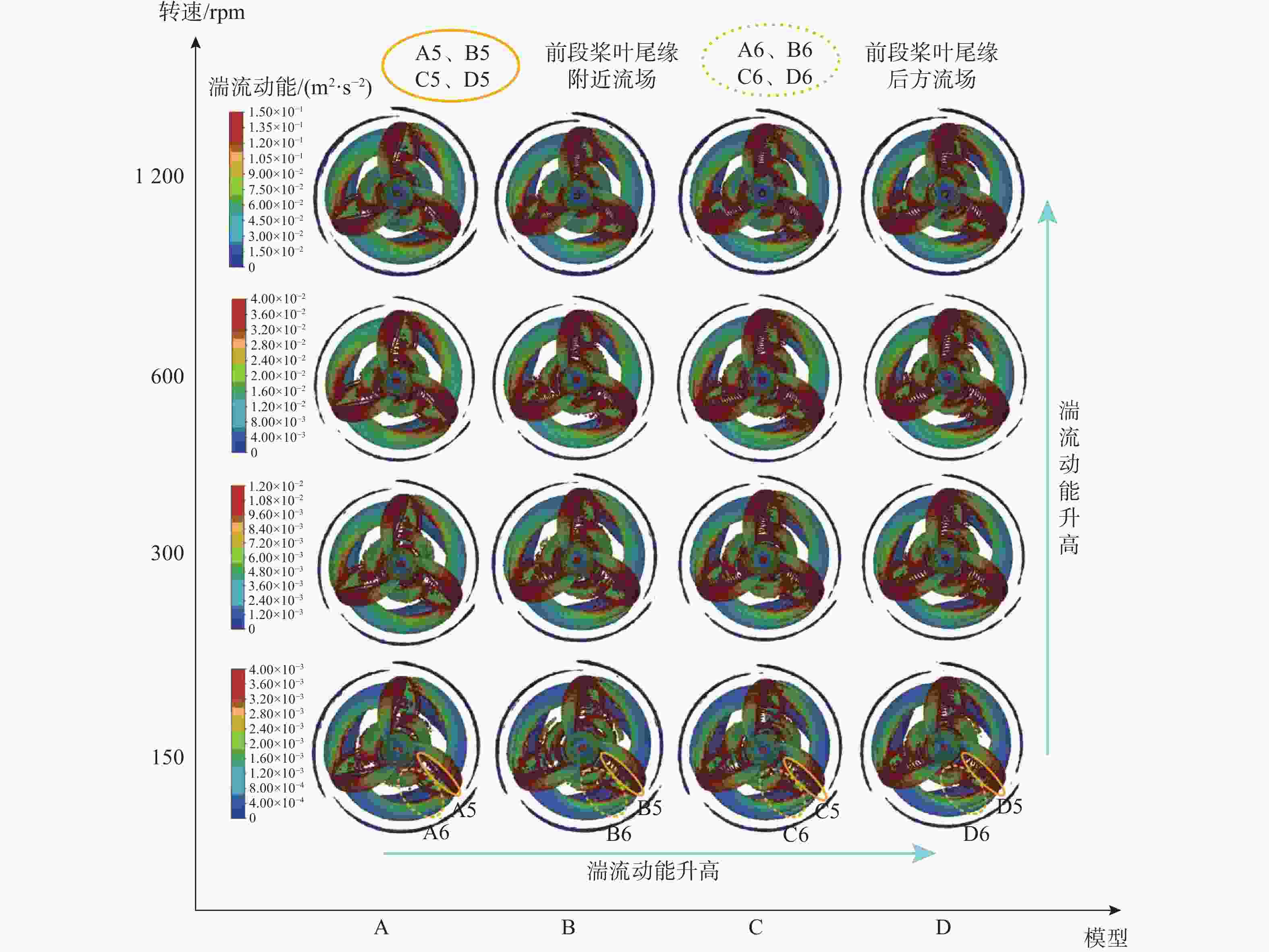

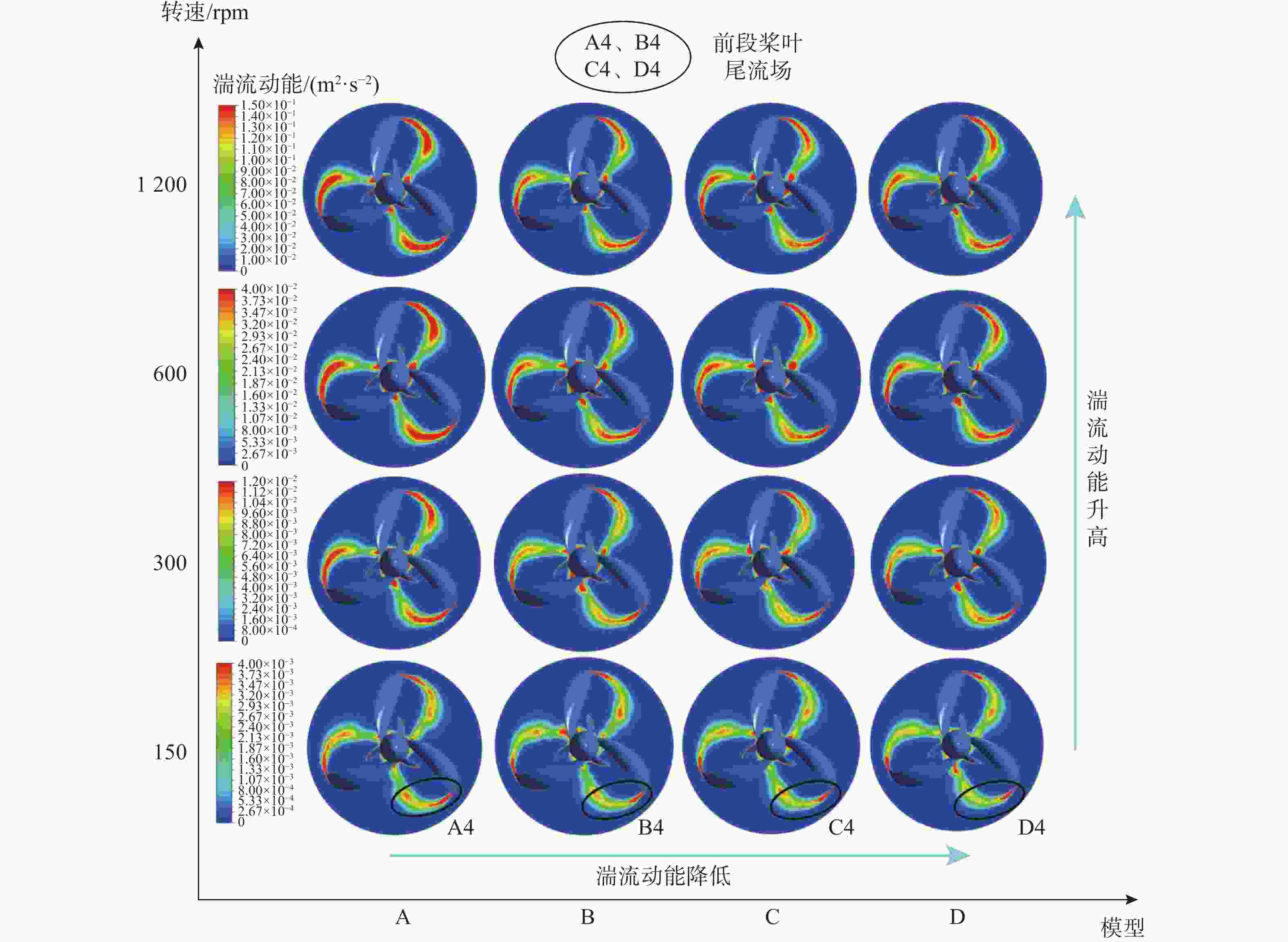

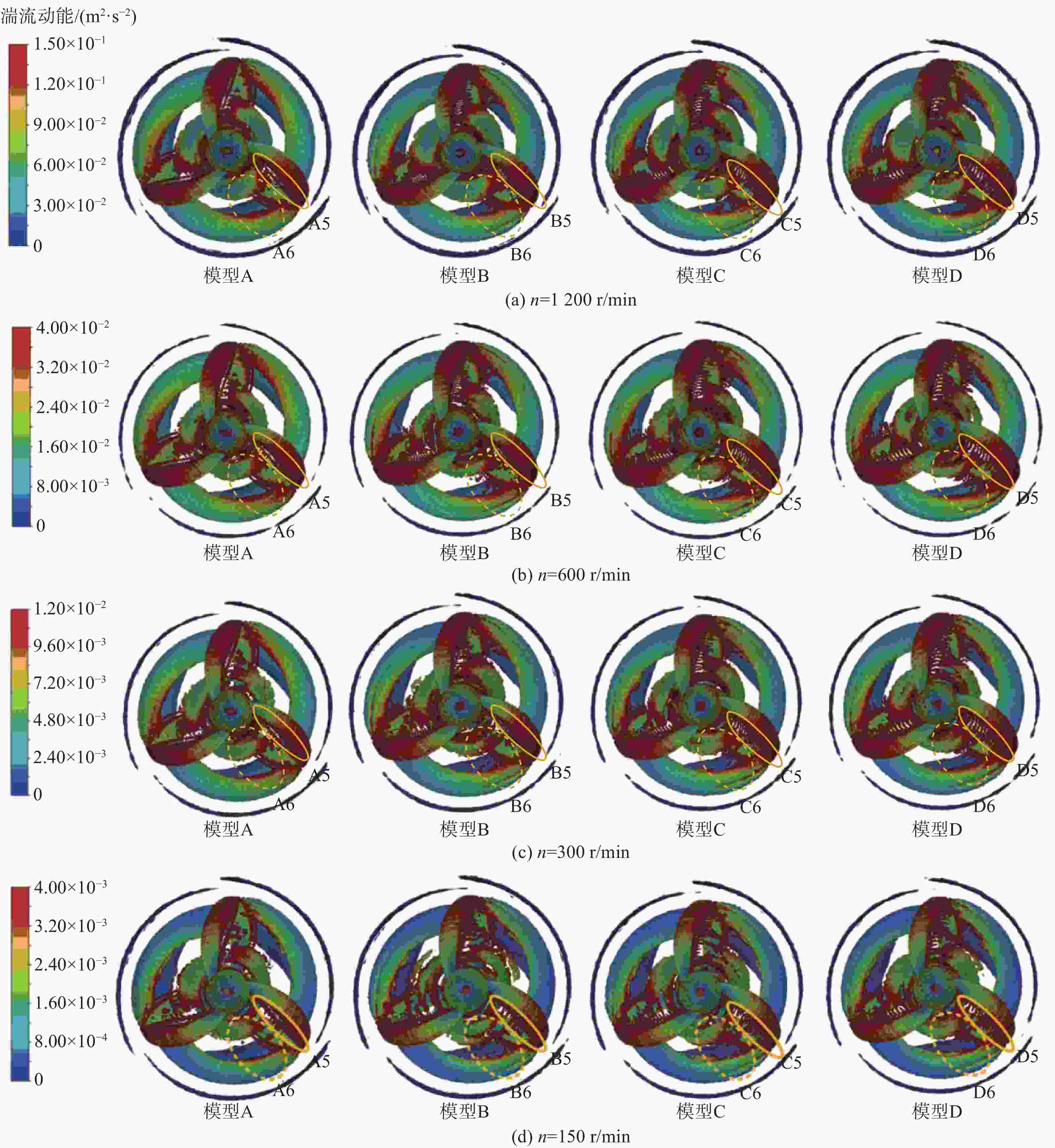

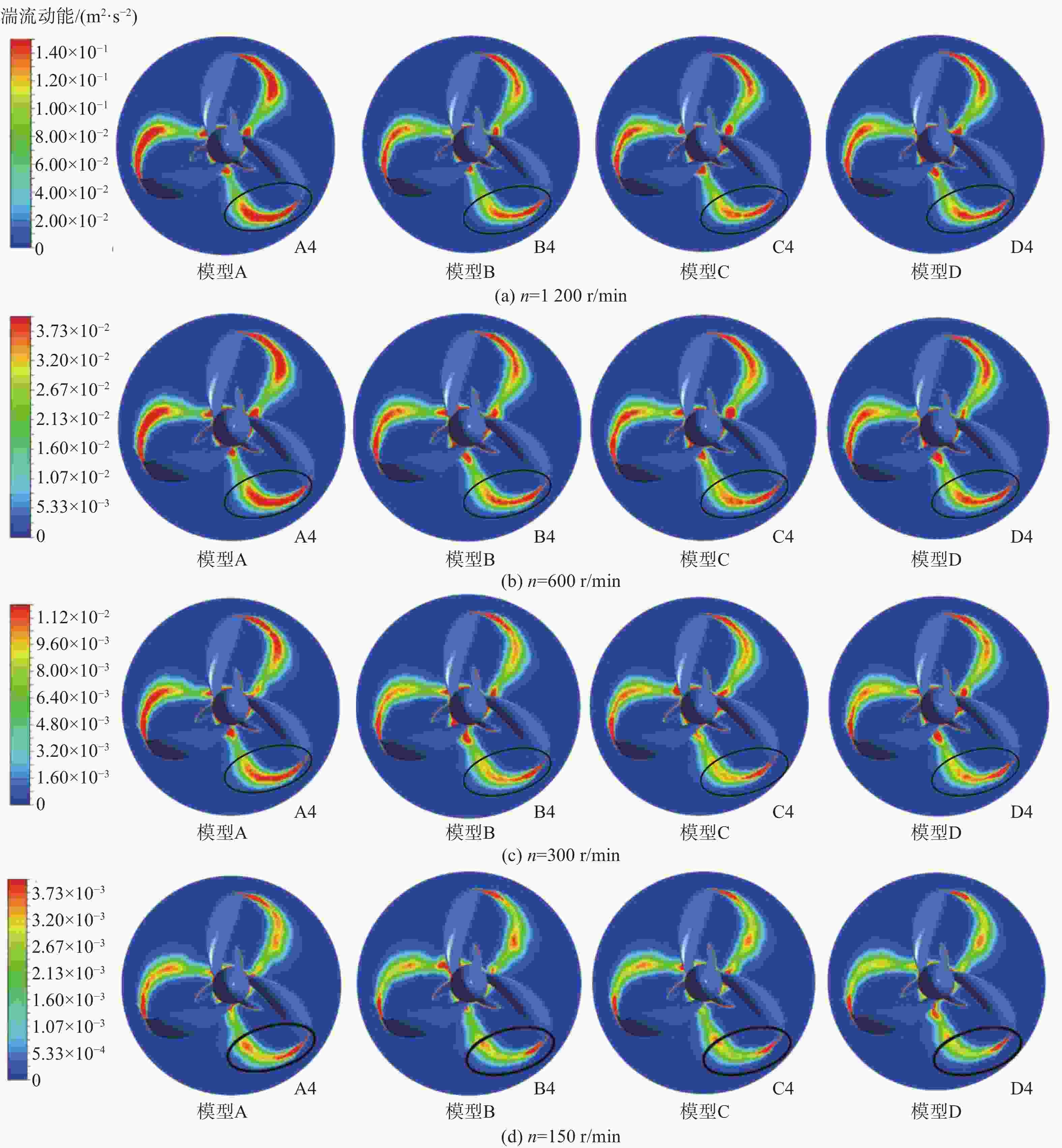

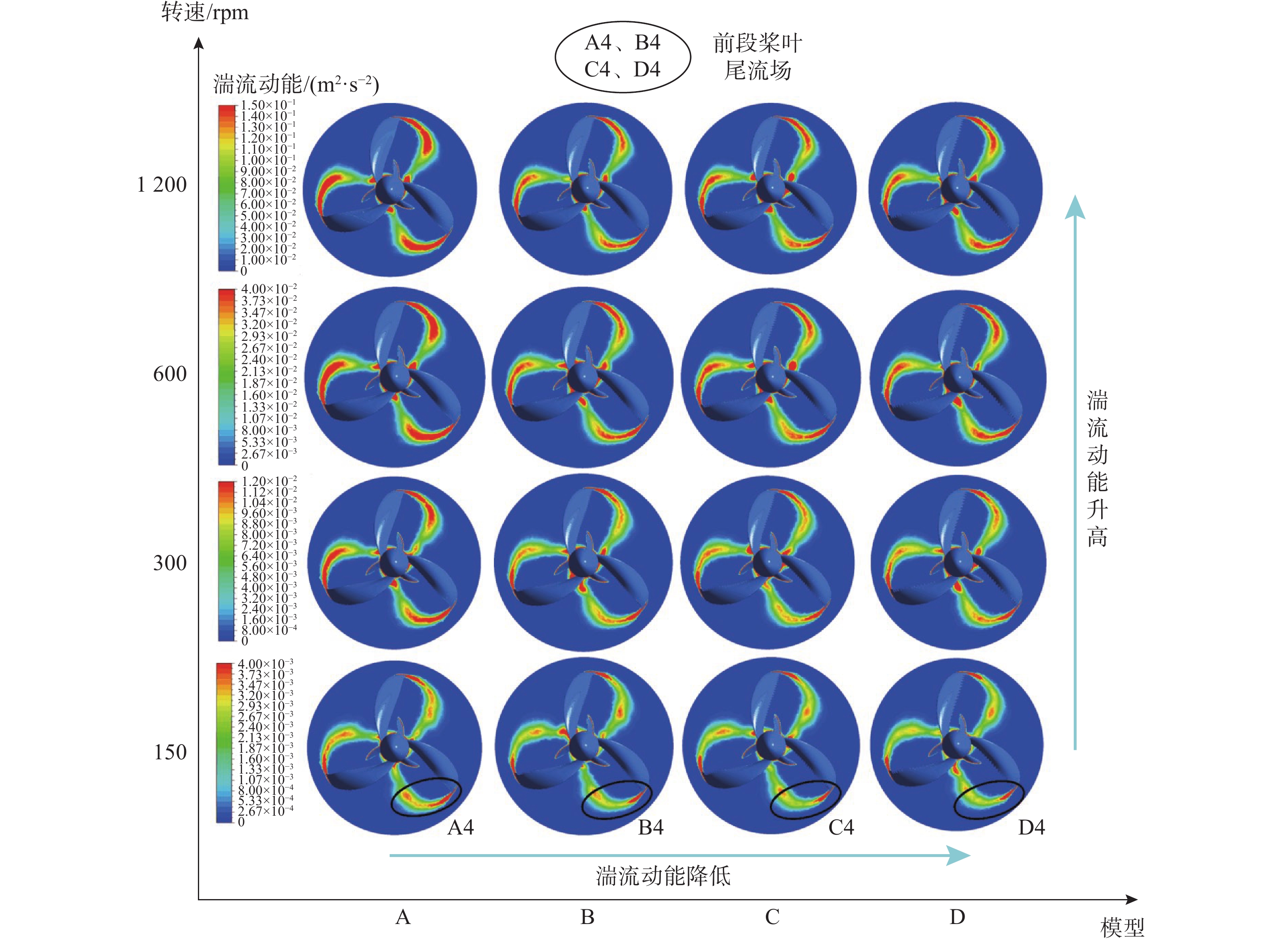

图 8 旋转域叶尖平面(X=0)湍流动能图

Figure 8. Rotational domain tip-plane (X=0) turbulent kinetic energy diagram

下载: 全尺寸图片幻灯片

图 9 流场X+方向湍流动能图

Figure 9. Stream field X+ direction turbulent kinetic energy diagram

下载: 全尺寸图片幻灯片

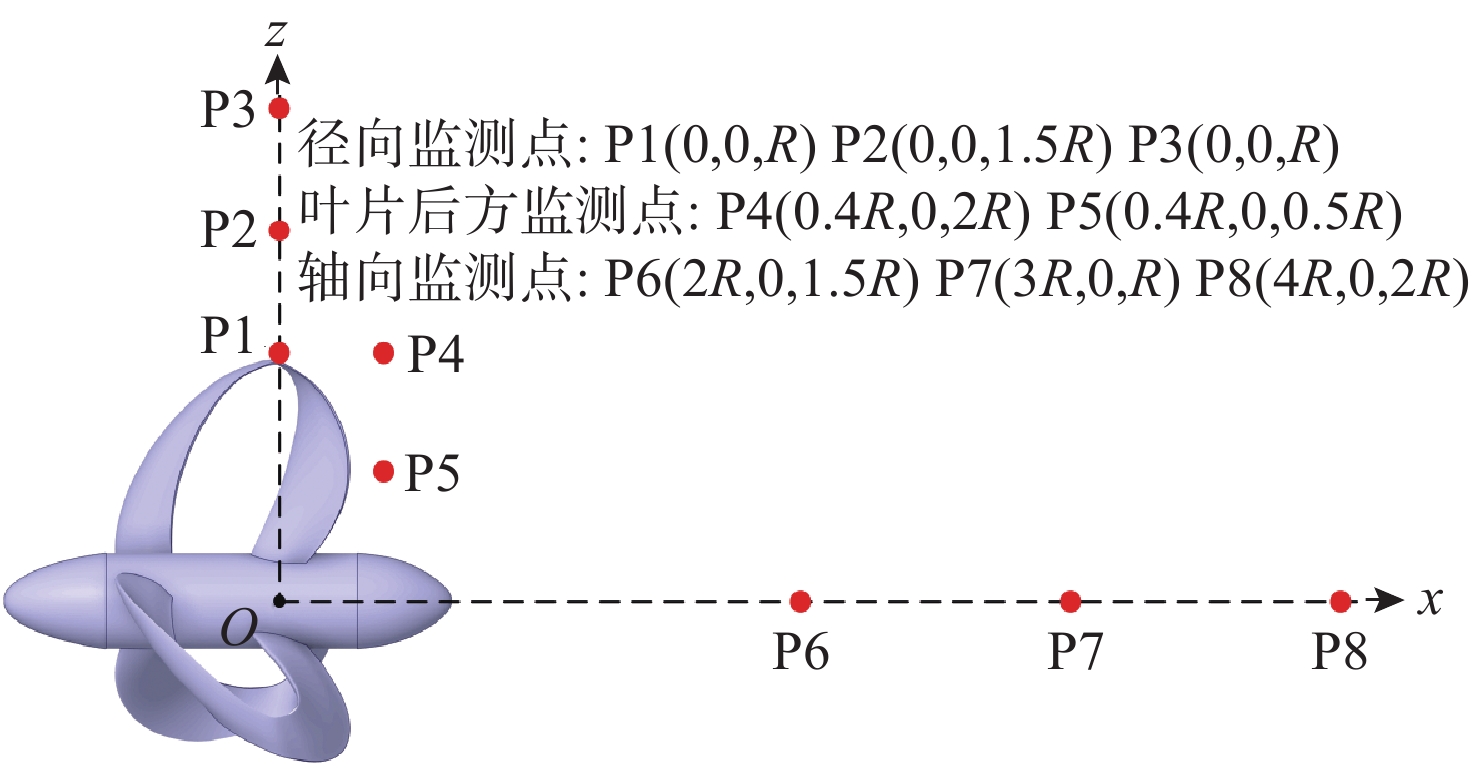

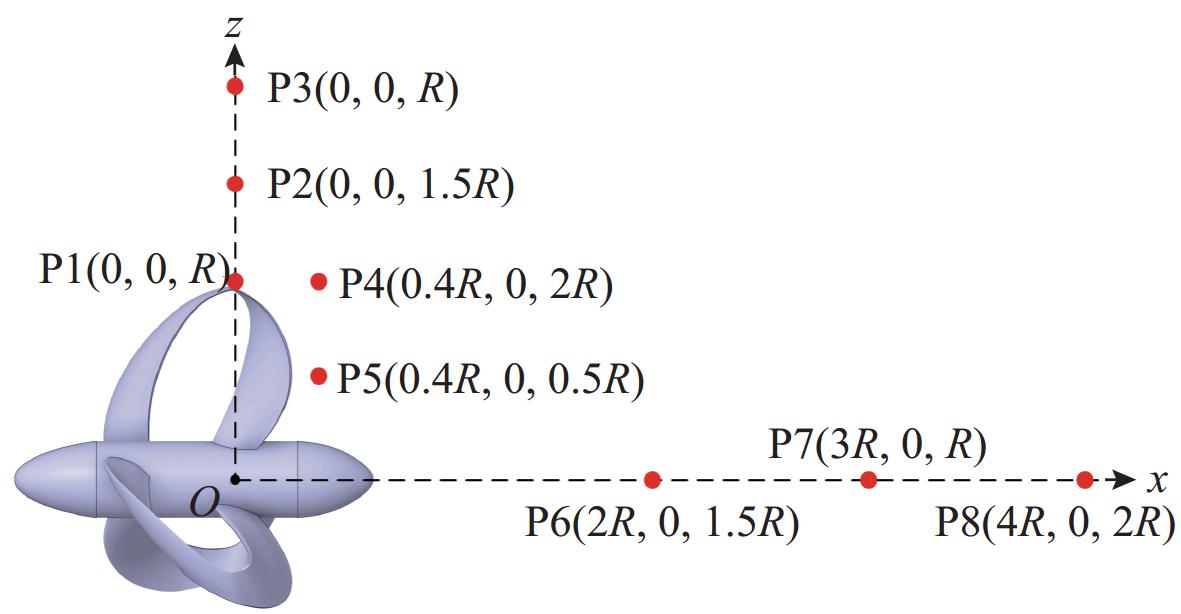

图 10 噪声监测点分布图

Figure 10. Distribution map of noise monitoring points

下载: 全尺寸图片幻灯片

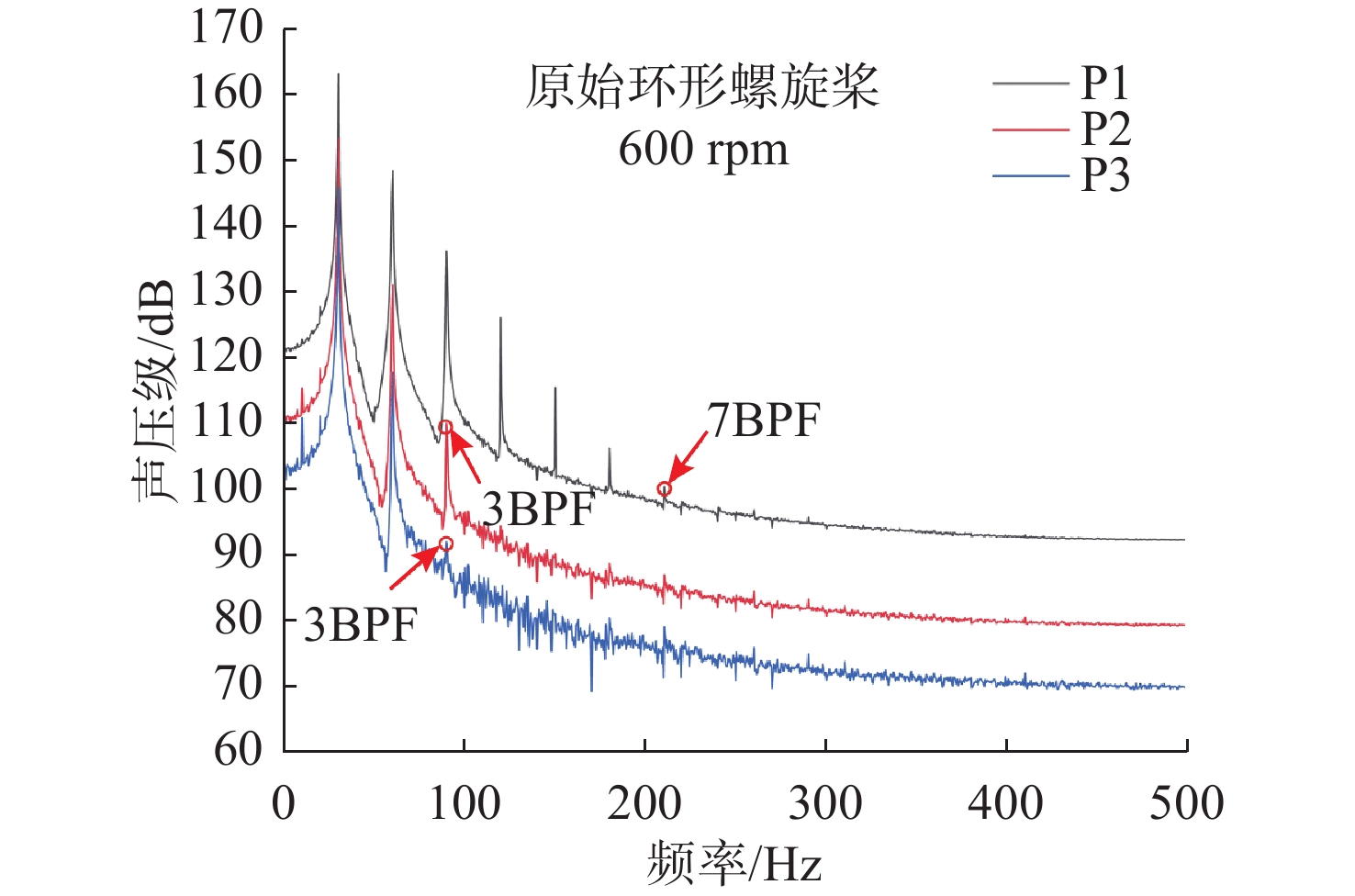

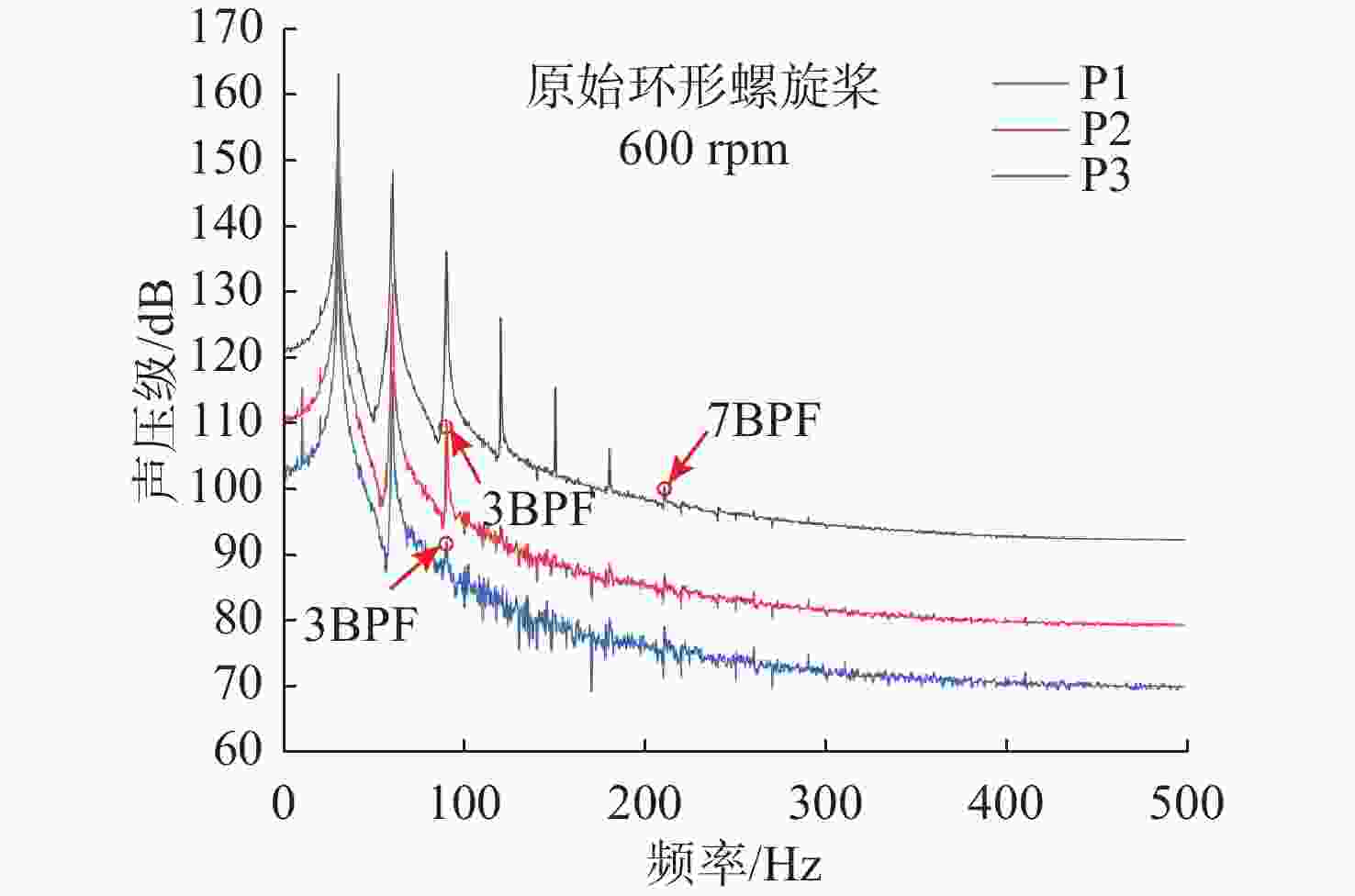

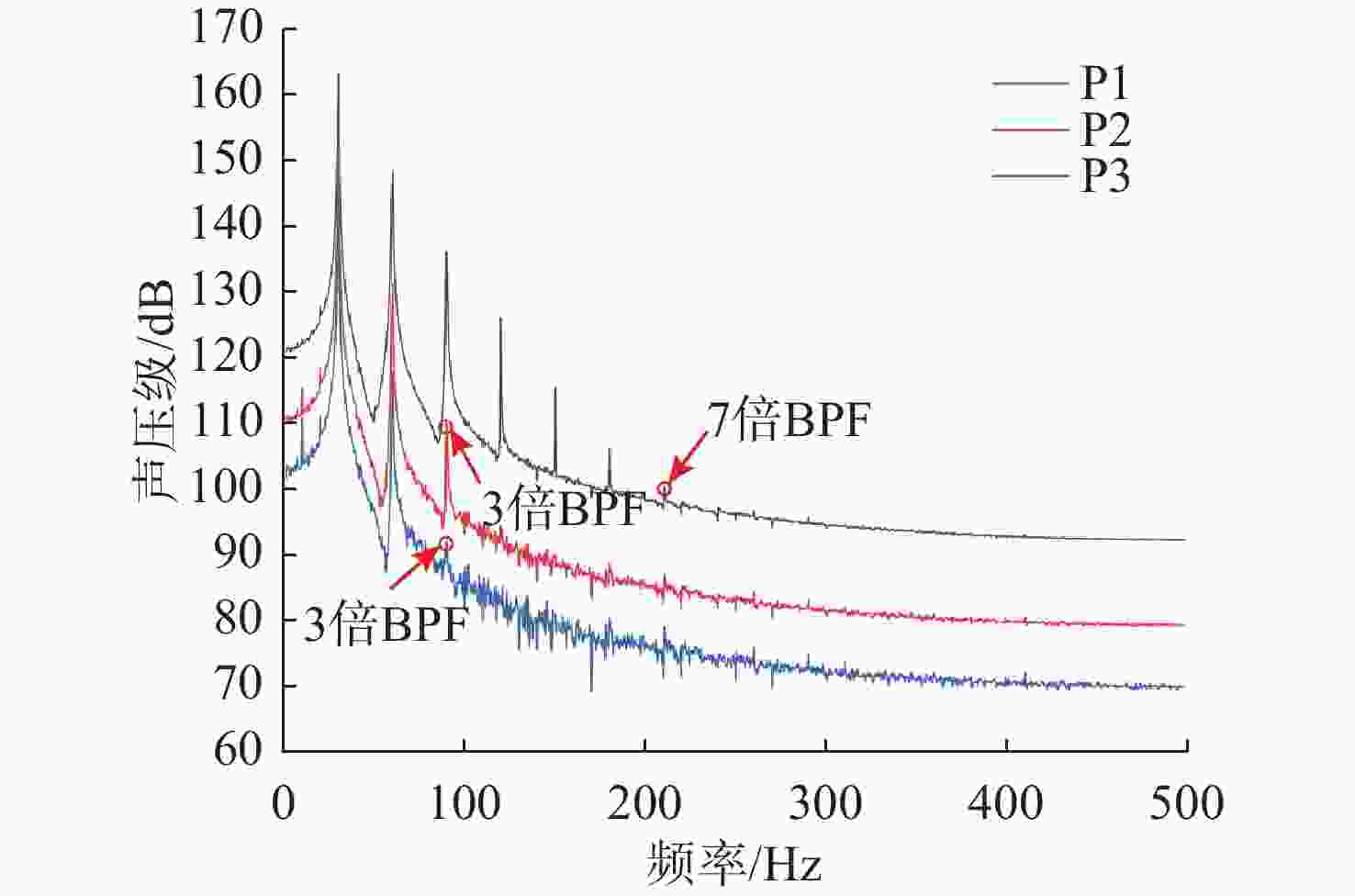

图 11 原始环形螺旋桨径向监测点噪声频谱图

Figure 11. Radial monitoring point noise spectrogram of the original toroidal propeller

下载: 全尺寸图片幻灯片

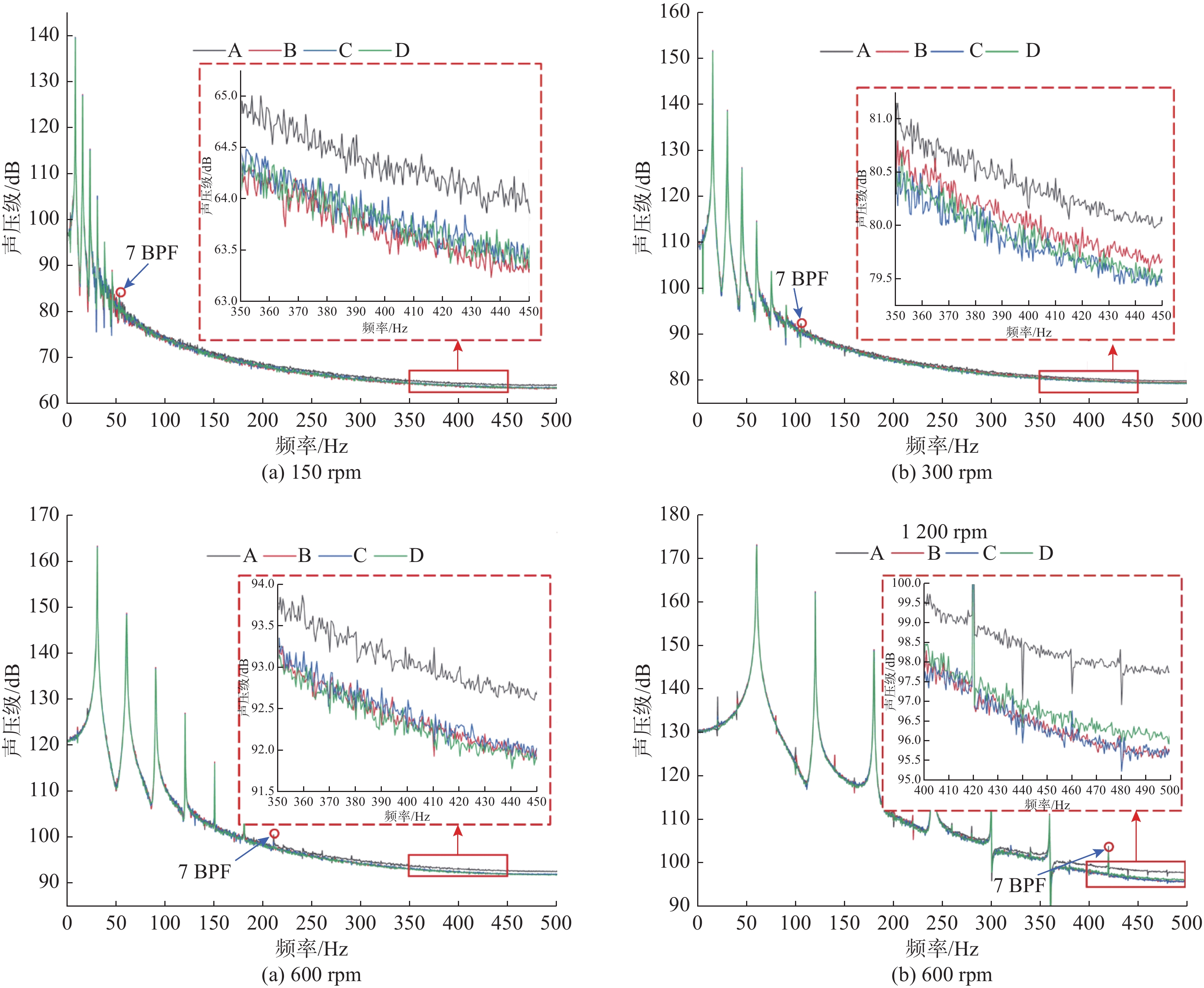

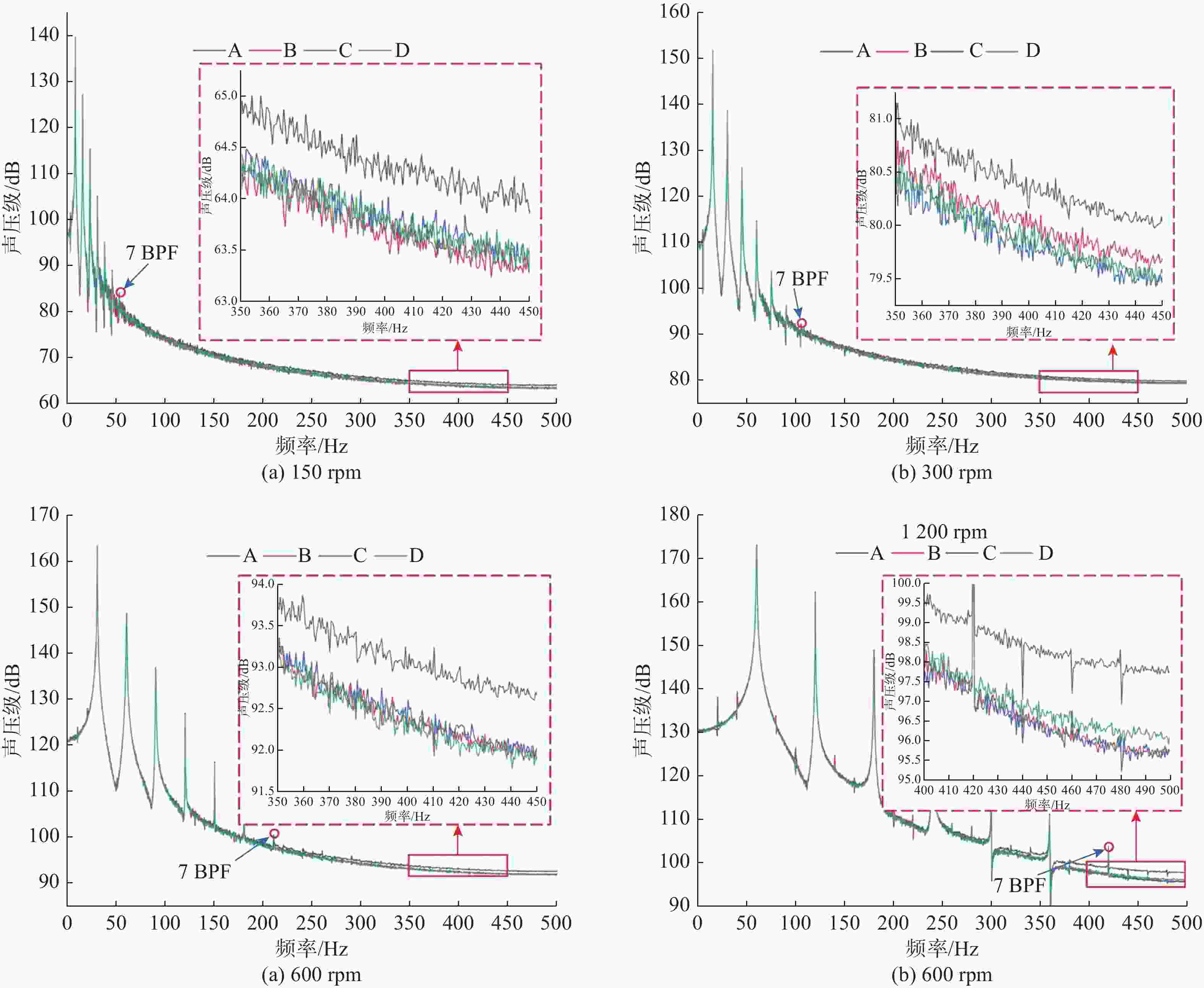

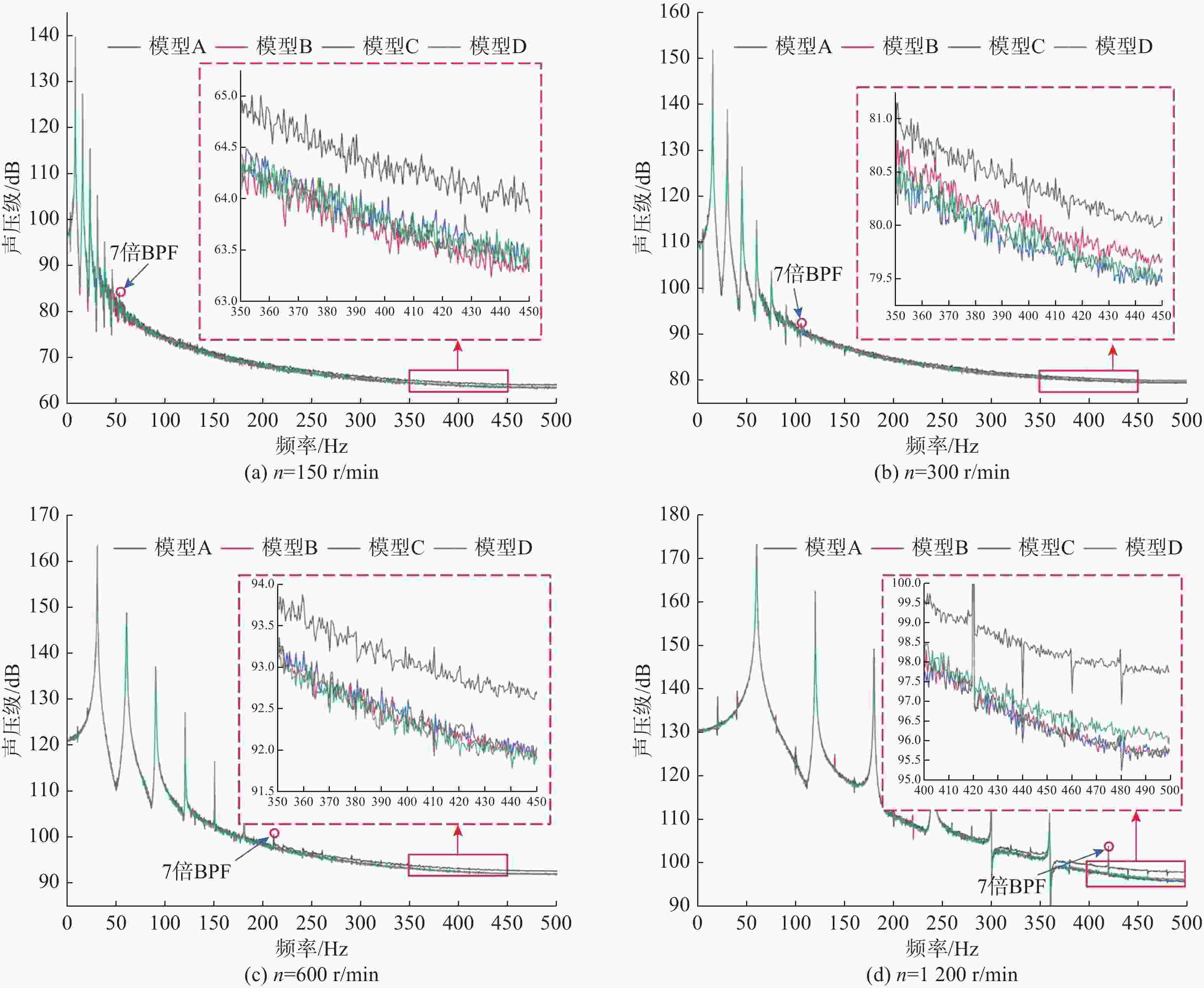

图 12 P1监测点噪声频谱图

Figure 12. Noise spectrum of P1 monitoring point

下载: 全尺寸图片幻灯片

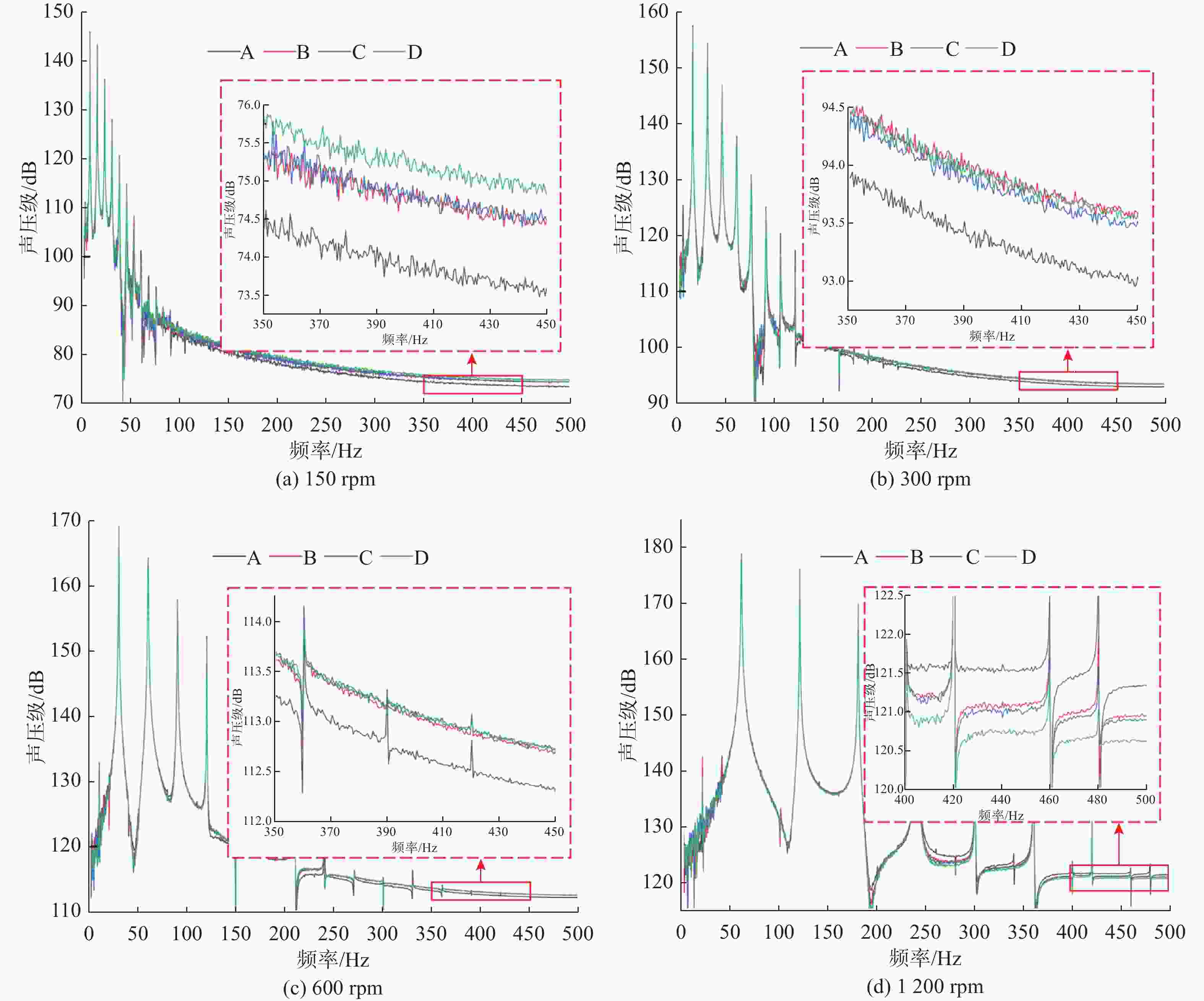

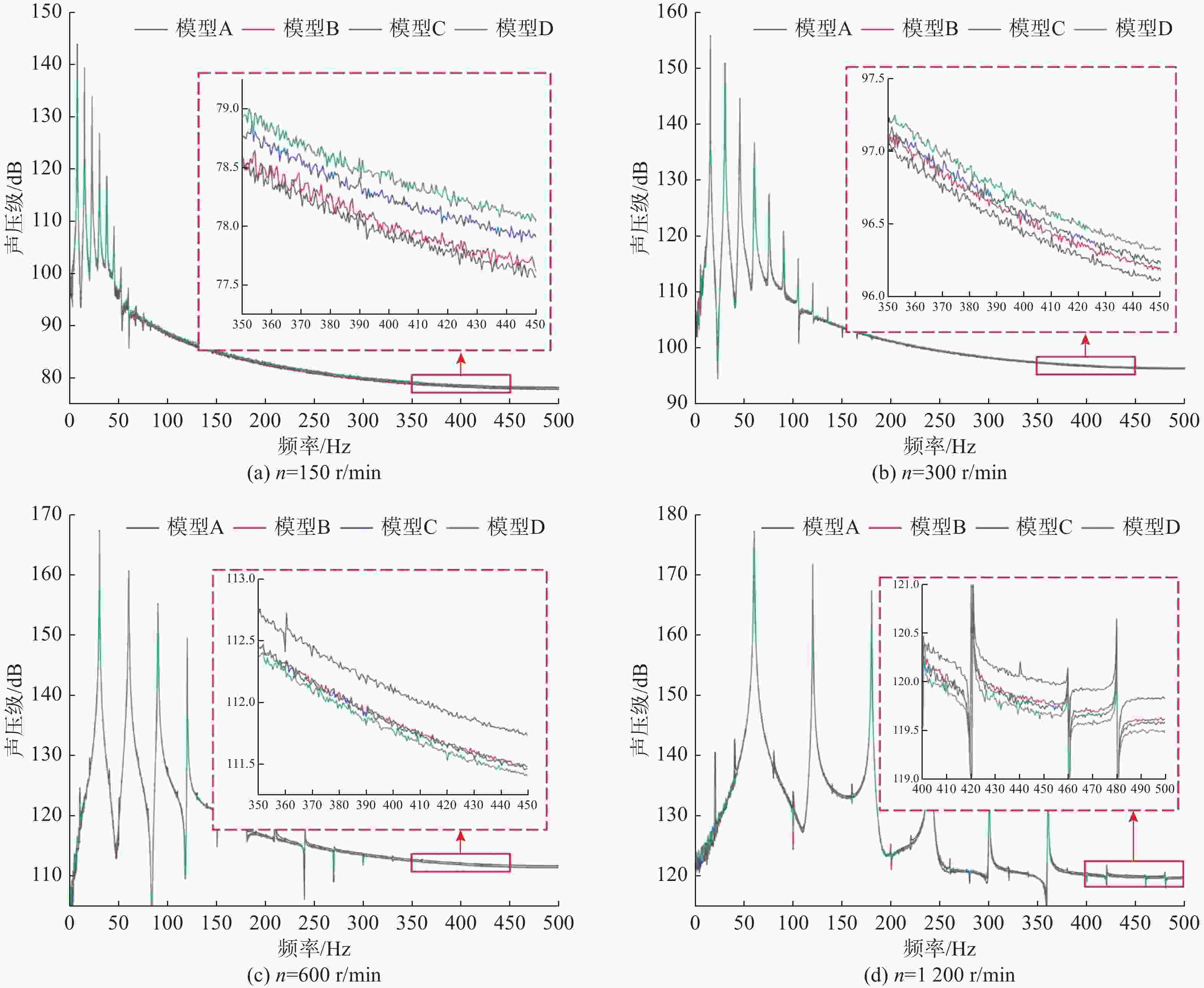

图 13 P4监测点噪声频谱图

Figure 13. Noise spectrum of P4 monitoring point

下载: 全尺寸图片幻灯片

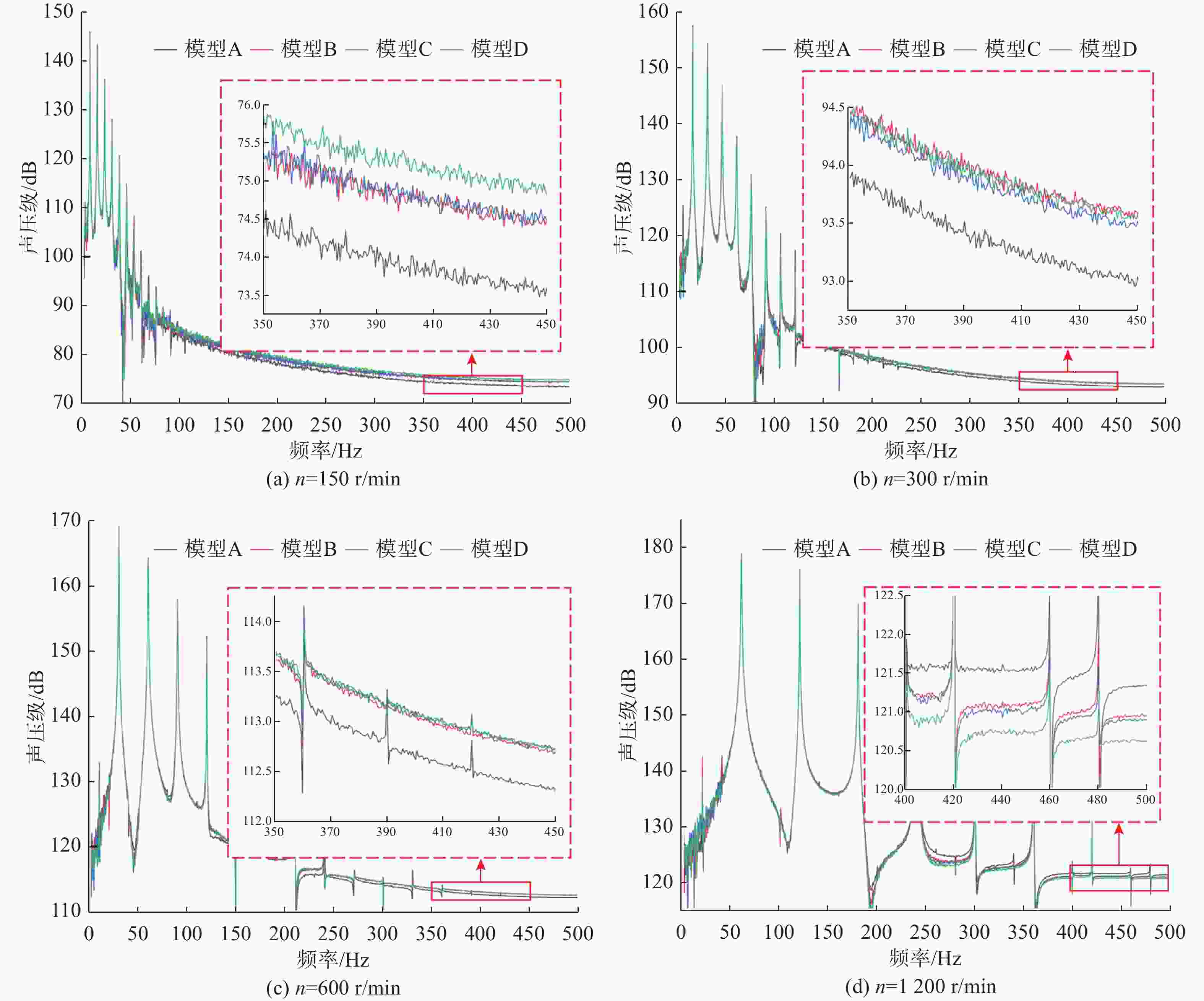

图 14 P5监测点噪声频谱图

Figure 14. Noise spectrum of P5 monitoring point

下载: 全尺寸图片幻灯片

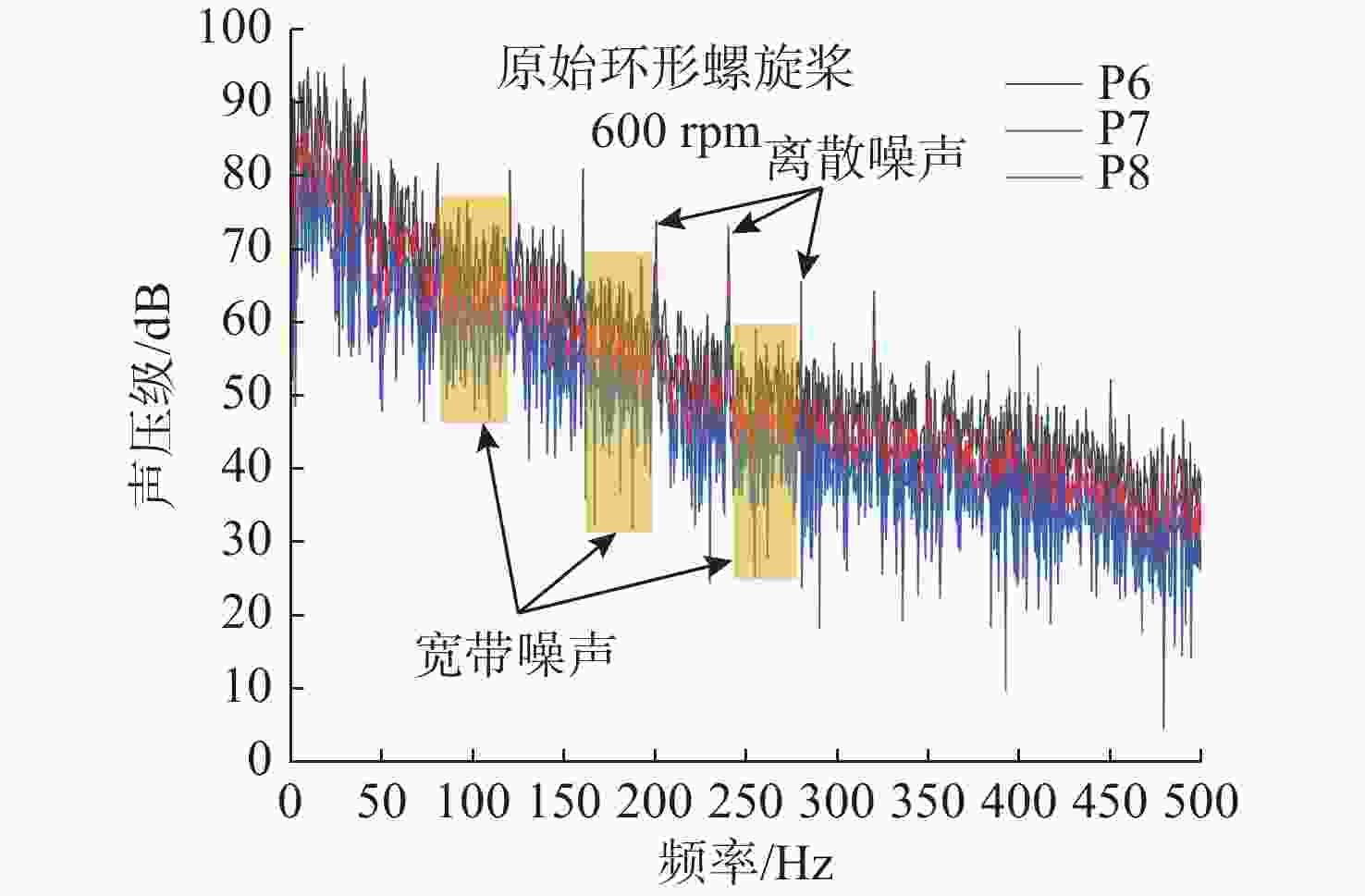

图 15 原始环形螺旋桨轴向监测点噪声频谱图

Figure 15. Noise spectrum of axial monitoring points of original annular propeller

下载: 全尺寸图片幻灯片

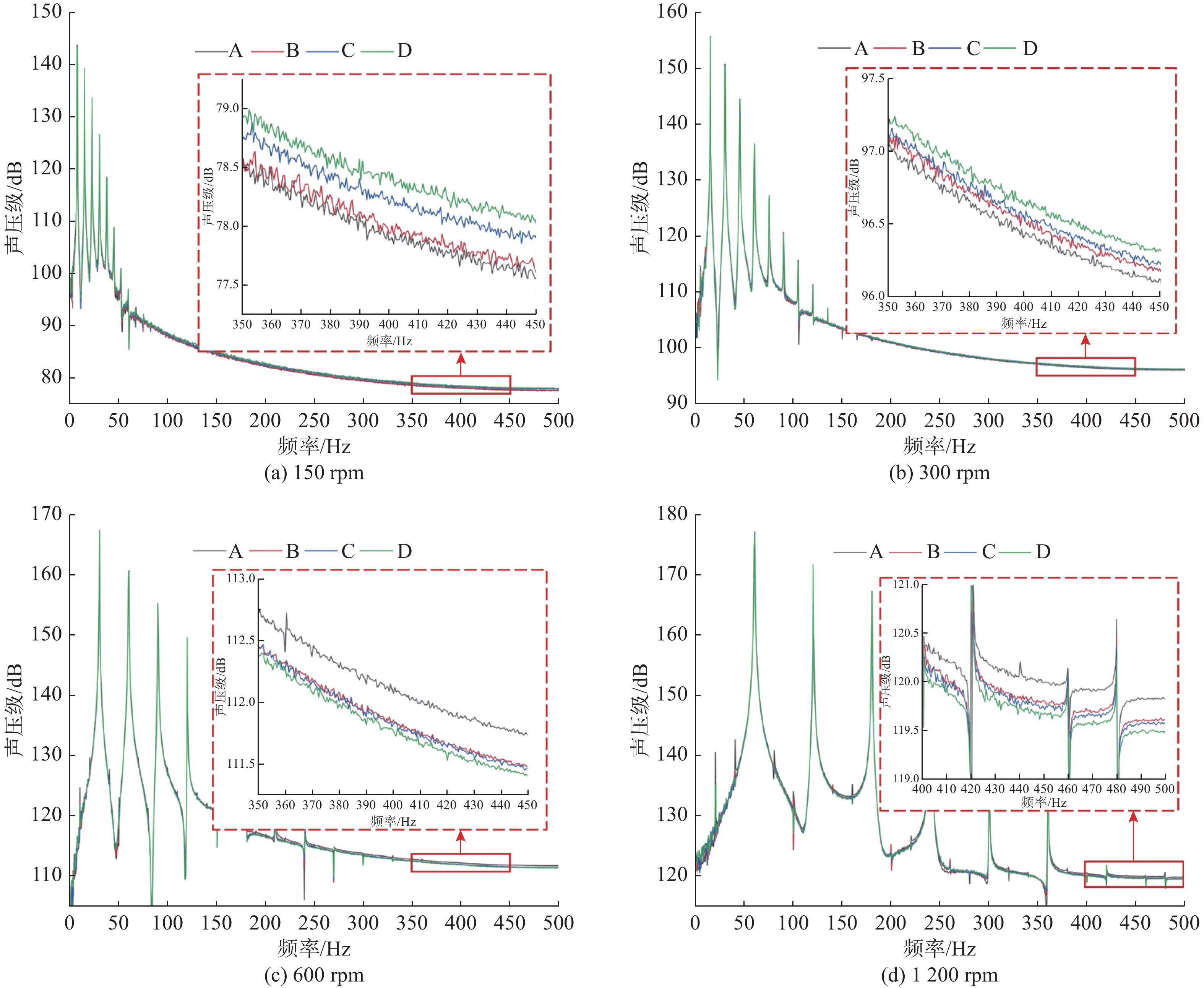

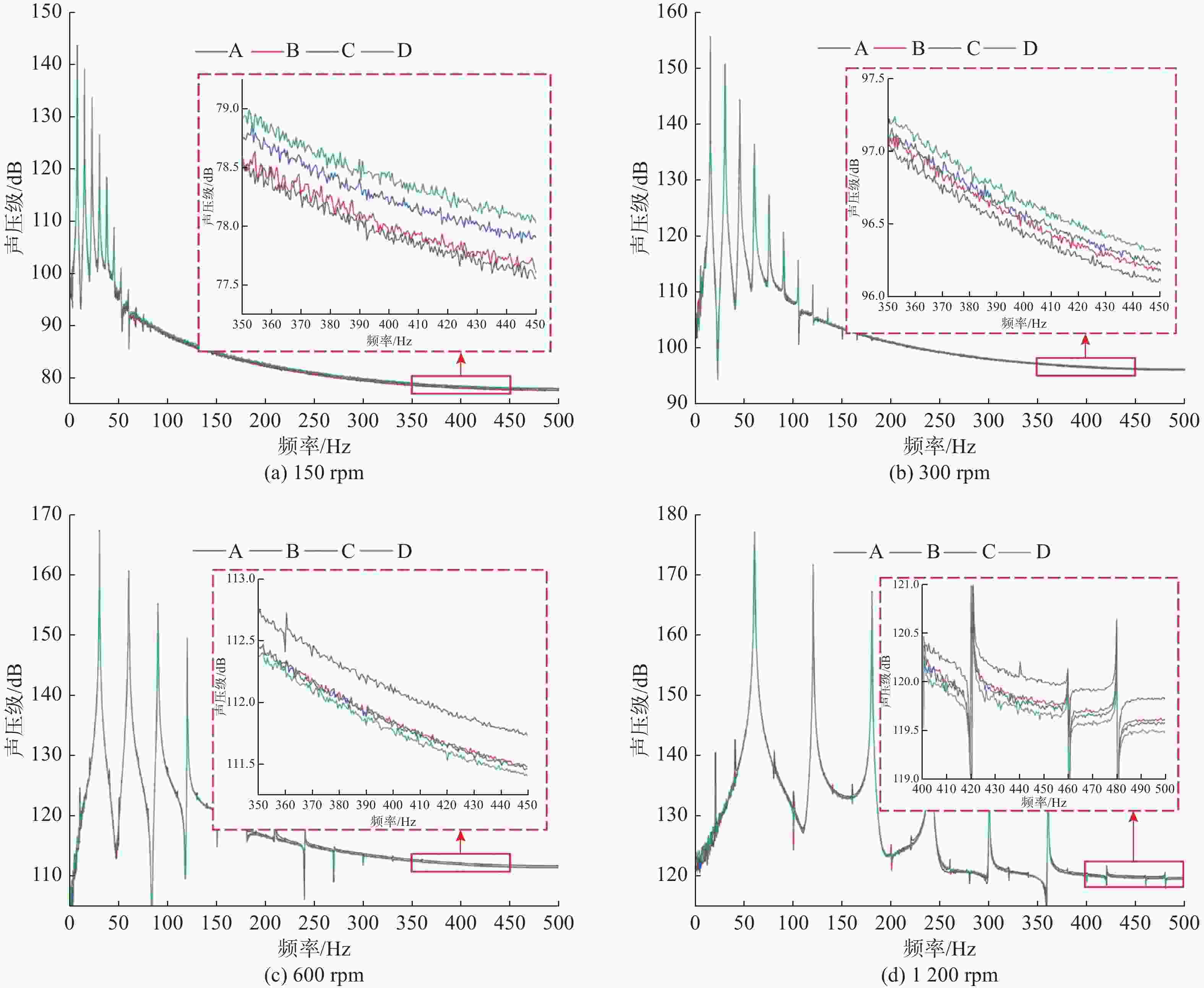

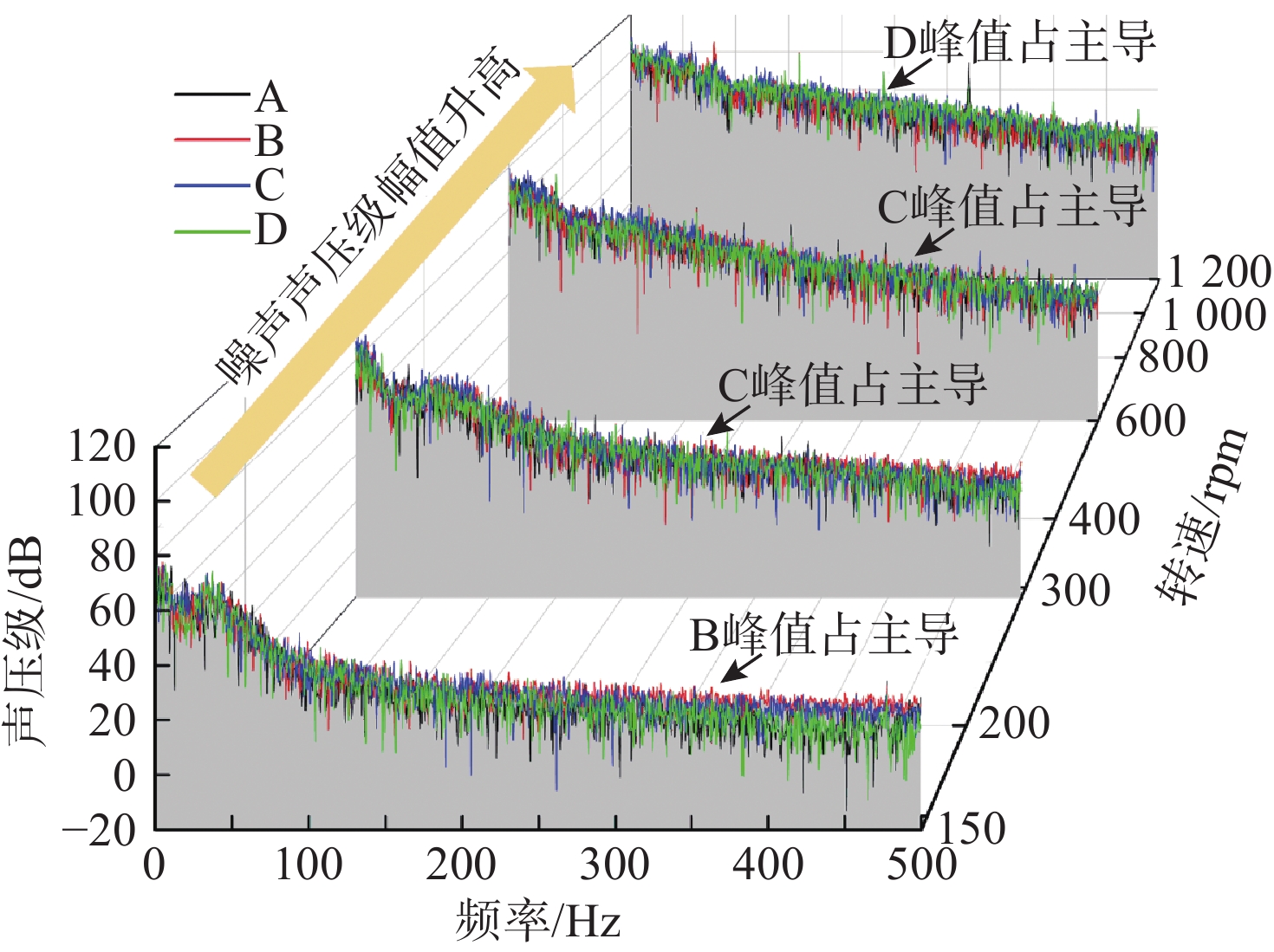

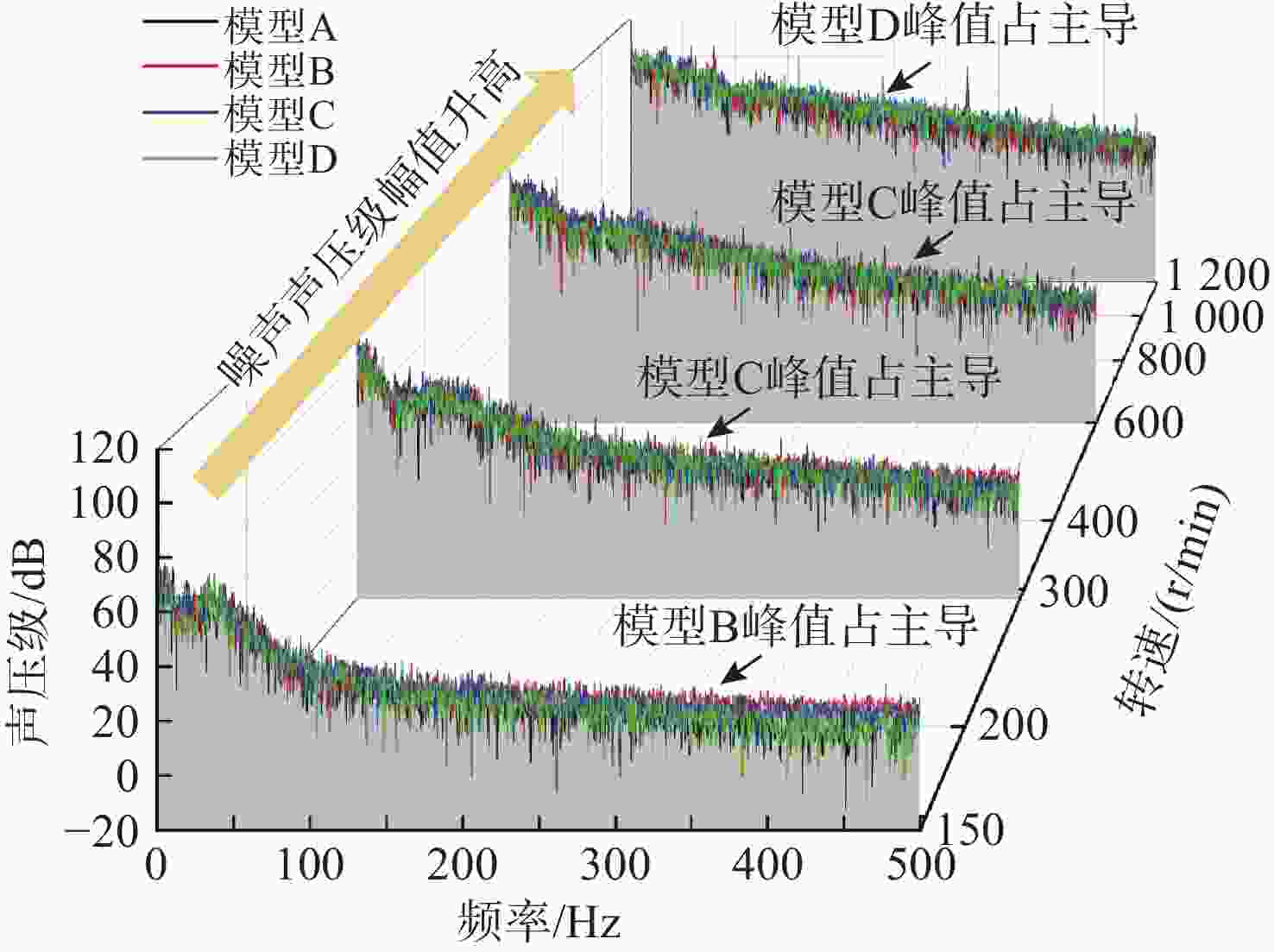

图 16 P6监测点噪声频谱图

Figure 16. Noise spectrum of P6 monitoring point

下载: 全尺寸图片幻灯片

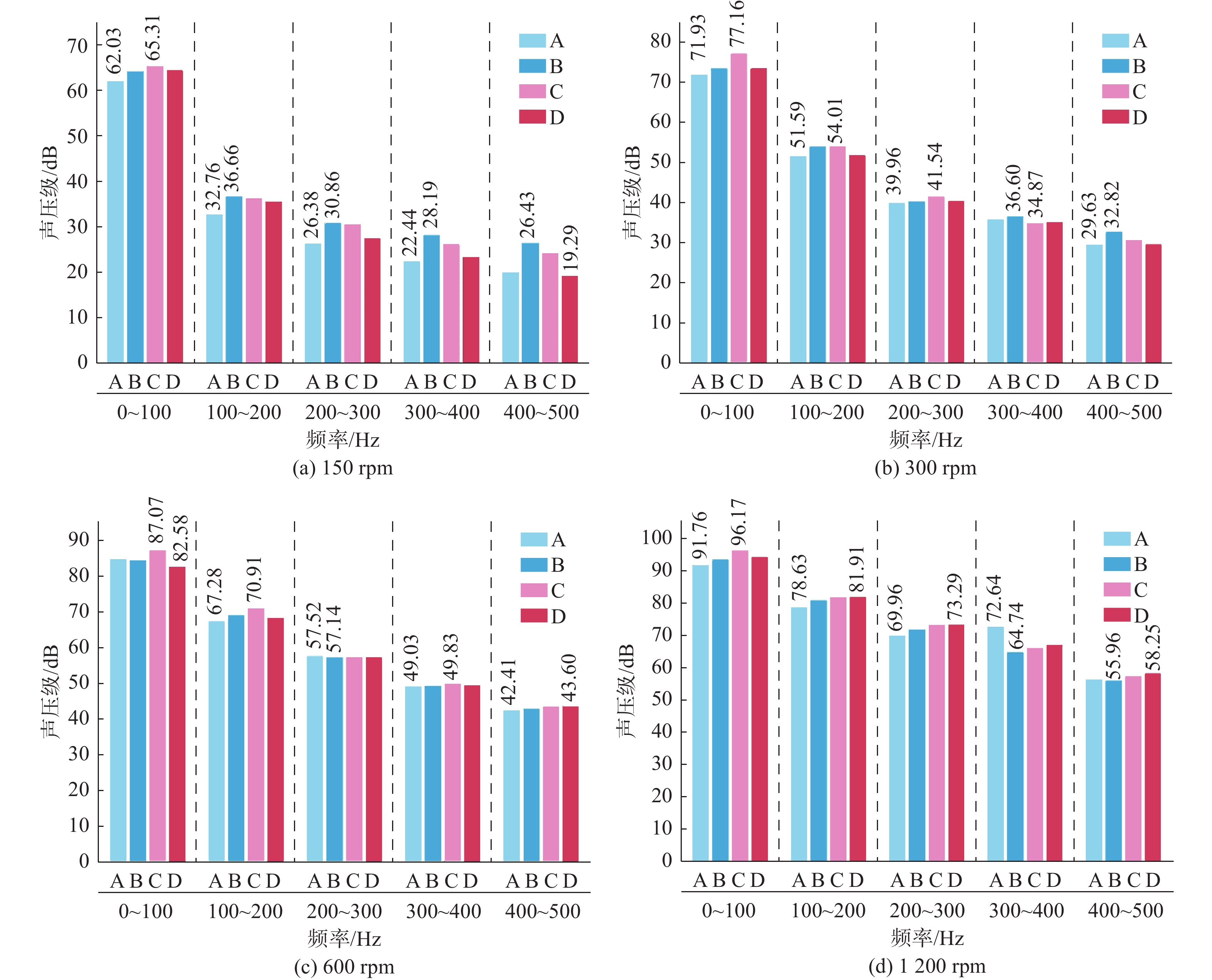

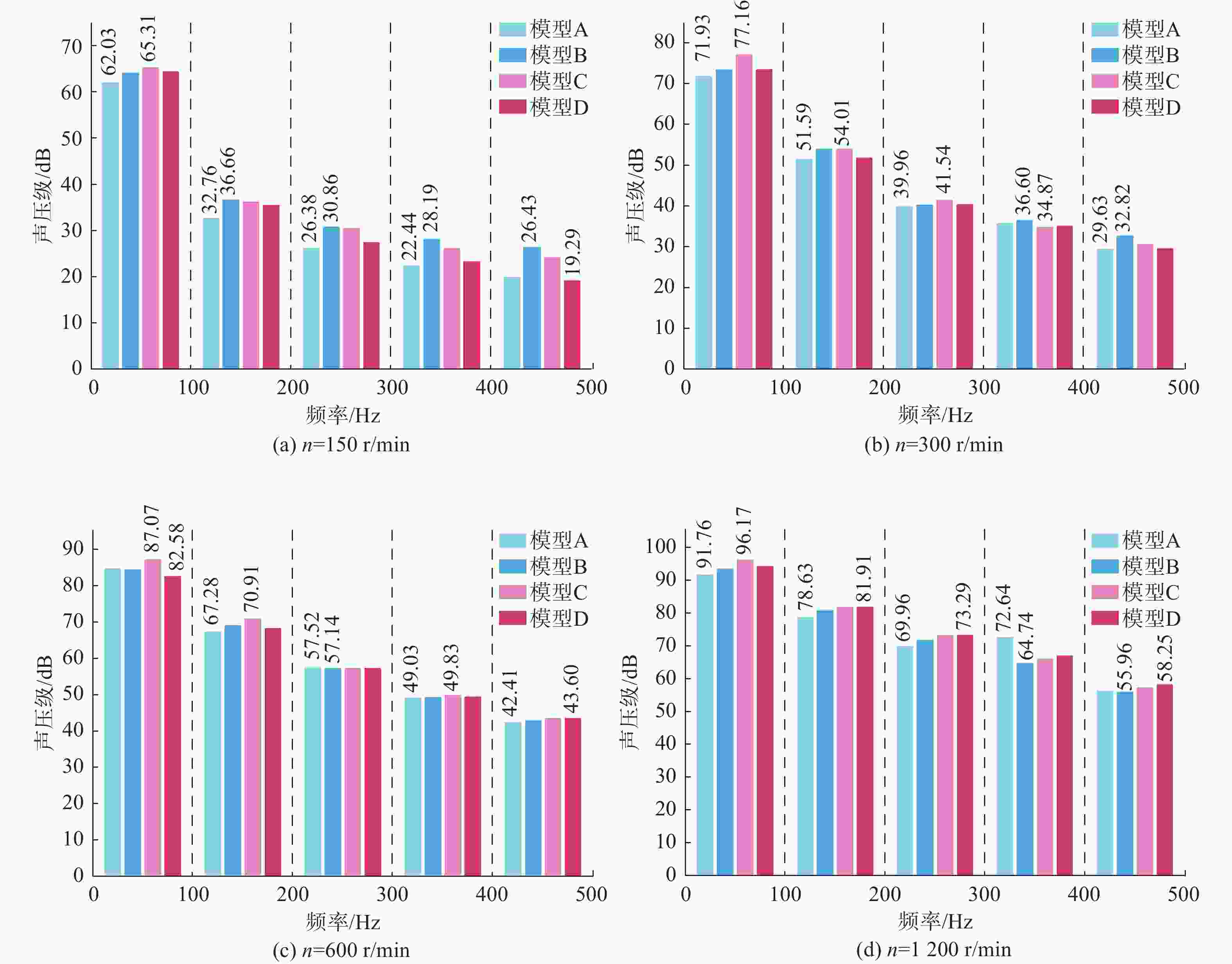

图 17 P6监测点噪声声压级柱状图

Figure 17. Noise sound pressure level histogram of P6 monitoring point

下载: 全尺寸图片幻灯片

表 1 现有螺旋桨噪声抑制机理对比

Table 1. Comparison of existing propeller noise suppression mechanisms

螺旋桨模型	主要应用	噪声抑制机理
锯齿螺旋桨	空中飞行器	离散尾缘涡流
导管螺旋桨	水下航行器	优化流场
锯齿状导管螺旋桨	水下航行器	优化流场、离散涡流
环形螺旋桨	水下航行器	优化流场、改进涡流分布

下载: 导出CSV

表 2 环形螺旋桨主要参数表

Table 2. Main parameters of annular propeller

参数	数值
直径D/mm	305
毂径比	0.2
剖面类型	NACA66

下载: 导出CSV

表 3 仿生环形螺旋桨设计参数表

Table 3. Design parameters of bionic annular propeller

模型	锯齿高h/mm	锯齿数(单桨叶)/个	圆角半径/mm
A(原始模型)	0	0	0
B	4.5	62	0.3
C	6.0	46	0.5
D	7.5	35	0.5

下载: 导出CSV

表 4 网格无关性验证结果

Table 4. Mesh independence verification results

工况	K_T	K_T误差	10K_Q	10K_Q误差
实验值	0.146 0	—	0.280 0	—
网格A	0.134 0	8.22%	0.275 6	1.57%
网格B	0.135 2	7.40%	0.275 7	1.54%
网格C	0.135 9	6.92%	0.275 8	1.50%
网格D	0.136 0	6.85%	0.275 9	1.46%

下载: 导出CSV

表 5 不同进速系数下DTMB P4119螺旋桨推力系数和扭矩系数值

Table 5. Thrust coefficient and torque coefficient values of the DTMB P4119 propeller under different advance ratios

J	K_T			10K_Q
J	计算值	实验值	误差	计算值	实验值	误差
0.500	0.282 0	0.285	0.88%	0.478 0	0.477	0.11%
0.600	0.239 0	0.245	2.54%	0.417 0	0.410	1.57%
0.700	0.192 0	0.200	3.76%	0.355 0	0.357	0.68%
0.833	0.135 9	0.146	6.92%	0.275 8	0.280	1.50%
0.900	0.113 0	0.120	5.78%	0.230 0	0.239	3.95%

下载: 导出CSV

参考文献(23)

[1]	俞孟萨, 吴有生, 庞业珍. 国外舰船水动力噪声研究进展概述[J]. 船舶力学, 2007, 11(1): 152-158. Yu M S, Wu Y S, Pang Y Z. A review of progress for hydrodynamic noise of ships[J]. Journal of Ship Mechanics, 2007, 11(1): 152-158.
[2]	龚京风, 张文平, 明平剑, 等. 螺旋桨低频流噪声模拟方法研究[J]. 中国舰船研究, 2012, 7(5): 14-21. doi: 10.3969/j.issn.1673-3185.2012.05.003 Gong J F, Zhang W P, Ming P J, et al. Research on simulation methods for low-frequency flow noise of propellers[J]. Chinese Journal of Ship Research, 2012, 7(5): 14-21. doi: 10.3969/j.issn.1673-3185.2012.05.003
[3]	Ebrahimi A, Tootian A, Seif M S. The effect of different endplate geometries on the hydrodynamic and acoustic performance of the tip-loaded propeller[J]. Ocean Engineering, 2023: 272.
[4]	赵晓宇, 武天龙, 林兴华, 等. 基于泵喷整流机理的螺旋桨空化抑制研究[J]. 水下无人系统学报, 2022, 30(1): 68-77. doi: 10.11993/j.issn.2096-3920.2020.04.009 Zhao X Y, Wu T L, Lin X H, et al. Research on cavitation suppression of propellers based on pump jet rectification mechanism[J]. Journal of Unmanned Undersea Systems, 2022, 30(1): 68-77. doi: 10.11993/j.issn.2096-3920.2020.04.009
[5]	张力为. 导管螺旋桨的空化及噪声性能数值分析[D]. 武汉: 武汉理工大学, 2019.
[6]	葛泽昊. 导管螺旋桨水动力性能及空化噪声数值研究[D]. 大连: 大连理工大学, 2023.
[7]	Aktas B, Yilmaz N, Atlar M, et al. Suppression of tip vortex cavitation noise of propellers using pressure pores TM technology[J]. Journal of Marine Science and Engineering, 2020, 8(3): 158. doi: 10.3390/jmse8030158
[8]	Xiang Y, Wang W. Hydrodynamic performance evaluation of pump-jet propulsion based on the toroidal propeller[J]. Ocean Engineering, 2024, 311(2): 118932. doi: 10.1016/j.oceaneng.2024.118932
[9]	Liu P, Li S Q, Jin H, et al. Shape parameterization method and hydrodynamic noise characteristics of low-noise toroidal propeller[J]. Ocean Engineering, 2025, 32: 121088. doi: 10.1016/j.oceaneng.2025.121088
[10]	Bai J, Li Y, Liu X, et al. Hydrodynamic performance and vortex structure analysis of a toroidal propeller[J]. Journal of Marine Science and Engineering, 2025, 13(6): 1046-1046. doi: 10.3390/jmse13061046
[11]	刘坤, 刘永强, 林好, 等. 水空航行器跨介质策略研究[J]. 水下无人系统学报, 2024, 32(3): 396-410. doi: 10.11993/j.issn.2096-3920.2024-0038 Liu K, Liu Y Q, Lin H, et al. Research on cross-media strategies for air-water vehicles[J]. Journal of Unmanned Undersea Systems, 2024, 32(3): 396-410. doi: 10.11993/j.issn.2096-3920.2024-0038
[12]	许传新, 刘贵杰, 马鹏磊, 等. 基于数值仿真的仿生波动鳍变速推进特性分析[J]. 水下无人系统学报, 2025, 33(3): 450-458. Xu C X, Liu G J, Ma P L, et al. Analysis of bionic fluctuating fin variable speed propulsion characteristics based on numerical simulation[J]. Journal of Unmanned Undersea Systems, 2025, 33(3): 450-458.
[13]	Hong L W, Ye L, Stefan P, et al. Aerodynamics of the wells turbine with a Hawkmoth-inspired blade design[J]. Bioinspiration & biomimetics, 2020, 15(6): 066001. doi: 10.1088/1748-3190/abab67
[14]	谭桐, 于林, 郭凯, 等. 仿生鮣鱼水下机器人设计与三维解耦运动控制研究[J]. 中国舰船研究, 2025, 20: 1-10. doi: 10.19693/j.issn.1673-3185.04108 Tan T, Yu L, Guo K, et al. Design and decoupled motion control study of bio-inspired robotic remora[J]. Chinese Journal of Ship Research, 2025, 20: 1-10. doi: 10.19693/j.issn.1673-3185.04108
[15]	Li J, Lu R, Zhang D, et al. Research on characteristics of drag reduction and noise reduction on V-groove surface of bionic blade of centrifugal pump[J]. AIP Advances, 2023, 13(11): 115.
[16]	Yang J, Gao H, Yan Y. A numerical investigation into the influence of bionic ridge structures on the cavitation performance of marine propellers[J]. Journal of Marine Science and Technology, 2024, 29(1): 105-122. doi: 10.1007/s00773-023-00976-z
[17]	Gu Y, Song F, Bai H, et al. Numerical and experimental studies on the owl-inspired propellers with various serrated trailing edges[J]. Applied Acoustics, 2024, 220: 109948. doi: 10.1016/j.apacoust.2024.109948
[18]	Lee M H, Lu Z, Lim M K, et al. Quieter propeller with serrated trailing edge[J]. Applied Acoustics, 2019, 146: 227-236. doi: 10.1016/j.apacoust.2018.11.020
[19]	王思贤. 导管螺旋桨水动力噪声及其控制技术研究[D]. 哈尔滨: 哈尔滨工程大学, 2023.
[20]	王玲玲. 大涡模拟理论及其应用综述[J]. 河海大学学报(自然科学版), 2004, 32(3): 261-265. doi: 10.3321/j.issn:1000-1980.2004.03.005 Wang L L. Large eddy simulation theory and its application[J]. Journal of Hohai University (Natural Sciences), 2004, 32(3): 261-265. doi: 10.3321/j.issn:1000-1980.2004.03.005
[21]	Smagorinsky J. General circulation experiments with the primitive equations[J]. Monthly Weather Review, 1963, 91(3): 99-164. doi: 10.1175/1520-0493(1963)091<0099:gcewtp>2.3.co;2
[22]	Hawkings D L, Williams J E F. Sound generation by turbulence and surfaces in arbitrary motion[J]. Philosophical Transactions of The Royal Society A Mathematical Physical and Engineering Sciences, 1969, 264(1151): 321-342. doi: 10.1098/rsta.1969.0031
[23]	姜彭, 张超, 张宇. 基于STAR-CCM+的螺旋桨水动力性能分析[J]. 中国修船, 2020, 33(1): 43-46. doi: 10.13352/j.issn.1001-8328.2020.01.014 Jiang P, Zhang C, Zhang Y. Hydrodynamic performance analysis of propellers Based on STAR-CCM+[J]. China Shiprepair, 2020, 33(1): 43-46. doi: 10.13352/j.issn.1001-8328.2020.01.014
