极浅海环境中时间分集MIMO声呐高清晰成像方法

翟清越; 刘雄厚; 杨益新

doi:10.11993/j.issn.2096-3920.2026-0072

极浅海环境中时间分集MIMO声呐高清晰成像方法

doi: 10.11993/j.issn.2096-3920.2026-0072

翟清越^{1, 2, 3,},
刘雄厚^{1, 2, 3, ,},
杨益新^4,

1.
西北工业大学航海学院, 陕西西安, 710072
2.
陕西水下信息技术重点实验室, 陕西西安, 710072
3.
汉江国家实验室, 武汉, 430061
4.
南京理工大学电子工程与光电技术学院, 南京, 210094

基金项目: 国家自然科学基金(U2341203; 12274346); 国家重点研发计划(2016YFC1400200).

详细信息

作者简介:
翟清越(2002-), 女, 硕士在读, 主要研究方向为水声信号处理

通讯作者:
刘雄厚(1985-), 男, 博士, 教授, 主要研究方向为水下小目标探测与识别.

中图分类号: TN929.3; U666.7
计量
- 文章访问数: 4
- HTML全文浏览量: 1
- PDF下载量: 1
- 被引次数: 0
出版历程
- 收稿日期: 2026-04-13
- 修回日期: 2026-05-14
- 录用日期: 2026-05-18
- 网络出版日期: 2026-06-11

High-Resolution Imaging Method for Time-Diversity MIMO Sonar in Extremely Shallow Water Environments

ZHAI QingYue^{1, 2, 3
,},
LIU Xionghou^{1, 2, 3
, ,},
YANG Yixin^4
,

1.
School of Marine Science and Technology, Northwestern Polytechnical University, Xi’an 710072, China
2.
Shaanxi Key Laboratory of Underwater Information Technology, Xi’an 710072, China
3.
Hanjiang National Laboratory, Wuhan 430061, China
4.
School of Electronic Engineering and Optoelectronic Technology, Nanjing University of Science and Technology, Nanjing 210094, China

摘要

摘要: 传统多输入多输出(MIMO)声呐在极浅海强混响环境下, 受同步正交波形互相关干扰影响, 其距离维高旁瓣会显著抬升混响背景, 导致自适应波束形成算法性能大幅下降。为此, 文中提出一种适用极浅海环境的时间分集MIMO声呐高清晰成像方法, 通过时分机制依次发射相同线性调频信号, 利用脉冲周期实现时域回波分离, 消除互相关干扰; 结合时域截断与数据重组, 构建孔径加倍的等效均匀虚拟线列阵, 完整保留MIMO体制的高角度分辨率。仿真结果表明, 在信混比低至-20dB的强混响背景下, 该方法有效抑制了距离维旁瓣, 使最小方差无畸变响应算法的自适应滤波能力得以充分发挥。与传统正交MIMO声呐相比, 其−3 dB主瓣宽度、旁瓣级与积分旁瓣比显著优化, 为极浅海小目标高分辨成像提供了一种兼顾虚拟孔径与强抗干扰能力的可行方案。
- 极浅海 /
- MIMO声呐 /
- 时间分集 /
- 互相关干扰 /
- 高清晰成像
Abstract: In extremely shallow water environments with strong reverberation, traditional MIMO sonar is affected by cross-correlation interference from synchronous orthogonal waveforms. The high range sidelobes significantly raise the reverberation background, leading to severe performance degradation of adaptive beamforming algorithms. To solve this problem, this paper proposes a high-resolution imaging method for time-diversity MIMO sonar suitable for extremely shallow water environments. The method transmits the same linear frequency modulation signals sequentially through a time-division mechanism, and separates echo signals in the time domain by using pulse repetition intervals, thus eliminating cross-correlation interference. Combined with time-domain truncation and data reconstruction, an equivalent uniform virtual linear array with doubled aperture is constructed, which fully retains the high angular resolution of the MIMO system. Simulation results show that the proposed method effectively suppresses range sidelobes under a strong reverberation background with a signal-to-reverberation ratio as low as −20 dB, and fully exerts the adaptive filtering capability of the MVDR algorithm. Compared with traditional orthogonal MIMO sonar, its half power beam width, side lobe level and integration side lobe rate are significantly optimized, providing a feasible scheme for high-resolution imaging of small targets in extremely shallow water that takes into account both virtual aperture and strong anti-interference ability.
- Extremely shallow water /
- MIMO sonar /
- Time diversity /
- Cross-correlation interference /
- High-resolution imaging

HTML全文

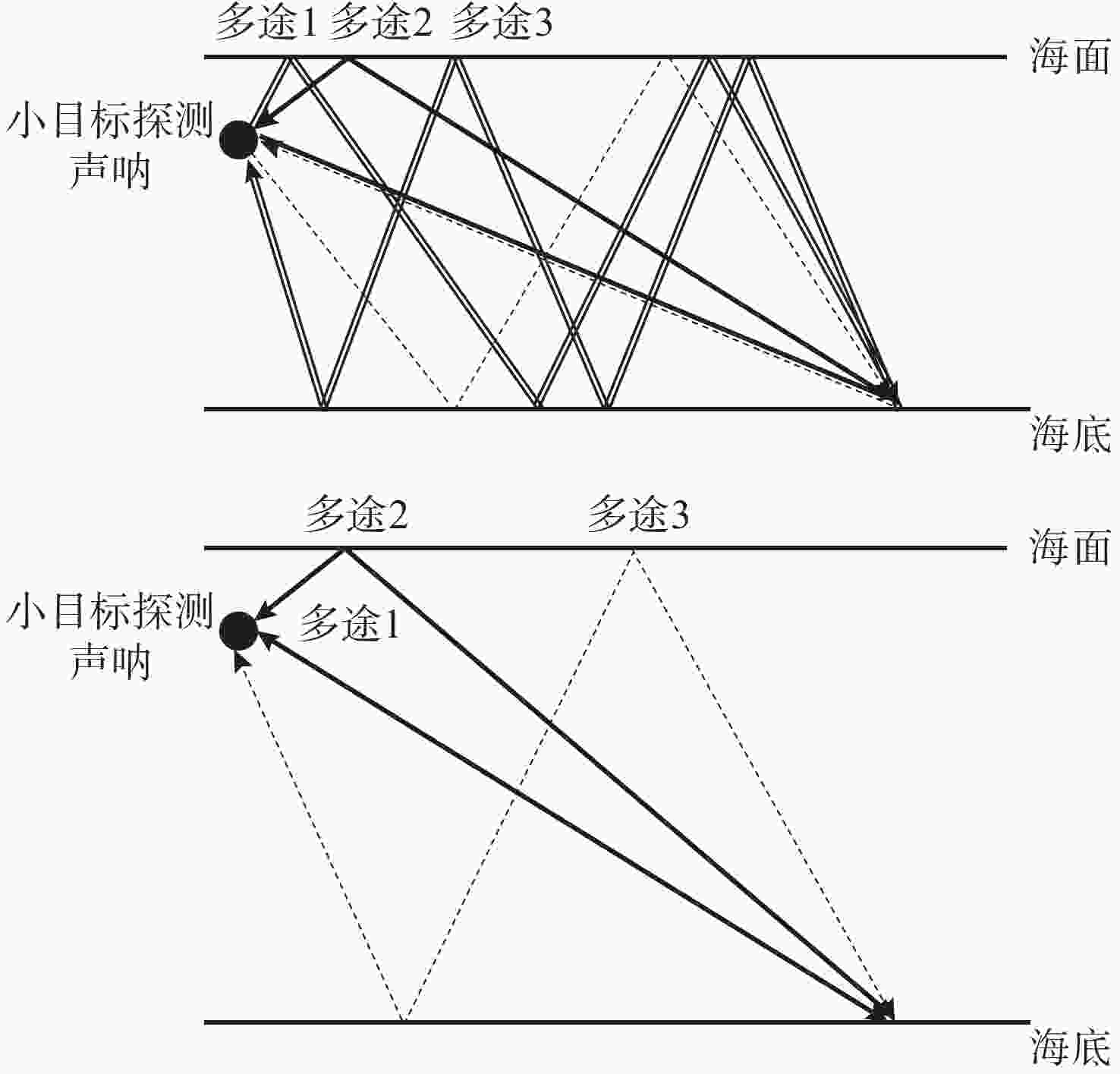

图 1 多途传播示意图

Figure 1. Schematic diagram of multipath propagation

下载: 全尺寸图片幻灯片

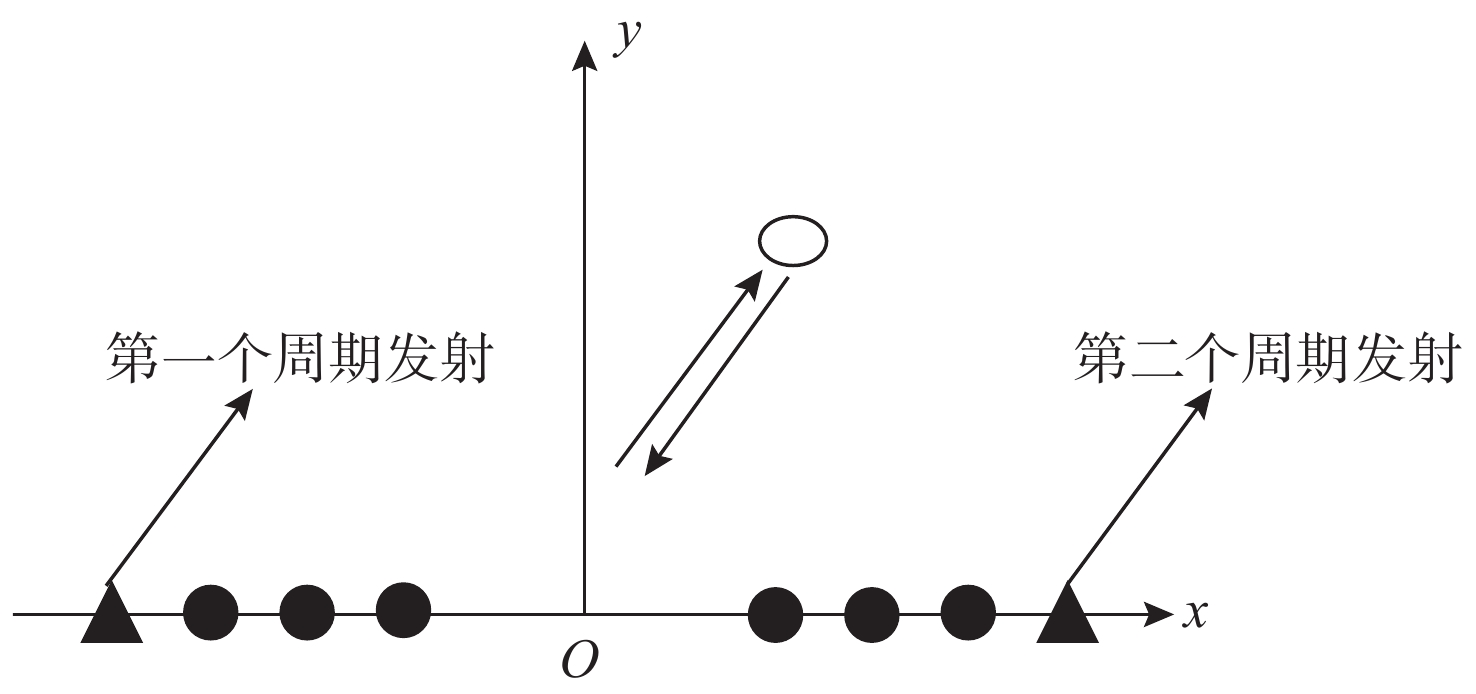

图 2 基于时间分集的2发$ K $收MIMO声呐示意图(其中$ K $为接收阵元数)

Figure 2. Schematic diagram of 2-transmit K-receive MIMO sonar based on time diversity(where K denotes the number of receiving array elements)

下载: 全尺寸图片幻灯片

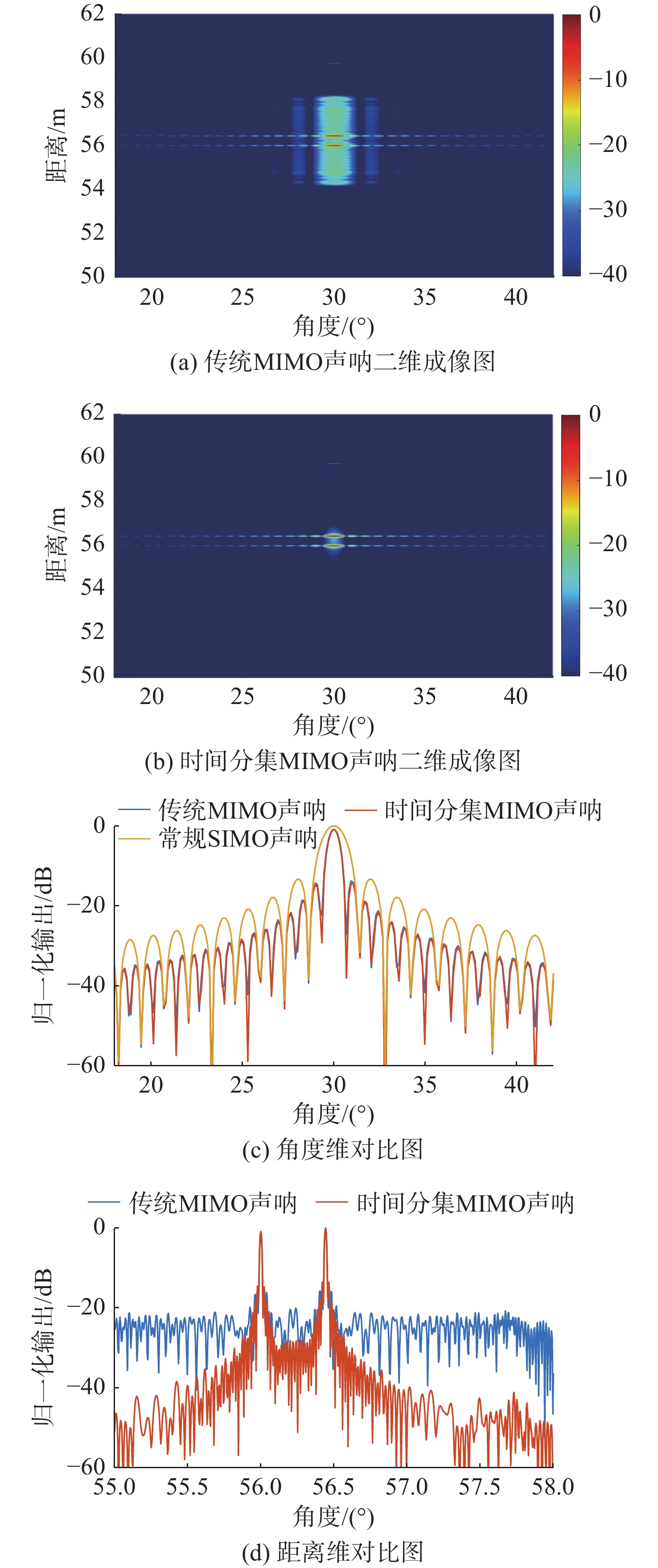

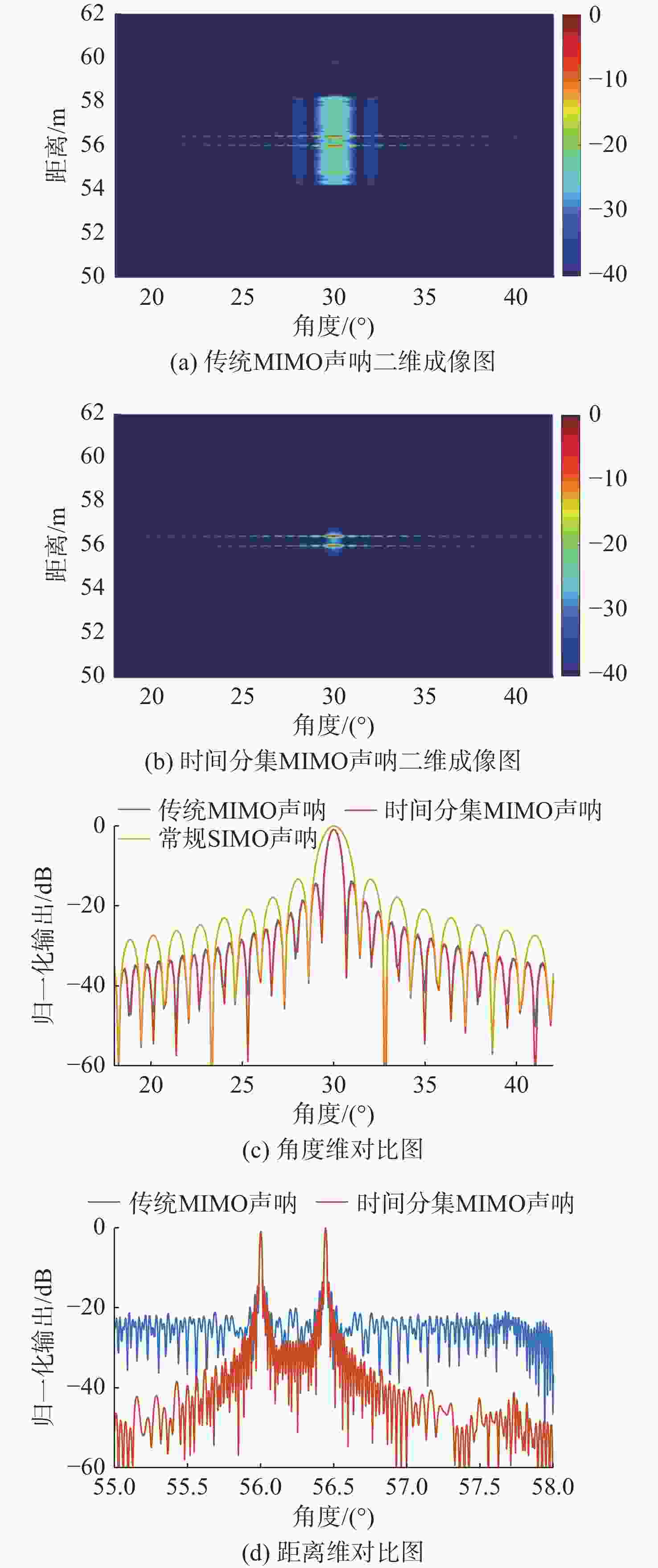

图 3 无干扰条件下, 两种声呐成像对比图

Figure 3. Comparison of two sonar imaging results under interference-free conditions

下载: 全尺寸图片幻灯片

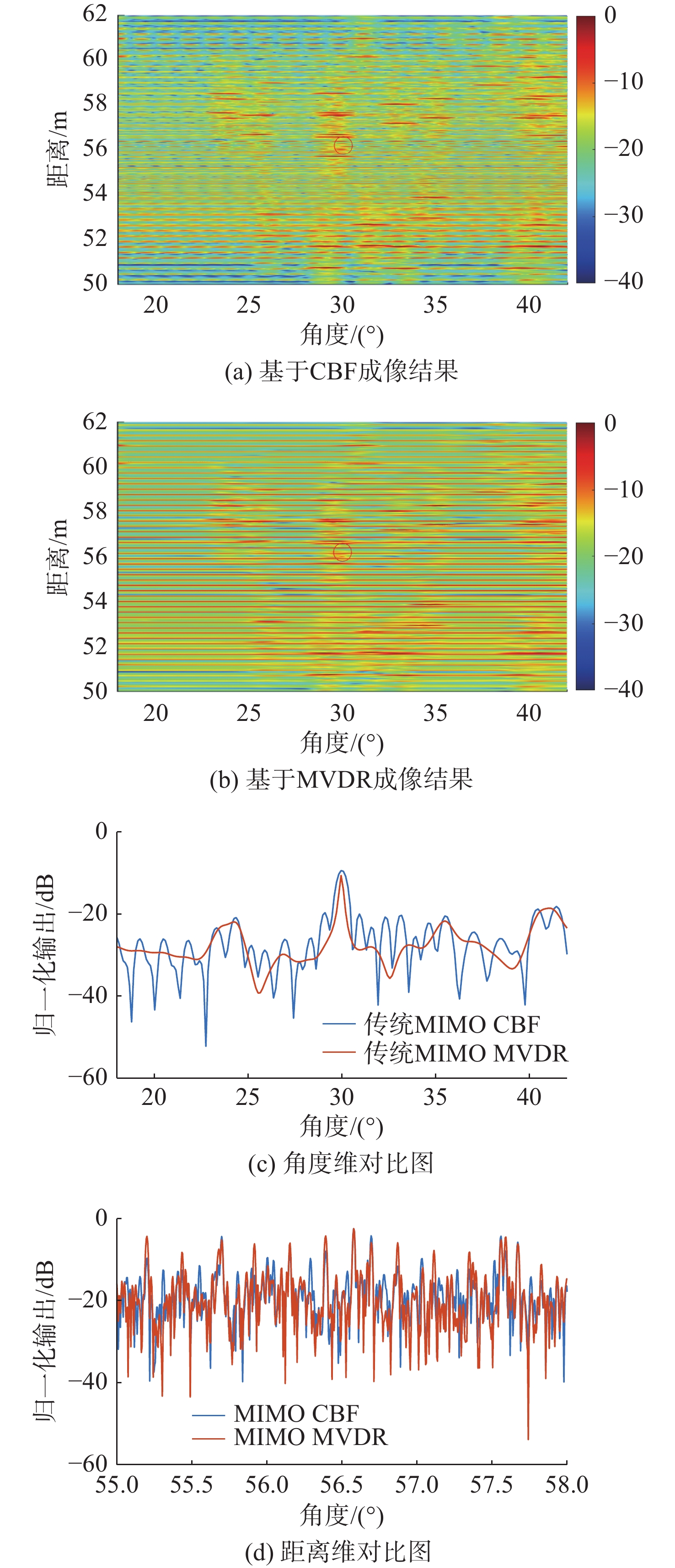

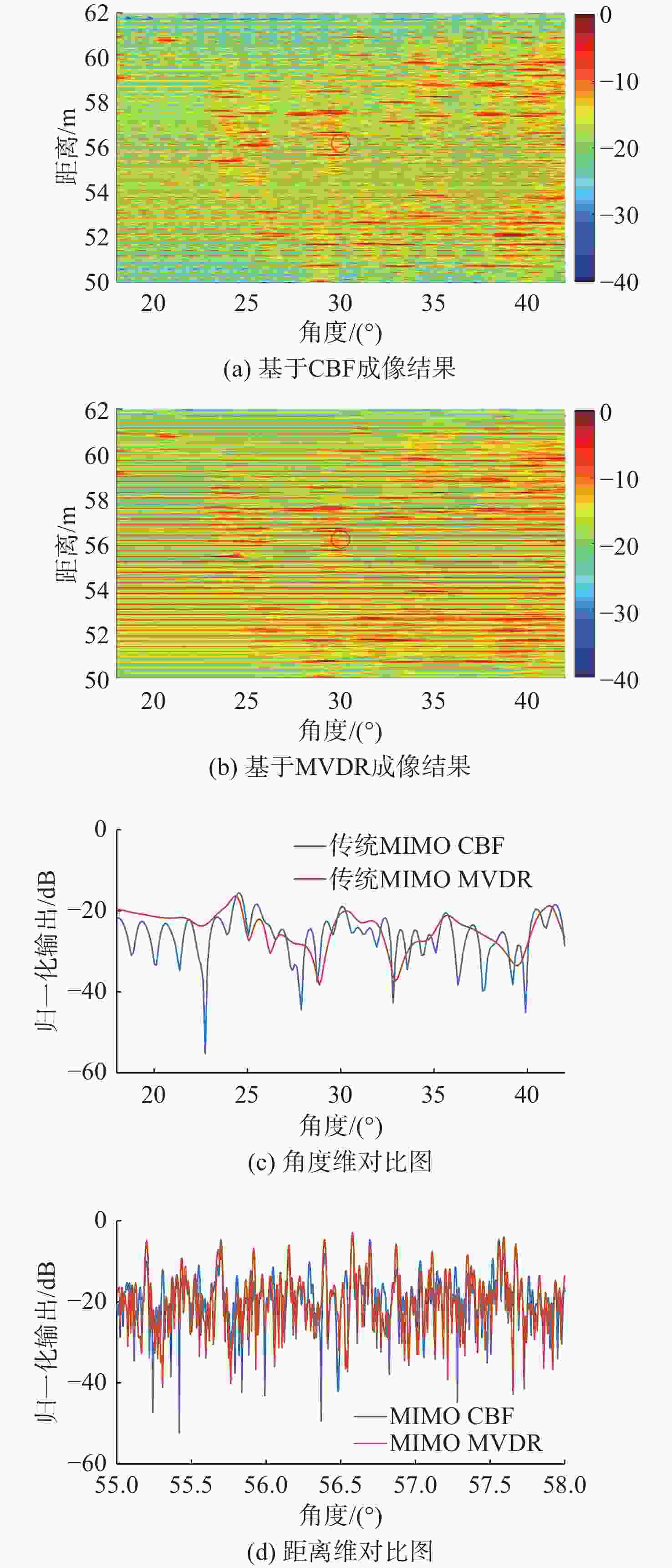

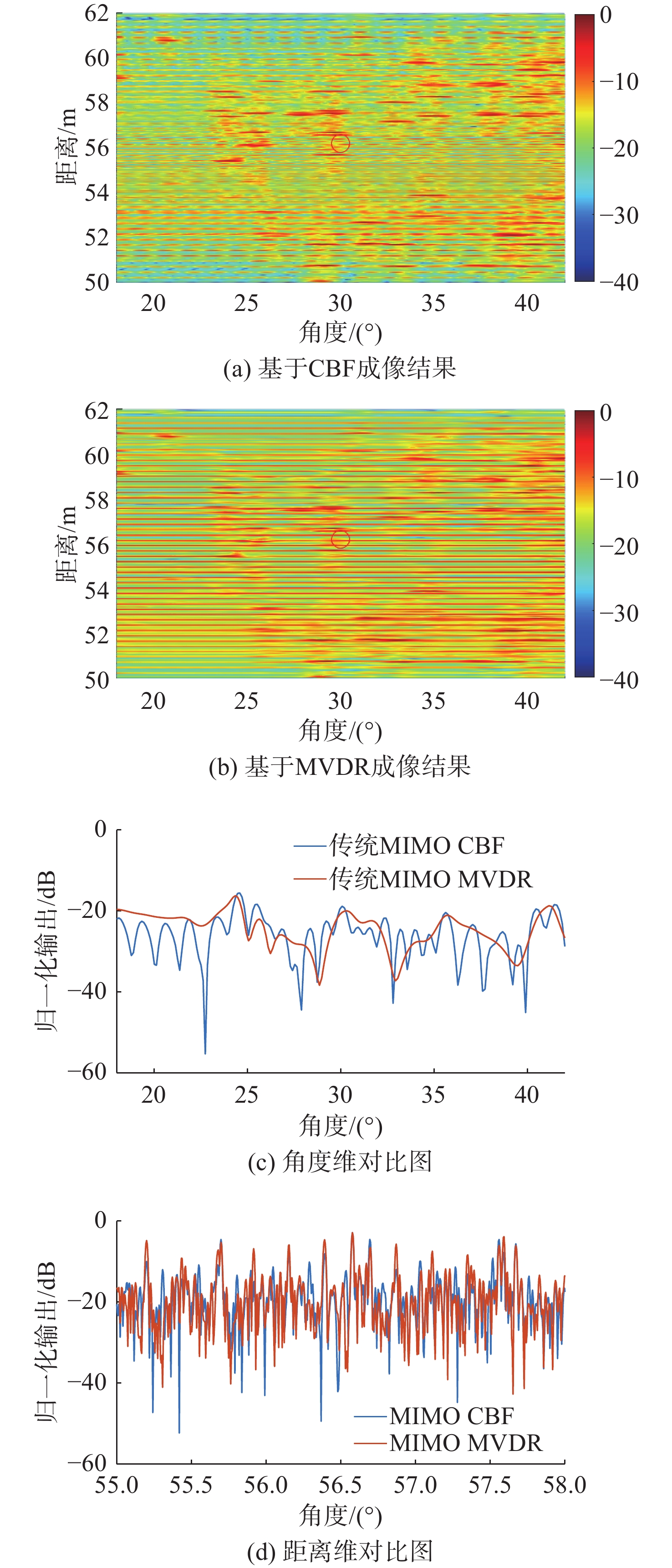

图 4 2 m水深, 传统MIMO声呐成像结果

Figure 4. Imaging performance of traditional MIMO sonar in 2 m-deep water

下载: 全尺寸图片幻灯片

图 5 10 m水深, 传统MIMO声呐成像结果

Figure 5. Imaging performance of traditional MIMO sonar in 10 m-deep water

下载: 全尺寸图片幻灯片

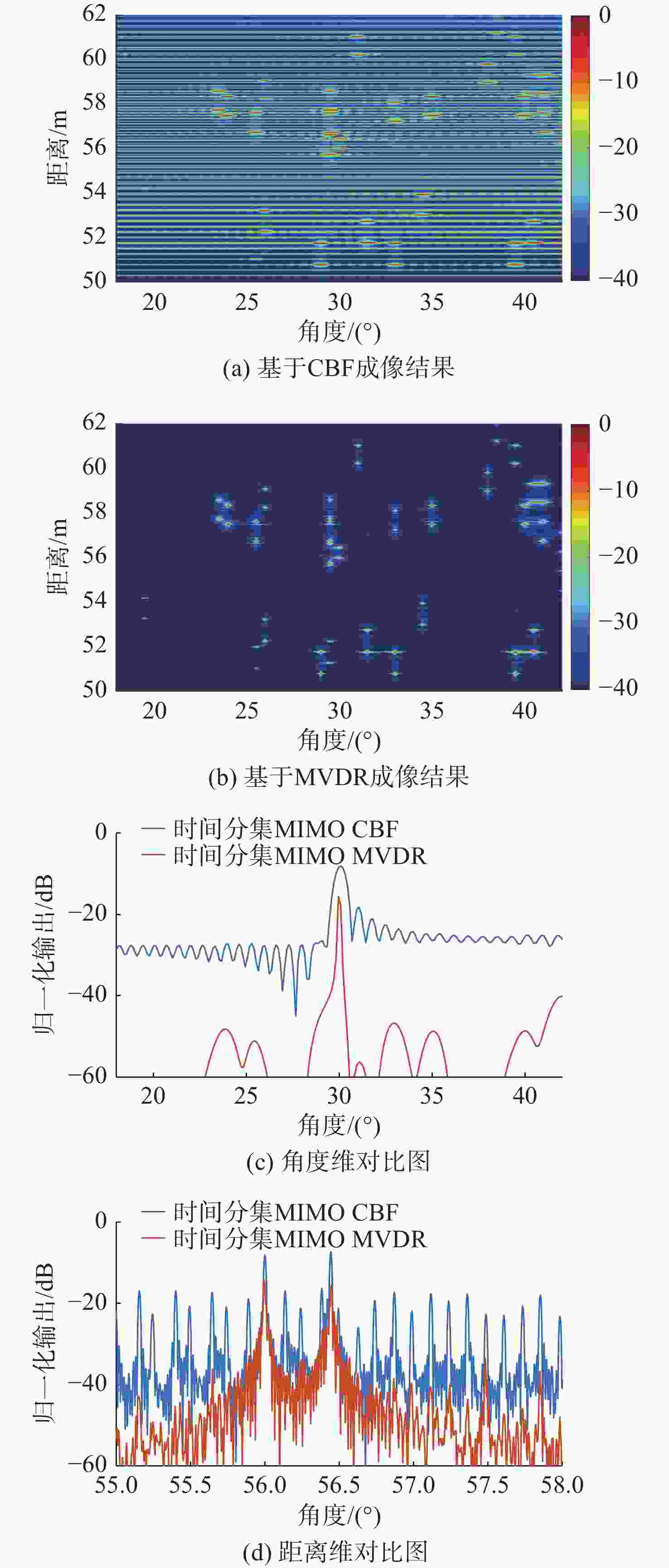

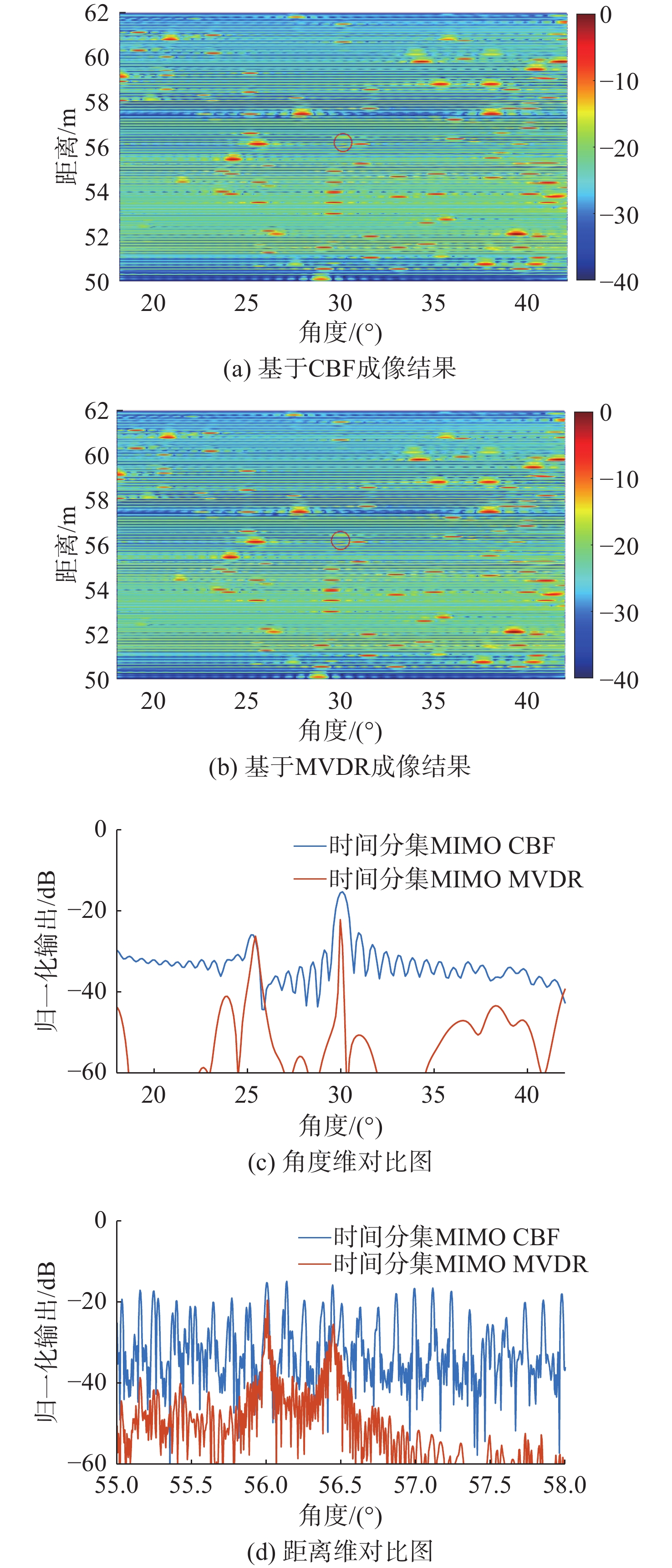

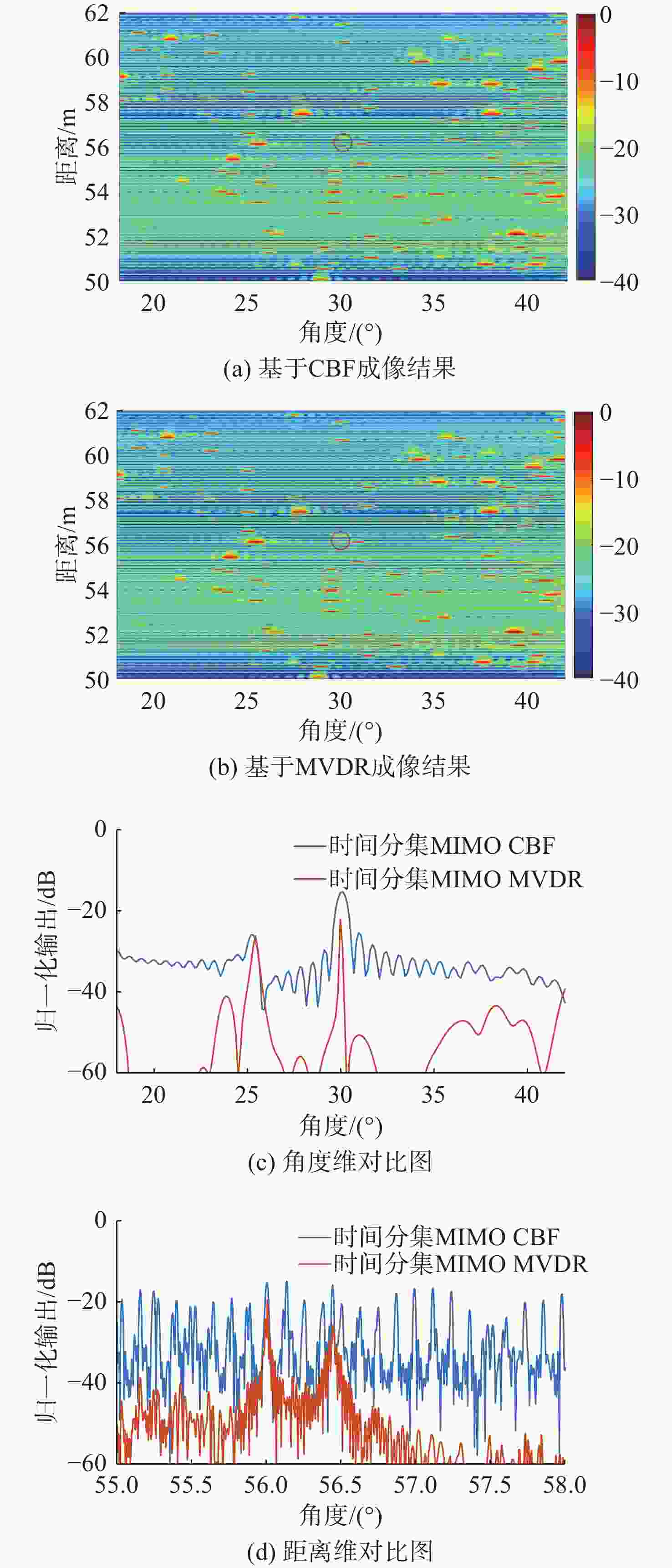

图 6 2 m水深, 时间分集MIMO声呐成像结果

Figure 6. Imaging performance of time-diversity MIMO sonar in 2-m-deep water

下载: 全尺寸图片幻灯片

图 7 10 m水深, 时间分集MIMO声呐成像结果

Figure 7. Imaging performance of time-diversity MIMO sonar in 10-m-deep water

下载: 全尺寸图片幻灯片

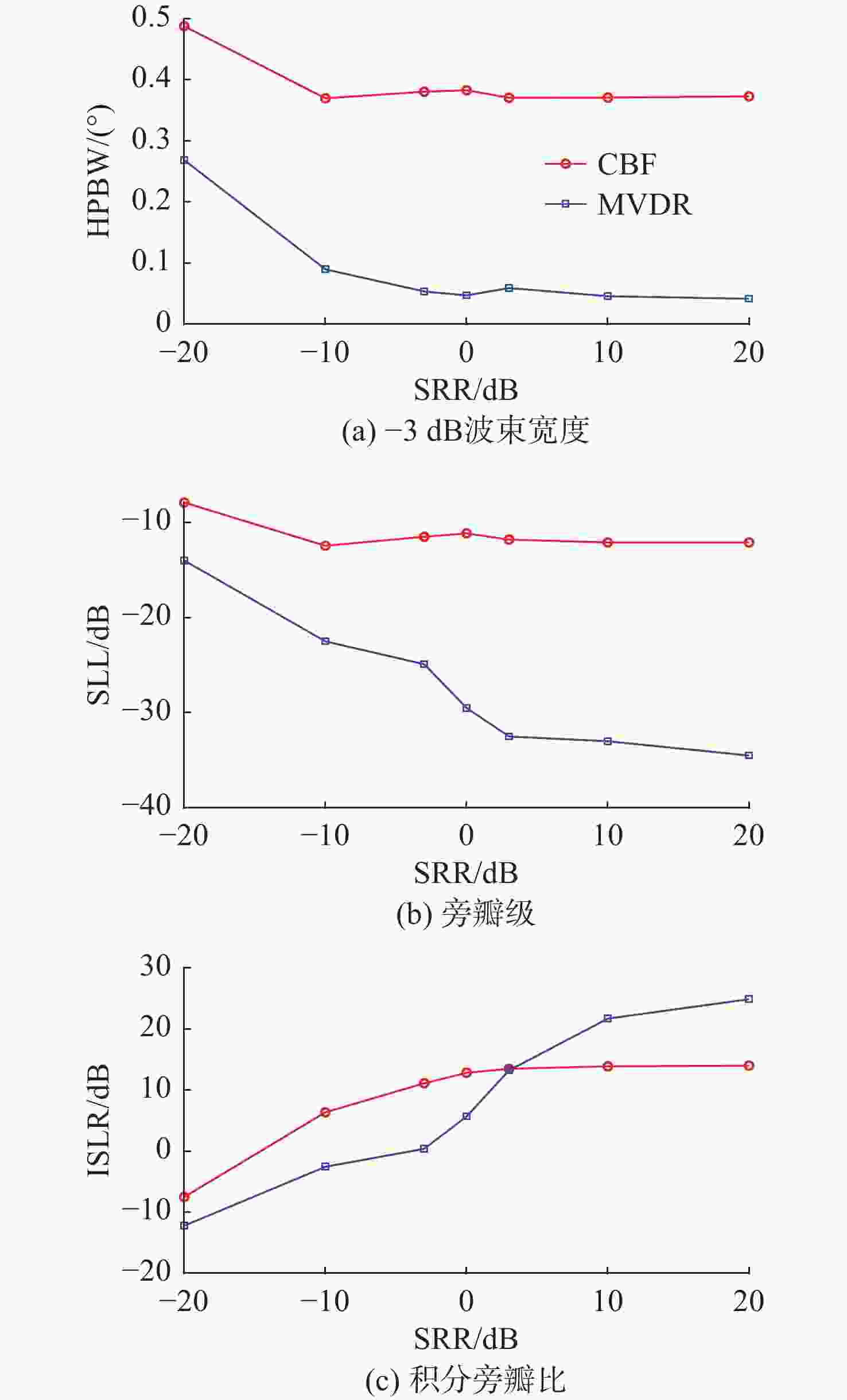

图 8 不同SRR条件下, 传统MIMO声呐的角度维成像性能

Figure 8. Imaging performance of conventional MIMO sonar in angular dimension at various SIR levels

下载: 全尺寸图片幻灯片

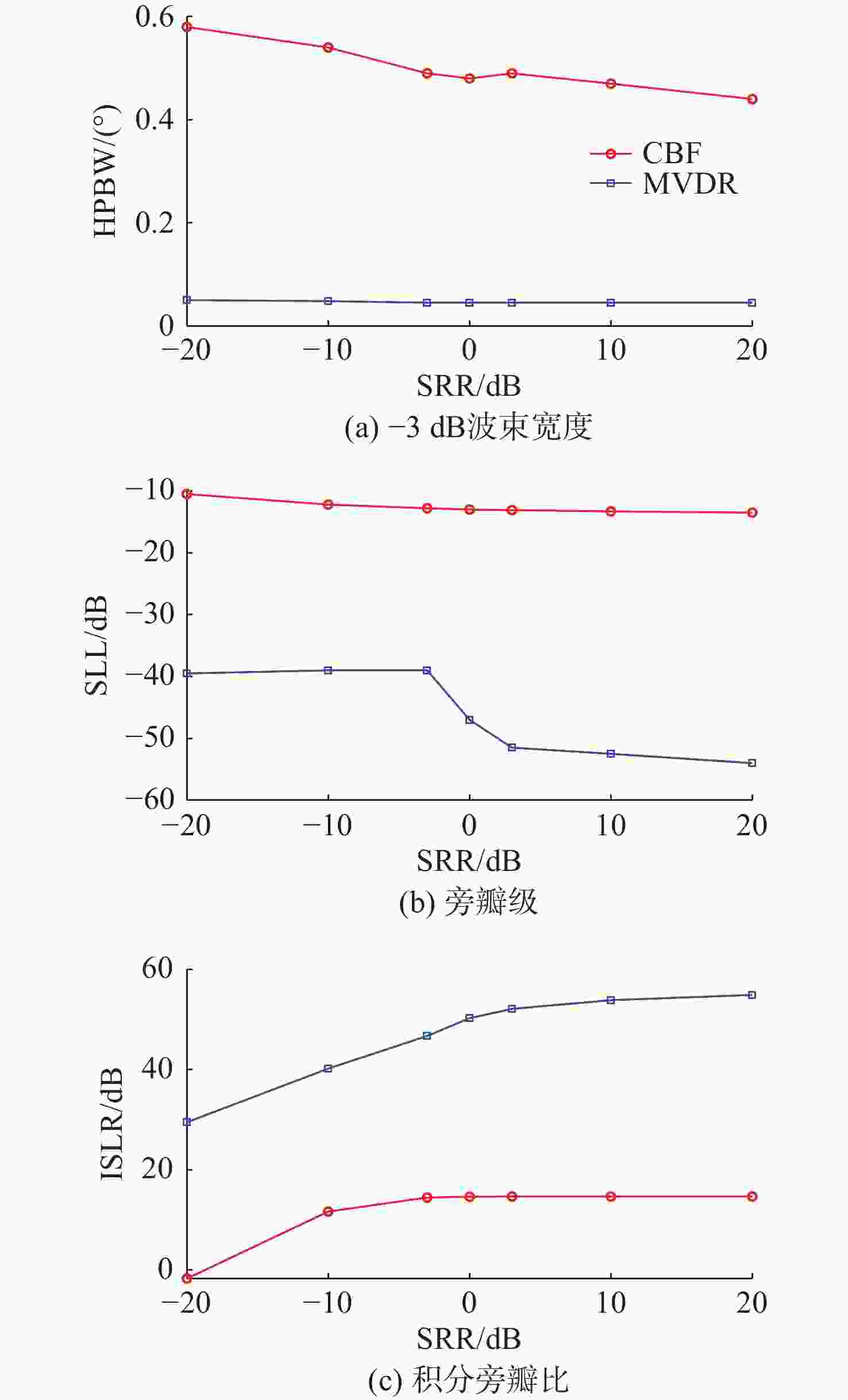

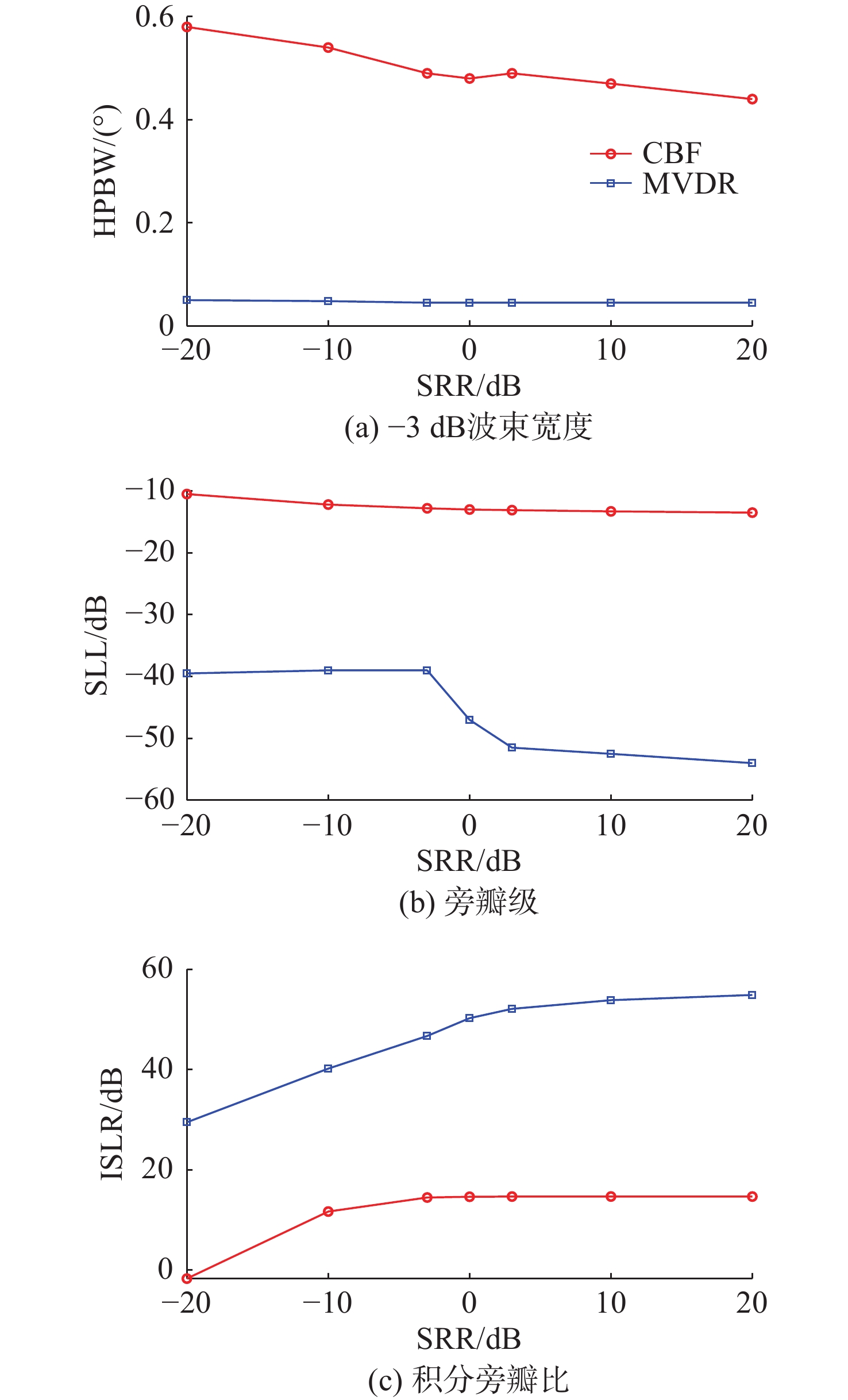

图 9 不同SRR条件下, 时间分集MIMO声呐的角度维成像性能

Figure 9. Imaging performance of time-diversity MIMO sonar in angular dimension at various SRR levels

下载: 全尺寸图片幻灯片

参考文献(23)

[1]	LI J, STOICA P. MIMO radar with collocated antennas[J]. Signal Processing Magazine, 2007, 24(5): 106-114. doi: 10.1109/MSP.2007.904812
[2]	李宇, 王彪, 黄海宁, 等. MIMO探测声纳的研究[C]//中国声学学会2007年青年学术会议论文集(下). 武汉: 中国声学学会, 2007.
[3]	Liu X H, Sun C, Yi F, et al. Underwater three-dimensional imaging using narrowband MIMO array[J]. Science China Physics, Mechanics & Astronomy, 2013, 56(7): 1346-1354.
[4]	Liu X H, Sun C, Yang Y X, et al. High-range-resolution two-dimensional imaging using frequency diversity multiple-input–multiple-output sonar[J]. IET Radar, Sonar & Navigation, 2016, 10(5): 983-991.
[5]	Liu X H, Sun C, Yang Y X, et al. Hybrid phase shift and shifted sideband beamforming for large-aperture MIMO sonar imaging[J]. IET Radar, Sonar & Navigation, 2017, 11(12): 1782-1789.
[6]	Liu X H, Wei T, Sun C, et al. High-resolution two-dimensional imaging using MIMO sonar with limited physical size[J]. Applied Acoustics, 2021, 182: 108280. doi: 10.1016/j.apacoust.2021.108280
[7]	Liu X H, Shi R W, Sun C, et al. Using deconvolution to suppress range sidelobes for MIMO sonar imaging[J]. Applied Acoustics, 2022, 186: 108491. doi: 10.1016/j.apacoust.2021.108491
[8]	Liu X H, Wang C, LI M Y, et al. A review of passive detection and recognition of underwater acoustic weak targets: progress and perspectives[J/OL]. Chinese Journal of Acoustics, 2026.026, 45 (1): 2026-03-26. 2026-05-19. https://www.sciengine.com.
[9]	Fan K, Liu X H, Sun C. Multiple-input multiple-output sonar adaptive beamforming using transmission diversity smoothing and backward processing[J]. IET Radar, Sonar & Navigation, 2023, 17(3): 478-489.
[10]	Fan K, Liu X H, Sun C. MIMO transmission diversity and spatial smoothing: A joint decorrelation effect study[J]. Signal Processing, 2022, 199: 108629. doi: 10.1016/j.sigpro.2022.108629
[11]	孙超. 水下多传感器阵列信号处理[M]. 西安: 西北工业大学出版社, 2007.
[12]	Fan J H, Liu X H, Yao X, et al. High-quality MIMO sonar imaging using cross-cohdrrelation suppression[J]. IEEE Geoscience and Remote Sensing Letters, 2025, 22: 1-5.
[13]	赵亚聪, 刘雄厚, 杨益新. 极浅水环境中水体深度对水底混响强度的影响分析[J]. 声学学报, 2025, 50(4): 933-945. Zhao Y C, Liu X H, Yang Y X. Influence of waveguide depth on bottom reverberation strength in very shallow water environments[J]. Acta Acustica, 2025, 50(4): 933-945.
[14]	yang T C. Properties of underwater acoustic communication channels in shallow water[J]. The Journal of the Acoustical Society of America, 2012, 131(1): 129-145. doi: 10.1121/1.3664053
[15]	张祚祥, 吴金荣, 侯倩男, 等. 浅海运动声源混响的频谱展宽特性[J]. 声学学报, 2025, 50(5): 1240-1253. Zhang Z X, Wu J R, Hou Q n, et al. Broadening characteristics of reverberation spectrum for moving sound source in shallow water[J]. Acta Acustica, 2025, 50(5): 1240-1253.
[16]	Hefner B T, Hodgkiss W S. Reverberation due to a moving, narrowband source in an ocean waveguide[J]. The Journal of the Acoustical Society of America, 2019, 146(3): 1661-1670. doi: 10.1121/1.5126023
[17]	Abraham D A, Lyons A P. Simulation of non-Rayleigh reverberation and clutter[J]. IEEE Journal of Oceanic Engineering, 2004, 29(2): 347-362. doi: 10.1109/JOE.2004.828202
[18]	薛润泽, 段睿, 杨坤德, 等. 深海本地界面混响平均强度模型与规律分析[J]. 声学学报, 2021, 46(6): 926-938. Xue R Z, Duan R, Yang K D, et al. Modeling and analysis of monostatic incoherent boundary reverberation intensity in deep water[J]. Acta Acustica, 2021, 46(6): 926-938.
[19]	殷丽君, 吴金荣, 侯倩男. 浅海近程混响的振荡现象[J]. 应用声学, 2021, 40(6): 828-832. doi: 10.11684/j.issn.1000-310X.2021.06.004 Yin L J, Wu J R, Hou Q N. Fluctuation of short-rang reverberation in shallow water[J]. Journal of Applied Acoustics, 2021, 40(6): 828-832. doi: 10.11684/j.issn.1000-310X.2021.06.004
[20]	Sun C, et al. High-resolution 2-D sector-scan imaging using MIMO sonar with narrowband LFM pulses[C]//2013 OCEANS-San Diego. San Diego: IEEE, 2013: 1-6.
[21]	刘雄厚. 密布式MIMO声呐成像原理与技术[M]. 北京: 科学出版社, 2022: 39-40.
[22]	Liu X H, Sun C, Yang Y X, et al. Using double-ping frequency diverse MIMO sonar to improve angle and range resolution[C]//OCEANS 2016 MTS/IEEE Monterey. Monterey: IEEE, 2016: 1-5.
[23]	陆珉, 许红波, 朱宇涛, 等. MIMO雷达DOA估计阵列设计[J]. 航空学报, 2010, 31(7): 1410-1416. Lu M, Xu H B, Zhu Y T, et al. Array design of MIMO radar estimation of DOA[J]. Acta Aeronautica et Astronautica Sinica, 2010, 31(7): 1410-1416.
