A Study on Uncertain Vibroacoustic Characteristics of Composite Underwater Shells
-
摘要: 现有研究多针对水下复合材料壳体振声响应的确定性分析, 但实际工程中结构参数、材料属性以及重流体参数等均具有不确定性。为此, 文中提出一种基于区间分析与代理模型的高效预测方法, 适用于重流体环境下阶梯结构的不确定性振声响应分析。文中研究对象为浸没于无限域重流体中的复合层合阶梯圆柱壳, 基于一阶剪切变形理论、能量法和基尔霍夫-亥姆霍兹积分构建振声耦合分析模型, 引入区间分析法描述参数波动, 采用Kriging代理模型替代高耗时边界元运算, 研究了各不确定性参数对复合层合阶梯圆柱壳声压级响应的影响, 在此基础上分析了影响较为明显的不确定性参数数值变化时响应曲线的偏移现象。结果表明, 多源不确定性导致显著的频率偏移与响应波动区间拓宽。该方法填补了重流体环境下复杂阶梯结构不确定性振声分析的空白, 实现了计算精度与效率的最优平衡。Abstract: The existing studies mostly focus on the deterministic analysis of the acoustic and vibration response of underwater composite shells, but the structural parameters, material properties and heavy fluid parameters in actual engineering are uncertain. Therefore, this paper presents an efficient prediction method based on interval analysis and agent model, which is suitable for the prediction of the vibration response of stair structures under heavy fluid environment. The research object is a composite laminated stepped cylindrical shell immersed in infinite domain heavy fluid. Based on the first-order shear deformation theory, energy method and Kirchhoff-Helmholtz integral, a vibration-acoustic coupled analysis model is established. The interval analysis method is introduced to describe the parameter fluctuation. The Kriging agent model is used to replace the time-consuming boundary element operation. The influence of various uncertain parameters on the sound pressure level response of the composite laminated stepped cylindrical shell is studied. On this basis, the deflection phenomenon of the response curve when the uncertain parameters change obviously. The results show that the multi-source uncertainty causes significant frequency shift and response fluctuation range widening. This method fills the gap of the uncertainty vibro-acoustic analysis of complex stepped structures in heavy fluid environment, and achieves the optimal balance between calculation accuracy and efficiency.
-

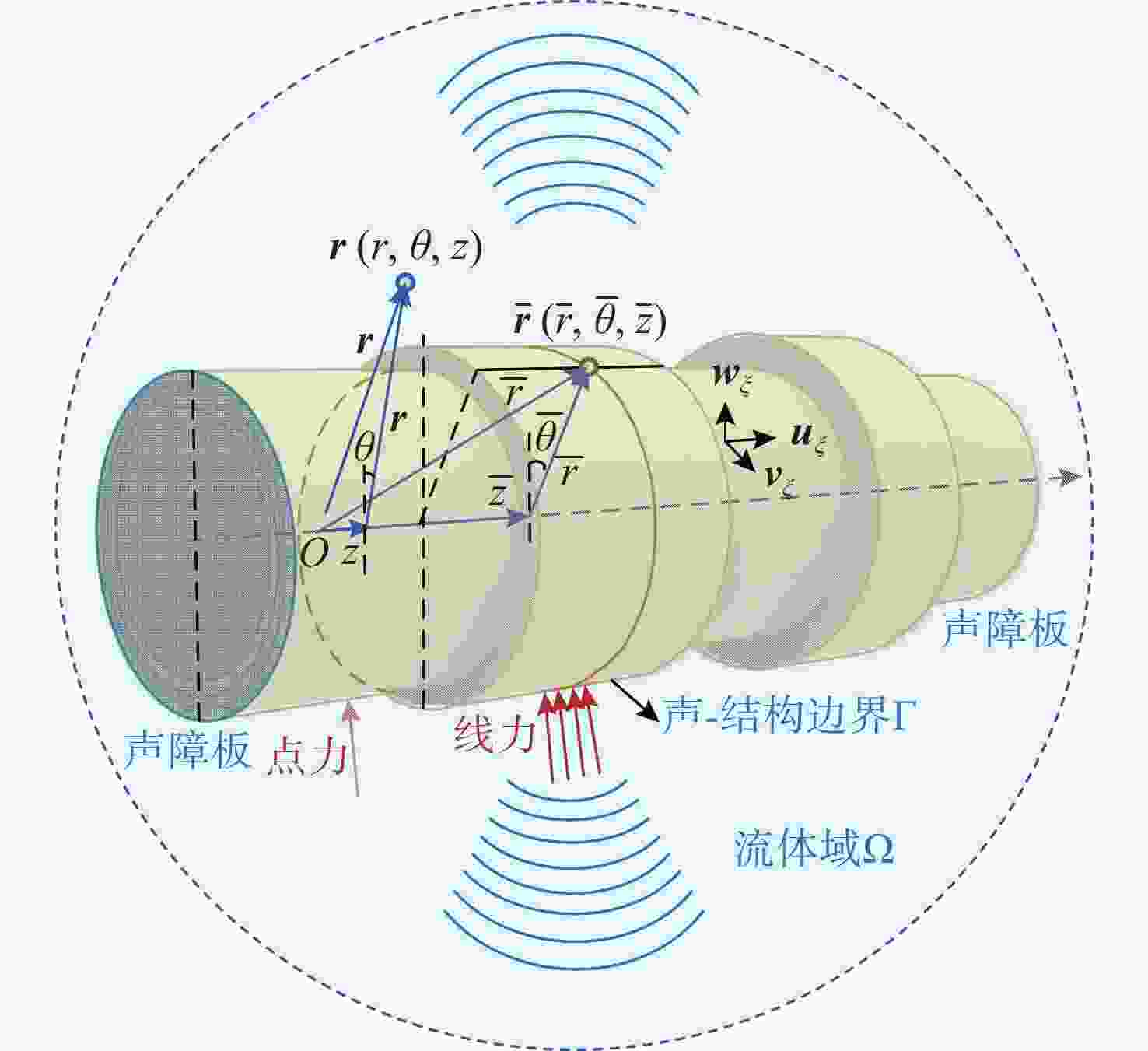

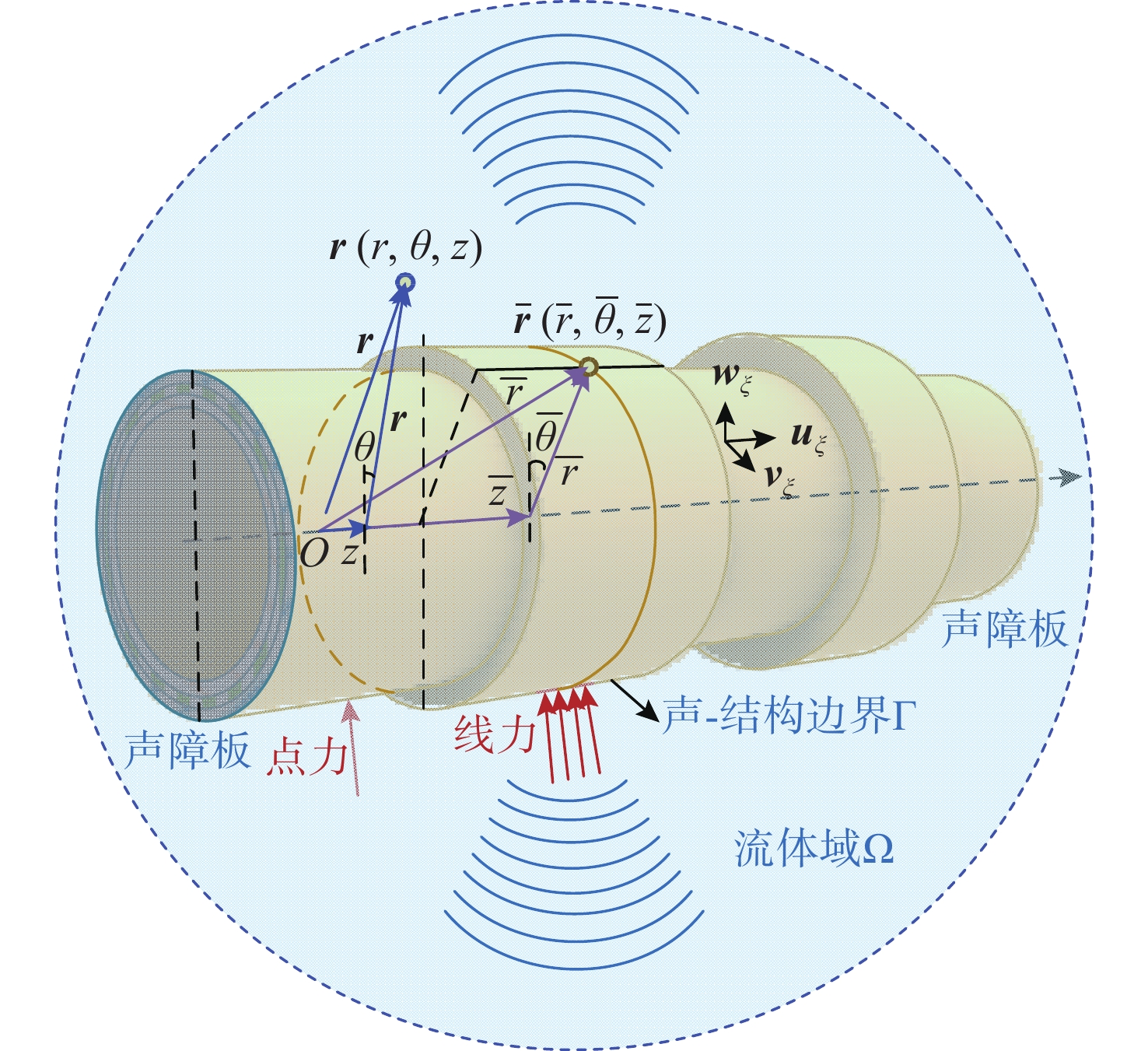

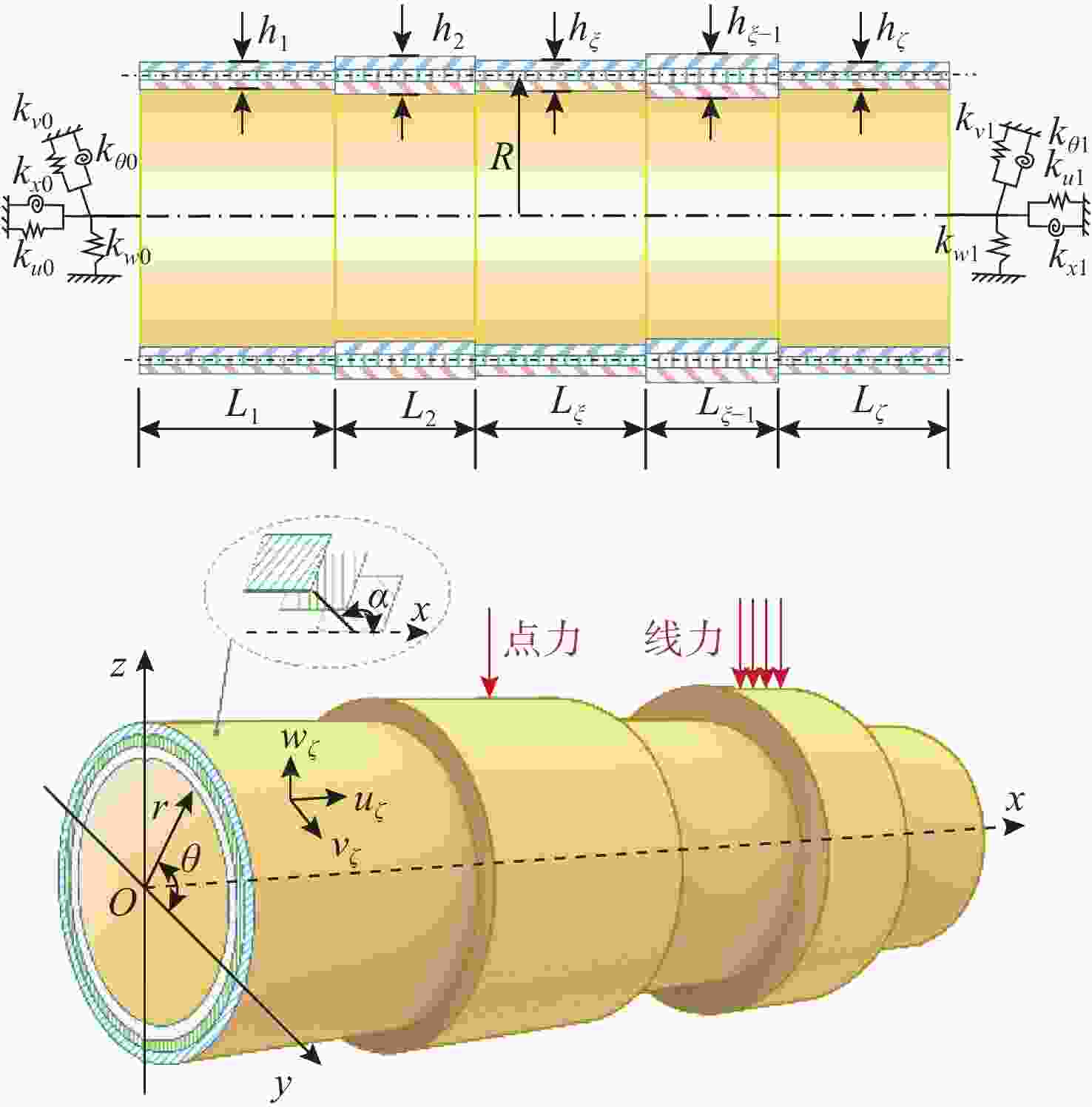

图 1 受外部激励作用的复合层合阶梯圆柱壳示意图
Figure 1. Diagram of composite laminated stepped cylindrical shell under external excitation

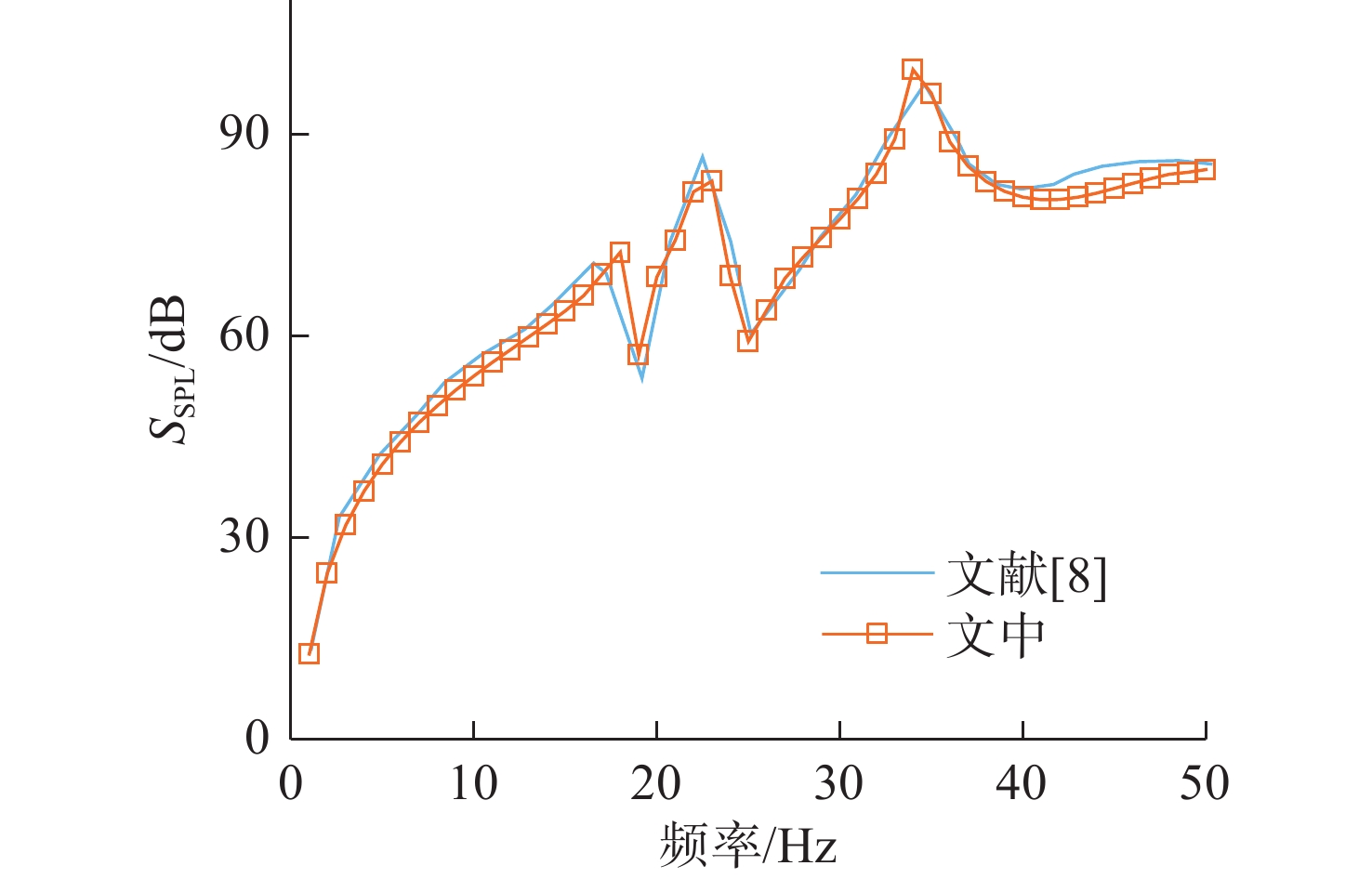

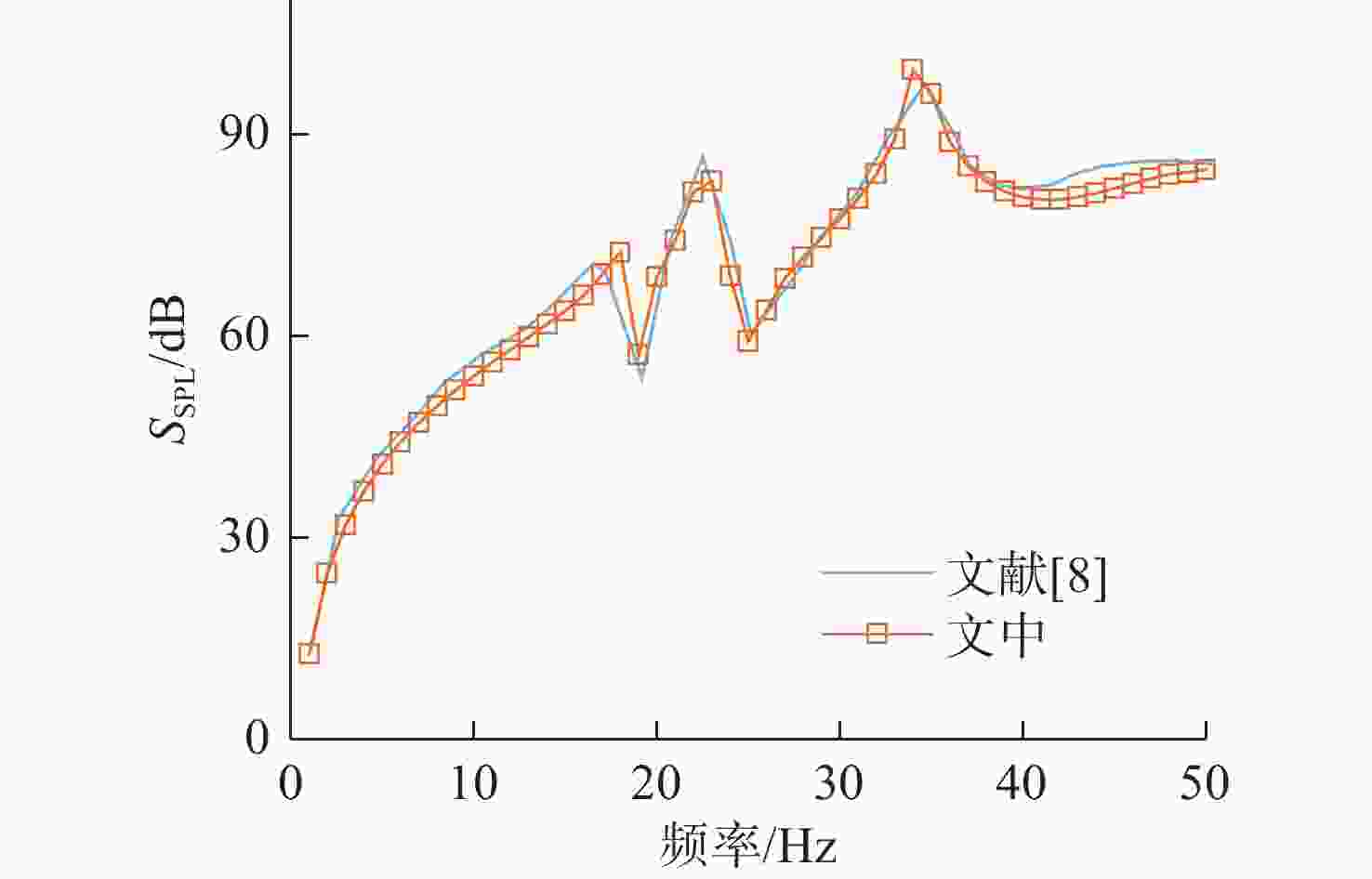

图 3 复合层合阶梯圆柱壳的声压级对比
Figure 3. Comparison of sound pressure levels of composite laminated stepped cylindrical shells

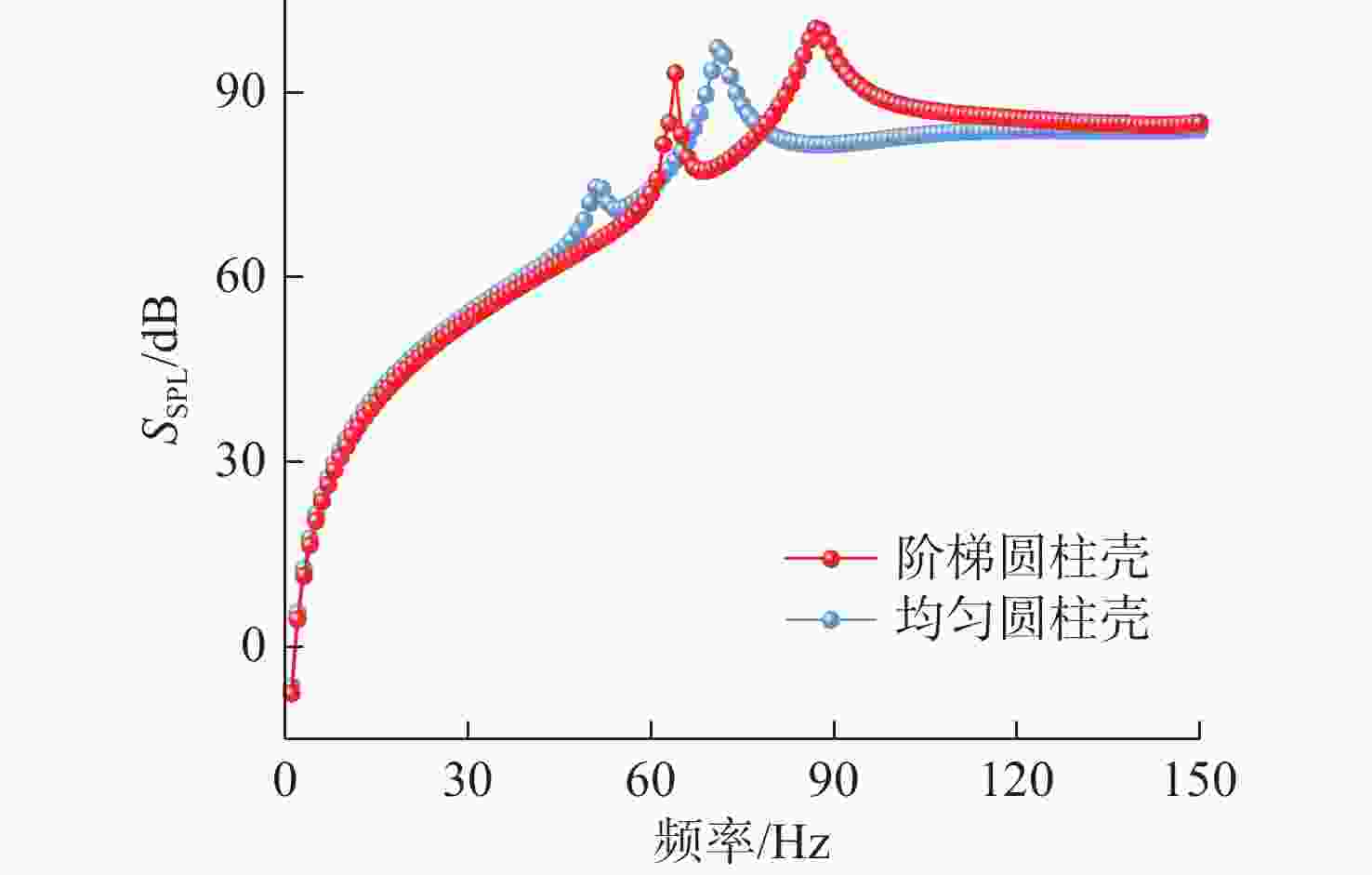

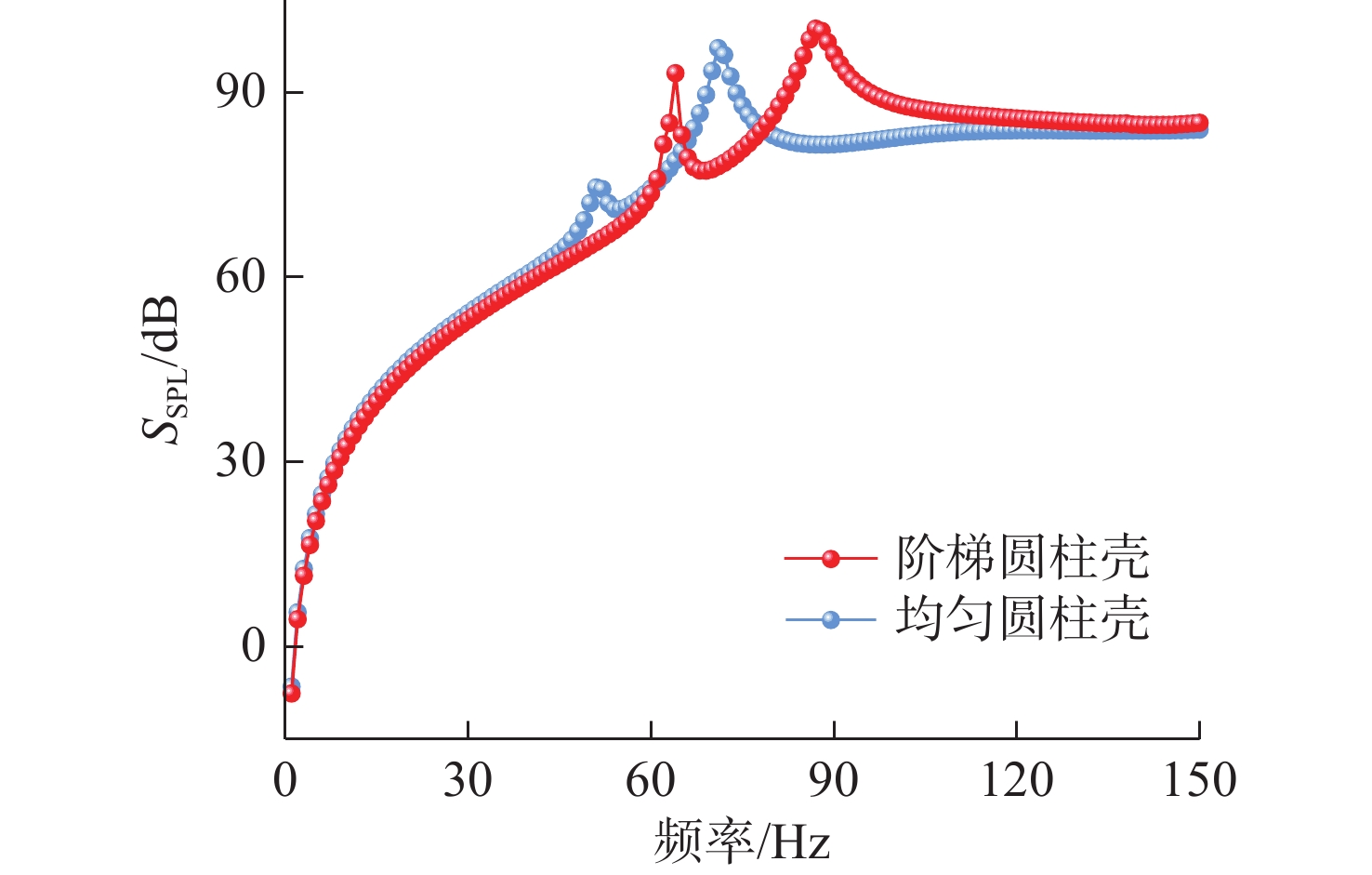

图 4 阶梯圆柱壳与均匀圆柱壳的声压级对比
Figure 4. Comparison of sound pressure levels between stepped and uniform cylindrical shells

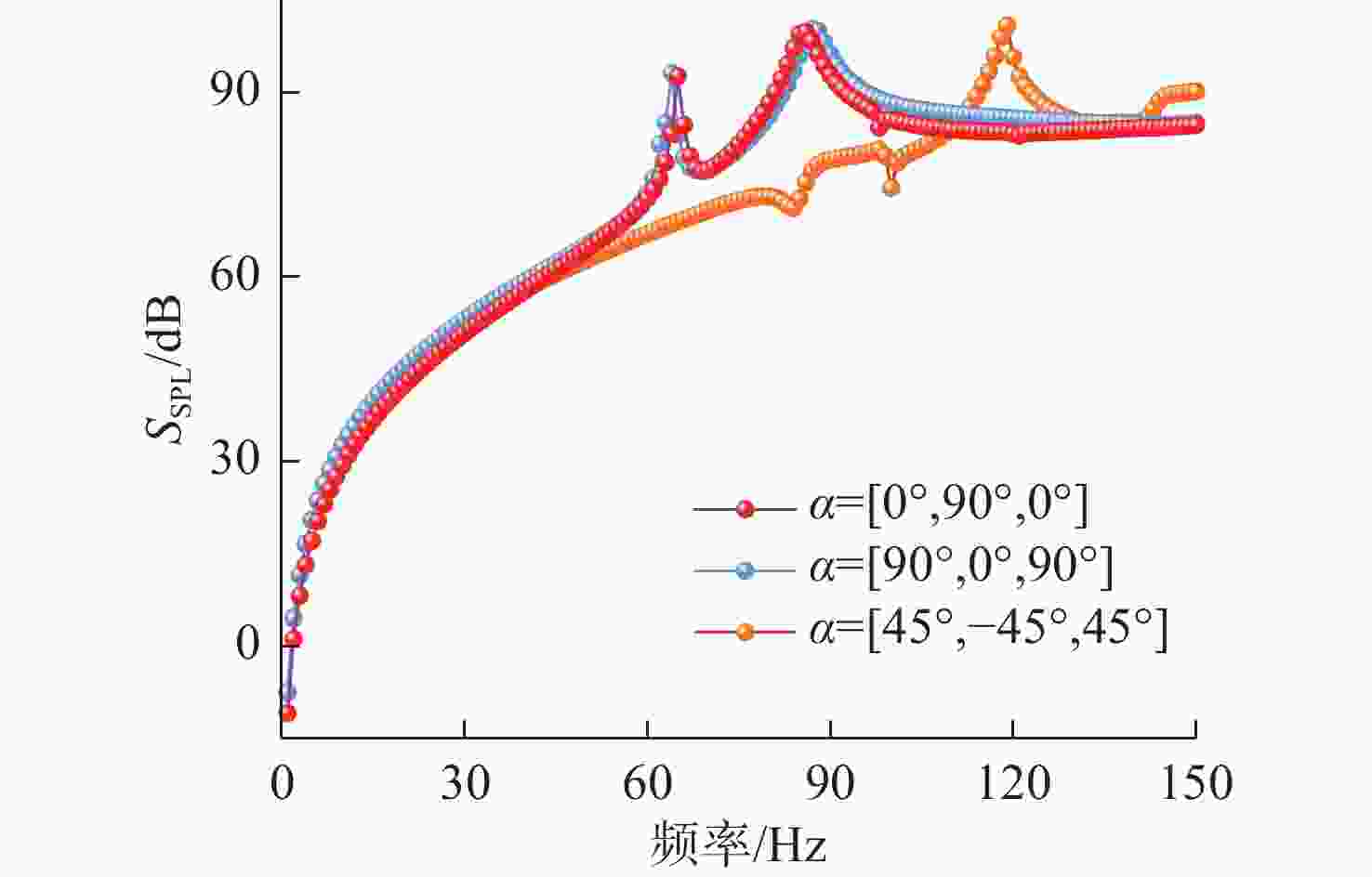

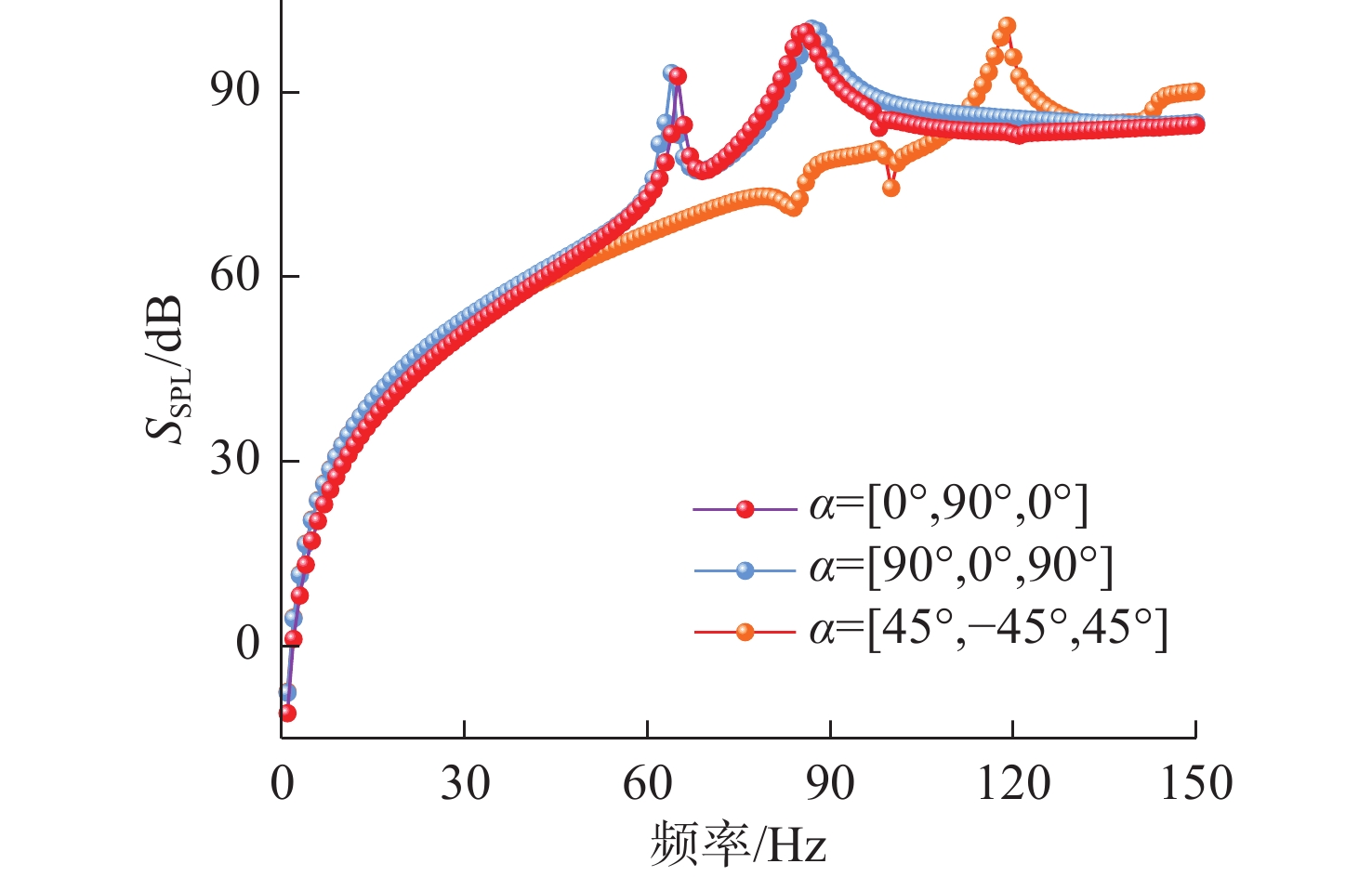

图 5 不同铺层角下阶梯圆柱壳的声压级对比
Figure 5. Comparison of sound pressure levels of stepped cylindrical shells with different layer angles

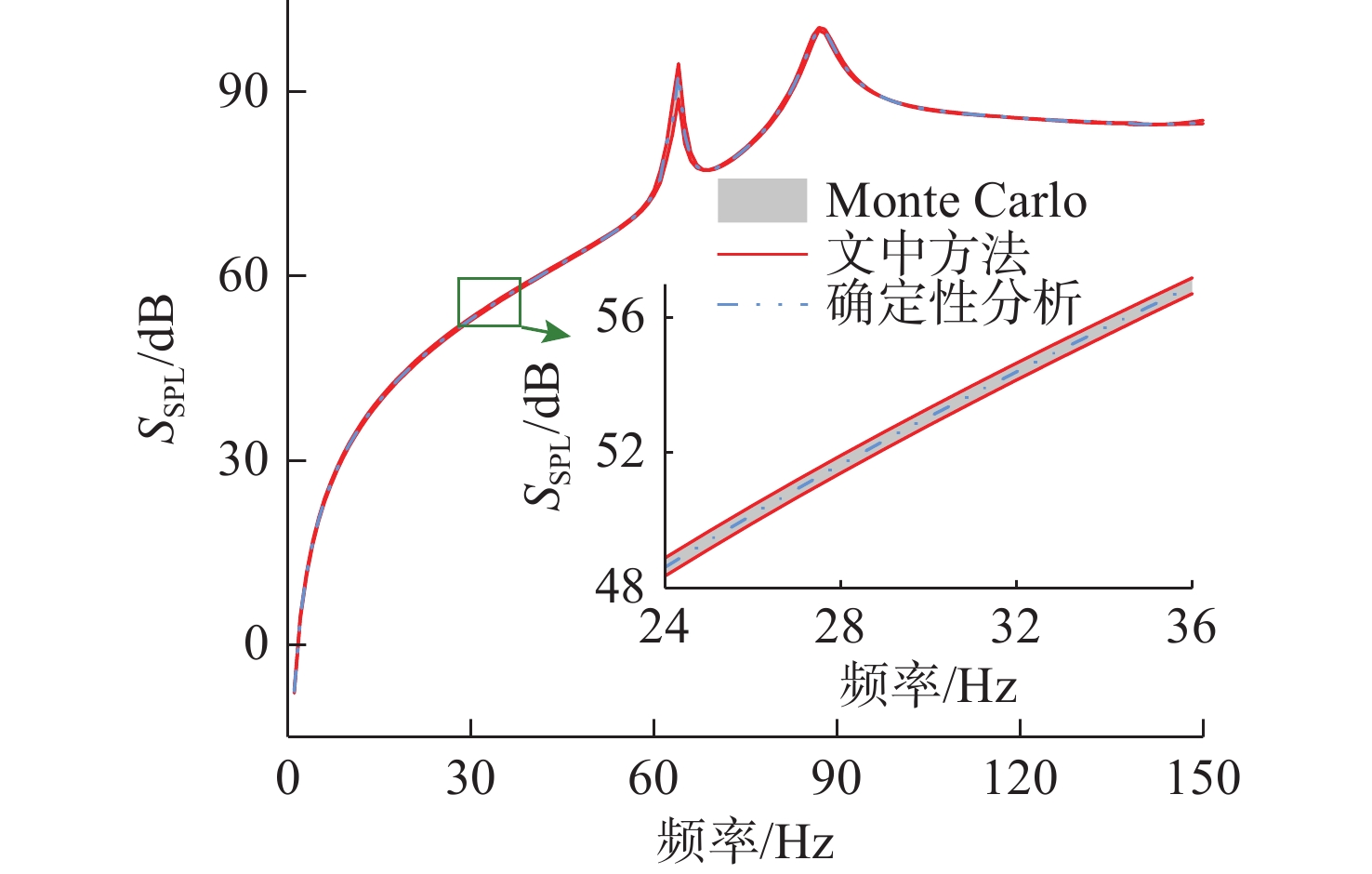

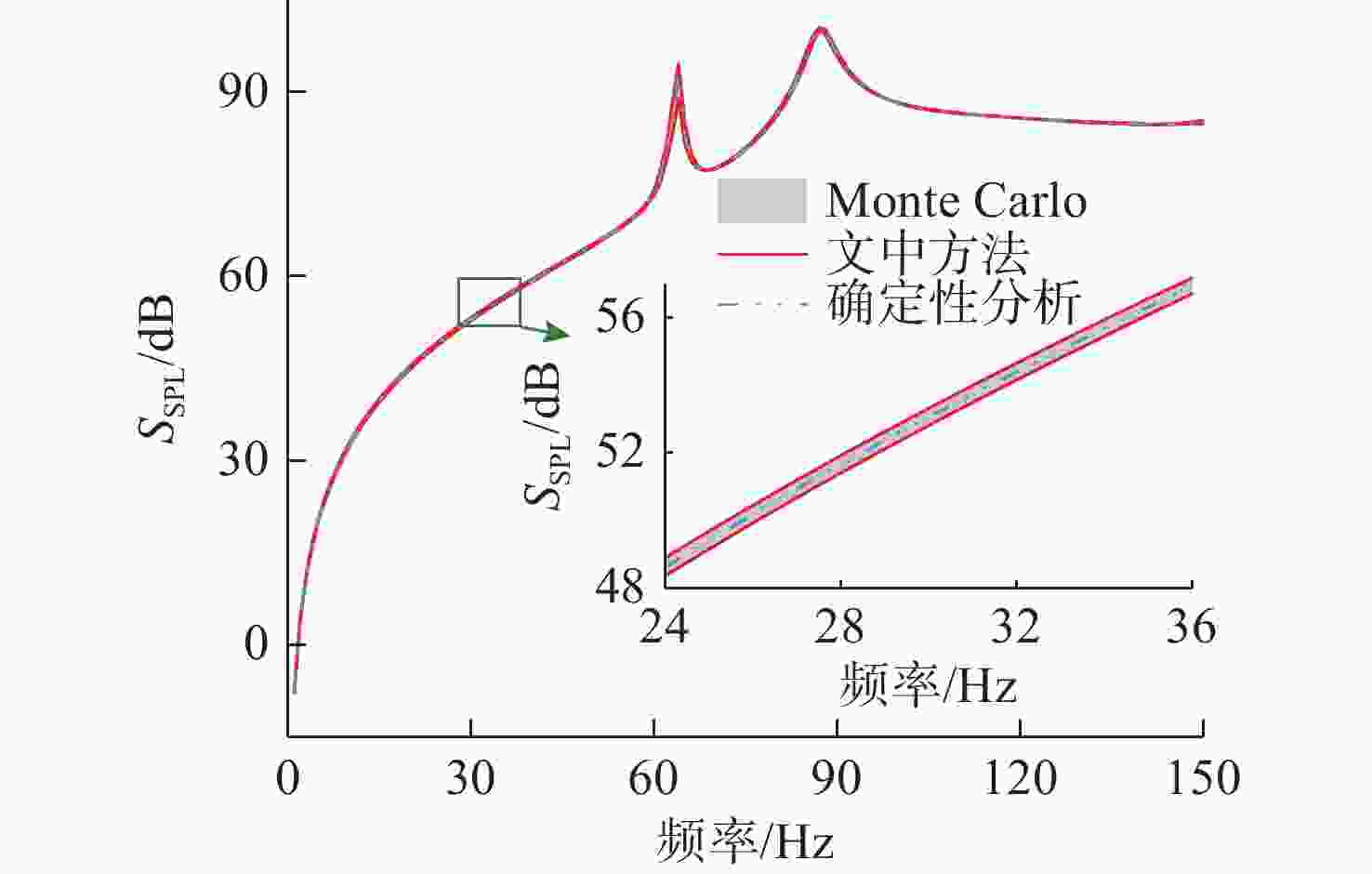

图 6 E1呈现不确定性时, 复合层合阶梯圆柱壳的声压级响应幅频曲线
Figure 6. Amplitude-frequency curve of sound pressure level response of composite laminated stepped cylindrical shells with uncertainty in the material parameter E1

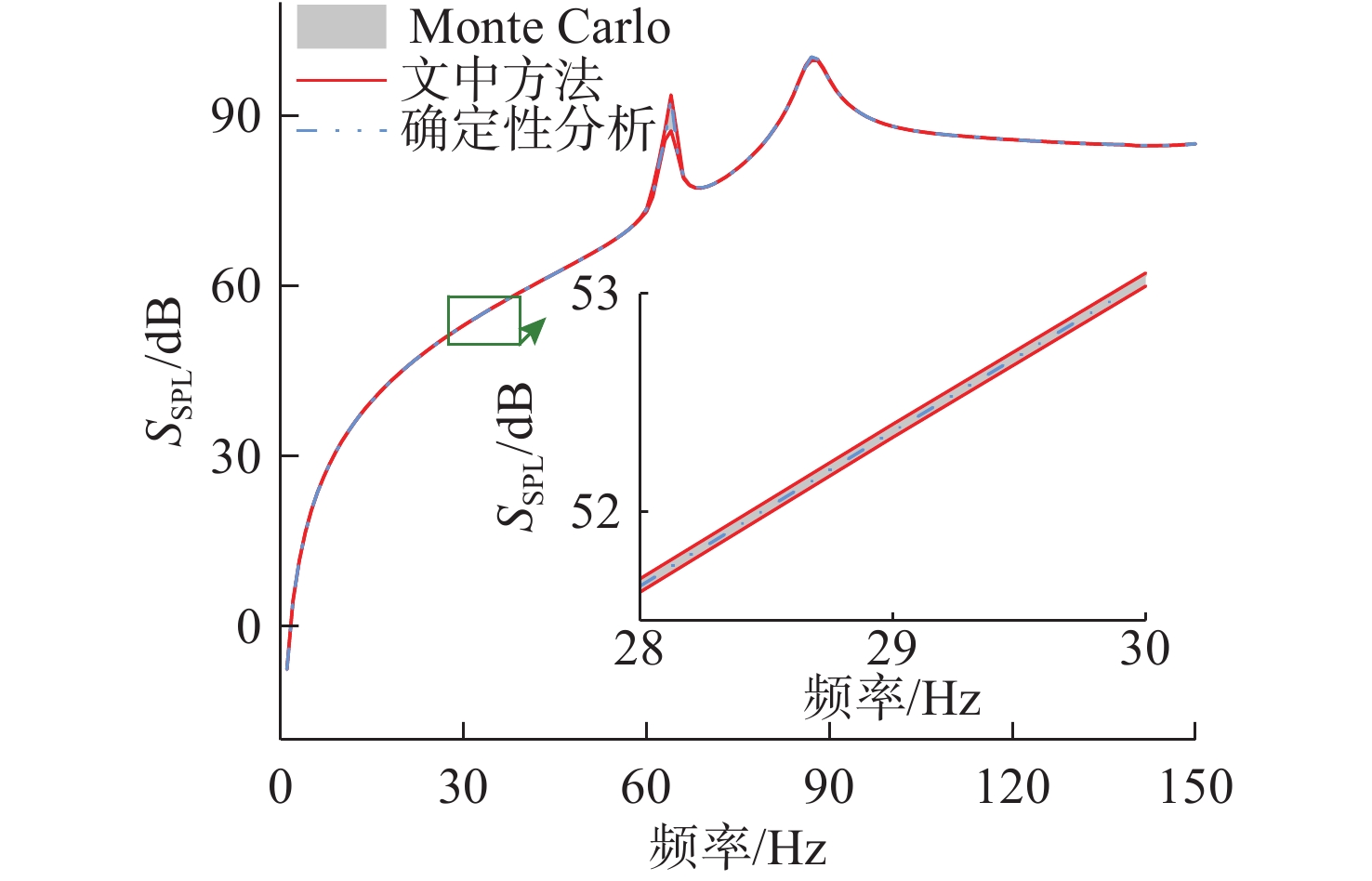

图 7 E2呈现不确定性时, 复合层合阶梯圆柱壳的声压级响应幅频曲线
Figure 7. Amplitude-frequency curve of sound pressure level response of composite laminated stepped cylindrical shells with uncertainty in the material parameter E2

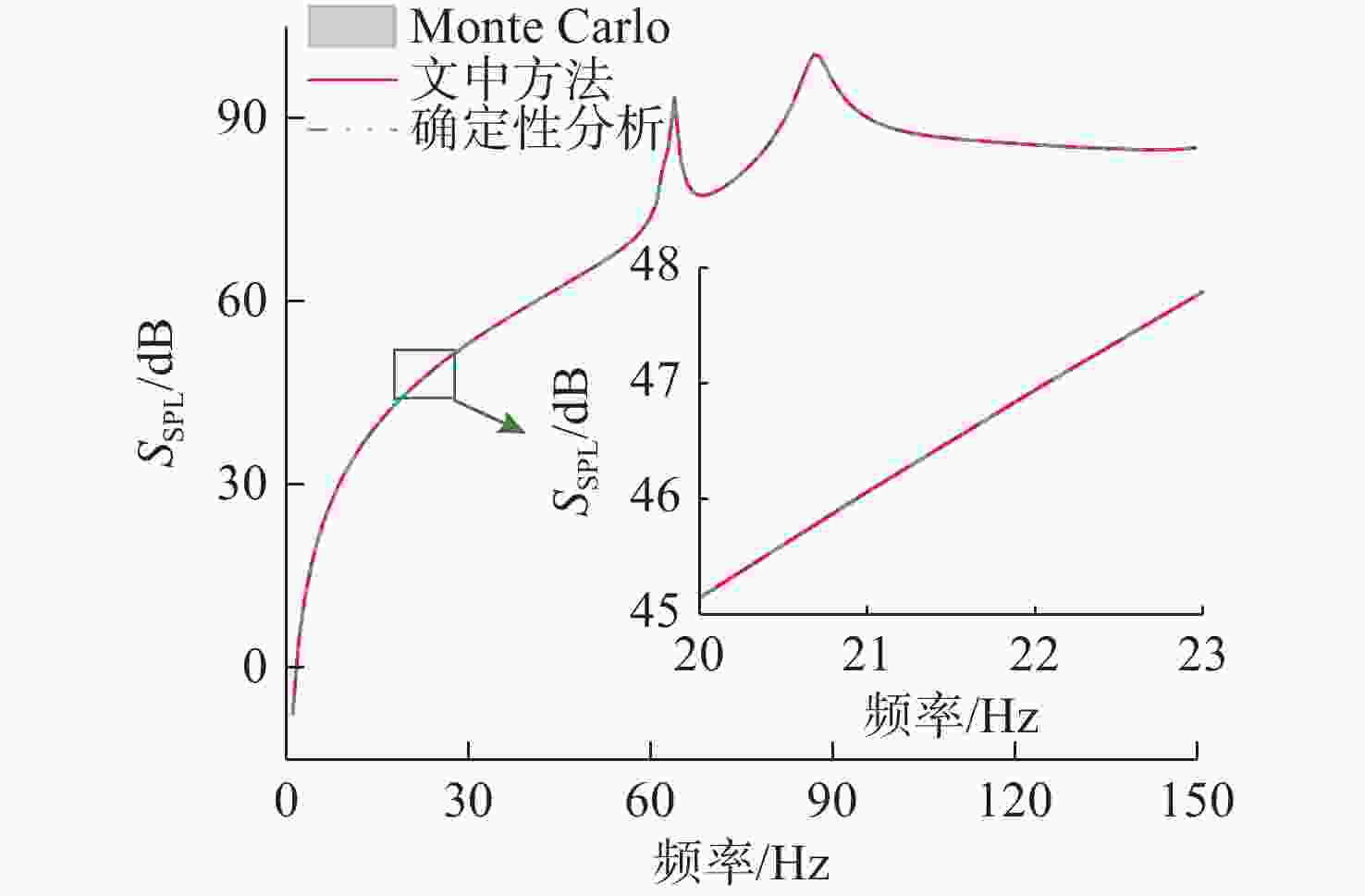

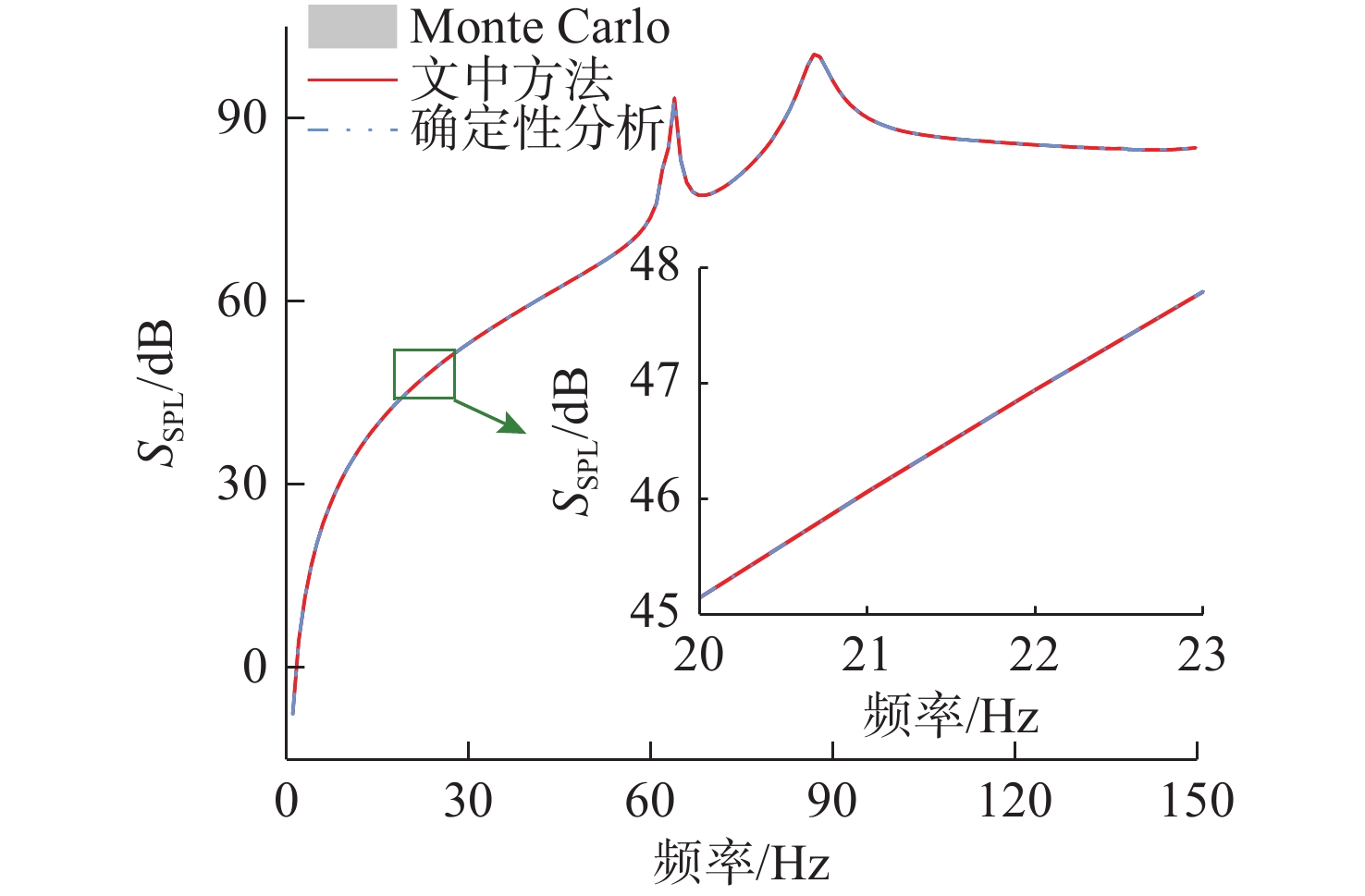

图 8 $ {\mu }_{12} $呈现不确定性时, 复合层合阶梯圆柱壳的声压级响应幅频曲线
Figure 8. Amplitude-frequency curve of sound pressure level response of composite laminated stepped cylindrical shells with uncertainty in the material parameter $ {\mu }_{12} $

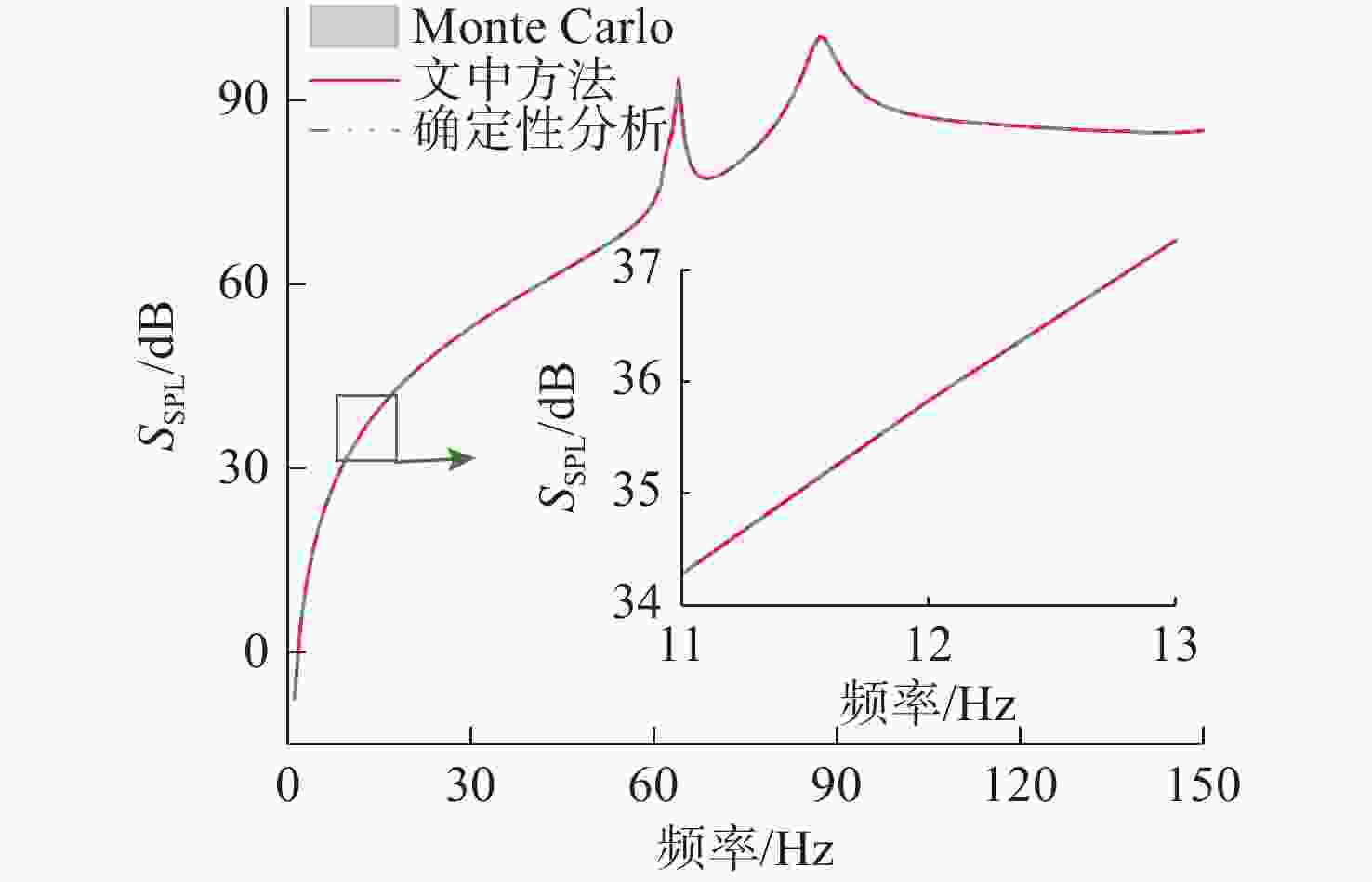

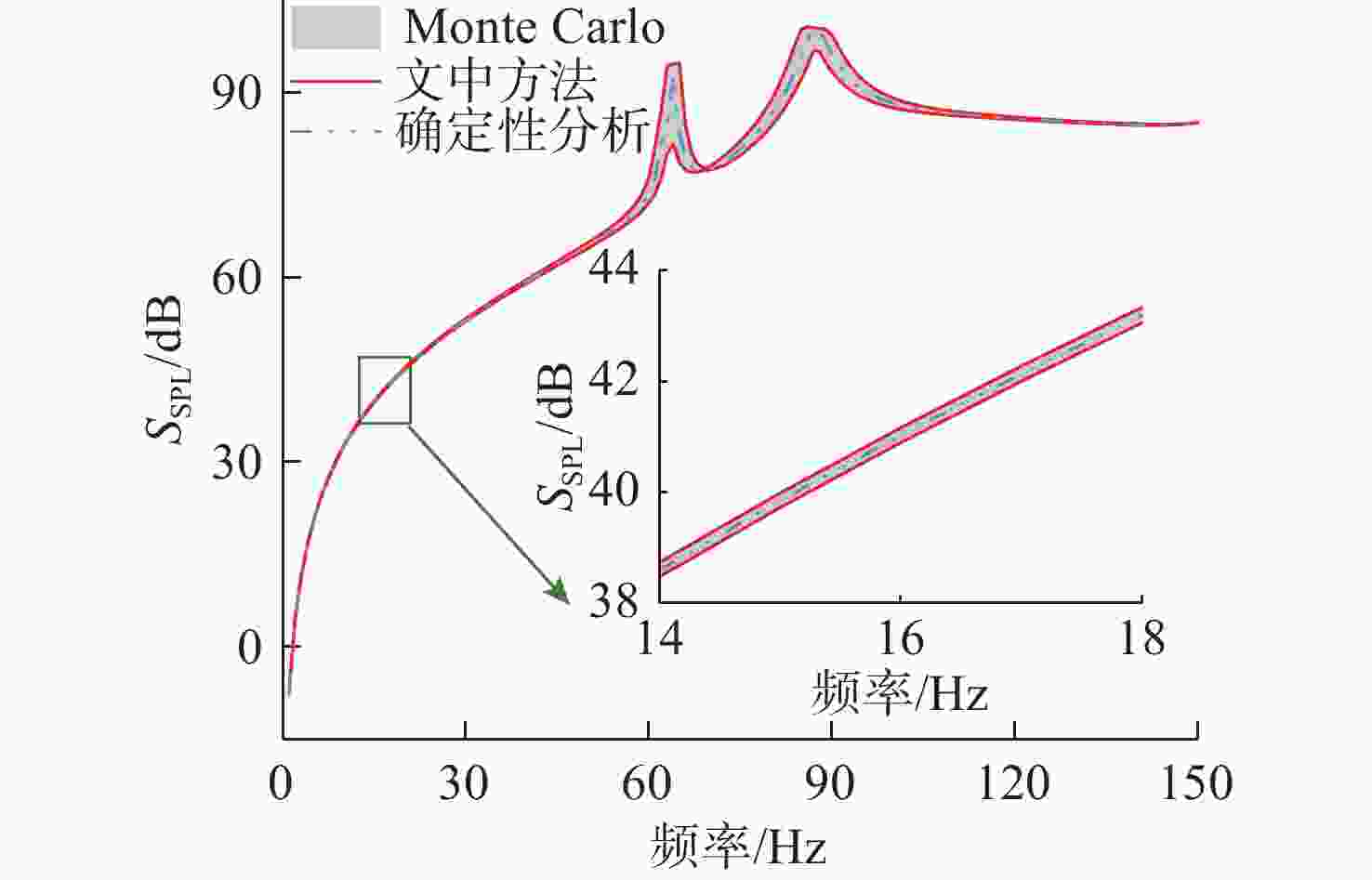

图 9 G12呈现不确定性时, 复合层合阶梯圆柱壳的声压级响应幅频曲线
Figure 9. Amplitude-frequency curve of sound pressure level response of composite laminated stepped cylindrical shells with uncertainty in the material parameter G12

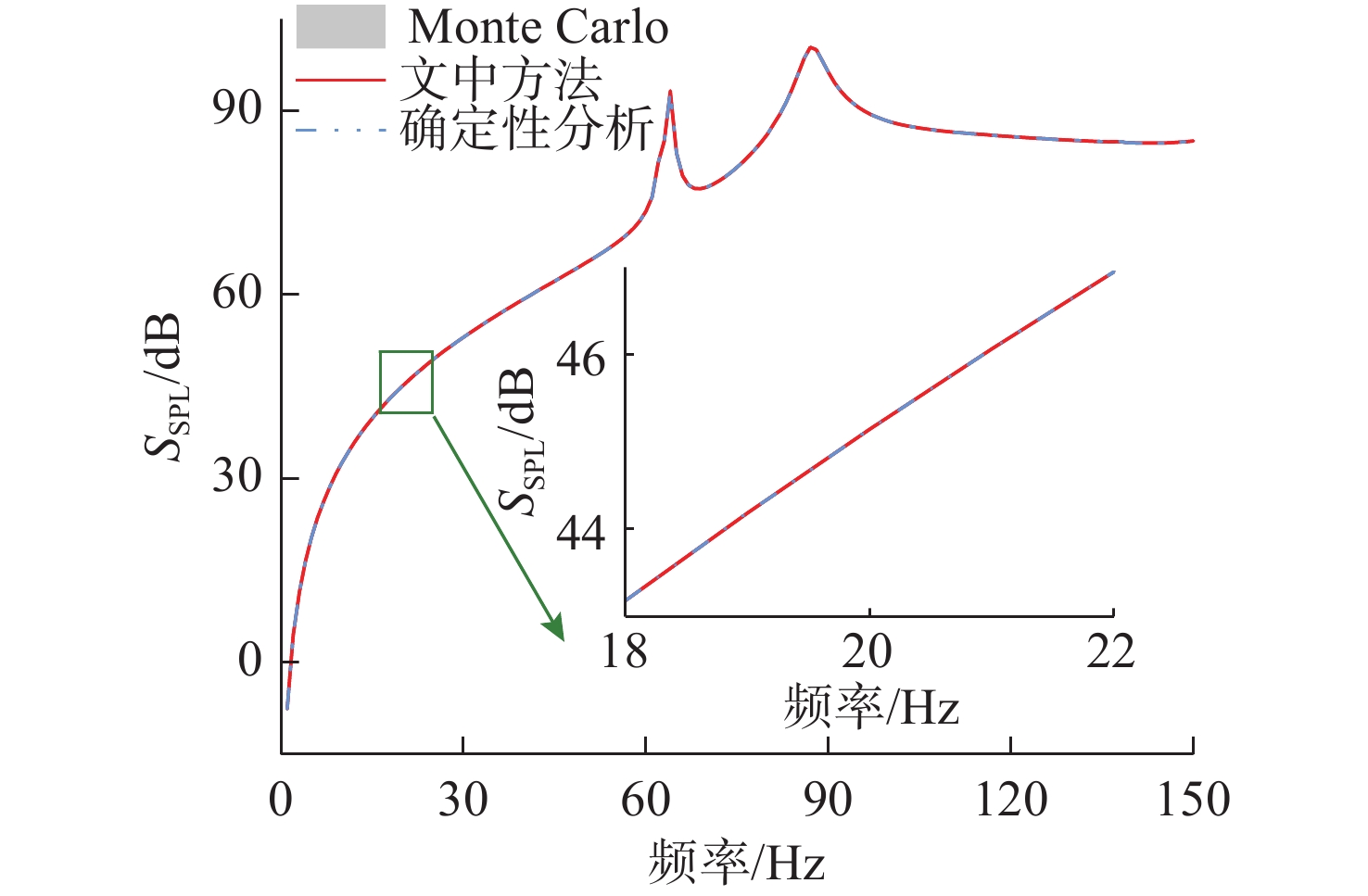

图 10 G13呈现不确定性时, 复合层合阶梯圆柱壳的声压级响应幅频曲线
Figure 10. Amplitude-frequency curve of sound pressure level response of composite laminated stepped cylindrical shells with uncertainty in the material parameter G13

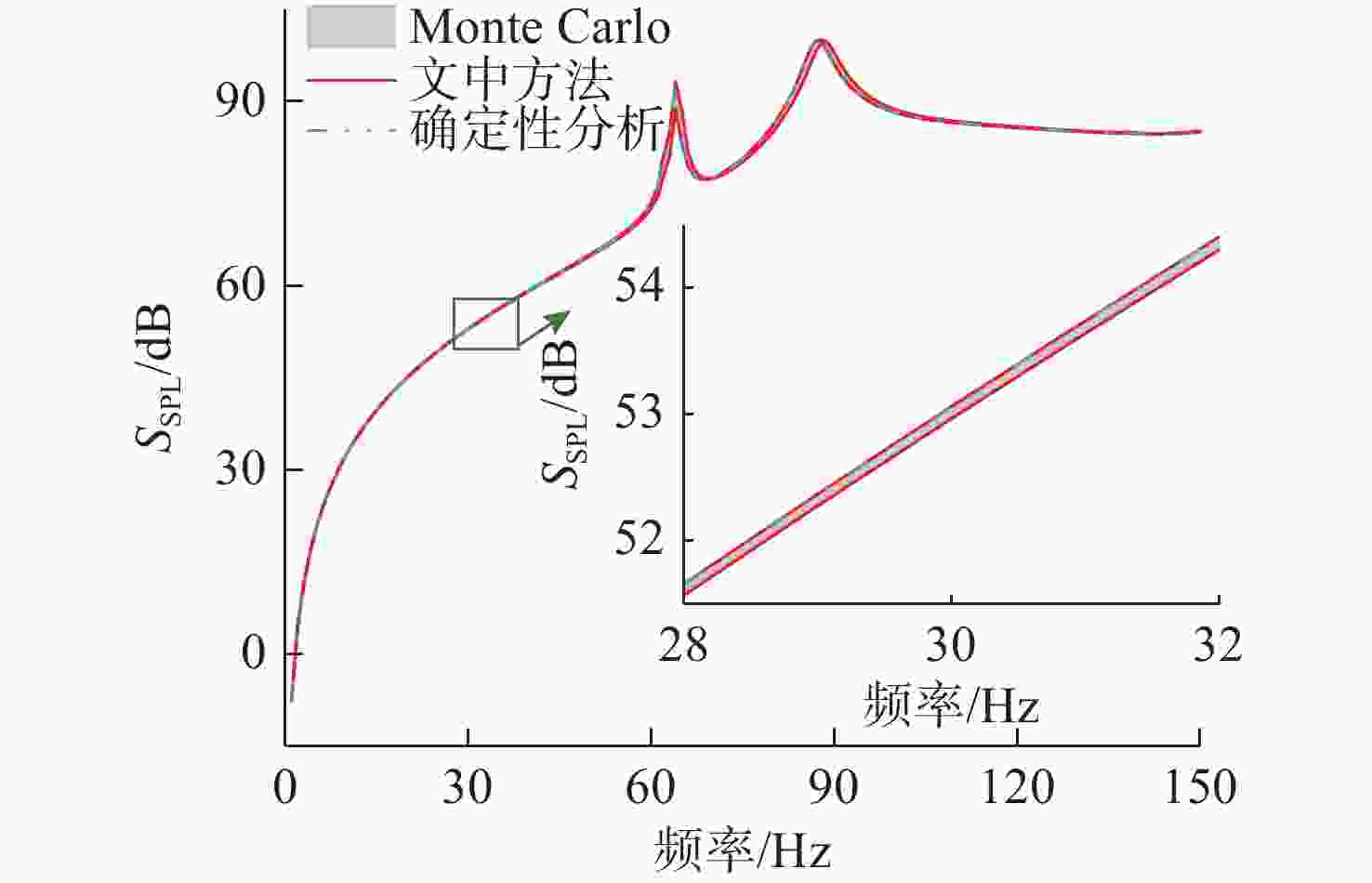

图 11 G23呈现不确定性时, 复合层合阶梯圆柱壳的声压级响应幅频曲线
Figure 11. Amplitude-frequency curve of sound pressure level response of composite laminated stepped cylindrical shells with uncertainty in the material parameter G23

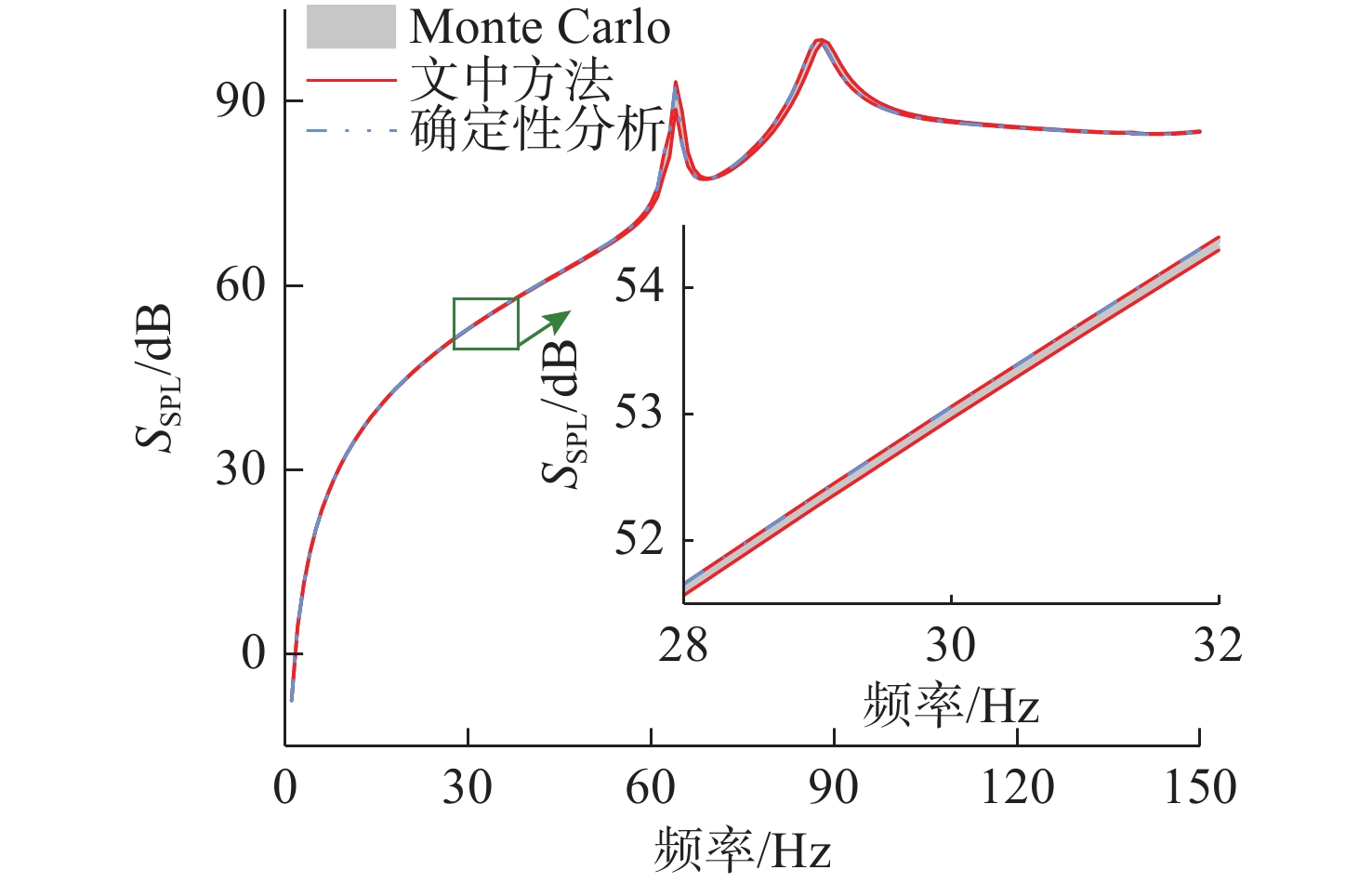

图 12 $ \alpha $呈现不确定性时, 复合层合阶梯圆柱壳的声压级响应幅频曲线
Figure 12. Amplitude-frequency curve of sound pressure level response of composite laminated stepped cylindrical shells with uncertainty in the material parameter $ {\boldsymbol{\alpha}} $

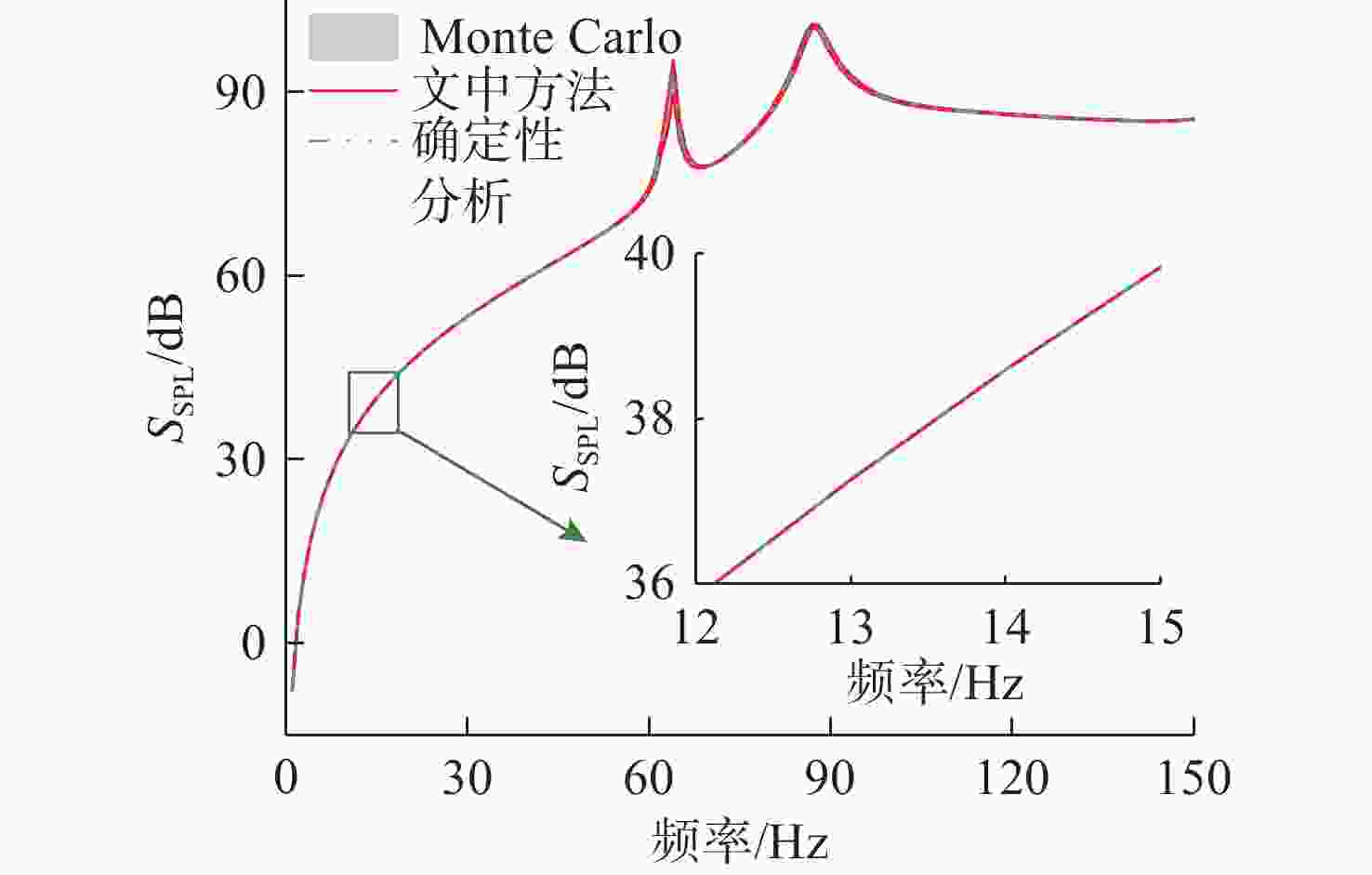

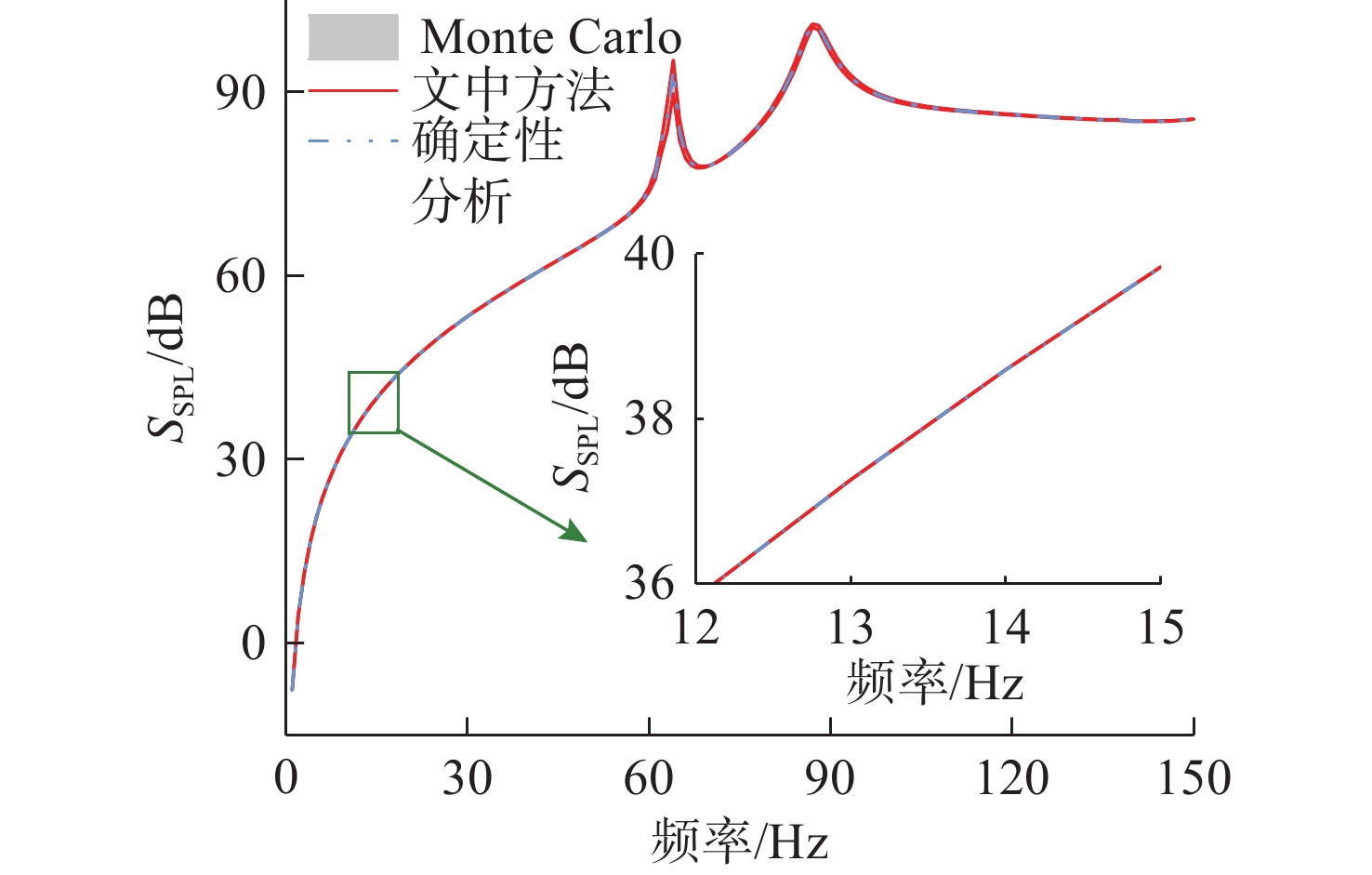

图 13 $ \rho $呈现不确定性时, 复合层合阶梯圆柱壳的声压级响应幅频曲线
Figure 13. Amplitude-frequency curve of sound pressure level response of composite laminated stepped cylindrical shells with uncertainty in the material parameter $ {\boldsymbol{\rho}} $

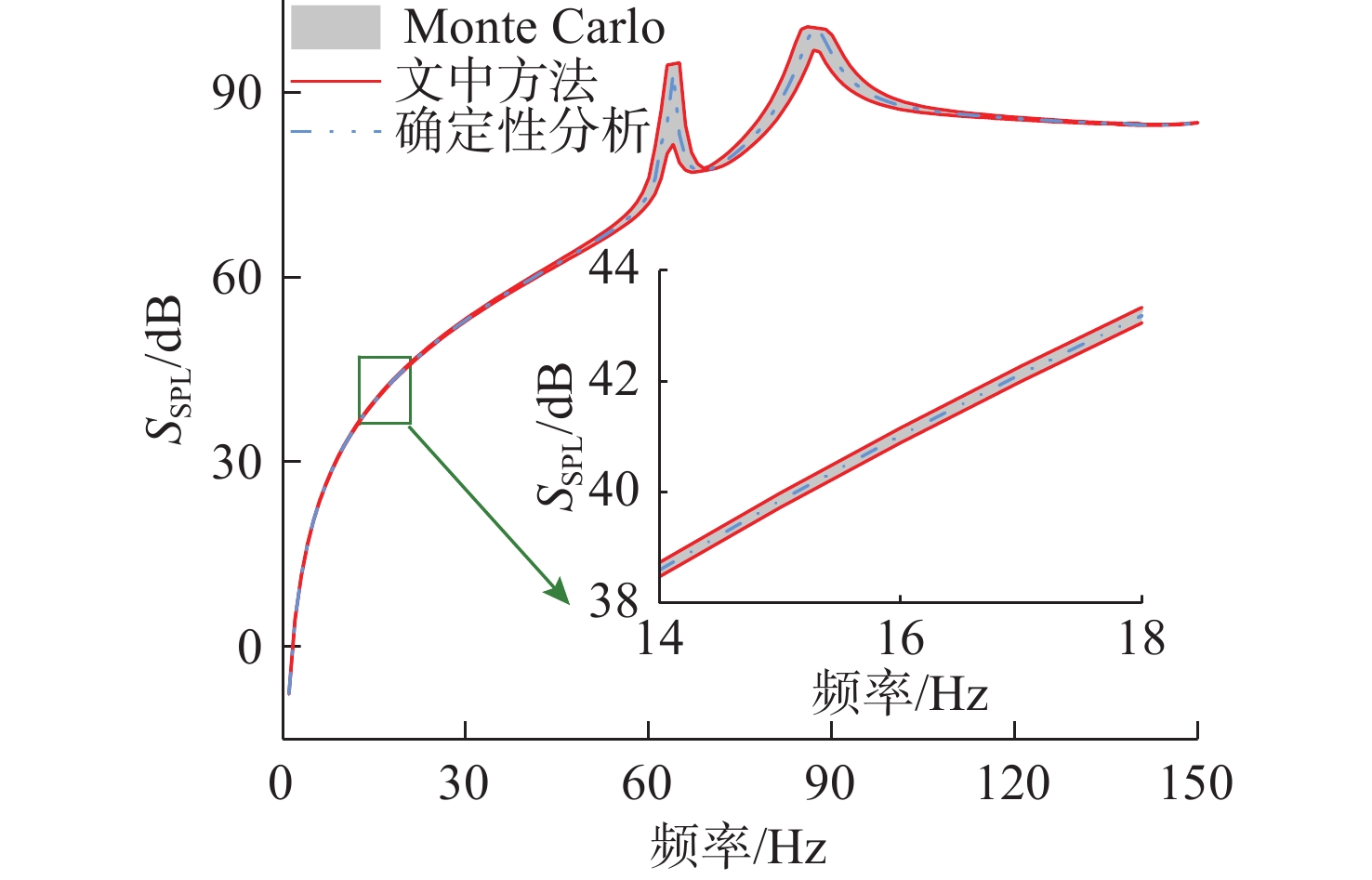

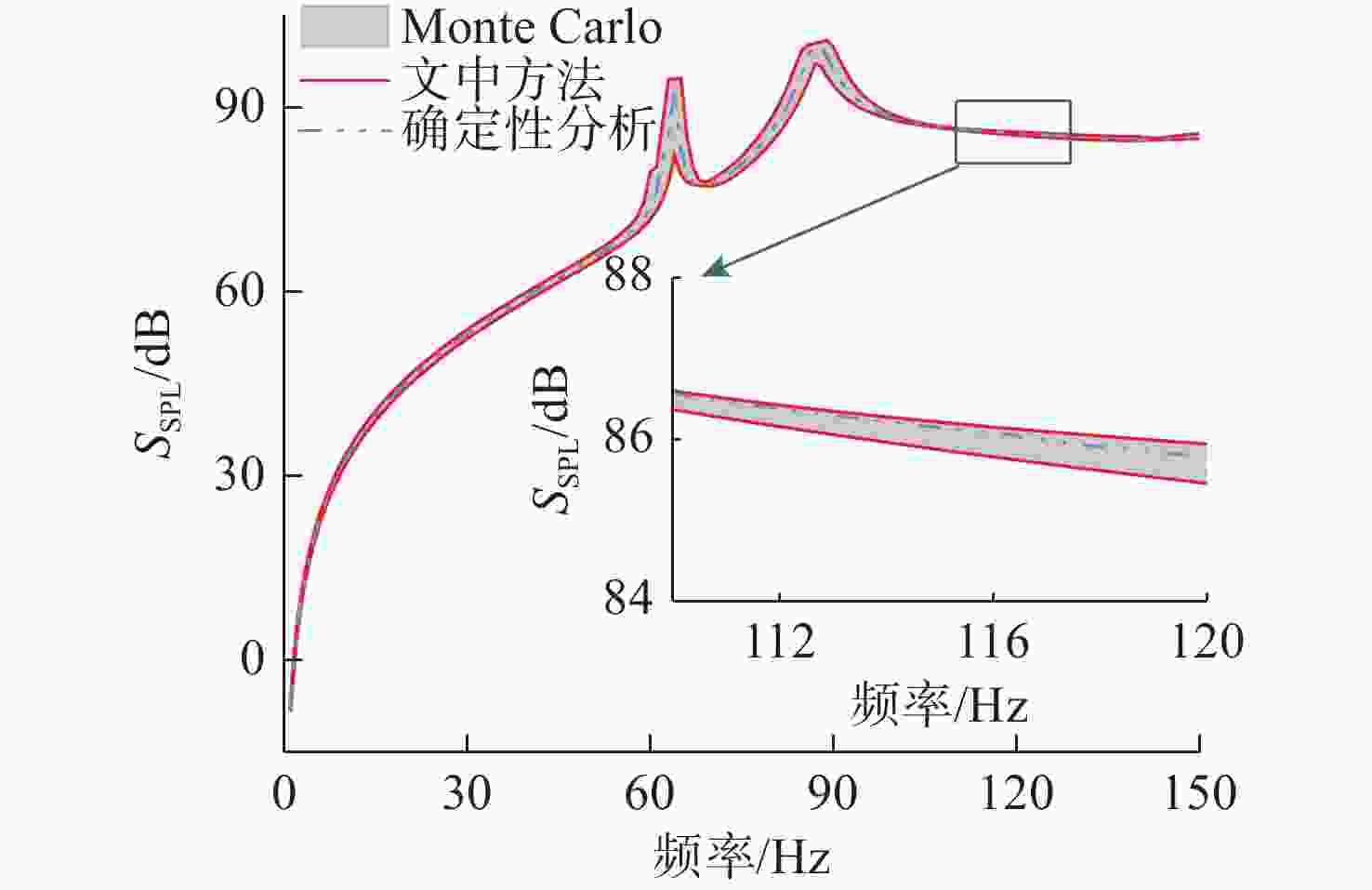

图 14 R呈现不确定性时, 复合层合阶梯圆柱壳的声压级响应幅频曲线
Figure 14. Amplitude-frequency curve of sound pressure level response of composite laminated stepped cylindrical shells with uncertainty in the material parameter R
图 15 h呈现不确定性时, 复合层合阶梯圆柱壳的声压级响应幅频曲线
Figure 15. Amplitude-frequency curve of sound pressure level response of composite laminated stepped cylindrical shells with uncertainty in the material parameter h

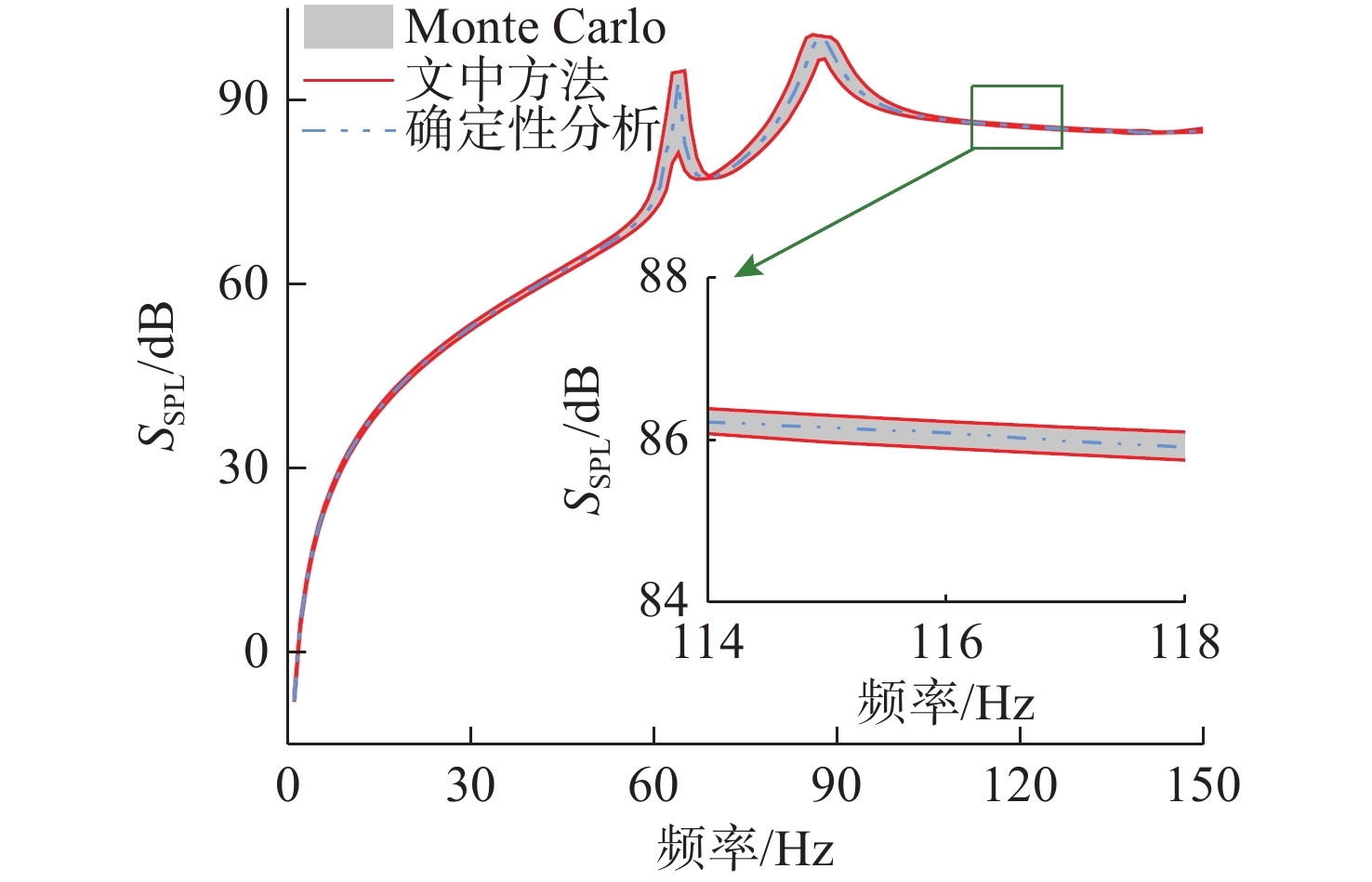

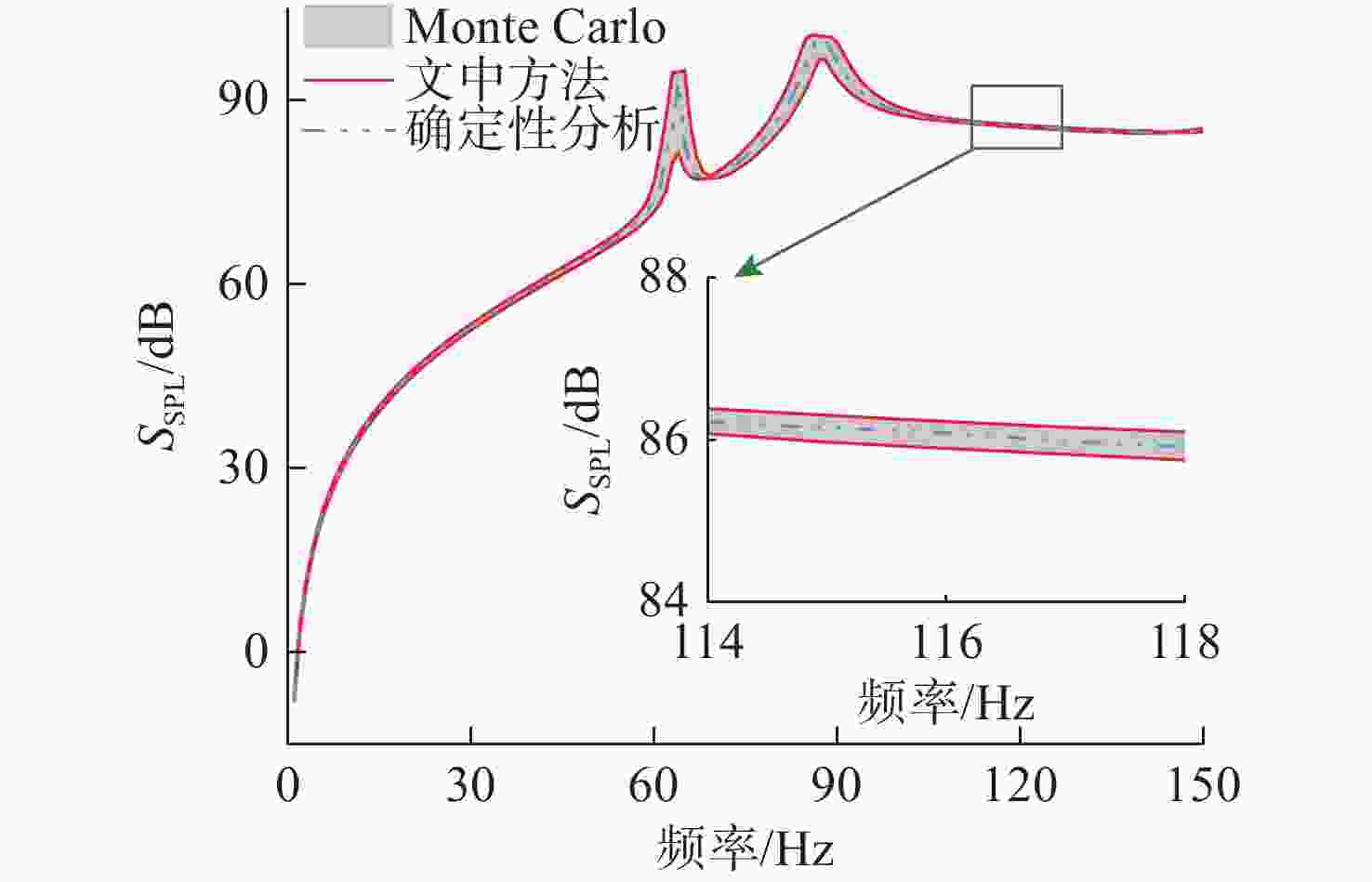

图 16 $ {\rho }_{\text{f}} $呈现不确定性时, 复合层合阶梯圆柱壳的声压级响应幅频曲线
Figure 16. Amplitude-frequency curve of sound pressure level response of composite laminated stepped cylindrical shells with uncertainty in the material parameter $ {\rho }_{\text{f}} $

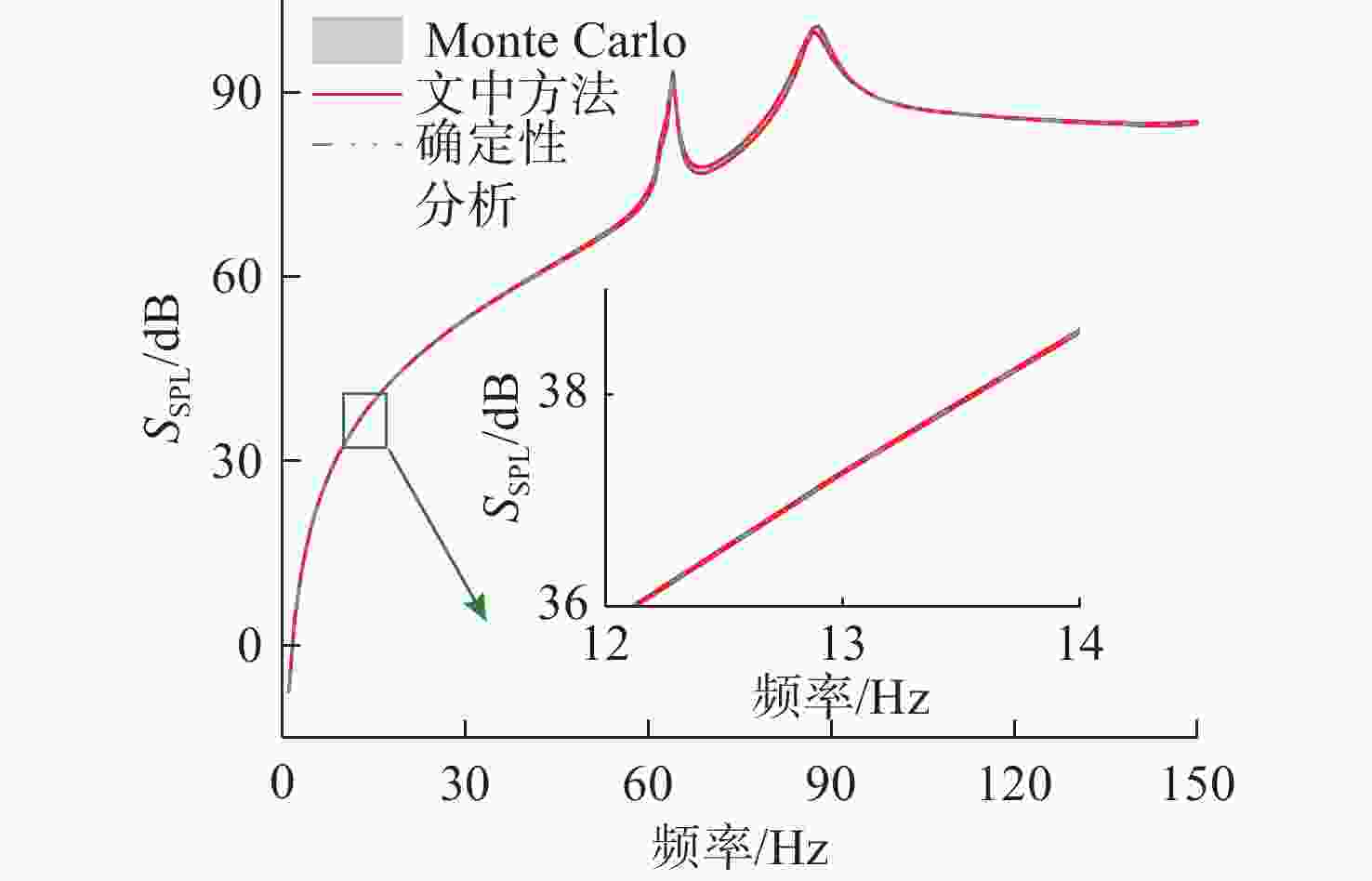

图 17 $ {c}_{\text{f}} $呈现不确定性时, 复合层合阶梯圆柱壳的声压级响应幅频曲线
Figure 17. Amplitude-frequency curve of sound pressure level response of composite laminated stepped cylindrical shells with uncertainty in the material parameter $ {{\boldsymbol{c}}}_{\bf{f}} $

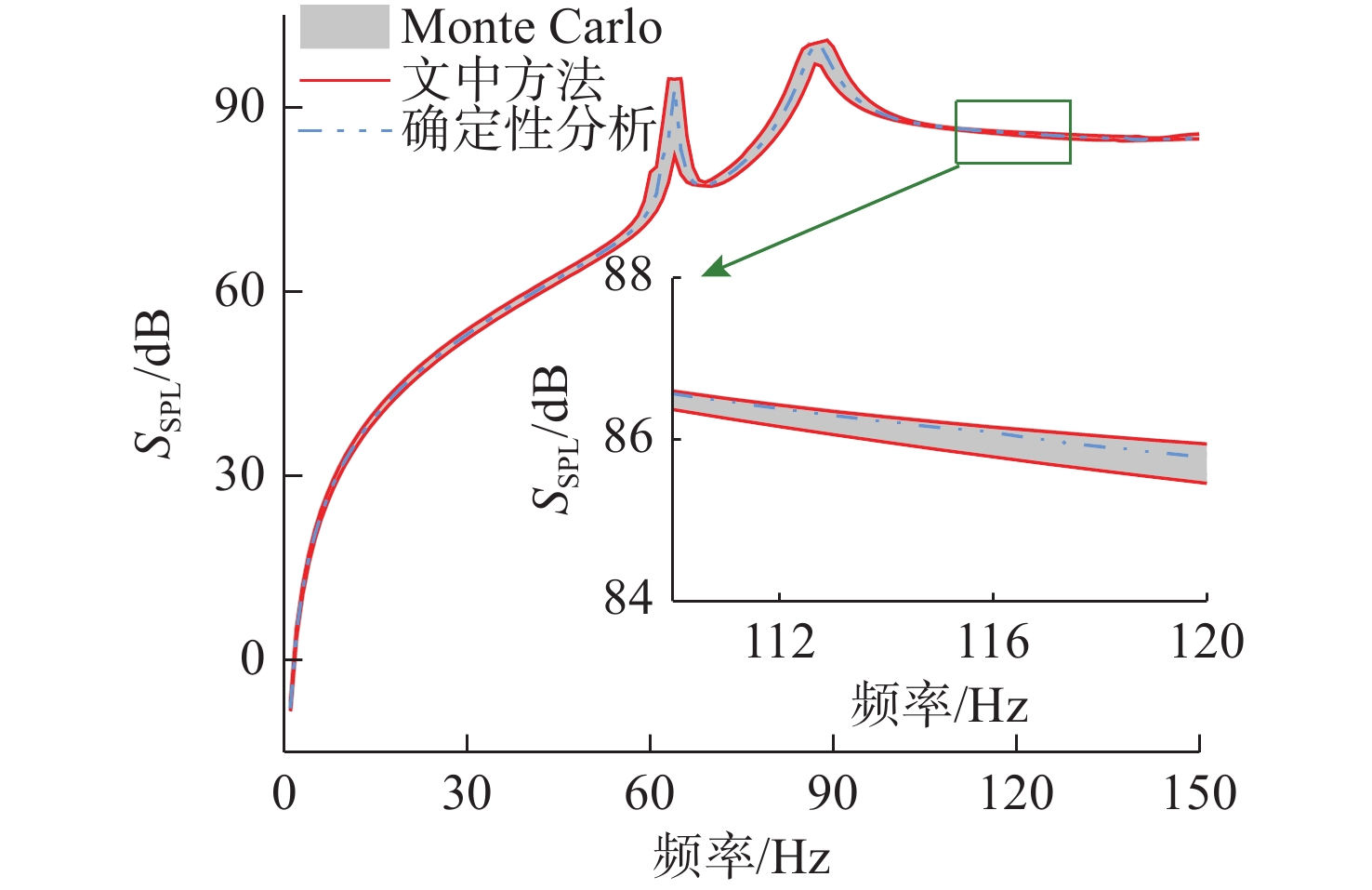

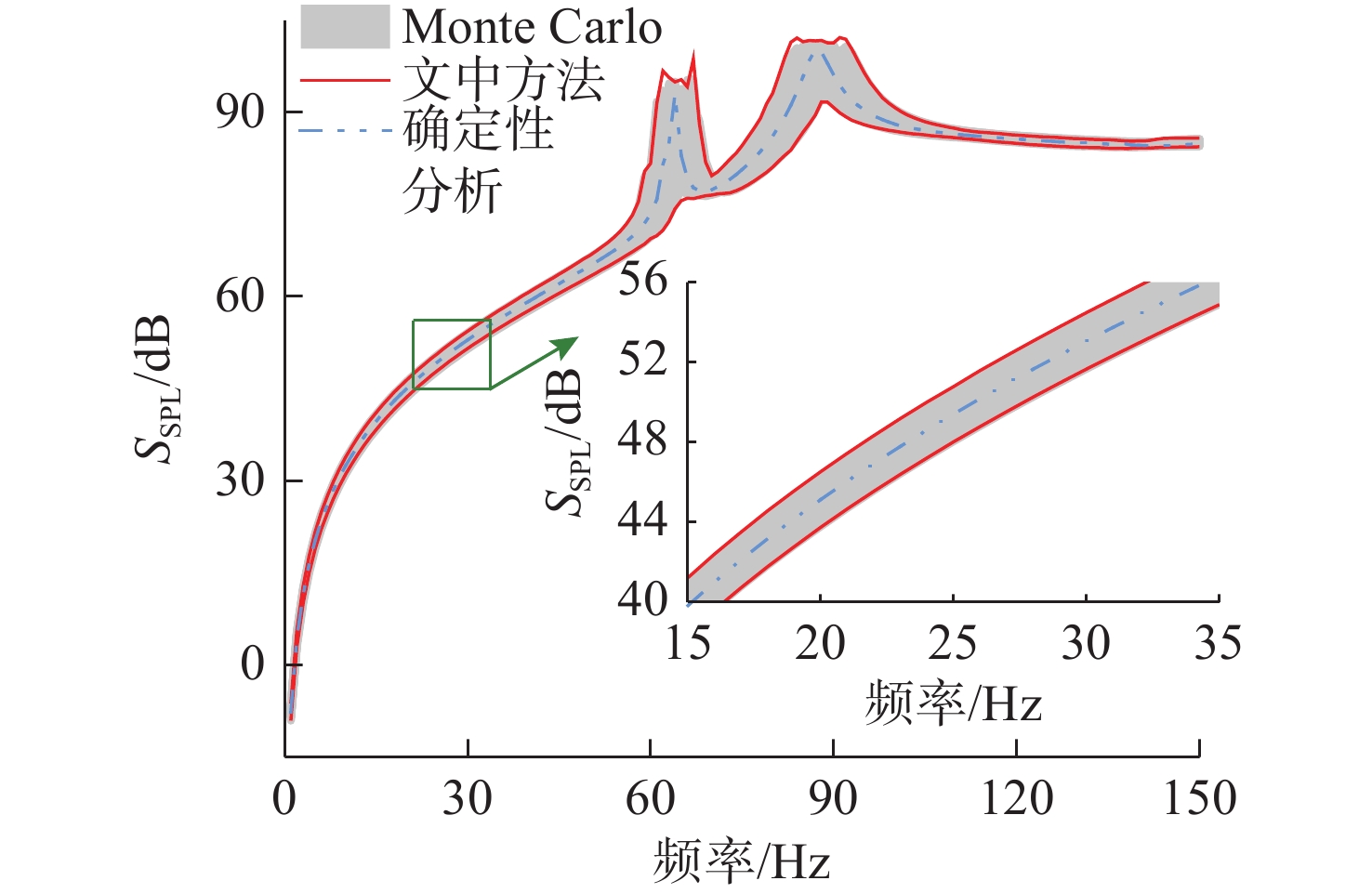

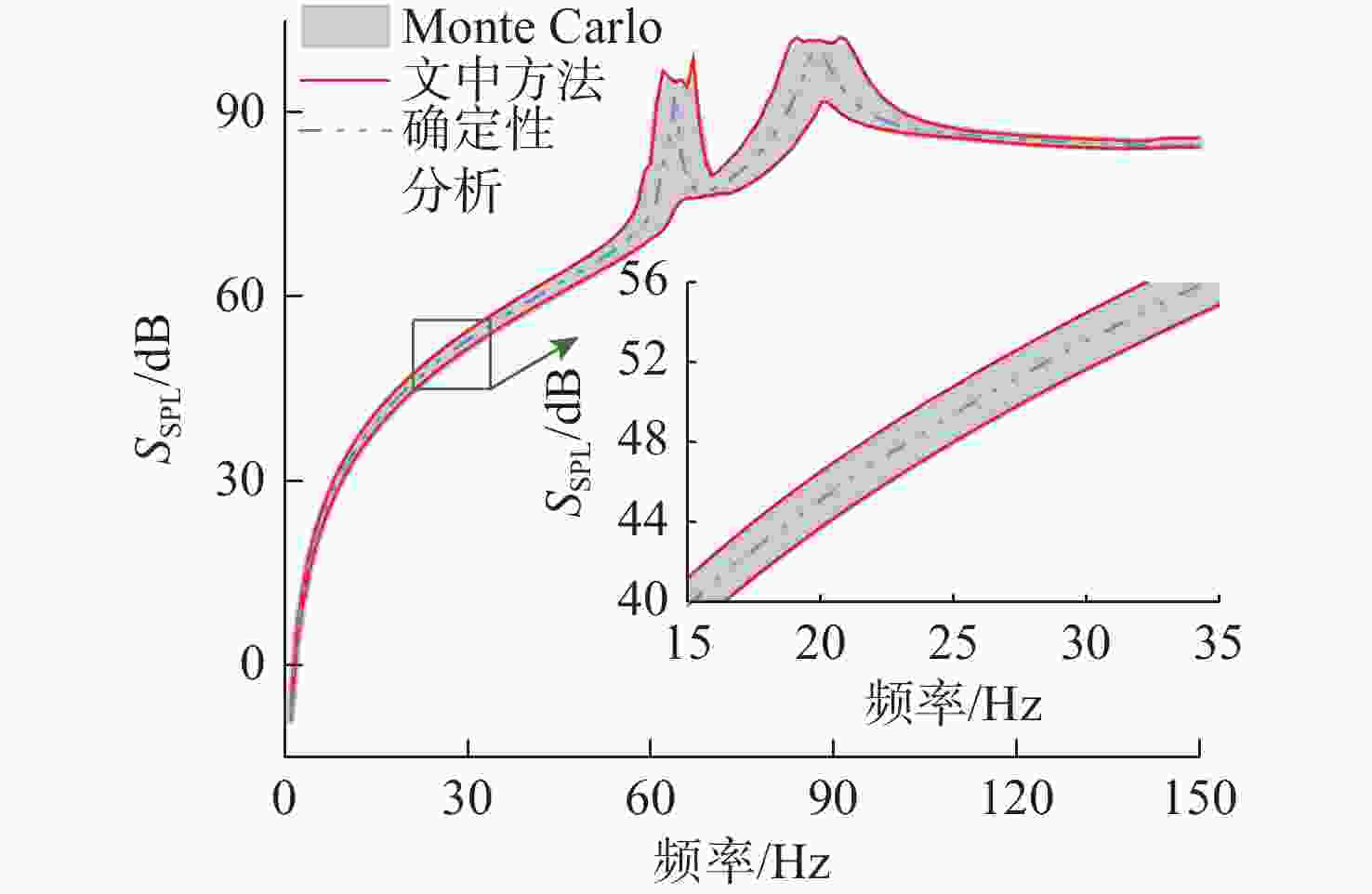

图 18 所有参数呈现不确定性时, 复合层合阶梯圆柱壳的声压级响应幅频曲线
Figure 18. Amplitude-frequency curve of sound pressure level response of composite laminated stepped cylindrical shells with uncertainties in all material parameters

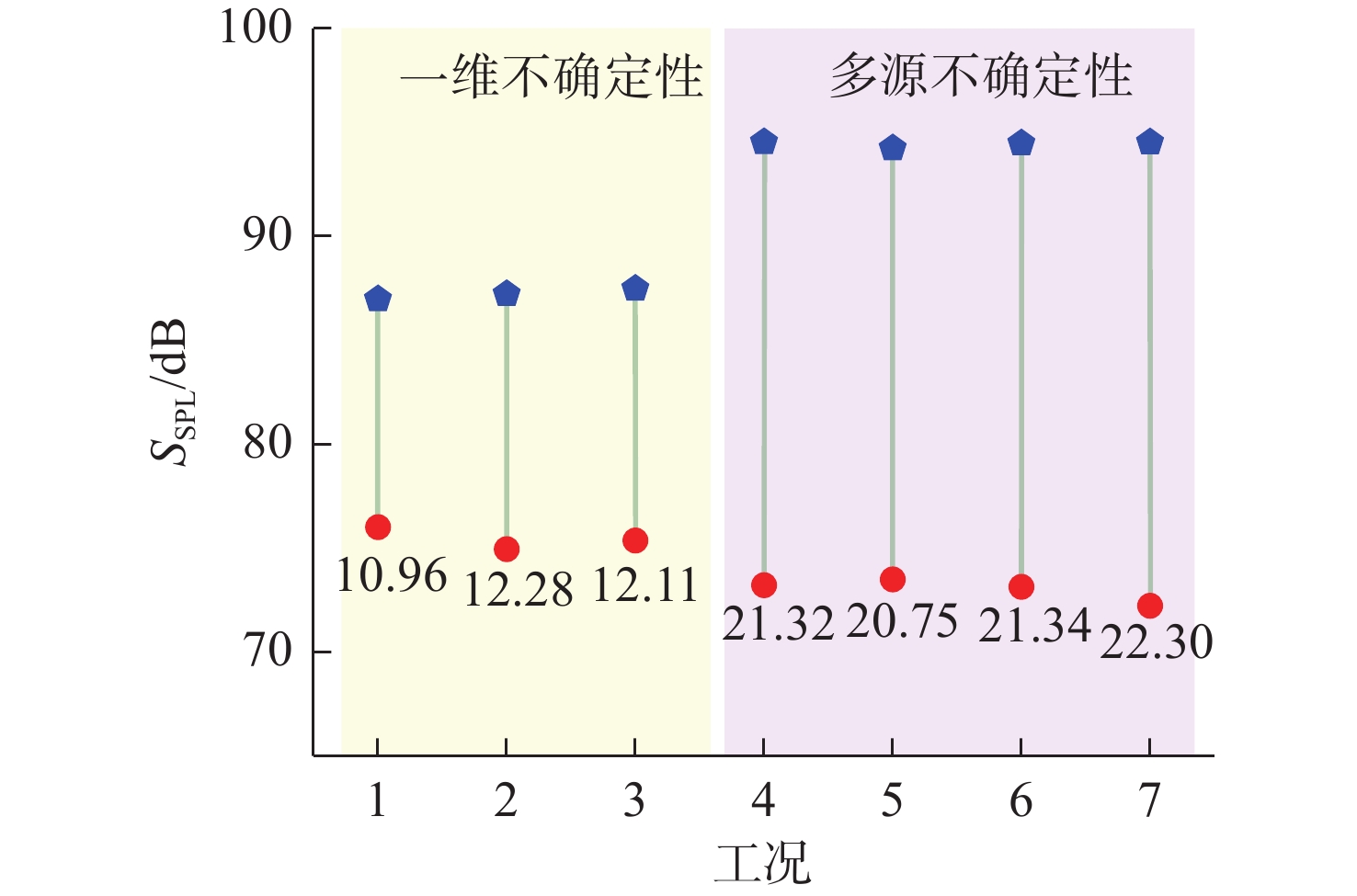

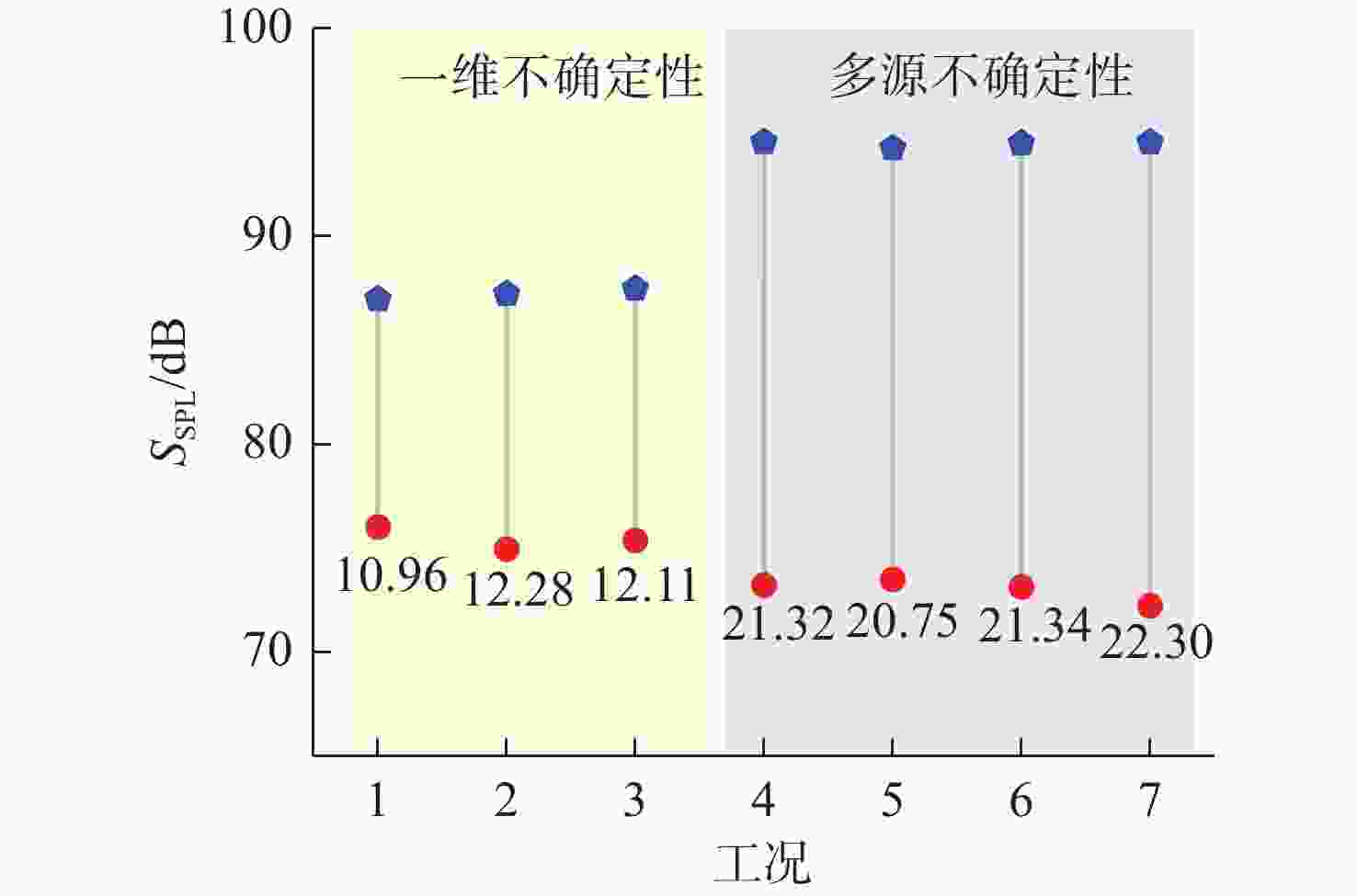

图 19 $ \omega =63\; {\mathrm{Hz }}$时, 各不确定性工况下复合层合阶梯圆柱壳的声压级响应波动区间
Figure 19. Uncertainty bounds of sound pressure level response for the composite laminated stepped cylindrical shell at $ \boldsymbol{\omega }=\mathbf{63\;Hz} $

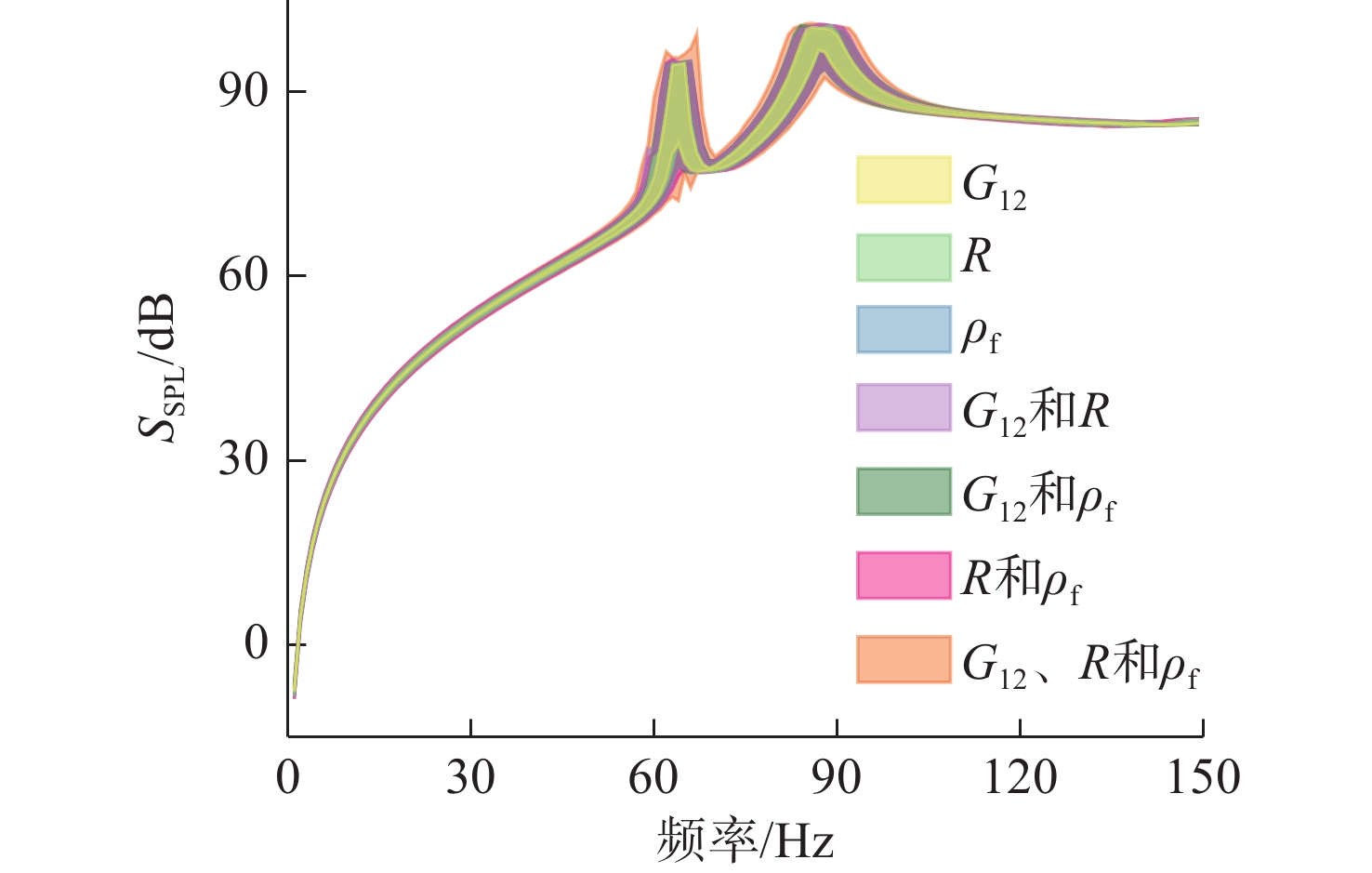

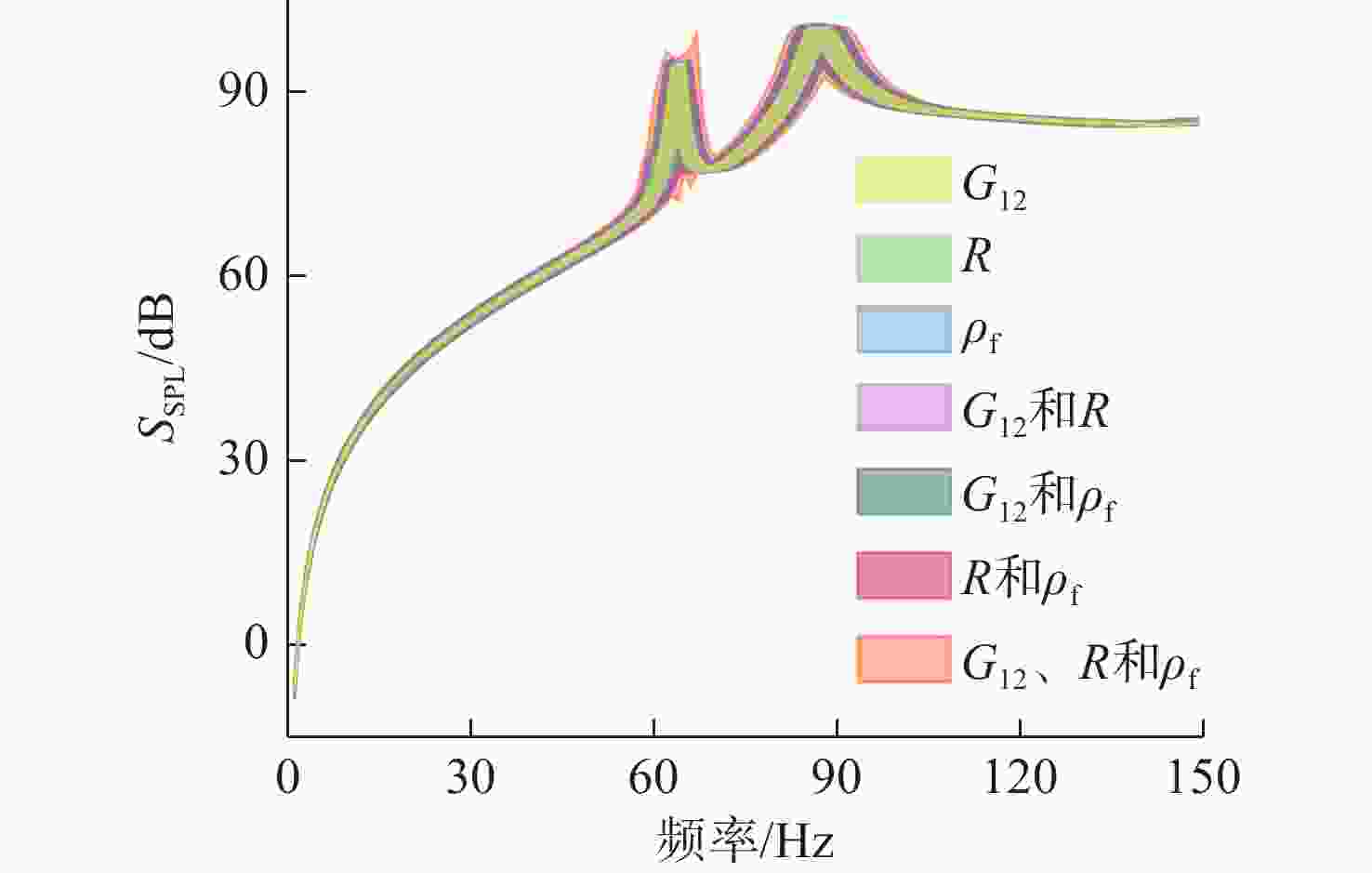

图 20 各不确定性工况下复合层合阶梯圆柱壳的声压级响应幅频曲线
Figure 20. Amplitude-frequency curve of sound pressure level response of composite laminated stepped cylindrical shells under various uncertain operating conditions

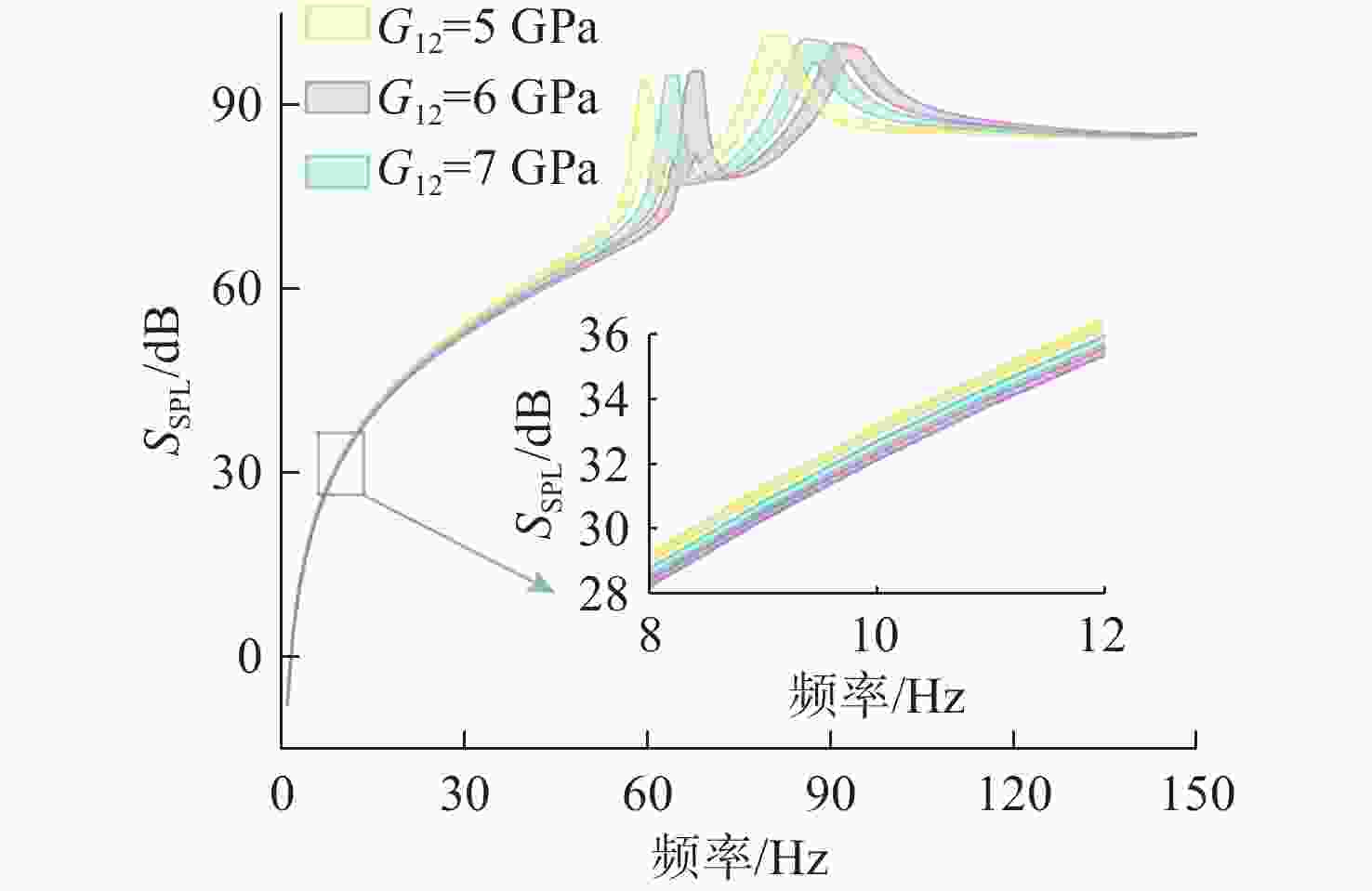

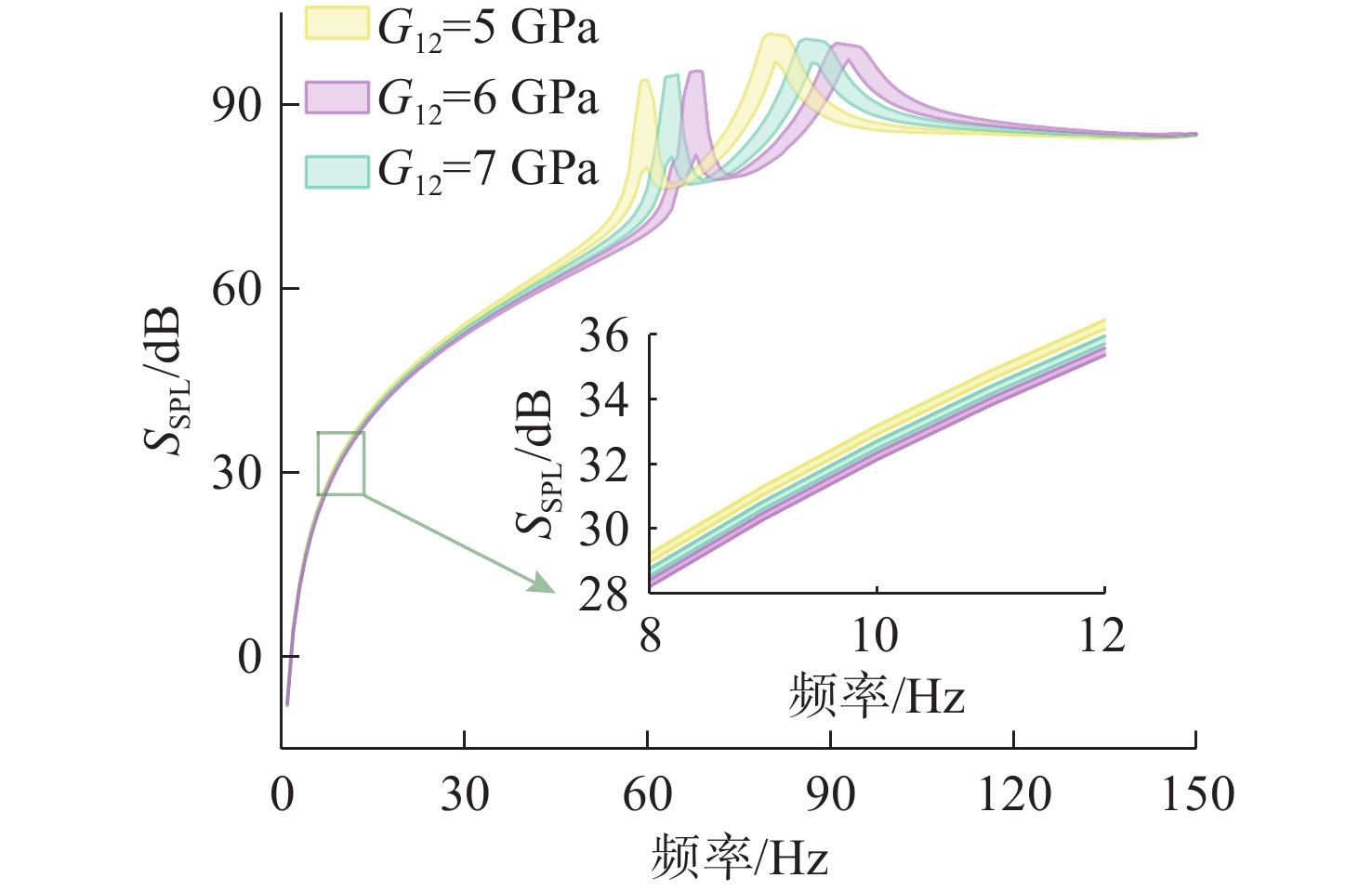

图 21 G12取不同值时, 复合层合阶梯圆柱壳的不确定性声压级响应区间
Figure 21. Uncertainty bounds of sound pressure level response for the composite laminated stepped cylindrical shell with varying G12

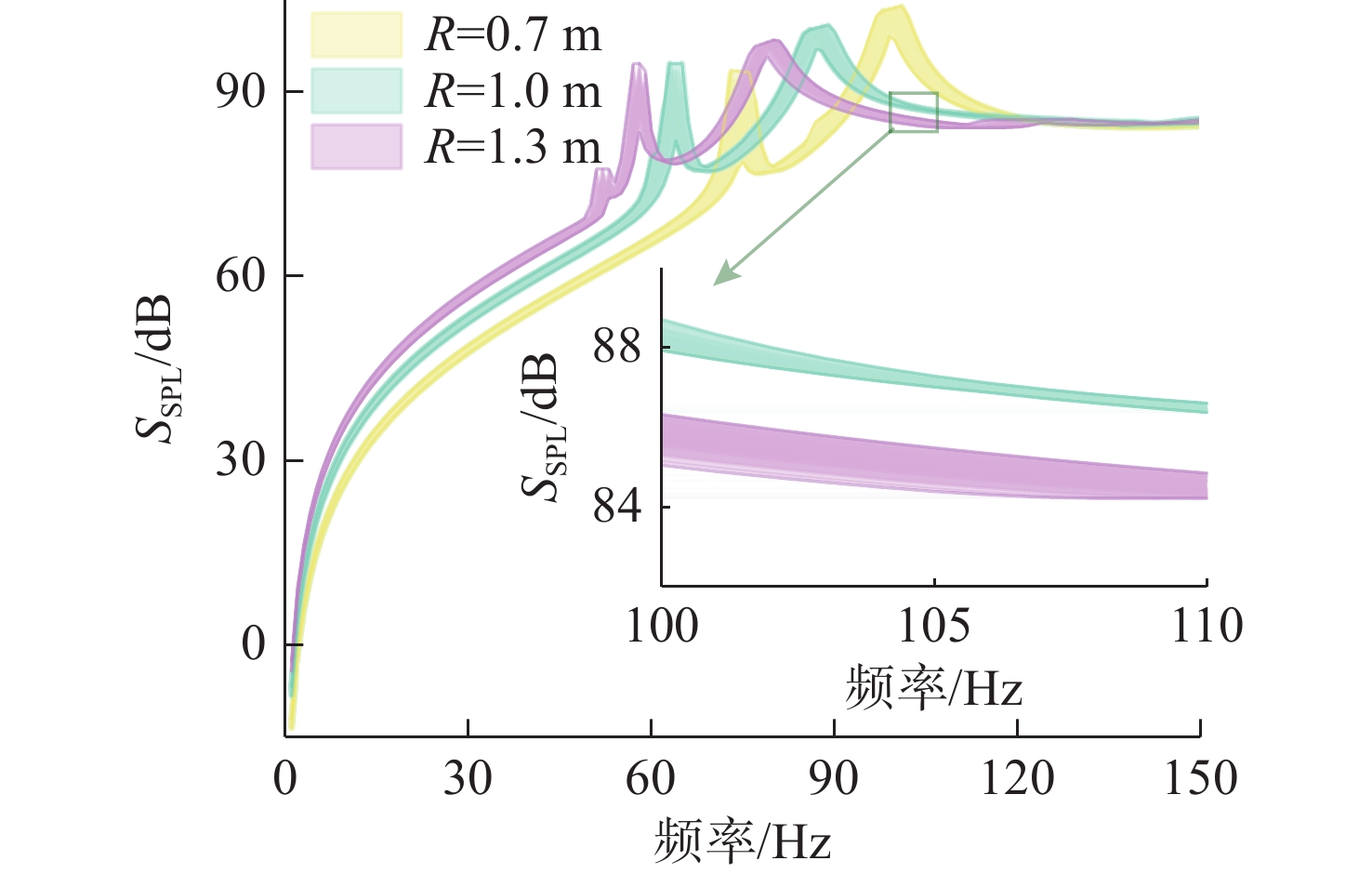

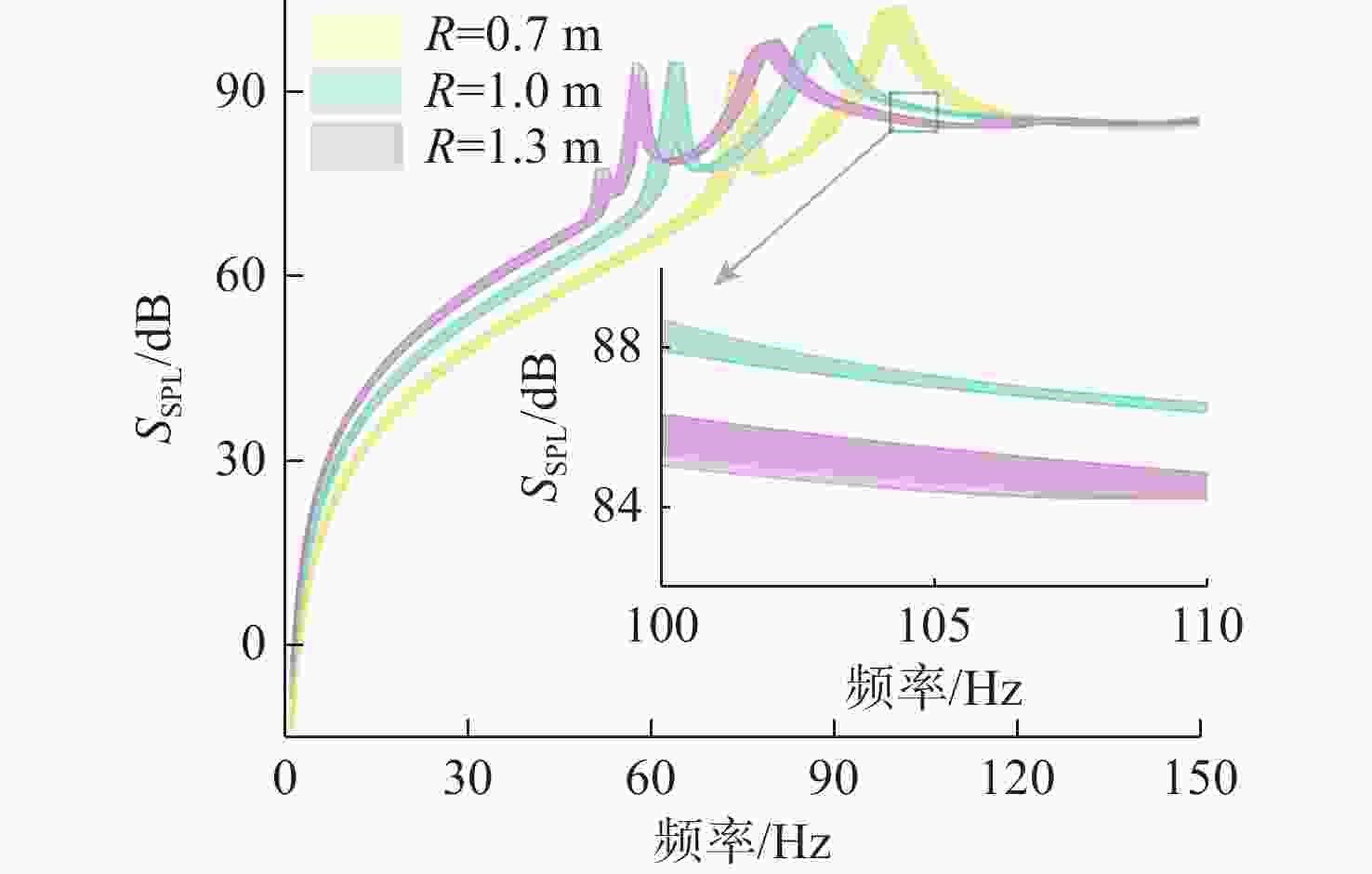

图 22 R取不同值时, 复合层合阶梯圆柱壳的不确定性声压级响应区间
Figure 22. Uncertainty bounds of sound pressure level response for the composite laminated stepped cylindrical shell with varying R

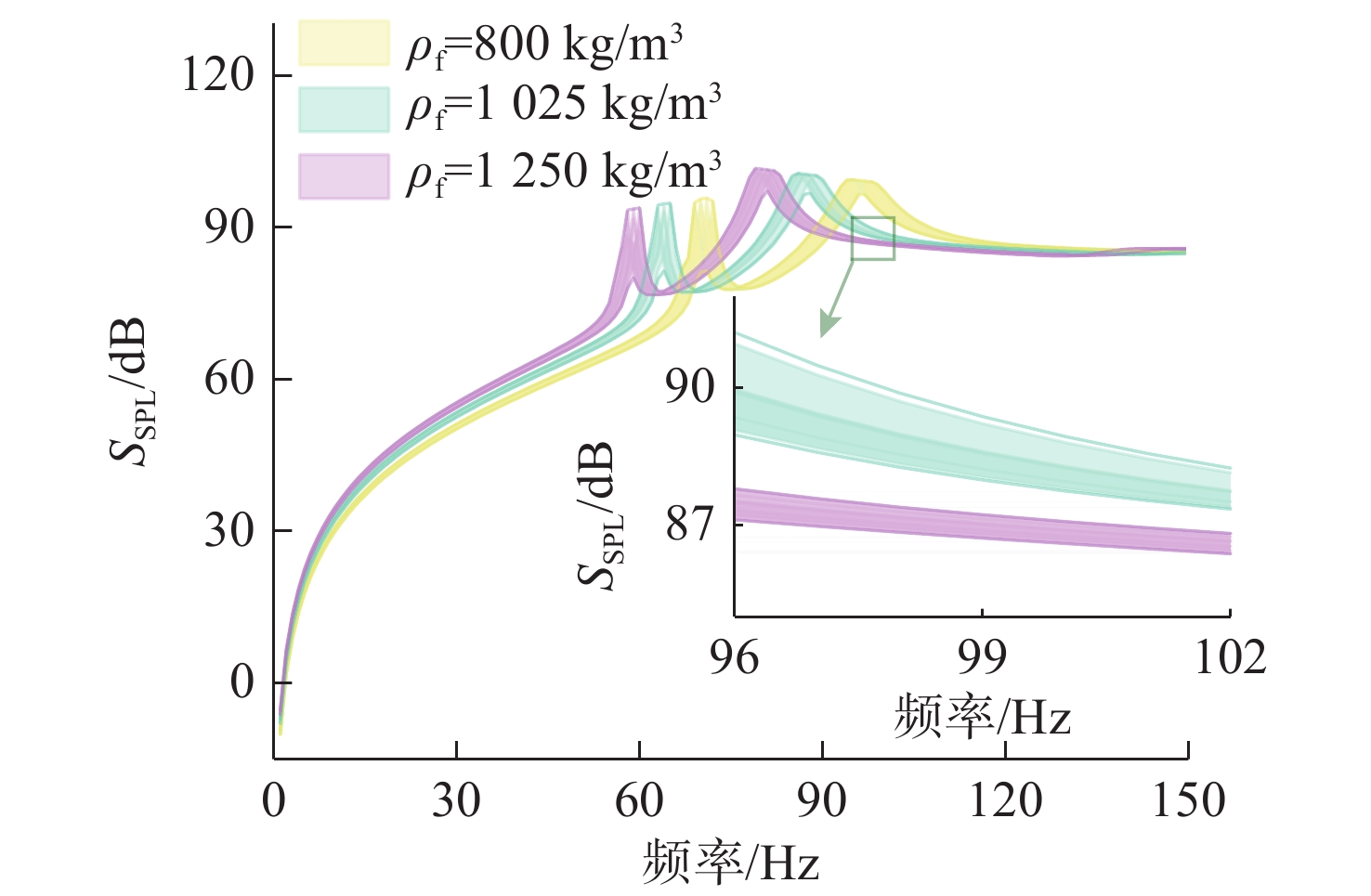

图 23 $ {{\boldsymbol{\rho }}}_{\bf{f}} $取不同值时, 复合层合阶梯圆柱壳的不确定性声压级响应区间
Figure 23. Uncertainty bounds of sound pressure level response for the composite laminated stepped cylindrical shell with varying $ {{\boldsymbol{\rho}} }_{\bf{f}} $
表 1 文中方法与传统Monte Carlo模拟方法的性能比较
Table 1. Performance comparison of the proposed method with traditional Monte Carlo simulation methods
响应计算
方法实际耦合
模型调用次数代理模型
预测次数总耗时/(h) 复相关
系数R2Monte Carlo 3 500 0 144.01 基准 Kriging 150 3 500 6.17 0.949 98
下载: 导出CSV
表 2 复合层合阶梯圆柱壳不确定性参数
Table 2. Uncertainty parameters of composite laminated stepped cylindrical shells
参数 确定性 不确定性 $ {E}_{1}\text{/(GPa)} $ 200 $ \left[190,210\right] $ $ {E}_{2}\text{/(GPa)} $ 10 $ \left[9.5,10.5\right] $ $ {\mu }_{12} $ 0.3 $ \left[0.285,0.315\right] $ $ {G}_{12}\text{/(GPa)} $ 6 $ \left[5.7,6.3\right] $ $ {G}_{13}\text{/(GPa)} $ 6 $ \left[5.7,6.3\right] $ $ {G}_{23}\text{/(GPa)} $ 4 $ \left[3.8,4.2\right] $ $ \alpha {\text{/(}}^{\circ }\text{)} $ $ \left[0,90,0\right] $ $ \left[ \begin{array}{c}\left[-2,2\right]\\\left[88,92\right]\\\left[-2,2\right]\end{array} \right] $ $ \rho {\text{/(kg/m}}^{3}\text{)} $ 1500 $ \left[1\;425,1\;575\right] $ $ R\text{/(m)} $ 1 $ \left[0.95,1.05\right] $ $ h\text{/(m)} $ [0.04 0.06 0.05] $\left[ {\begin{array}{*{20}{c}}{[0.039\;6,0.040\;4]}\\{[0.059\;4,0.060\;6]}\\{[0.049\;5,0.050\;5]}\end{array}} \right] $ $ {\rho }_{\text{f}}{\text{/(kg/m}}^{3}\text{)} $ 1025 $ \left[973.75.1\;076.25\right] $ $ {c}_{\text{f}}\text{/(m/s)} $ 1500 $ \left[1\;425,1\;575\right] $
下载: 导出CSV
-
