基于MFLM-FPN 与 GAFF 的水下目标检测算法及类别平衡策略

赵岩; 李金鑫; 贾如建

doi:10.11993/j.issn.2096-3920.2026-0007

基于MFLM-FPN 与 GAFF 的水下目标检测算法及类别平衡策略

doi: 10.11993/j.issn.2096-3920.2026-0007

天津鹰眼智能有限公司, 天津, 300010

详细信息

作者简介:
赵岩：赵　岩(1993-), 男, 硕士, 人工智能中级工程师, 主要研究方向为计算机视觉、目标检测、语义分割及无监督缺陷检测

中图分类号: TJ630.34; U674.941
计量
- 文章访问数: 0
- HTML全文浏览量: 0
- PDF下载量: 0
- 被引次数: 0
出版历程
- 收稿日期: 2026-01-08
- 修回日期: 2026-02-08
- 录用日期: 2026-03-04
- 网络出版日期: 2026-05-19

MFLM-FPN and GAFF-driven Underwater Target Detection Algorithms and Class Balancing Strategies

Tianjin Falconix Technology Co., Ltd., Tianjin 300010, China

摘要

摘要: 针对水下目标特征信息匮乏的问题, 文中提出多特征层映射特征金字塔与全局注意力特征融合机制。该机制将每个建议框分别映射至不同特征层, 经感兴趣区域池化后得到4个尺寸一致、信息互补的特征层, 再通过全局注意力实现特征融合, 可充分利用各层特征信息, 有效缓解水下目标特征稀缺的问题。针对水下数据集类别不平衡问题, 设计复制粘贴类别平衡策略, 提升神经网络对海参、海星、扇贝等稀缺类别的关注程度。针对损失函数惩罚力度不足导致检测精度下降的问题, 在平滑L1损失函数中引入预测框与目标框的归一化距离作为惩罚项, 显著提高水下多尺度目标的定位精度。实验结果表明, 在全国水下机器人大赛数据集上, 所提方法的识别准确率达81.93%, 相较于基线模型Faster R-CNN提升5.71%, 有效改善了水下复杂环境下目标的漏检与误检现象。
- 水下目标检测 /
- 深度学习 /
- 特征金字塔 /
- 特征融合 /
- 注意力机制 /
- 计算机视觉
Abstract: To address the problem of scarce feature information for underwater targets, this paper proposes a feature pyramid mapping mechanism combined with global attention. This mechanism maps each proposal box to different feature layers, resulting in four feature layers of consistent size and complementary information after region-of-interest pooling. Global attention is then used to achieve feature fusion, fully utilizing the feature information from each layer and effectively alleviating the problem of feature scarcity for underwater targets. To address the class imbalance problem in underwater datasets, a copy-paste class balancing strategy is designed to enhance the neural network's attention to scarce categories such as sea cucumbers, starfish, and scallops. To address the issue of insufficient penalty in the loss function leading to decreased detection accuracy, the normalized distance between the predicted and target boxes is introduced as a penalty term in the smoothed L1 loss function, significantly improving the localization accuracy of underwater multi-scale targets. Experimental results show that on the National Underwater Robotics Competition dataset, the proposed method achieves a recognition accuracy of 81.93%, a 5.71% improvement over the baseline model Faster R-CNN, effectively reducing false negatives and false positives in complex underwater environments.
- deep learning /
- underwater target detection /
- feature pyramid /
- feature fusion /
- attention mechanism /
- computer vision

HTML全文

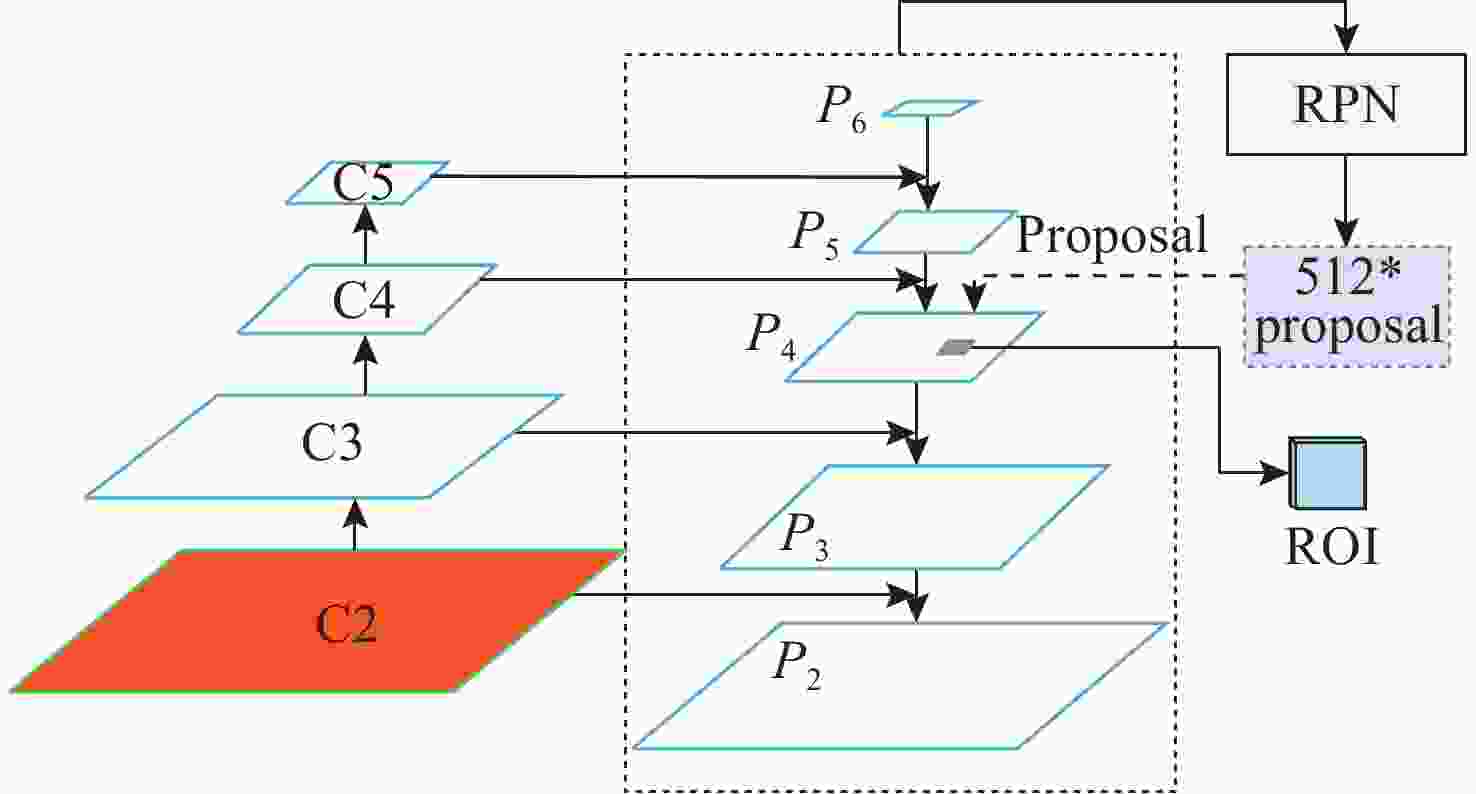

图 1 特征金字塔结构

Figure 1. Feature pyramid structure

下载: 全尺寸图片幻灯片

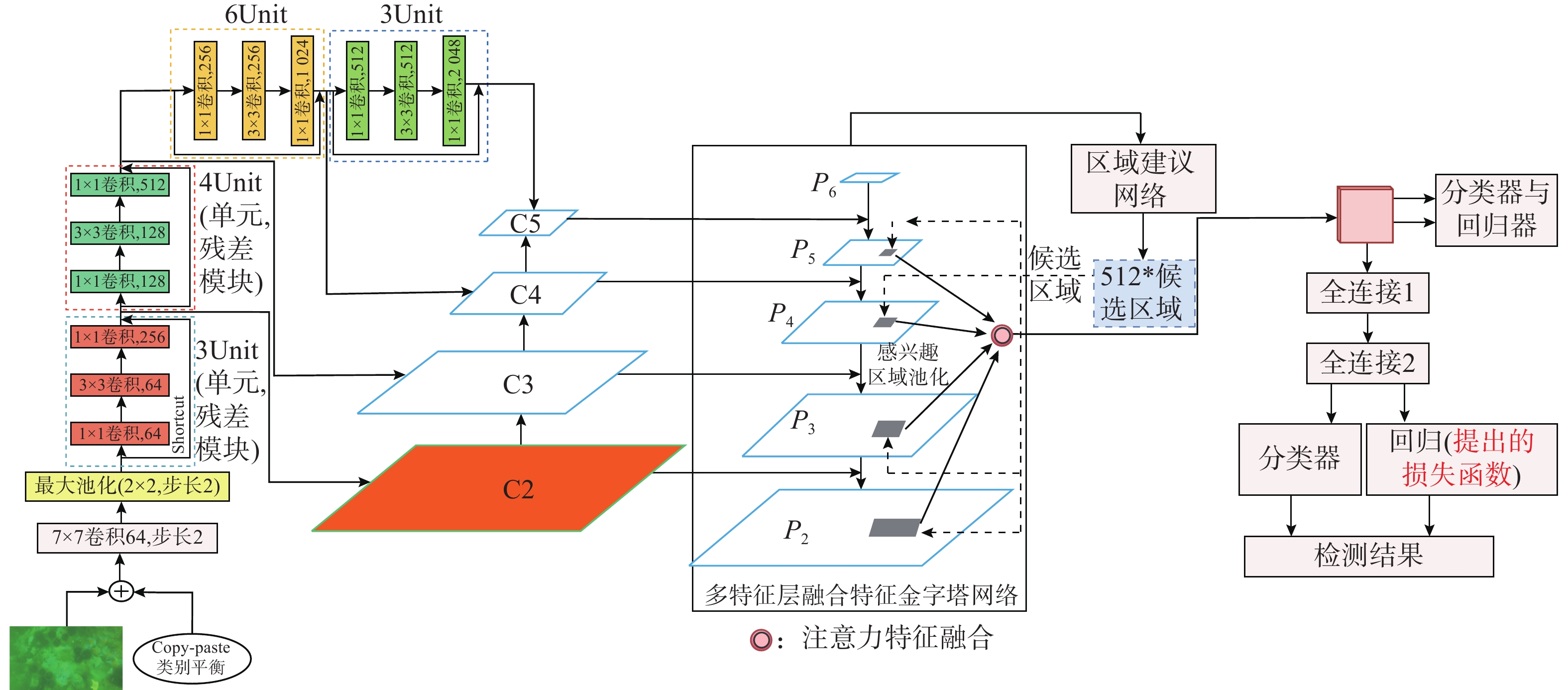

图 2 多特征融合水下目标检测算法

Figure 2. Underwater target detection algorithm based on multi-feature fusion

下载: 全尺寸图片幻灯片

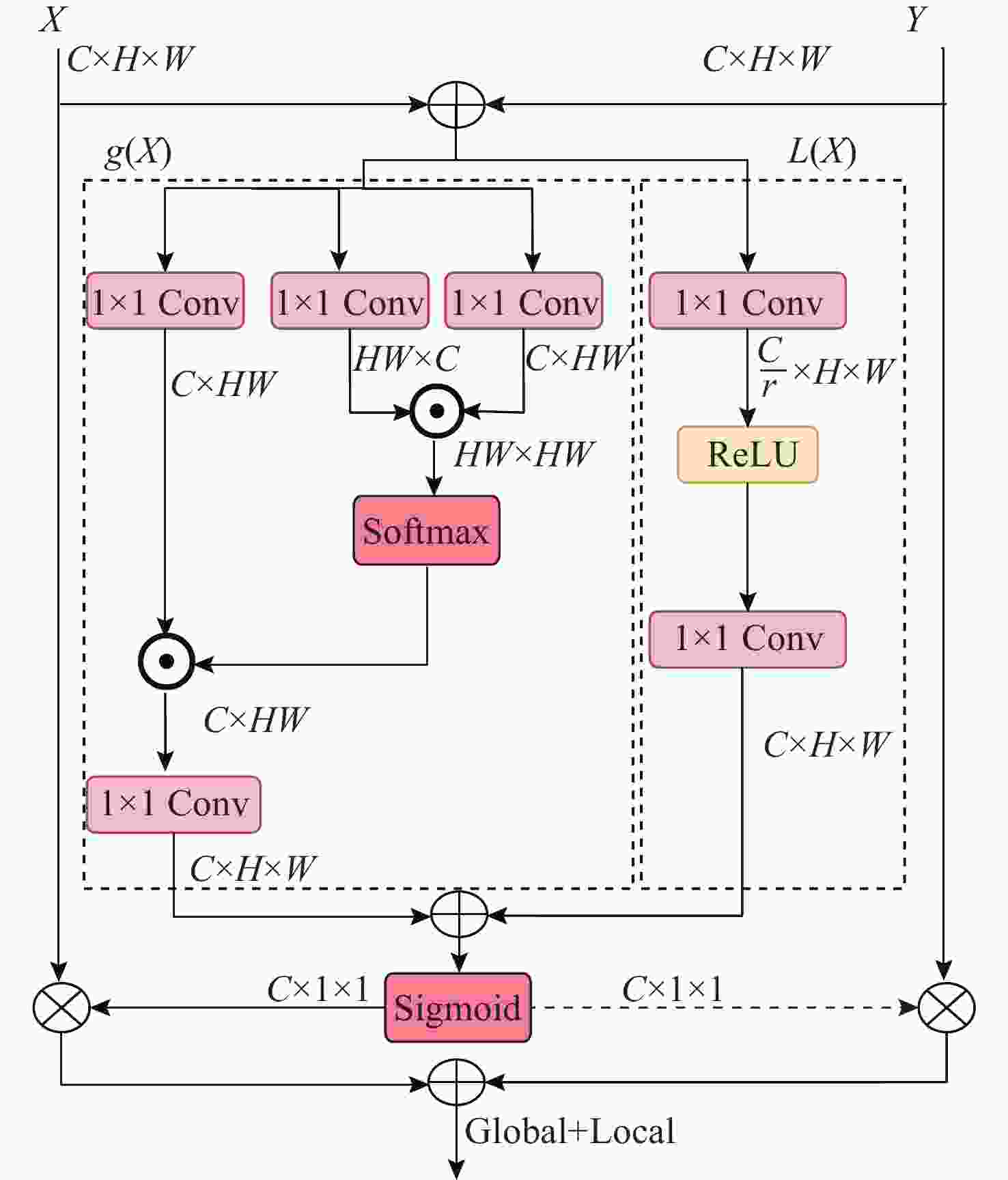

图 3 GAFF特征融合方案

Figure 3. GAFF feature fusion scheme

下载: 全尺寸图片幻灯片

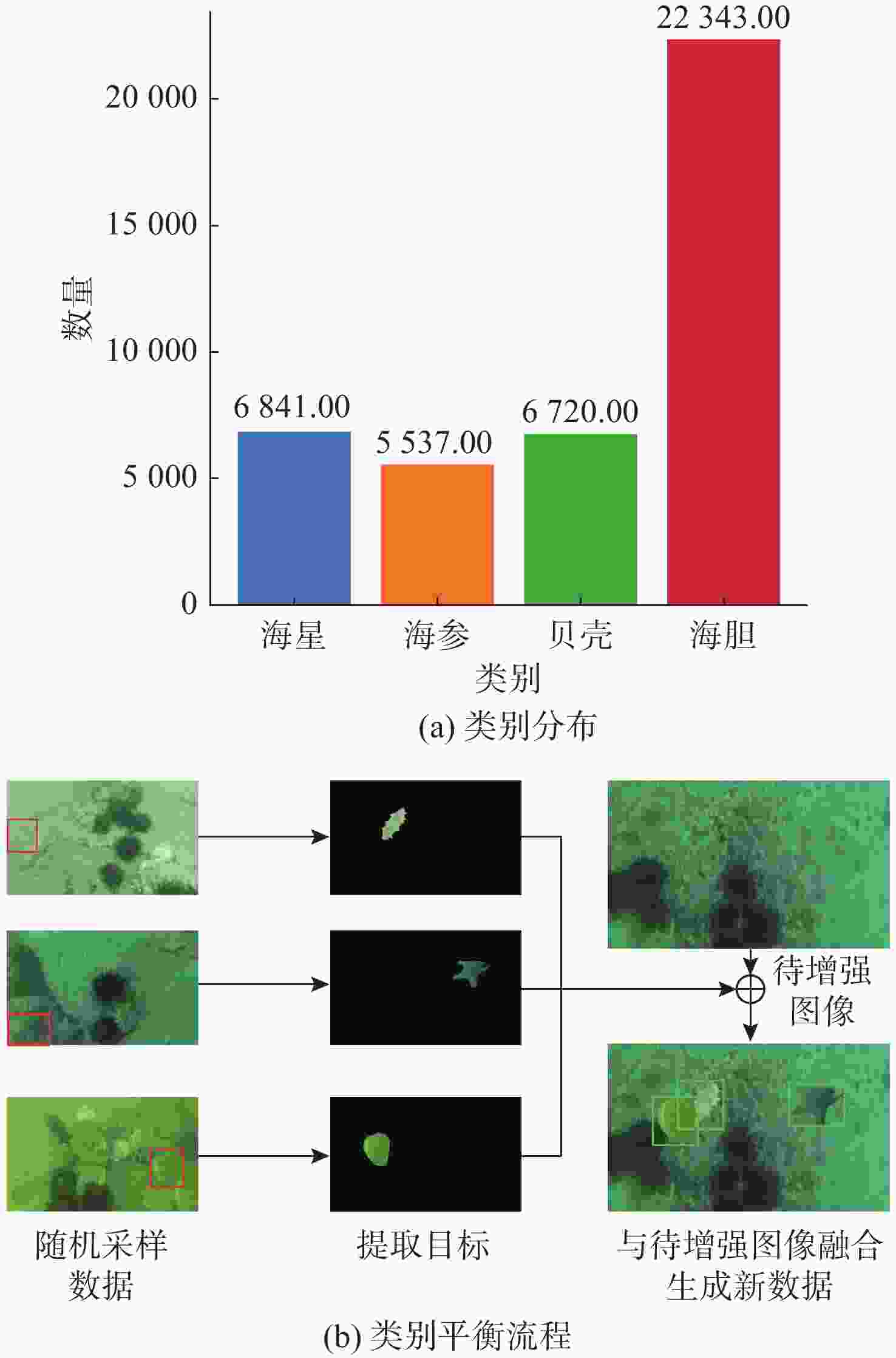

图 4 数据增强

Figure 4. data enhancement

下载: 全尺寸图片幻灯片

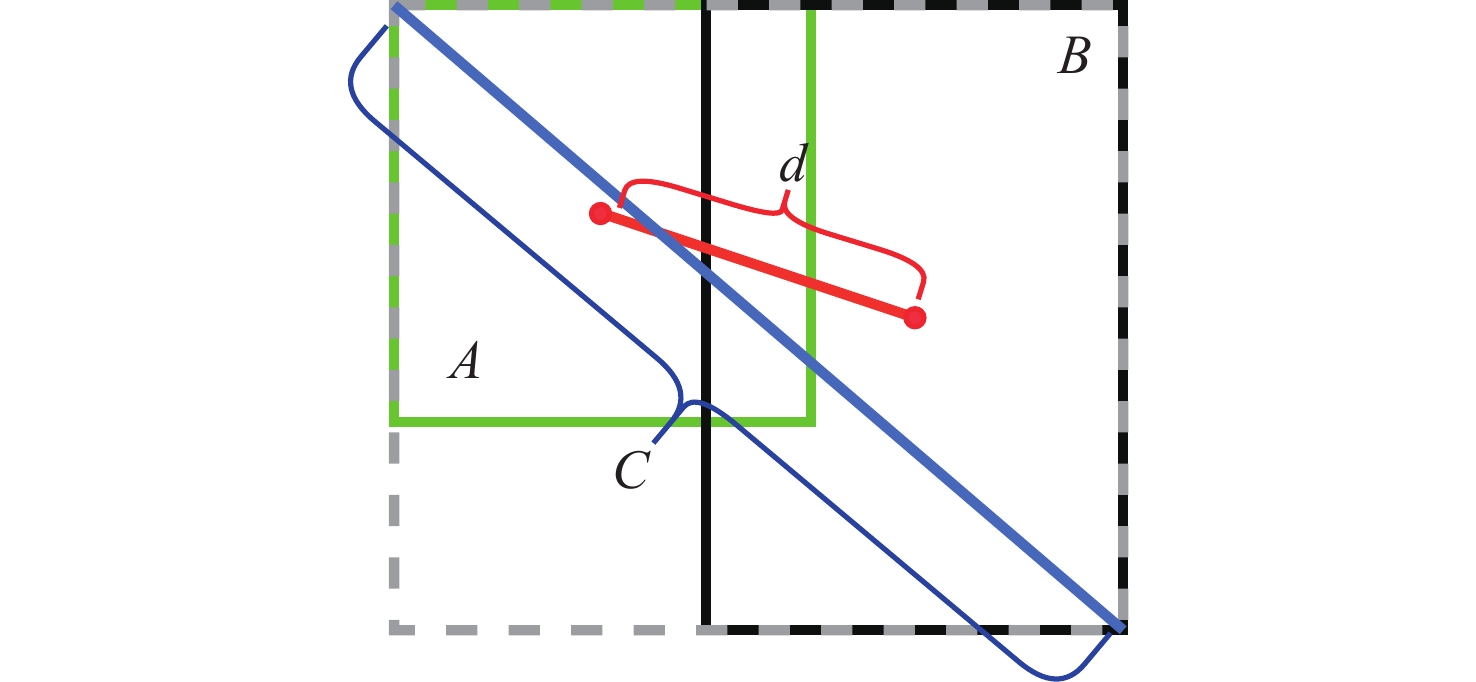

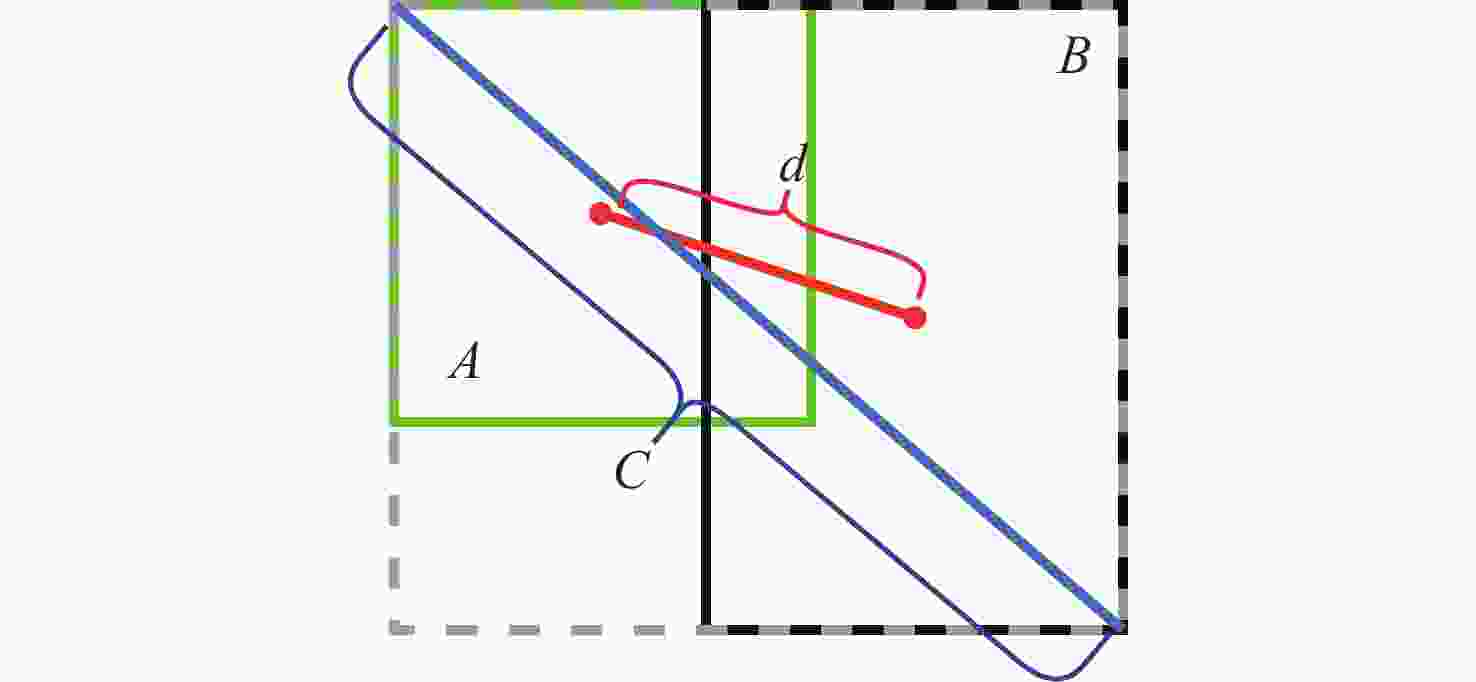

图 5 预测框与目标框距离示意图

Figure 5. The distance between the predicted and target boxes

下载: 全尺寸图片幻灯片

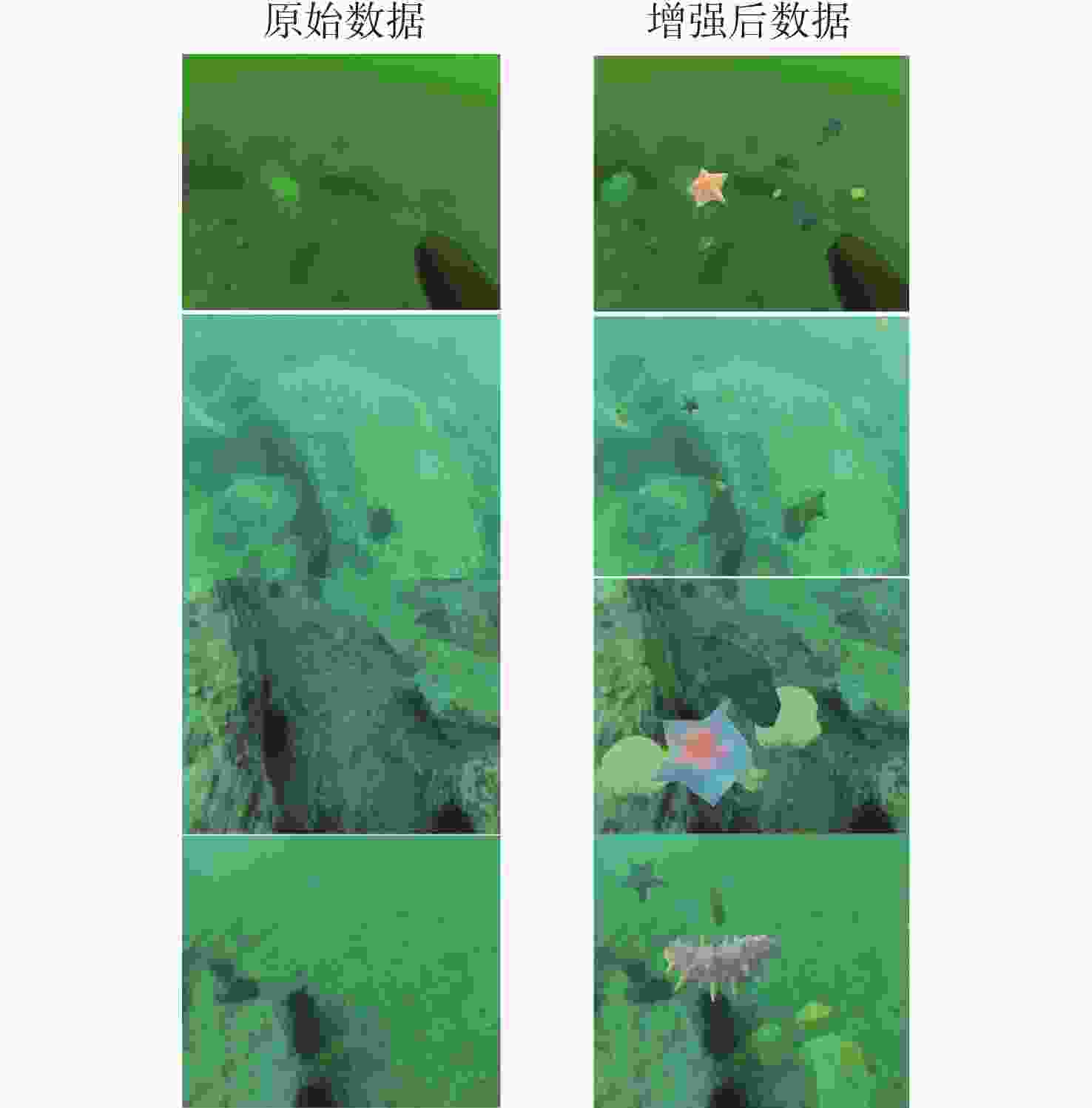

图 6 增强后数据展示

Figure 6. Enhanced data presentation

下载: 全尺寸图片幻灯片

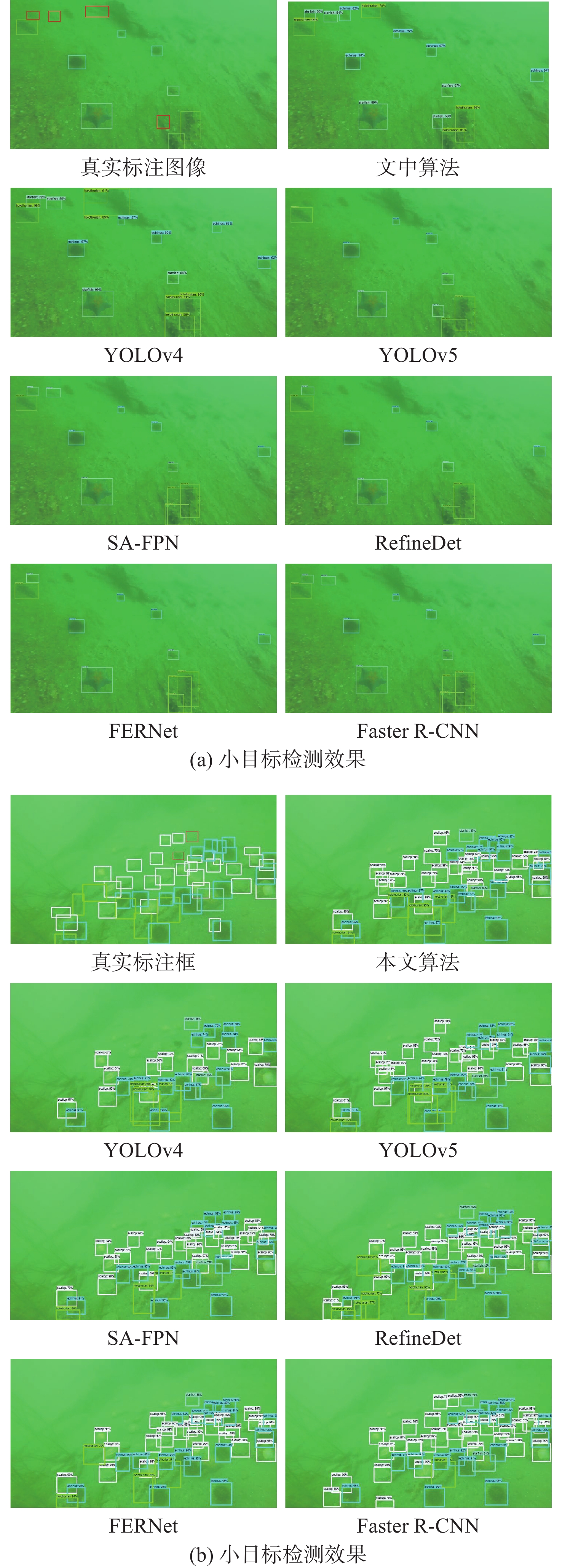

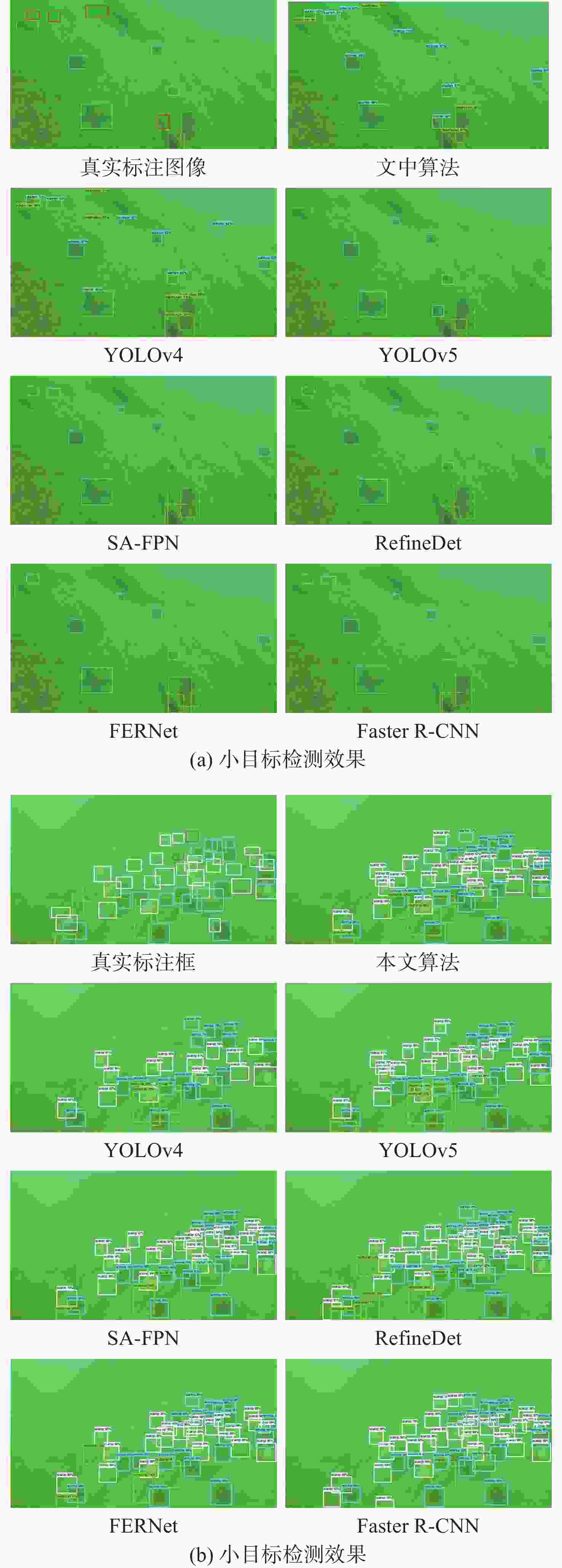

图 7 检测效果可视化

Figure 7. Visualization of detection effect

下载: 全尺寸图片幻灯片

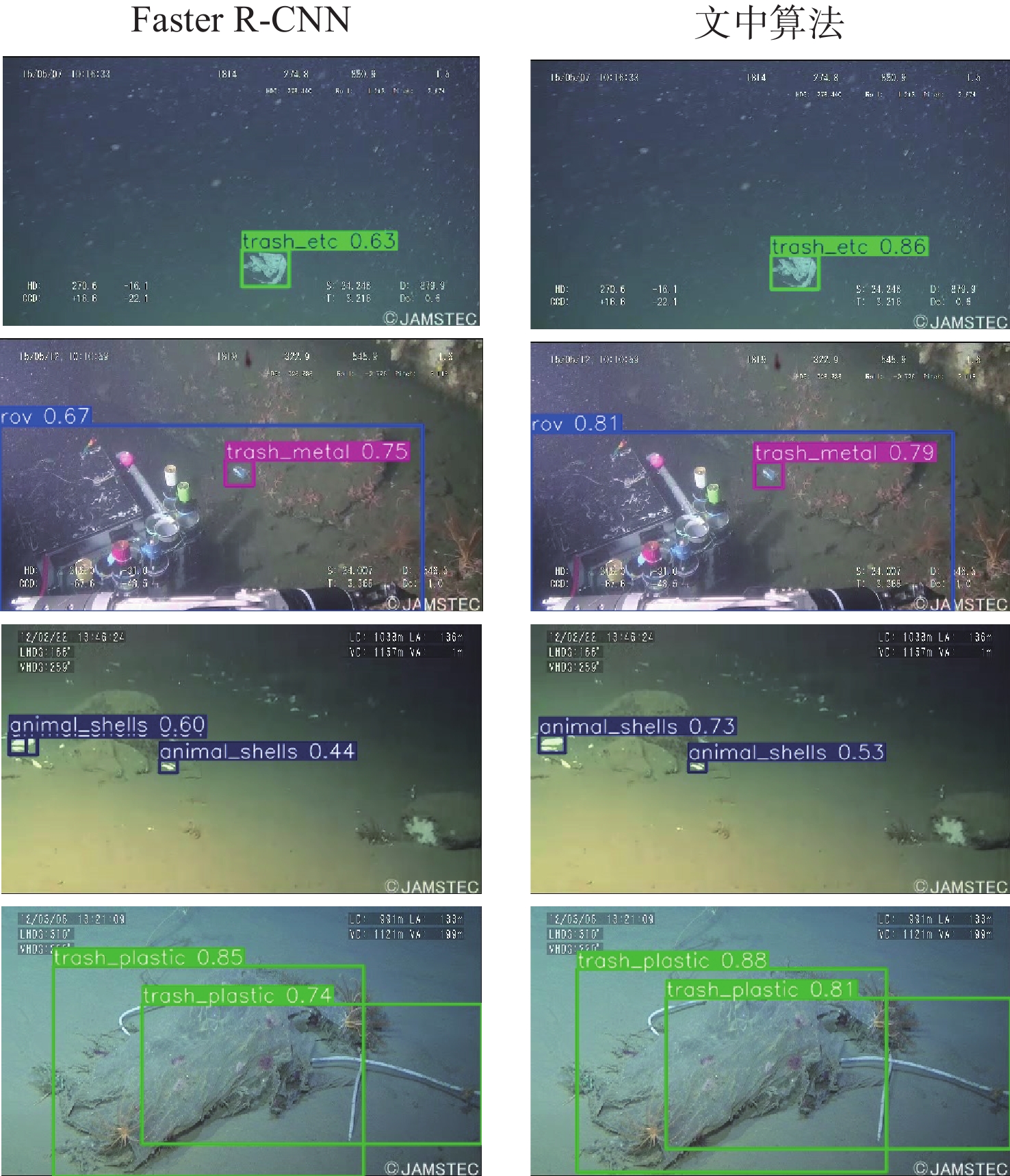

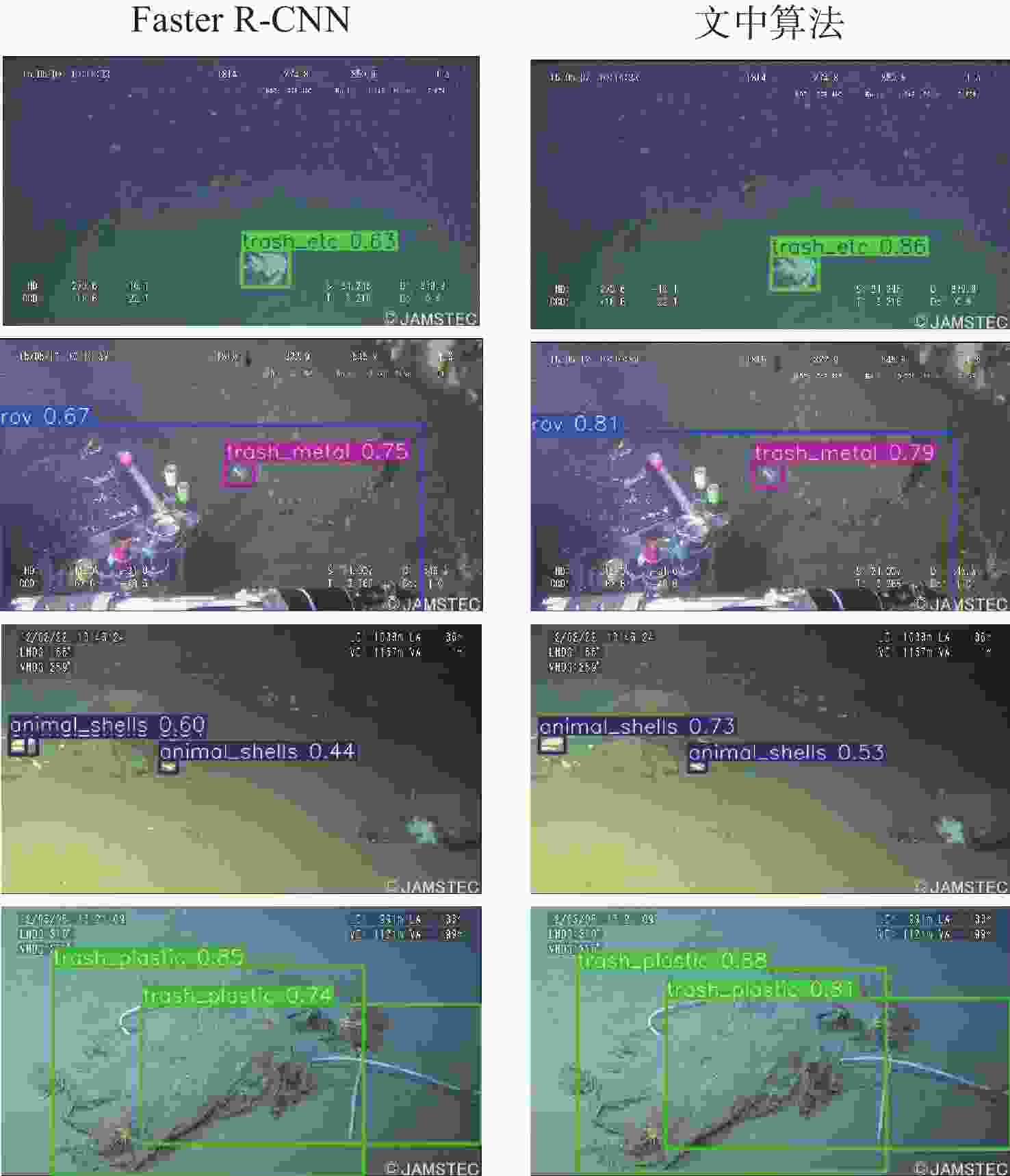

图 8 模型可视化对比
