Design and Application of Vehicle Mounted Industrial CT Nondestructive Testing System and Underwater Unmanned Equipment Defect Recognition Software
-
摘要: 针对存放地域偏远、不宜频繁运输、难以集中检测的水下无人装备检测需求, 文中基于电源分系统、X射线源分系统、探测采集传输分系统等硬件设备搭建了车载工业计算机断层成像(CT)无损缺陷检测及识别系统, 并结合深度神经网络研制了工业CT检测产品缺陷图像识别软件, 实现对检测图像处理及产品内部缺陷的识别和标识。经实际检测测试, 该系统能够很好地检测和识别水下无人装备内部高能填充物的孔洞、裂隙、脱粘等缺陷, 成像准确率超过98%, 缺陷识别漏检率和虚警率均不超过5%。该系统能够适应产品的不同材料和外形结构, 能够在多种环境下工作, 具有较好的应用前景。Abstract: To satisfy the inspection demands of unmanned undersea equipment that are stored in remote areas, unsuitable for frequent transportation and difficult to conduct centralized testing, this paper builds a vehicle-mounted industrial computed tomography(CT) nondestructive defect detection and identification system with hardware subsystems including power supply, X-ray source, detection, acquisition and transmission. Combined with deep neural networks, an image recognition software for defects in industrial CT inspection products is developed to process inspection images and realize the identification and marking of internal product defects. Practical test results demonstrate that the proposed system can effectively detect and identify pores, cracks, debonding and other internal defects in high-energy fillers of unmanned undersea equipment. The imaging accuracy exceeds 98%, and both the missed detection rate and false alarm rate of defect identification are no more than 5%. This system can adapt to different materials and shapes of the products, and can operate in various environments. It has a promising application prospect.
-

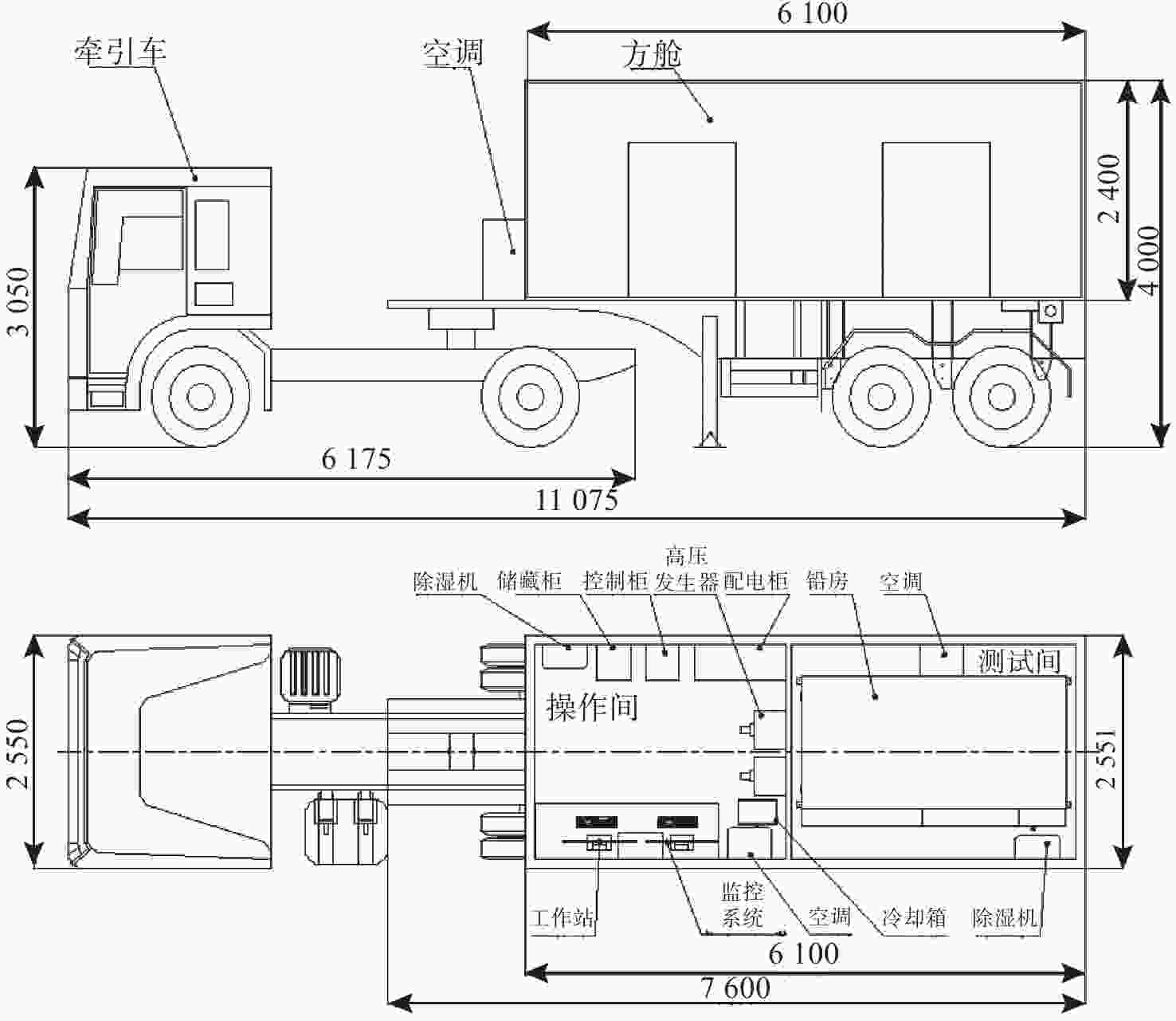

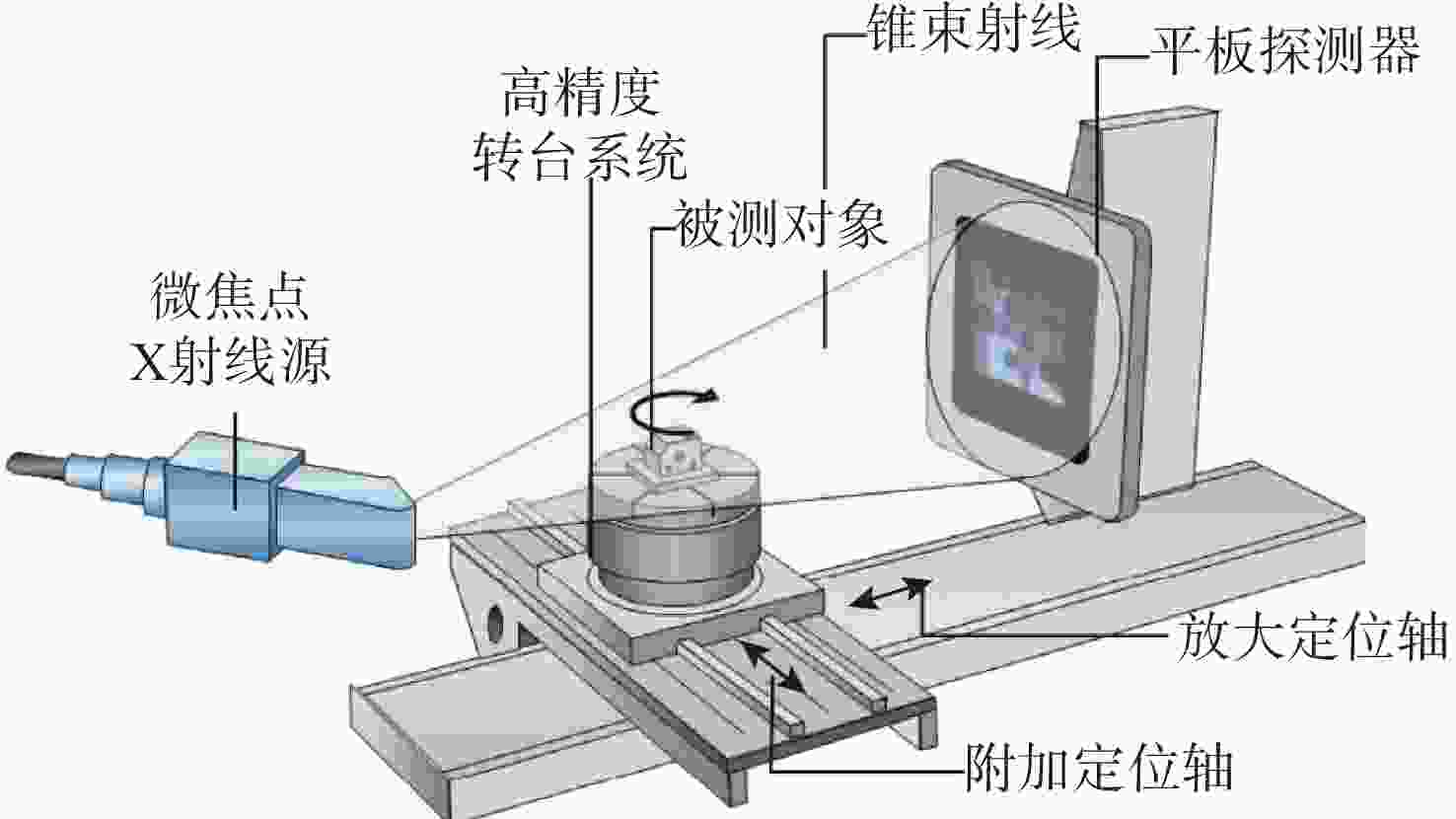

图 1 车载工业CT无损检测系统原理图
Figure 1. Schematic diagram of the vehicle-mounted industrial CT nondestructive testing system

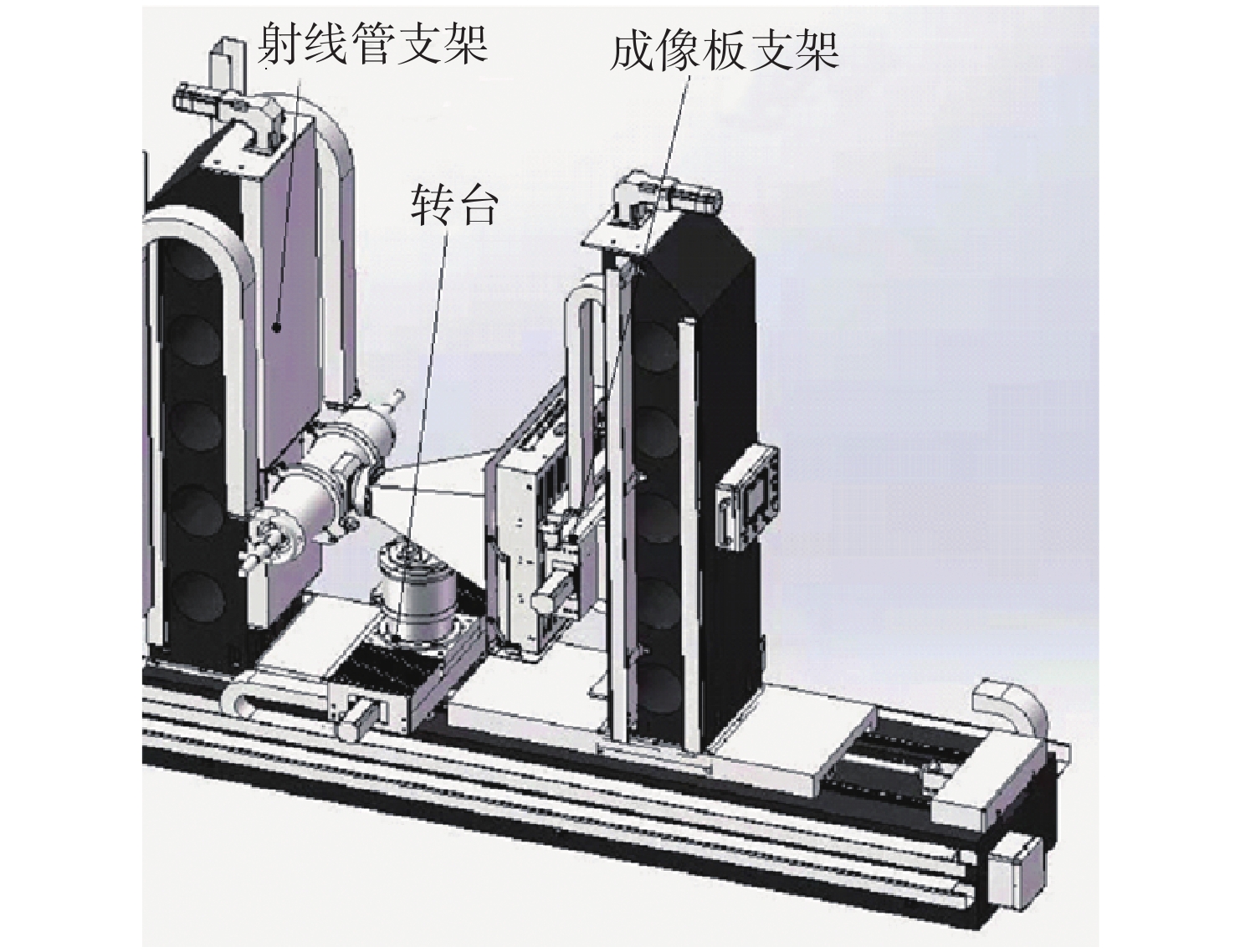

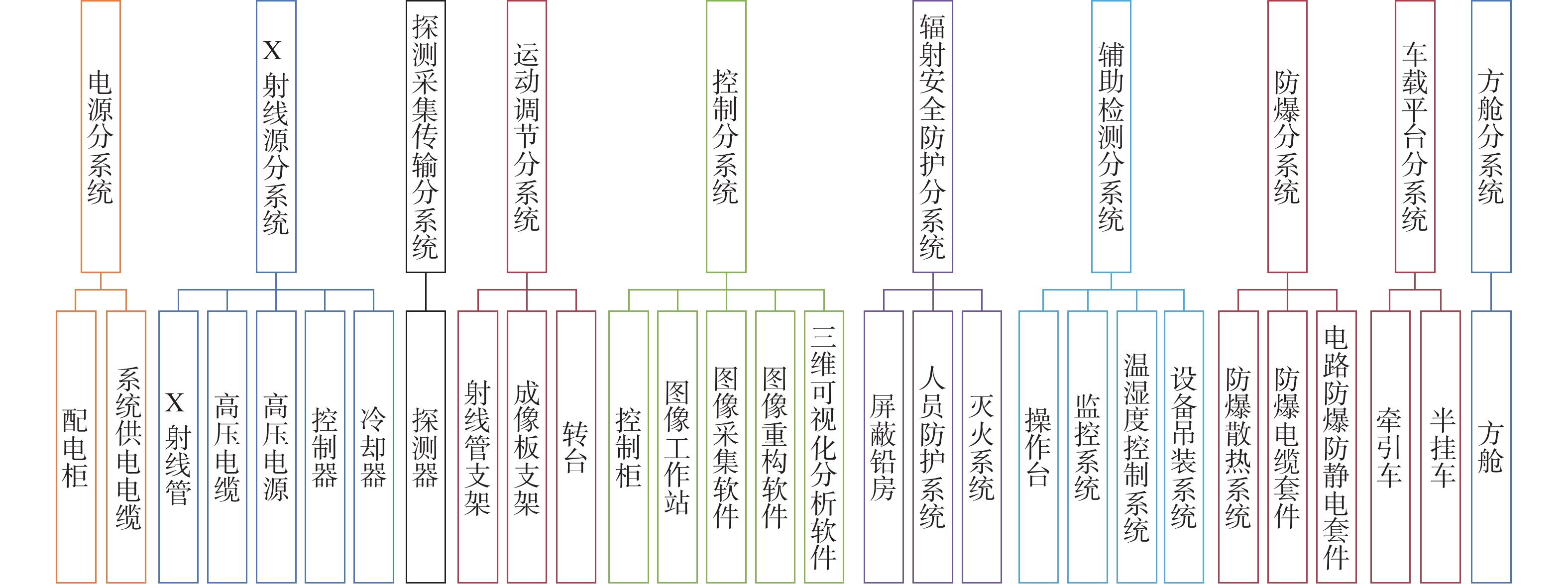

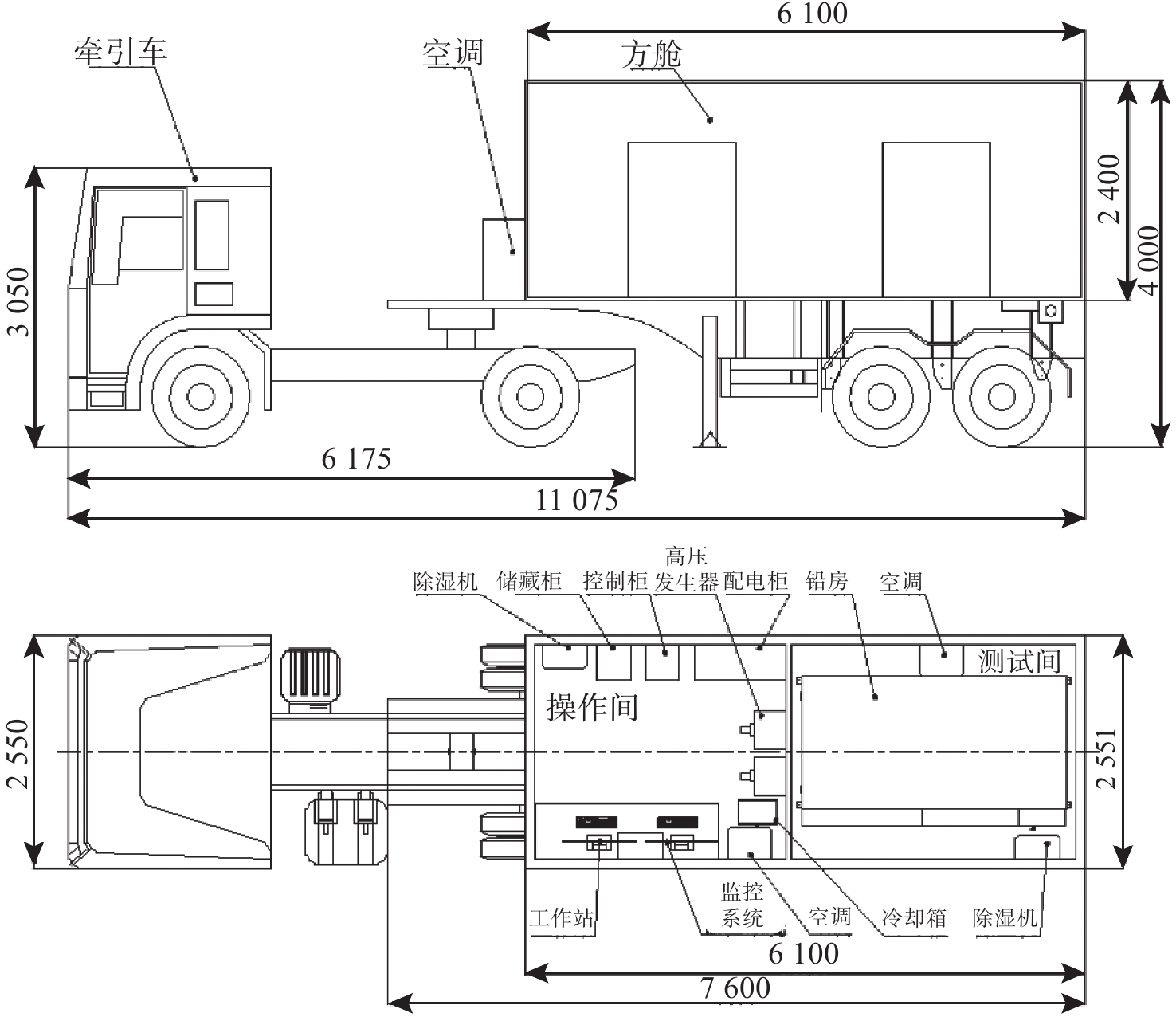

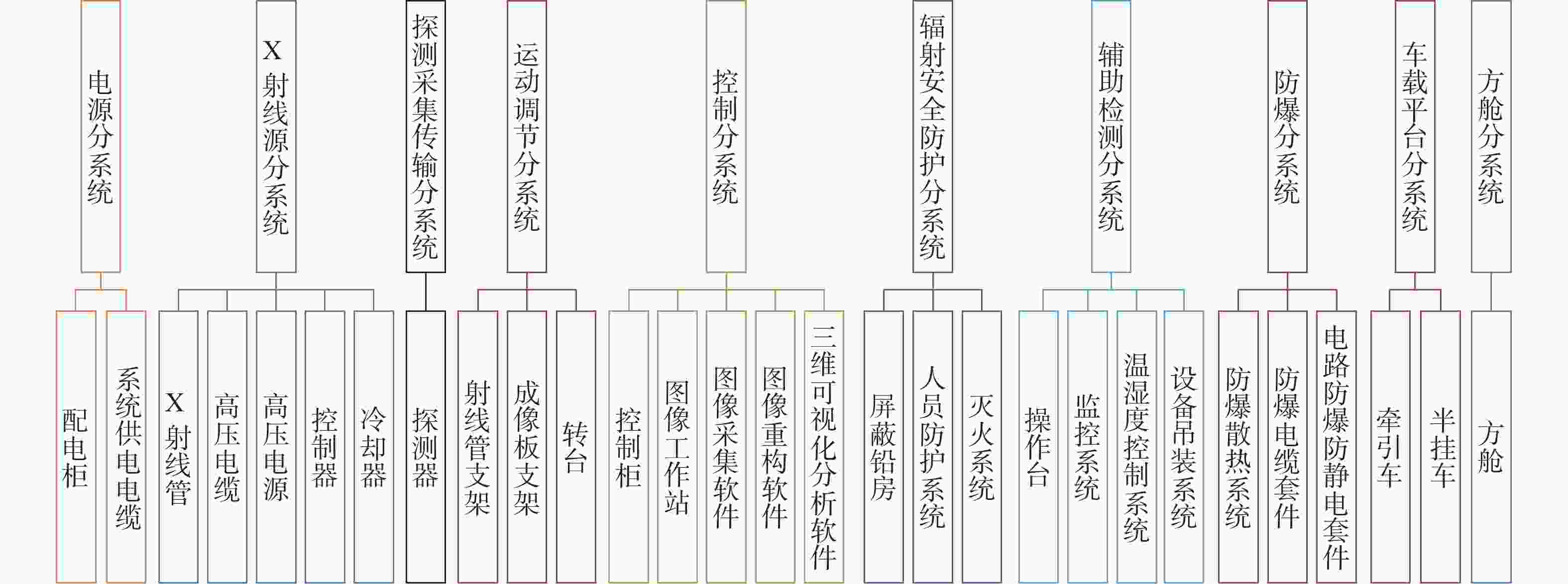

图 2 车载工业CT无损检测系统组成设备
Figure 2. Equipment composition of vehicle-mounted industrial CT nondestructive testing system

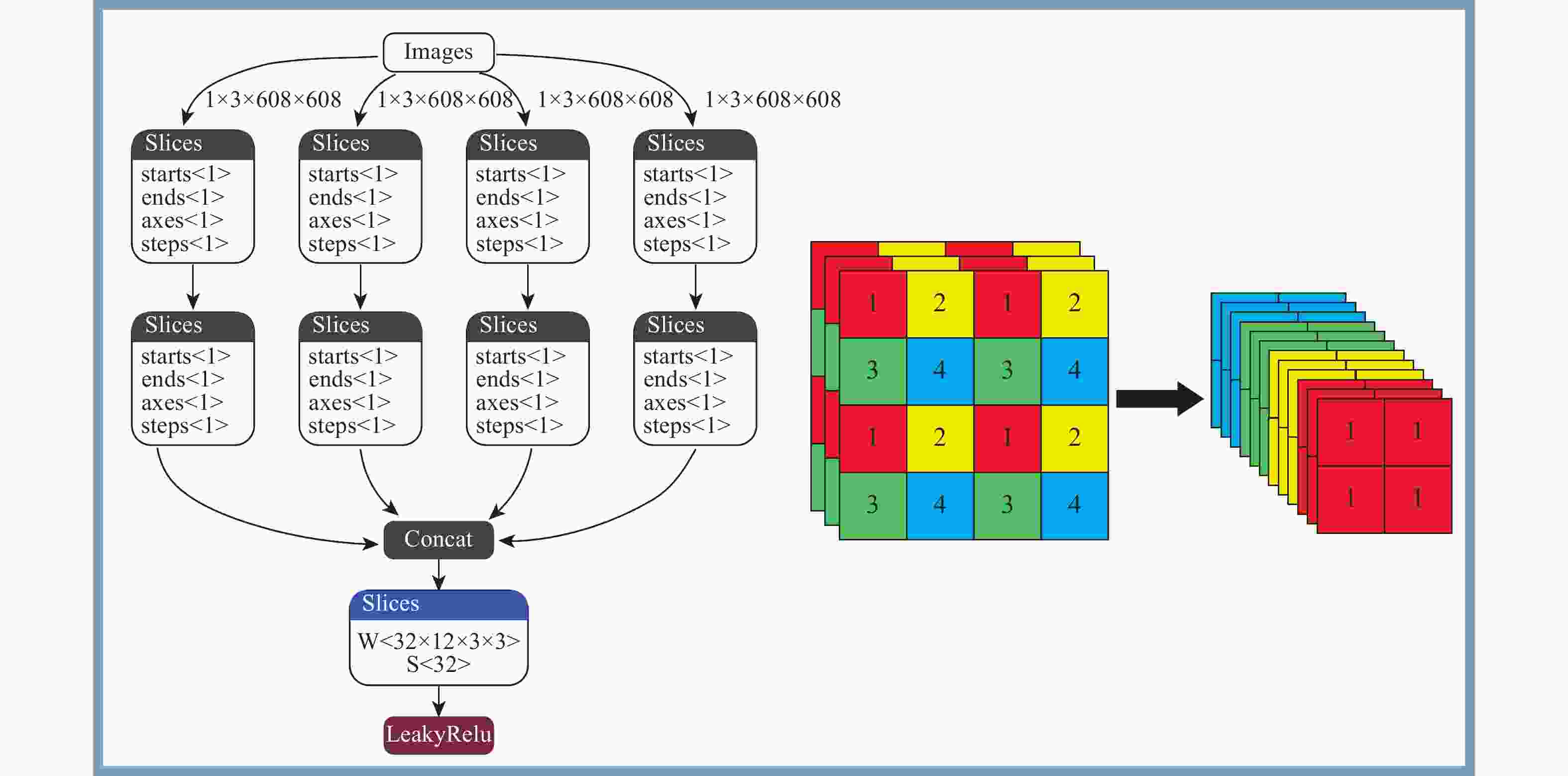

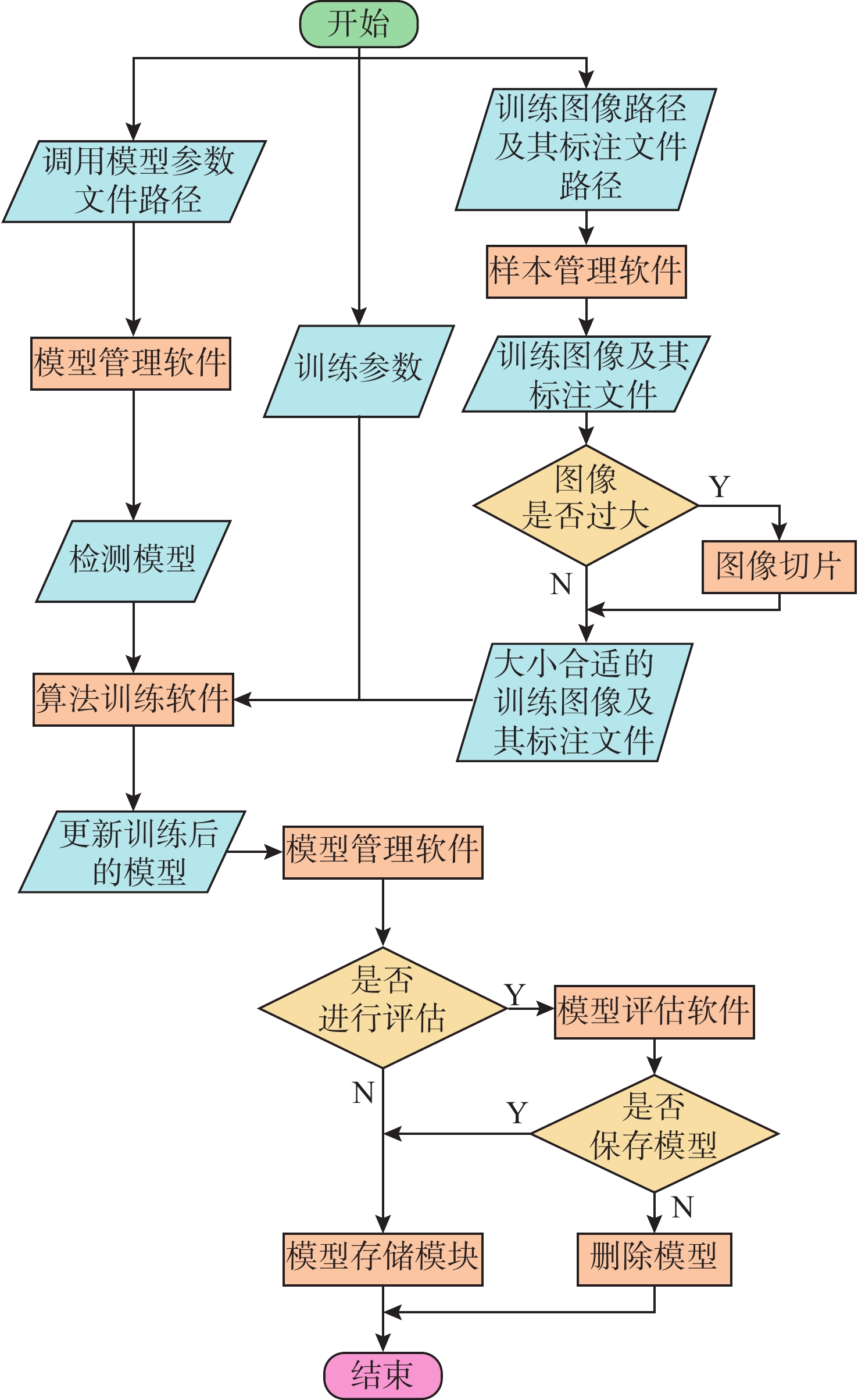

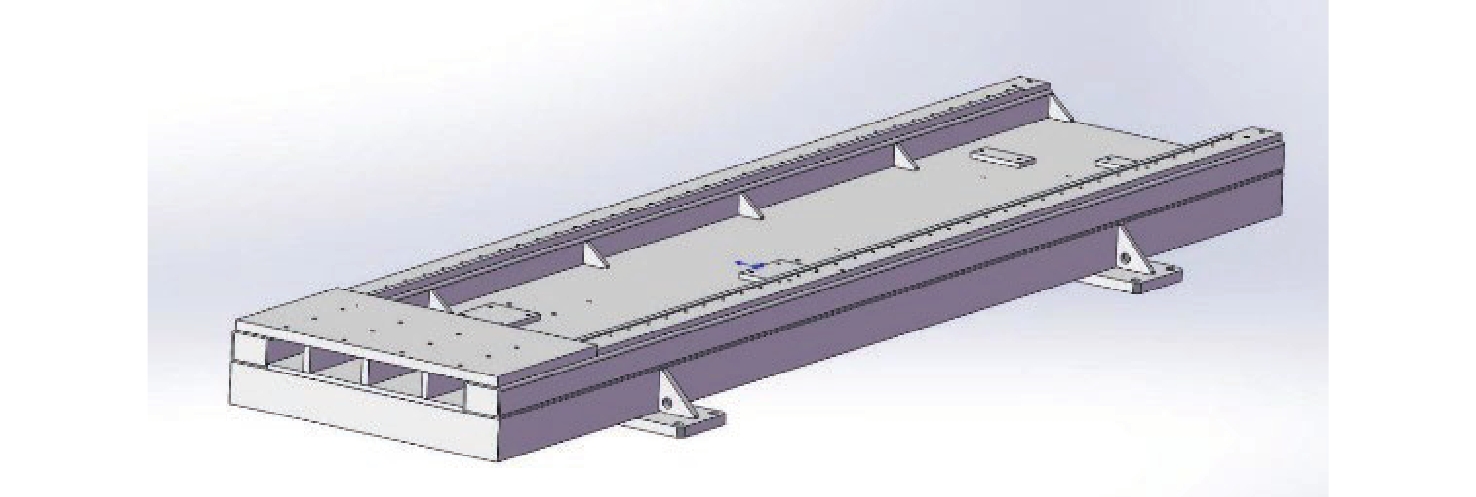

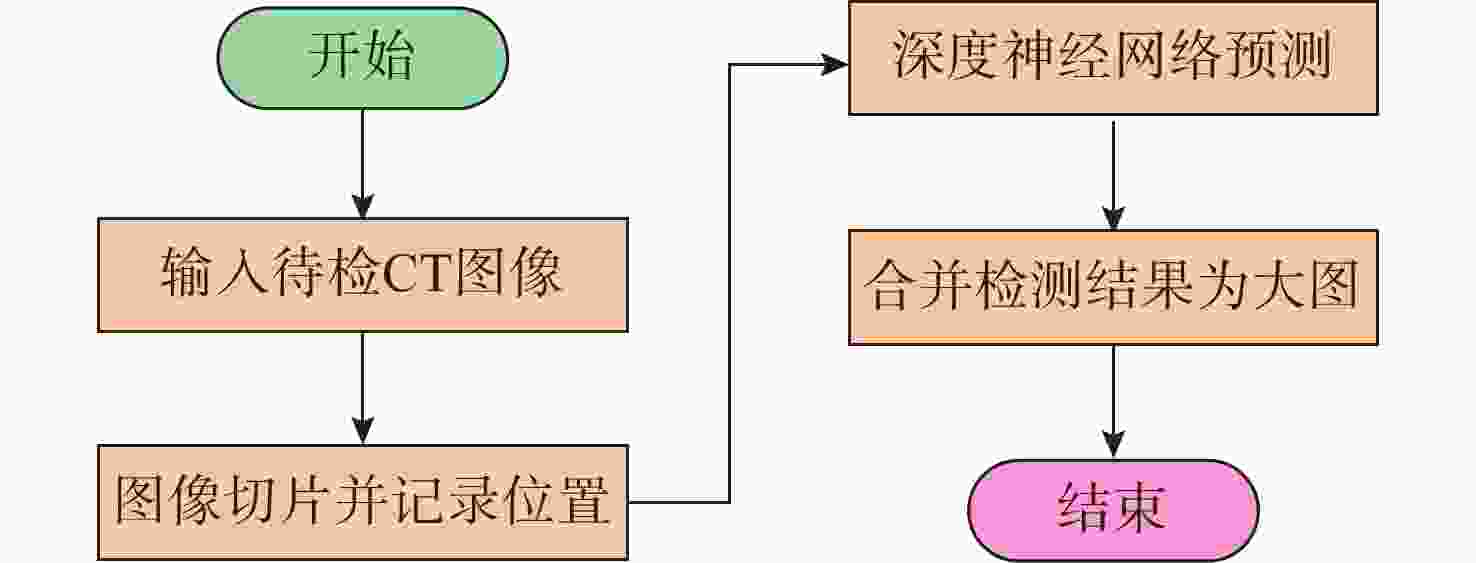

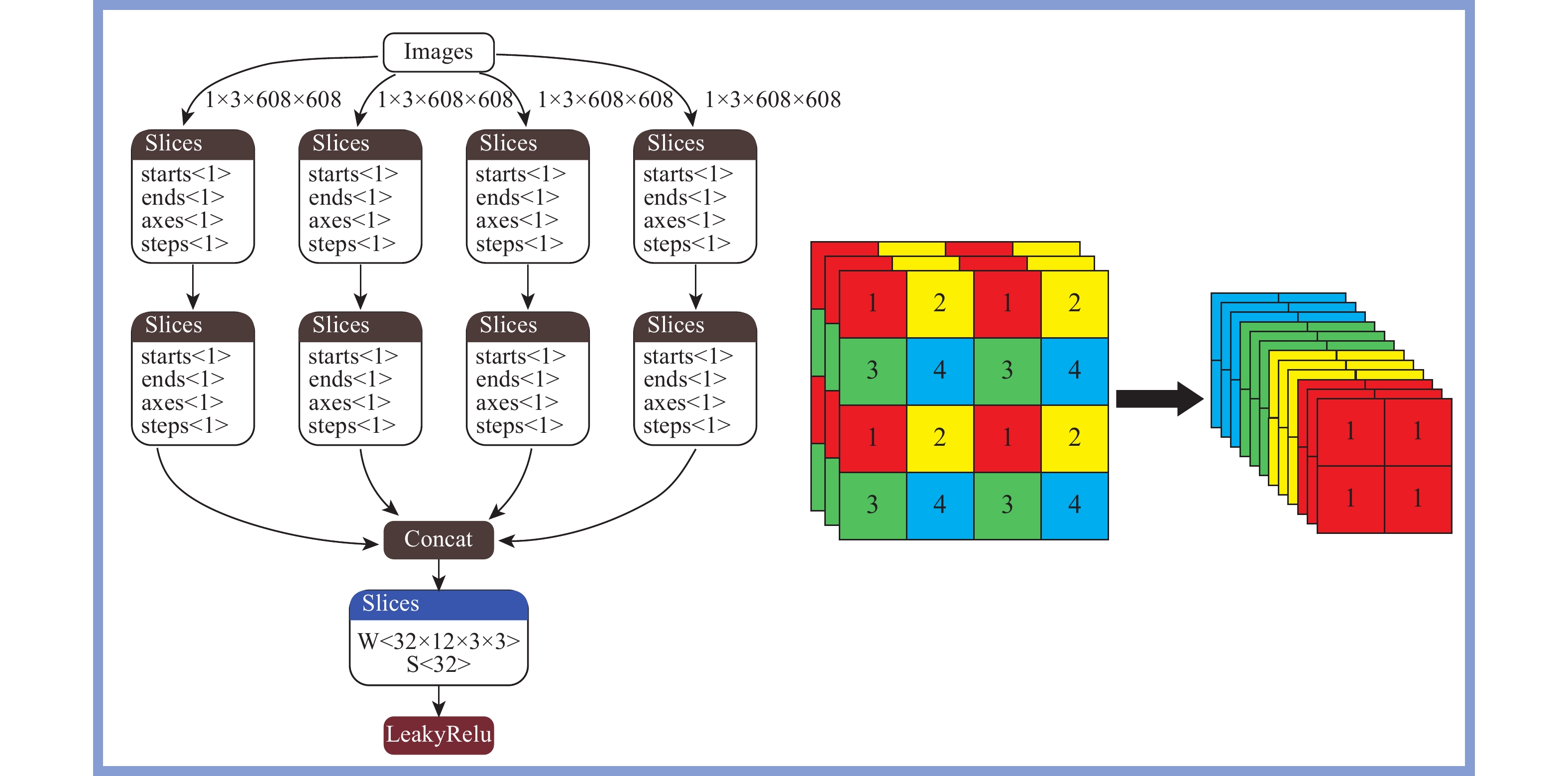

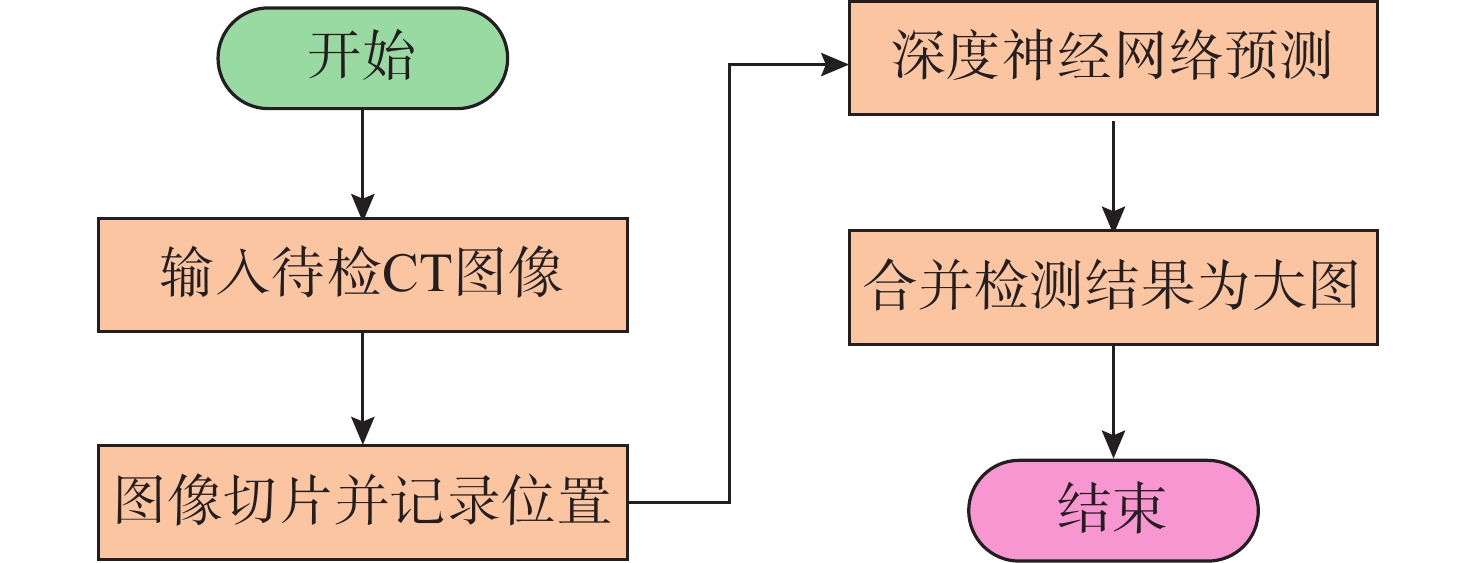

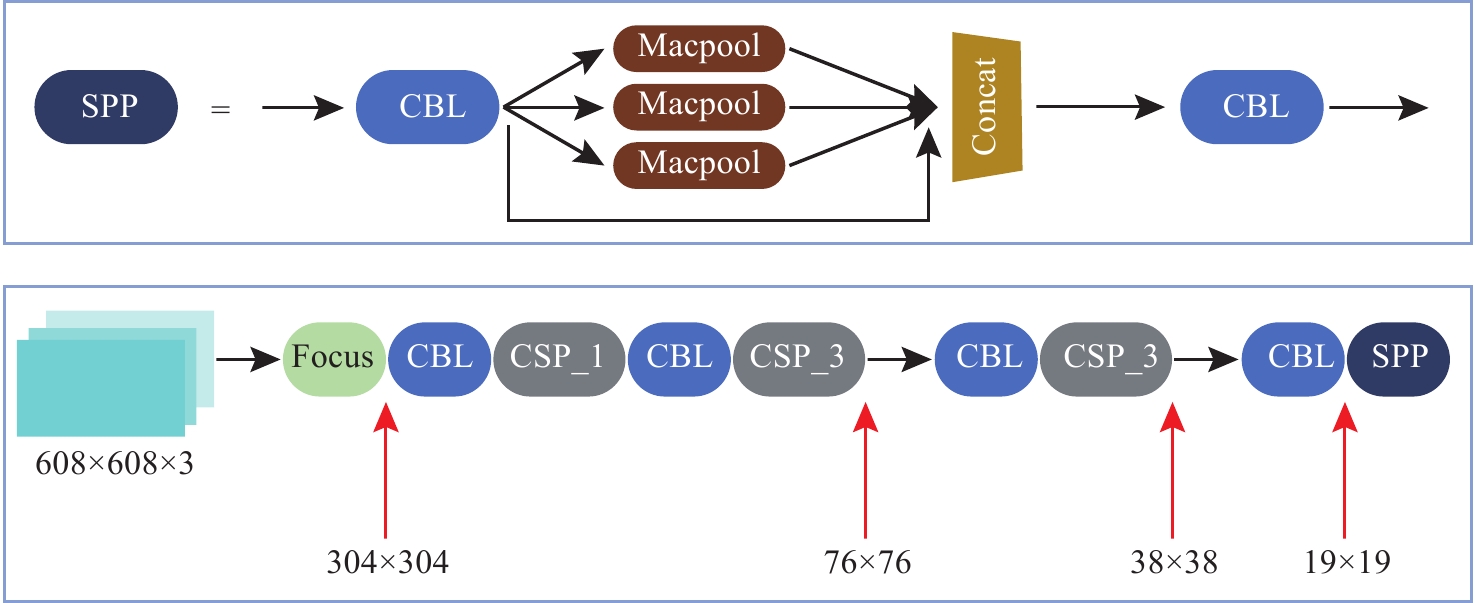

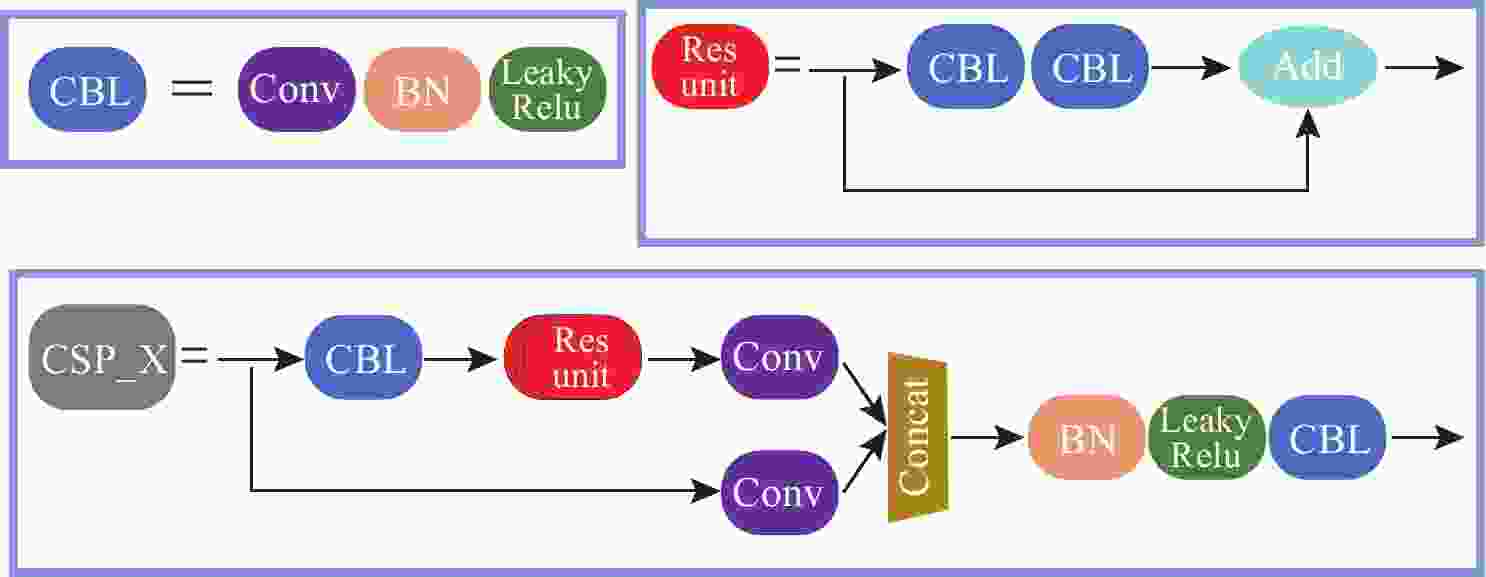

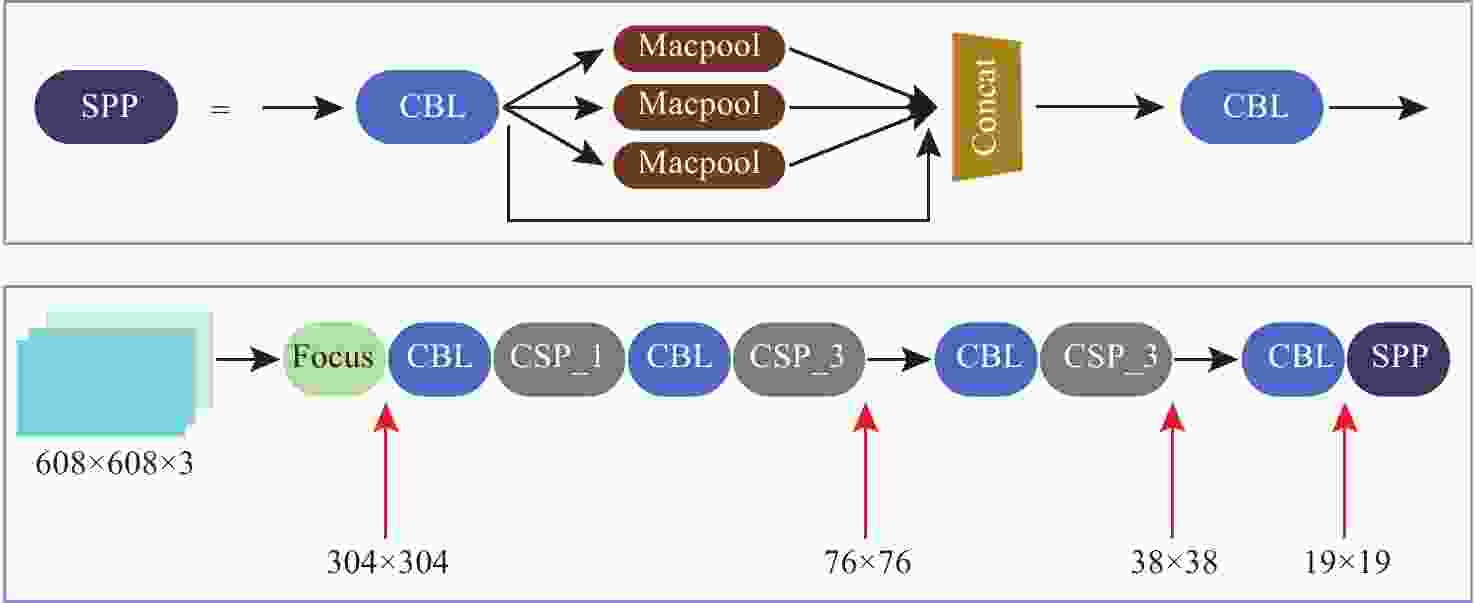

图 11 CSPDarknet53骨干网络结构图
Figure 11. Structure diagram of CSPDarknet53 backbone network

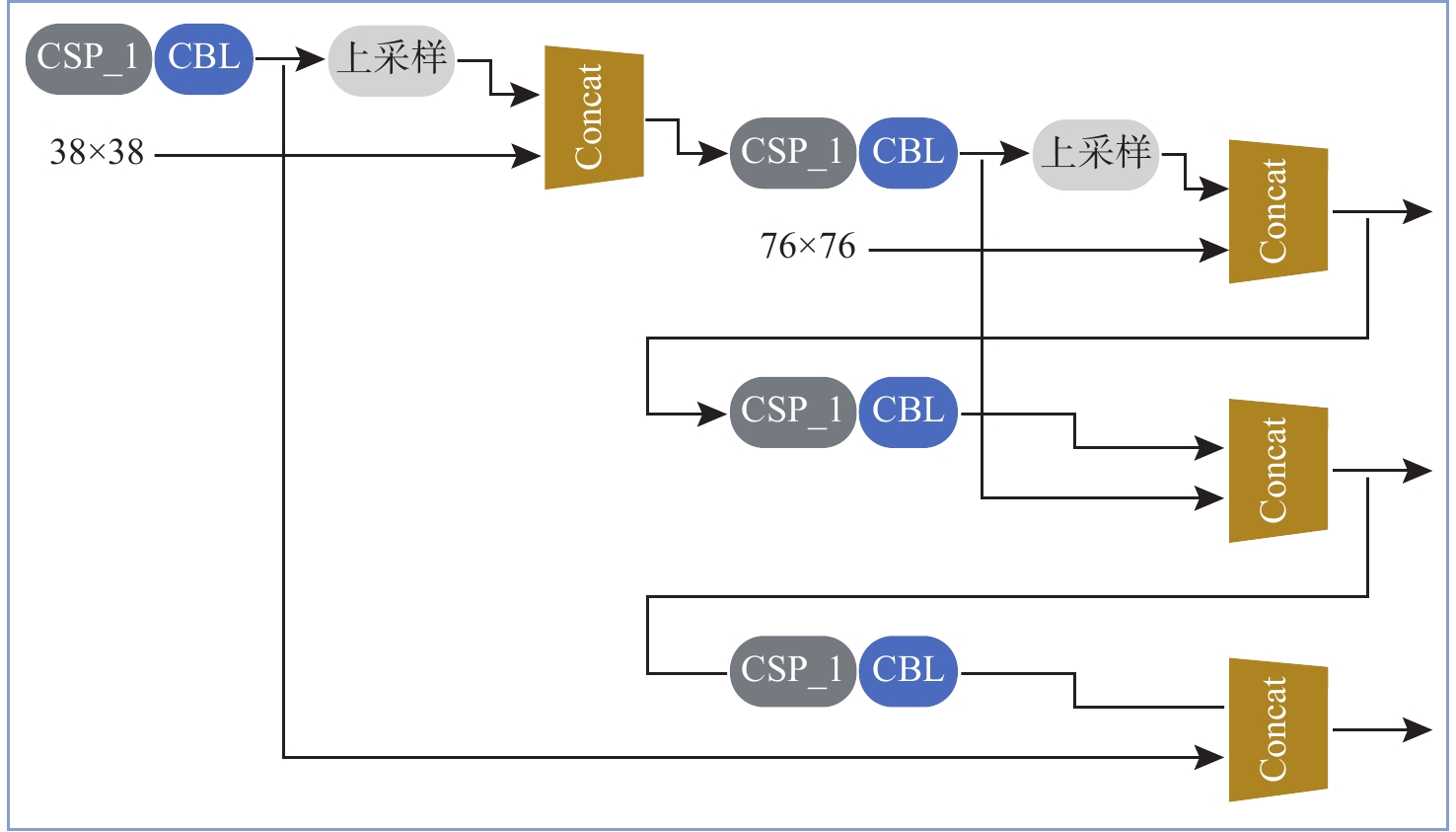

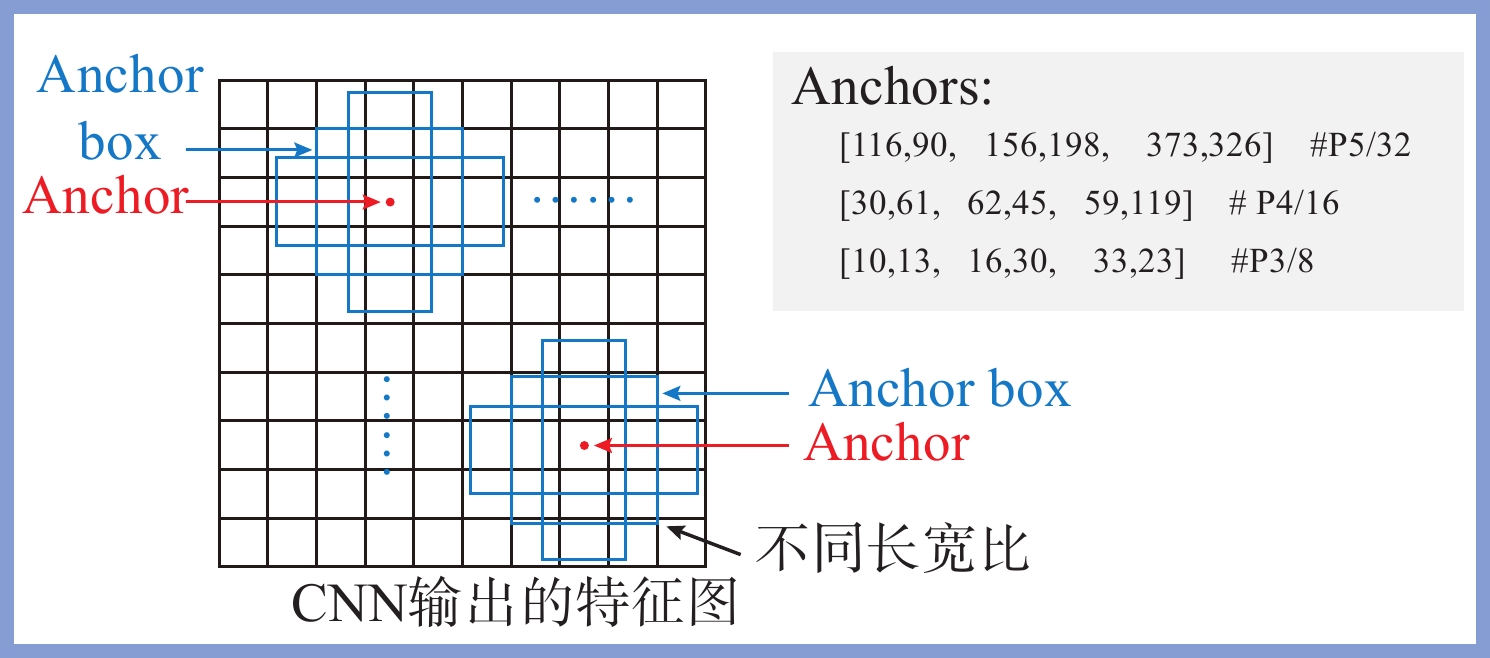

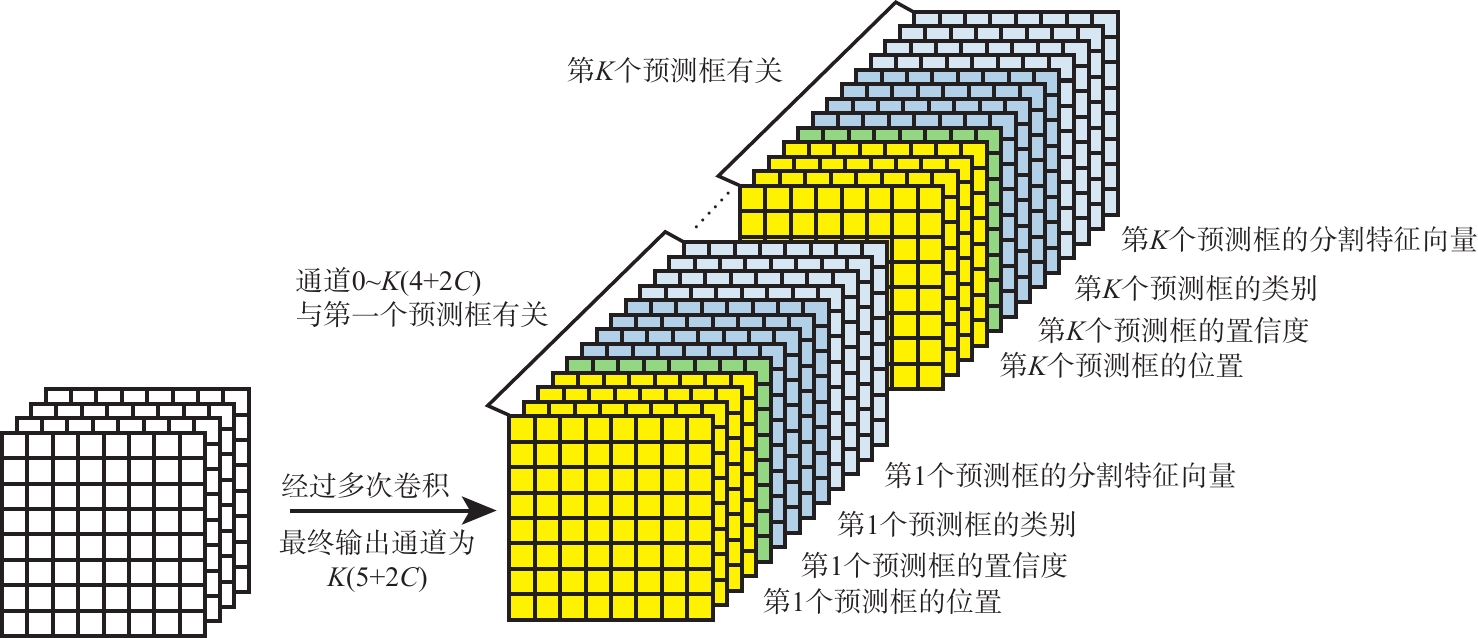

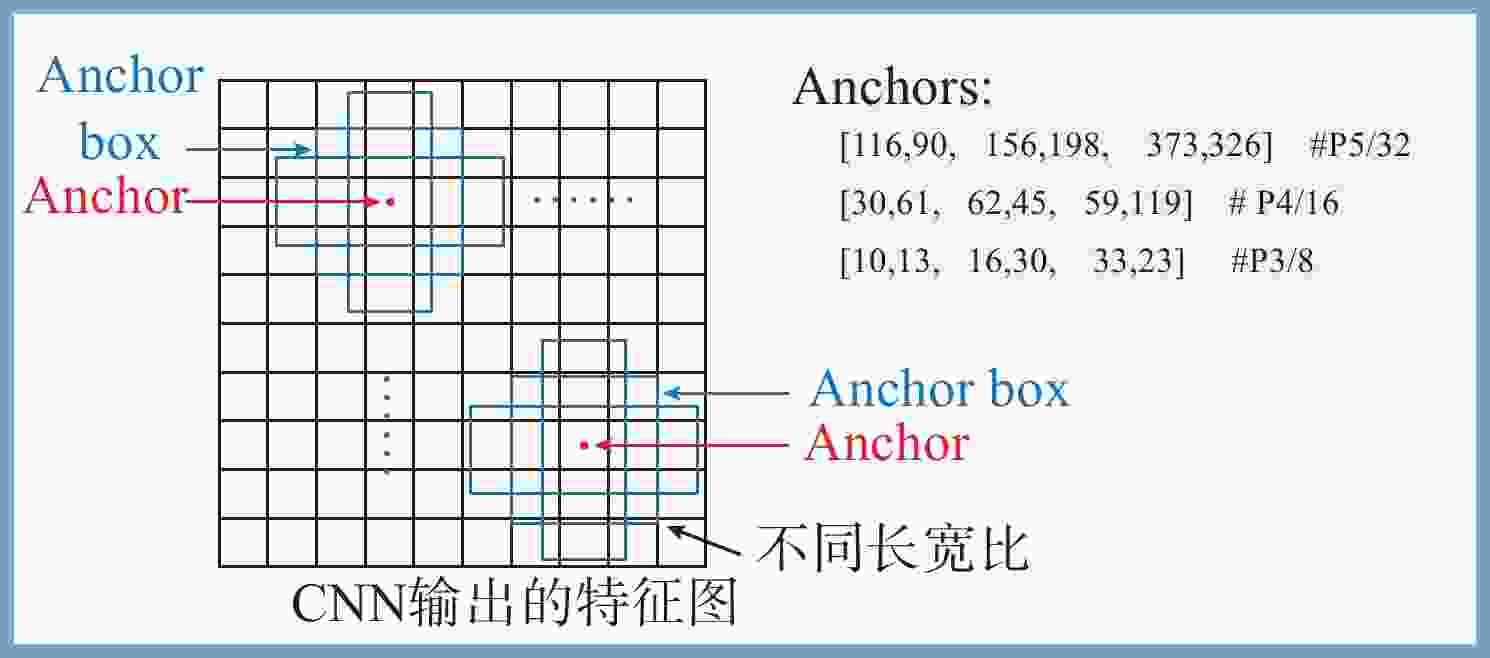

图 13 输出特征通道与预测锚框对应关系
Figure 13. Mapping relationship between output feature channels and prediction anchor boxes

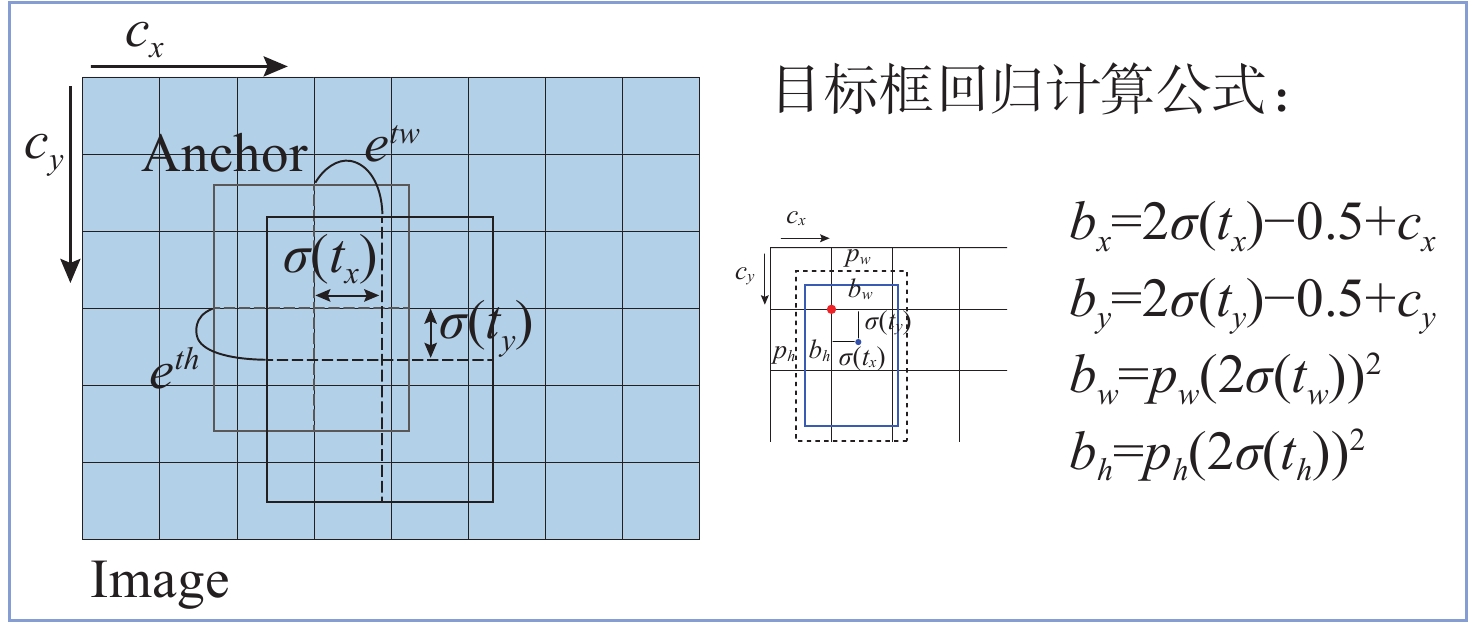

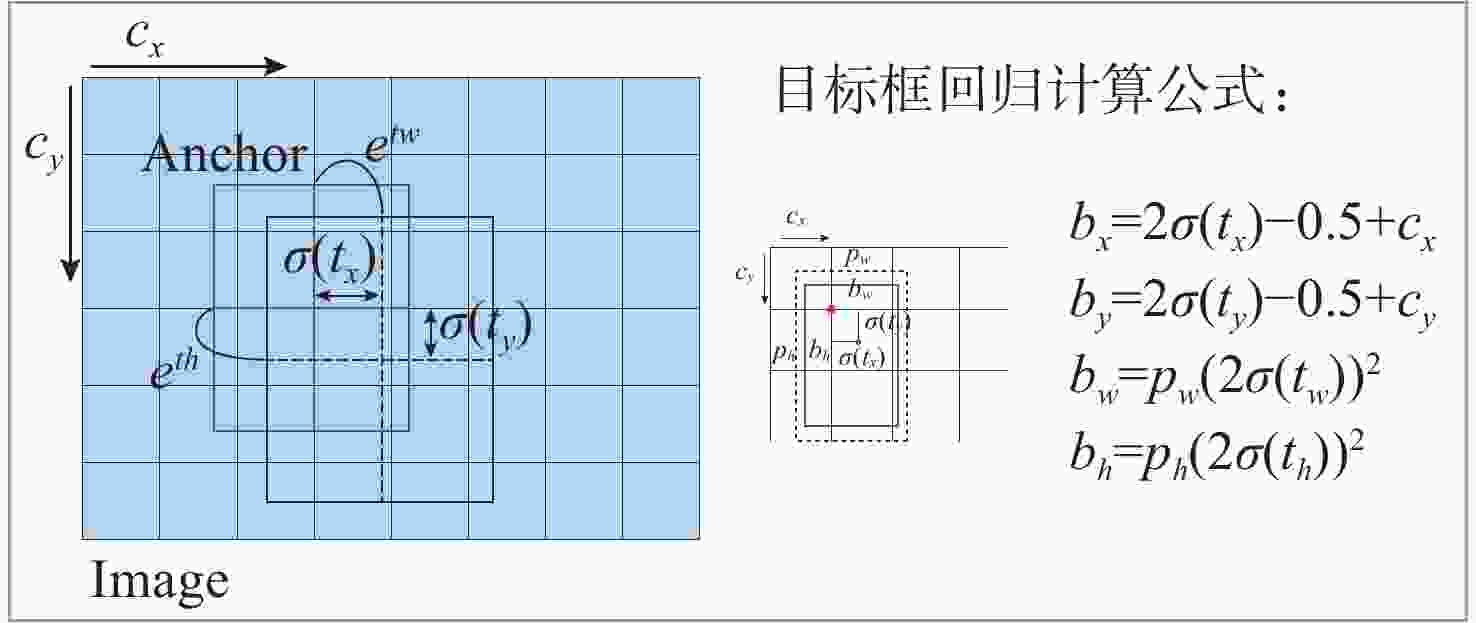

图 14 缺陷检测边界框坐标回归计算原理
Figure 14. Calculation principle of coordinate regression for defect detection bounding boxes

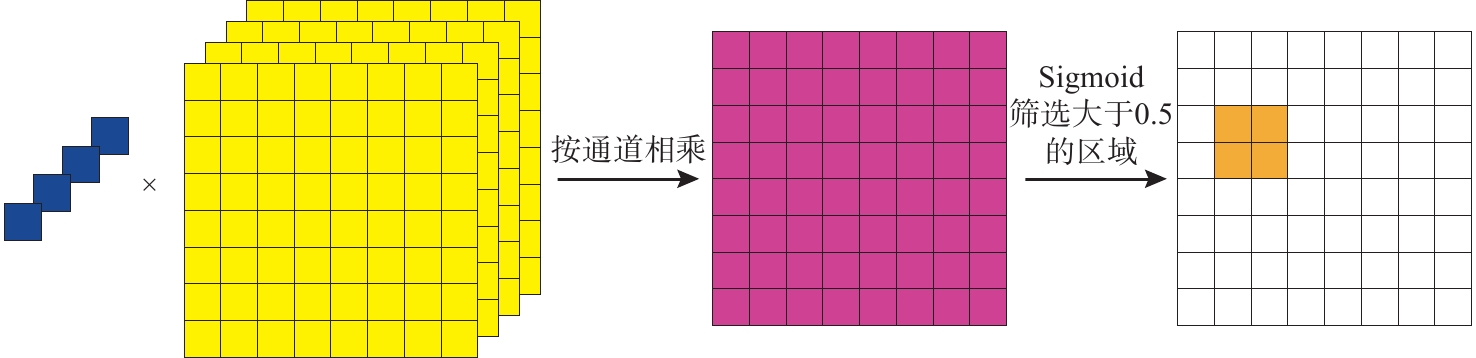

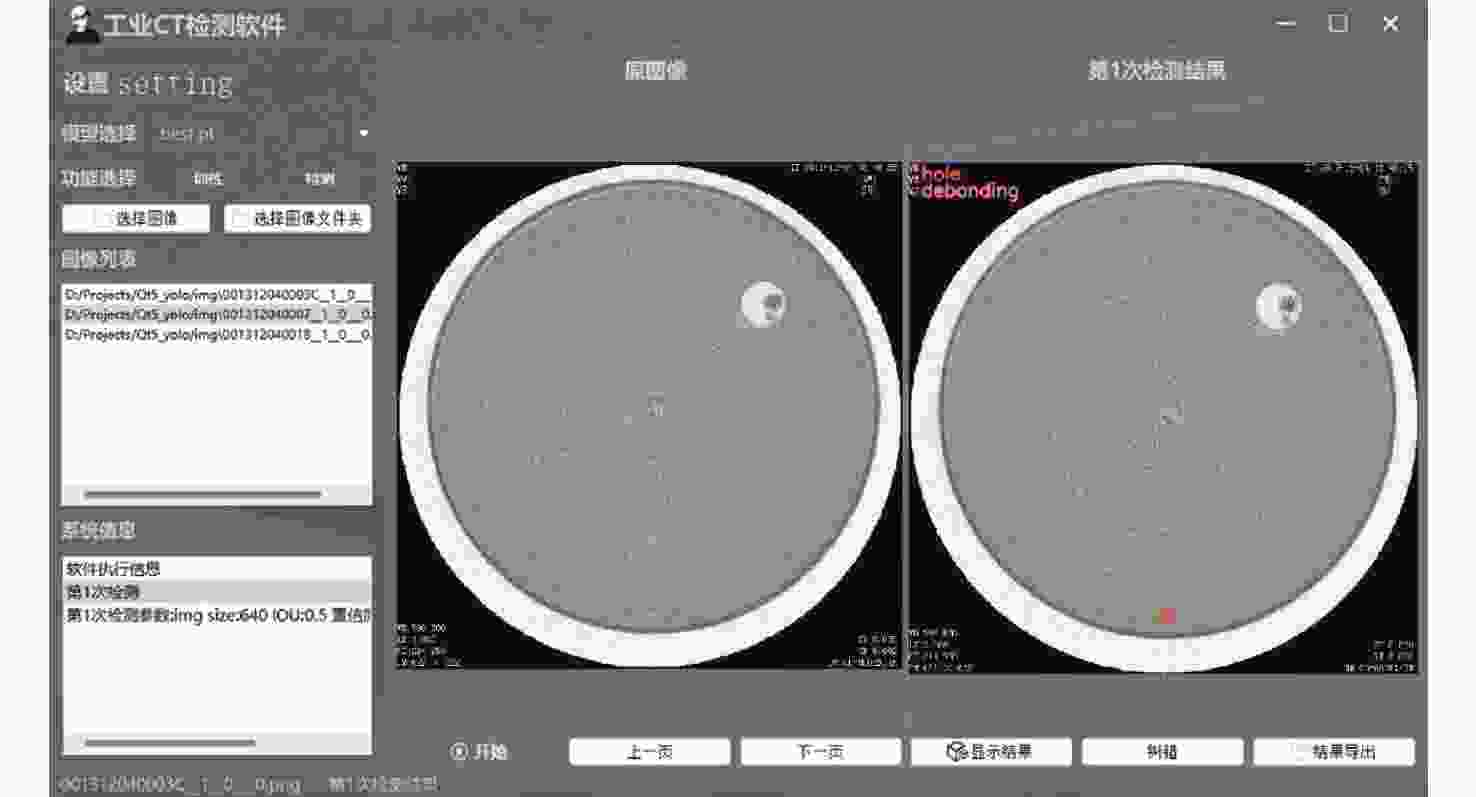

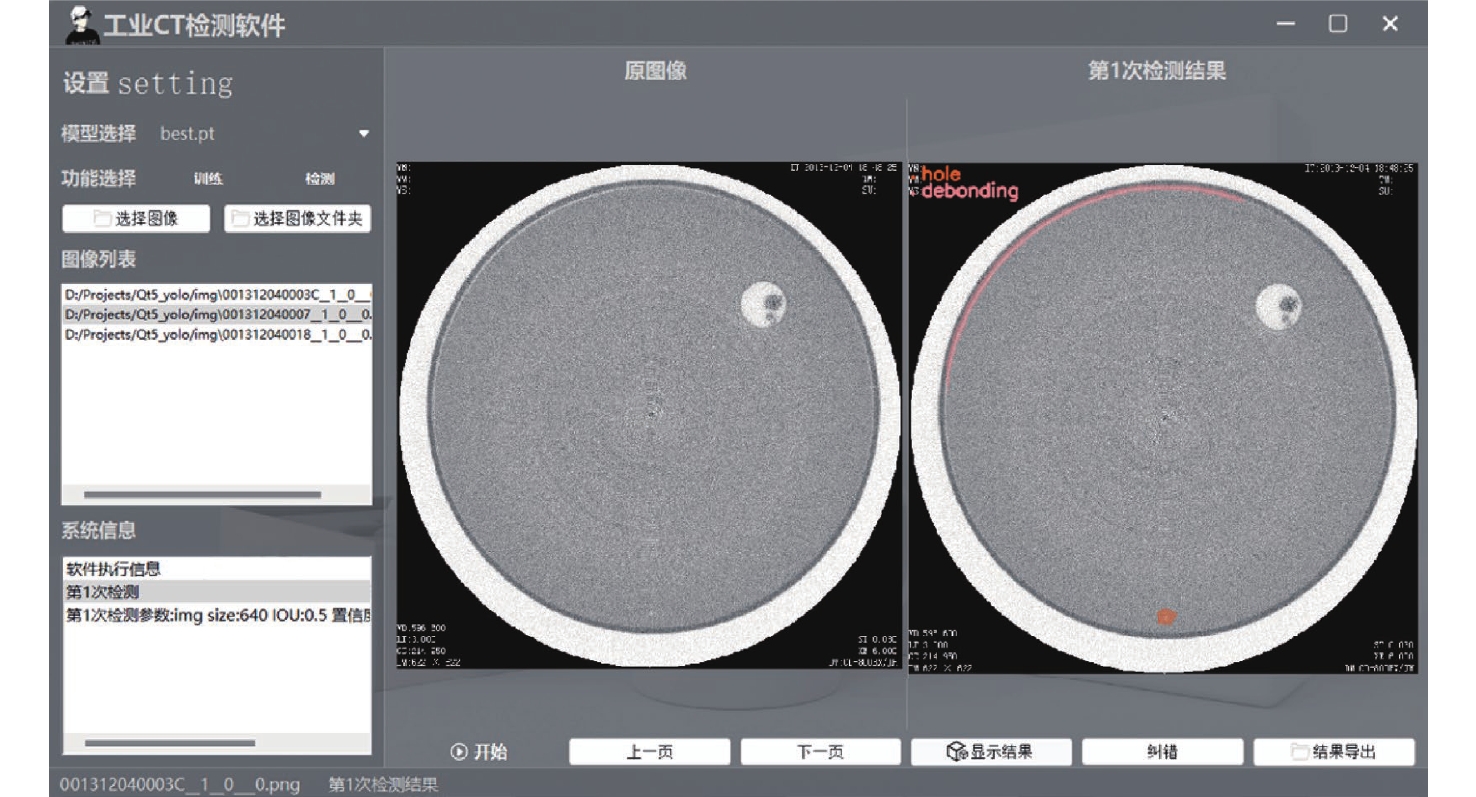

图 16 缺陷识别软件检测结果可视化界面
Figure 16. Visual interface of detection results of defect recognition software
表 1 X射线源分系统主要技术参数
Table 1. Key technical parameters of X-ray source subsystem
参数 设置 射线管类型 双焦点双极定向闭合式金属陶瓷射线管 最大管电压 450 kV 额定功率 700 W/ 1500 W焦点规格 0.4 mm/1.0 mm双焦点(符合EN12543标准) 管电流 最大电压下分别为1.6 mA、3.3 mA 电压控制 40~450 kV, 步进0.1 kV, 精确度±0.01% 电流控制 大焦点0.5~3.3 mA, 步进0.1 mA, 精确度±0.01% 射线辐射角 40°×30° 高压发生器
最大功率4.5 kW 冷却方式 油冷 冷却器制冷
功率4500 W
下载: 导出CSV
表 2 成像板主要技术参数
Table 2. Main technical parameters of imaging panel
参数 设置 接收器类型 非晶硅TFT 有效成像尺寸 427 mm×427 mm 像素数量 3 072×3 072 单像素尺寸 139 μm 模数转换位数 16 bit 最高耐压 450 kV 传输接口 千兆以太网 工作温度 10~40 ℃ 供电规格 220VAC(±10%), 50 Hz
下载: 导出CSV
表 3 车载工业CT无损检测系统各部件质量
Table 3. Mass of each component of vehicle-mounted industrial CT nondestructive testing system
序号 部件 质量/t 1 铅房 14.94 2 钢结构与钢板 3.30 3 机械结构 1.30 4 操作间设备 1.00 5 方舱 3.80 6 牵引车 6.80 7 半挂车 3.90 合计 35.04
下载: 导出CSV
表 4 缺陷检测结果
Table 4. Results of defect detection
缺陷类型 mAP@0.5/% 训练集 验证集 测试集 裂隙 91.3 94.5 98.2 孔洞 93.8 96.2 99.1 脱毡 88.6 91.8 97.5 疏松 89.2 93.0 98.7
下载: 导出CSV
表 5 软件性能测试指标
Table 5. Test indicators of software performance
项目 设计性能要求 实测结果 图像像元分辨率 0.1 mm 0.1 mm 最小可识别缺陷尺寸 0.5 mm×0.5 mm 0.5 mm×0.5 mm 支持缺陷类型 4种 裂隙、孔洞、脱毡、疏松 单图检测时间 <5 s 4 096×4 096分辨率图像检测用时3 s
下载: 导出CSV
-
