基于强化学习的多平台协同搜索路径规划

贺聪炜; 谢勇; 陈于涛

doi:10.11993/j.issn.2096-3920.2025-0163

基于强化学习的多平台协同搜索路径规划

doi: 10.11993/j.issn.2096-3920.2025-0163

1.
华中科技大学人工智能与自动化学院, 湖北武汉, 430074
2.
海军工程大学动力工程学院, 湖北武汉, 430030

基金项目: 国家自然科学基金面上项目(62573203)项目.

详细信息

作者简介:
贺聪炜(1999-), 男, 硕士, 主要研究方向为系统优化

中图分类号: TJ630; U676.8
计量
- 文章访问数: 94
- HTML全文浏览量: 41
- PDF下载量: 17
- 被引次数: 0
出版历程
- 收稿日期: 2025-12-04
- 修回日期: 2026-01-29
- 录用日期: 2026-02-02
- 网络出版日期: 2026-07-23

Multi-Agent Collaborative Search Path Planning Based on Reinforcement Learning

1.
School of Artificial Intelligence and Automation, Huazhong University of Science and Technology, Wuhan 430074, China
2.
School of Power Engineering, Naval University of Engineering, Wuhan 430030, China

摘要

摘要: 针对多平台协同搜索路径规划优化问题, 以最大化累积探测概率为目标, 构建多智能体强化学习模型, 提出一种基于深度Q网络的多平台协同搜索算法Joint-DQN。该算法通过设计经验知识共享机制提升了多平台间的协作效率与稳定性; 引入冲突检测机制并给予惩罚, 有效解决了多智能体协作研究中路径冲突频繁的问题; 同时设计了复合奖励函数, 提升了搜索覆盖率并降低重复搜索率。仿真实验结果表明, 该算法在静态与动态目标场景下均能有效引导搜索平台沿目标最可能存在方向高效移动, 在高效搜索的同时快速提升累积探测概率, 为多平台协同搜索路径规划提供理论支撑和指导。
- 强化学习 /
- 协同搜索 /
- 路径规划 /
- 累积探测概率
Abstract: To address the problem of optimizing multi-agent collaborative search path planning with maximizing cumulative detection probability, a multi-agent reinforcement learning model is developed. A multi-agent collaborative search algorithm based on Deep Q-Network, Joint-DQN, is proposed. It enhances the collaboration efficiency and stability among multiple platforms by designing an experience knowledge sharing mechanism; introduces a conflict detection mechanism and imposes penalties, effectively addressing the frequent path conflicts in multi-agent collaboration research; and designs a composite reward function to improve search coverage and reduce the rate of duplicate searches. Simulation experimental results demonstrate that this algorithm can effectively guide search platforms to avoid obstacles while efficiently moving in the direction where the target is most likely to be found, both in static and dynamic target scenarios. It rapidly enhances the cumulative detection probability while conducting efficient search, providing theoretical support and valuable guidance for multi-agent collaborative search path planning.
- Reinforcement Learning /
- Collaborative Search /
- Path Planning /
- Cumulative Detection Probability

HTML全文

图 1 海洋搜索环境

Figure 1. Ocean search environment

下载: 全尺寸图片幻灯片

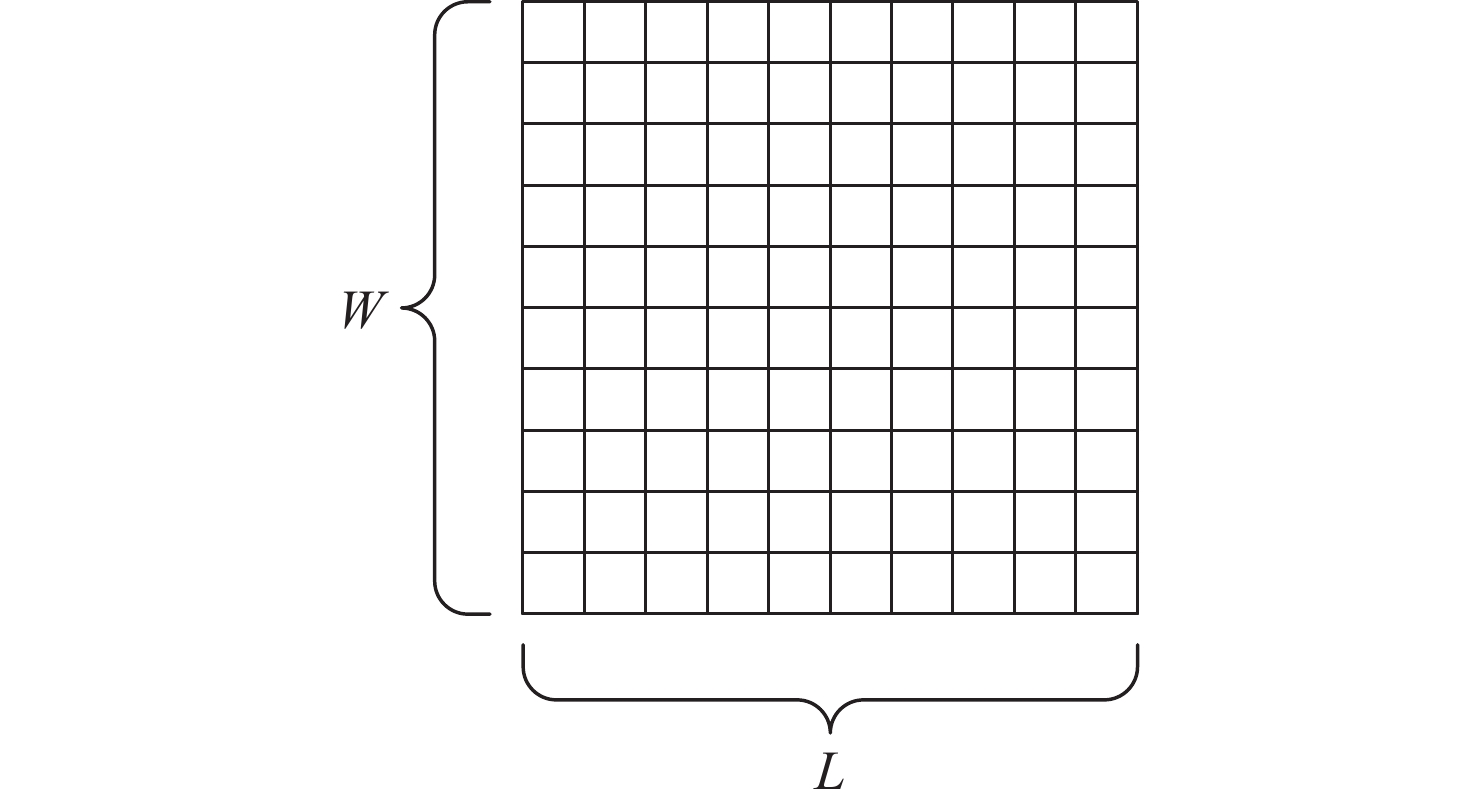

图 2 栅格地图环境

Figure 2. Grid map environment

下载: 全尺寸图片幻灯片

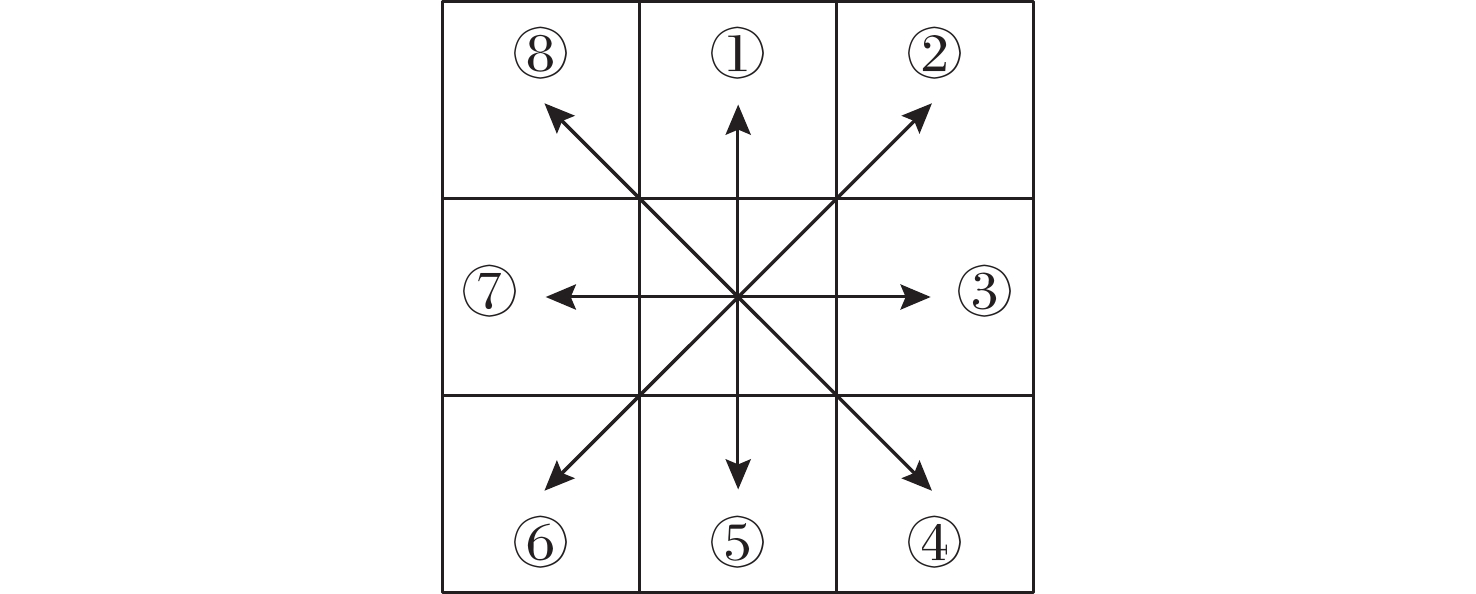

图 3 动作空间

Figure 3. Action space

下载: 全尺寸图片幻灯片

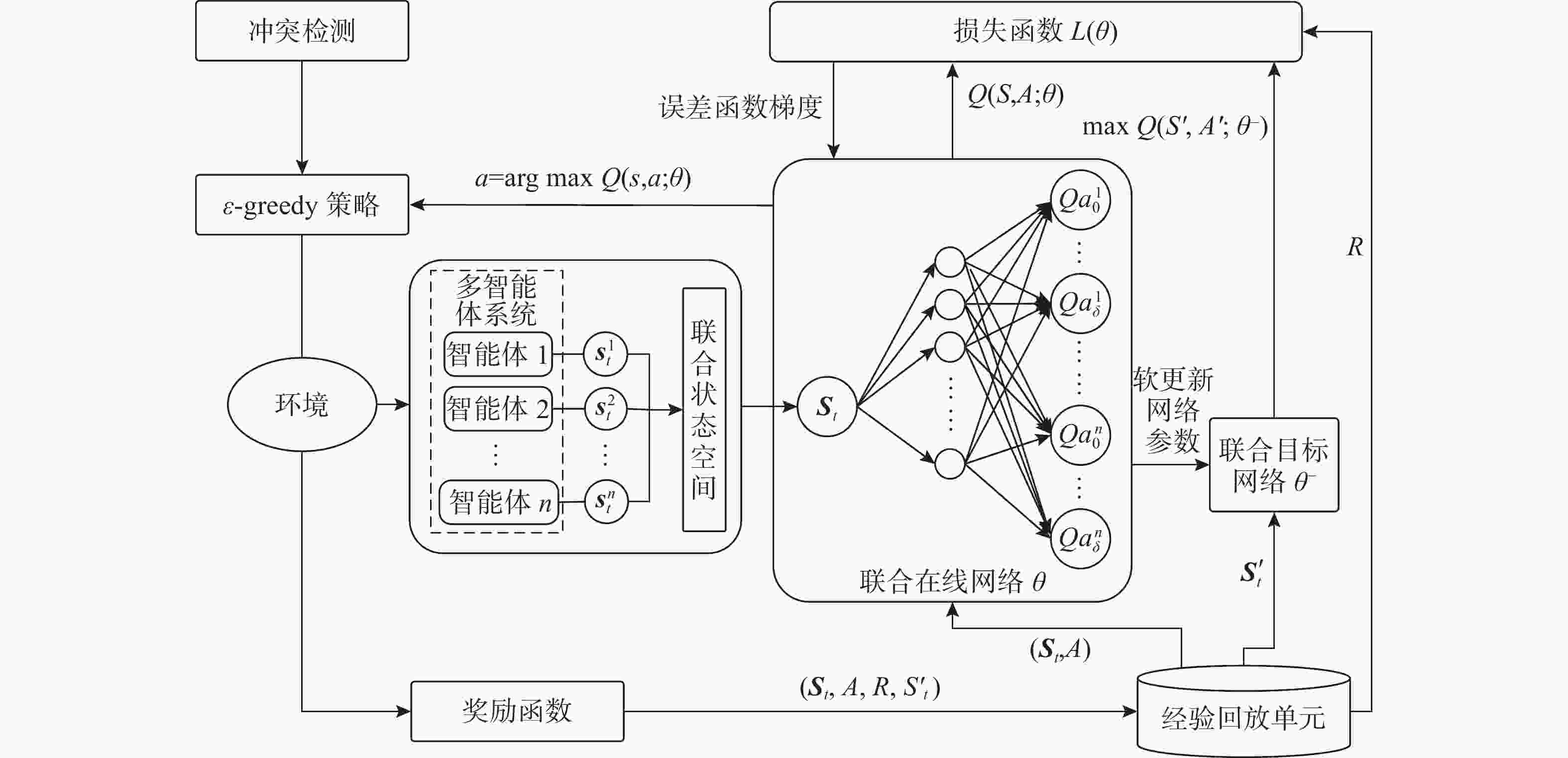

图 4 JDQN算法框架

Figure 4. JDQN algorithm framework

下载: 全尺寸图片幻灯片

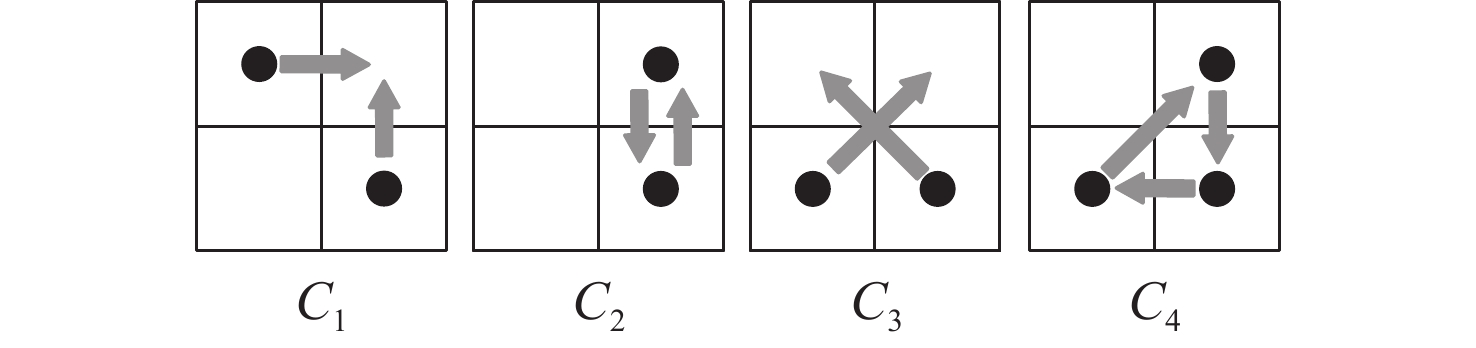

图 5 4种常见冲突类型

Figure 5. Four common types of conflicts

下载: 全尺寸图片幻灯片

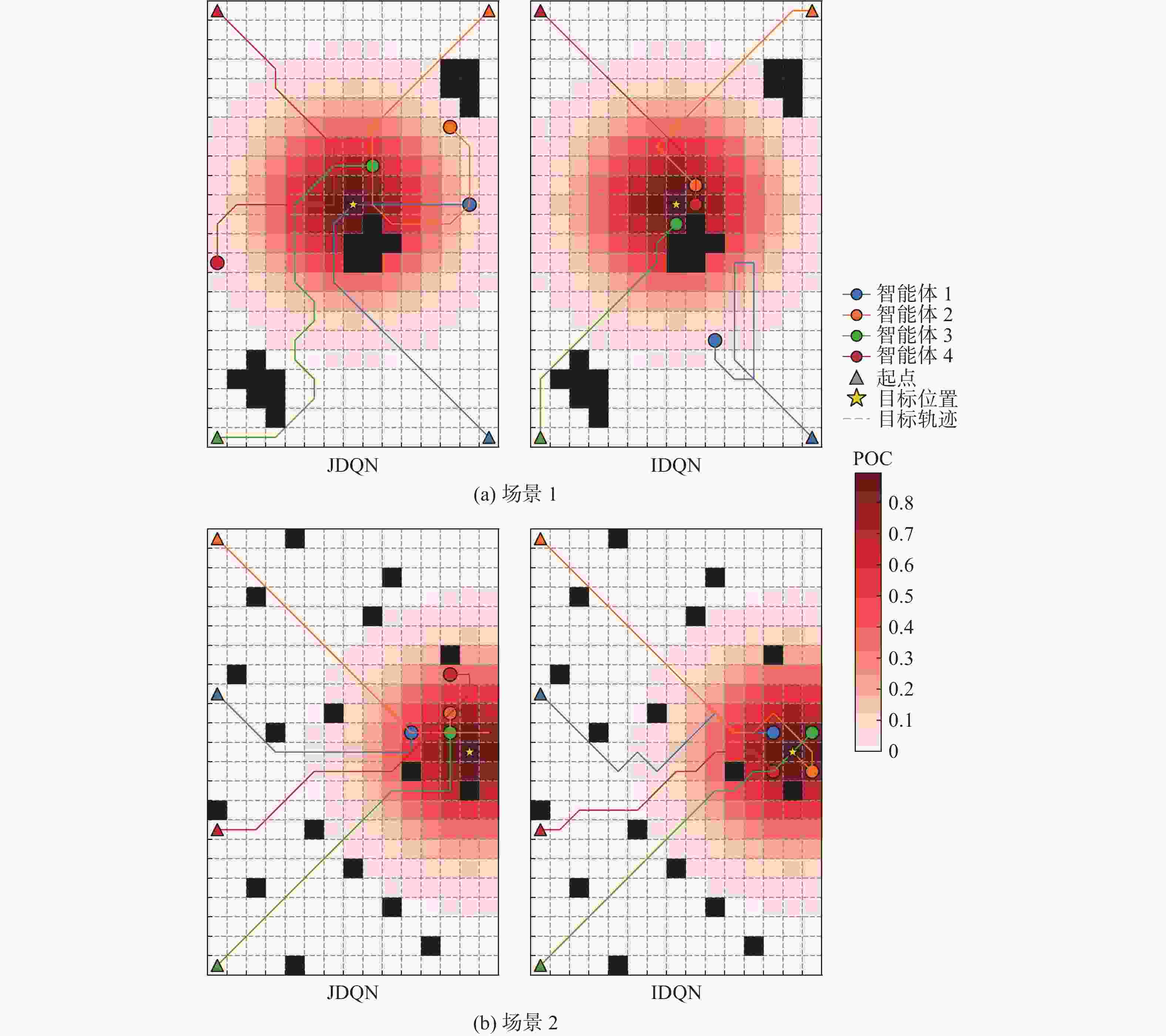

图 6 静态场景下两种算法路径规划结果

Figure 6. Path planning results of two algorithms in static scene

下载: 全尺寸图片幻灯片

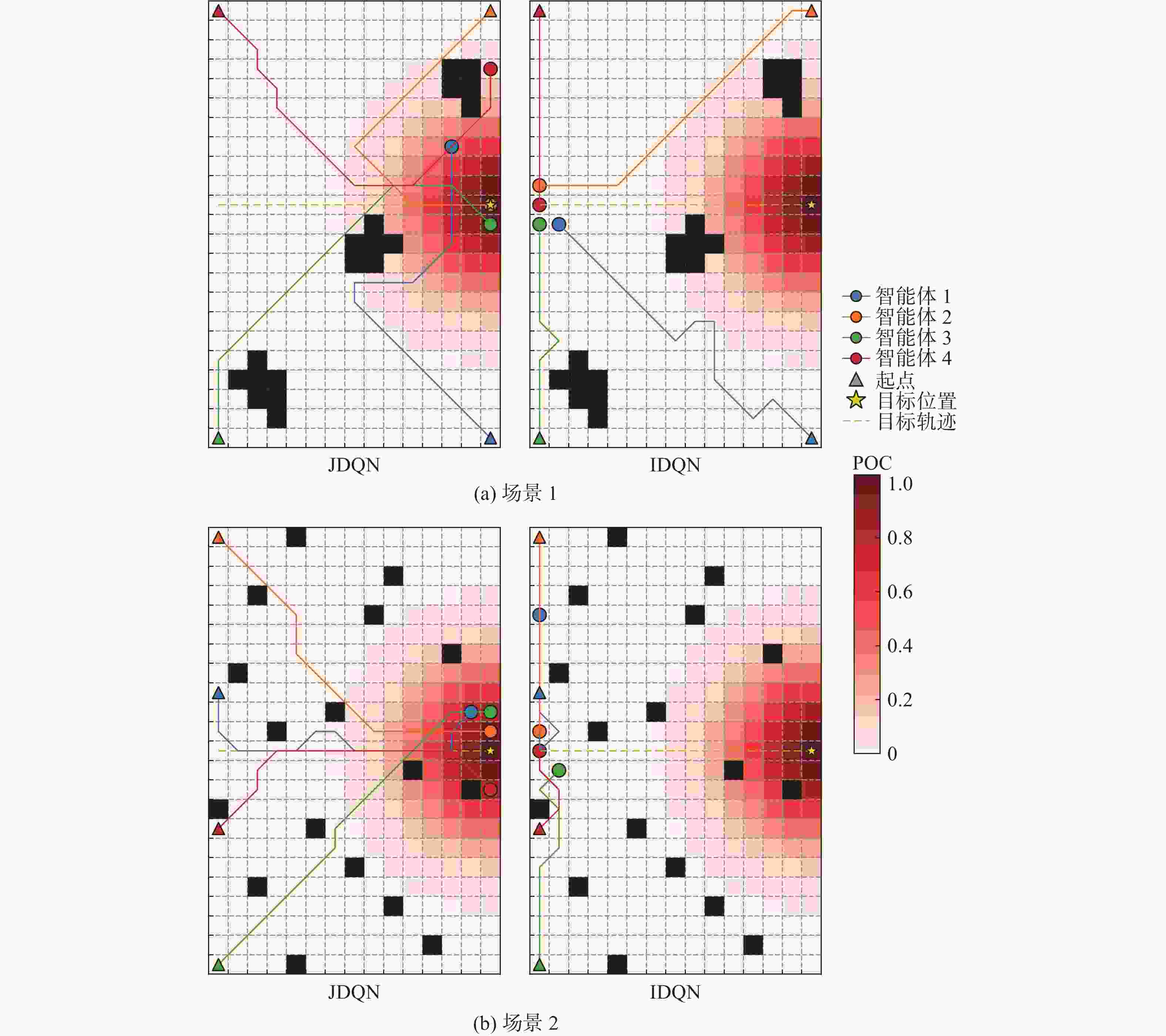

图 7 动态场景下两种算法路径规划结果

Figure 7. Path planning results of two algorithms in dynamic scene

下载: 全尺寸图片幻灯片

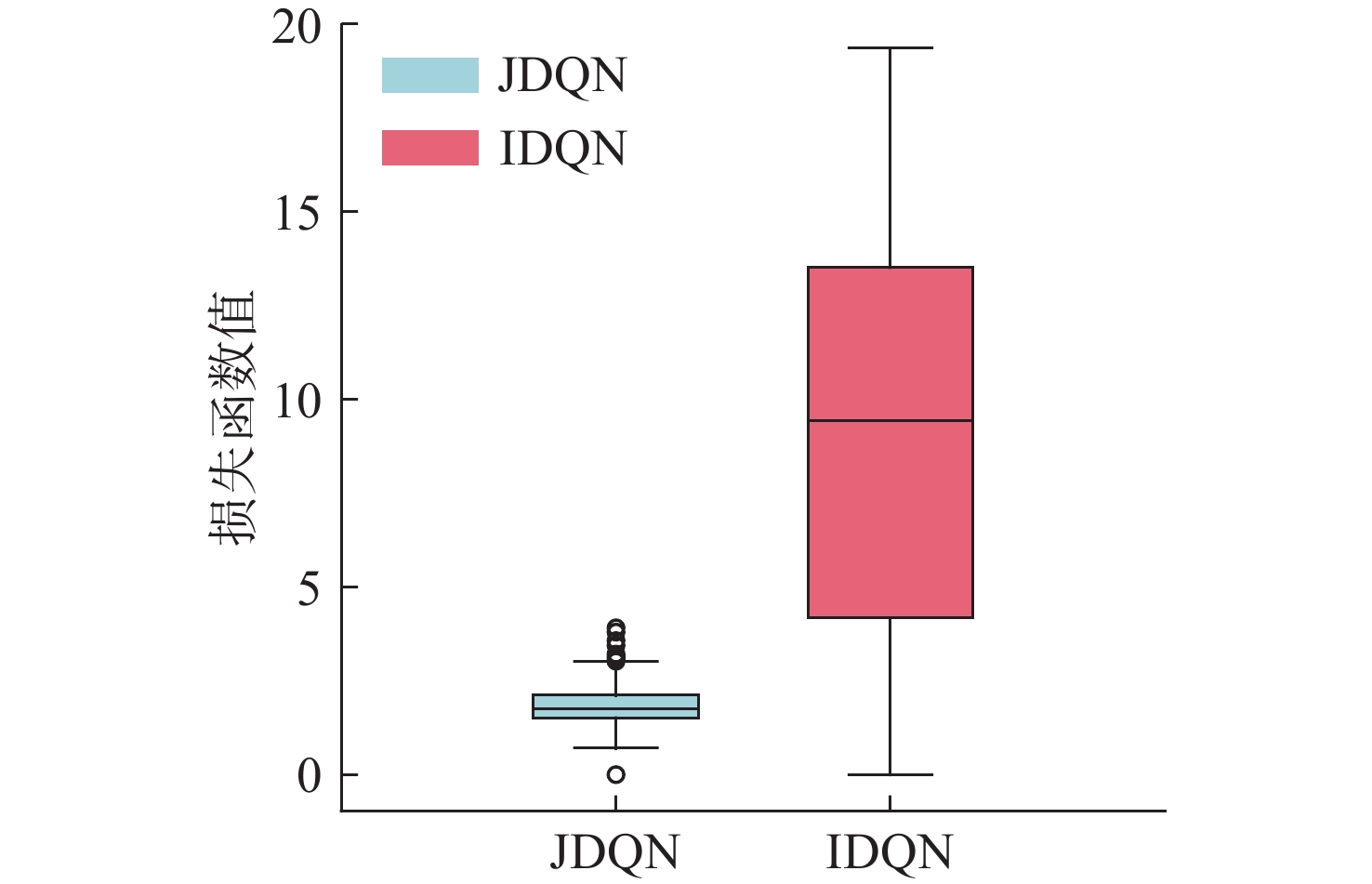

图 8 不同算法的损失函数值箱线图

Figure 8. Box graph of loss function values with different algorithms

下载: 全尺寸图片幻灯片

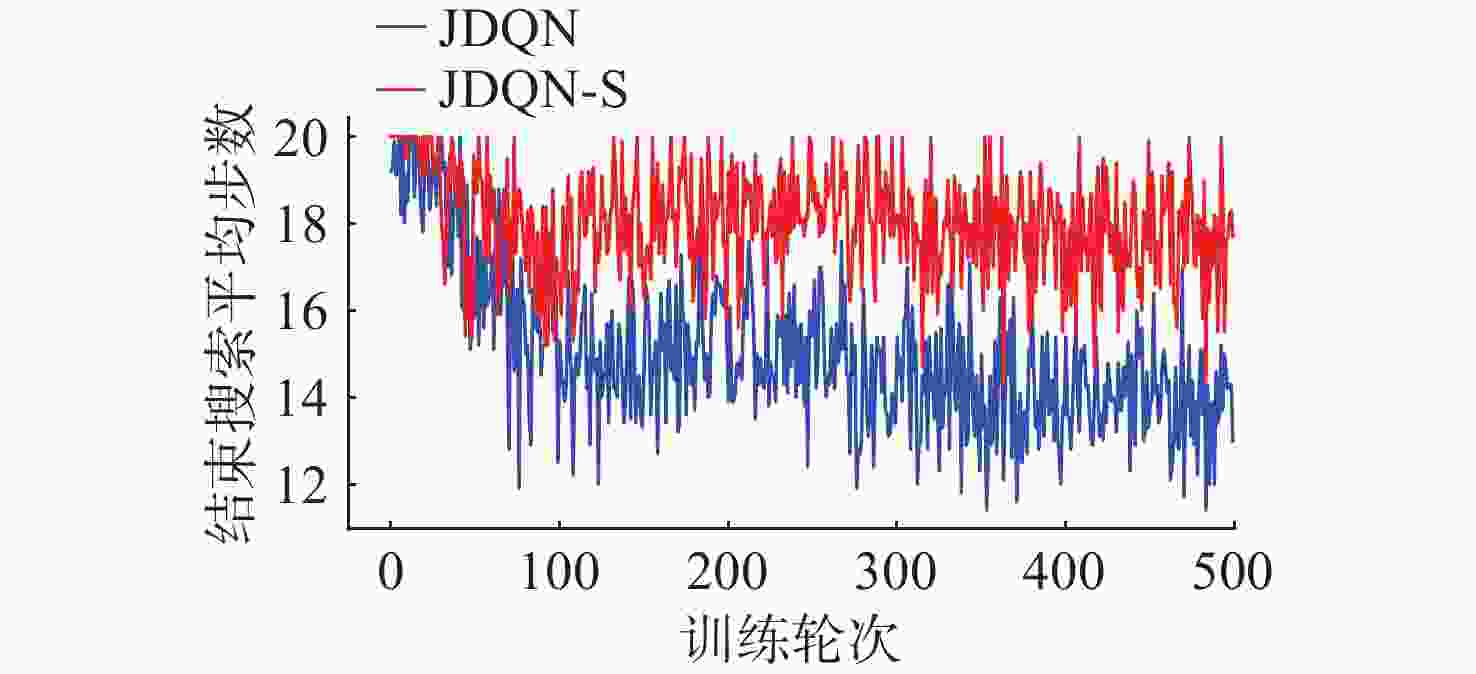

图 9 JDQN与JDQN-S算法的结束搜索平均步数对比

Figure 9. Comparison of average steps of end search between JDQN and JDQN-S algorithms

下载: 全尺寸图片幻灯片

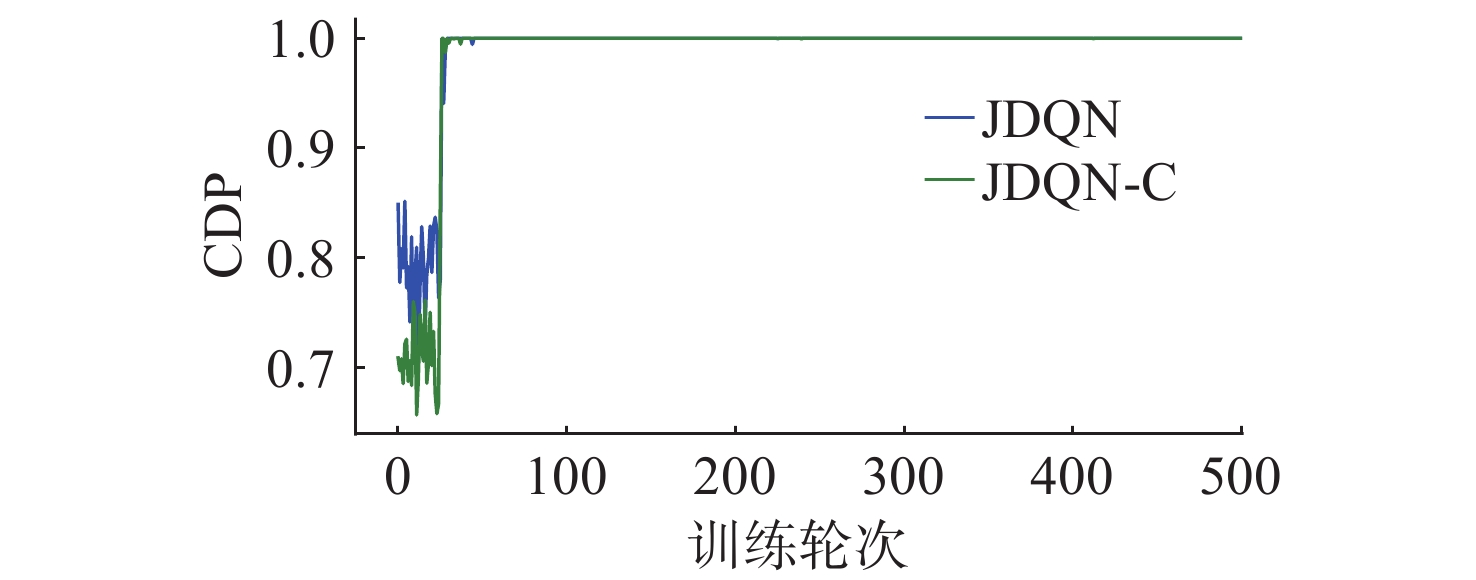

图 10 JDQN与JDQN-C算法的CDP曲线对比

Figure 10. Comparison of CDP curves between JDQN and JDQN-C algorithms

下载: 全尺寸图片幻灯片

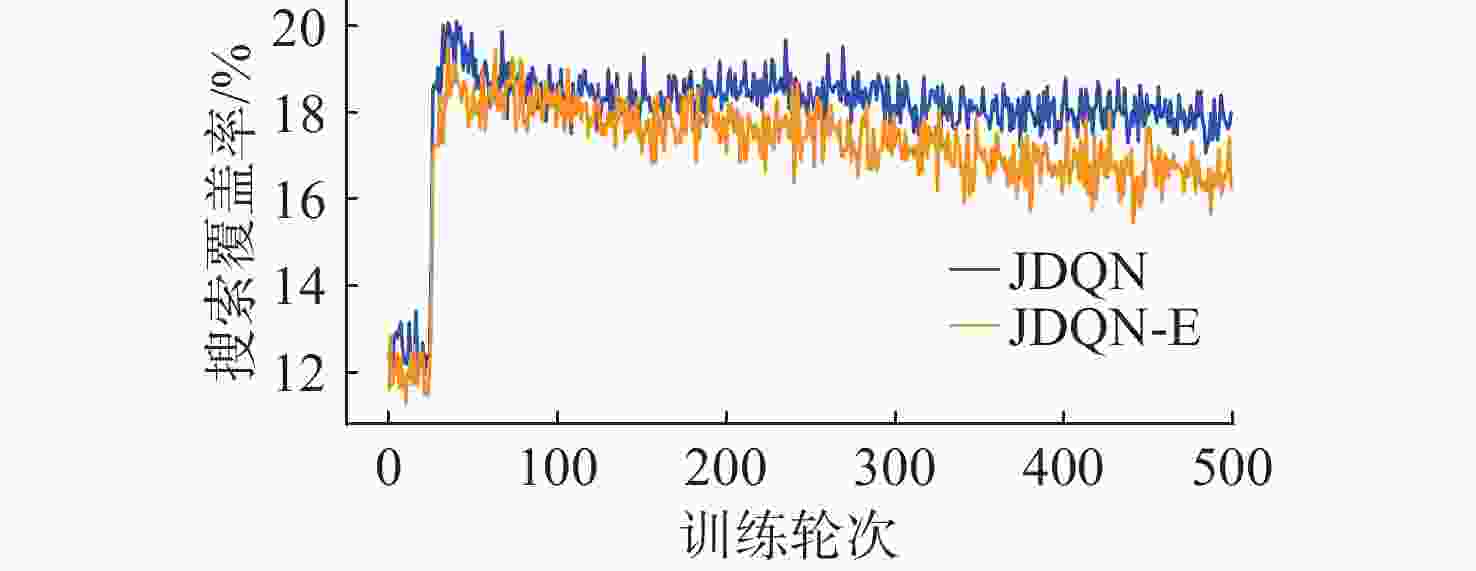

图 11 JDQN与JDQN-E算法的搜索覆盖率对比

Figure 11. Comparison of coverage rate between JDQN and JDQN-E algorithms

下载: 全尺寸图片幻灯片

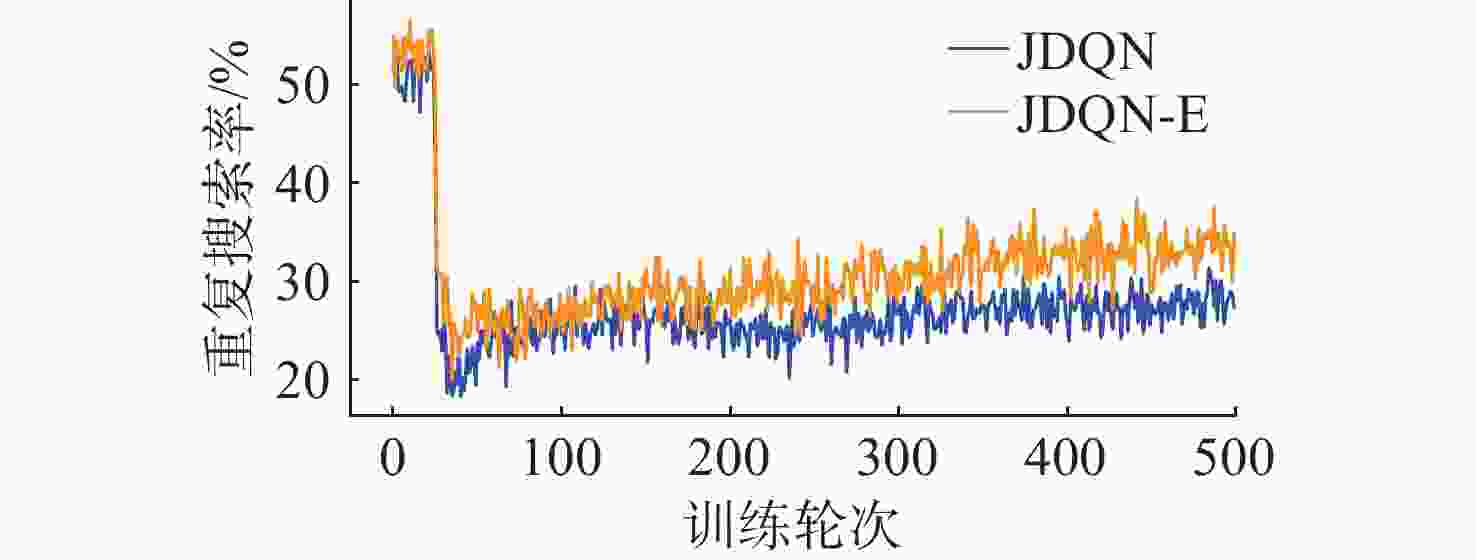

图 12 JDQN与JDQN-E算法的重复搜索率对比

Figure 12. Comparison of duplicate rate between JDQN and JDQN-E algorithms

下载: 全尺寸图片幻灯片

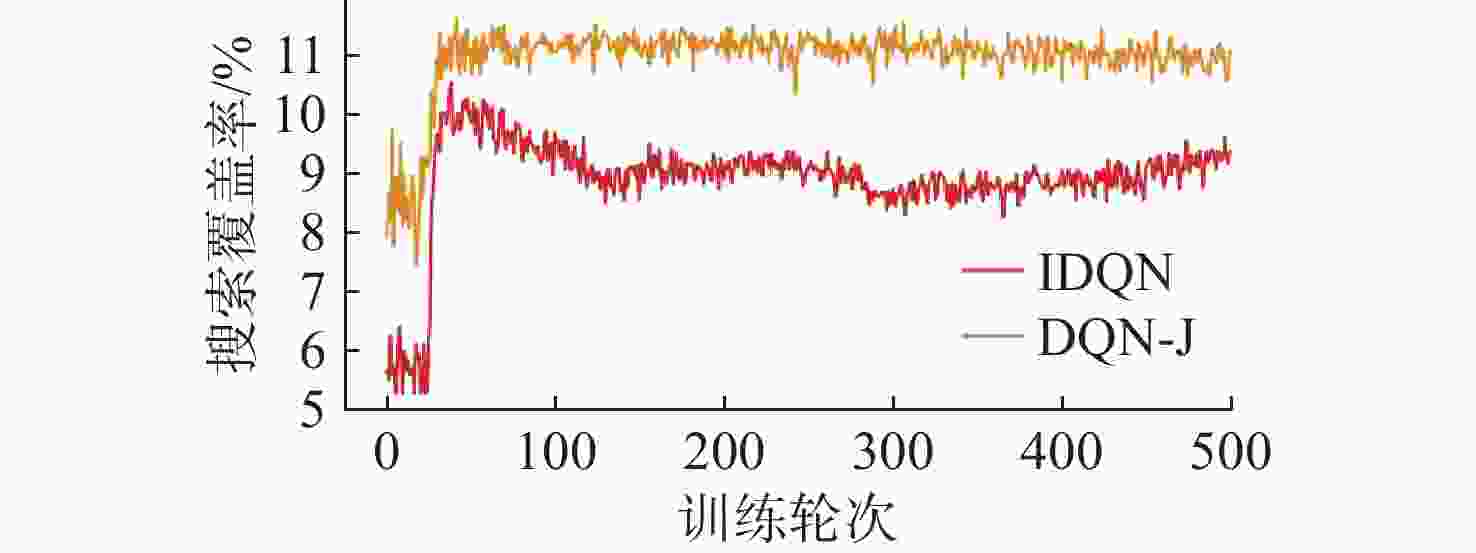

图 13 IDQN与DQN-J算法的搜索覆盖率对比

Figure 13. Comparison of coverage rate between IDQN and DQN-J algorithms

下载: 全尺寸图片幻灯片

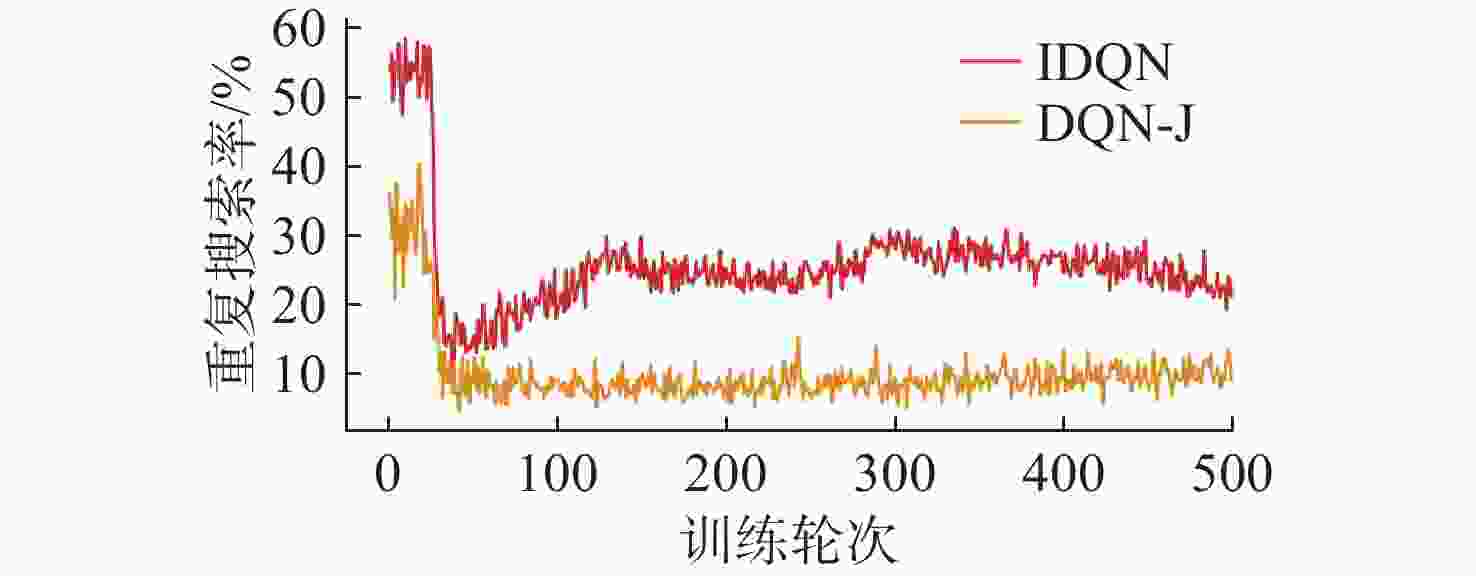

图 14 IDQN与DQN-J算法的重复搜索率对比

Figure 14. Comparison of duplicate rate between IDQN and DQN-J algorithms

下载: 全尺寸图片幻灯片

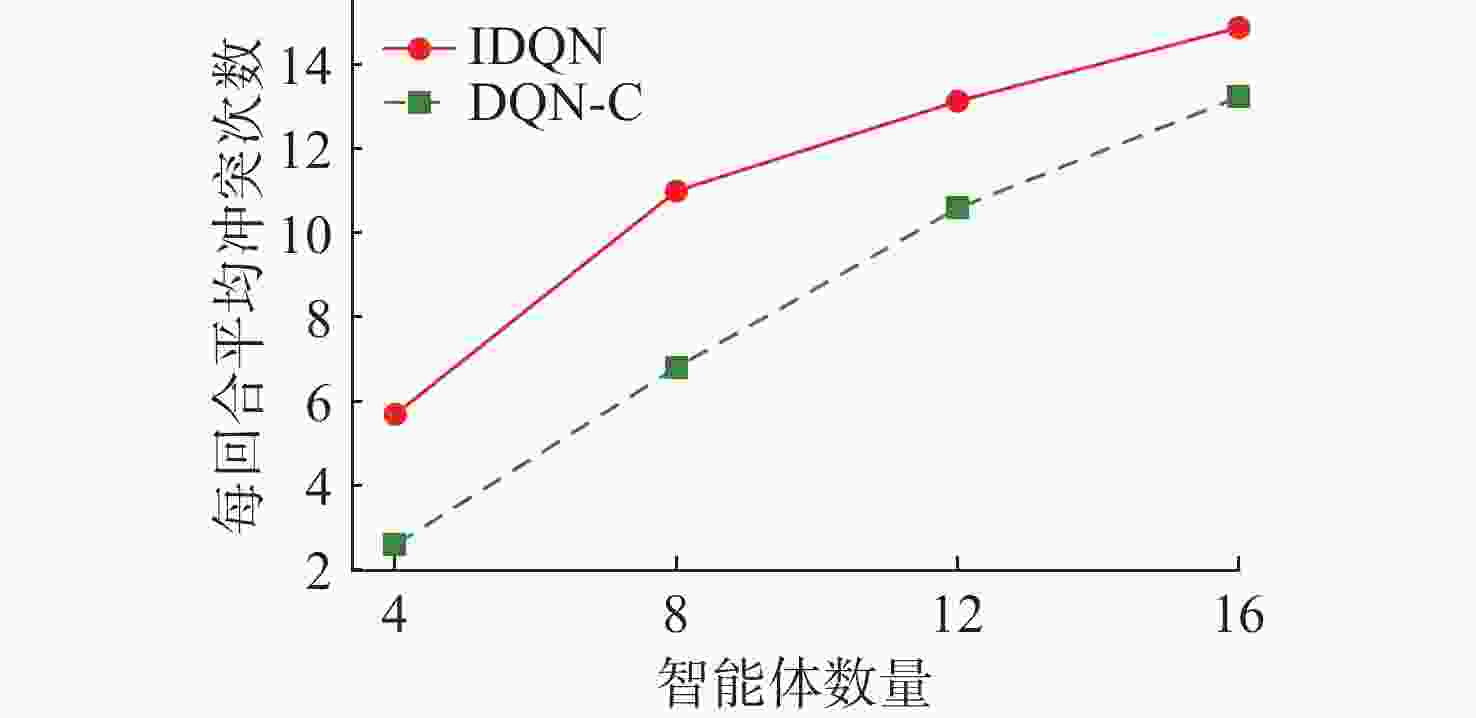

图 15 不同算法的冲突发生次数对比

Figure 15. Comparison of the number of conflicts between different algorithms

下载: 全尺寸图片幻灯片

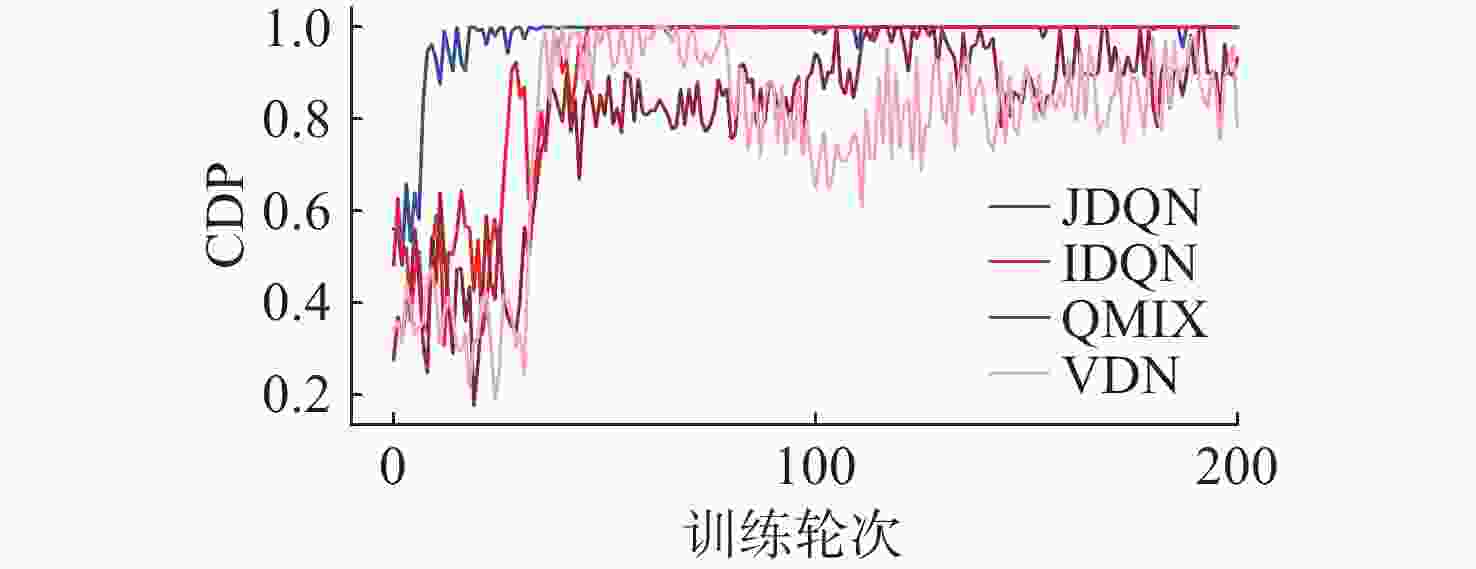

图 16 不同算法的CDP曲线对比

Figure 16. Comparison of CDP curves with different algorithms

下载: 全尺寸图片幻灯片

表 1 实验参数列表

Table 1. List of experimental parameters

参数	值
搜索平台数量/台	4
POD	0.8
POC	服从二维高斯分布
障碍物密度	5%
α	0.01
γ	0.99
ε	0.3
总迭代次数/轮	500
最大探索步数/步	20
单次训练样本/个	128
经验回放池容量/个	1000
τ	0.005

下载: 导出CSV

表 2 算法性能对比

Table 2. Comparison of algorithm performance

性能评估指标	JDQN	IDQN	QMIX	VDN
CDP	1.0	1.0	0.9978	0.8937
平均冲突次数	4.3	6.4	4.3	2.7
搜索覆盖率/%	18.57	17.26	13.08	11.13
重复搜索率/%	28.88	33.50	51.38	59.38
结束搜索平均步数	14.8	14.4	18.2	19.3

下载: 导出CSV
