Modeling and Analysis of Underwater Vehicles Wake-Induced Electromagnetic Fields and Internal Wave Characteristics in a Stratified Ocean
-
摘要: 为应对水下航行器隐蔽性威胁, 满足非声探测需求, 文中聚焦密度分层海洋环境中航行器尾流的影响机制。现有研究多基于均匀流体假设, 忽略分层现象导致的内波效应。文中创新性建立分层流体中水下航行器尾流速度场数学模型, 将尾流分解为表面波与内波分量线性叠加, 并推导尾流感应电磁场表达式。通过仿真分析航行器在潜深10~50 m工况下的感应磁场的空间分布、衰减规律以及各分量贡献占比。结果表明, 分层环境下, 表面波感应磁场峰值较大(近场峰值0.15 nT), 但随传播距离衰减迅速, 内波感应磁场峰值小(近场峰值0.006 nT)但较为稳定, 衰减缓慢, 在远场范围为总感应磁场主导; 同时, 随着潜深增加, 内波贡献比例显著增大(潜深50 m时近场贡献84.9％)。研究表明内波作为远场探测的关键物理量, 为发展对水下航行器进行非声探测技术提供新的理论依据。Abstract: To counter the threat of underwater vehicle stealth and meet the demand for non-acoustic detection, this study investigates the influence mechanism of underwater vehicle wakes in density-stratified ocean environments. Most existing studies are based on the uniform fluid assumption, neglecting the effects of internal waves induced by stratification. This paper establishes a novel mathematical model for the velocity field of an underwater vehicle wake in a stratified fluid, decomposing the wake into a linear superposition of surface wave and internal wave components. Based on electromagnetic induction theory, the expression for the induced electromagnetic field is derived. Through numerical simulations, the spatial distribution, attenuation patterns, and component contributions of the induced magnetic field are analyzed for underwater vehicles at depths ranging from 10 m to 50 m. The results indicate that in a stratified environment, the surface wave-induced magnetic field has a high peak value (0.15 nT in the near-field) but decays rapidly with distance. In contrast, the internal wave-induced magnetic field has a lower peak value (0.006 nT in the near-field) but is more stable and decays slowly, becoming dominant in the far-field. Furthermore, as the submergence depth increases, the contribution of the internal wave component grows significantly (reaching 84.9% in the near-field at a depth of 50 m). This study reveals, from both theoretical and simulation perspectives, that internal waves are the key physical mechanism for far-field detection, providing a new theoretical basis for developing non-acoustic detection technologies for underwater vehicles.
-

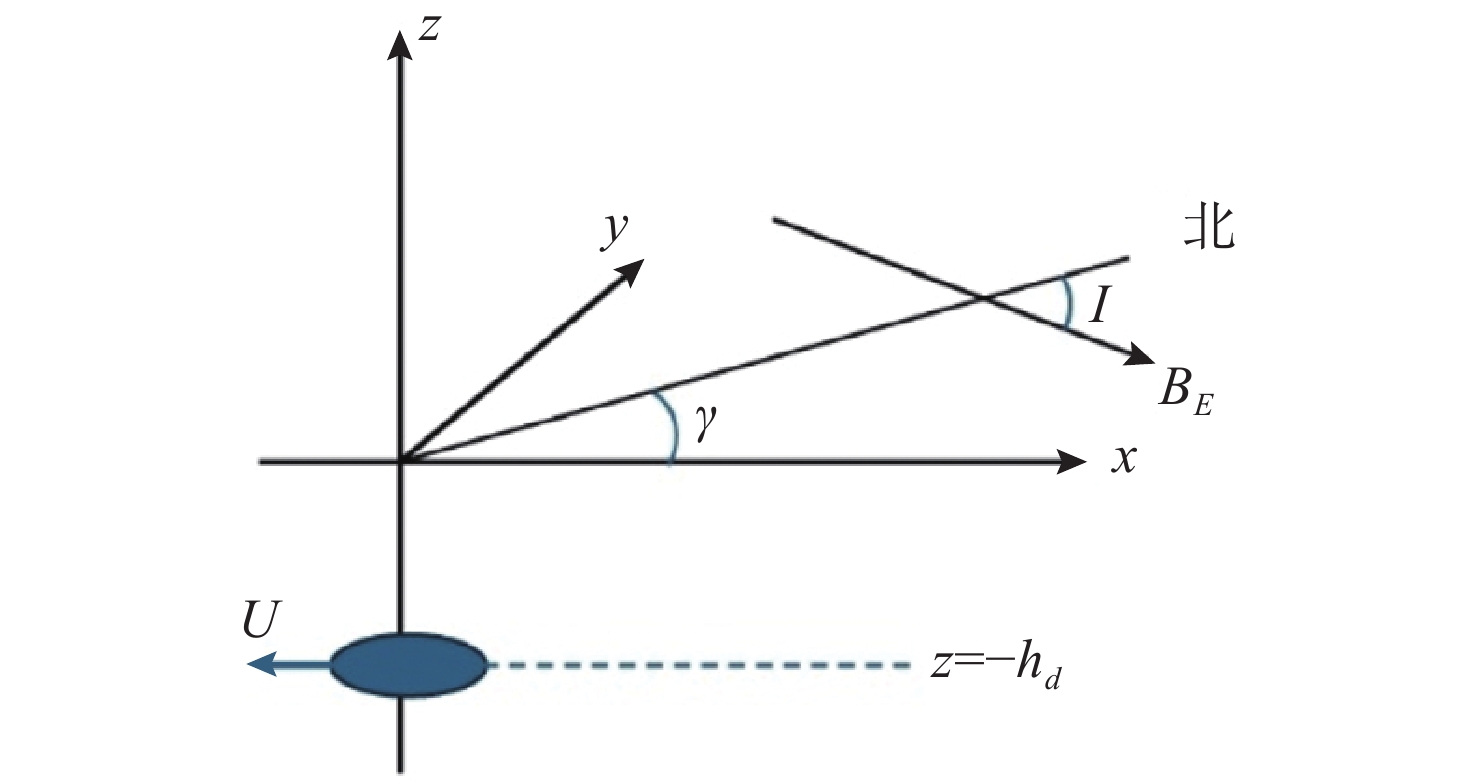

图 1 水下航行器运动环境示意图
Figure 1. Schematic diagram of the motion environment of underwater vehicles

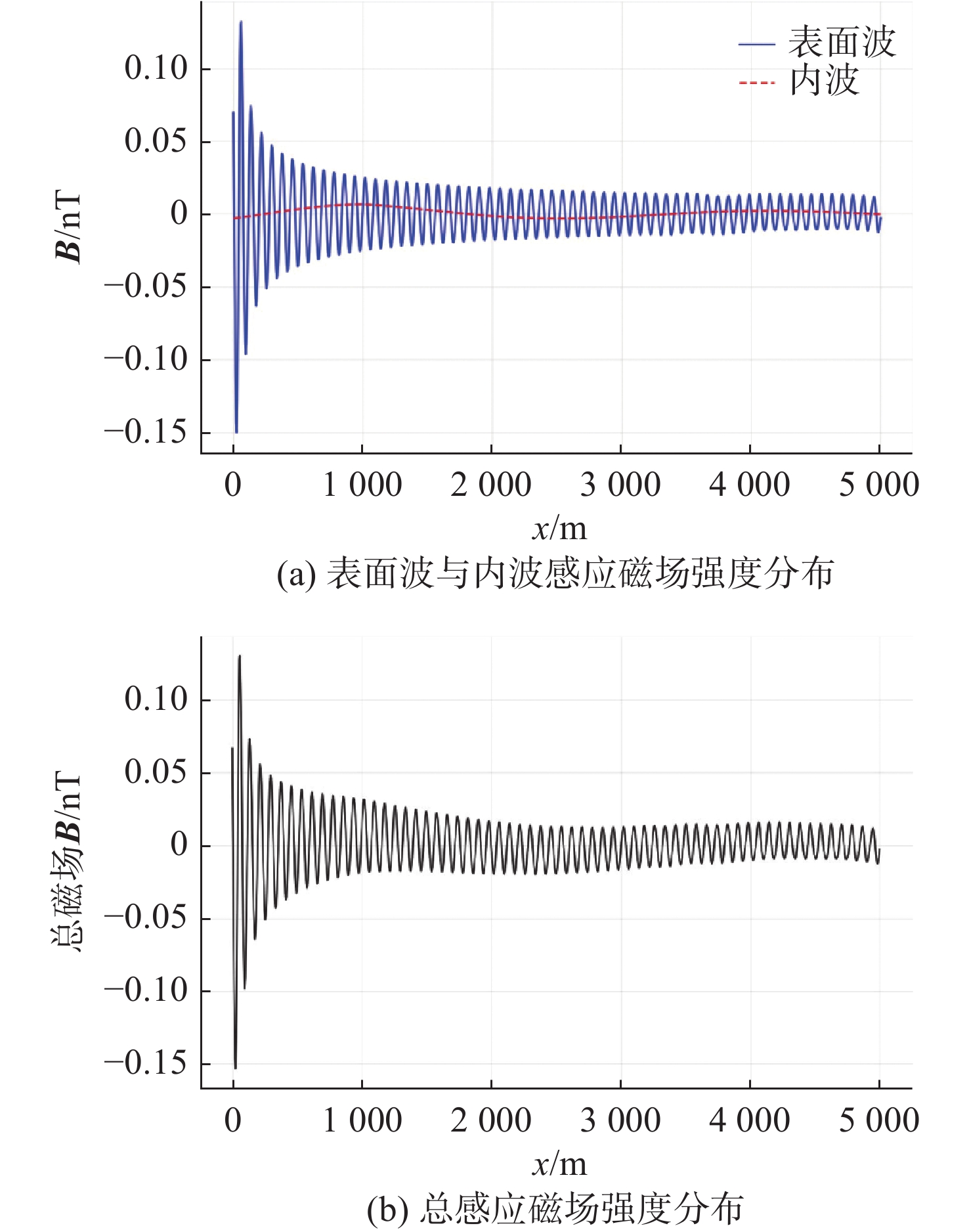

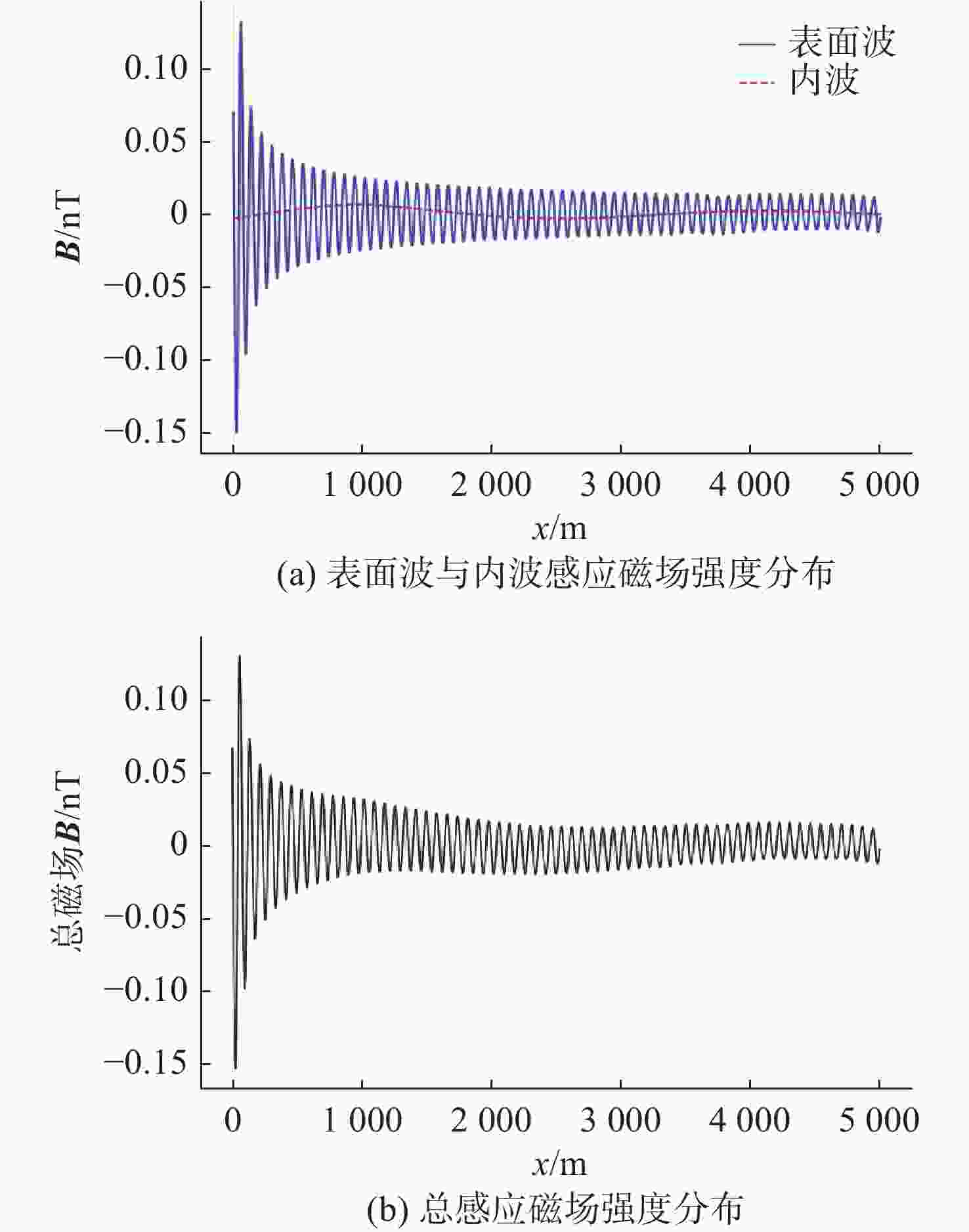

图 2 潜深10m水下航行器尾流感应磁场强度分布
Figure 2. Distribution of induced magnetic field intensity of wake of underwater vehicle at submergence depth of 10 m

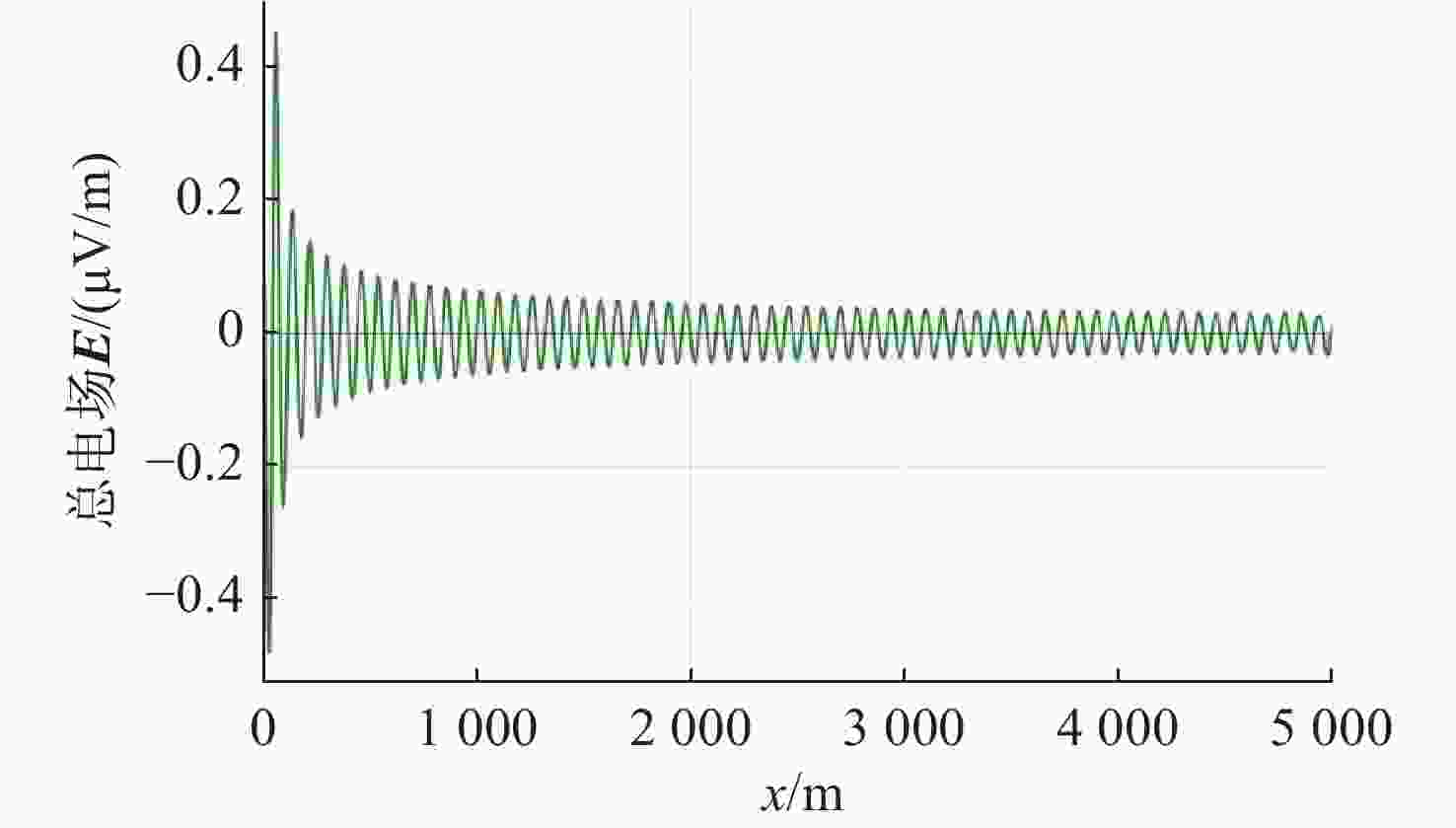

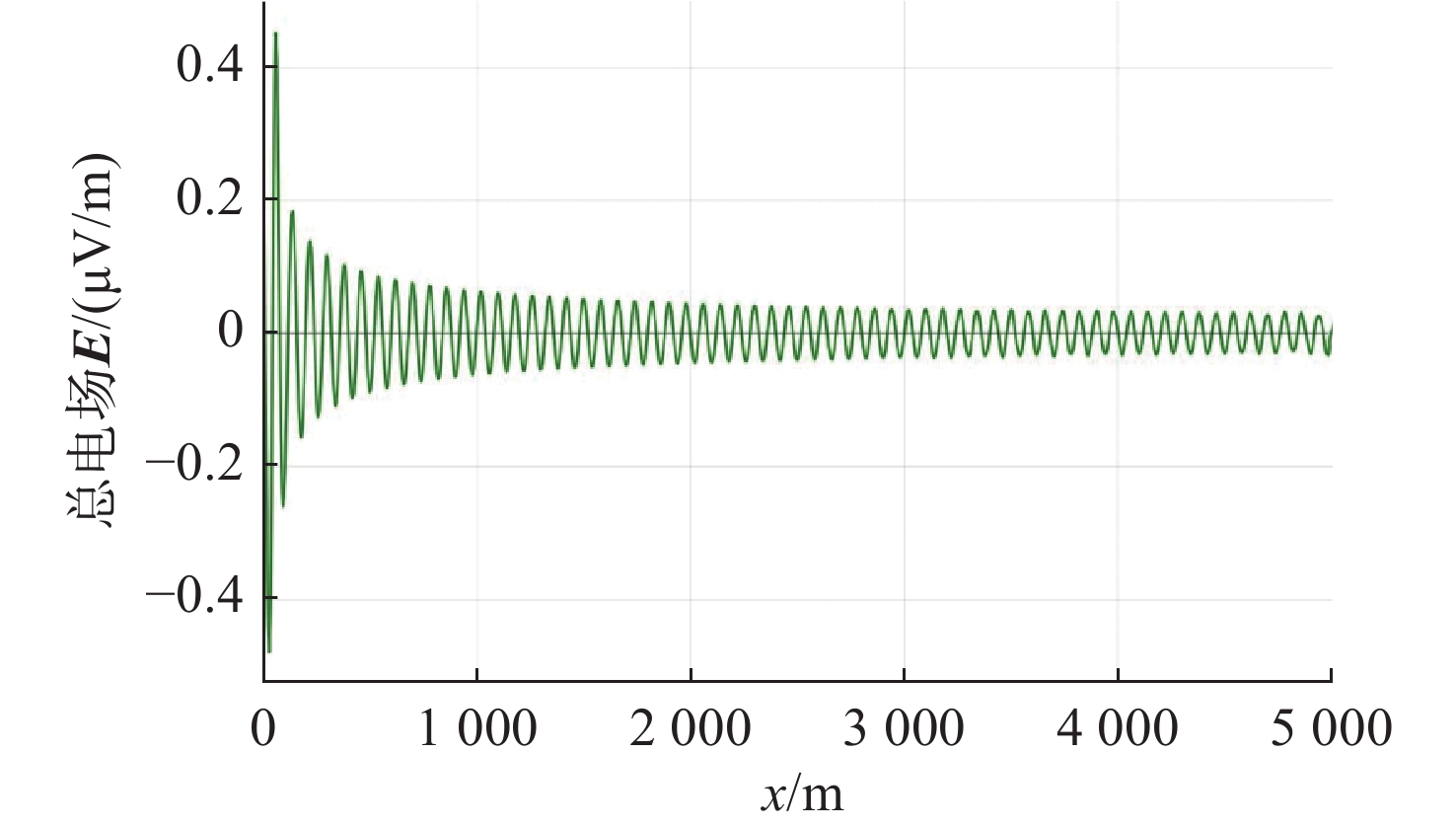

图 3 潜深10m总感应电场强度分布
Figure 3. Distribution of total induced electric field intensity at submergence depth of 10 m
图 4 不同潜深总感应电场对比
Figure 4. Comparison of total induced electric field at different depths

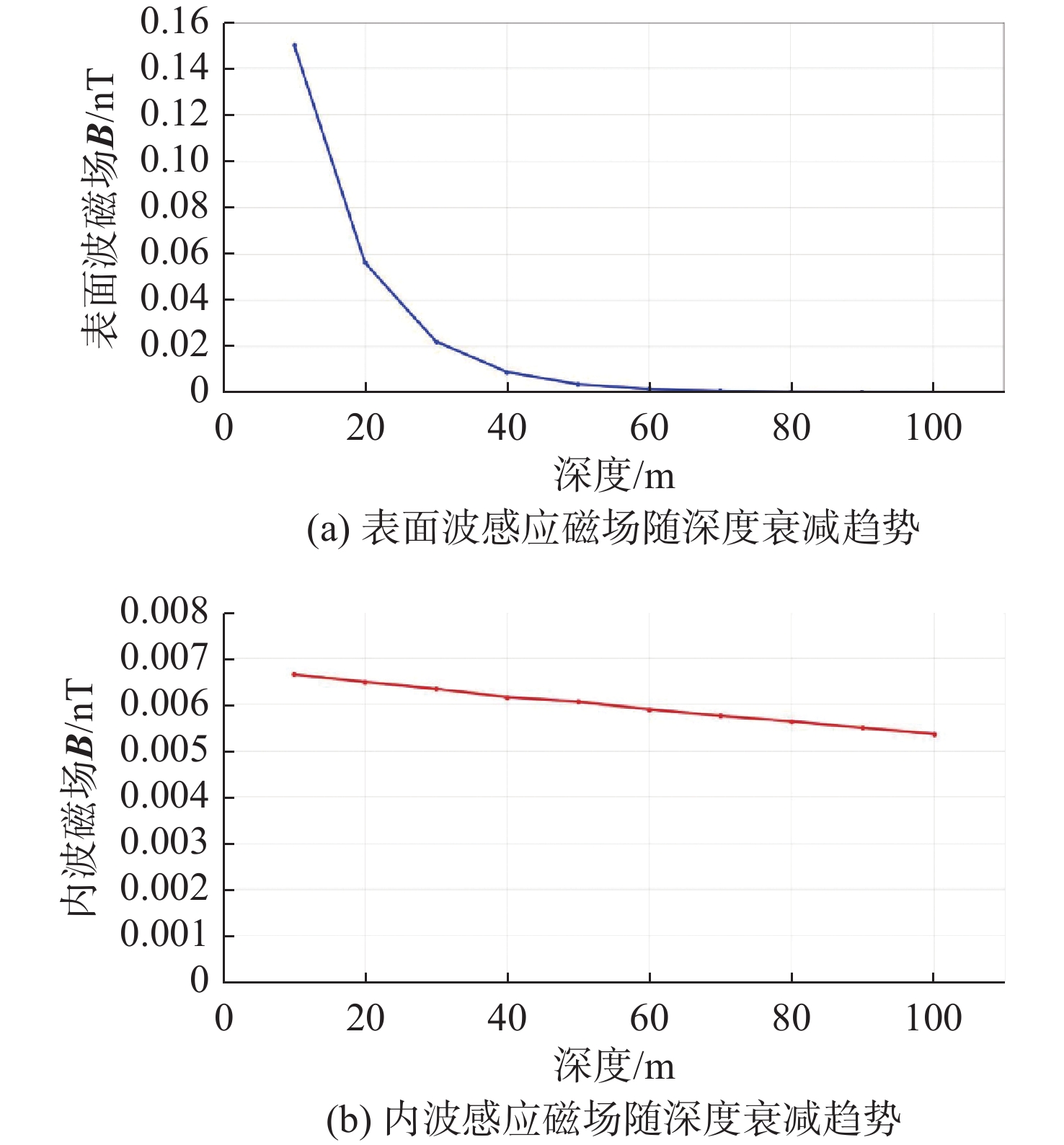

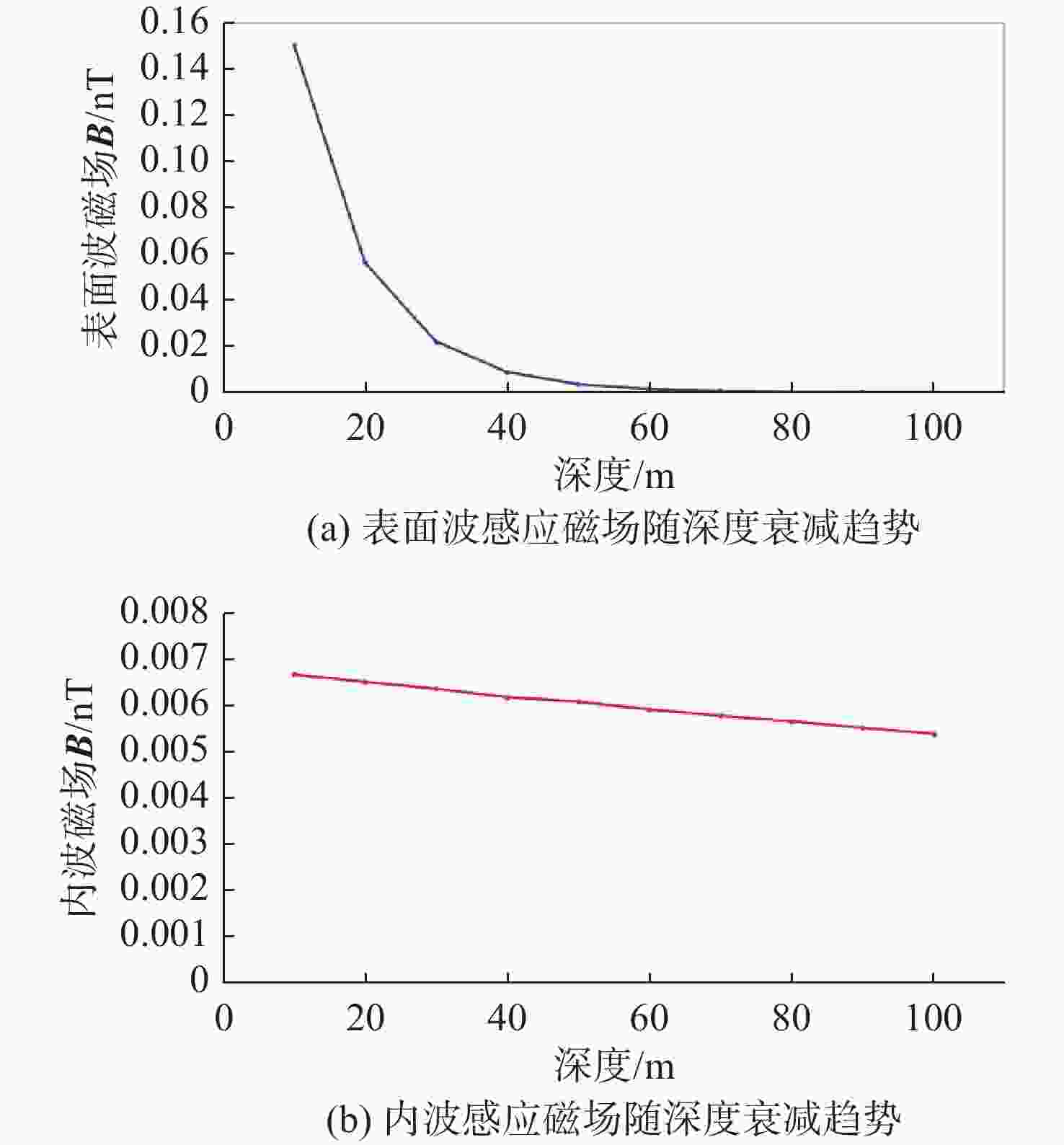

图 5 表面波与磁场感应磁场随深度衰减图
Figure 5. Attenuation of surface wave and magnetic field induced magnetic field with depth
表 1 仿真参数设置
Table 1. Simulation Parameters
名称 参数 单位 水下航行器长度 100 m 水下航行器体积 7160 $ {\mathrm{m}}^{3} $ 速度 10 m/s 海水电导率 5 S/m 地磁恒定强度 $ 5\times {10}^{4} $ nT 浮力频率 0.02 rad/s 磁偏角$ \gamma $ 0 degree 磁倾角Ι 60 degree
下载: 导出CSV
表 2 内波对总磁场贡献比例
Table 2. Contribution ratio of internal waves to total magnetic field
潜深/m 1 km处内波贡献比例/% 4 km处内波贡献比例/% 10 21.7 12.2 30 55 44.4 50 84.9 79.8
下载: 导出CSV
-
[1] Madurasinghe D, Tuck E O. The induced electromagnetic fields associated with submerged moving bodies in an unstratified conducting fluid[J]. IEEE Journal of Oceanic Engineering, 1994, 19(6): 193-199. [2] Madurasinghe D. Induced electromagnetic fields associated with large ship wakes[J]. Wave Motion, 1994, 20(2): 283-292. doi: 10.1016/0165-2125(94)90053-1 [3] Zou N, Nehorai A. Detection of ship wakes using an airborne magnetic transducer[J]. IEEE Trans. on Geoscience and Remote Sensing, 2000, 38(10): 532-538. doi: 10.1109/36.823948 [4] 张伽伟, 熊露, 姜润翔. 浅海中水下航行器尾流感应电磁场建模与仿真[J]. 系统工程与电子技术, 2016, 38(5): 1004-1009. doi: 10.3969/j.issn.1001-506X.2016.05.06Zhang J W, Xiong L, Jiang R X. Modeling and simulation of wake-induced electromagnetic field for underwater vehicle in shallow sea[J]. Systems Engineering and Electronics, 2016, 38(5): 1004-1009 doi: 10.3969/j.issn.1001-506X.2016.05.06 [5] 闫林波, 张建生. 尾流气泡幕中光子传输时间Monte Carlo仿真[J]. 水下无人系统学报, 2023(06): 864-870. doi: 10.11993/j.issn.2096-3920.202212003Yan L B, Zhang J S. Monte Carlo simulation of photon transmission time in wake bubble curtain[J]. Journal of Unmanned Undersea Systems, 2023(06): 864-870. doi: 10.11993/j.issn.2096-3920.202212003 [6] 董敏, 张建生, 闫林波, 焦贵金, 姚远. 有机气泡光散射特性研究[J]. 水下无人系统学报, 2024, (5): 787-793.Dong M , Zhang J S, Yan L B, et al. Study on light scattering characteristics of organic bubbles[J]. Journal of Unmanned Undersea Systems, 2024, (5): 787-793. [7] 张建生. 实验室模拟尾流的光学研究[J]. 光子学报, 2001(9): 1146-1149. [8] 闫林波, 张建生, 董敏, 等. 多船尾流磁异常特性分析与仿真系统设计[J]. 水下无人系统学报, 2024(05): 801-807. doi: 10.11993/j.issn.2096-3920.2023-0117Yan L B, Zhang J S, Dong M, et al. Analysis of magnetic anomaly characteristics of multi-ship wakes and design of simulation system[J]. Journal of Unmanned Undersea Systems, 2024(05): 801-807. doi: 10.11993/j.issn.2096-3920.2023-0117 [9] 兰青, 闫林波, 任斌斌. KCS船舶尾流感应电磁场仿真分析[J]. 水下无人系统学报, 2024, 32(5): 818-822, 832.Lan Q, Yan L B, Ren B B. Simulation analysis of induced electromagnetic field in KCS ship wake[J]. Journal of Unmanned Undersea Systems, 2024, 32(5): 818-822, 832. [10] Robey H F. The generation of internal waves by a towed sphere and its wake in a thermocline[J]. Physics of Fluids, 1997, 9(11): 3353. doi: 10.1063/1.869448 [11] Xu Z H, Du C P, Xia M Y. Electromagnetic fields due to the wake of a moving slender body in a finite-depth ocean with density stratification[J]. Scientific Reports, 2018, 8: 14647. doi: 10.1038/s41598-018-32789-1 [12] Wang H, Chen K, You Y X. An investigation on internal waves generated by towed models under a strong halocline[J]. Physics of Fluids, 2017, 29(6): 065104. doi: 10.1063/1.4984988 [13] Huang F L, Meng Q J, Cao L S, et al. Wakes and free surface signatures of a generic submarine in a homogeneous and linearly stratified fluid.[J]. Ocean Engineering, 2022, 250: 111062 doi: 10.1016/j.oceaneng.2022.111062 [14] Cao L S, Gao G, Guo E K, et al. Hydrodynamic performances and wakes induced by a generic submarine operating near free surface in continuously stratified fluid[J]. Journal of Hydrodynamics, 2023, 35(3): 396-406. doi: 10.1007/s42241-023-0037-8 [15] 陈学彬, 陈仕光, 李琪, 林冲. 密度分层流体中拖曳潜体内波尾迹特性的数值研究[J]. 中国舰船研究, 2024, 65(6): 146-152. doi: 10.3969/j.issn.1000-4882.2024.06.013Chen X B, Chen S G, Li Q, et al. Numerical study on characteristics of internal wave wakes generated by a towed submarine in density-stratified fluid[J]. Chinese Journal of Ship Research, 2024, 65(6): 146-152. doi: 10.3969/j.issn.1000-4882.2024.06.013 [16] 杨哲超, 任立群, 郅长红, 尤云祥, 王宏伟. 海洋分层特征对合成孔径雷达图像内波尾迹可识别性的影响[J]. 中国舰船研究, 2025(03): 296-304. doi: 10.19693/j.issn.1673-3185.03935Yang Z C, Ren L Q, Zhi C H, et al. Influence of oceanic stratification characteristics on the recognizability of internal wave wakes in synthetic aperture radar images[J]. Chinese Journal of Ship Research, 2025(03): 296-304. doi: 10.19693/j.issn.1673-3185.03935 -
