Research on Weak Magnetic Control of IPMSM with Single Current Regulator Based on Improved Terminal Sliding Mode
-
摘要: 针对水下航行器推进系统中永磁电机在深度弱磁工况下稳定性欠佳的问题, 文中以内置式永磁同步电机(IPMSM)为对象, 提出了一种基于改进双幂次趋近率的积分终端滑模控制(ITSMC)单电流调节器弱磁控制方法。该方法以电流极限圆和电压极限圆为基础, 在IPMSM基速以下采用最大转矩电流比(MTPA)控制, 基速以上采用变交轴电压单电流调节器(SCR-VQV)弱磁控制策略; 为增强系统鲁棒性, 在SCR-VQV控制的转速外环中提出一种改进双幂次趋近率的ITSMC替代传统比例积分控制; 最后通过实验证明了该弱磁控制系统稳定的深度弱磁能力。
-
关键词:
- 水下航行器 /
- 内置式永磁同步电机 /
- 积分终端滑模控制 /
- 单电流调节器; 弱磁控制

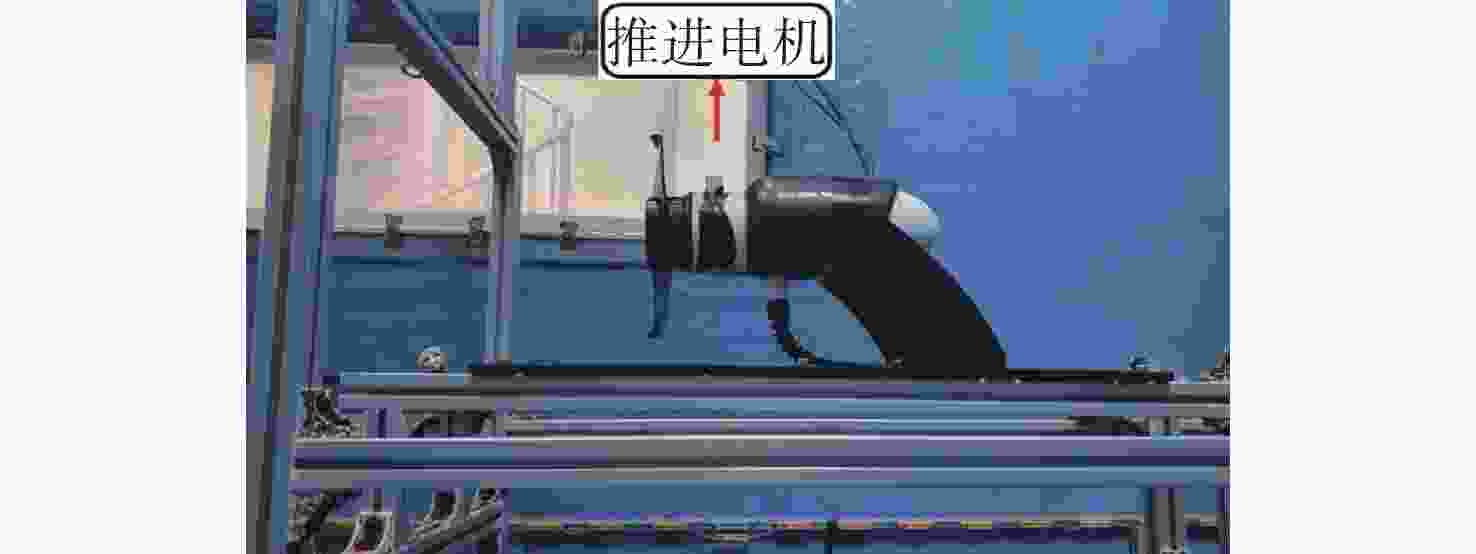

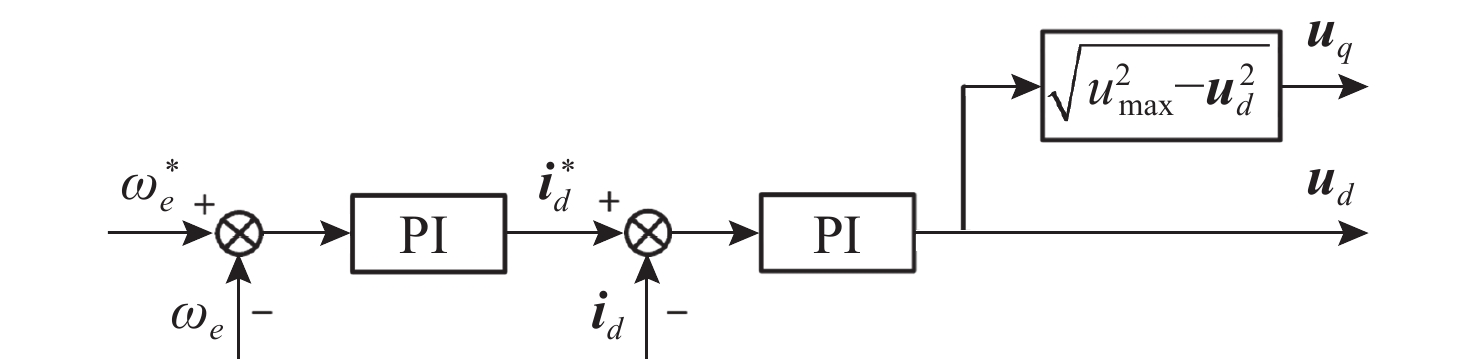

Abstract: In view of the poor stability of permanent magnet motors in undersea vehicle propulsion systems under deep weak magnetic conditions, a weak magnetic control method with a single current regulator was proposed for the interior permanent magnet synchronous motor(IPMSM) based on integral terminal sliding mode control(ITSMC) of improved double power convergence rate. This method was based on the current limit circle and voltage limit circle. Below the base speed of the IPMSM, it adopted the maximum torque per ampere(MTPA) control. Above the base speed, it employed the single current regulator-variable Q-axis voltage(SCR-VQV) strategy for weak magnetic control. To enhance the system’s robustness, an ITSMC of improved double power convergence rate was proposed to replace the traditional proportional-integral control above the base speed under the SCR-VQV control. Finally, through experiments, the stable deep weak magnetic control capability of this weak magnetic control system was proved. -

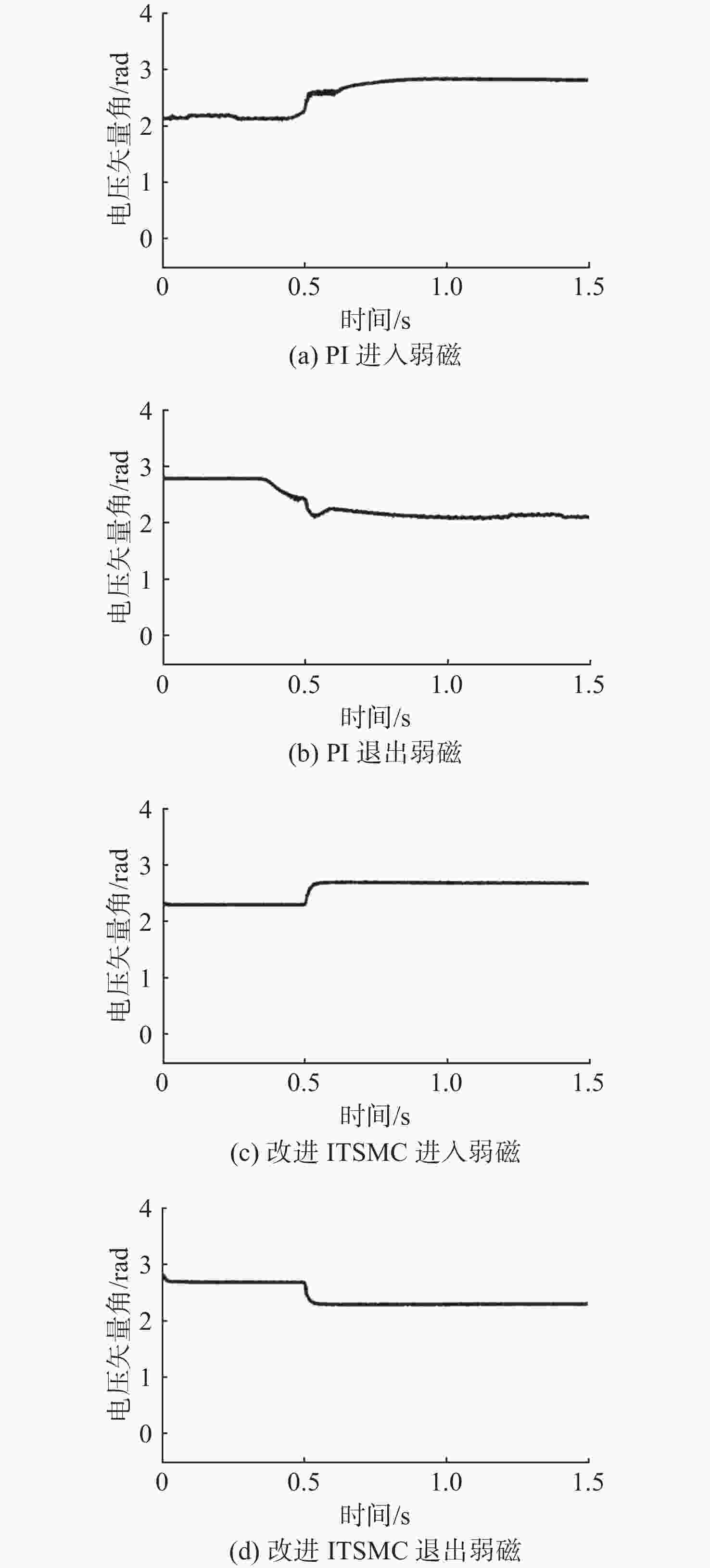

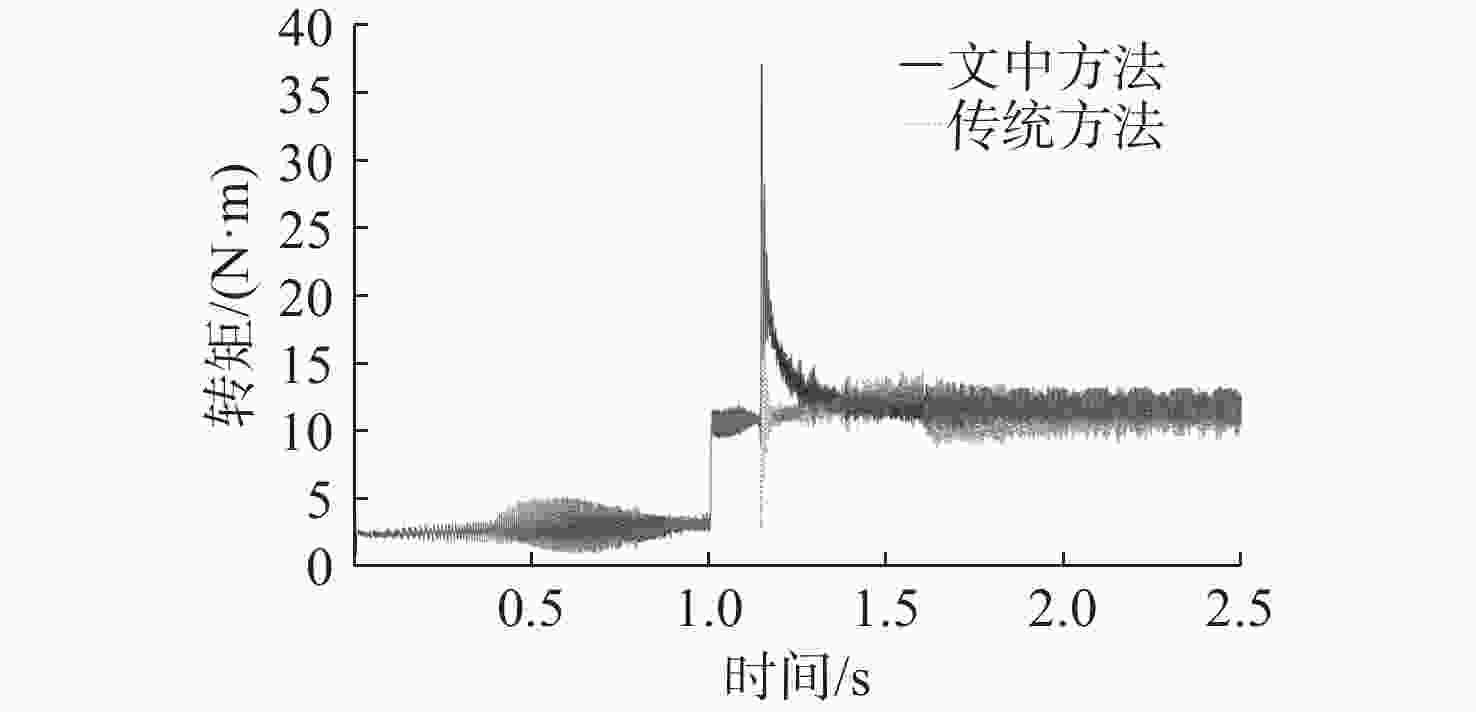

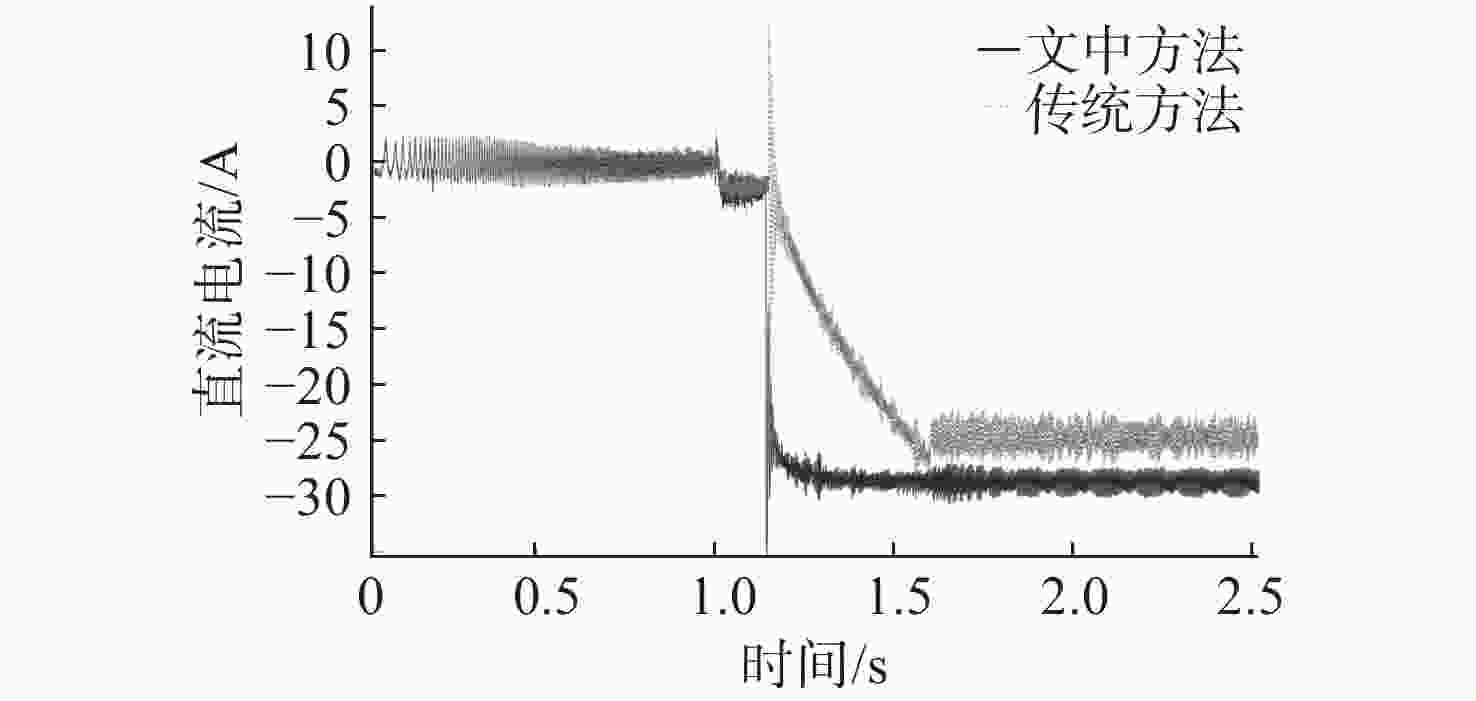

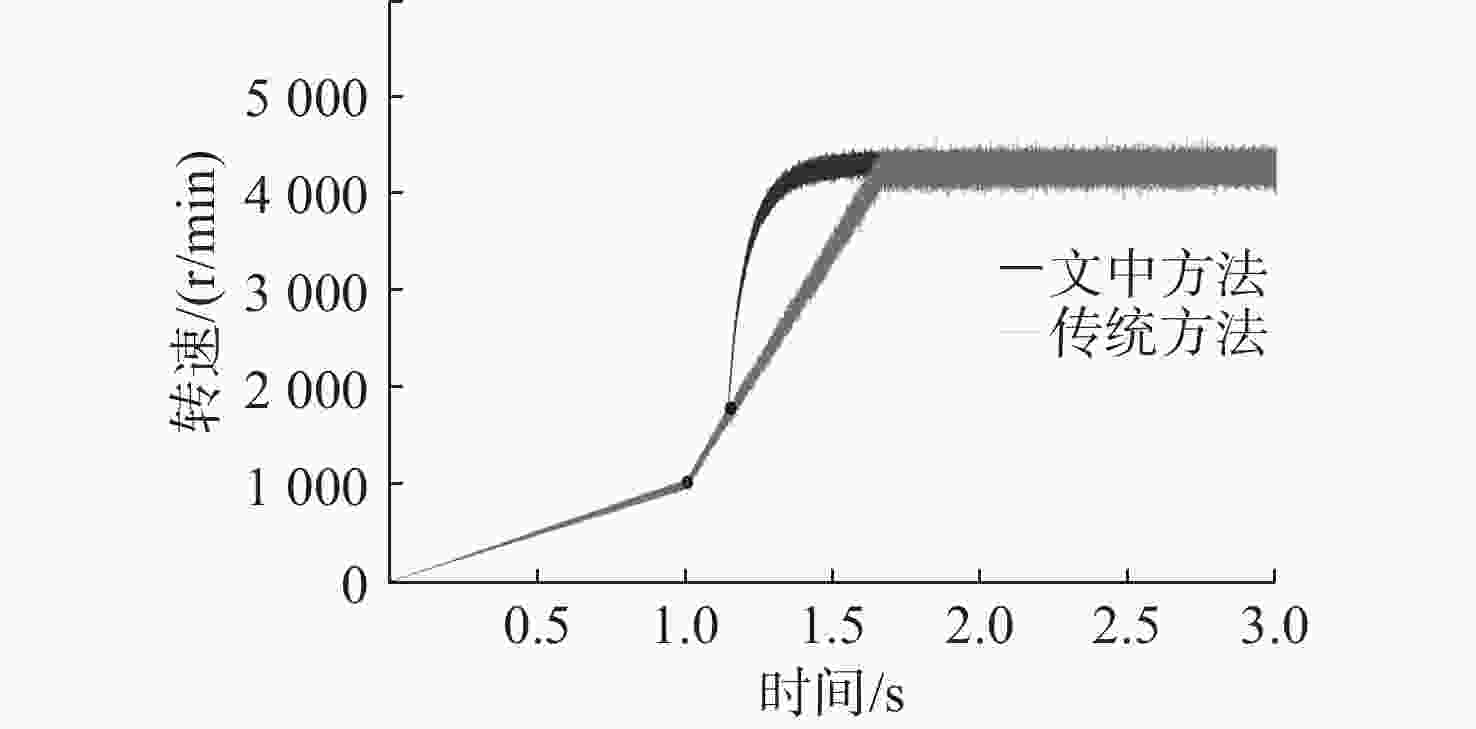

图 7 PI和改进滑模的电压矢量角控制对比实验
Figure 7. Comparative experiment of PI and improved sliding mode voltage vector angle control
表 1 IPMSM参数
Table 1. Parameters of IPMSM
名称 参数值 单位 额定功率 2 500 W 额定电流 40 A 额定电压 60 V 极对数 4 直轴电感 5.25 mH 交轴电感 12 mH 定子电阻 0.958 Ω 永磁体磁通量 0.182 7 Wb
下载: 导出CSV
-
[1] 梁裕, 刘维亭, 魏海峰, 等. 永磁同步电机分段变交轴电压弱磁控制方法[J]. 水下无人系统学报, 2022, 30(1): 61-67. doi: 10.11993/j.issn.2096-3920.2022.01.008LIANG Y, LIU W T, WEI H F, et al. Field weakening control method of subsection variable quadrature axis voltage for permanent magnet synchronous motor[J]. Journal of Unmanned Undersea Systems, 2022, 30(1): 61-67. doi: 10.11993/j.issn.2096-3920.2022.01.008 [2] ALZAYED M, CHAOUI H. Direct voltage MTPA speed control of IPMSM-based electric vehicles[J]. IEEE Access, 2023(11): 33858-33871. [3] CHEN Y Z, HUANG X Y, WANG J, et al. Improved flux-weakening control of IPMSMs based on torque feedforward technique[J]. IEEE Transactions on Power Electronics, 2018, 33(12): 10970-10978. doi: 10.1109/TPEL.2018.2810862 [4] 李珂, 顾欣, 刘旭东, 等. 基于梯度下降法的永磁同步电机单电流弱磁优化控制[J]. 电工技术学报, 2016, 31(15): 8-15. doi: 10.3969/j.issn.1000-6753.2016.15.002LI K, GU X, LIU X D, et al. Optimized flux weakening control of lPMSM based on gradient descent method with single current regulator[J]. Transactions of China Electrotechnical Society, 2016, 31(15): 8-15. doi: 10.3969/j.issn.1000-6753.2016.15.002 [5] JACOB J, BOTTESI O, CALLIGARO S, et al. Design criteria for flux-weakening control bandwidth and voltage margin in IPMSM drives considering transient conditions[J]. IEEE Transactions on Industry Applications, 2021, 57(5): 4884-4900. doi: 10.1109/TIA.2021.3085535 [6] 王国栋, 王丽芳, 吴艳, 等. 基于单电流调节器的永磁同步电机深度弱磁控制及模式切换控制策略[J]. 汽车工程, 2023, 45(2): 219-230.WANG G D, WANG L F, WU Y, et al. Deep flux weakening control and mode switching control strategy of permanent magnet synchronous motor based on single current regulator[J]. Automotive Engineering, 2023, 45(2): 219-230. [7] 王震, 周明磊, 谢冰若, 等. 一种基于单D轴电流调节器的PMSM在方波下的控制策略[J]. 中国电机工程学报, 2022, 42(3): 1154-1164.WANG Z, ZHOU M L, XIE B R, et al. A control strategy of PMSM based on D-axis current regulator under square wave[J]. Proceedings of the CSEE, 2022, 42(3): 1154-1164. [8] 周坤, 赵世伟, 杨向宇, 等. 负载能力最大化的PMSM弱磁控制交轴电压给定策略[J]. 微特电机, 2023, 51(5): 44-49. doi: 10.3969/j.issn.1004-7018.2023.05.009ZHOU K, ZHAO S W, YANG X Y, et al. Quadrature axis voltage setting strategy for PMSM field weakening control with maximum load capacity[J]. Small & Special Electrical Machines, 2023, 51(5): 44-49. doi: 10.3969/j.issn.1004-7018.2023.05.009 [9] GUO X, HUANG S, LU K, et al. A fast sliding mode speed controller for PMSM based on new compound reaching law with improved sliding mode observer[J]. IEEE Transactions on Transportation Electrification, 2023, 9(2): 2595-2968. [10] ZHU P, CHEN Y, LI M. Terminal sliding mode control of permanent magnet synchronous motor based on the reaching law[J]. Journal of Systems and Control Engineering, 2020, 234(7): 849-859. [11] 曹冬梅. 基于模型的车用永磁同步电机滑模变结构控制的研究与设计[J]. 成都工业学院学报, 2023, 26(5): 54-59.CAO D M. Research and design of model-based sliding mode variable structure control for vehicle permanent magnet synchronous motor[J]. Journal of Chengdu Technological University, 2023, 26(5): 54-59. [12] 李智鹤, 刘曰涛, 贺磊, 等. 基于改进滑模控制器的PMSM调速系统[J]. 组合机床与自动化加工技术, 2023(10): 81-84, 90.LI Z H, LIU Y T, HE L, et al. PMSM speed regulation system based on improved sliding mode controller[J]. Modular Machine Tool & Automatic Manufacturing Technique, 2023(10): 81-84, 90. [13] 杨成顺, 华涛, 戴宇辰, 等. 电动汽车用永磁同步电机宽速域抗干扰滑模控制[J]. 电机与控制应用, 2021, 48(12): 21-29. doi: 10.12177/emca.2021.135YANG C S, HUA T, DAI Y C, et al. Wide speed domain anti-interference sliding mode control of permanent magnet synchronous motor for electric vehicle[J]. Electric Machines & Control Application, 2021, 48(12): 21-29. doi: 10.12177/emca.2021.135 [14] 李红岩, 赵天玥, 安平娟, 等. 改进内置式永磁同步电机的无位置控制方法[J]. 组合机床与自动化加工技术, 2023(10): 120-123, 128.LI H Y, ZHAO T Y, AN P J, et al. Improved position-free control method of built-in permanent magnet synchronous motor[J]. Modular Machine Tool & Automatic Manufacturing Technique, 2023(10): 120-123, 128. [15] 朱利东, 王鑫, 朱熀秋. 一种免失控的IPMSM参数可计算深度弱磁算法[J]. 中国电机工程学报, 2020, 40(10): 3328-3336.ZHU L D, WANG X, ZHU H Q. An IPMSM deep flux weakening algorithm with calculable parameter’s to avoid out-of-control[J]. Proceedings of the CSEE, 2020, 40(10): 3328-3336. [16] CHEN K, SUN Y, LIU B. Interior permanent magnet synchronous motor linear field-weakening control[J]. IEEE Transactions on Energy Conversion, 2016, 31(1): 159-164. [17] 常乐锋, 张雷. 最优电压矢量角的永磁同步电机改进模型[J]. 中国工程机械学报, 2023, 21(5): 389-394.CHANG L F, ZHANG L. Improved model predictive control for permanent magnet synchronous motor with optimal voltage vector angle[J]. Chinese Journal of Construction Machinery, 2023, 21(5): 389-394. -
点击查看大图
图(7) / 表(1)
