A Small-Sized Low-Cost and High-Resolution Two-Dimensional Side-Scan Sonar Imaging Method Using Sparse Transmit-Receive Arrays

doi: 10.11993/j.issn.2096-3920.2026-0060

ZHAO Wanchun^{1, 2, 3},
LIU Xionghou^{1, 2, 3},
YANG Yixin⁴

1.
School of Marine Science and Technology, Northwestern Polytechnical University, Xi′an 710072, China
2.
Shaanxi Key Laboratory of Underwater Information Technology, Xi′an 710072, China
3.
School of Electronic and Optical Engineering, Nanjing University of Science and Technology, Nanjing, 210094

Received Date: 2026-03-26
Accepted Date: 2026-05-26
Rev Recd Date: 2026-05-20

Available Online: 2026-06-04

Abstract

Abstract

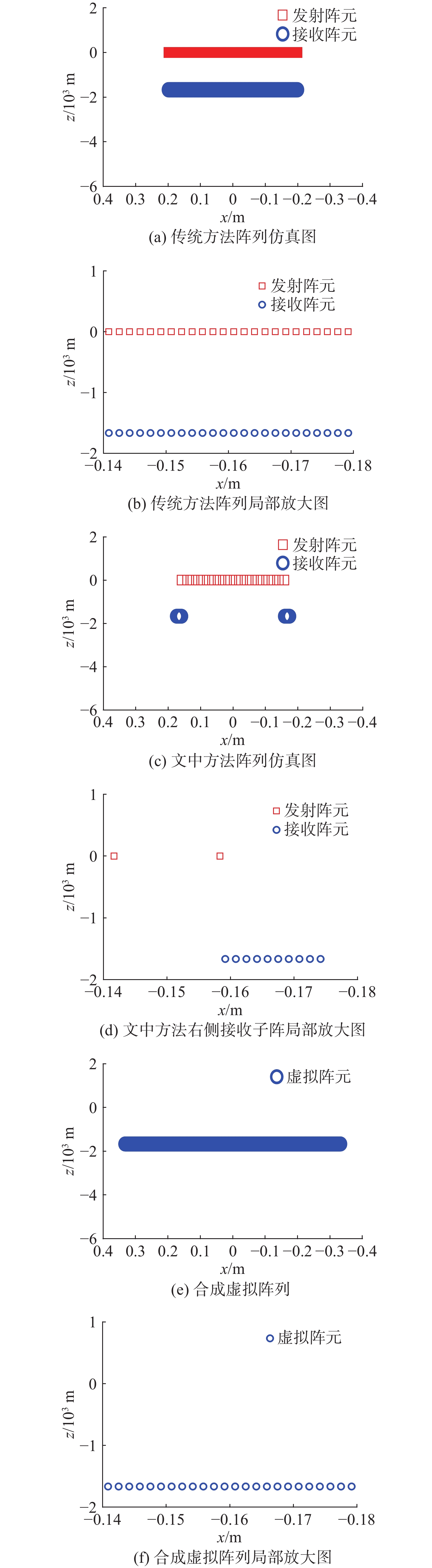

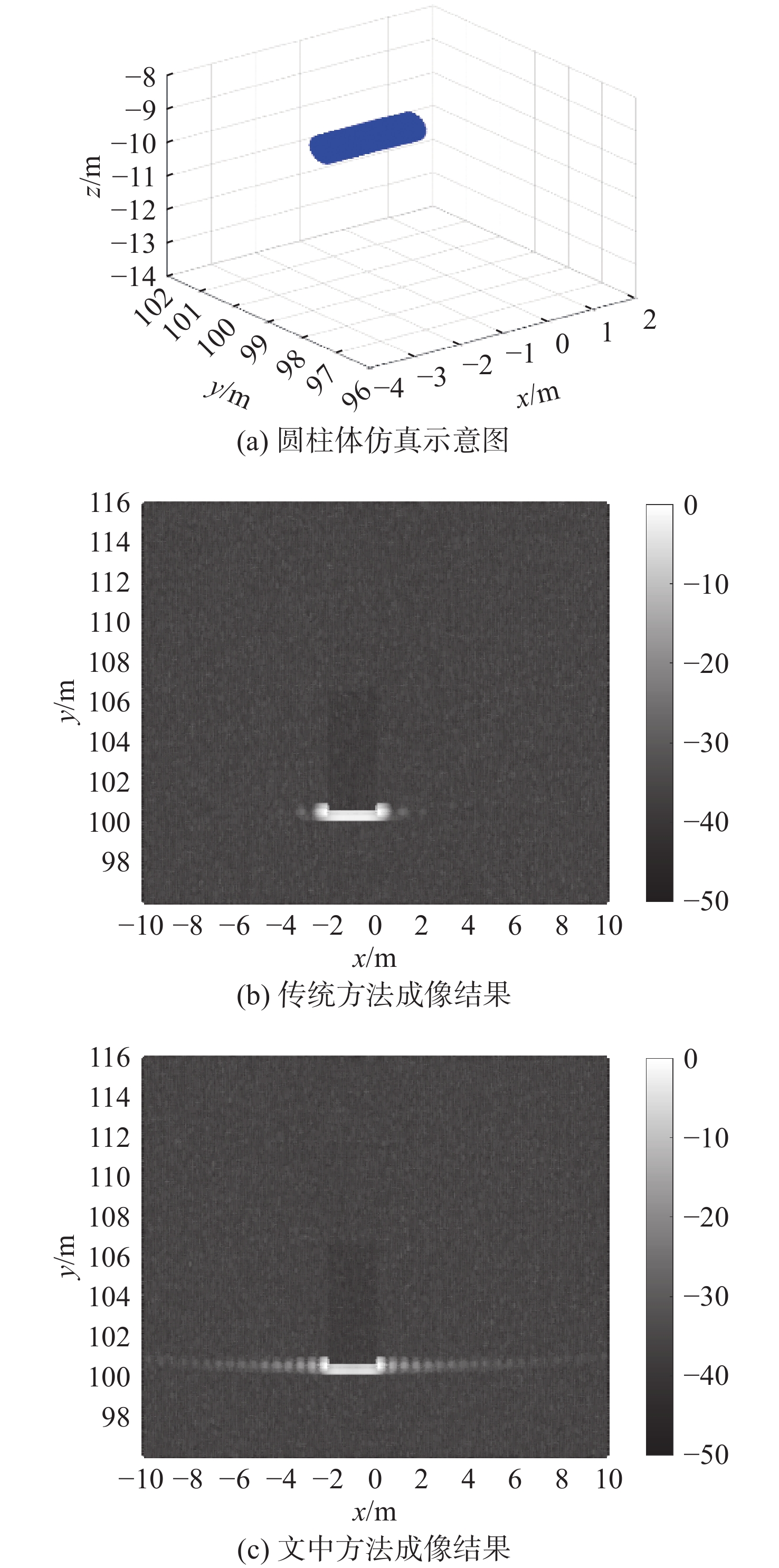

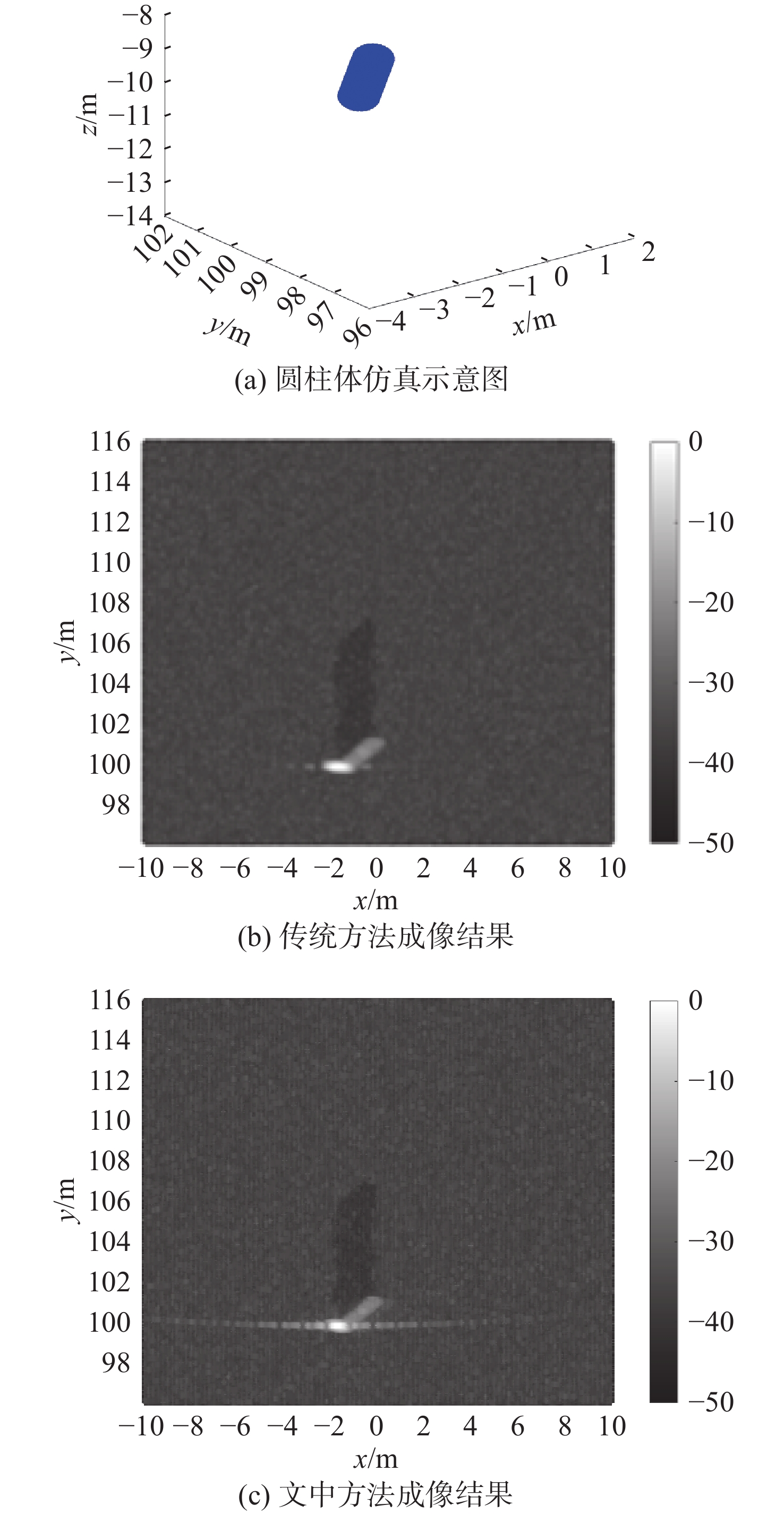

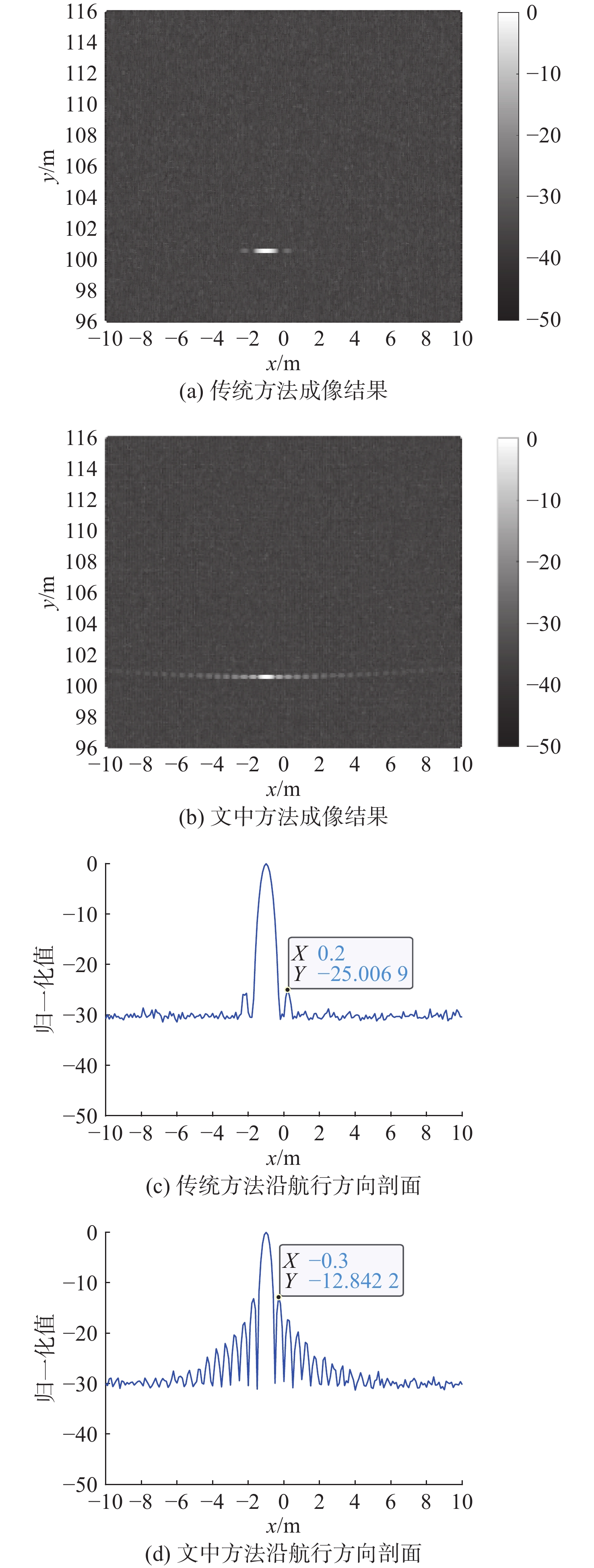

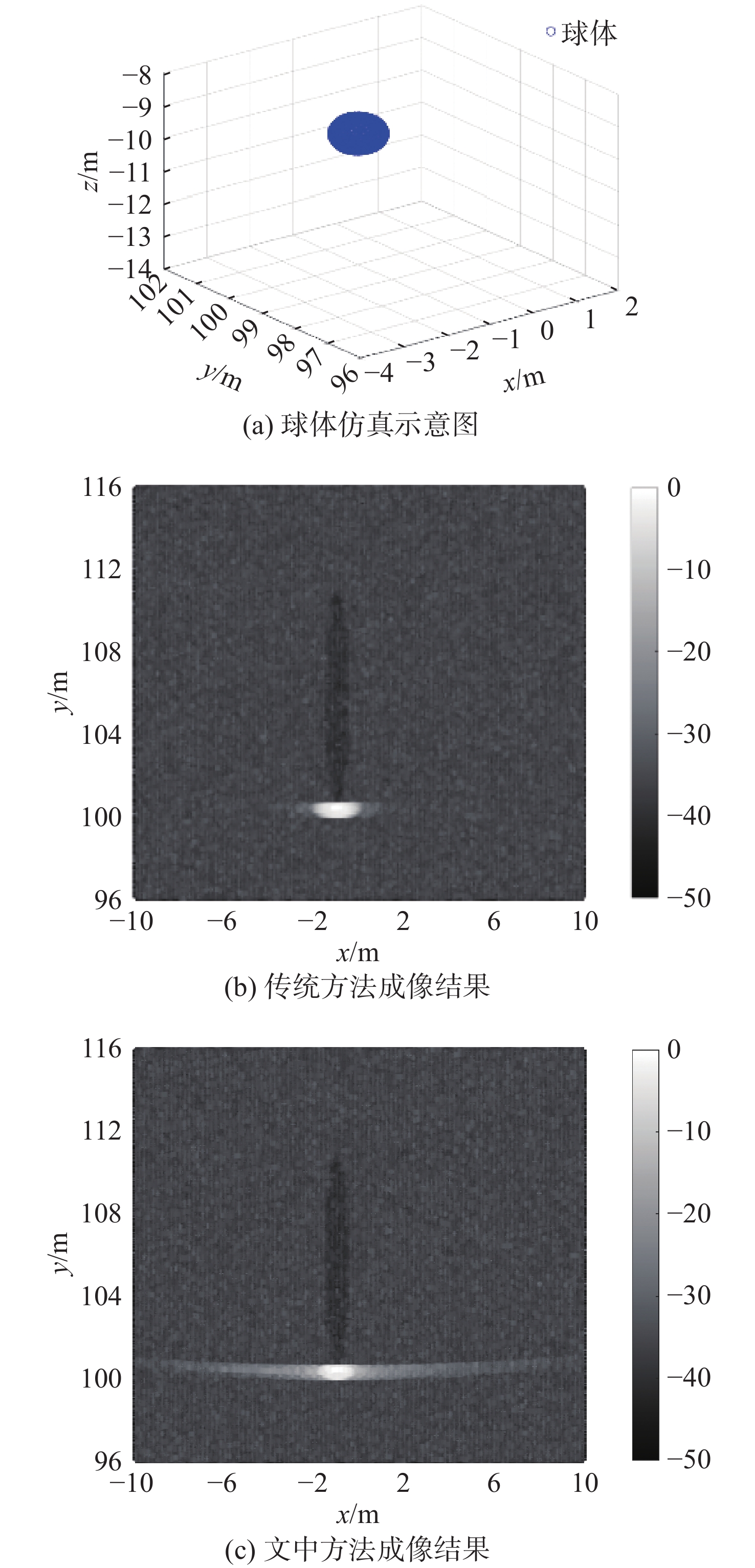

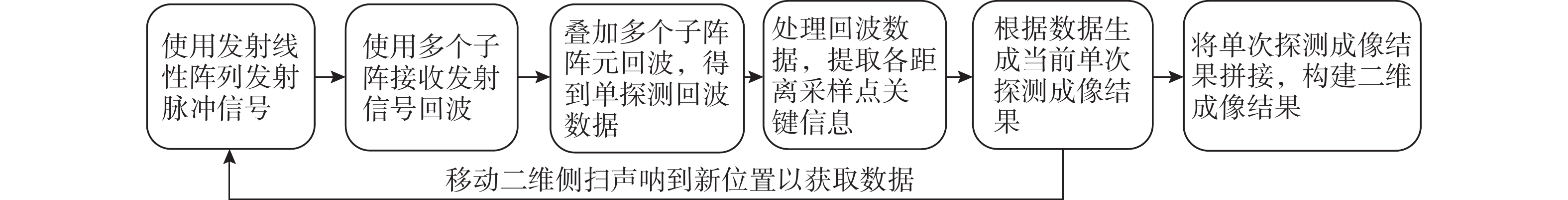

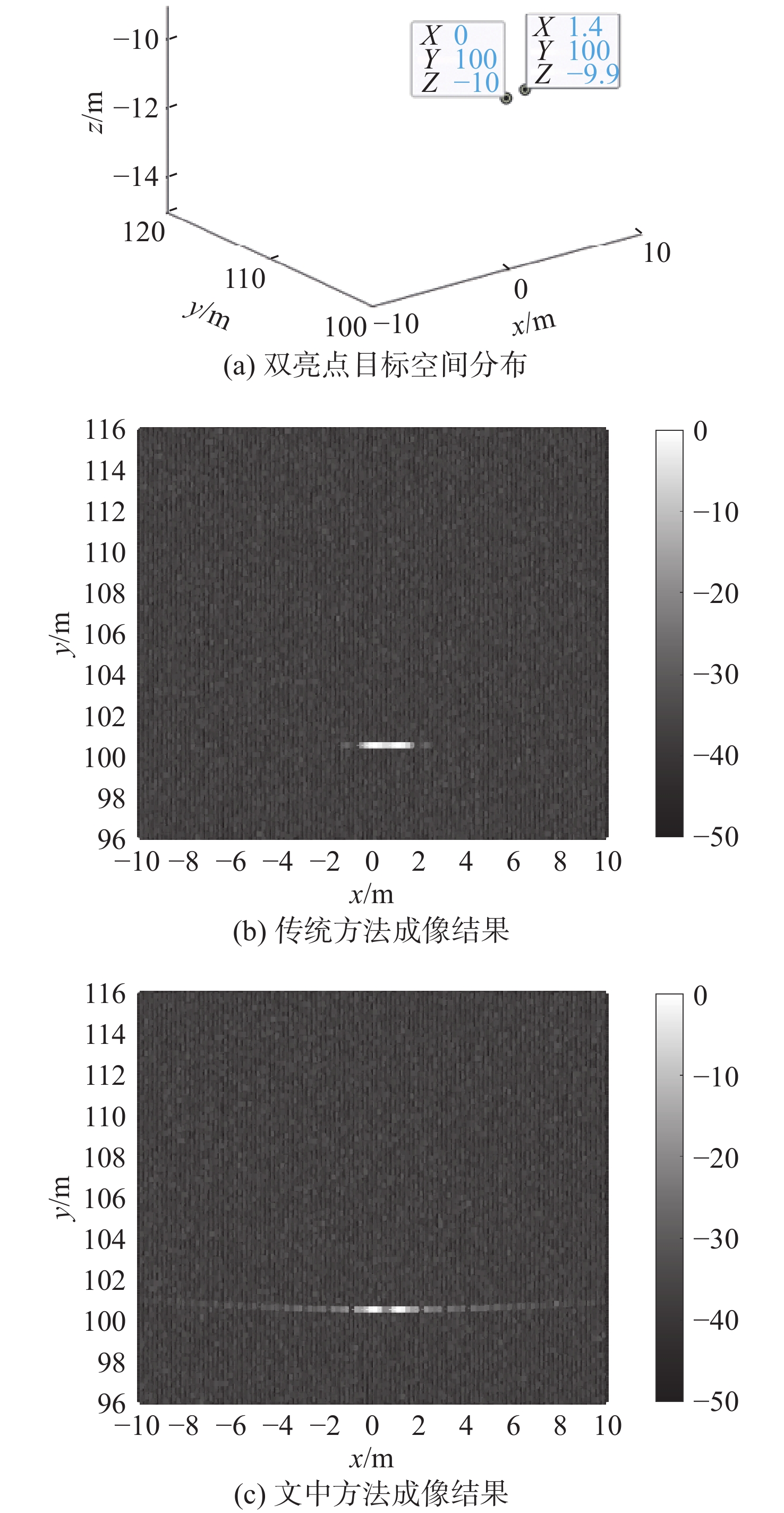

To overcome the problems of excessively large array aperture and high element cost when improving angular resolution in existing two-dimensional side-scan sonar imaging methods, this paper proposes a small-size, low-cost, high-resolution two-dimensional side-scan sonar imaging method. The proposed method uses a uniformly spaced linear array with large inter-element spacing as a sparse transmitting array and multiple uniformly spaced linear arrays with full sampling as subarrays to form a sparse receiving array. By utilizing the product theorem, a horizontally fully-sampled large-aperture virtual array is formed. The number of elements in this virtual array equals the product of the number of transmitting elements, the number of receiving subarrays, and the number of elements per subarray, while the aperture is the sum of the transmitting array aperture and the receiving array aperture. Thus, a large-aperture equivalent array is achieved with smaller size and fewer elements. Based on the designed array configuration, the proposed method adopts the same waveform and normal-direction single-beam side-scan imaging mode as traditional two-dimensional side-scan sonar imaging methods. Numerical simulations demonstrate that compared with the traditional method (240 transmitting elements / 240 receiving elements, center frequency of 450 kHz), the proposed method reduces the array size from 0.40 m to 0.33 m, decreases the total number of elements from 480 to 40, narrows the horizontal -3 dB beamwidth from 0.41° to 0.25°, and improves the angular resolution by approximately 40%. The proposed method achieves higher imaging resolution with smaller array size and fewer elements.
- side-scan sonar,
- sparse transmit-receive array,
- virtual aperture synthesis,
- high-resolution imaging,
- small-sized sonar

FullText(HTML)

References(19)

References

[1]	Crawford A, Connors W. Performance evaluation of a 3-D sidescan sonar for mine countermeasures[C]//Conference on OCEANS MTS/IEEE Charleston. 2018: 1365-1370
[2]	桑恩方, 张小平, 苏龙滨. 三维成像声呐的设计与实现[J]. 哈尔滨工程大学学报. 2003, 24(3): 241-244 Sang E F, Zhang X P, Su L B. Design of 3D imaging sonar[J]. Journal of Harbin Engineering University, 2003, 24(3): 241-244.
[3]	Tamsett D, Hogarth P. Sidescan sonar beam function and seabed backscatter functions from trace amplitude and vehicle roll data[J]. IEEE Journal of Oceanic Engineering, 2016, 41(1): 155-163. doi: 10.1109/JOE.2015.2390732
[4]	Bird J S, Mullins G K. Bathymetric sidescan sonar bottom estimation accuracy: Tilt angles and waveforms[J]. IEEE Journal of Oceanic Engineering, 2008, 33(3): 302-320. doi: 10.1109/JOE.2008.924837
[5]	Fan J H, Liu X H, Yang Y X. Low-Cost and high-resolution three-dimensional side-scan sonar array design and imaging process[C]//15th IEEE International Conference on Signal Processing, Communications and Computing, ICSPCC 2025. 2025: 1-6.
[6]	Schmidt J. Implementation of the digital receiver in multibeam long-range sonar[R]. 2014.
[7]	魏建汀, 尹东源. CS-1型侧扫声呐系统[J]. 海洋技术, 1997, 16(1): 1-13.
[8]	朱维庆, 刘晓东, 朱敏, 等. 测深侧扫声呐差分相位估计[J]. 声学学报, 2003, 28(6): 481-485. doi: 10.3321/j.issn:0371-0025.2003.06.001 Zhu W Q, Liu X D, Zhu M, et al. Differential phase estimation of bathymetric side scan sonar[J]. Acta Acustica, 2003, 28(6): 481-485. doi: 10.3321/j.issn:0371-0025.2003.06.001
[9]	刘雄厚, 孙超, 杨益新, 等. 密布式MIMO声呐成像原理与技术[M]. 北京: 科学出版社, 2022.
[10]	刘雄厚, 孙超, 杨益新, 等. 单基地多输入多输出声呐的方位分辨力[J]. 声学学报, 2016, 41(2): 163-173. Liu X H, Sun C, Yang Y X, et al. On angle resolution of mono-static multiple-input multiple-output sonar[J]. Acta Acustica, 2016, 41(2): 163-173.
[11]	崔致远, 杨云川, 石磊, 等. 基于声自导平台解卷积MIMO声呐高分辨成像方法[J]. 水下无人系统学报, 2026, 34(1): 65-75 Cui Z Y, Yang Y C, Shi L, et al. High-resolution imaging method of deconvolution MIMO sonar based on acoustic homing platform[J]. Journal of Unmanned Undersea Systems, 2026, 34(1): 65-75.
[12]	滕婷婷, 孙大军, 刘鑫, 等. 波形分集MIMO成像声呐技术研究[J]. 哈尔滨工程大学学报, 2013, 34(5): 581-587. doi: 10.3969/j.issn.1006-7043.201207034 Teng T T, Sun D J, Liu X, et al. The techniques for waveform diversity MIMO imaging sonar[J]. Journal of Harbin Engineering University, 2013, 34(5): 581-587. doi: 10.3969/j.issn.1006-7043.201207034
[13]	孙超, 刘雄厚. MIMO声纳: 概念与技术特点探讨[J]. 声学技术, 2012, 31(2): 117-124. doi: 10.3969/j.issn1000-3630.2012.02.002 Sun C, Liu X H. MIMO sonar: concept and technical characteristic discuss[J]. Technical Acoustics, 2012, 31(2): 117-124. doi: 10.3969/j.issn1000-3630.2012.02.002
[14]	樊宽, 孙超, 刘雄厚, 等. 联合匹配滤波MIMO声呐发射分集平滑DOA估计方法[J]. 西北工业大学学报, 2020, 38(1): 6-13. doi: 10.3969/j.issn.1000-2758.2020.01.002 Fan K, Sun C, Liu X H, et al. MIMO sonar DOA estimation with joint matched-filtering based on transmission diversity smoothing[J]. Journal of Northwestern Polytechnical University, 2020, 38(1): 6-13. doi: 10.3969/j.issn.1000-2758.2020.01.002
[15]	Trucco A, Palmese M, Repetto S. Devising an affordable sonar system for underwater 3-D vision[J]. IEEE Transactions on Instrumentation and Measurement, 2008, 57(10): 2348-2354. doi: 10.1109/TIM.2008.922111
[16]	Gu B X, Chen Y X, Liu X S, et al. Distributed convex optimization compressed sensing method for sparse planar array synthesis in 3-D imaging sonar systems[J]. IEEE Journal of Oceanic Engineering, 2020, 45(3): 1022-1033. doi: 10.1109/JOE.2019.2914983
[17]	冷开静, 刘春跃, 张皞正, 等. 舷侧阵稀疏优化与目标定位协同设计研究[J/OL]. 声学技术, 2026-03-23. http://www.sxjs.ac.cn/article/doi/10.16300/j.cnki.1000-3630.25060503. Leng K J, Liu C Y, Zhang H Z, et al. Research on co-design of sparse optimization and target localization for flank arrays[J/OL]. Technical Acoustics, 2026-03-23. http://www.sxjs.ac.cn/article/doi/10.16300/j.cnki.1000-3630.25060503.
[18]	于涤非, 张春华, 黄勇. 三维成像声呐平面基阵稀疏化目标函数的设计[J]. 西北工业大学学报, 2017, 35(1): 164-169. Yu D F, Zhang C H, Huang Y. Design of cost function on thinning planar array of 3-D sonar[J]. Journal of Northwestern Polytechnical University, 2017, 35(1): 164-169.
[19]	Kirkebo J E, Austeng A. Sparse cylindrical sonar arrays[J]. IEEE Journal of Oceanic Engineering, 2008, 33(2): 224-231. doi: 10.1109/JOE.2008.923553
