Research on the Extraction and Recognition of Space-Time-Frequency Features for Underwater Moving Targets
-

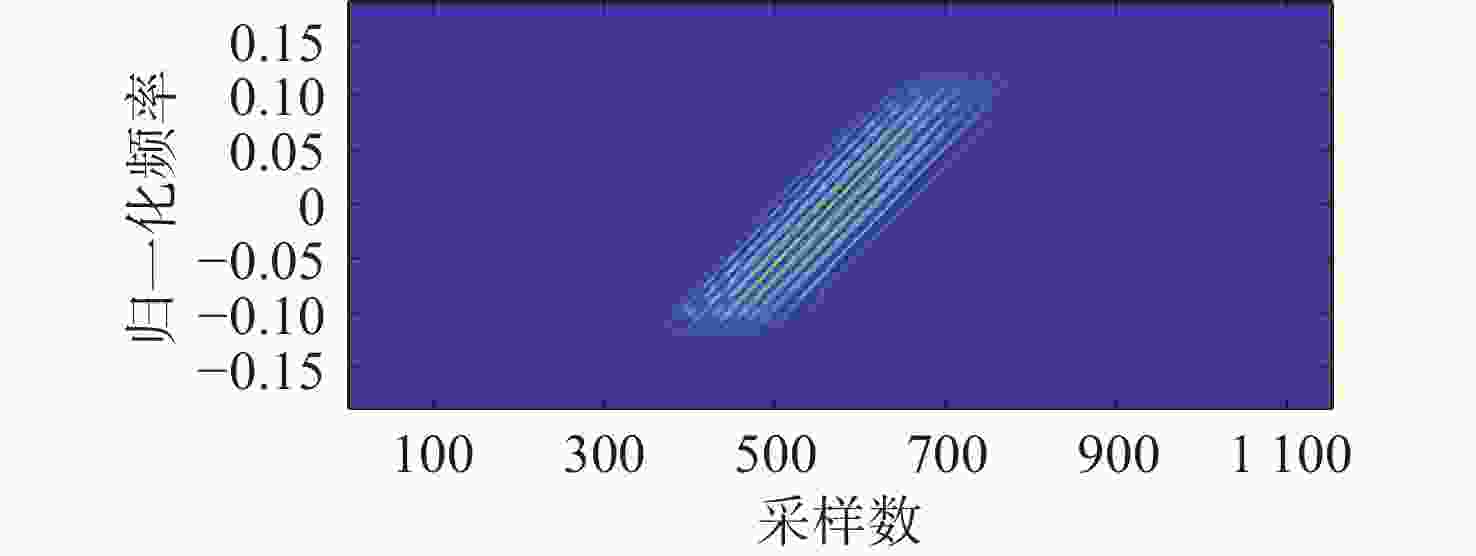

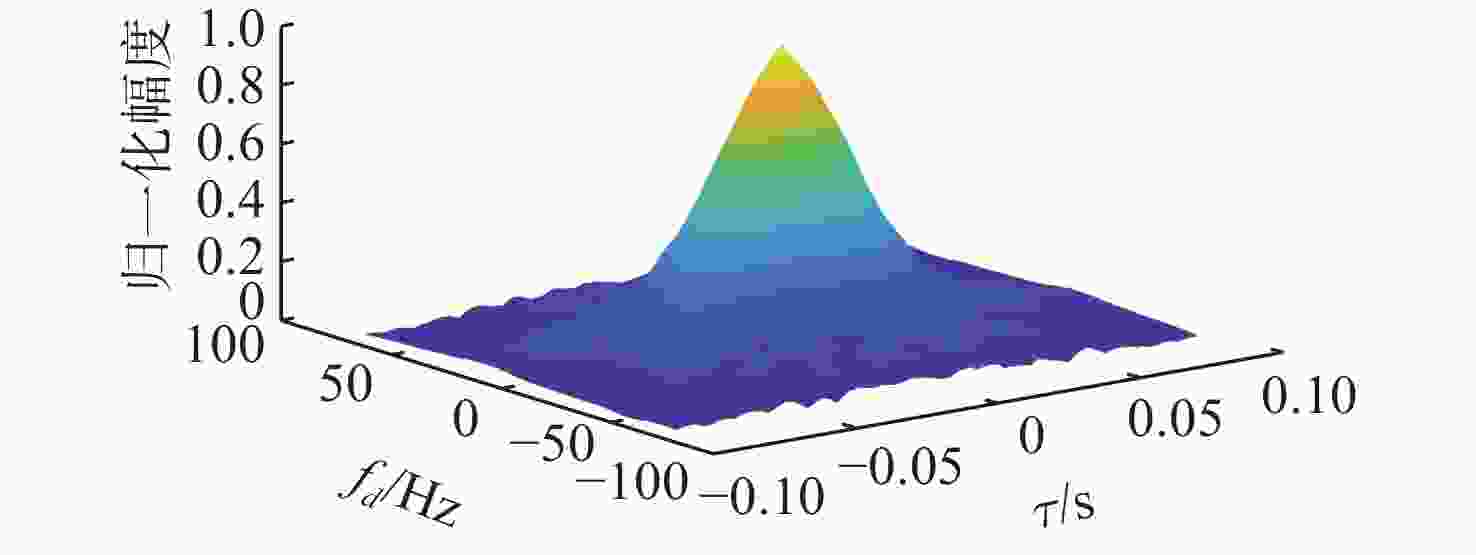

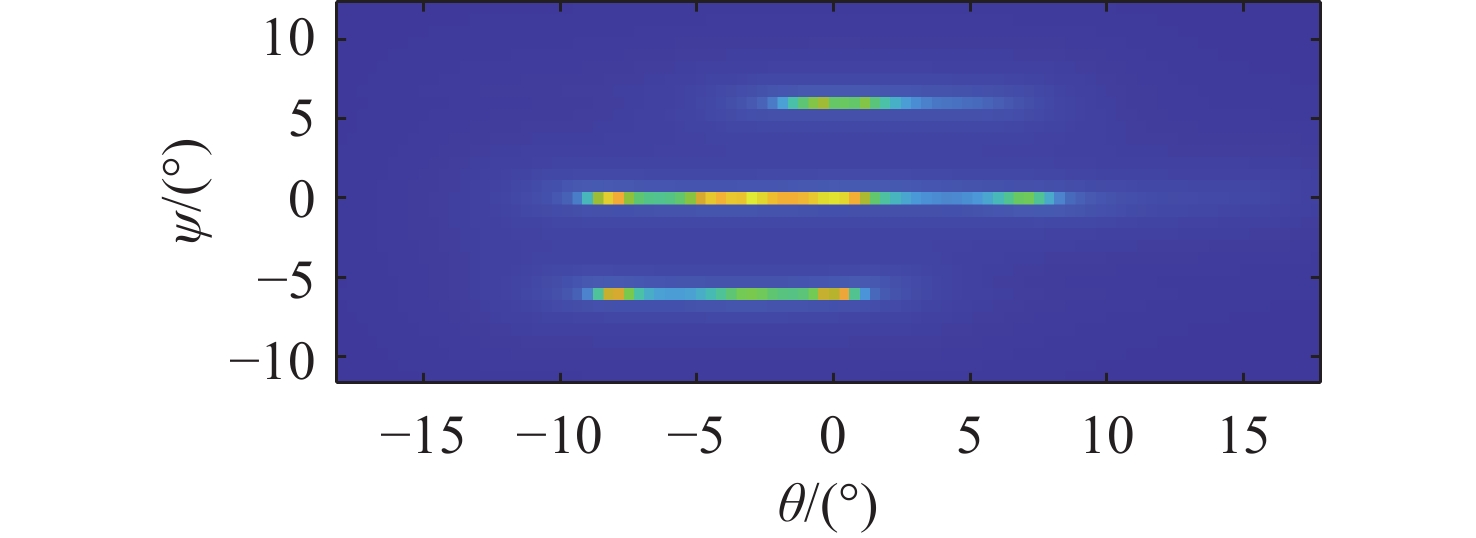

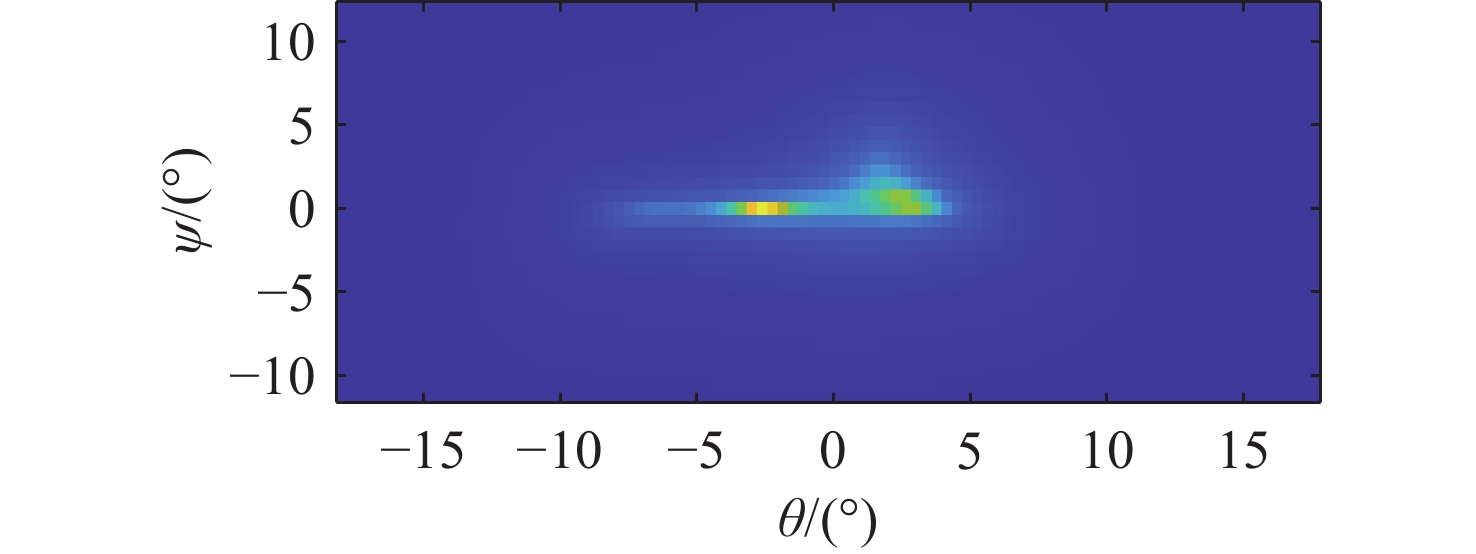

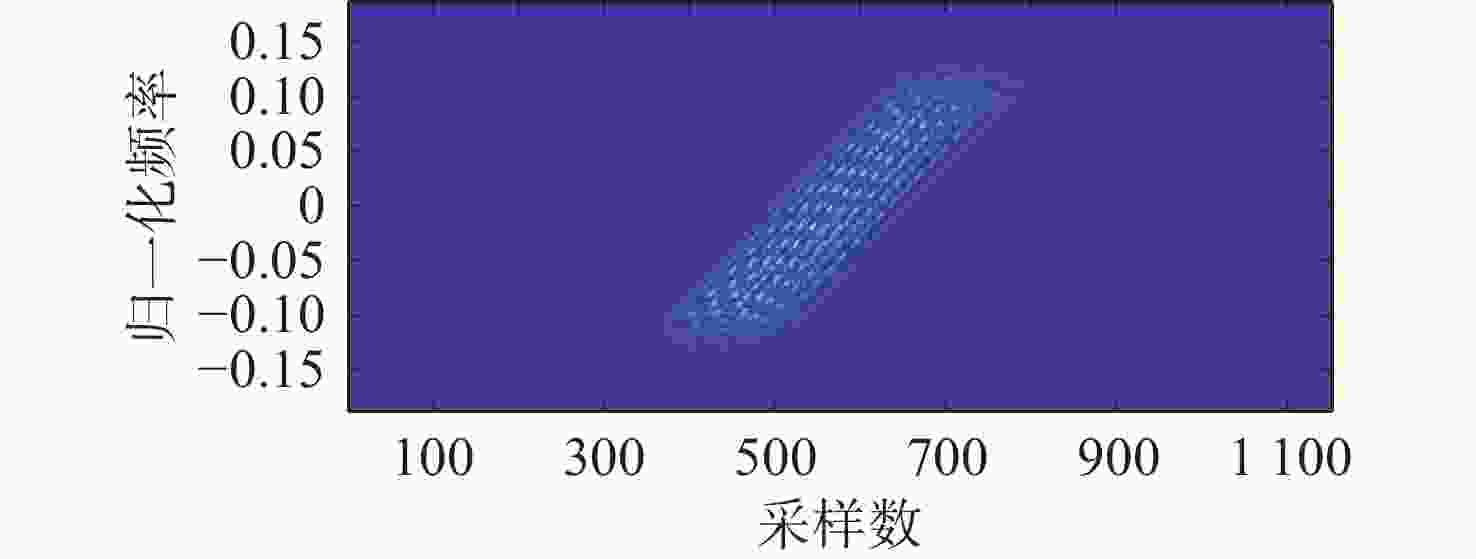

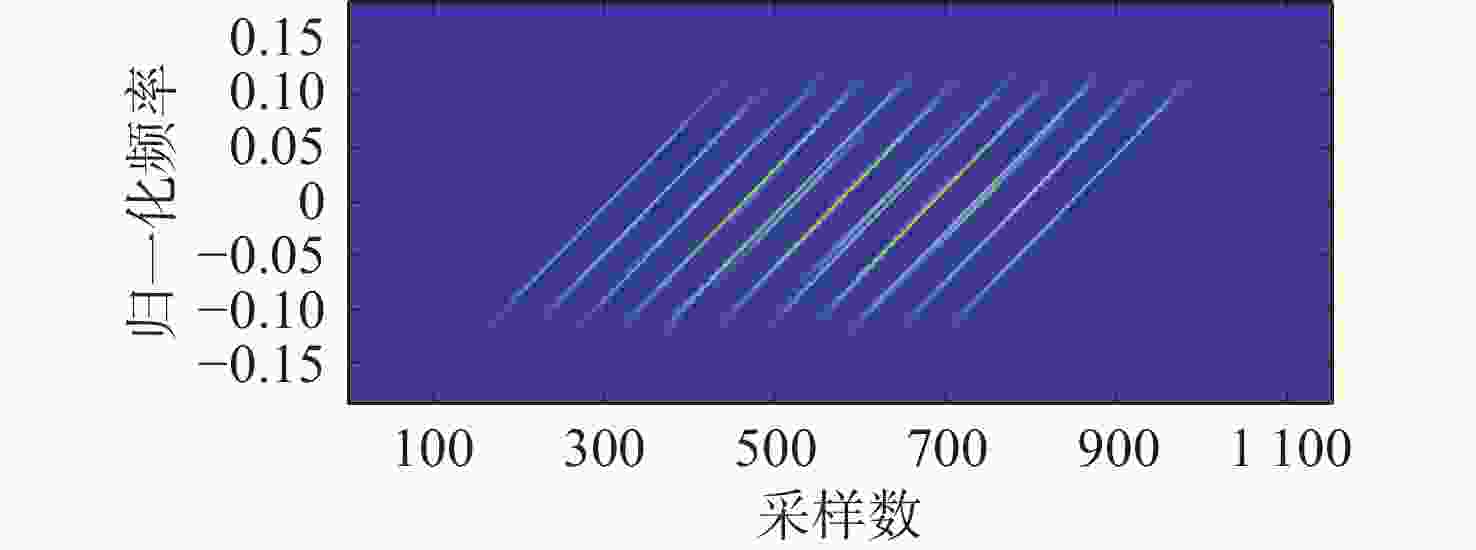

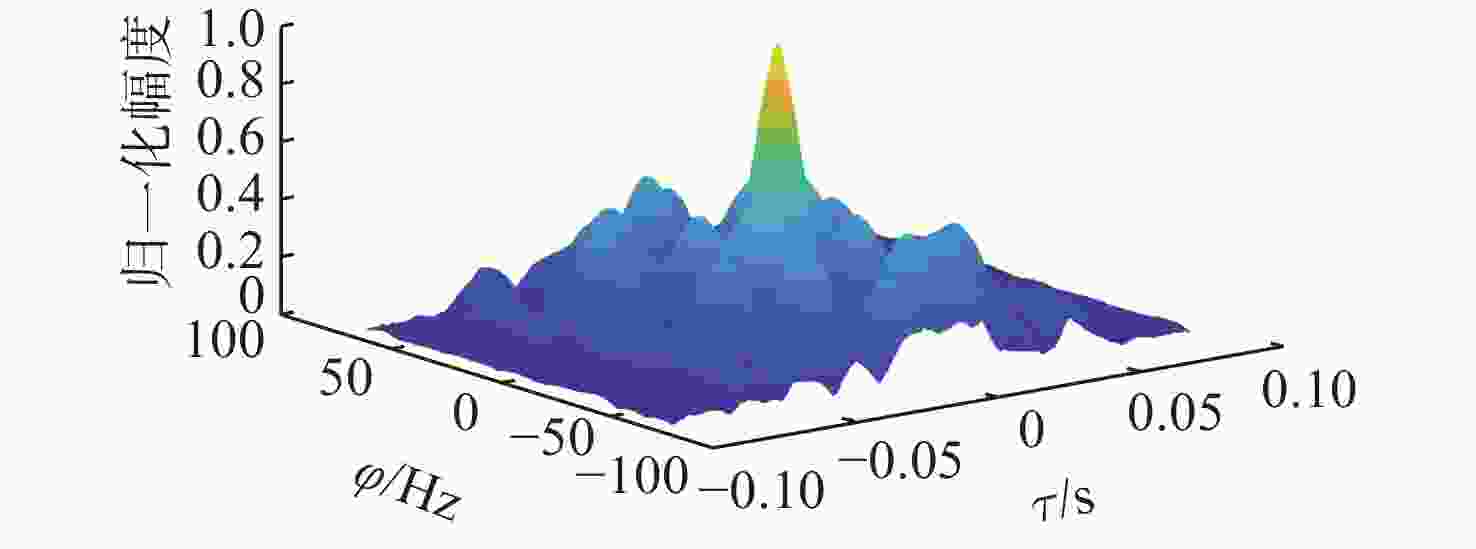

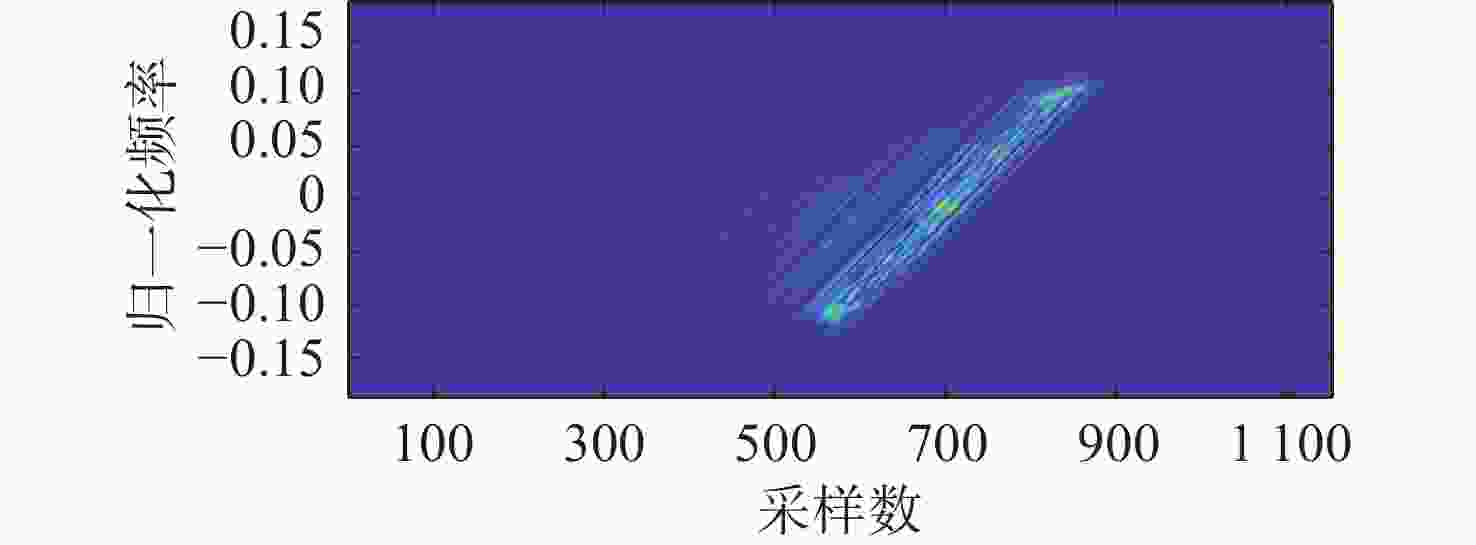

摘要: 针对主动声呐目标识别中舷角适应性较差的问题, 文中从波动方程理论出发, 阐述了主动声呐感知目标信息的物理机理。基于广义多重信号分类(MUSIC)空间谱估计, 结合距离维信息提出了一种获取水下目标伪三维空间特征的新方法, 有效提升了空间特征对不同舷角的适应能力。同时, 研究了增强伪魏格纳-威利分布(PWVD)时频谱特征的方法及基于时频二维相关的运动目标多普勒频移分布特征提取技术, 通过2种算法在舷角特性下的互补优势, 进一步提高了目标识别的舷角适应性。为解决水下目标样本稀缺且分布不平衡的问题, 引入元学习思想, 构建了一种空间域、时频域及多普勒域特征的数据级融合目标识别网络。利用仿真和试验数据对该网络进行了训练和测试。测试结果表明, 空时频融合特征显著增强了目标识别的舷角适应性和抗干扰能力, 为智能化水下目标识别技术的发展提供了全新的思路。Abstract: Aiming at the issue of inadequate bearing-angle adaptability in active sonar target recognition, this paper elaborates on the physical mechanism of active sonar target information perception from wave equation theory. Based on generalized multiple signal classification(MUSIC) spatial spectrum estimation, a novel method is proposed for acquiring the pseudo three-dimensional spatial feature of underwater targets by incorporating distance information, thereby effectively enhancing the adaptability of spatial features across different bearing angles. Additionally, research is conducted on methods to enhance Pseudo Wigner-Ville Distribution(PWVD) time-frequency features and extract Doppler frequency shift distribution features of moving targets. By leveraging the complementary advantages of these two algorithms, the bearing-angle adaptability is further improved. To address the challenge of scarce and imbalanced underwater target samples, the concept of meta-learning is integrated to construct a data-level fusion target recognition network that incorporates spatial, time-frequency, and Doppler domain features. The network is trained and tested using simulation and experimental data. The results demonstrate that the fusion features significantly improve the bearing-angle adaptability and anti-interference capability, providing a novel approach for the development of intelligent underwater target recognition technology.
-

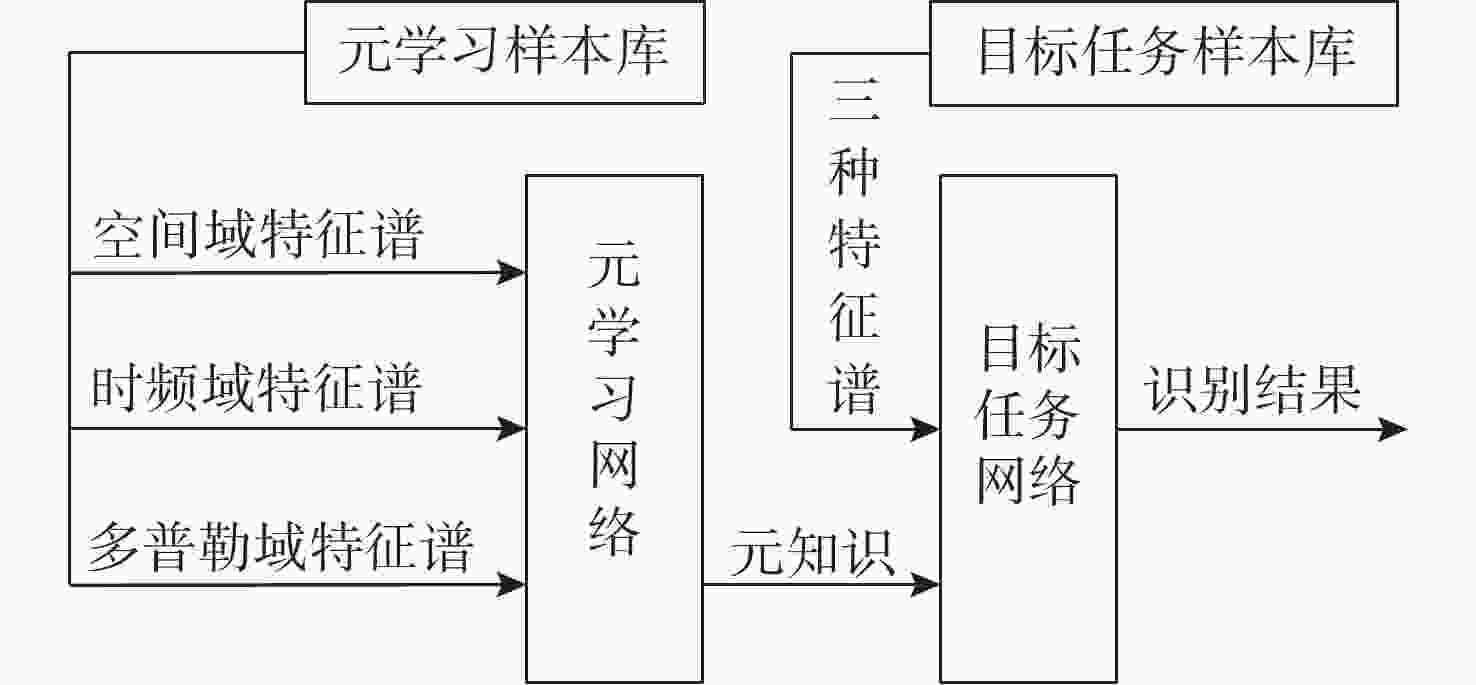

图 12 元学习多维特征融合网络框架
Figure 12. A network framework for multi dimensional feature fusion of meta-learning
图 13 目标任务网络空间域特征验证曲线
Figure 13. Validation curves of the target task network for spatial domain features

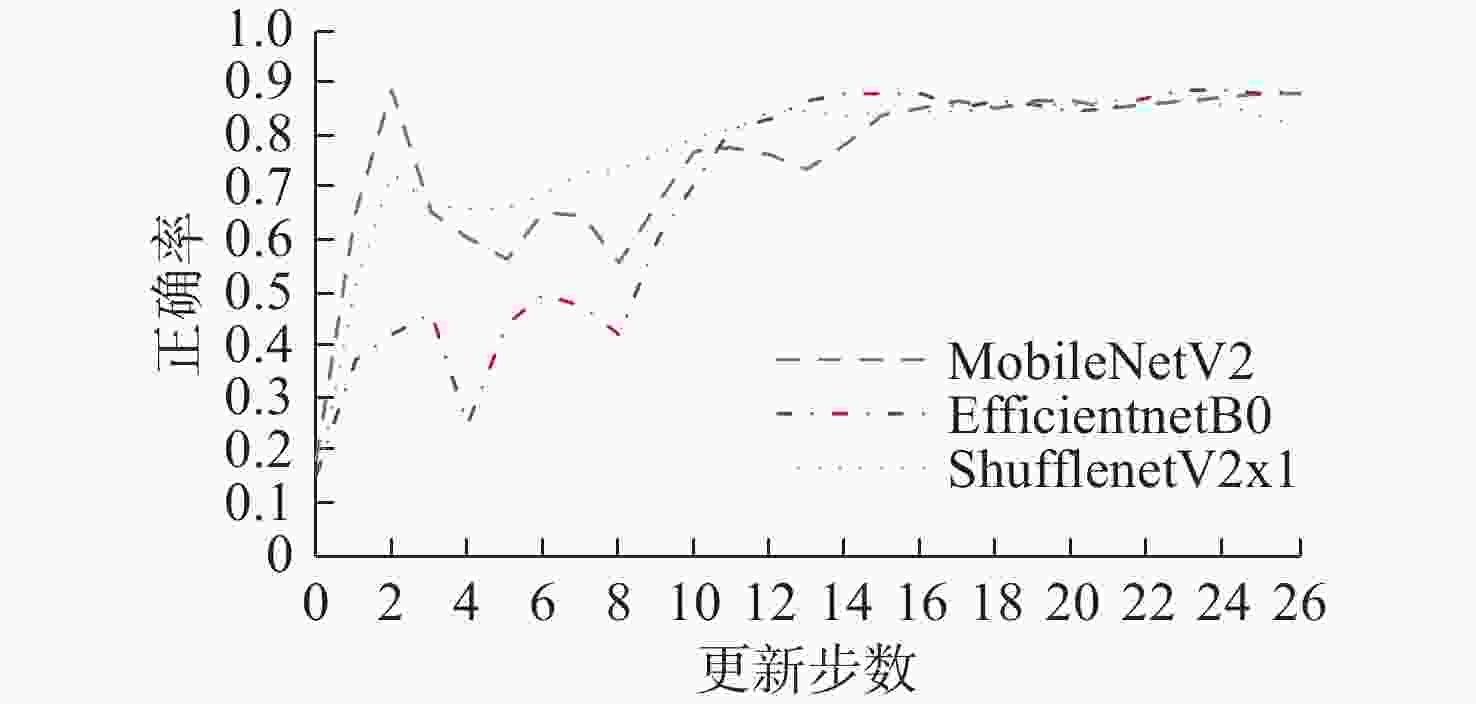

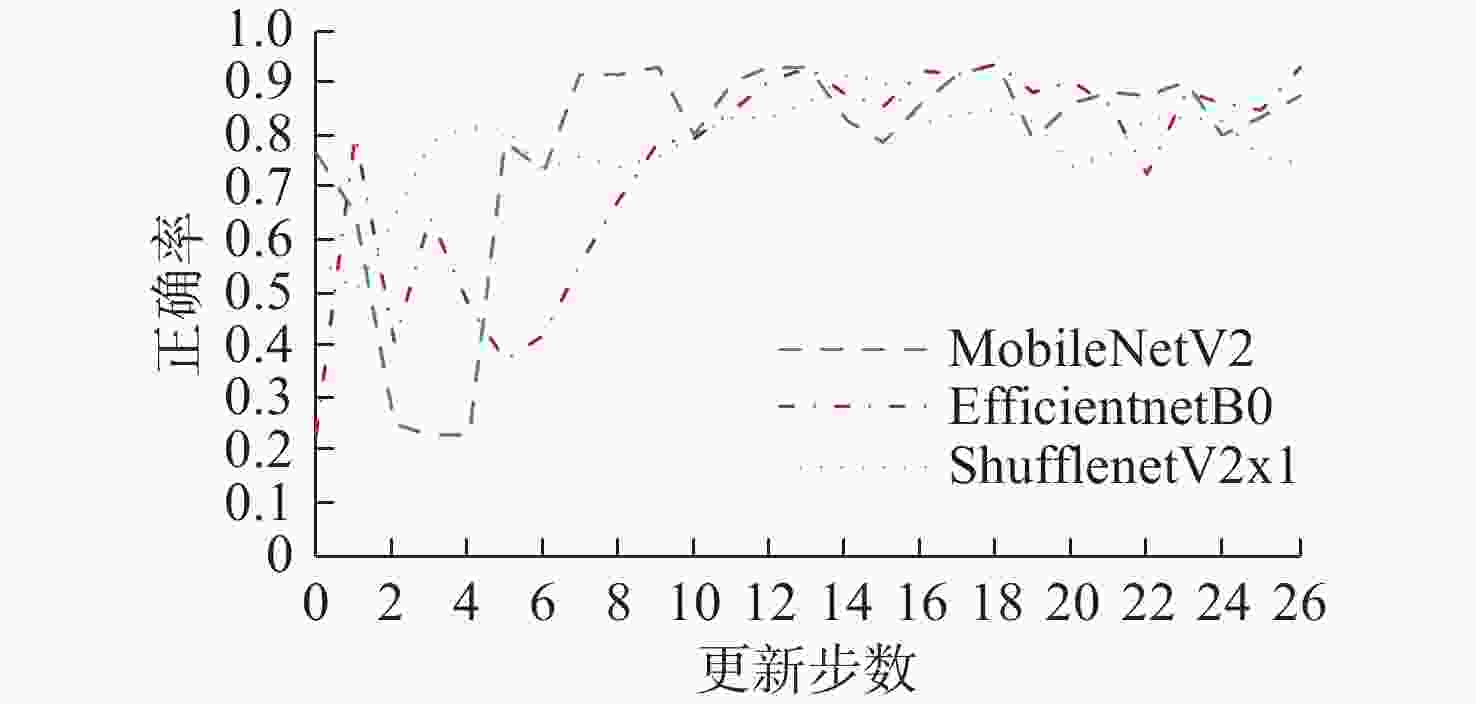

图 14 目标任务网络时频域特征验证曲线
Figure 14. Validation curves of the target task network for time-frequency domain features

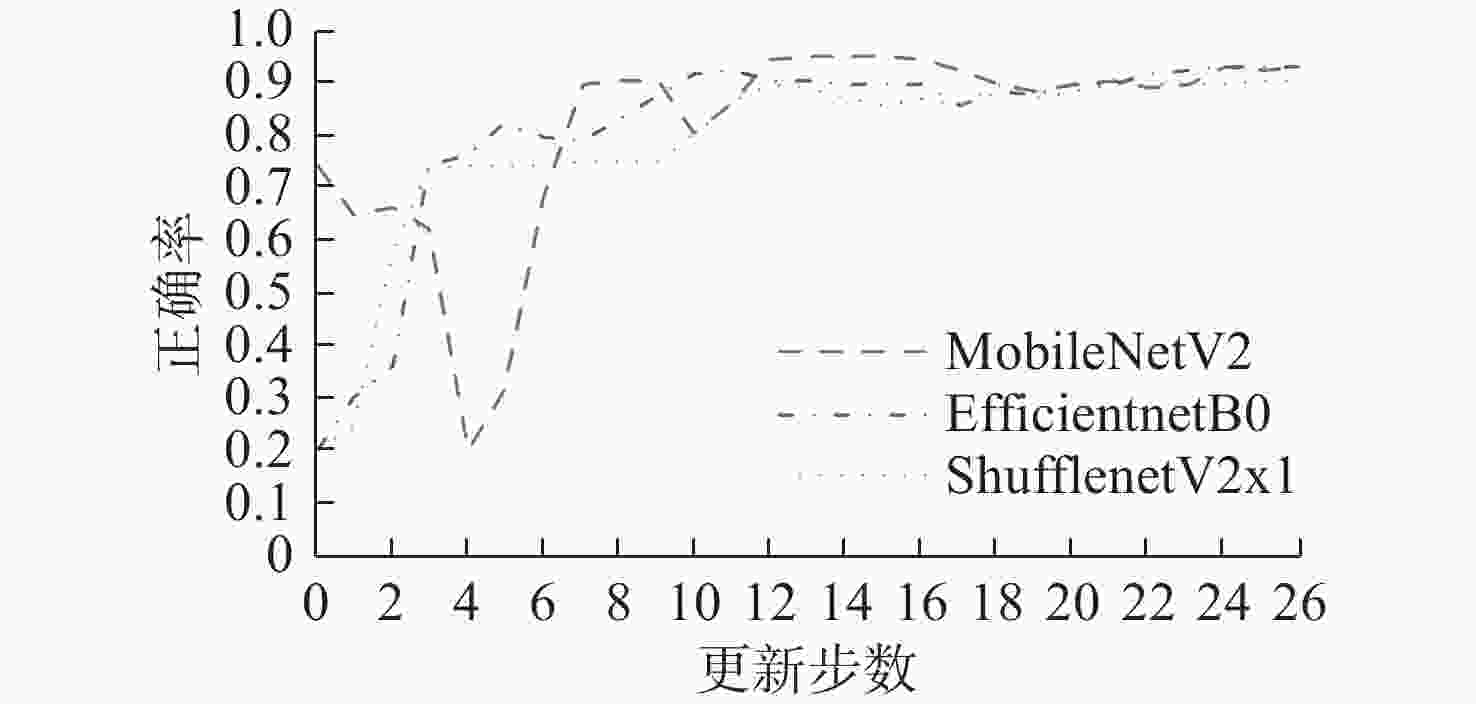

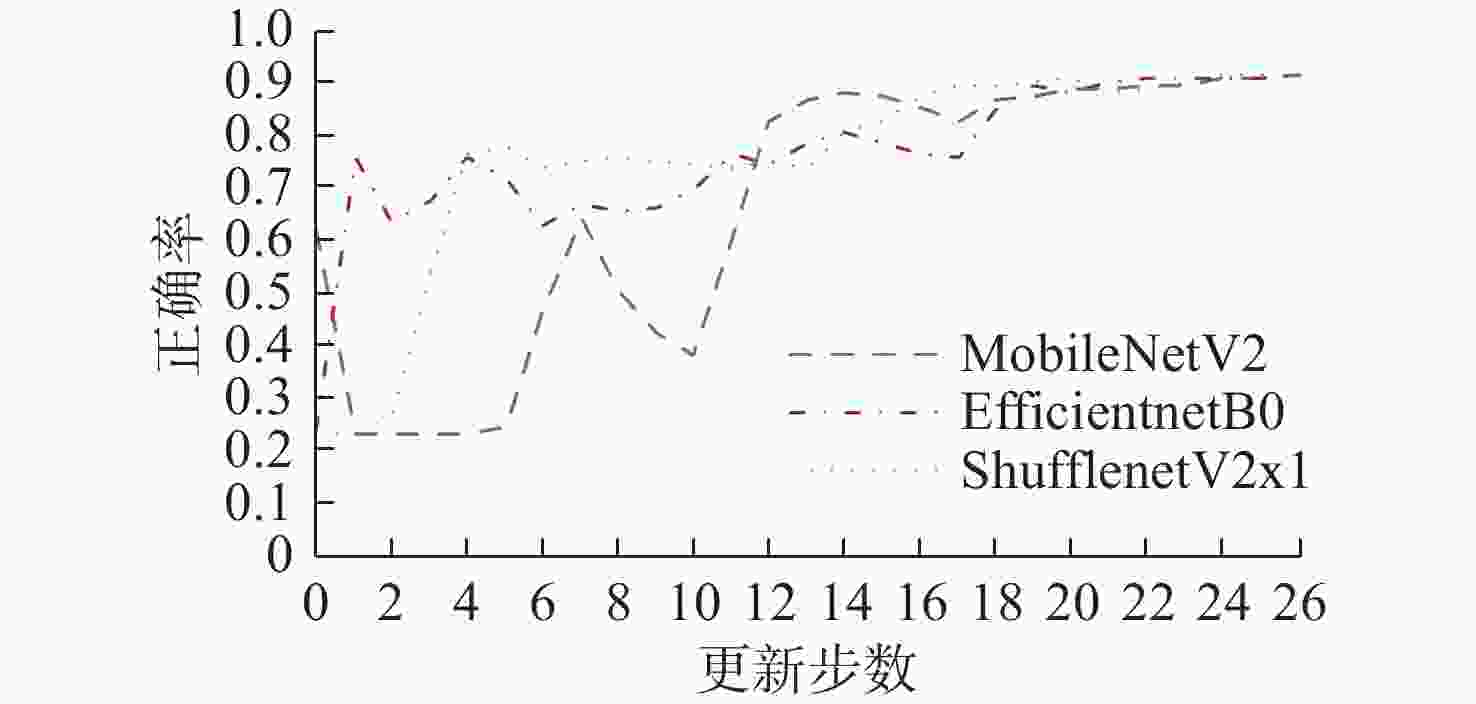

图 15 目标任务网络多普勒域特征验证曲线
Figure 15. Validation curves of the target task network for Doppler domain features

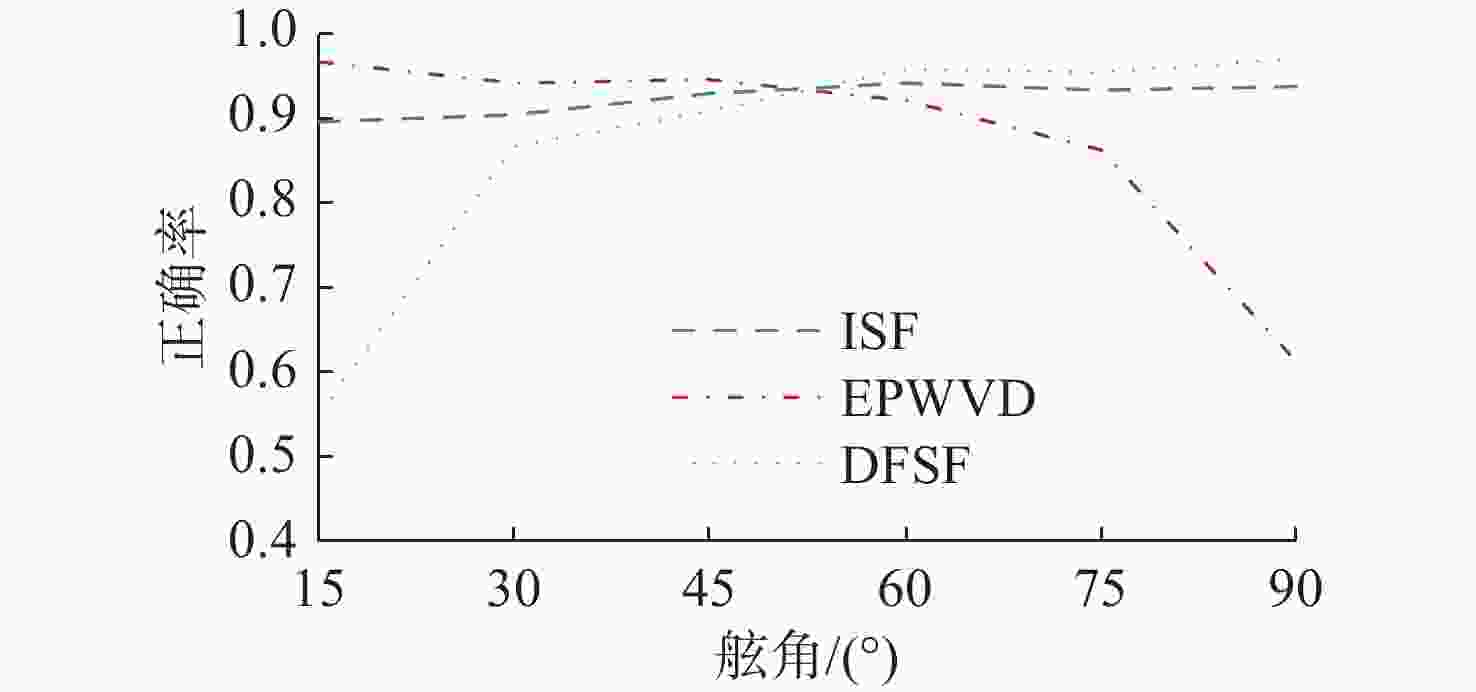

图 16 测试正确率与水平舷角的关系
Figure 16. The correlation between test accuracy and the horizontal bearing-angle
图 17 目标任务网络特征融合验证曲线
Figure 17. Validation curves of the target task network for feature fusion
表 1 目标任务样本库构成
Table 1. The composition of the target task sample library
类型 原始样
本/个配置3生成
样本/个配置4生成
样本/个总计/个 训练集 110 150 0 260 验证集 110 0 150 260 测试集 260 0 0 260
下载: 导出CSV
表 2 单一特征推理测试正确率
Table 2. Accuracy of single-feature test
模型 空间域
正确率/%时频域
正确率/%多普勒域
正确率/%MobileNetV2 92.3 88.8 88.5 EfficientNetB0 91.5 86.5 87.7 ShuffleNetV2x1 89.6 80.4 83.8
下载: 导出CSV
表 3 网络参数及特征融合测试正确率
Table 3. Network parameters and accuracy of feature fusion test
模型 参数量
(M)FLOPs
(M)正确率 MobileNetV2 3.51 327.55 94.2% EfficientNetB0 5.29 412.83 93.8% ShuffleNetV2 1.26 146 92.3%
下载: 导出CSV
-
