Ship Radiated Noise Line Spectrum Enhancement Based on Adaptive Filtering-Deep Learning Fusion

CAI Tingting^{1, 2
,},
YU Sunze^3
,,
ZHAO Mei^1
,

1.
Shanghai Acoustics Laboratory, Chinese Academy of Sciences, Shanghai 201815, China
2.
University of Chinese Academy of Sciences, Beijing 100049, China
3.
The Seventh Military Representative Office of Naval Equipment Department in Shanghai, Shanghai 201108, China

摘要

摘要: 针对复杂水声环境中舰船辐射噪声线谱特征难以辨识的问题, 提出了联合自适应滤波与深度学习(DL)的线谱增强模型。该模型融合双层协同自适应滤波模块与DL模块, 构建多层级特征增强框架。自适应滤波模块结合频域自适应滤波(FDAF)与最大相关熵准则(MCC), 在抑制宽带背景噪声的同时提高了对非平稳噪声的抑制能力。DL模块采用双向长短时记忆网络(BiLSTM)提取线谱的局部时间依赖关系, 结合注意力残差机制增强对弱线谱的关注, 并利用Transformer 编码器捕捉时频域长程关联。该模型充分结合滤波和DL的优点, 既有效抑制噪声, 又提升了对弱线谱的增强效果。仿真验证结果表明, 该方法在整体线谱增强及弱线谱强化方面均优于单一自适应滤波或DL模型。湖试数据验证进一步证实了该方法的有效性。
- 舰船辐射噪声 /
- 线谱增强 /
- 深度学习 /
- 自适应滤波 /
- Transformer 编码器 /
- 注意力机制
Abstract: To address the challenge of identifying line spectrum features of ship radiated noise in complex underwater acoustic environments, a line spectrum enhancement model combining adaptive filtering and deep learning(DL) was proposed. This model integrated a double-layer collaborative adaptive filtering module with a DL module to form a multi-level feature enhancement framework. The adaptive filtering module combined frequency-domain adaptive filtering(FDAF) with the maximum correntropy criterion(MCC) to enhance the suppression of non-stationary noise while effectively reducing broadband background noise. The DL module employed a bi-directional long short-term memory(BiLSTM) network to extract the local temporal dependencies of line spectra. It also incorporated an attention residual mechanism to focus on weak line spectra and utilized a Transformer encoder to capture long-range correlations in the time-frequency domain. The model effectively combined the advantages of filtering and DL, both suppressing noise and enhancing the detection of weak line spectra. Simulation results demonstrate that the proposed method outperforms single adaptive filtering or DL models in terms of overall line spectrum enhancement and weak line spectrum enhancement. The effectiveness of this method is further validated through lake test data.
- ship radiated noise /
- line spectrum enhancement /
- deep learning /
- adaptive filtering /
- Transformer encoder /
- attention mechanism

HTML全文

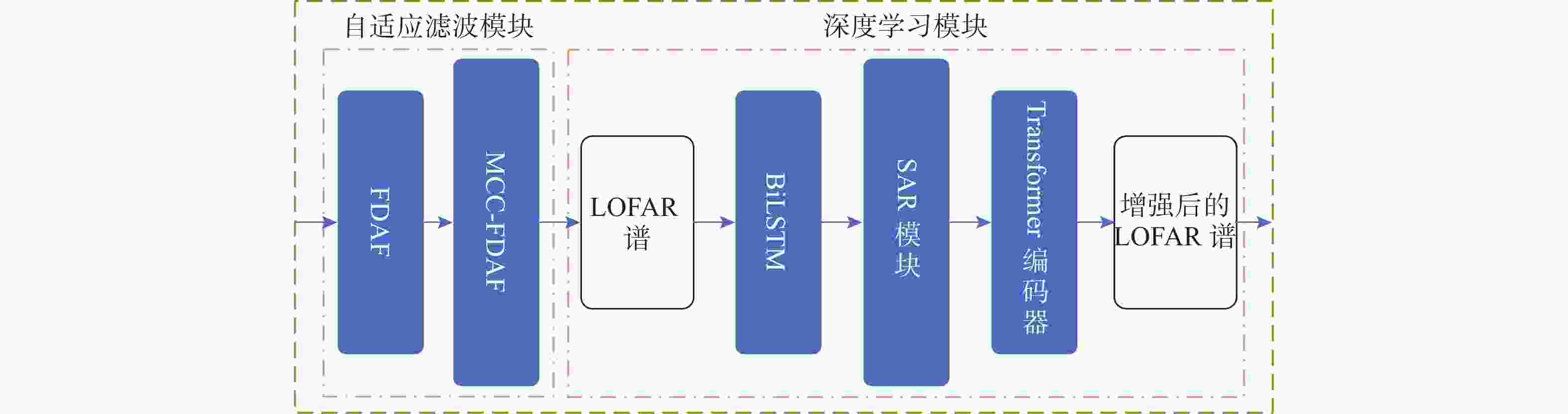

图 1 MCC-FDAF-DL模型技术路线图

Figure 1. Roadmap of technical approach for MCC-FDAF-DL model

下载: 全尺寸图片幻灯片

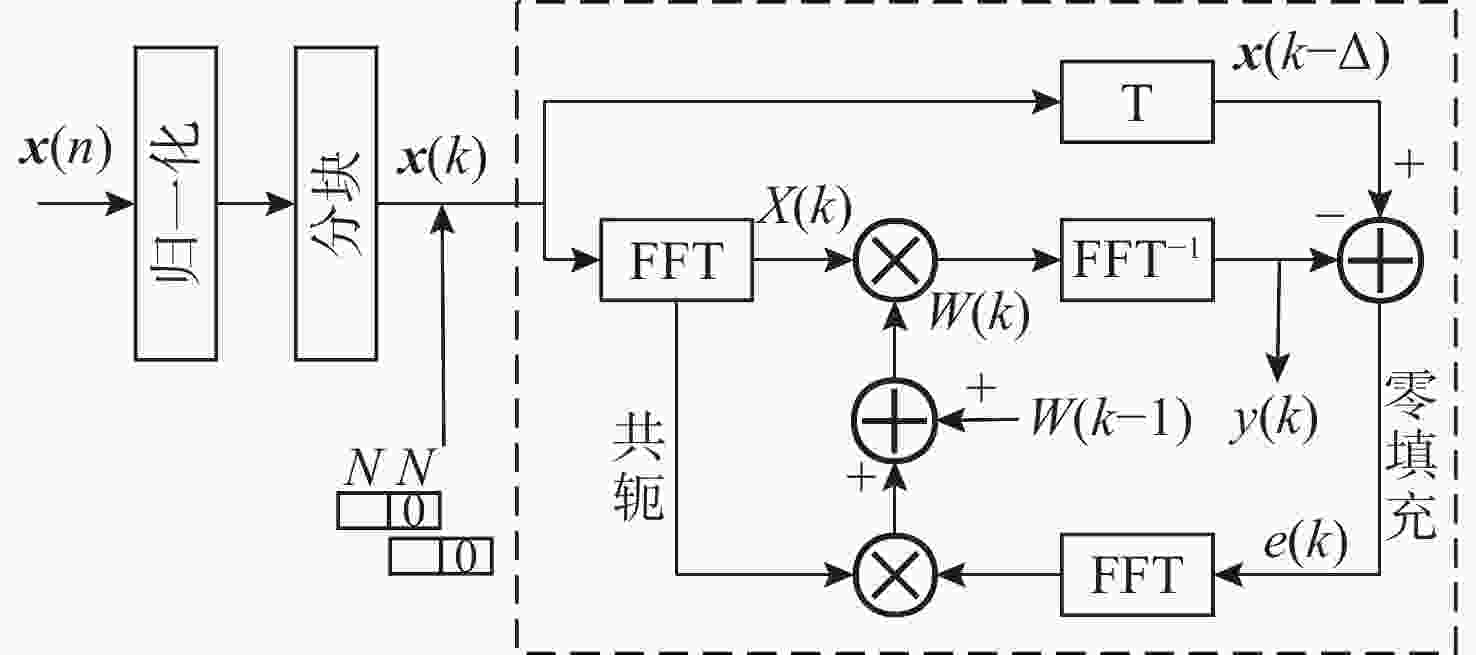

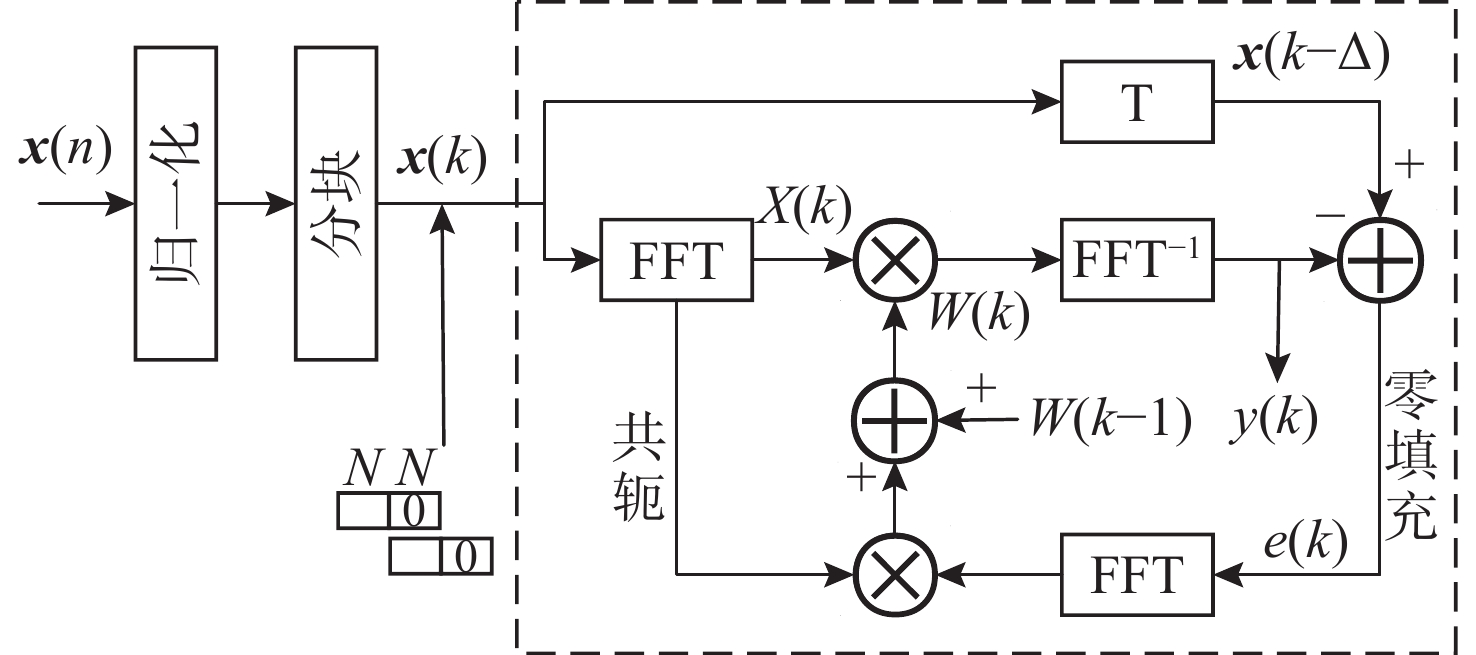

图 2 FDAF基本框架图

Figure 2. Basic framework of FDAF

下载: 全尺寸图片幻灯片

图 3 MCC-FDAF-DL线谱增强模型结构

Figure 3. Line spectrum enhanced model structure of MCC-FDAF-DL

下载: 全尺寸图片幻灯片

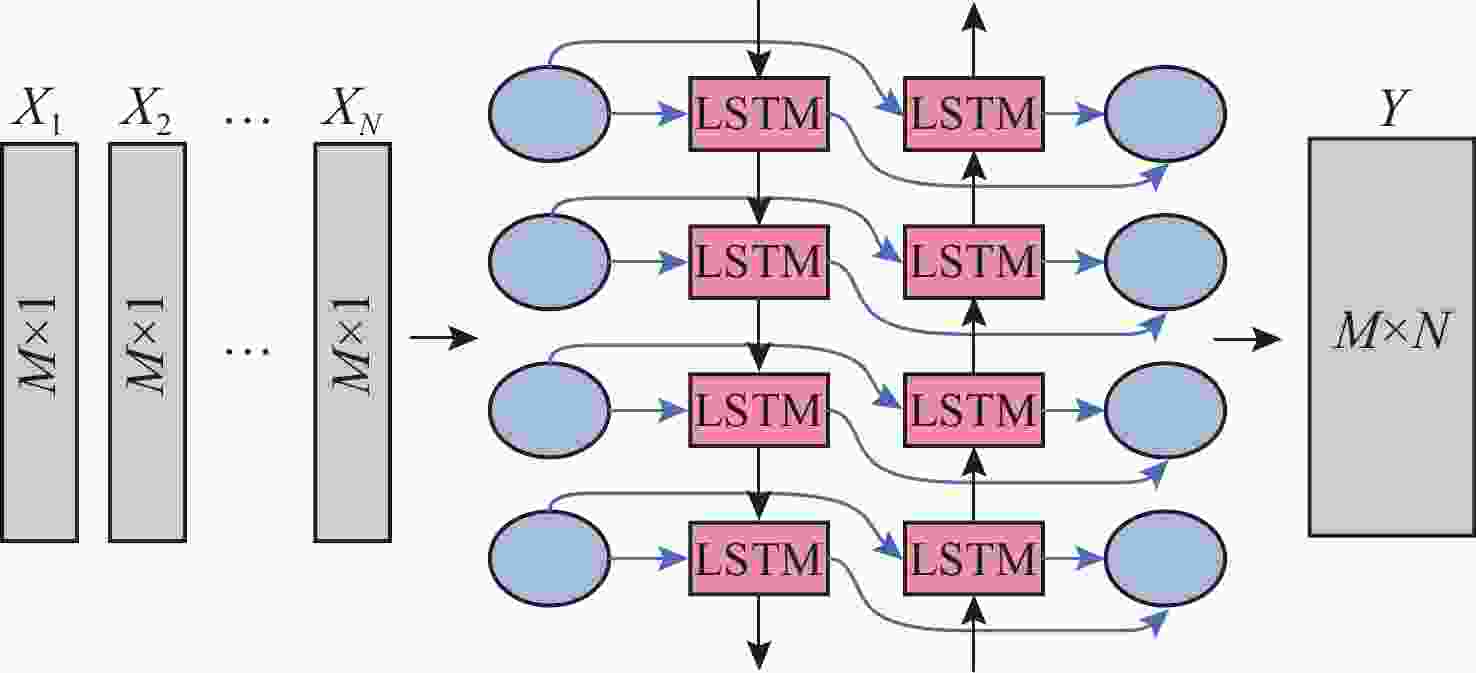

图 4 BiLSTM模型结构

Figure 4. Structure of BiLSTM model

下载: 全尺寸图片幻灯片

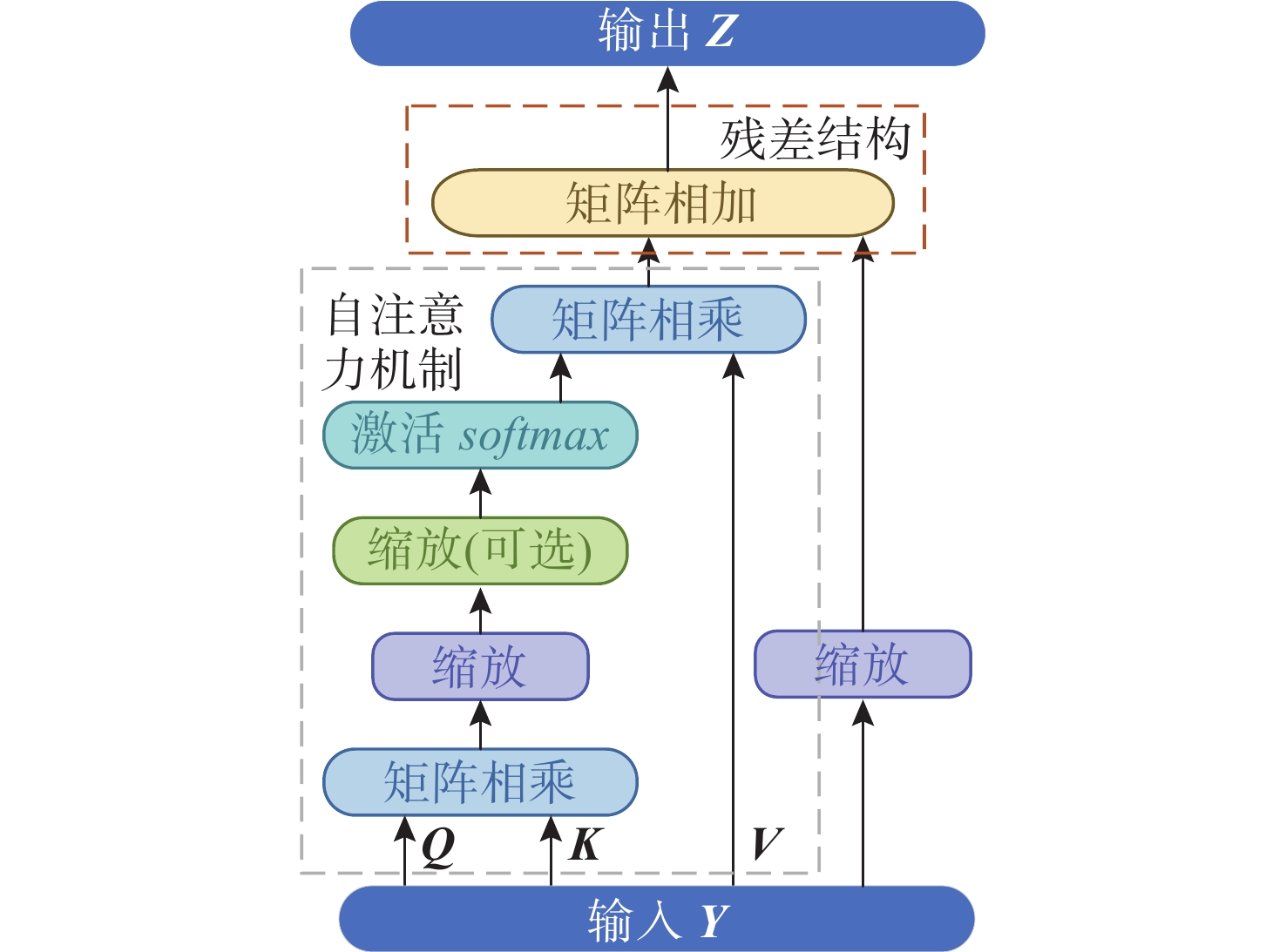

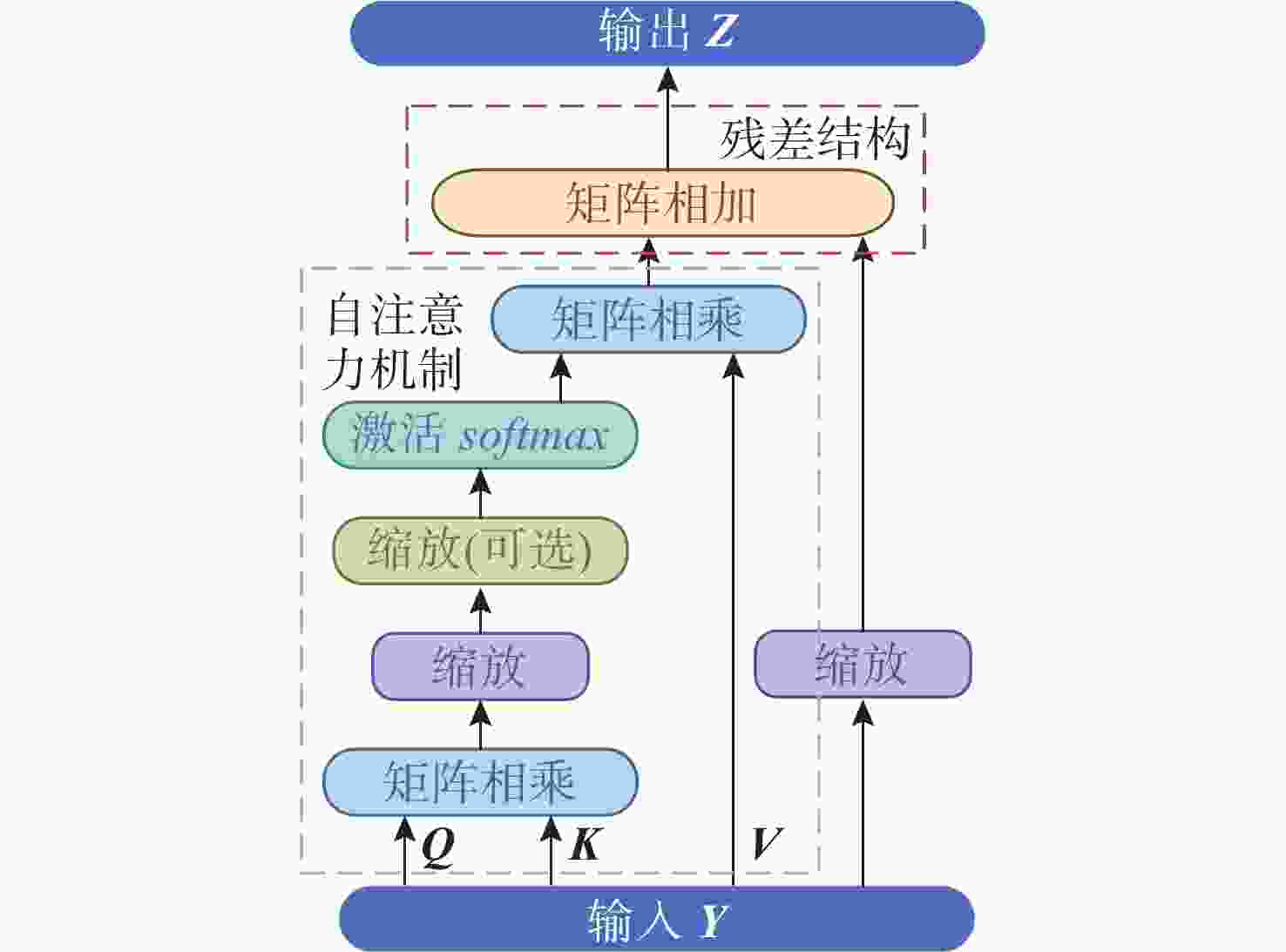

图 5 SAR模块结构

Figure 5. Structure of SAR module

下载: 全尺寸图片幻灯片

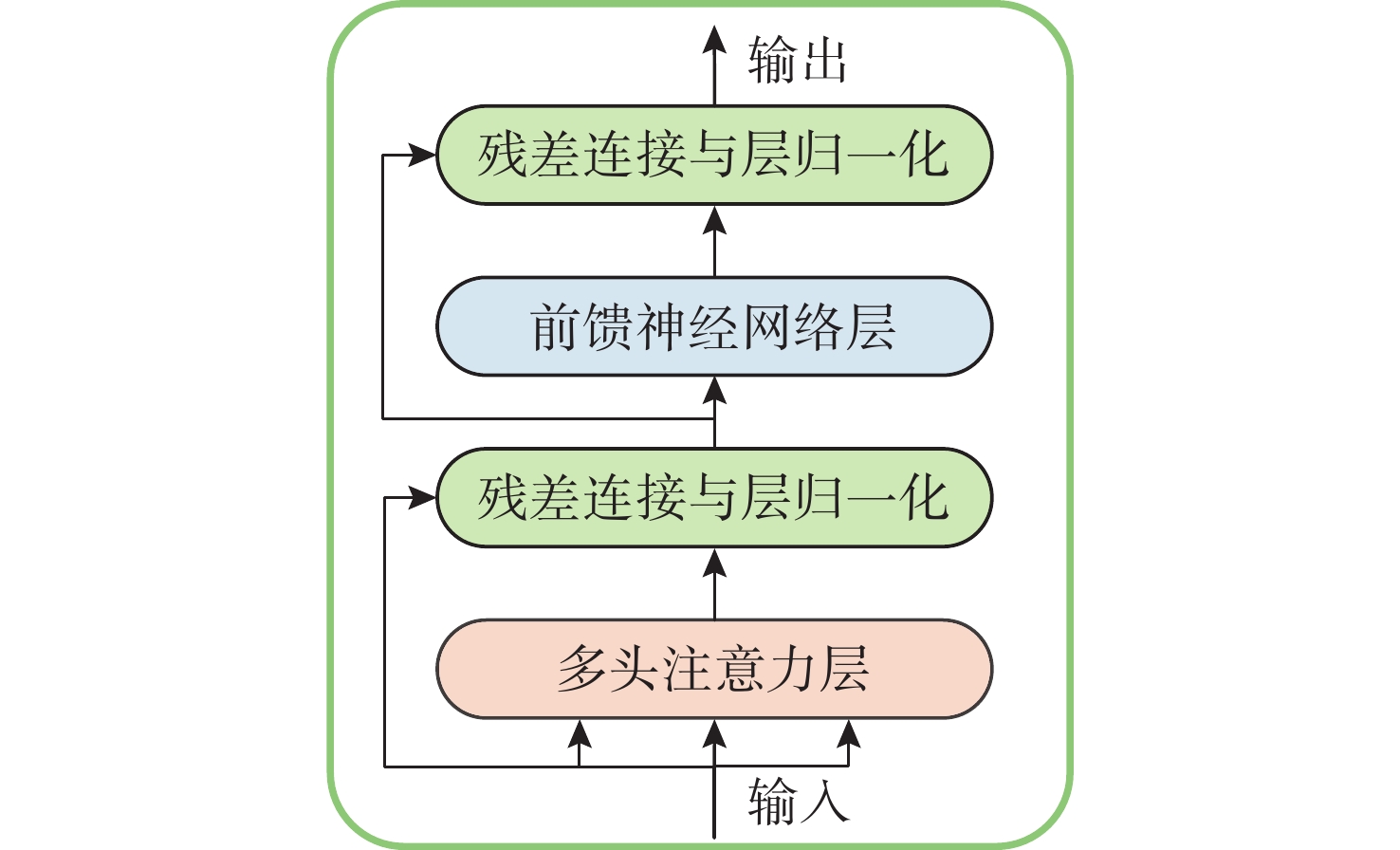

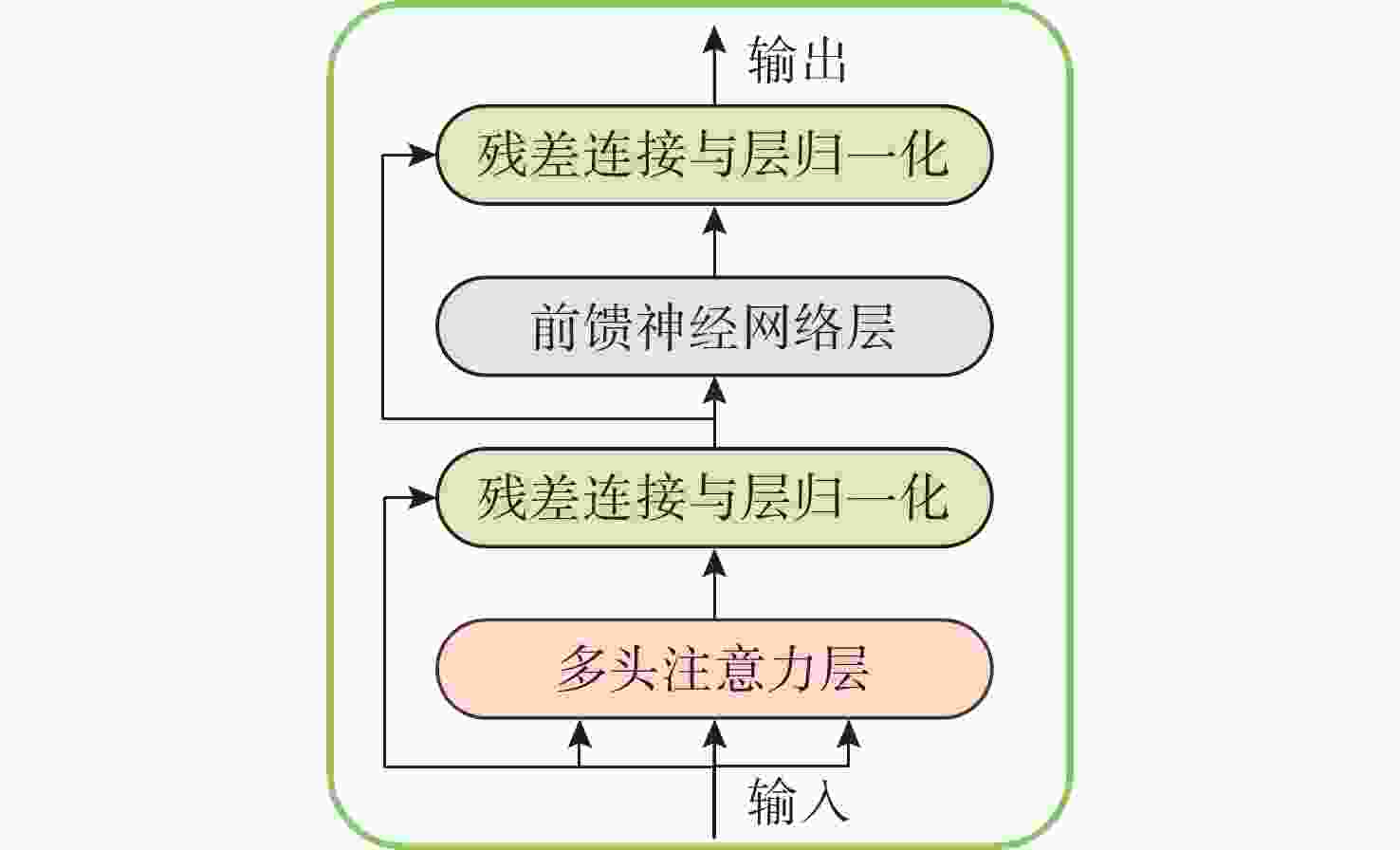

图 6 Transformer编码器结构

Figure 6. Structure of Transformer encoder

下载: 全尺寸图片幻灯片

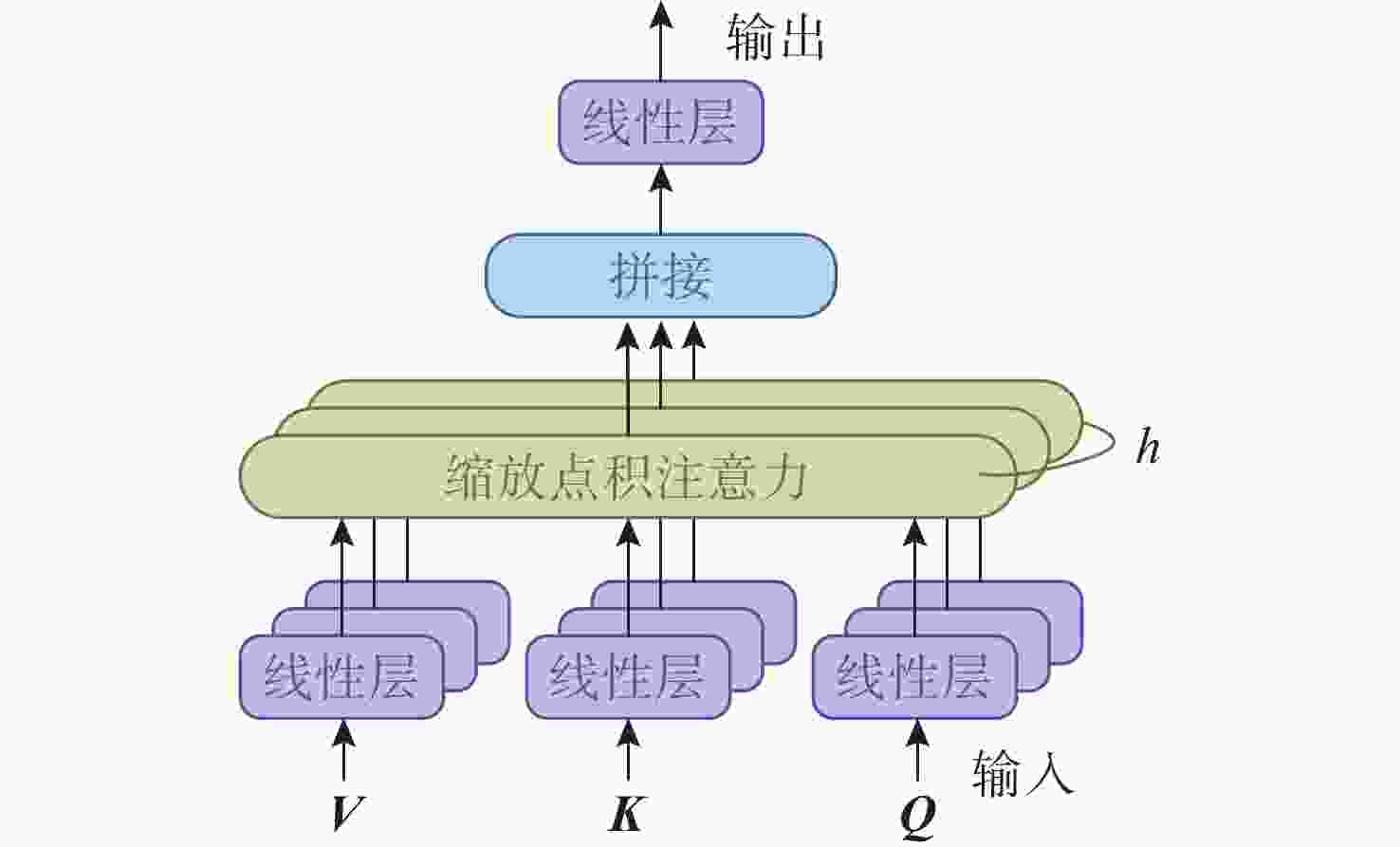

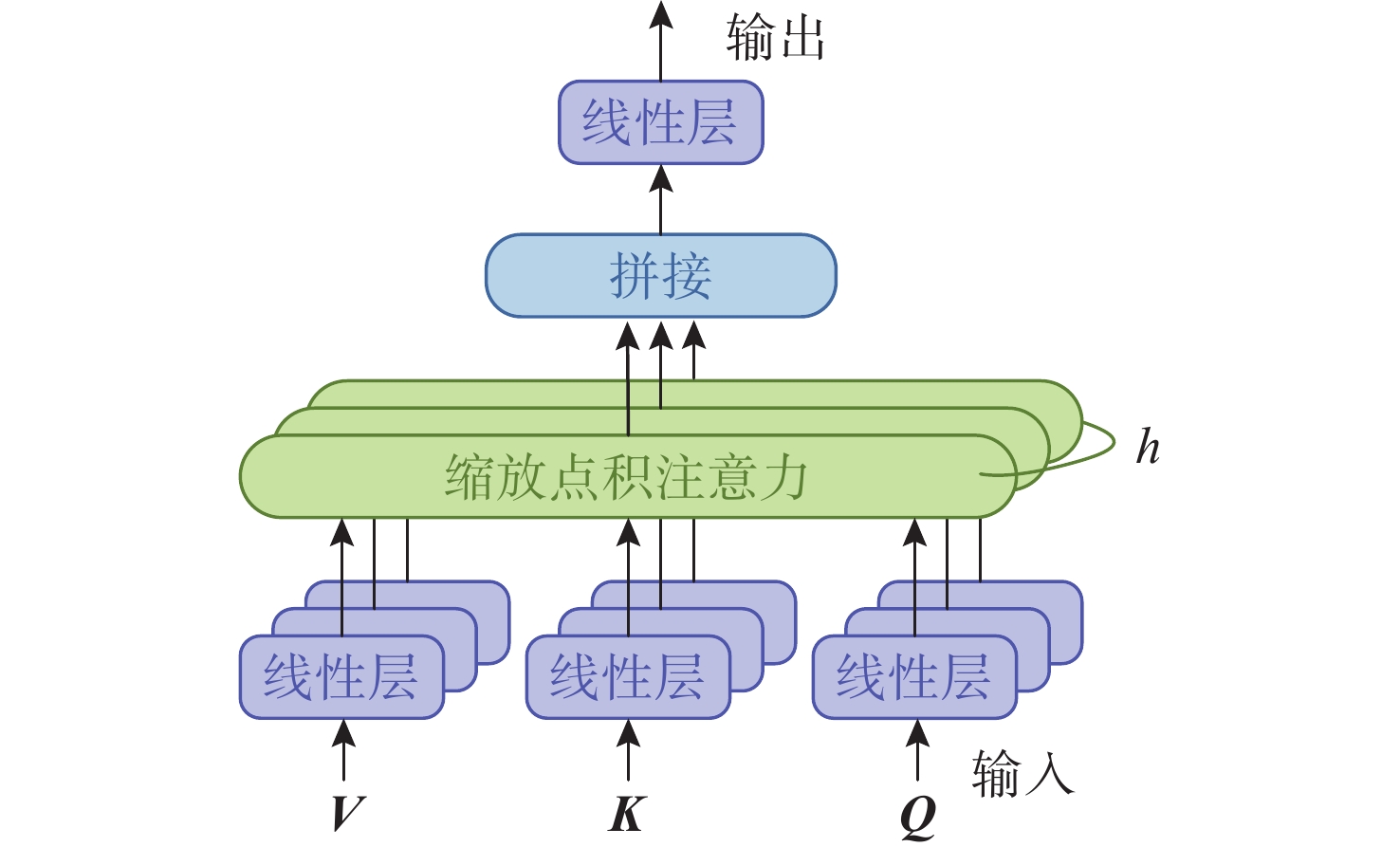

图 7 多头自注意力机制结构

Figure 7. Structure of multi-head self-attention

下载: 全尺寸图片幻灯片

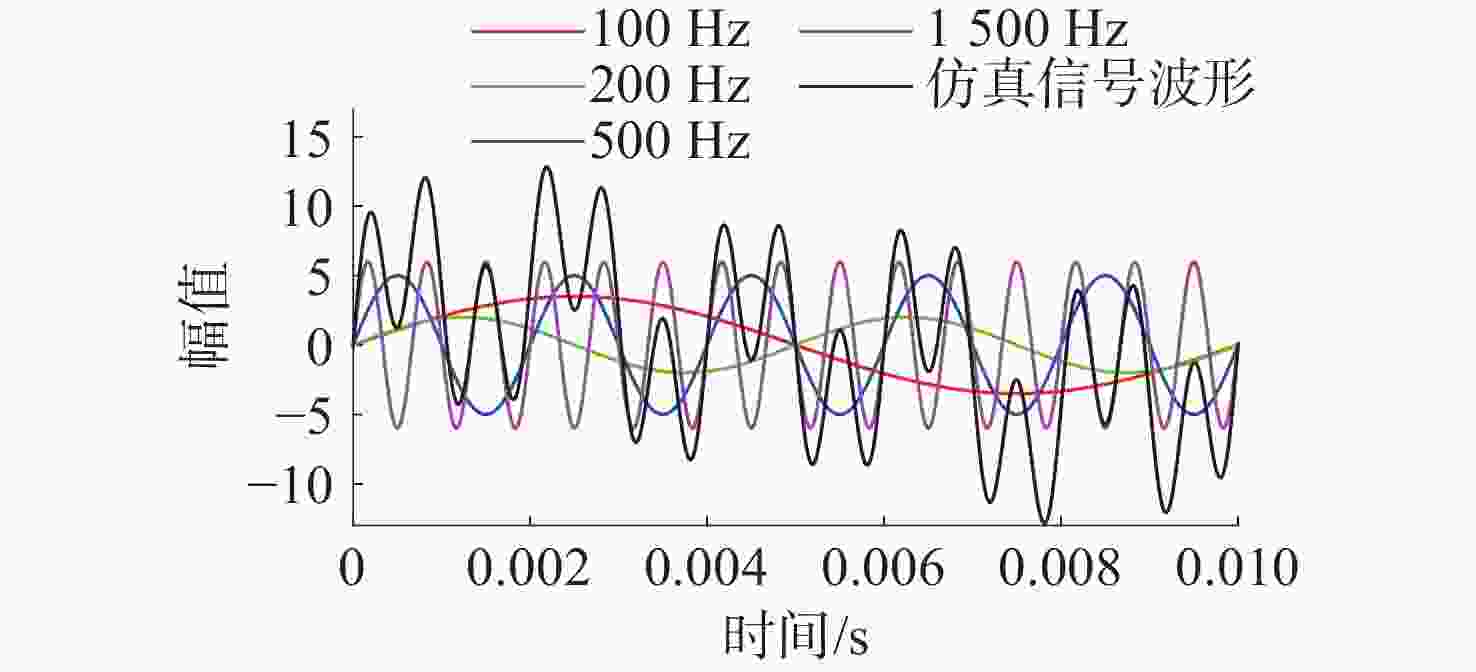

图 8 仿真信号波形图

Figure 8. Waveforms of simulation signals

下载: 全尺寸图片幻灯片

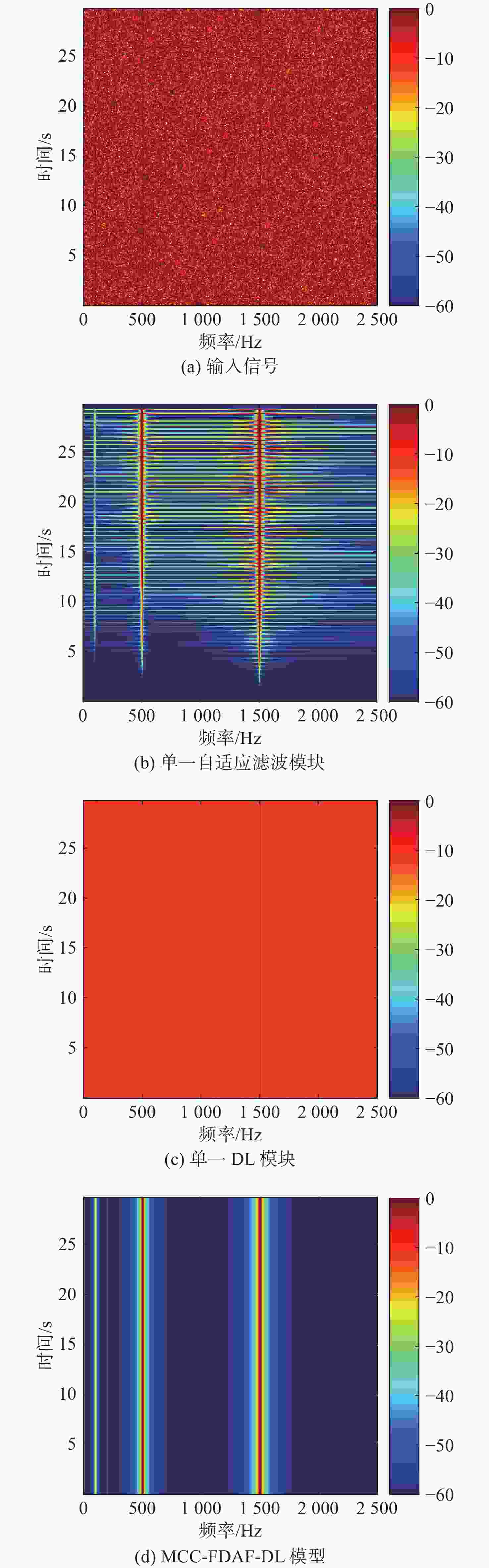

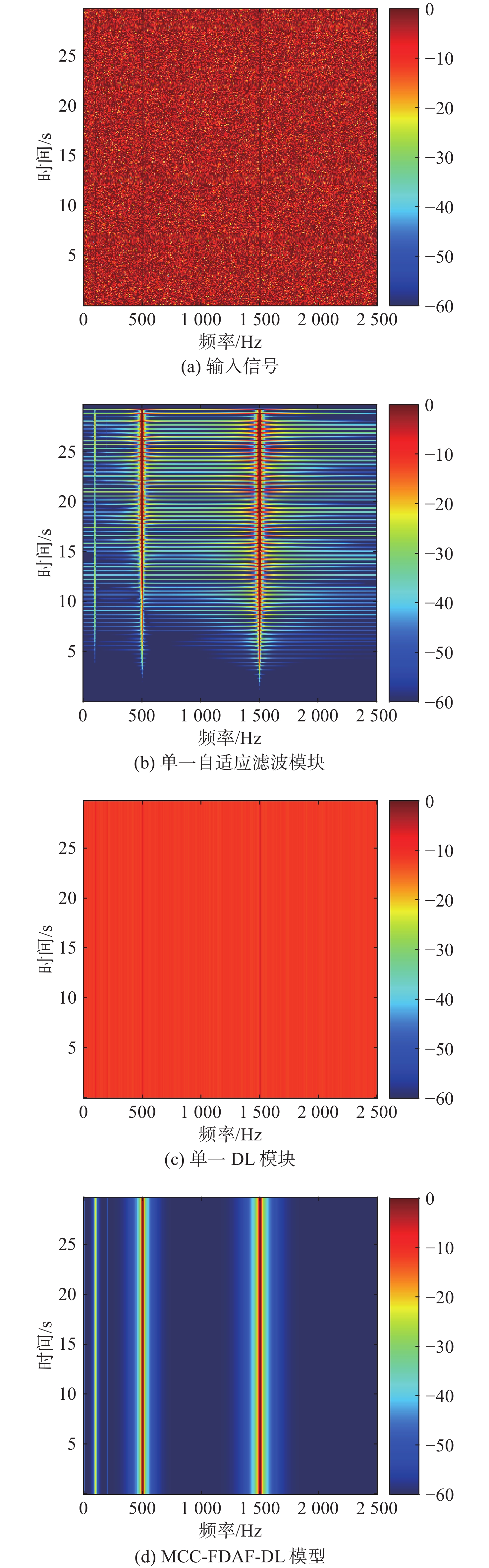

图 9 SNR为−15 dB时单一-联合方法输出信号LOFAR谱

Figure 9. LOFAR spectrum of the output signals of the single and joint method at SNR is −15 dB

下载: 全尺寸图片幻灯片

图 10 SNR为−5 dB时单一-联合方法输出信号LOFAR谱

Figure 10. LOFAR spectrum of the output signals of the single and joint method at SNR is −5 dB

下载: 全尺寸图片幻灯片

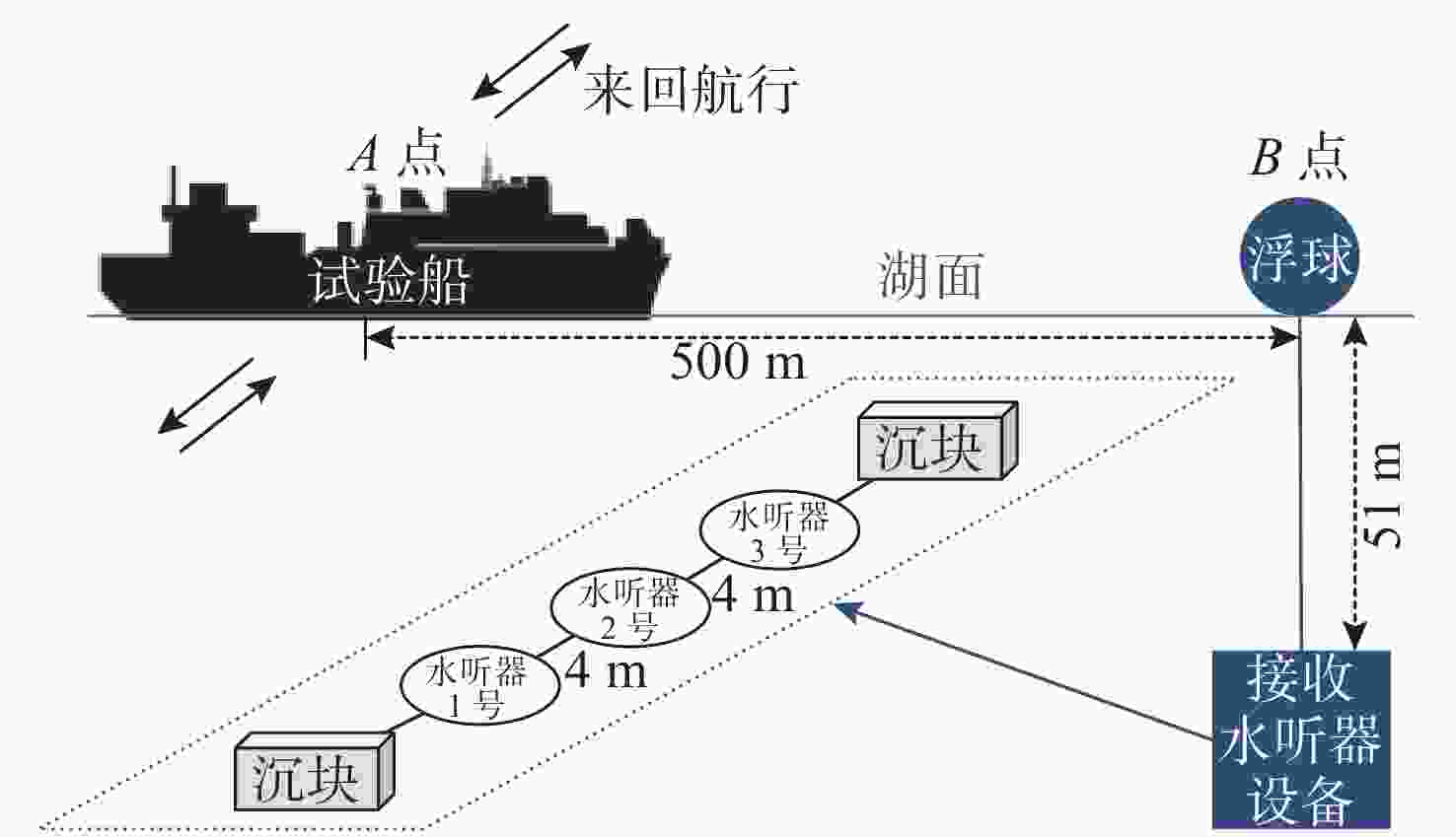

图 11 湖试方案

Figure 11. Program of the lake test

下载: 全尺寸图片幻灯片

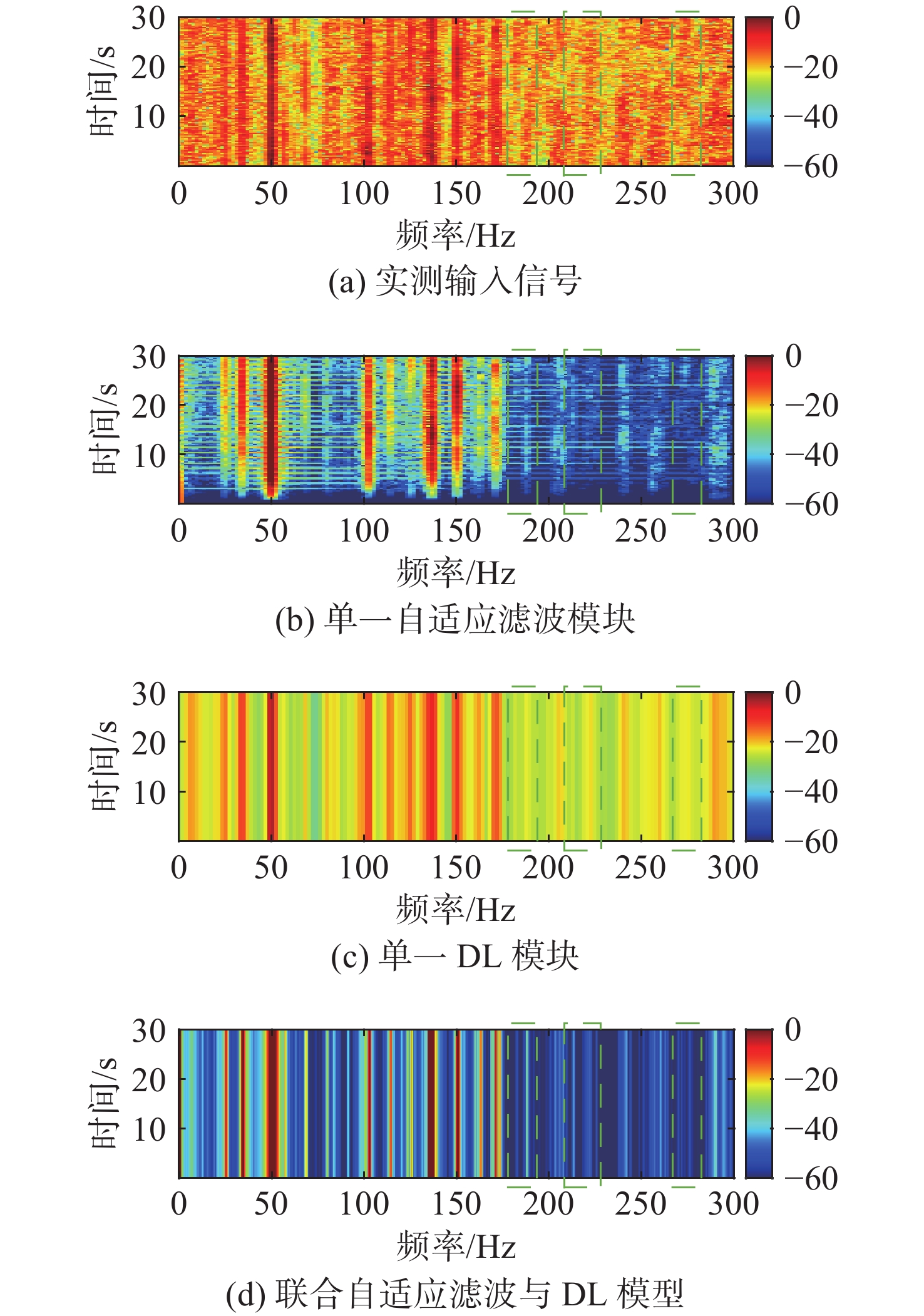

图 12 湖试数据输出信号LOFAR谱

Figure 12. LOFAR spectrum of the output signals of the lake test data

下载: 全尺寸图片幻灯片

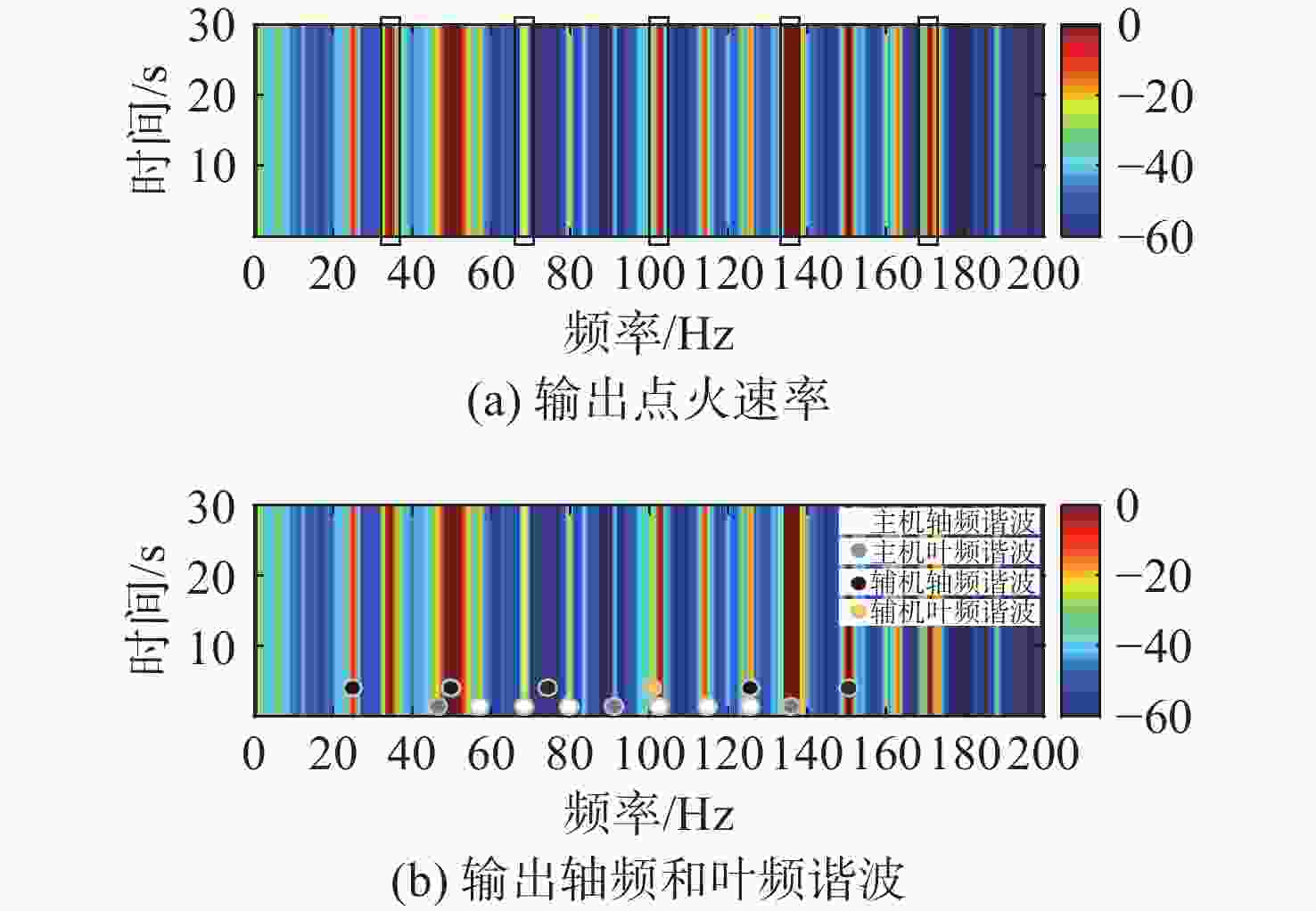

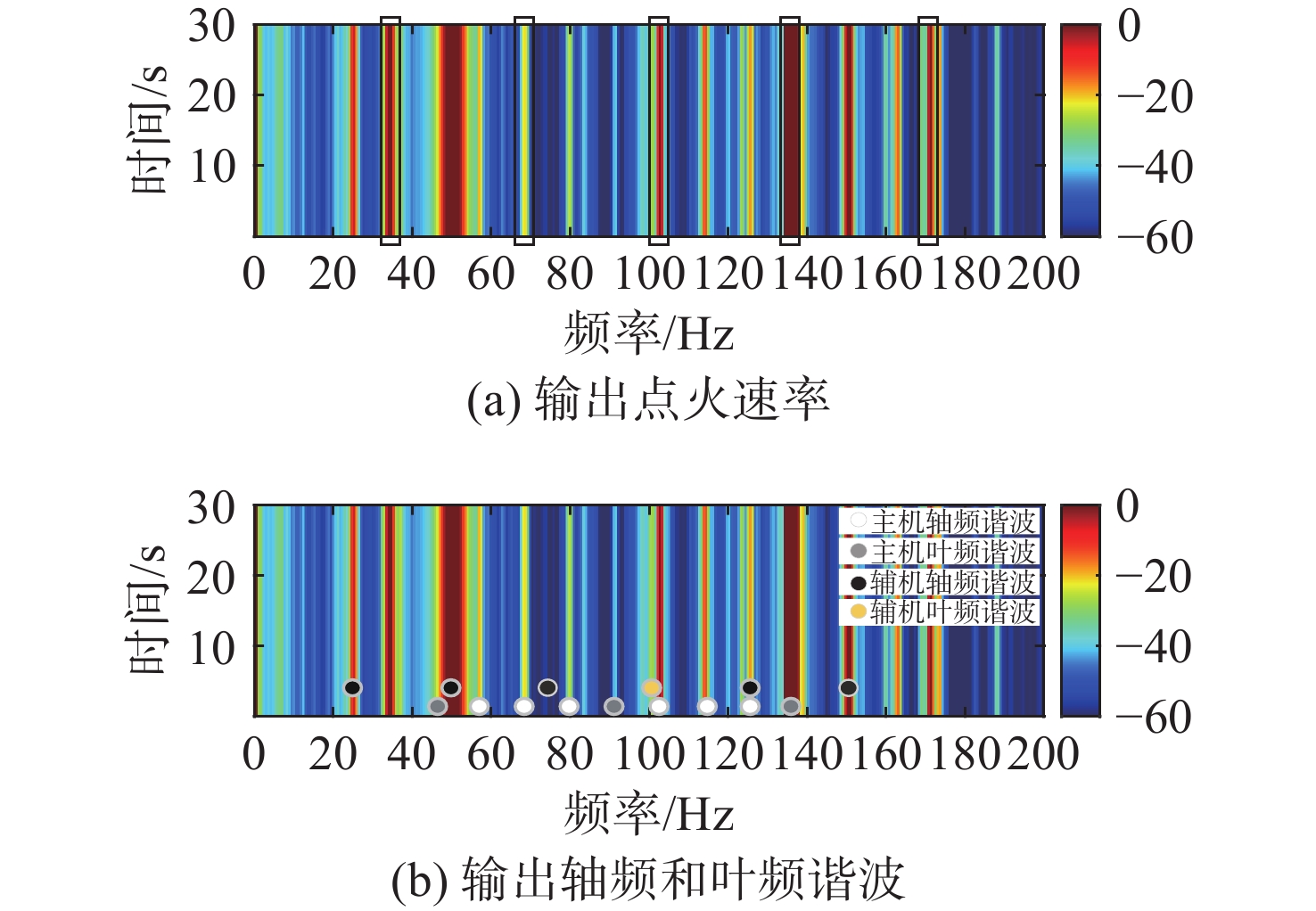

图 13 0~200 Hz区间输出信号LOFAR谱

Figure 13. LOFAR spectrum of the output signals in the 0-200 Hz range

下载: 全尺寸图片幻灯片

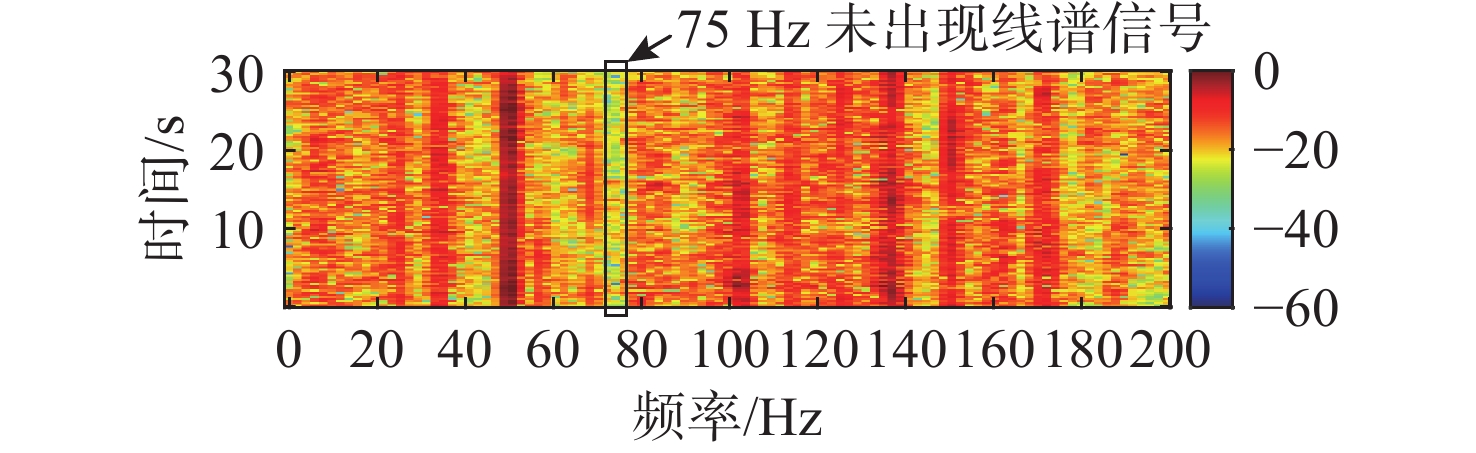

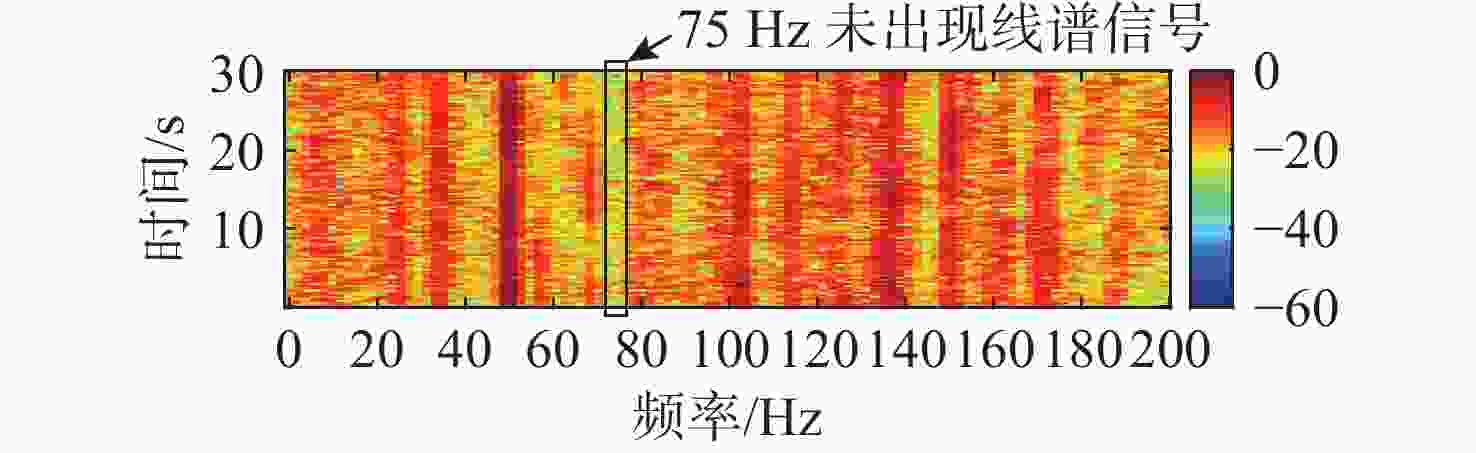

图 14 输入信号75 Hz处线谱信号缺失示意图

Figure 14. Line spectrum signal missing of input signal at 75 Hz

下载: 全尺寸图片幻灯片

表 1 模型参数设置

Table 1. Parameter setting of the model

模块	参数名称	参数值
自适应滤波模块	滤波器阶数	2 000
自适应滤波模块	步长	0.000 01
BiLSTM	隐藏层数	300
Transformer编码器	编码器层数	2
全局参数	损失函数	SmoothL1Loss
	优化器	Adam
	迭代次数	300
	学习率	0.001

下载: 导出CSV

表 2 仿真线谱信号参数设置

Table 2. Parameters setting of the simulated line spectrum signals

序号	幅值	频率/Hz
1	3.5	100
2	2	200
3	5	500
4	6	1 500

下载: 导出CSV

表 3 消融实验结果

Table 3. Results of ablation experiments

模型	SNR/dB
模型	−5	−7	−10	−12	−15
MCC-FDAF-DL	0.957	0.951	0.944	0.938	0.928
BiLSTM	0.770	0.763	0.757	0.746	0.741
BiLSTM + SAR	0.845	0.839	0.832	0.825	0.815
BiLSTM + Transform编码器	0.846	0.839	0.834	0.821	0.808

下载: 导出CSV
