Multi-agent Reinforcement Learning-based Transmission Scheduling with Cross-layer Design for Underwater Acoustic Networks in Time-varying Channels
-
摘要: 水声通信因其高传播时延、信道时变特性及带宽受限等因素, 在传输调度决策方面面临诸多挑战。为提升复杂水声环境下的通信效率, 文中提出了一种基于多智能体强化学习(MARL)的水声网络跨层传输方法(MARL-TS)。该方法针对高水声传播时延和动态信道环境, 以传输节点的数据缓存状态与信道条件为基础, 以通信网络的传输效率和传输时延为优化目标, 自适应地进行跨层优化, 实现功率分配与时隙资源调度的联合优化。为学习最优传输策略, 文中构建了可学习的策略生成网络与价值评价网络, 并结合多智能体协同学习, 提升策略优化的效率与自适应决策能力。仿真实验表明, 与现有基于强化学习的多路访问控制(MAC)协议相比, MARL-TS在传输能效优化和传输时延降低等方面表现出显著优势, 尤其在多节点高负载场景下展现了更强的适应性与稳定性, 为复杂水下通信系统的优化提供了新的思路。Abstract: Underwater acoustic (UWA) communication faces numerous challenges in transmission scheduling and decision-making due to its high propagation delay, time-varying channel characteristics, and limited bandwidth. To enhance communication efficiency in complex UWA environments, this paper proposes a multi-agent reinforcement learning (MARL)-based cross-layer transmission method for UWA networks, termed MARL-TS. This method addresses the high propagation delay and dynamic channel conditions by leveraging transmission node buffer states and channel conditions as the foundation while optimizing network throughput and transmission delay. It adaptively performs cross-layer optimization to jointly optimize power allocation and timeslot scheduling. To learn the optimal transmission strategy, this study constructs a learnable policy generation network and a value evaluation network, integrating multi-agent cooperative learning to improve strategy optimization efficiency and adaptive decision-making capabilities. Simulation results demonstrate that, compared with existing reinforcement learning-based MAC protocols, MARL-TS significantly enhances transmission efficiency and reduces transmission delay. Notably, it exhibits superior adaptability and stability in multi-node, high-load scenarios, offering a novel approach for optimizing complex underwater communication systems.
-

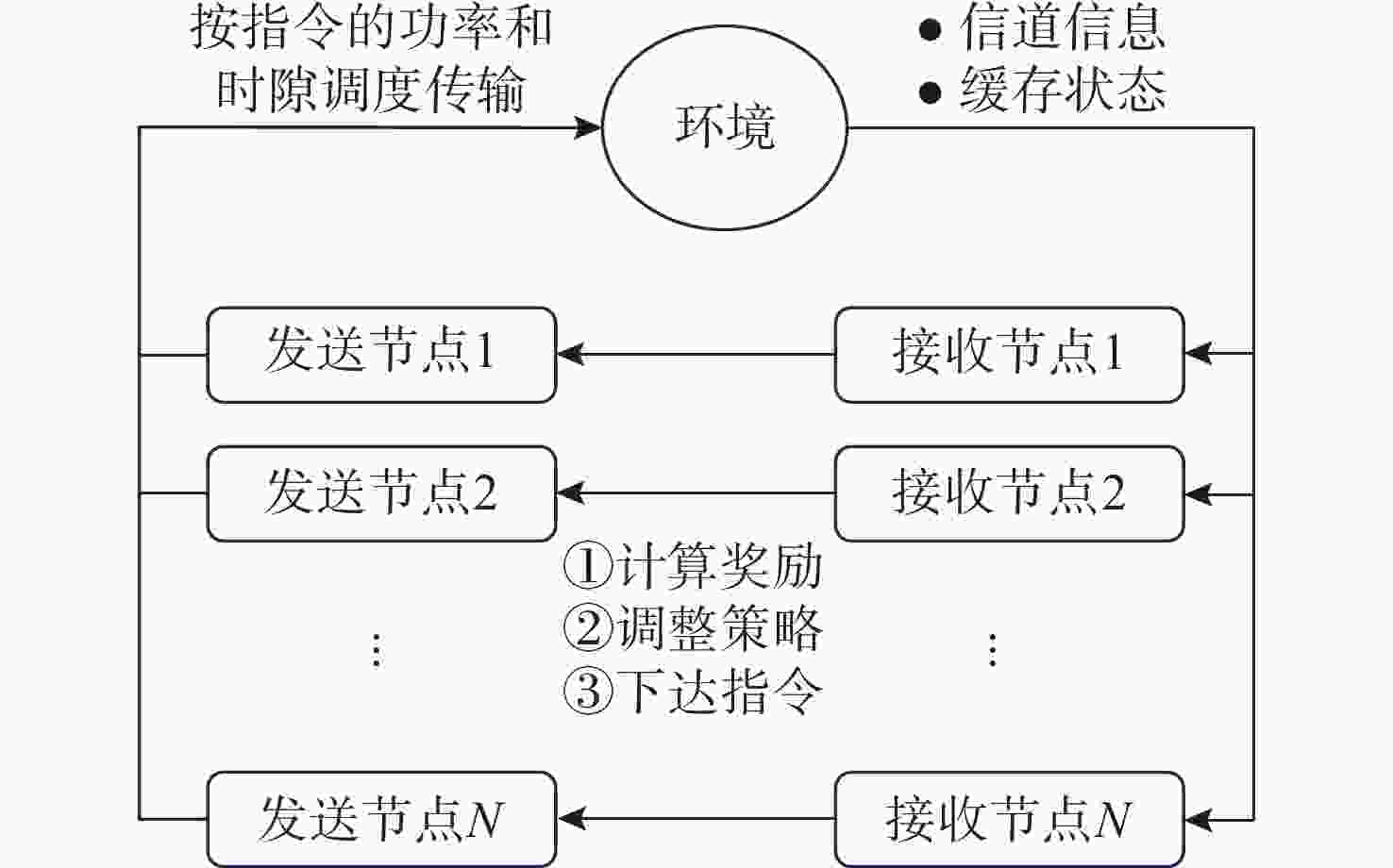

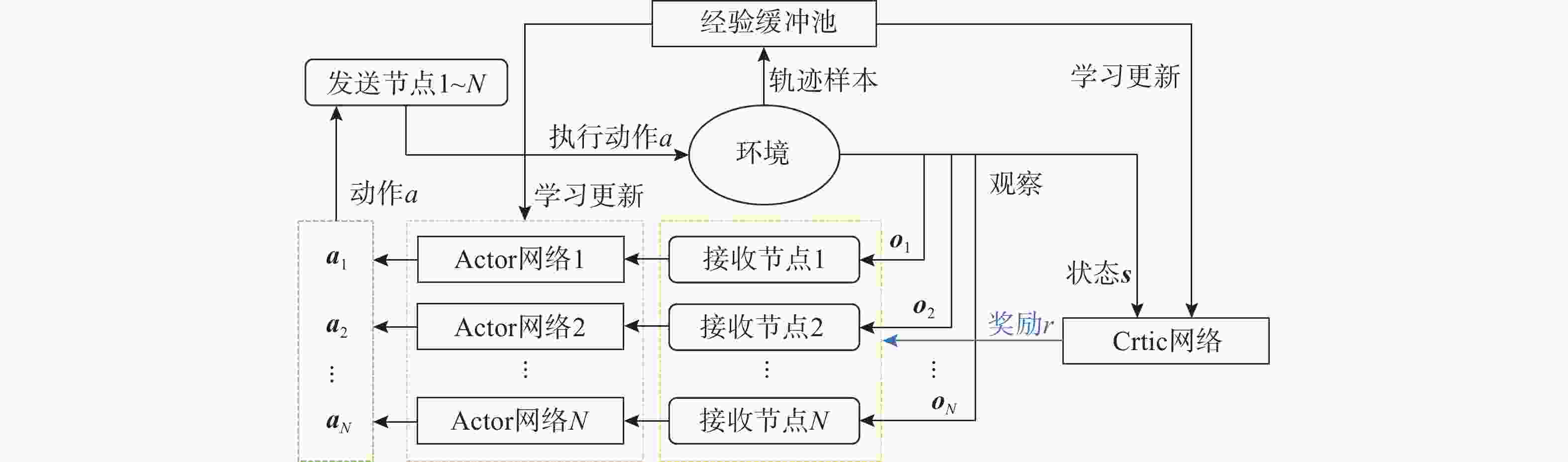

图 3 MARL-TS协议中多智能体与环境交互示意图
Figure 3. Schematic diagram of the interaction between multiple agents and the environment in the MARL-TS protocol

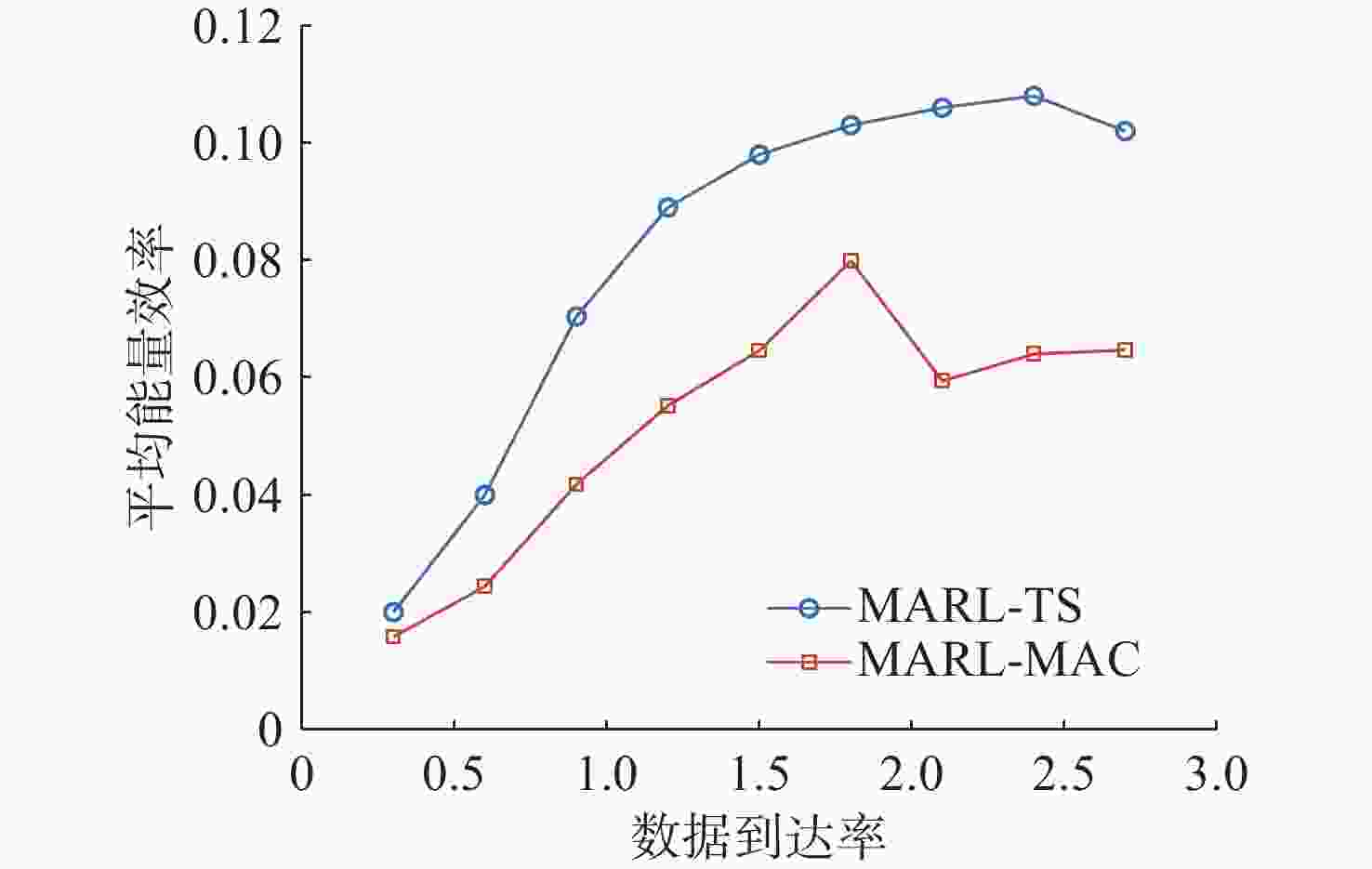

图 6 不同数据到达率下能量效率的比较
Figure 6. Comparison of energy efficiency at different data arrival rates

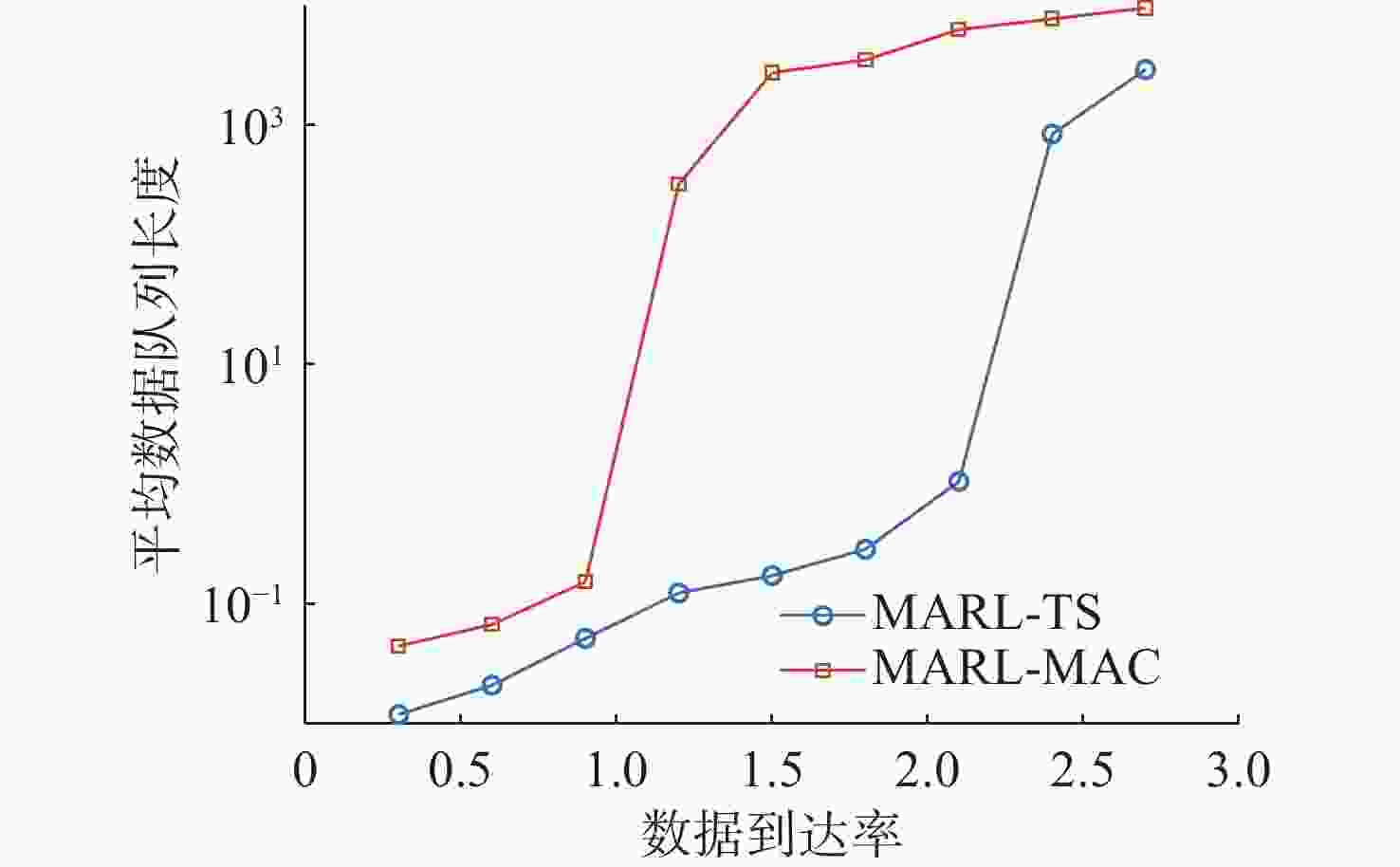

图 7 不同数据到达率下平均数据队列长度的比较
Figure 7. Comparison of average data queue length at different data arrival rates

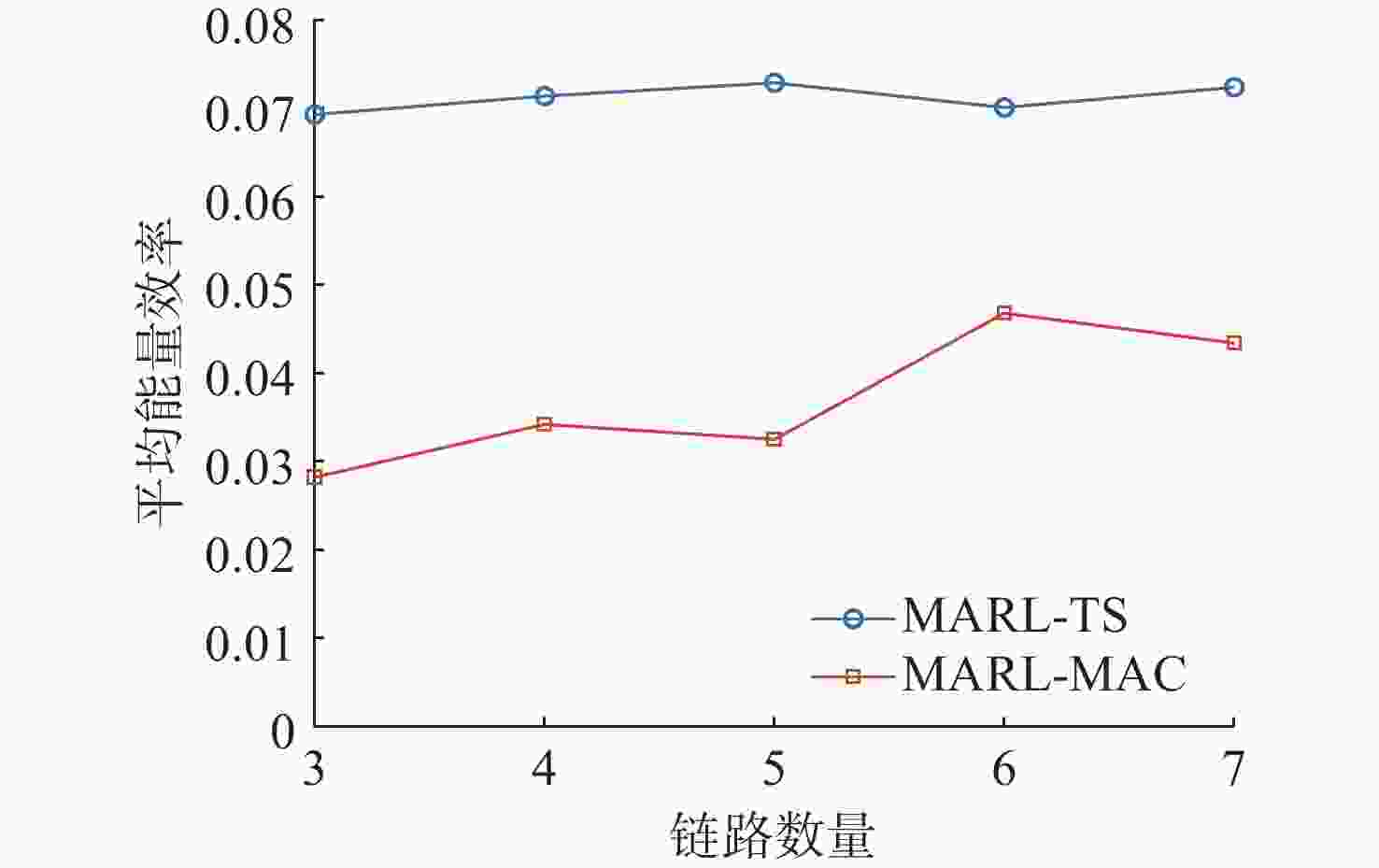

图 8 不同链路数量下能量效率的比较
Figure 8. Comparison of energy efficiency with different number of links

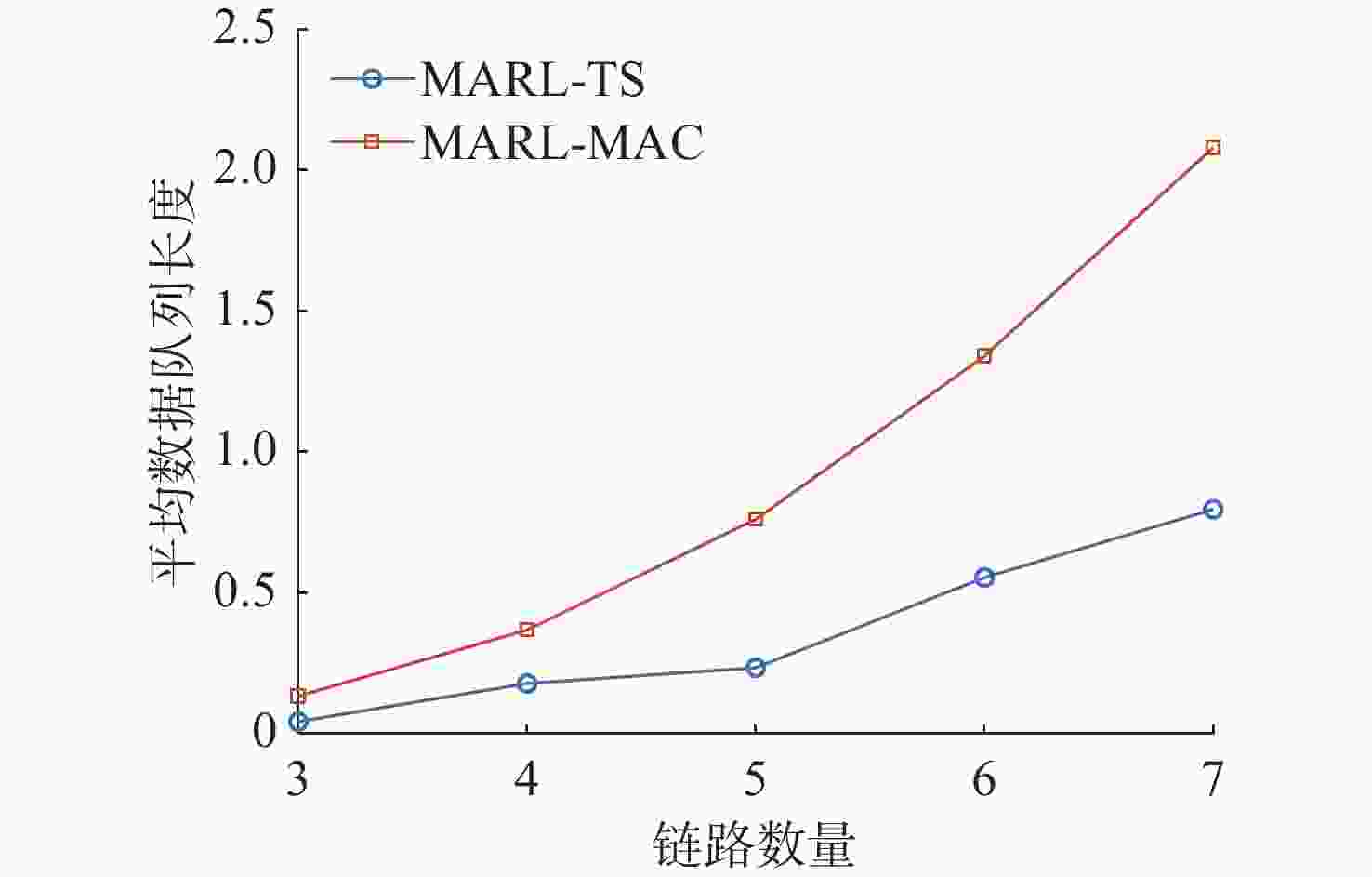

图 9 不同链路数量下平均队数据列长度的比较
Figure 9. Comparison of the average data queue length for different number of links

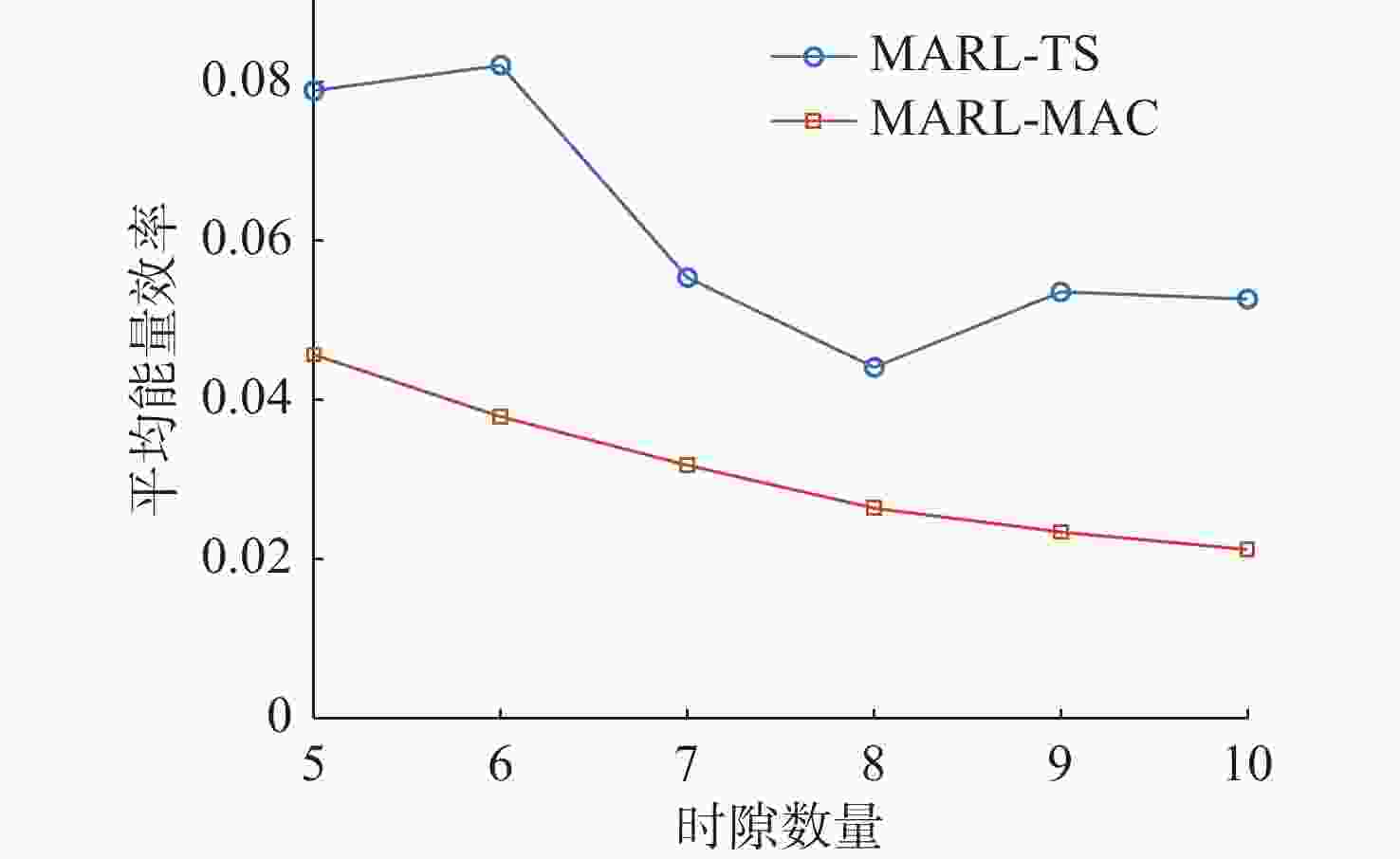

图 10 不同时隙数量下能量效率的比较
Figure 10. Comparison of energy efficiency at different number of time slots

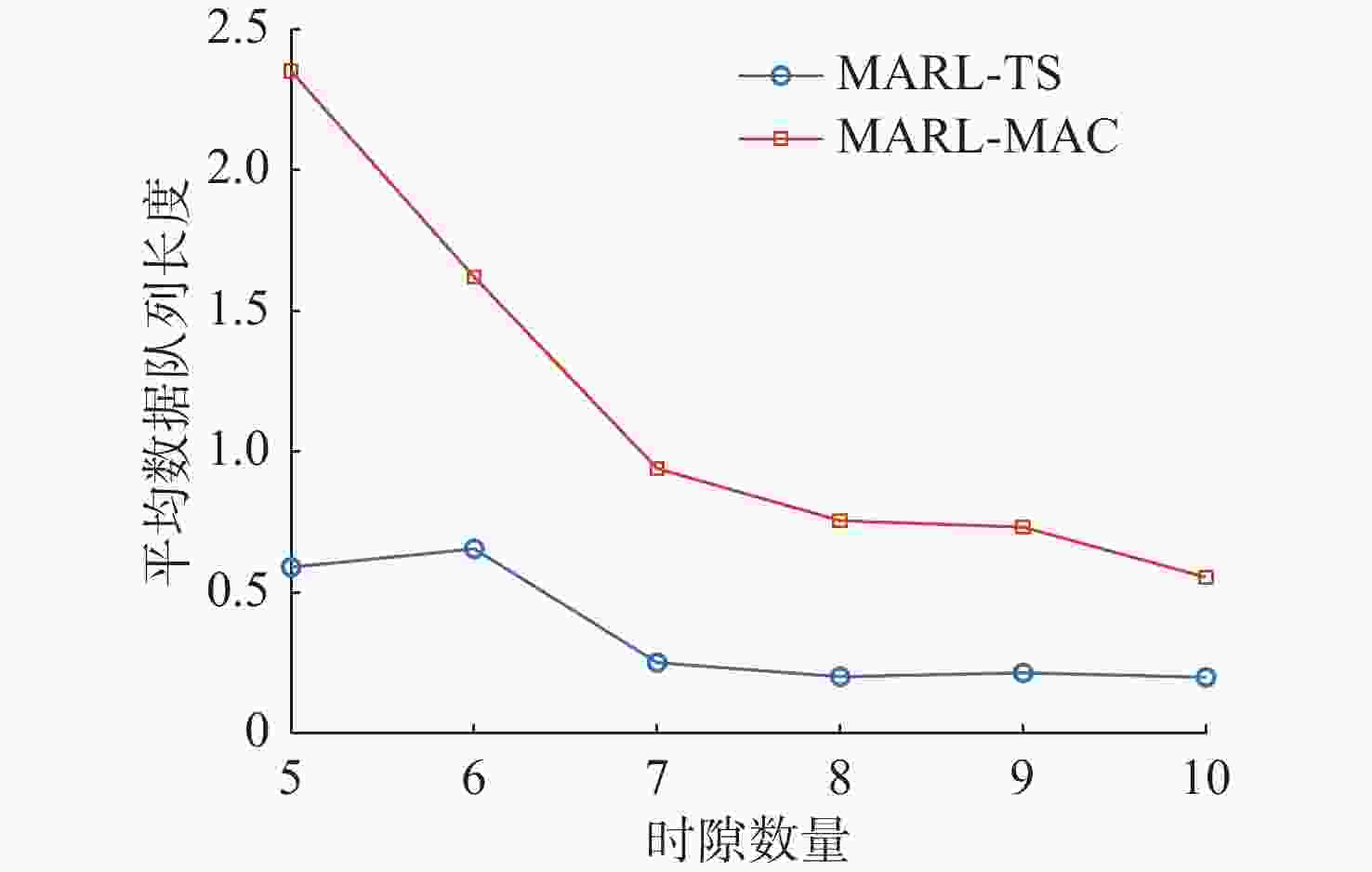

图 11 不同时隙数量下平均数据队列长度的比较
Figure 11. Comparison of average data queue length for different number of time slots

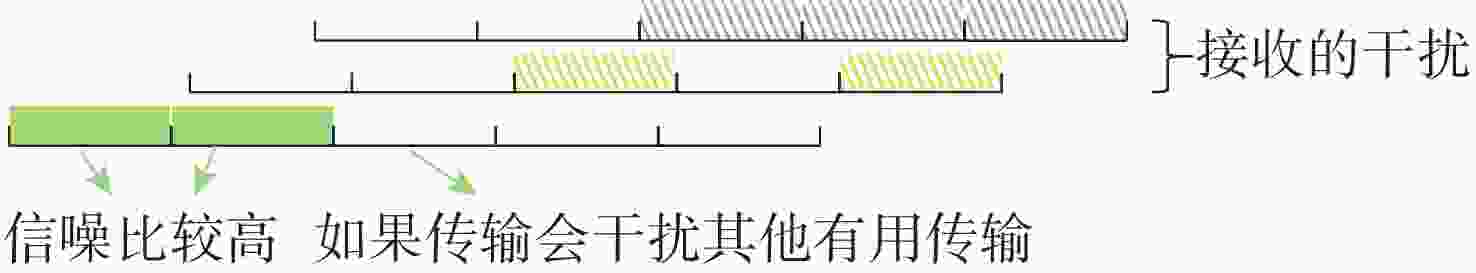

图 12 高信噪比信道条件下的传输模式例子
Figure 12. Example of transmission patterns under high SNR channel conditions

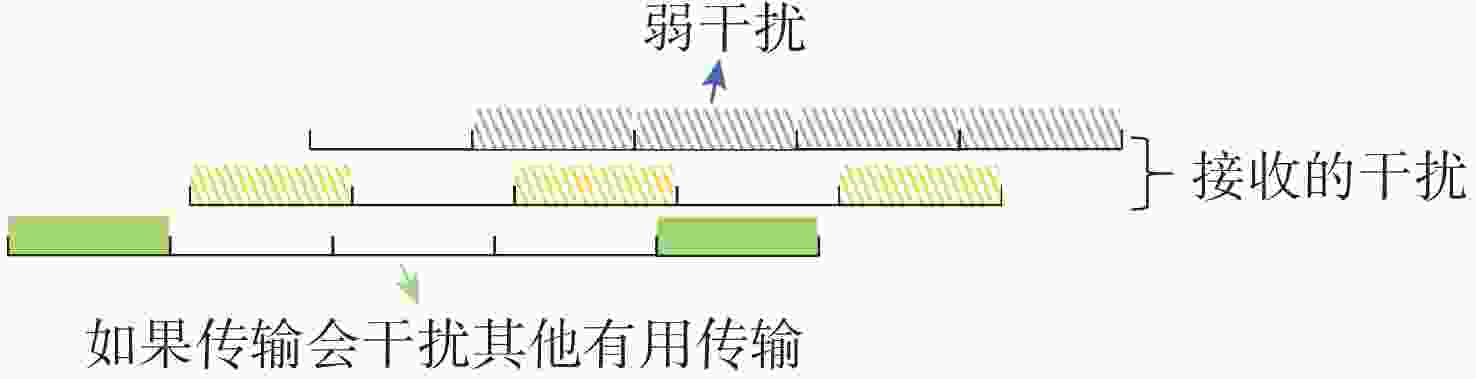

图 13 弱干扰条件下的传输模式例子
Figure 13. Example of transmission patterns under weak interference conditions
表 1 典型场景中MARL-TS与SARL-TS的性能比较
Table 1. Comparison of the performance of MARL-TS and SARL-TS in typical scenarios
指标 方法 场景1 场景2 场景3 EE MARL-TS 0.0 789 0.0 693 0.0 789 SARL-TS 0.0 697 0.0 380 0.0 457 DQL MARL-TS 0.1 190 0.0 428 0.1 990 SARL-TS 0.3 700 0.2 260 0.5 340
