深海特种耐压结构水面-水下复杂工况试验方法

陈沙古 高原 吴智睿 王琨 周成

陈沙古, 高原, 吴智睿, 等. 深海特种耐压结构水面-水下复杂工况试验方法[J]. 水下无人系统学报, xxxx, x(x): x-xx doi: 10.11993/j.issn.2096-3920.2024-0153
引用本文: 陈沙古, 高原, 吴智睿, 等. 深海特种耐压结构水面-水下复杂工况试验方法[J]. 水下无人系统学报, xxxx, x(x): x-xx doi: 10.11993/j.issn.2096-3920.2024-0153
CHEN Shagu, GAO Yuan, WU Zhirui, WANG Kun, ZHOU Cheng. Test Method for Surface and Underwater Condition of Deep-sea Special Pressure Structure[J]. Journal of Unmanned Undersea Systems. doi: 10.11993/j.issn.2096-3920.2024-0153
Citation: CHEN Shagu, GAO Yuan, WU Zhirui, WANG Kun, ZHOU Cheng. Test Method for Surface and Underwater Condition of Deep-sea Special Pressure Structure[J]. Journal of Unmanned Undersea Systems. doi: 10.11993/j.issn.2096-3920.2024-0153

深海特种耐压结构水面-水下复杂工况试验方法

doi: 10.11993/j.issn.2096-3920.2024-0153
详细信息
    作者简介:

    陈沙古, 男, 1984年10月出生, 中国船舶科学研究中心高级工程师, 主要从事深海装备耐压结构设计与评估技术研究, E-mail: chenshagu@163.com

  • 中图分类号: U661

Test Method for Surface and Underwater Condition of Deep-sea Special Pressure Structure

  • 摘要: 分离头盖是深海无人系统的特种耐压结构, 需兼顾水下长期耐压与水面快速分离功能。为研究深海特种耐压结构水面-水下复杂工况综合性能, 研制了分离头盖实尺度结构模型开展水压试验和分离试验研究。首先, 针对分离头盖水下服役时面临的长周期海水压力环境试验工况需求, 基于国内现有的常规深海环境模拟试验系统, 提出了一种通过带皮囊球的舱室装置来实现大深度海水-压力耦合环境模拟的试验方法。再者, 针对分离头盖出水后的水面状态(空气中)快速分离试验工况需求, 建立了一套安全可靠的斜法兰连接结构模型快速分离试验系统。分离头盖实尺度模型试验结果表明, 论文提出的特种耐压结构水面-水下复杂工况试验方法合理可行, 不仅可用于分离头盖的水压试验和分离试验研究, 也可为其他深海装备类似耐压结构的相关设计与试验提供一定参考。

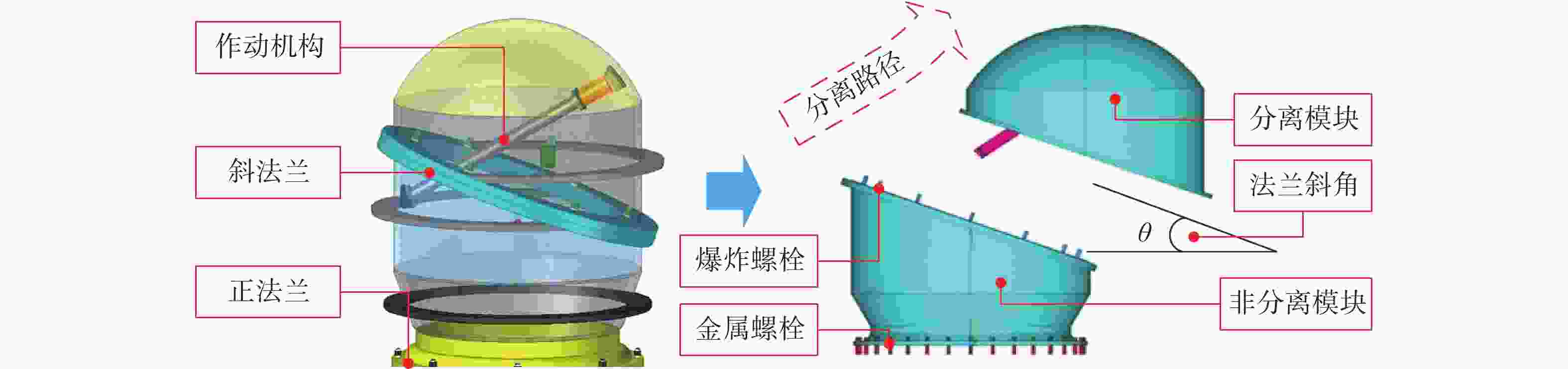

  • 图  1  分离头盖结构简图

    Figure  1.  Schematic diagram of head cover

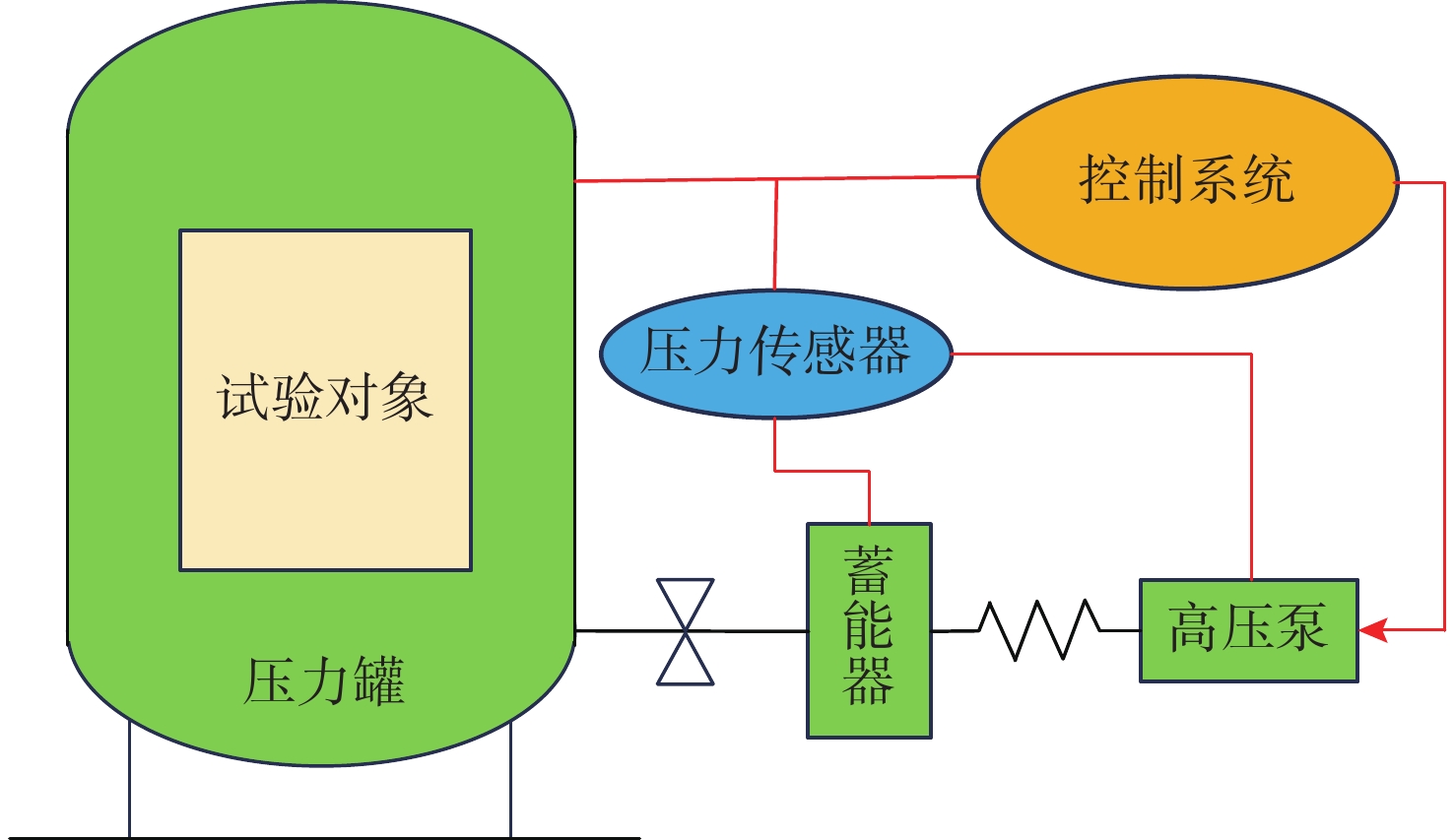

    图  2  深海环境模拟试验装置组成简图

    Figure  2.  Composition of the deep-sea environment simulation test device

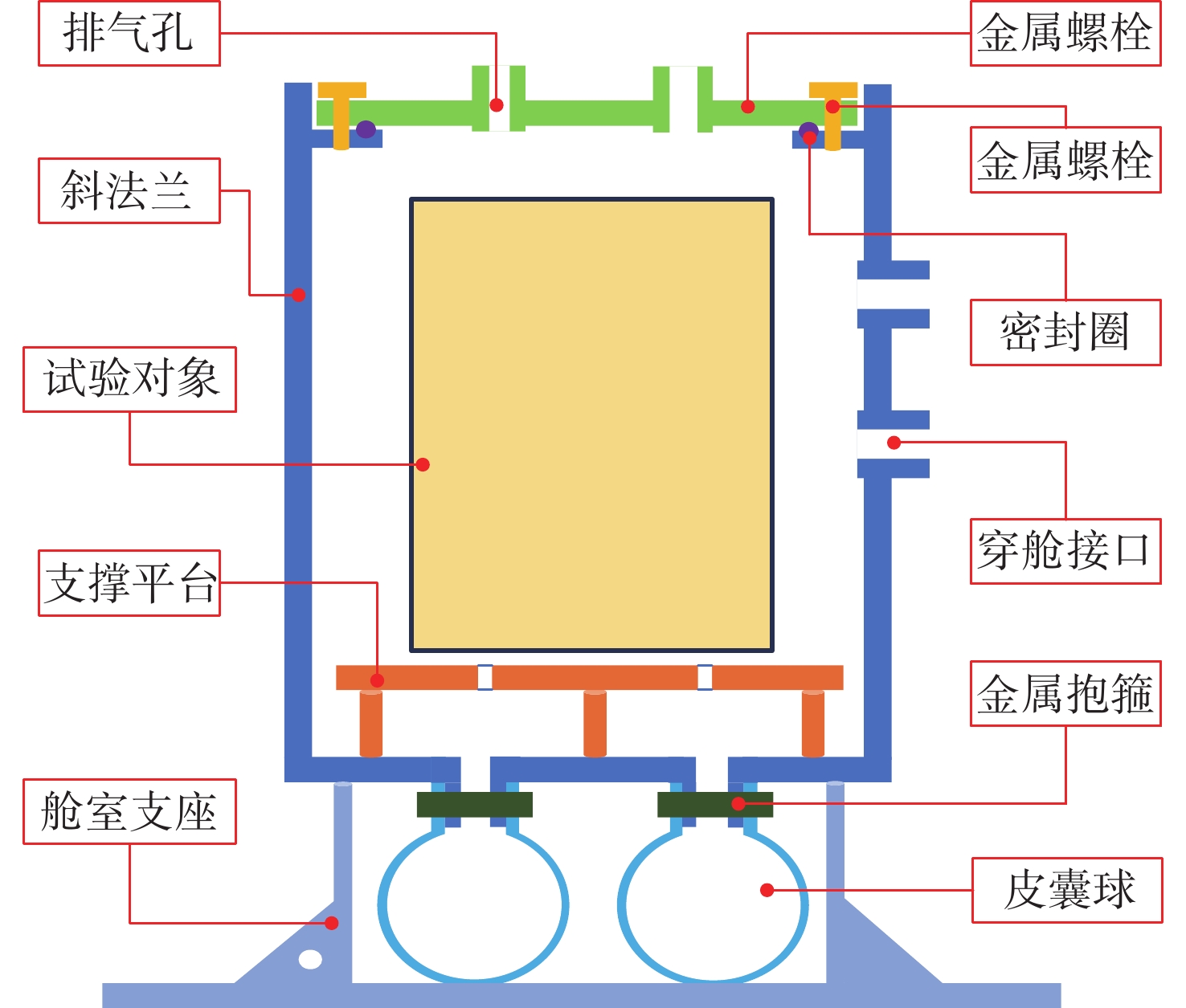

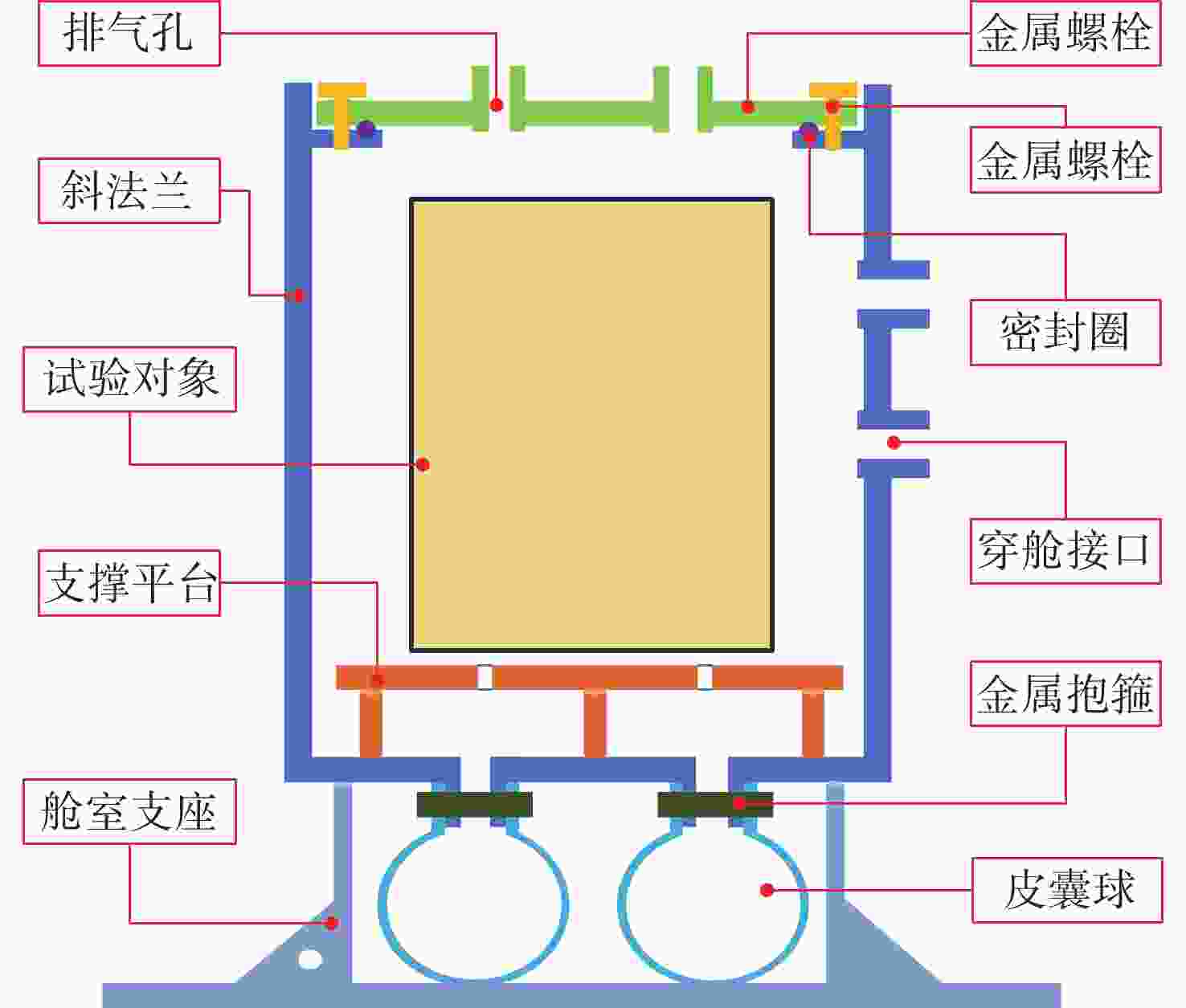

    图  3  海水舱结构简图

    Figure  3.  Schematic diagram of seawater tank

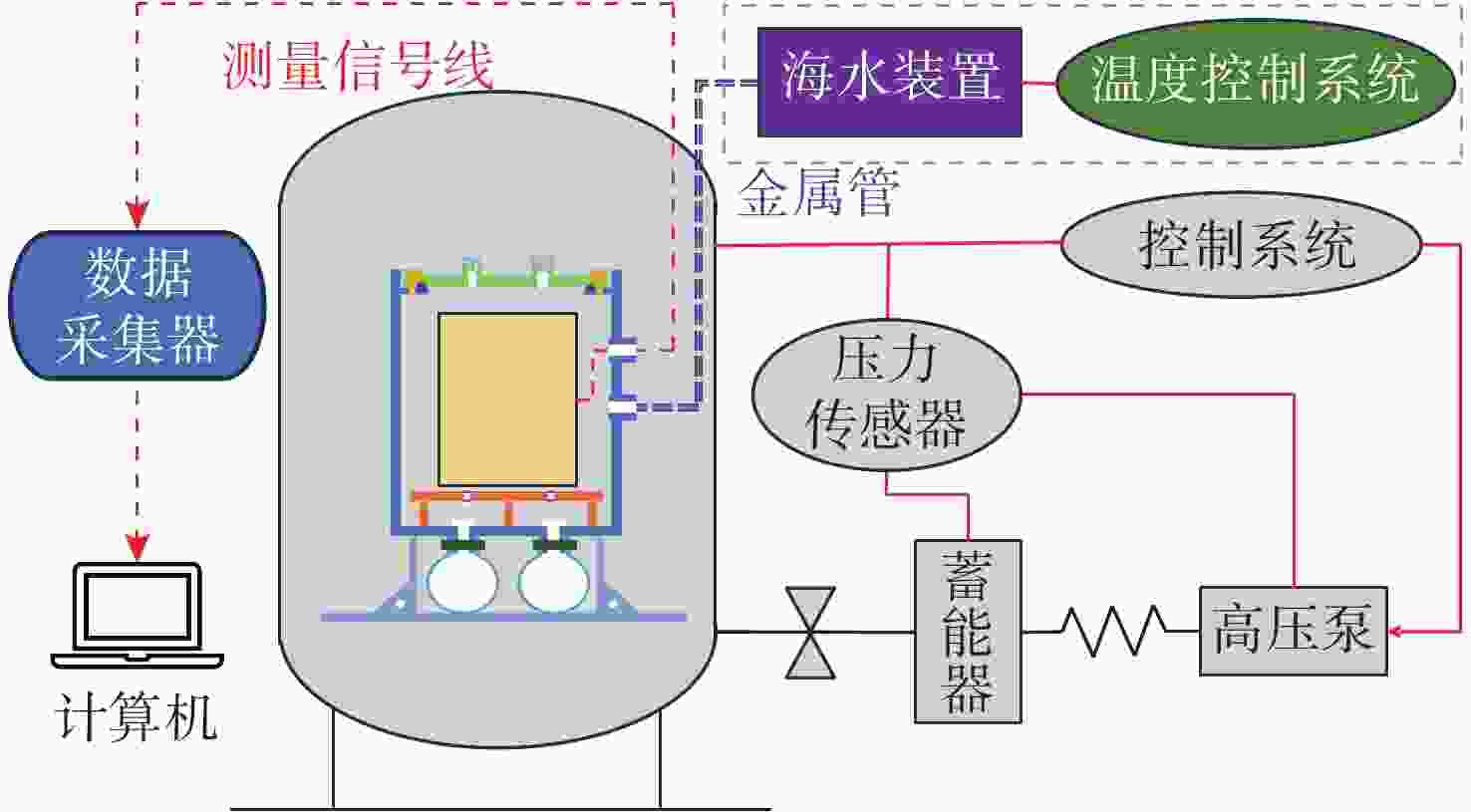

    图  4  海水压力环境模拟试验原理图

    Figure  4.  Schematic diagram of seawater pressure environment simulation test

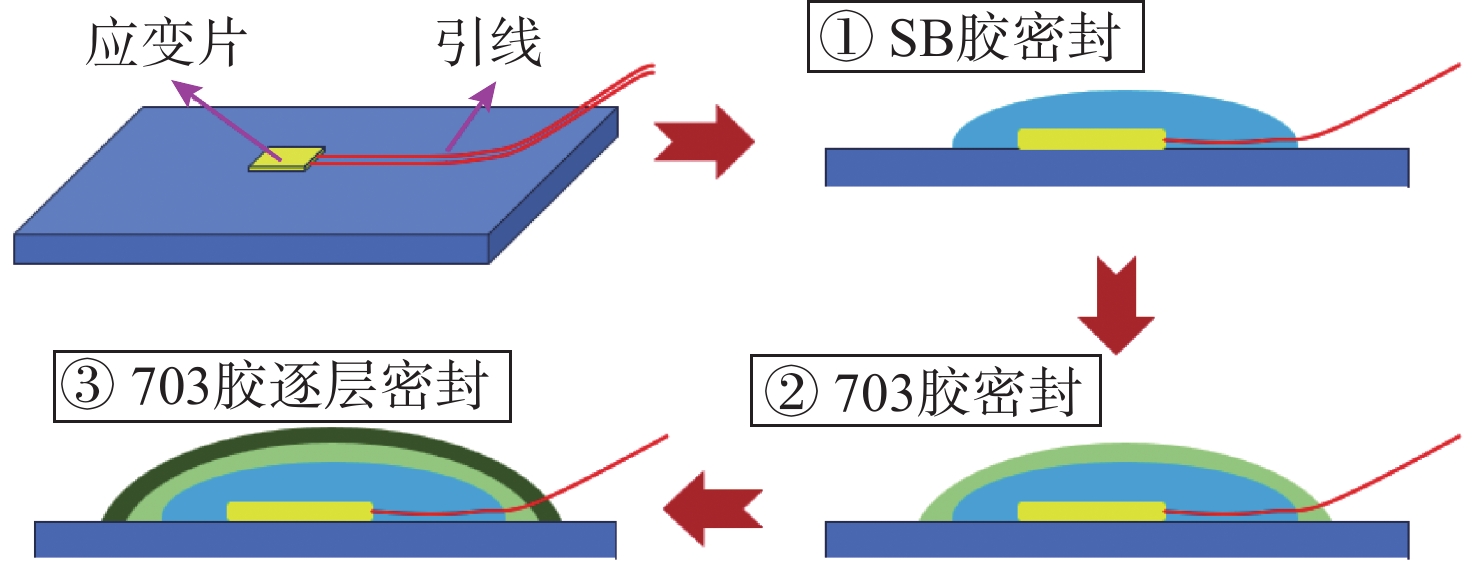

    图  5  高压试验应变片防水密封方法

    Figure  5.  Waterproof sealing method for strain gauges in high pressure test

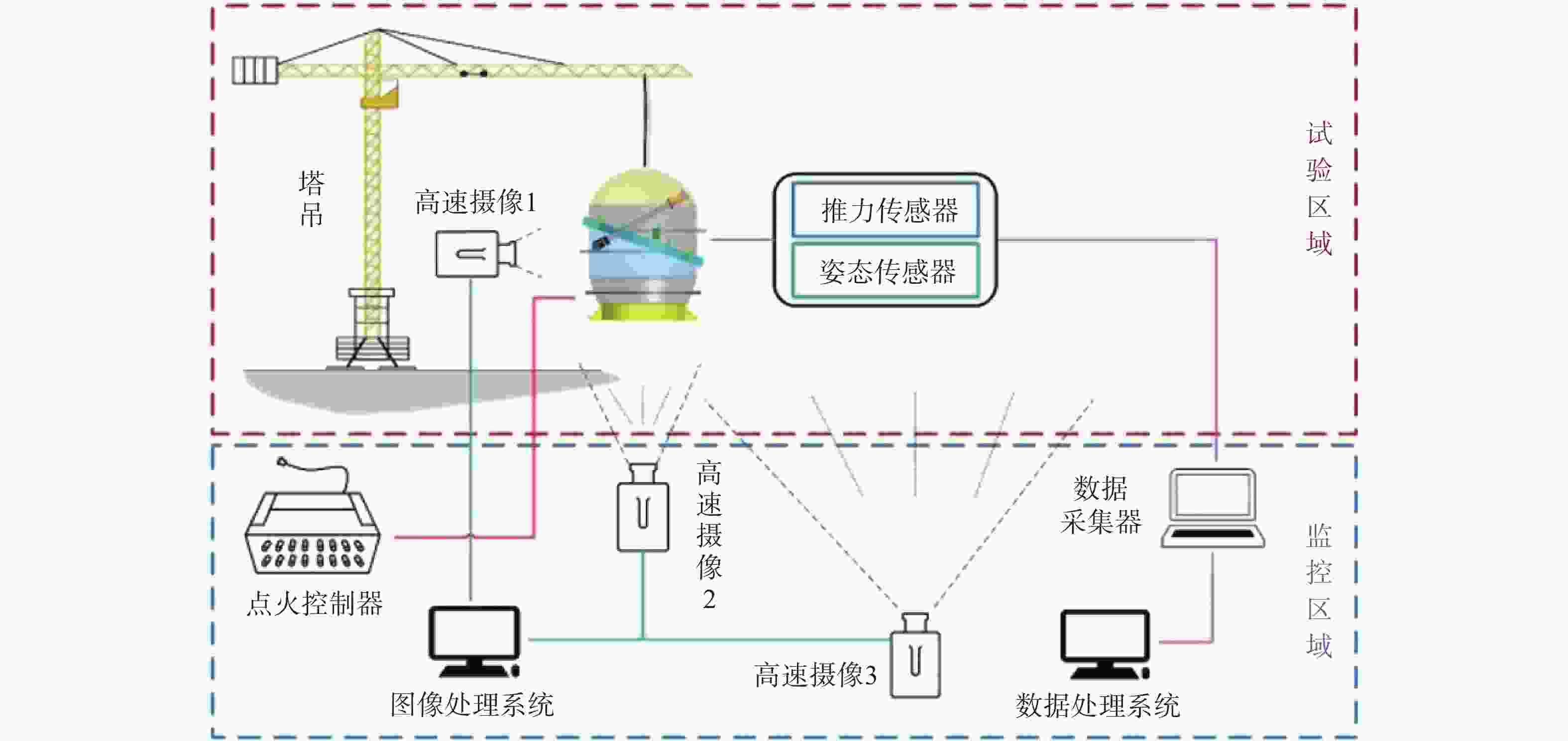

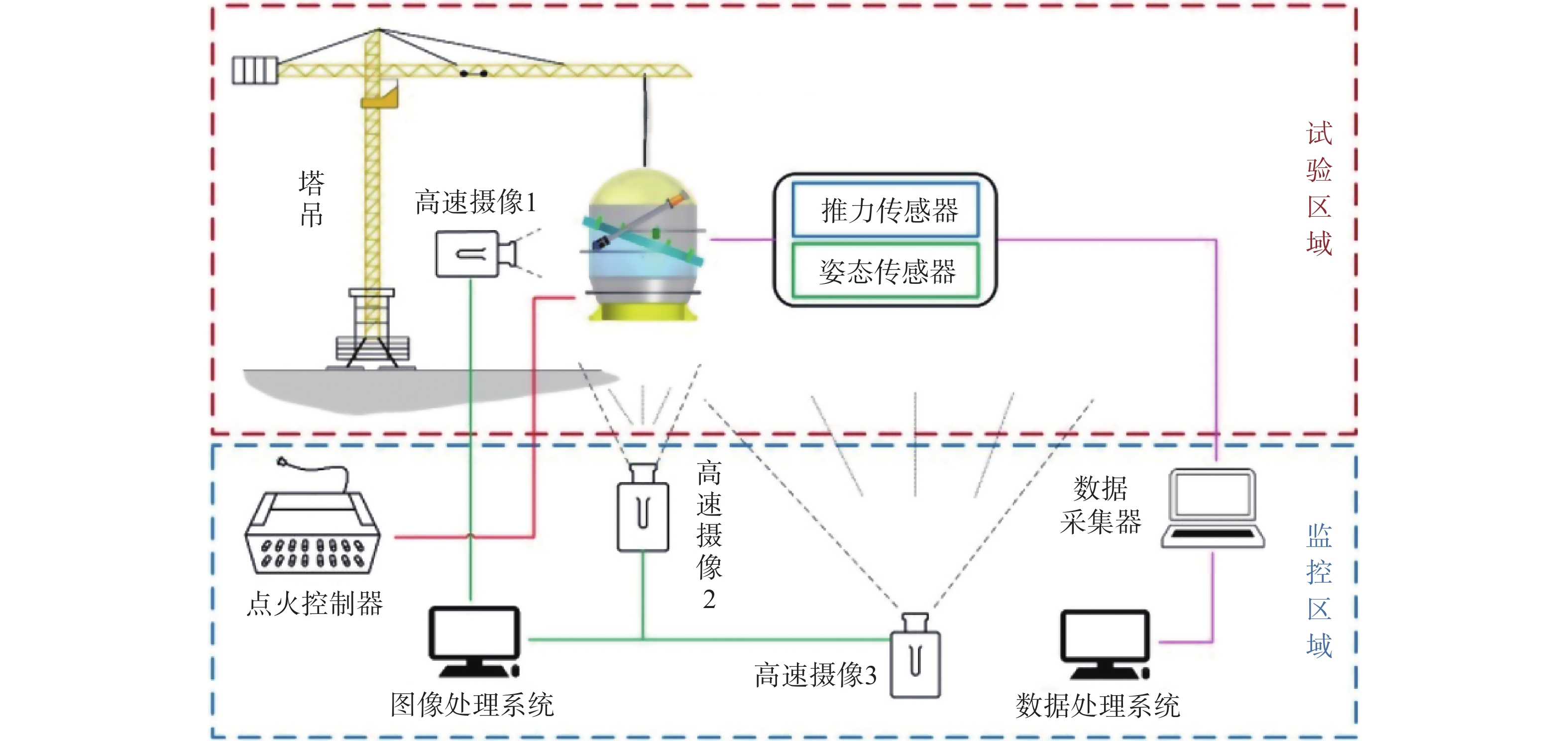

    图  6  分离试验系统原理图

    Figure  6.  Schematic diagram of separation test system for head cover

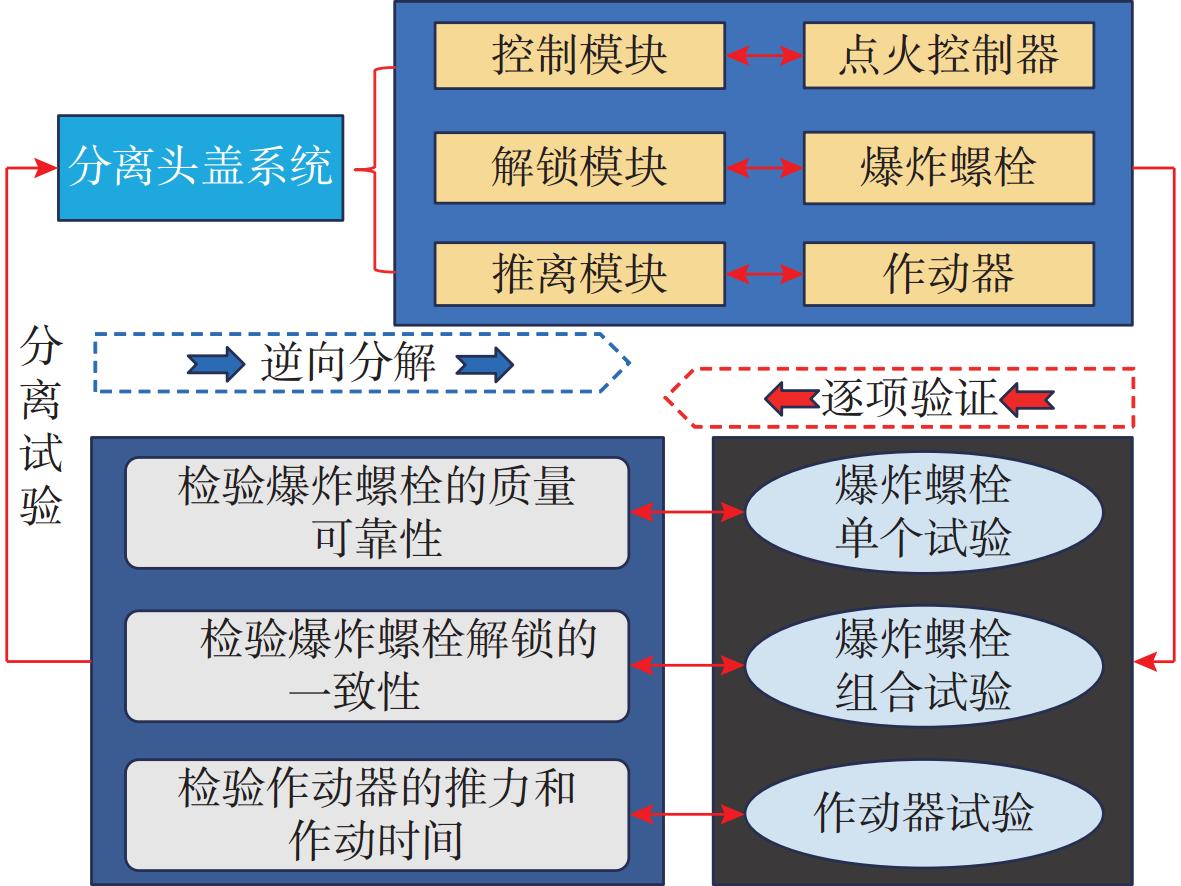

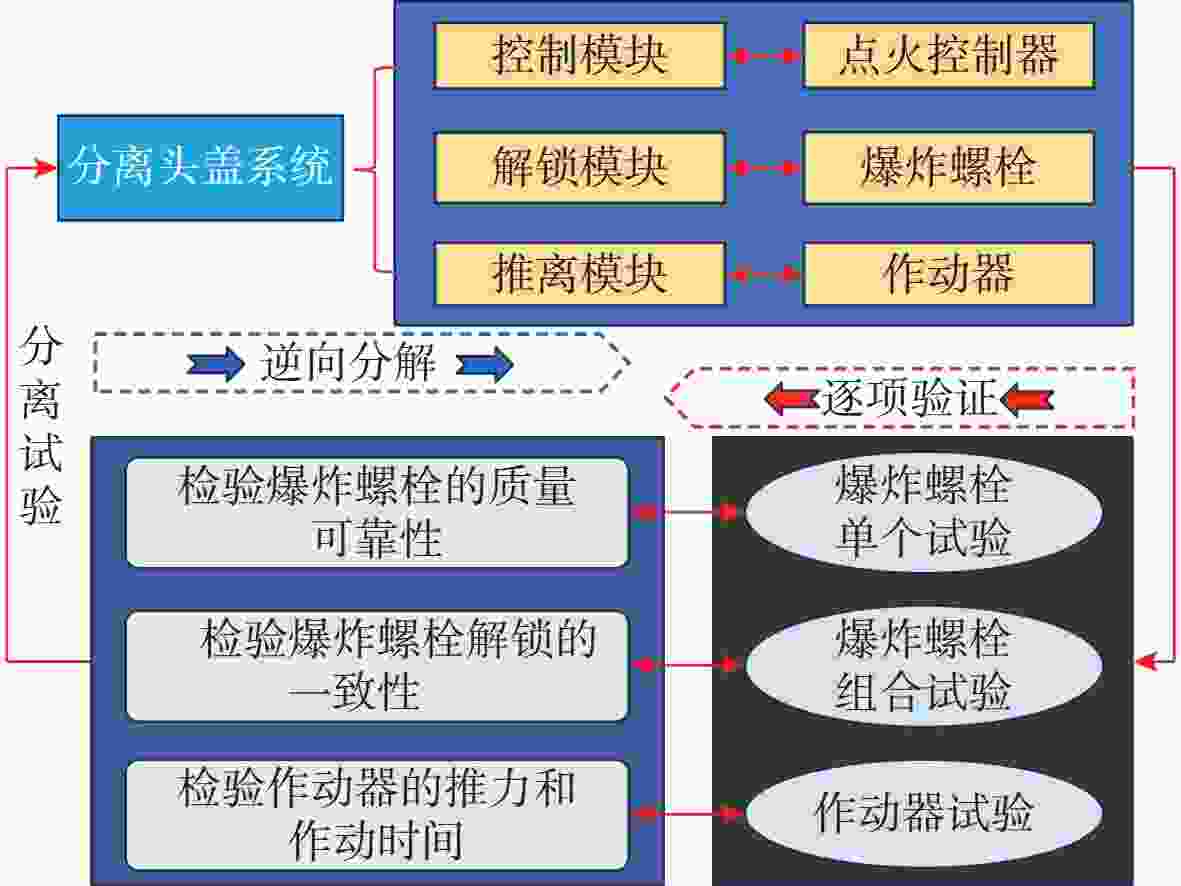

    图  7  分离试验逐项验证方法示意图

    Figure  7.  Verification of Separation test Item by Item

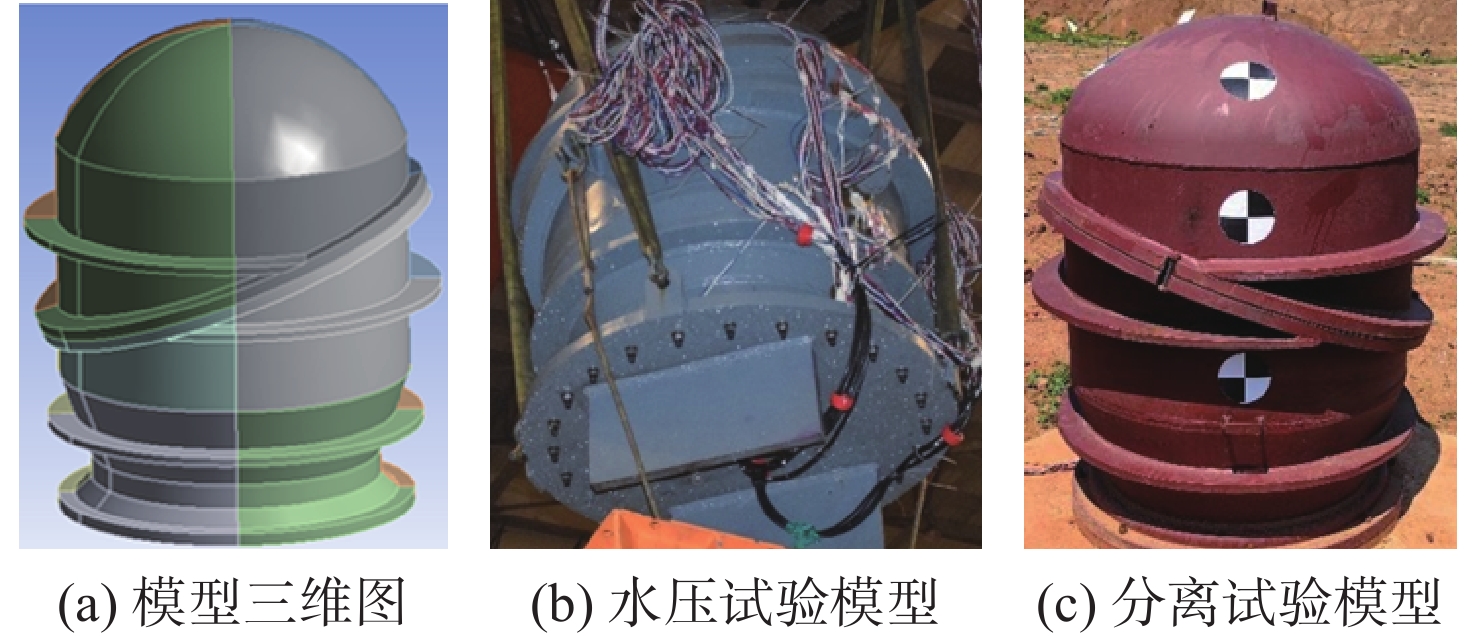

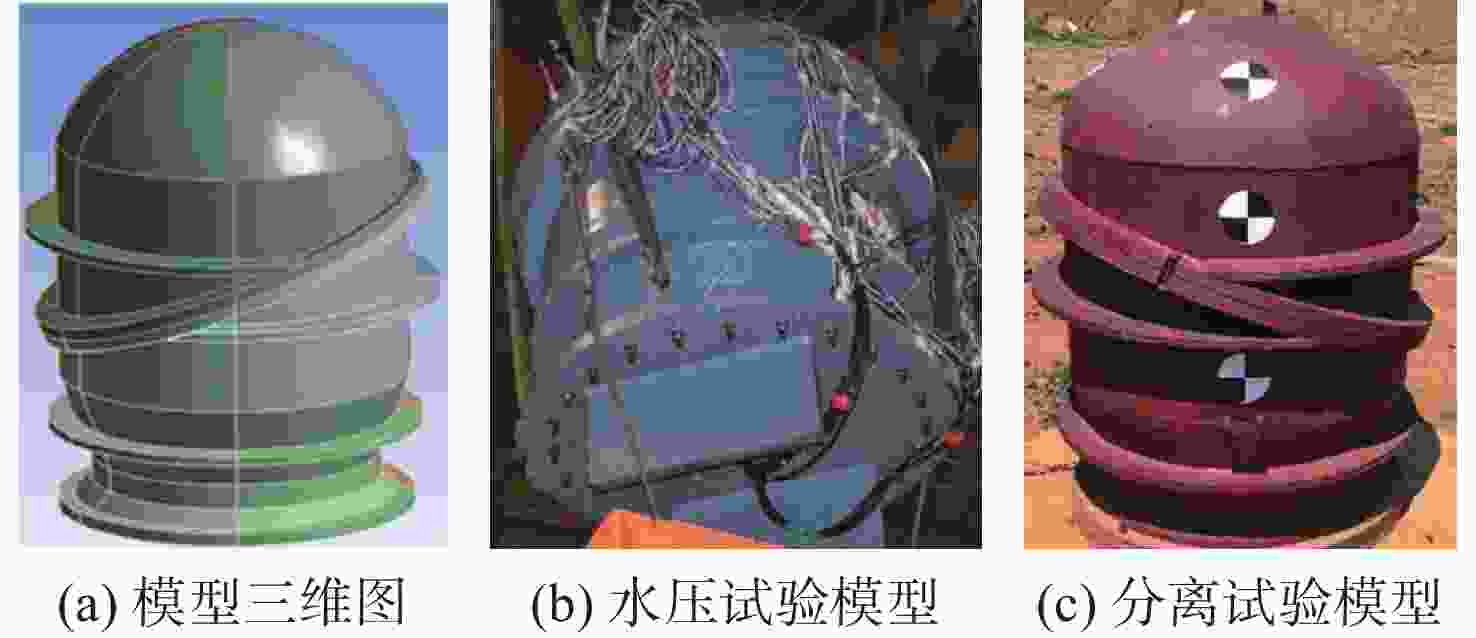

    图  8  分离头盖实尺度结构模型

    Figure  8.  Full-scale model of the head cover

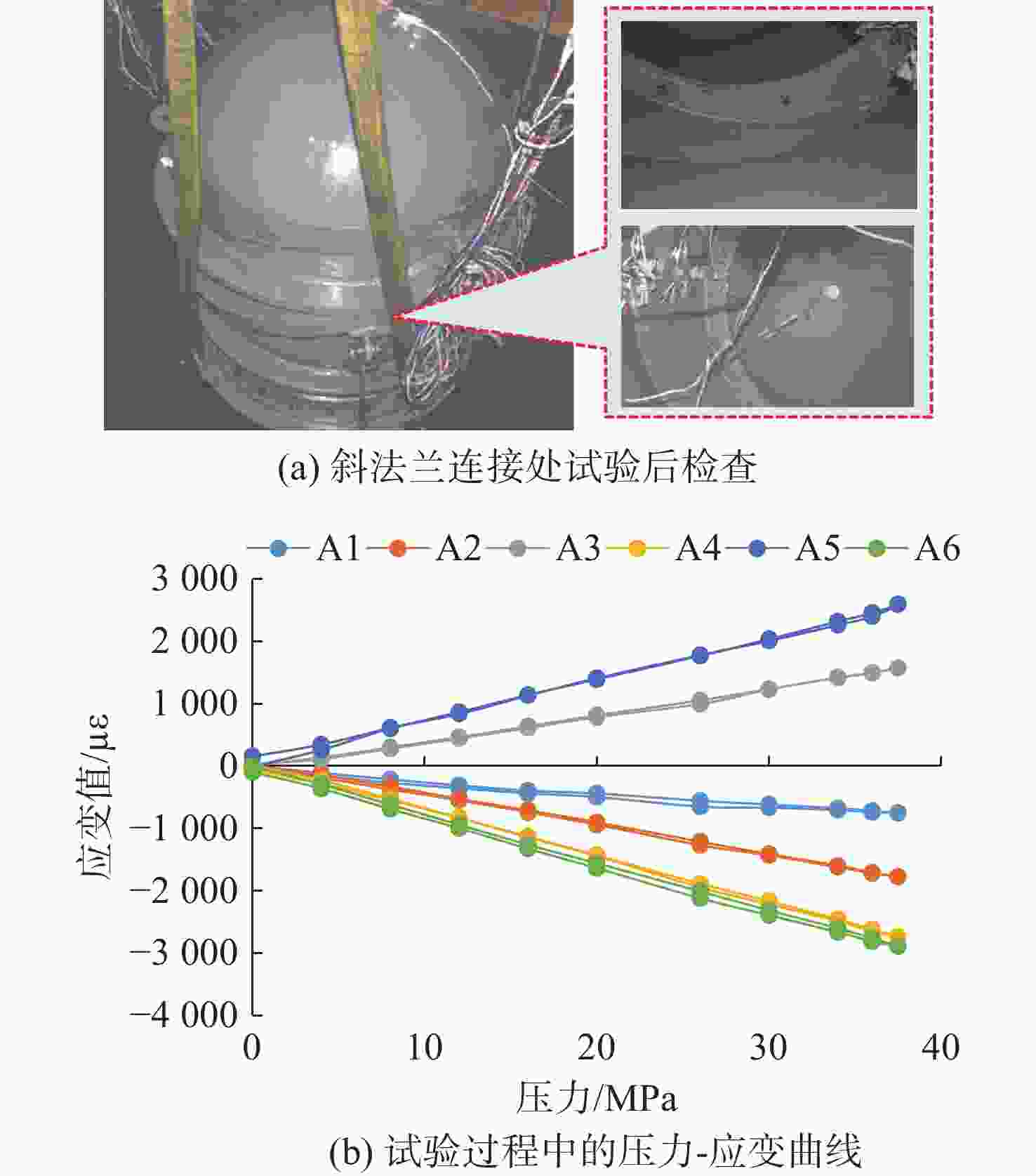

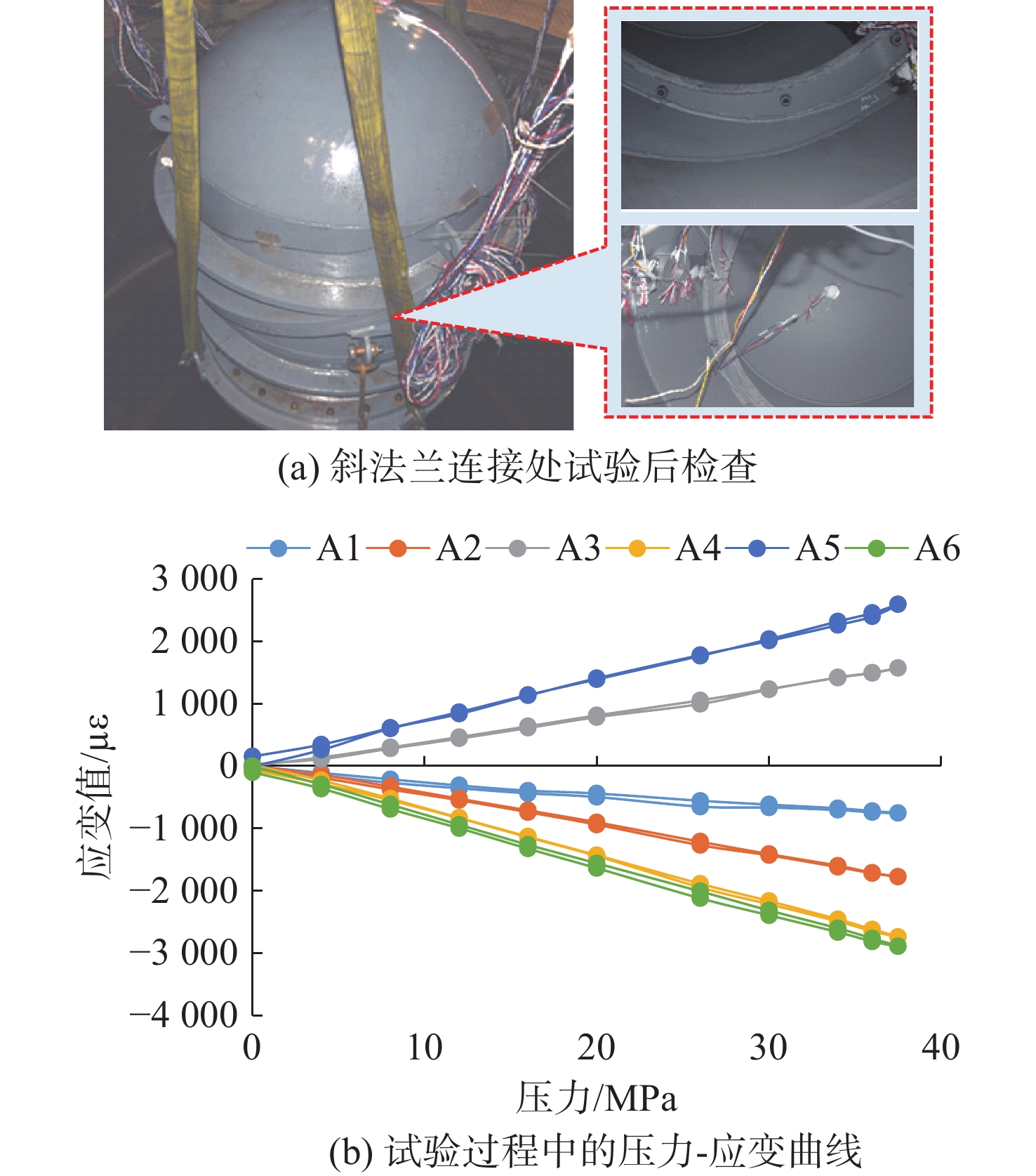

    图  9  模型海水-压力耦合环境外压试验情况

    Figure  9.  Pressure test of full-scale model

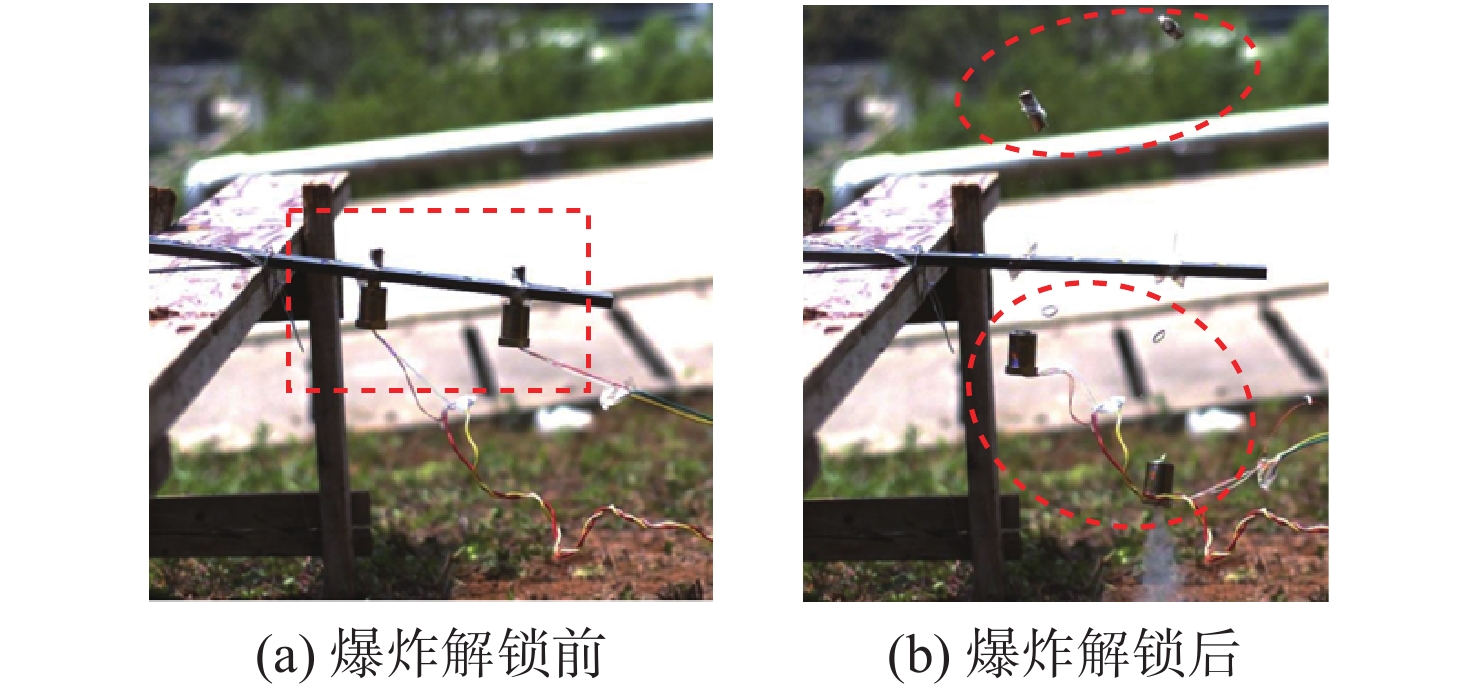

    图  10  爆炸螺栓性能测试

    Figure  10.  Performance test of explosion bolt

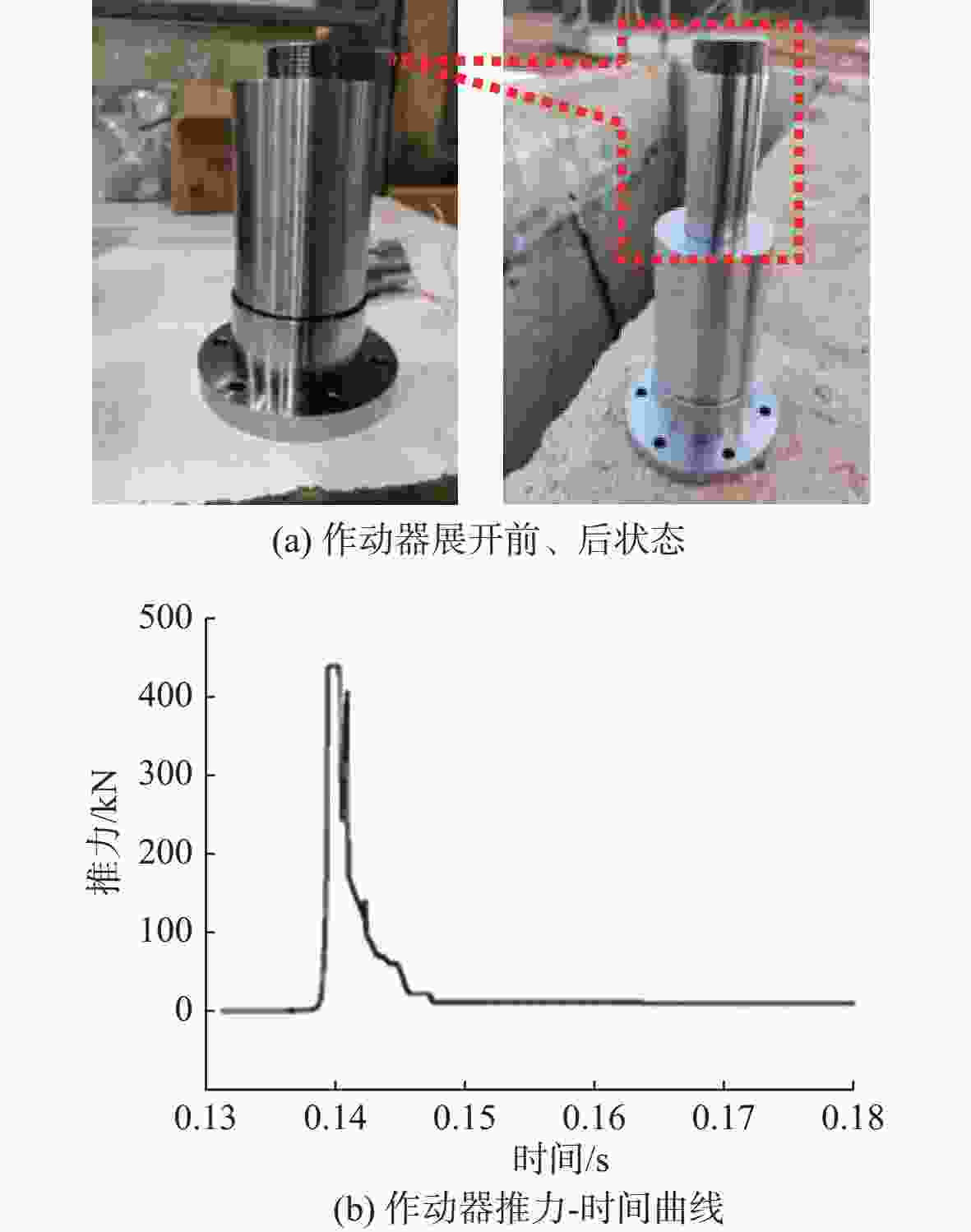

    图  11  作动器性能测试

    Figure  11.  Performance test of actuator

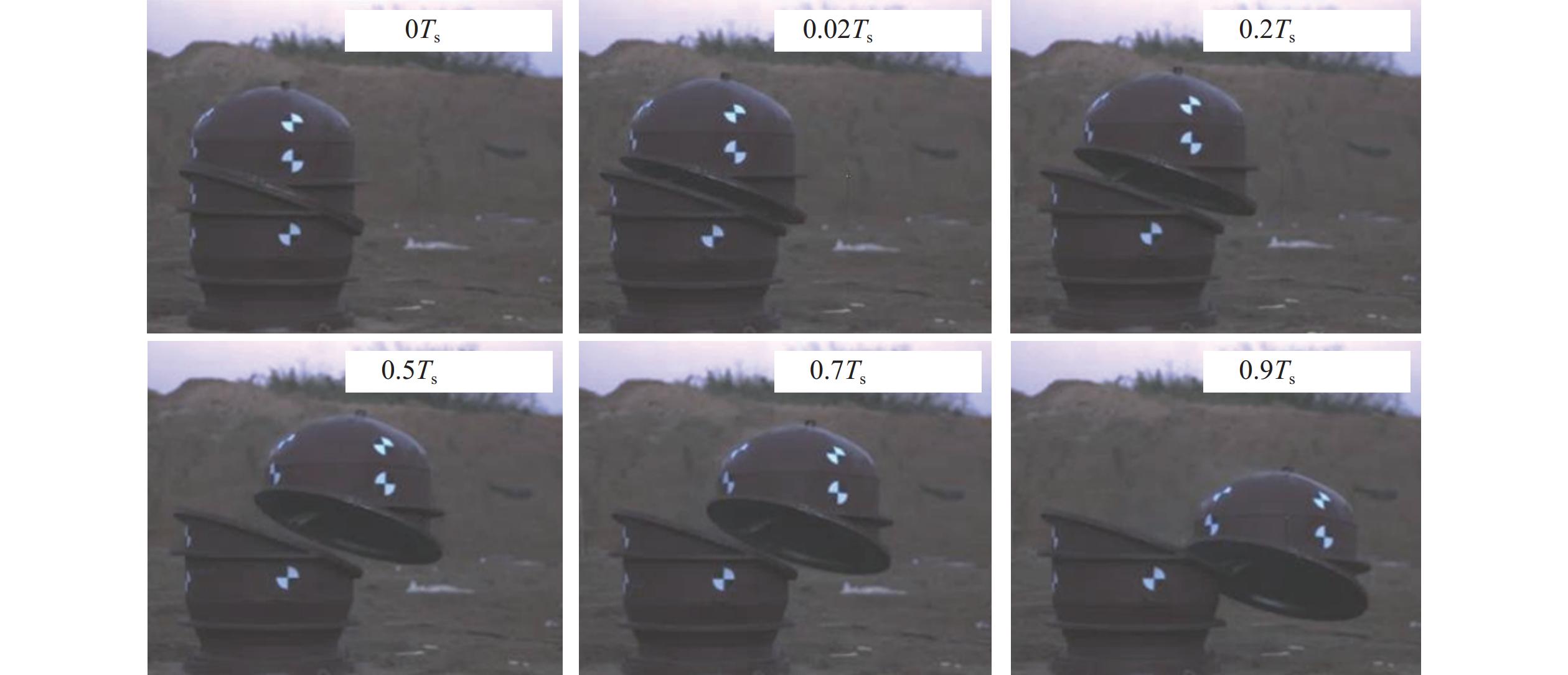

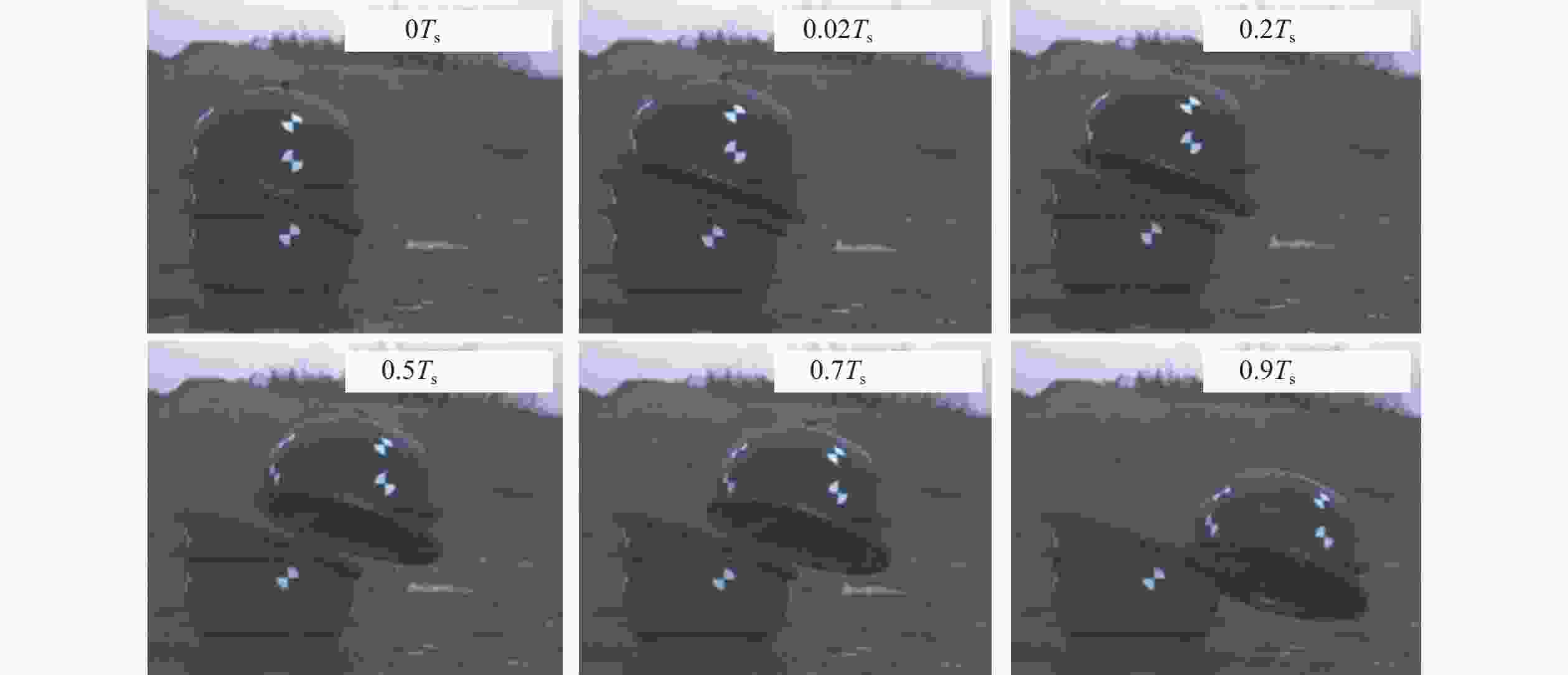

    图  12  模型分离过程情况

    Figure  12.  Separation process of full-scale model

  • [1] Er Zhang, et al. Research Status and Development Trend of Pressure Resistant Structure of Deep Submersibles[J]. Journal of Ship Mechanics, 2021, 25(10): 1427-1437.
    [2] 石学法, 符亚洲, 李兵. 我国深海矿产研究: 进展与发现(2011~2020年)[J]. 矿物岩石地球化学通报, 2021, 40(22): 1-14.

    SHI Xuefa, FU Yazhou, LI Bing. Research on deep-sea minerals in China: Progress and discovery(2011−2020)[J]. Bulletin of Mineralogy, Petrology and Geochemistry, 2021, 40(22): 1-14.
    [3] 黄牧, 石学法. 毕东杰. 深海稀土资源勘查开发研究进展[J]. 中国有色金属学报, 2021, 31(10): 2665-2681.

    HUANG Mu, SHI Xuefa, BI Dongjie. Advances on study of exploration and development of deep-sea rare earth resources[J]. The Chinese Journal of Nonferrous Metals, 2021, 31(10): 2665-2681.
    [4] Muttaqie Teguh, et al. Optimisation of the Design of A Steel-welded Pressure Hull Structure Based on Interactive Nonlinear Collapse Strength Analyses[J]. Ships and Off-shore Structures, 2022, 17(1/3): 76-91.
    [5] Fang Wang, et al. Preliminary Evaluation of Maraging Steels on Its Application to Full Ocean Depth Manned Cabin[J]. Journal of Ship Mechanics, 2016, 20(12): 1557-1572.
    [6] 曹俊, 胡震, 刘涛. 深海潜水器装备体系现状及发展分析[J]. 中国造船, 2020, 61(1): 204-218. doi: 10.3969/j.issn.1000-4882.2020.01.021

    CAO Jun, HU Zhen, LIU Tao. Current Situation and Development of Deep-sea Submersible Equipment[J]. Ship Building of China, 2020, 61(1): 204-218. doi: 10.3969/j.issn.1000-4882.2020.01.021
    [7] J. C. Amazigo, W. B. Fraser. Buckling under external pressure of cylindrical shells with dimple shaped initial imperfections[J]. International Journal of Solids & Structures, 1971, 7(8): 883-900.
    [8] 李智生, 张强. 深海预置武器系统发展现状及关键技术[J]. 舰船电子工程, 2020, 308(2): 1-4. doi: 10.3969/j.issn.1672-9730.2020.02.001

    LI Zhisheng, ZHANG Qiang. Development Situation and Key Technologies of Deep Sea Laying Weapon[J]. Ship Electronic Engineering, 2020, 308(2): 1-4. doi: 10.3969/j.issn.1672-9730.2020.02.001
    [9] 陈沙古, 高原, 吴智睿. 深海无人系统大长径比环肋圆柱壳结构设计与试验研究[J]. 海洋工程, 2024, 42(1): 115-123.

    CHEN Shagu, GAO Yuan, WU Zhirui. Study on design and experimental of ring-stiffened cylindrical shell with large length-diameter ratio for unmanned deep-sea systems[J]. The Ocean Engineering, 2024, 42(1): 115-123.
    [10] 李文跃, 王帅, 刘涛. 大深度载人潜水器耐压壳结构研究现状及最新进展[J]. 中国造船, 2016, 57(1): 210-221. doi: 10.3969/j.issn.1000-4882.2016.01.023

    LI Wenyue, WANG Shuai, LIU Tao. Current Status and Progress on Pressure Hull Structure of Manned Deep Submersible[J]. Shipbuilding of China, 2016, 57(1): 210-221. doi: 10.3969/j.issn.1000-4882.2016.01.023
    [11] WANG F, HU Y, CUI W C. Preliminary Evaluation of Maraging Steels on Its Application to Full Ocean Depth Manned Cabin[J]. Journal of Ship Mechanics, 2016, 20(12): 1557-1572.
    [12] 谢锡南, 潘森涛, 沈永新. 水下耐压结构外压疲劳试验系统研制[J]. 船舶力学, 2000, 4(2): 44-50.

    XIE Xinan, PAN Shentao, SHEN Yongxin. Development of experimental system for external pressure fatigue tests of underwater pressure structures[J]. Journal of ship mechanics, 2000, 4(2): 44-50.
    [13] 张强, 张雷励, 张铭钧. 深海环境模拟实验装置及压力动态控制技术[J]. 哈尔滨工程大学学报, 2016, 37(11): 1565-1572. doi: 10.11990/jheu.201510044

    ZHANG Qiang, ZHANG Leili, ZHANG Mingjun. Experiment devices for simulating a deep-sea environment and dynamic pressure control technology[J]. Journal of Harbin Engineering University, 2016, 37(11): 1565-1572. doi: 10.11990/jheu.201510044
    [14] 杨伟华. 深海耐压结构健康监测与在线评估技术研究[D]. 中国船舶科学研究中心, 2018.

    YANG Weihua. Structural health monitoring and online assessment of deep sea pressure structure[D]. China Ship Scientific Research Center, 2018.
    [15] 刘淮. 国外深海技术发展研究[J]. 船艇, 2006, 10(258): 6-22.

    LIU Wie. Reseach on development of overseas deep ocean technologies[J]. Ships & yachts, 2006, 10(258): 6-22.
    [16] 张帅, 杨敏, 吴静. 深水环境试验技术综述[J]. 装备环境工程, 2021, 18(5): 41-48.

    ZHANG Shuai, YANG Min, WU Jing. Review of the Test Technology for Deep Sea Environment[J]. Equipment environmental engineering, 2021, 18(5): 41-48.
    [17] 张海龙, 钟国睿, 朱志伟. 深海装备的静水压力试验技术[J]. 船舶与海洋工程, 2019, 35(5): 14-19.

    ZHANG Hailong, ZHONG Guorui, ZHU Zhiwei. Hydrostatic pressure test technology for deep-sea equipment[J]. Naval architecture and ocean engineering, 2019, 35(5): 14-19.
    [18] 张倩瑜, 孙晓宁, 李昕. 高压水下应变测量方案研究[J]. 天津化工, 2013, 26(6): 33-35. doi: 10.3969/j.issn.1008-1267.2013.06.012

    ZHANG Qianyu, SUN Xiaoning, LI Xin. Research of strain measurement with high-pressure underwater[J]. Tianjin Chemical Industry, 2013, 26(6): 33-35. doi: 10.3969/j.issn.1008-1267.2013.06.012
    [19] 李盼菲. 电阻应变测量中提高精度的方法研究[J]. 计量与测试技术, 2019, 46(12): 62-64.

    LI Panfei. Research on Method of Improving Accuracy in Resistance Strain Measurement Technique[J]. Metrology & Measurement Technique, 2019, 46(12): 62-64.
    [20] 黄进浩, 邱昌贤, 张平平. 高压深海压力环境模拟装置耐压试验技术研究[C]. 中国造船工程学会船舶力学学术委员会第八次全体会议论文集, 2014, 209-217.

    HUANG Jinghao, QIU Changxian, ZHANG Pingping. Study on pressure test technology of deep-sea environmental simulating device[C]. Proceedings of the 8th Plenary Session of the Ship Mechanics Academic Committee of the Chinese Society of Shipbuilding Engineers, 2014, 209-217.
    [21] 陈沙古, 吴智睿, 高原. 基于三维应力方法的中厚壳耐压结构强度研究[J]. 船舶力学, 2024, 28(11): 1731-1741. doi: 10.3969/j.issn.1007-7294.2024.11.010

    CHEN Shagu, WU Zhirui, GAO Yuan. Structural strength of medium-thick shell based on three dimensional stress analysis method[J]. Journal of Ship Mechanics, 2024, 28(11): 1731-1741. doi: 10.3969/j.issn.1007-7294.2024.11.010
