小型水下航行器近场高频回声强度特性研究

曹浩 张鑫泽 张俊 樊书宏

曹浩, 张鑫泽, 张俊, 等. 小型水下航行器近场高频回声强度特性研究[J]. 水下无人系统学报, 2025, 33(3): 1-7 doi: 10.11993/j.issn.2096-3920.2024-0146
引用本文: 曹浩, 张鑫泽, 张俊, 等. 小型水下航行器近场高频回声强度特性研究[J]. 水下无人系统学报, 2025, 33(3): 1-7 doi: 10.11993/j.issn.2096-3920.2024-0146
CAO Hao, ZHANG Xinze, ZHANG Jun, FAN Shuhong. Research on Near-field High-frequency Echo Strength Characteristics of Small Undersea Vehicle[J]. Journal of Unmanned Undersea Systems. doi: 10.11993/j.issn.2096-3920.2024-0146
Citation: CAO Hao, ZHANG Xinze, ZHANG Jun, FAN Shuhong. Research on Near-field High-frequency Echo Strength Characteristics of Small Undersea Vehicle[J]. Journal of Unmanned Undersea Systems. doi: 10.11993/j.issn.2096-3920.2024-0146

小型水下航行器近场高频回声强度特性研究

doi: 10.11993/j.issn.2096-3920.2024-0146
详细信息
    作者简介:

    曹浩:曹 浩(1997-), 男, 硕士, 主要研究方向为水下目标特性仿真技术

  • 中图分类号: TJ630.34; U674.941

Research on Near-field High-frequency Echo Strength Characteristics of Small Undersea Vehicle

  • 摘要: 针对小型水下航行器探测和识别的需求, 开展了小型水下航行器近场高频回声强度特性建模及仿真研究。利用板块元方法, 基于典型圆柱型航行器目标, 计算分析了小型航行器近场回声强度, 给出了小型航行器回声强度的空间分布特性。在此基础上, 开展了水池实验, 对比分析了实验实测结果和仿真结果的一致性和变化特性, 结果表明仿真和水池实验结果在空间分布趋势上具有一致性, 小型航行器在头段端面方位和正横方位具有较强的回声强度, 小型航行器近场高频回声强度特性呈蝶形特征分布。

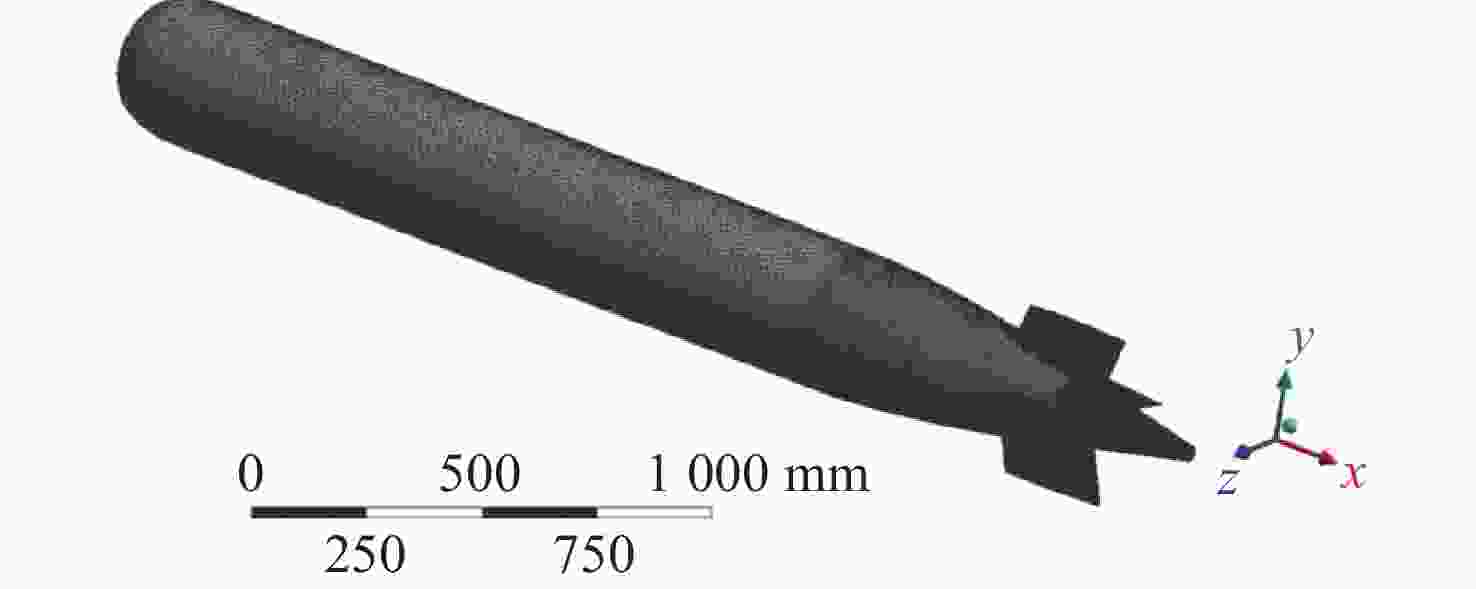

  • 图  1  小型水下航行器模型及表面模型网格划分

    Figure  1.  Small undersea vehicle model and surface mesh division

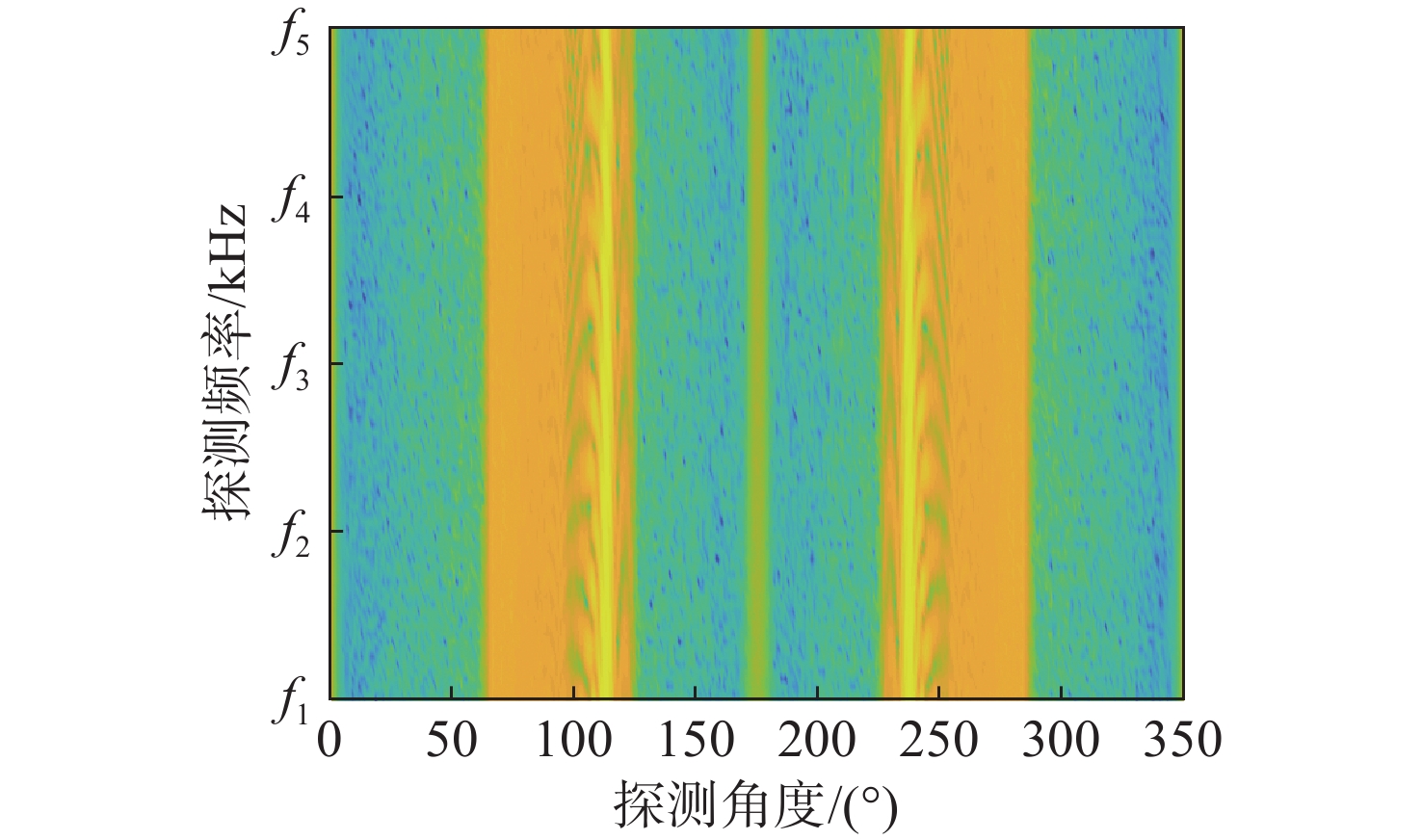

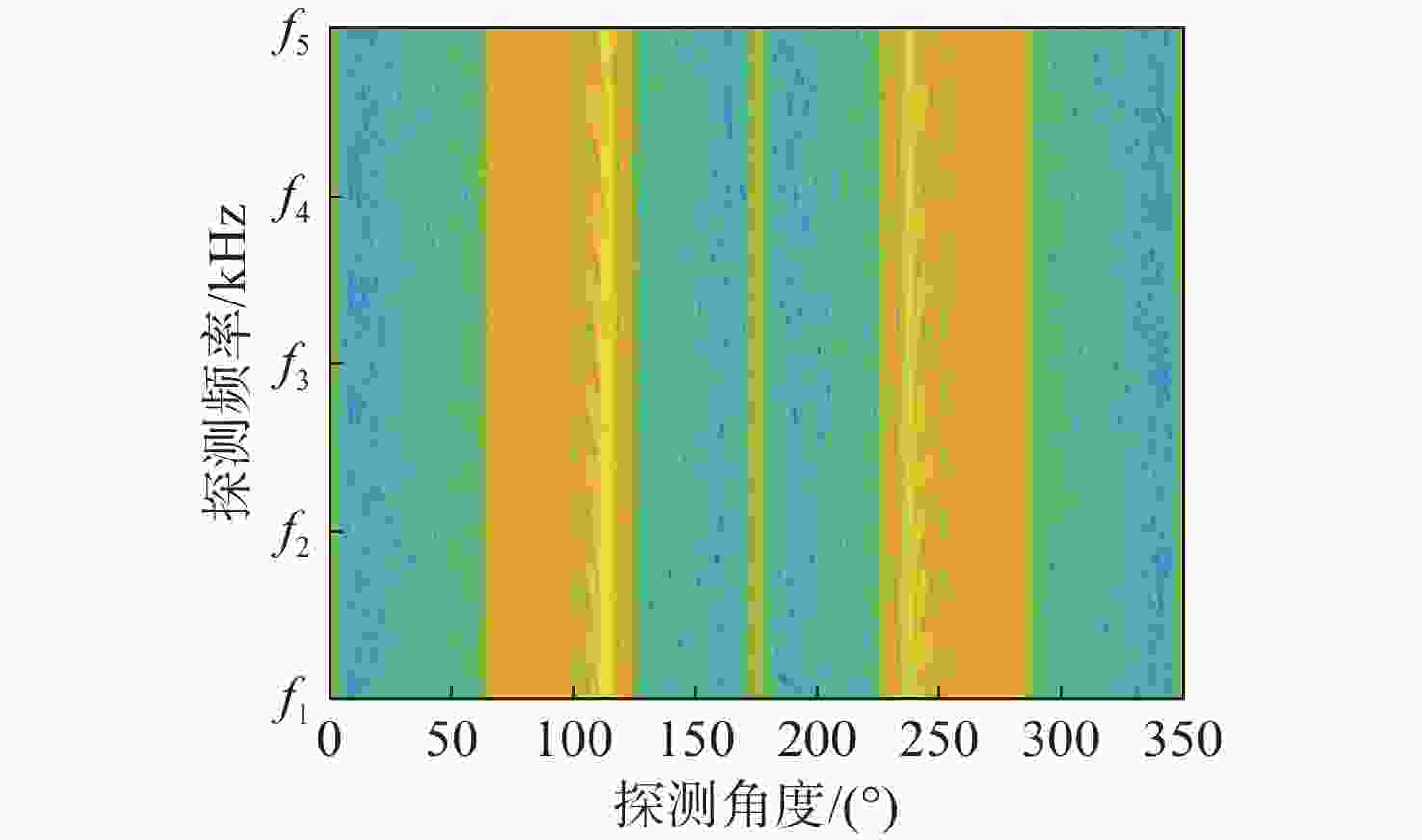

    图  2  航行器近距离回声强度仿真结果

    Figure  2.  Simulation results of echo intensity for undersea vehicle at close range

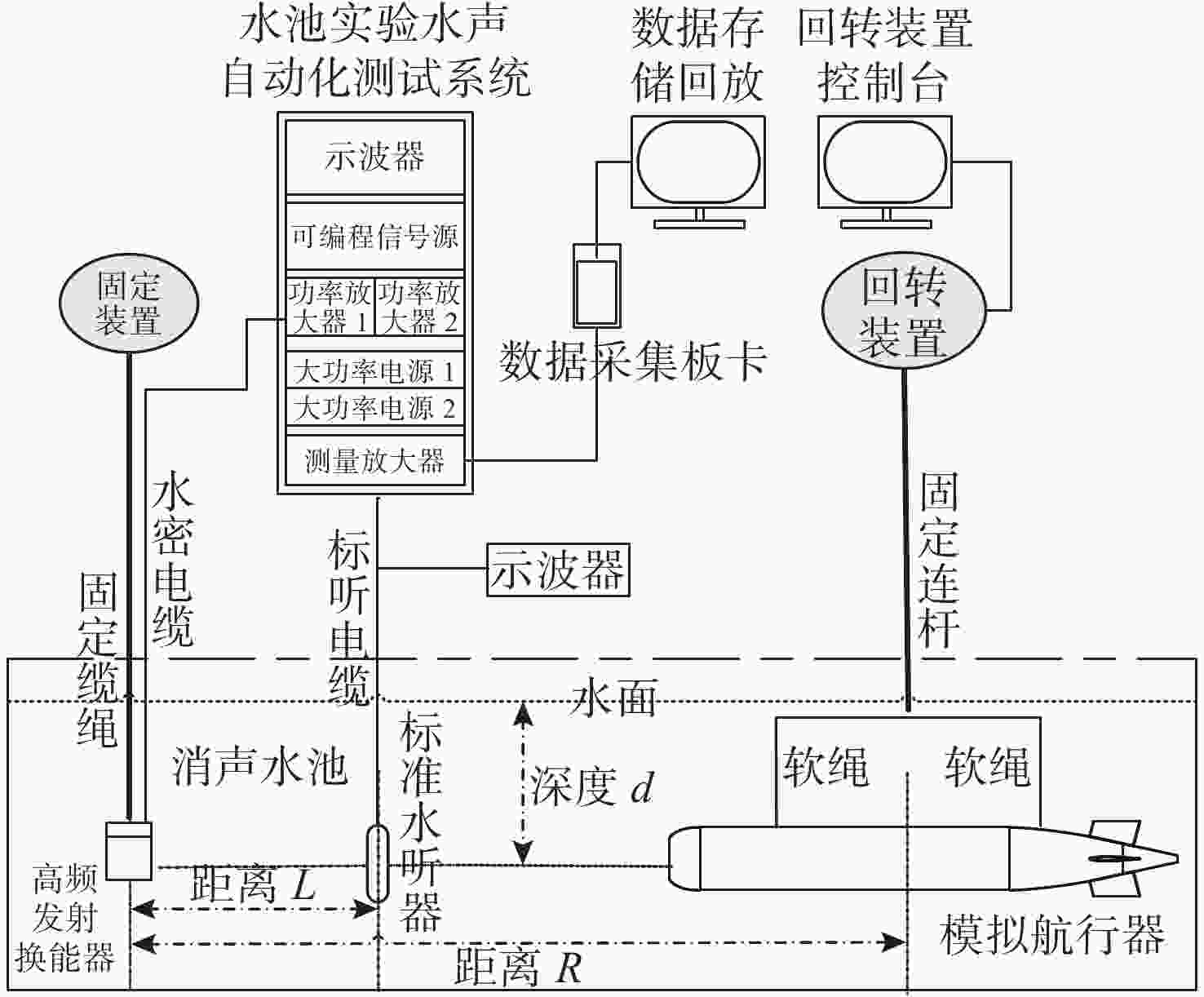

    图  3  实验总体布局图

    Figure  3.  General layout of the experiment

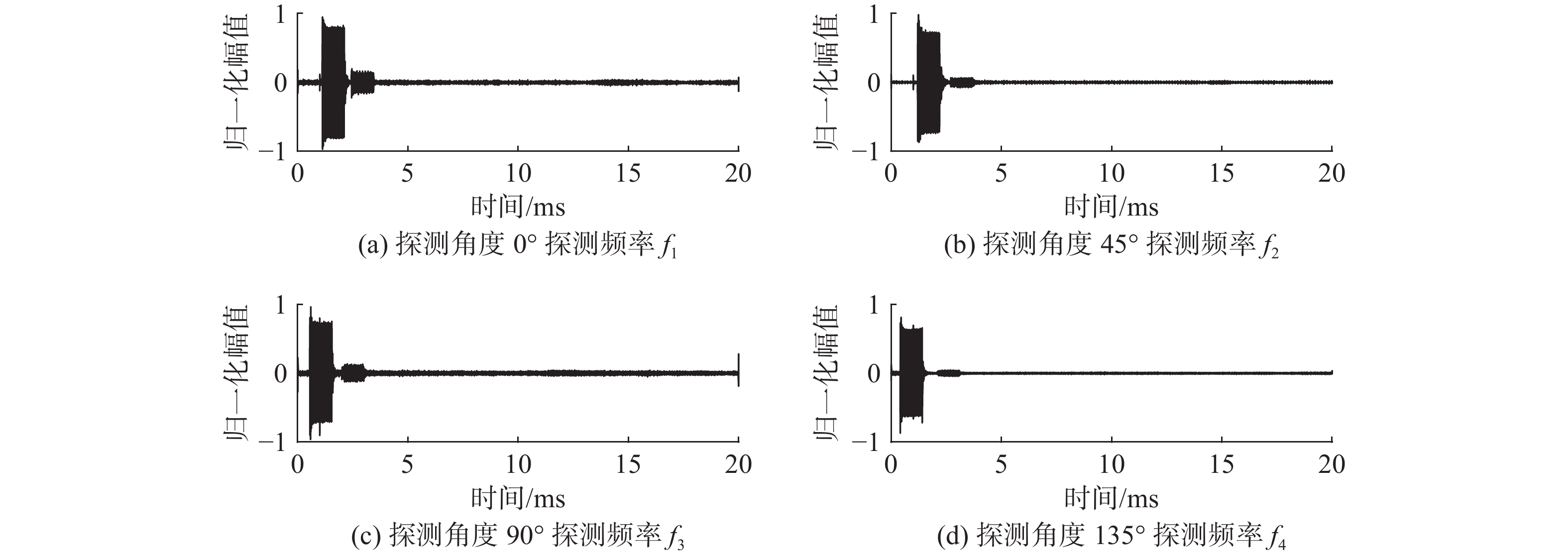

    图  4  典型方位角和频率下测量直达波和目标回波

    Figure  4.  The measurement of direct wave and target echo at typical azimuth and frequency

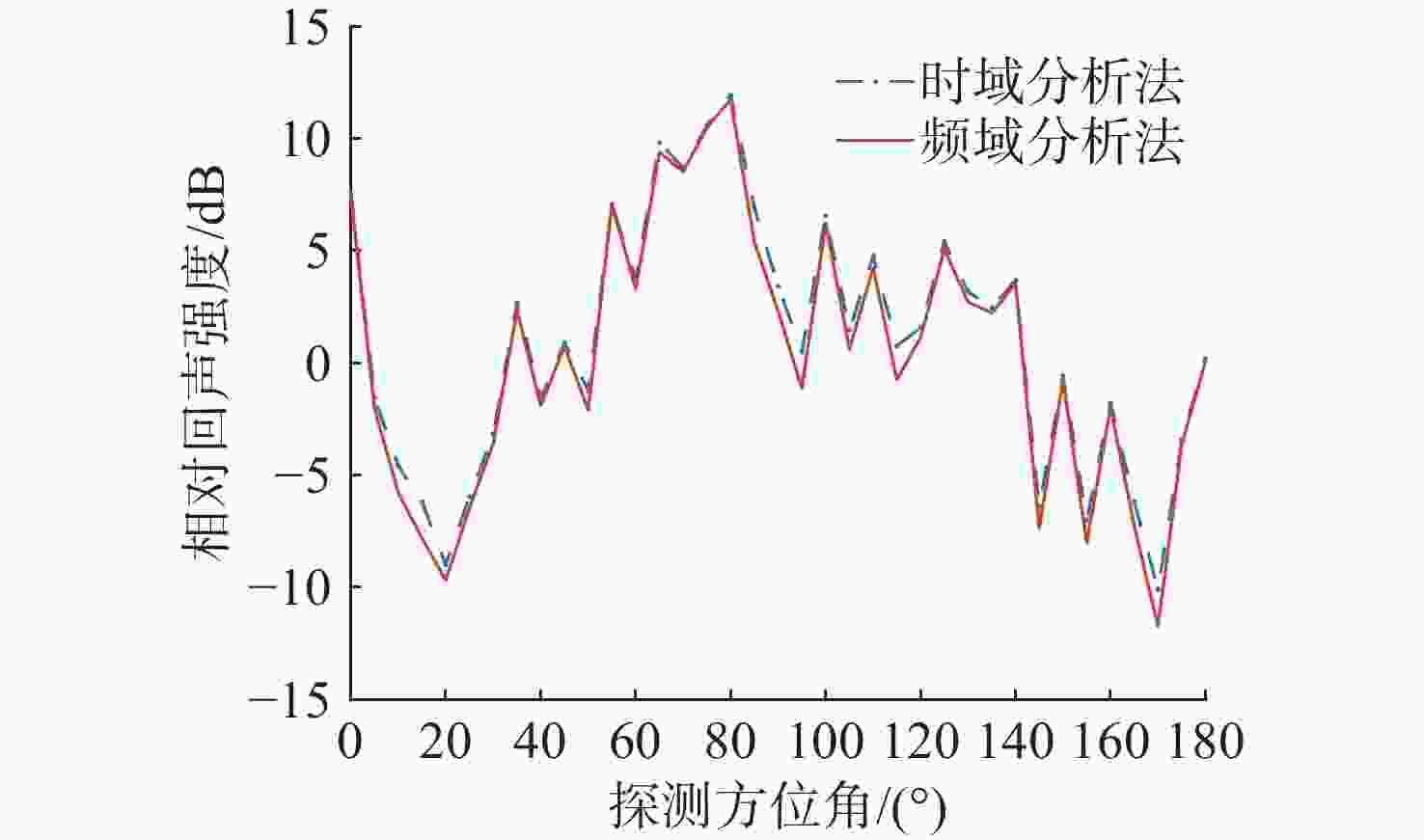

    图  5  模拟航行器回声强度随探测方位角变化趋势(探测频率$ {f_1} $)

    Figure  5.  Simulated undersea vehicle echo intensity varying with detection azimuth angle (at detection frequency $ {f_1} $)

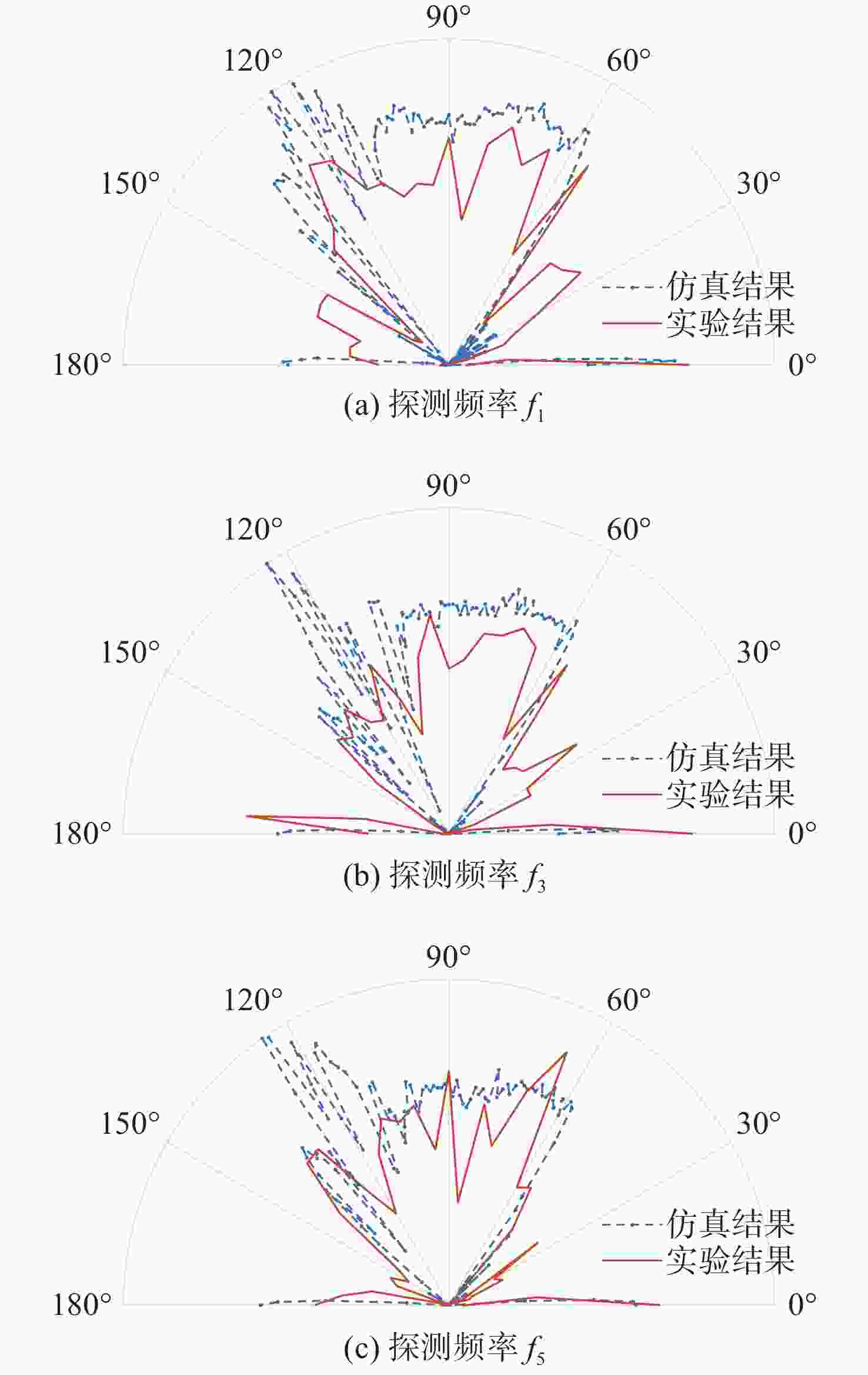

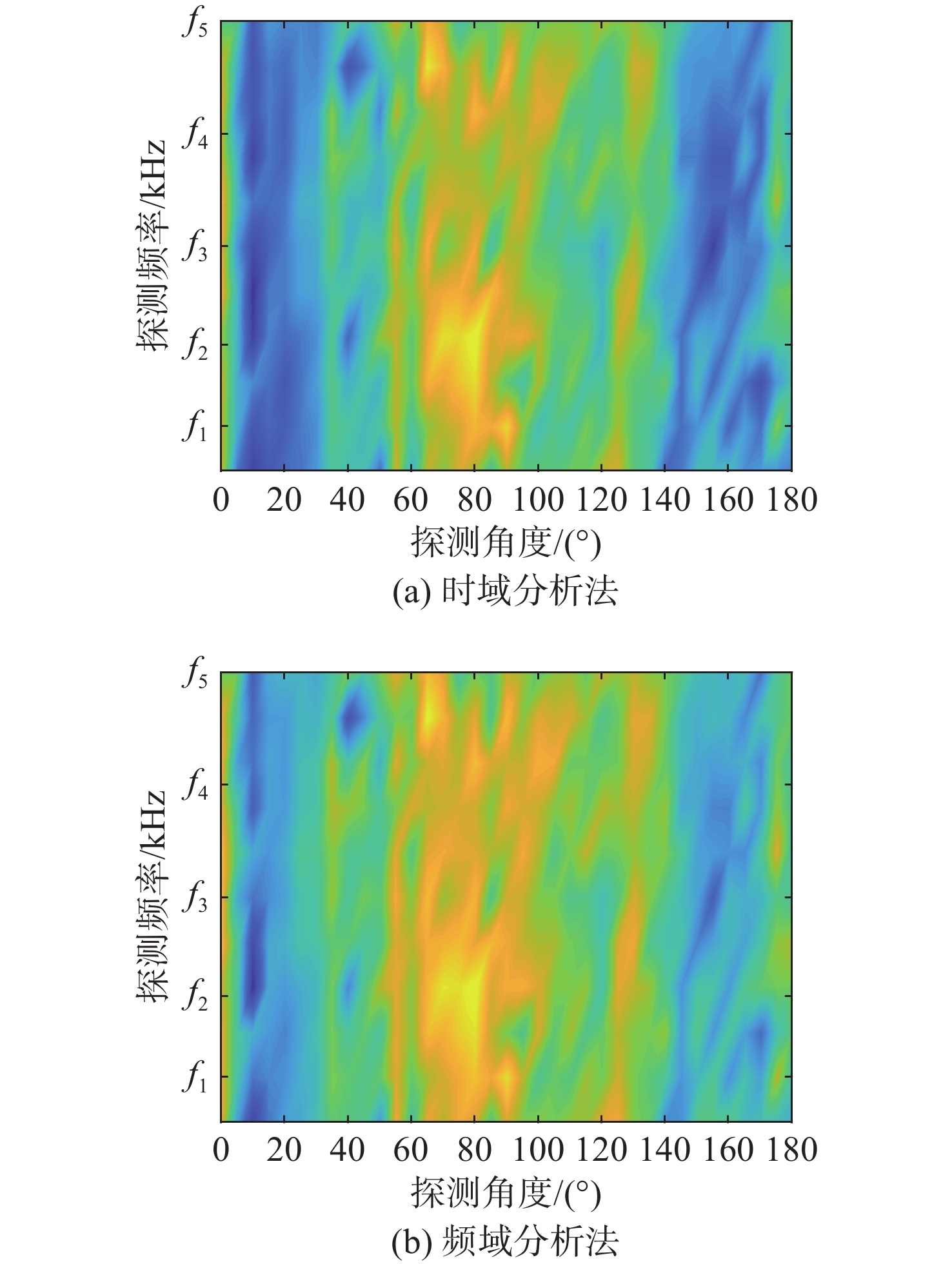

    图  6  航行器回声强度实验结果

    Figure  6.  Experiment results of small undersea vehicle echo intensity

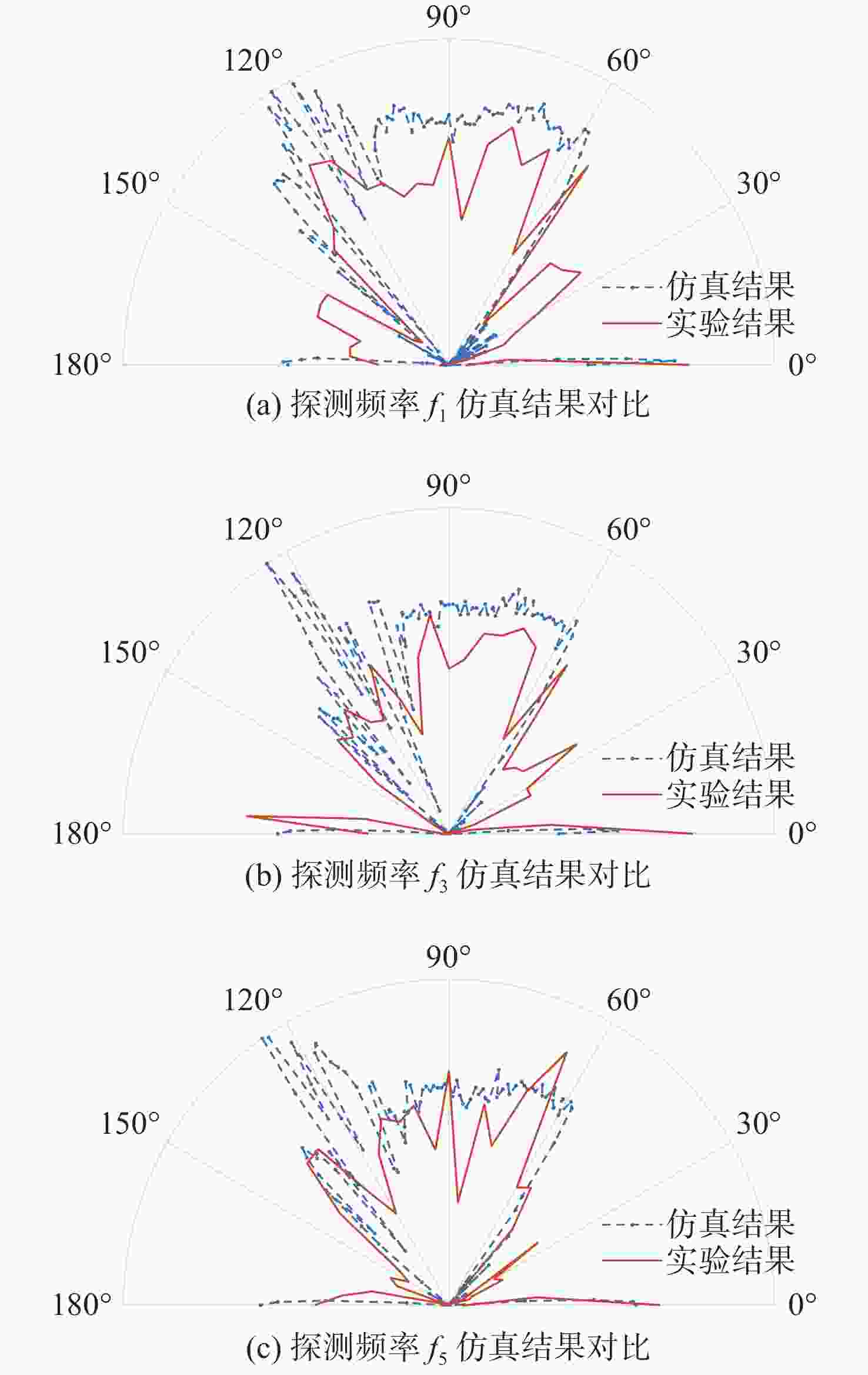

    图  7  航行器回声强度仿真与实验结果

    Figure  7.  Simulation and experimental results of undersea vehicle target echo intensity

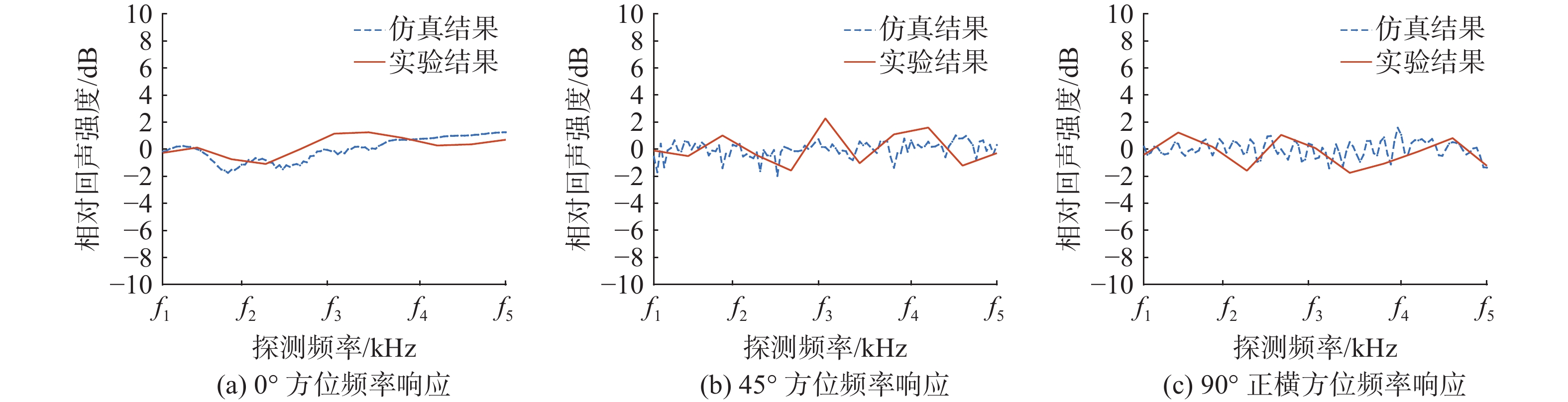

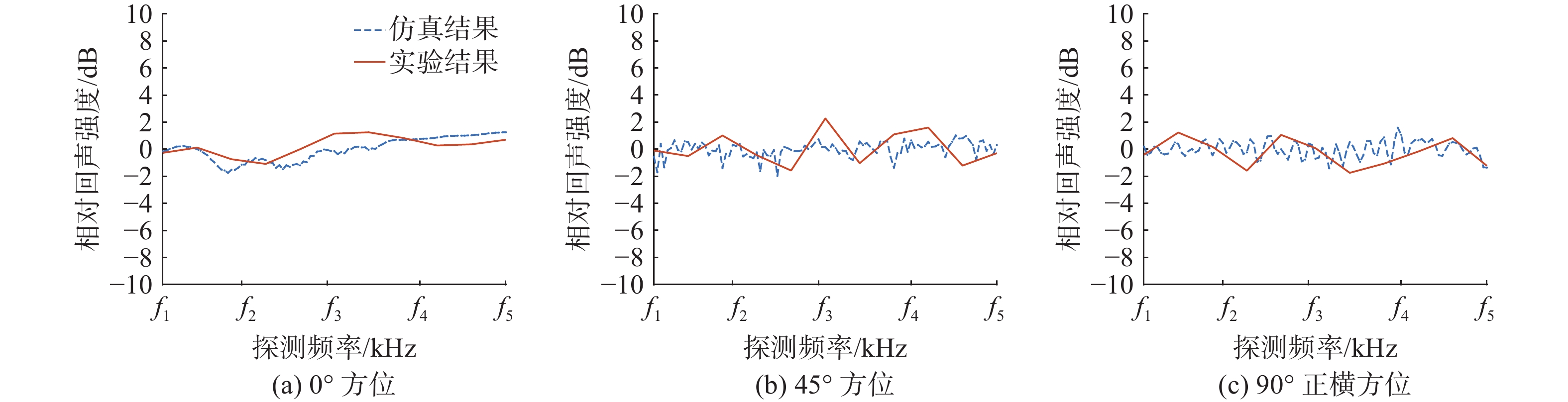

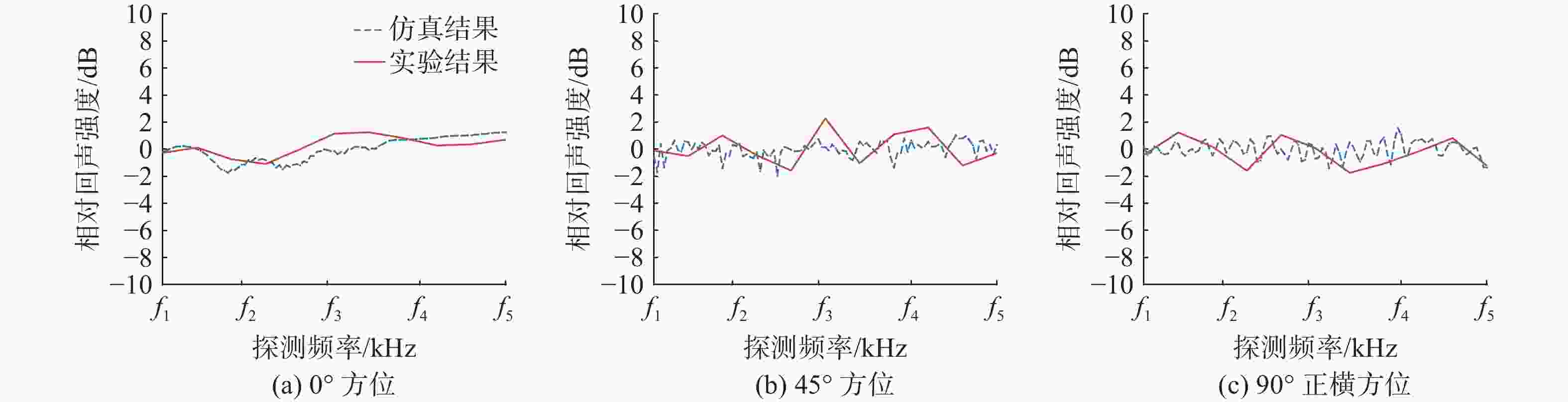

    图  8  模拟航行器近场回声强度频率响应

    Figure  8.  Frequency responses of near-field echo intensity of simulated undersea vehicle

    表  1  部分探测频率下部分方位角实验数据及计算结果

    Table  1.   Experimental data and calculation results of various azimuth angles at partial detection frequencies

    探测方位角/(°)直达波声程/m目标回波声程/m目标相对回声强度/dB
    $ {f_1} $$ {f_3} $$ {f_5} $
    时域分析法频域分析法时域分析法频域分析法时域分析法频域分析法
    01.673.676.827 67.175 87.127 07.330 26.866 57.456 1
    300.902.24−4.298 6−4.006 2−2.839 5−2.703 8−3.852 6−3.245 9
    450.922.10−0.861 5−0.686 21.475 31.827 81.464 82.015 7
    600.603.15−2.086 2−1.978 61.664 52.000 91.893 82.203 0
    750.8392.977.247 77.609 45.584 45.609 23.726 93.865 5
    900.832.926.033 96.073 35.845 45.985 65.025 04.584 9
    1200.603.686.463 36.784 5−2.944 8−4.115 80.176 2−0.091 5
    1500.982.31−1.132 7−0.950 4−6.522 3−7.113 9−6.910 4−7.676 3
    1800.601.72−6.277 9−6.661 0−2.269 3−1.555 8−3.768 0−3.483 8
    下载: 导出CSV
  • [1] 邓伟, 王新宁, 范军. 鱼雷回波特性研究[C]//中国声学学会水声学分会2013年全国水声学学会会议论文集中国声学学会水声学分会. 湛江: 《声学技术》编辑部, 2013.
    [2] 曹浩, 樊书宏, 周晶. 基于板块元法的鱼雷声散射特性分析[J]. 水下无人系统学报, 2022, 30(2): 184-189. doi: 10.11993/j.issn.2096-3920.2022.02.007

    CAO H, FAN S H, ZHOU J. Analysis of acoustic scattering characteristics of a torpedo based on planar elements method[J]. Journal of Unmanned Undersea Systems, 2022, 30(2): 184-189. doi: 10.11993/j.issn.2096-3920.2022.02.007
    [3] 刘博, 范军, 王斌. 某小型潜航器的声散射特性研究[J]. 声学技术, 2021, 40(4): 458-463.

    LIU B, FAN J, WANG B. Study on acoustic scattering characteristics of a small submersible vehicle[J]. Technical Acoustics, 2021, 40(4): 458-463.
    [4] 刘博. 微小型无人潜航器典型结构声散射特性研究[D]. 上海: 上海交通大学, 2020.
    [5] 黎洁, 范军, 李兵. 蛙人推进器声散射特性研究[J]. 水下无人系统学报, 2022, 30(6): 733-739.

    LI J, FAN J, LI B. Acoustic scattering characteristics of a diver propulsion vehicle[J]. Journal of Unmanned Undersea Systems, 2022, 30(6): 733-739.
    [6] 宋君才, 卓琳凯, 范军. 特定形状小目标的回波特性分析[J]. 声学技术, 2010, 29(3): 323-326. doi: 10.3969/j.issn.1000-3630.2010.03.018

    SONG J C, ZHUO L K, FAN J. Research on the echo characteristics of small target with special shape[J]. Technical Acoustics, 2010, 29(3): 323-326. doi: 10.3969/j.issn.1000-3630.2010.03.018
    [7] 戚乐华, 刘保华, 阚光明. 几种粗糙散射理论对海面中频后向声散射的有效性研究[J]. 中国海洋大学学报(自然科学版), 2021, 51(1): 94-102.

    QI L H, LIU B H, KAN G M. The investigation of validity of common roughness scattering theories for sea surface acoustic backscattering at intermediate frequency range[J]. Periodical of Ocean University of China, 2021, 51(1): 94-102.
    [8] 朱利超, 魏鹏举, 高杰, 等. 基于亮点模型的水下目标近程回波仿真研究[J]. 舰船电子工程, 2011, 31(11): 153-155.

    ZHU L C, WEI P J, GAO J. Simulation of echoes from underwater scaling targets in short range based on highlight model[J]. Ship Electronic Engineering, 2011, 31(11): 153-155.
    [9] 李锐, 安俊英, 成刚. 目标高频近场声散射信号空间特性分析[J]. 声学与电子工程, 2018(4): 18-20.
    [10] 冯奇. 基于板块元法的水下复杂目标强度预报[J]. 鱼雷技术, 2010, 18(4): 258-262.

    FENG Q. Strength prediction of underwater comlicated target based on planar element method[J]. Torpedo Technology, 2010, 18(4): 258-262.
    [11] 张健, 周奇郑, 王德石. 水下低频球面声波近场与远场散射特性研究[J]. 水下无人系统学报, 2020, 28(5): 487-495.

    ZHANG J, Zhou Q Z, WANG D S. Near-field and far-field scattering characteristics of underwater low-frequency spherical acoustic wave[J]. Journal of Unmanned Undersea Systems, 2020, 28(5): 487-495.
    [12] 范军, 汤渭霖, 卓琳凯. 声呐目标回声特性预报的板块元方法[J]. 船舶力学, 2012, 16(1): 171-180.

    FAN J, FAN W L, ZHUO L K. Planar elements method for forecasting the echo characteristics from sonar targets[J]. Journal of Ship Mechanics, 2012, 16(1): 171-180
    [13] URICK R J. Principles of underwater sound[M]. 3rd ed. New York: McGraw-Hill Book Co., 1983.
