Intelligent Perception Algorithms for Sonar Images: A Review
-
摘要: 声呐图像智能感知算法在海洋探测与水下救援中具有至关重要的作用。近年来, 深度学习技术在声呐图像智能感知任务中取得了显著进展。文中对该领域进行了全面梳理, 从声呐图像数据集与数据增强技术、经典的声呐图像处理算法以及基于深度学习的声呐图像处理方法3个方面进行探讨。首先, 归纳了不同任务的开源数据集与常用的数据增强技术, 为后续研究提供数据支撑; 其次, 系统回顾了从经典算法到基于深度学习的先进算法在不同任务中的应用与发展现状, 旨在为研究者提供系统的领域概览; 最后, 展望了未来的研究方向, 指出可通过获取更大规模的声呐图像数据、设计更强健的算法以及开发更适用于真实水下场景的任务设置等方面, 进一步提升声呐图像的解译能力。Abstract: Intelligent perception algorithms for sonar images are vital in ocean exploration and underwater rescue. In recent years, deep learning has achieved remarkable advancements in intelligent perception tasks related to sonar images. This paper provided a comprehensive review of the field, focusing on sonar image datasets and data augmentation techniques, classical sonar image processing algorithms, and deep learning-based sonar image processing methods. By summarizing open-source datasets and commonly used data augmentation techniques, the paper provided data support for future research efforts. Additionally, this paper systematically analyzed the application and evolution of both classical and deep learning-based algorithms across various tasks, offering researchers an overview of the current state of the field. Finally, based on the research progress, the paper predicted future research directions. It was pointed out that the interpretation ability of sonar images could be further improved by obtaining larger-scale sonar image data, designing more robust algorithms, and developing task settings that are more suitable for real-world underwater environments.
-

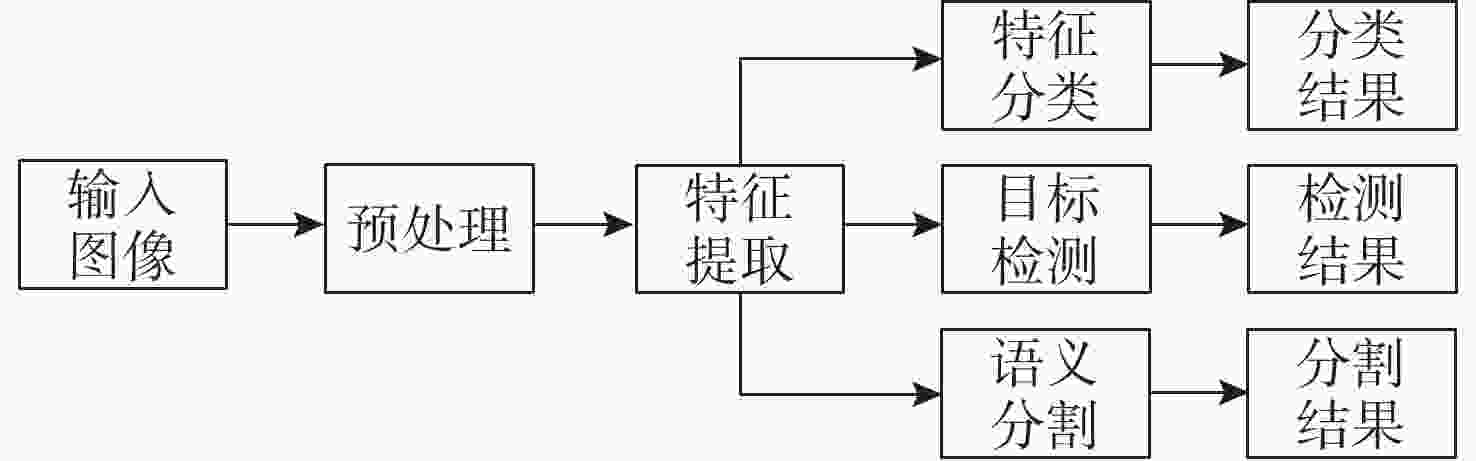

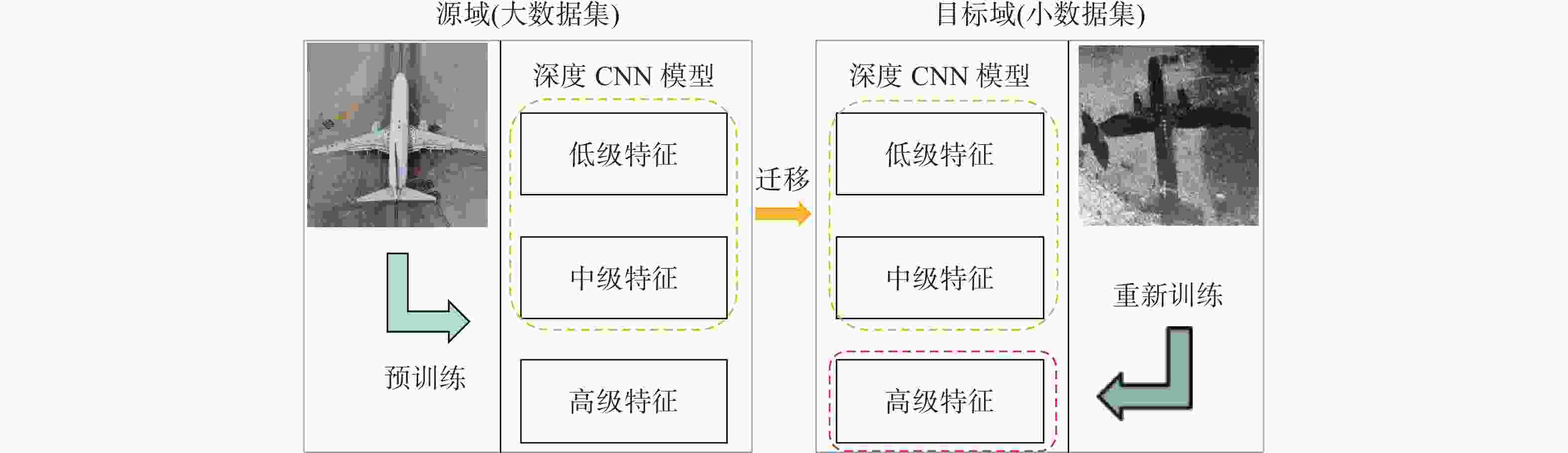

Key words:
- sonar image /
- intelligent perception /
- ocean exploration /
- deep learning
-
表 1 现有声呐图像分类数据集信息汇总表
Table 1. Summary of existing sonar image classification datasets information
数据集 类别 数量 总数 种类 不平衡因子 Seabed Objects-KLSG 飞机 62 447 侧扫 6.21 沉船 385 FLSMDD 瓶子 449 2 364 前视 6.91 罐子 367 链条 226 饮料瓶 349 钩子 133 螺旋桨 137 洗发水瓶 99 直立状瓶子 65 轮胎 331 阀门 208 NKSID 大螺旋桨 203 2 617 前视 47.55 圆柱体 288 渔网 20 浮球 951 钢管 112 小螺旋桨 94 软管 115 轮胎 834 表 2 现有声呐图像目标检测数据集信息汇总表
Table 2. Summary of existing sonar image target detection datasets information
数据集 类别 数量 总数 种类 FLS-DD 飞机 1 105 3 752 前视 沉船 884 溺水者 1 363 SCTD 飞机 57 357 侧扫 沉船 34 溺水者 266 UATD 立方体 2 987 9 200 前视 球体 3 463 圆柱体 657 溺水者 1 434 轮胎 1 368 圆形网箱 860 方形网箱 1 318 金属桶 487 飞机 1 065 水下航行器 1 000 -
