Vibration Transfer Path and Characteristic Analysis of Underwater Shaft-Cone-Cylinder Double-Layer Shell

ZHU Jingyao; ZHANG Cong; TIAN Yaqi

doi:10.11993/j.issn.2096-3920.2025-0161

Volume 34 Issue 2

Apr 2026

Turn off MathJax

Article Contents

Article Navigation > Journal of Unmanned Undersea Systems > 2026 > 34(2): 264-272

ZHU Jingyao, ZHANG Cong, TIAN Yaqi. Vibration Transfer Path and Characteristic Analysis of Underwater Shaft-Cone-Cylinder Double-Layer Shell[J]. Journal of Unmanned Undersea Systems, 2026, 34(2): 264-272. doi: 10.11993/j.issn.2096-3920.2025-0161

Citation:

ZHU Jingyao, ZHANG Cong, TIAN Yaqi. Vibration Transfer Path and Characteristic Analysis of Underwater Shaft-Cone-Cylinder Double-Layer Shell[J]. Journal of Unmanned Undersea Systems, 2026, 34(2): 264-272. doi: 10.11993/j.issn.2096-3920.2025-0161

Citation:

PDF( 2428 KB)

Vibration Transfer Path and Characteristic Analysis of Underwater Shaft-Cone-Cylinder Double-Layer Shell

doi: 10.11993/j.issn.2096-3920.2025-0161

ZHU Jingyao^{1, 2, 3
,},
ZHANG Cong^{1, 2, 3
,},
TIAN Yaqi^{1, 2, 3
,}

1.
School of Transportation and Logistics Engineering, Wuhan University of Technology, Wuhan 430063, China
2.
State Key Laboratory of Maritime Technology and Safety, Wuhan 430063, China
3.
National Engineering Research Center for Water Transport Safety, Wuhan University of Technology, Wuhan 430063, China

Received Date: 2025-12-01
Accepted Date: 2026-01-07
Rev Recd Date: 2025-12-22

Available Online: 2026-03-10

Abstract

Abstract

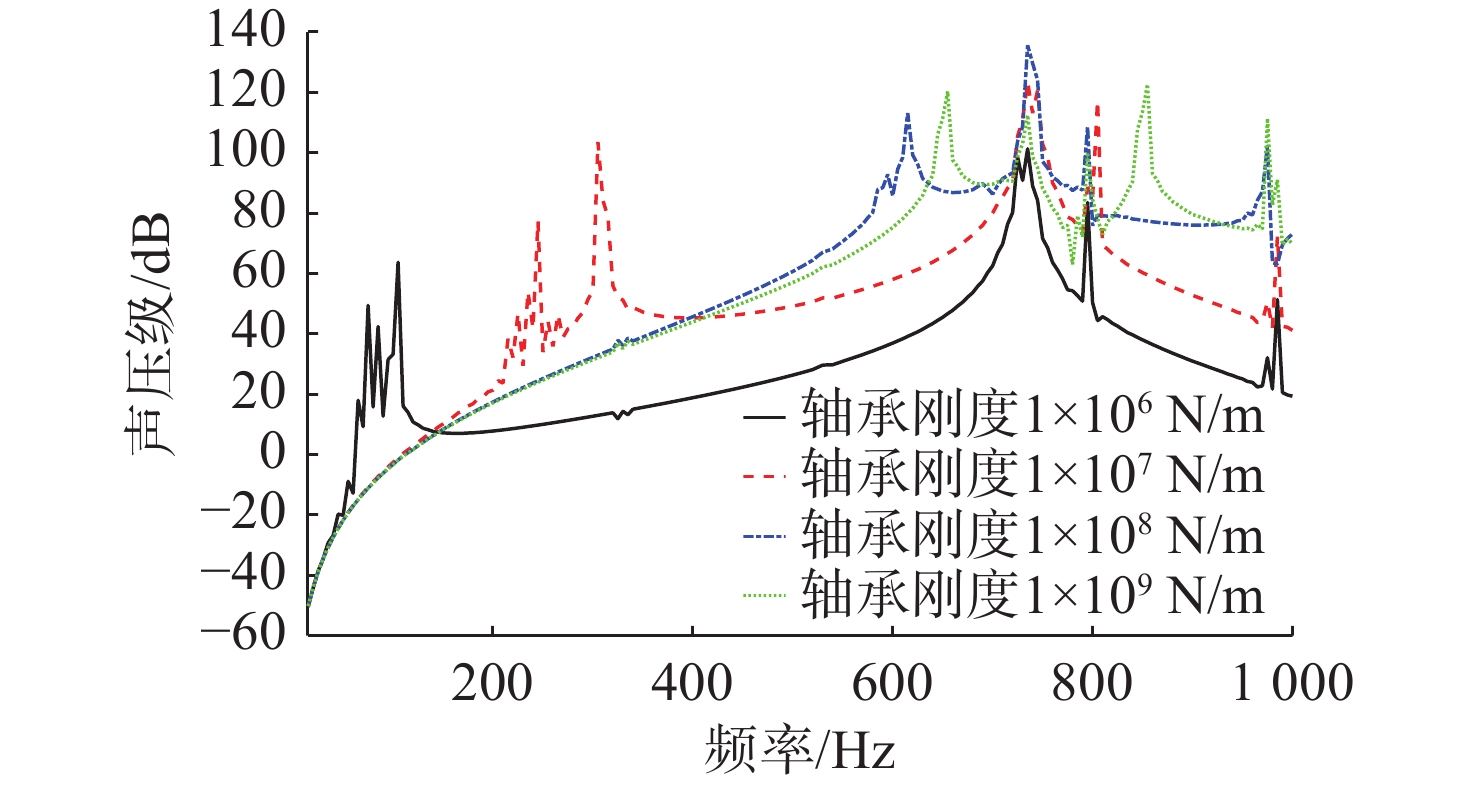

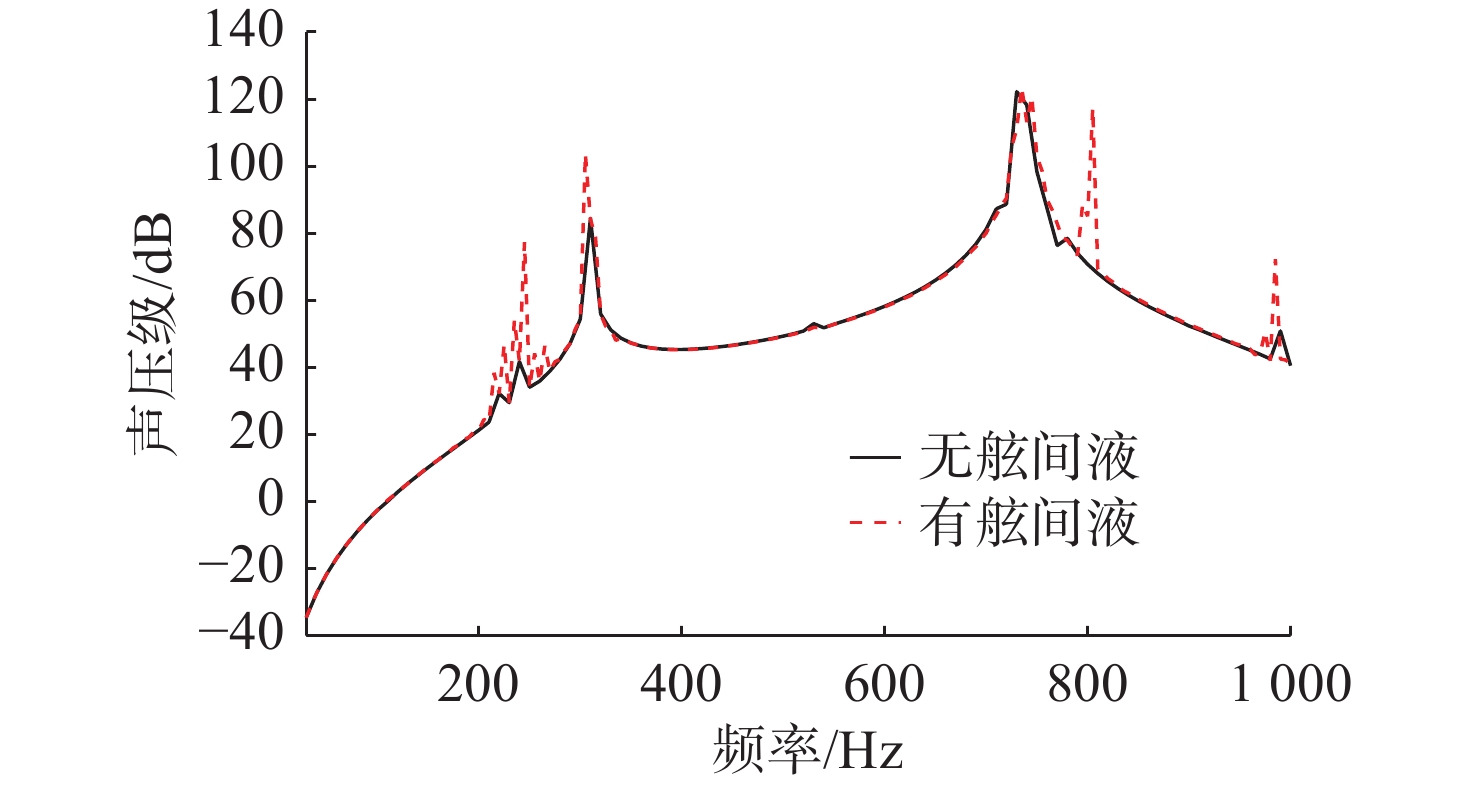

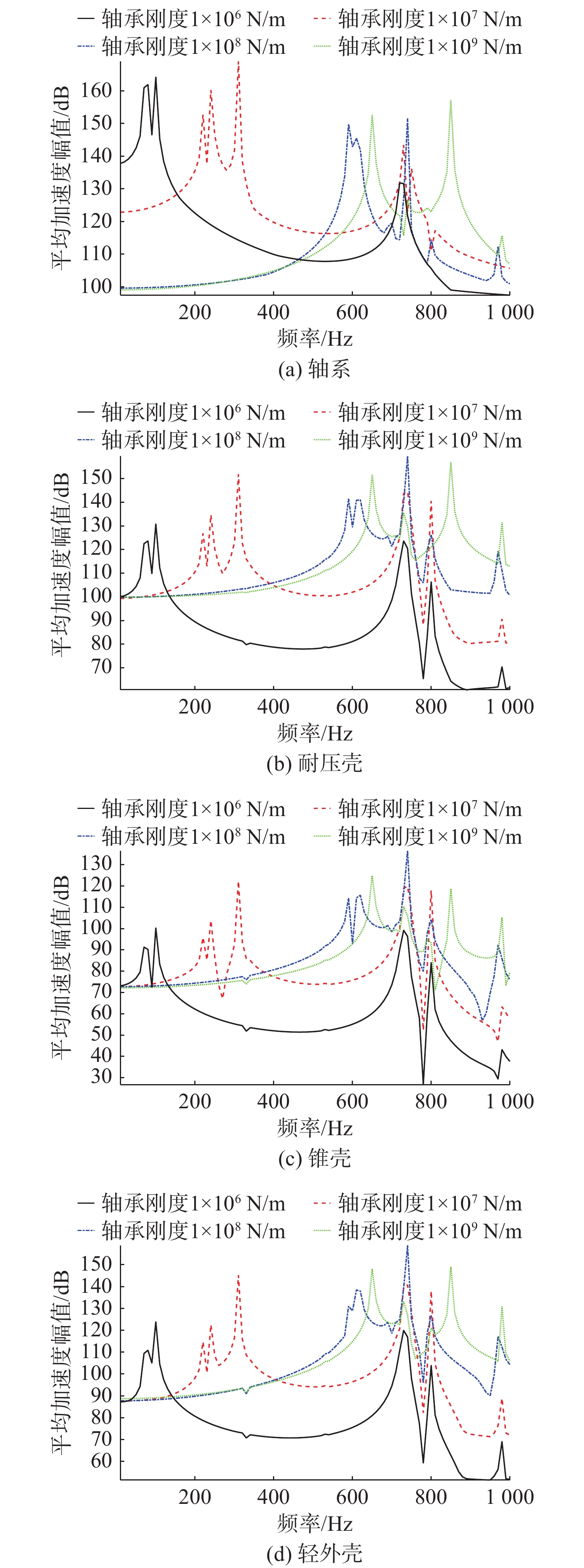

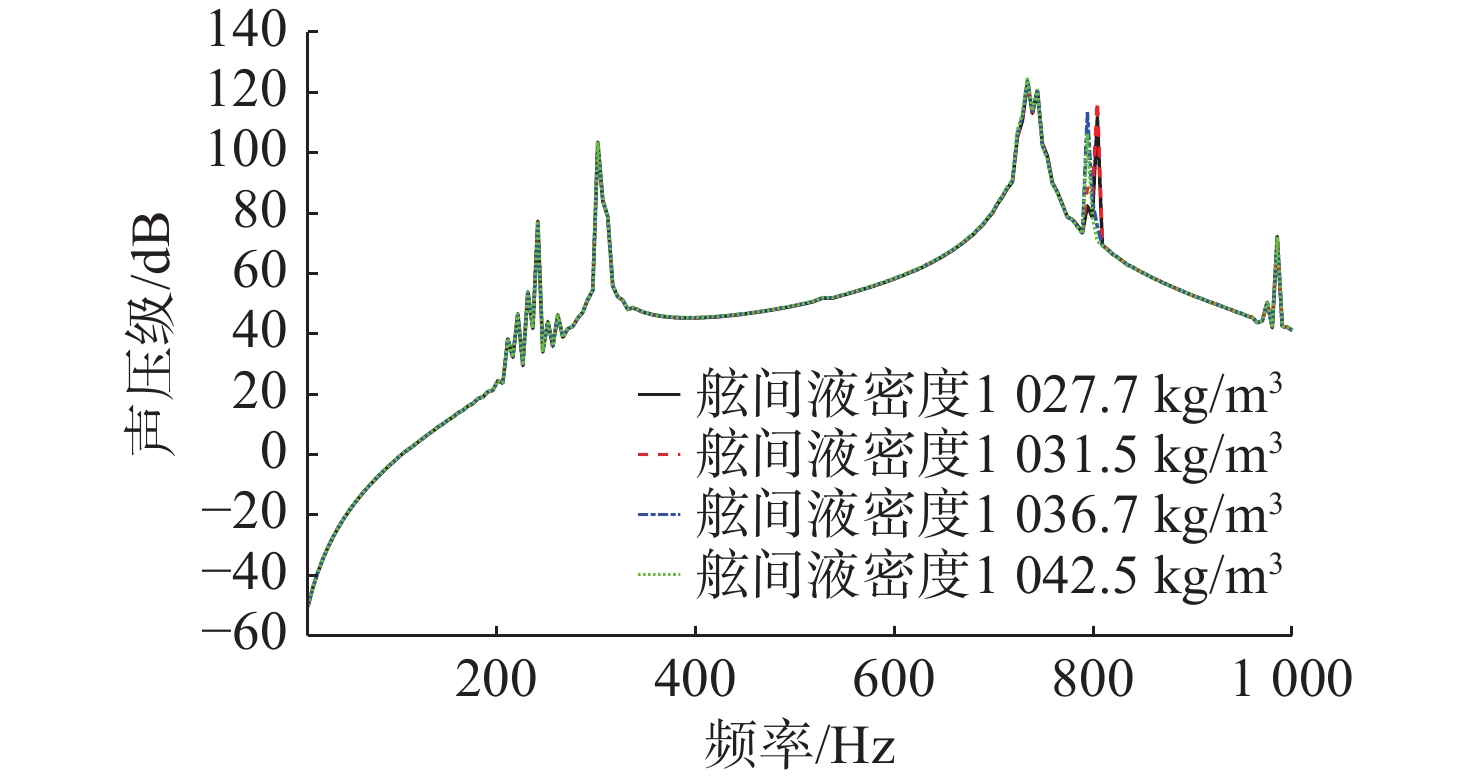

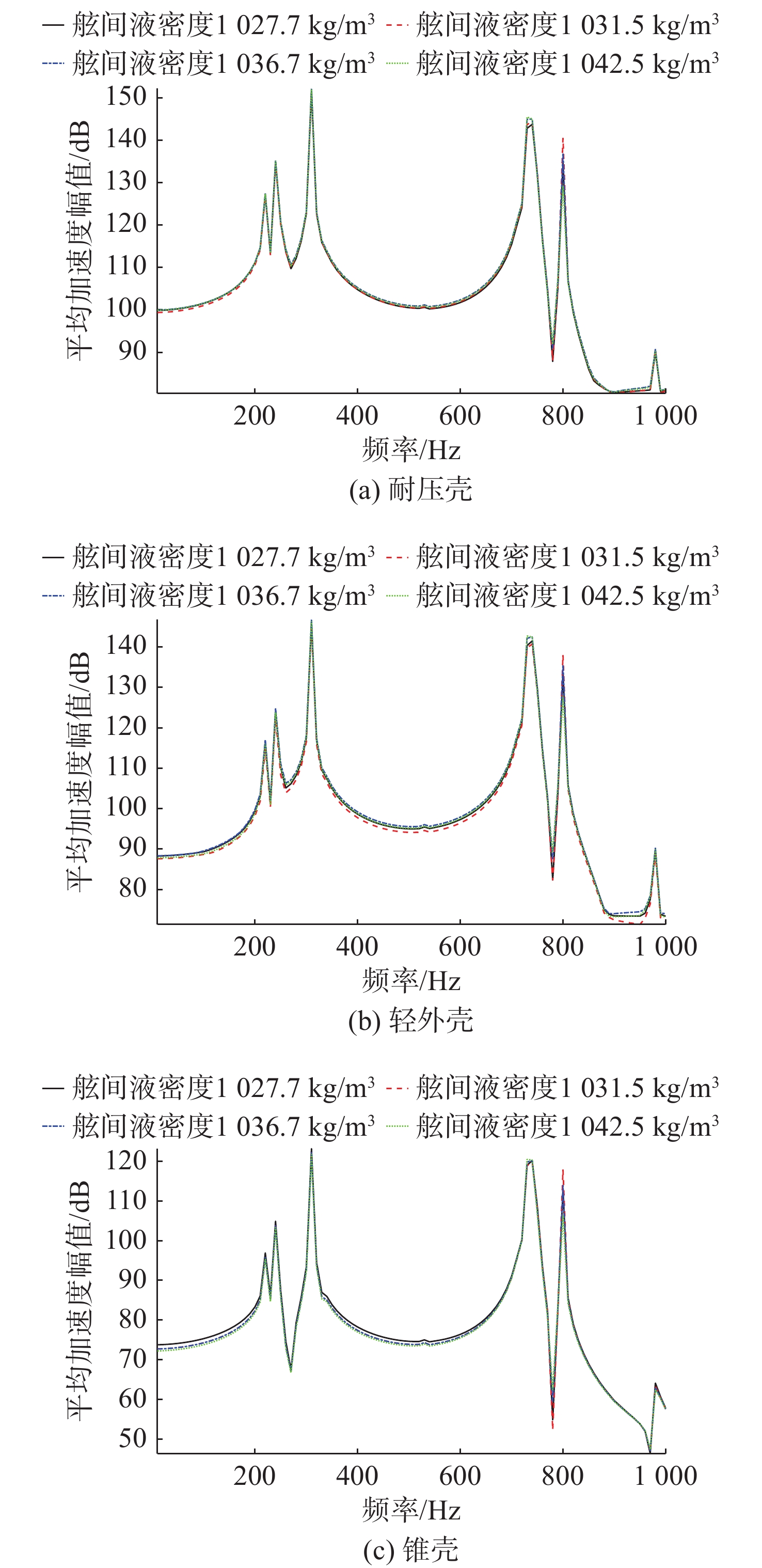

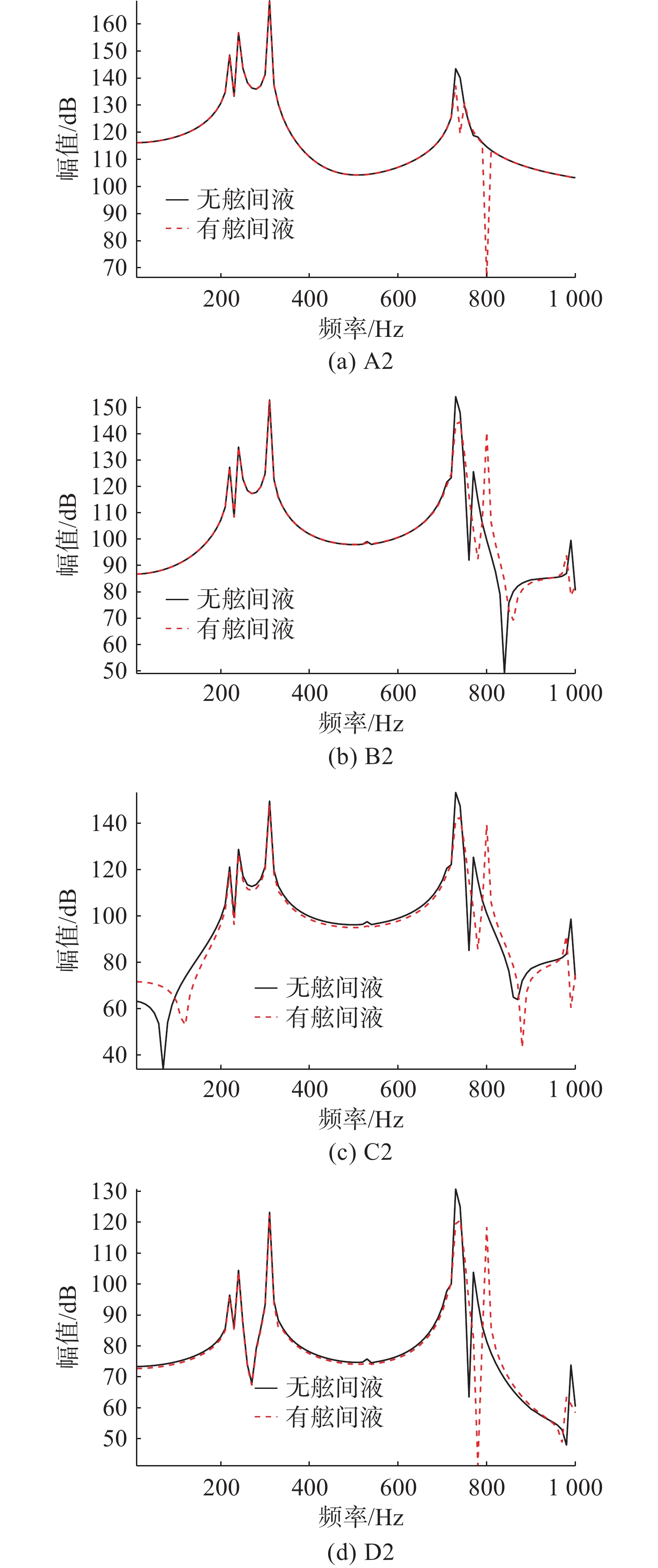

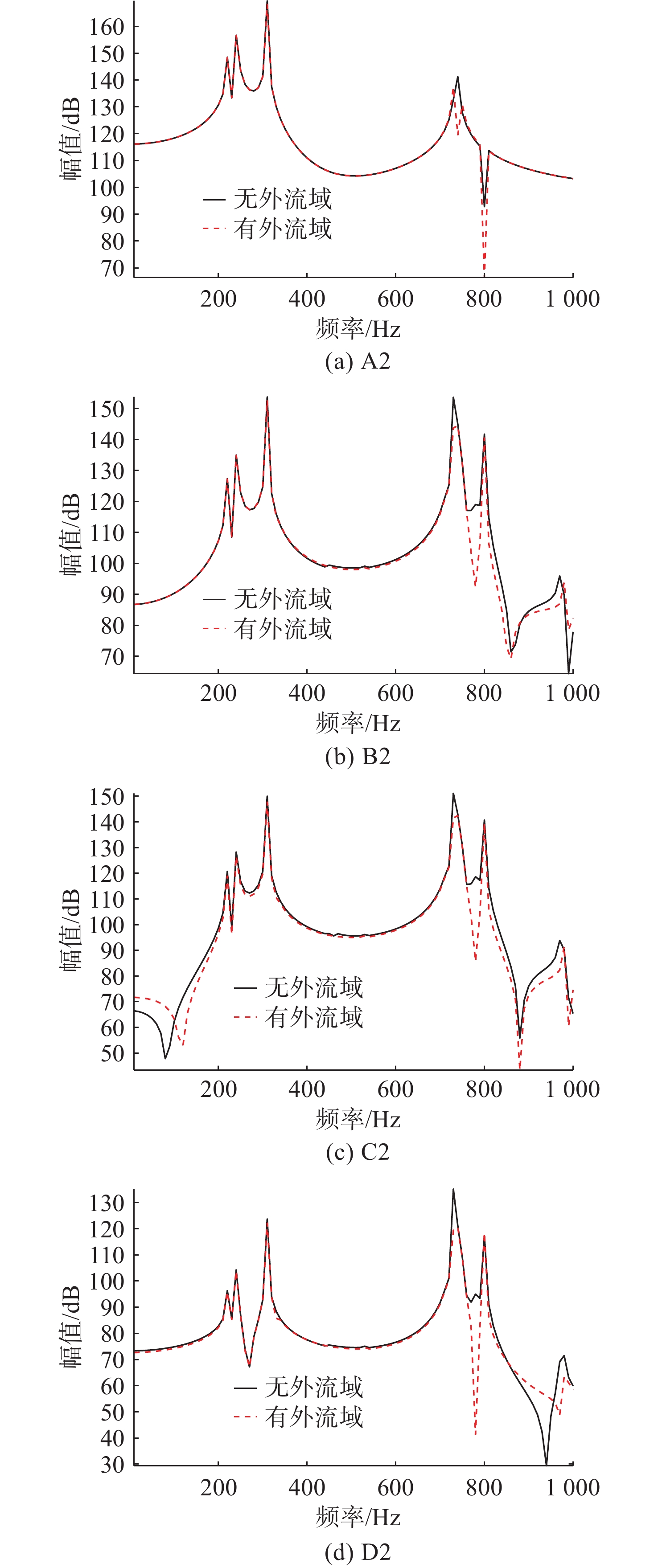

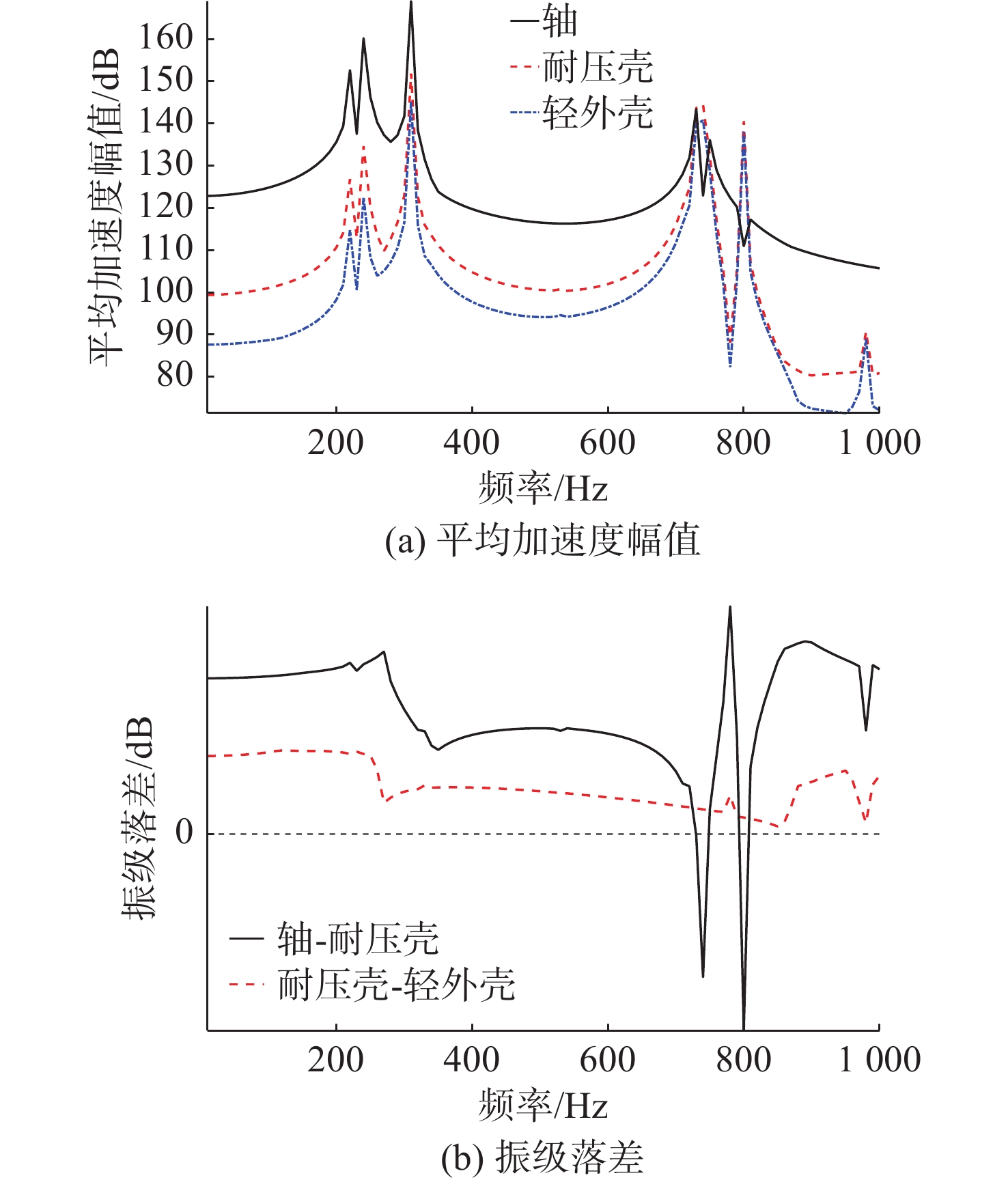

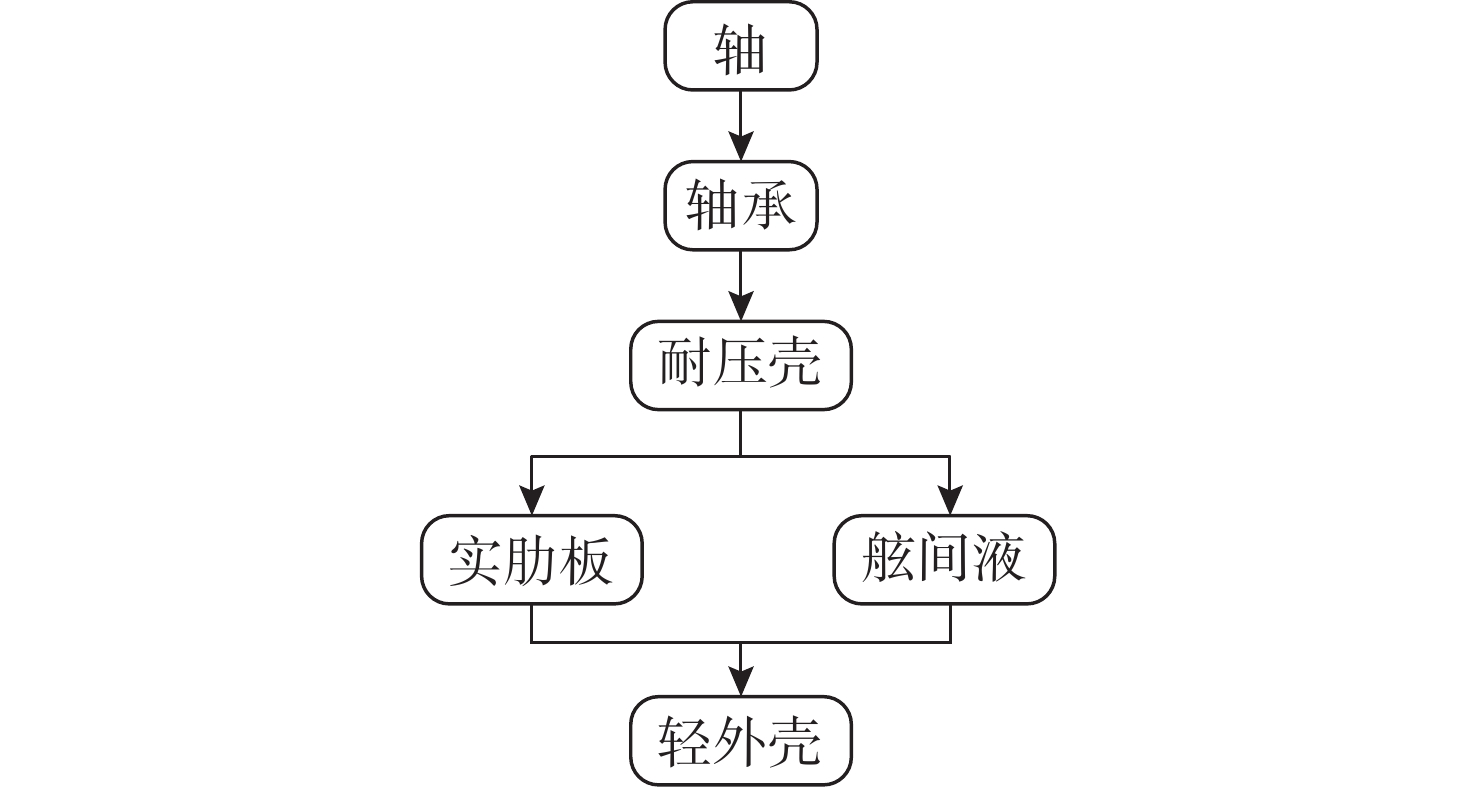

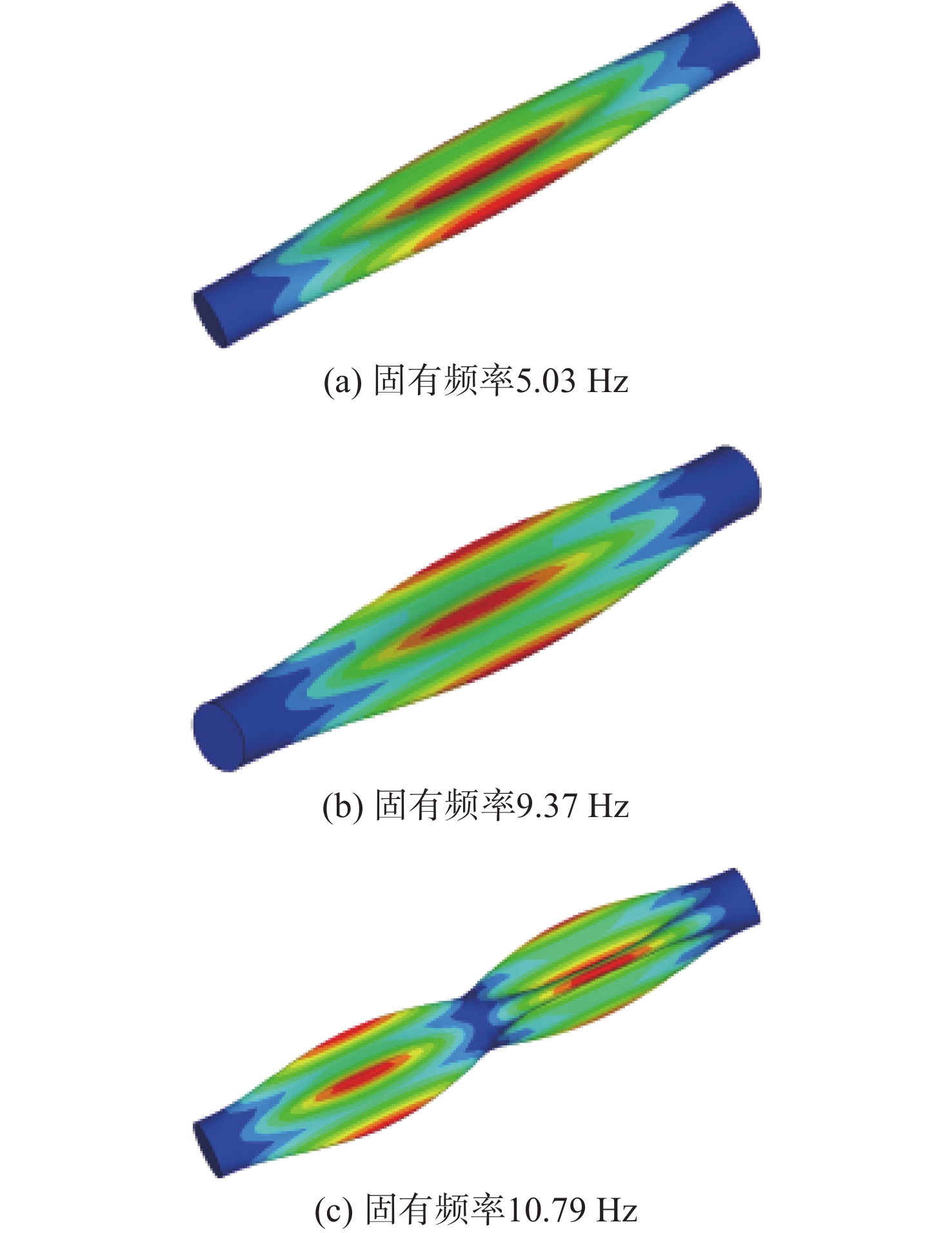

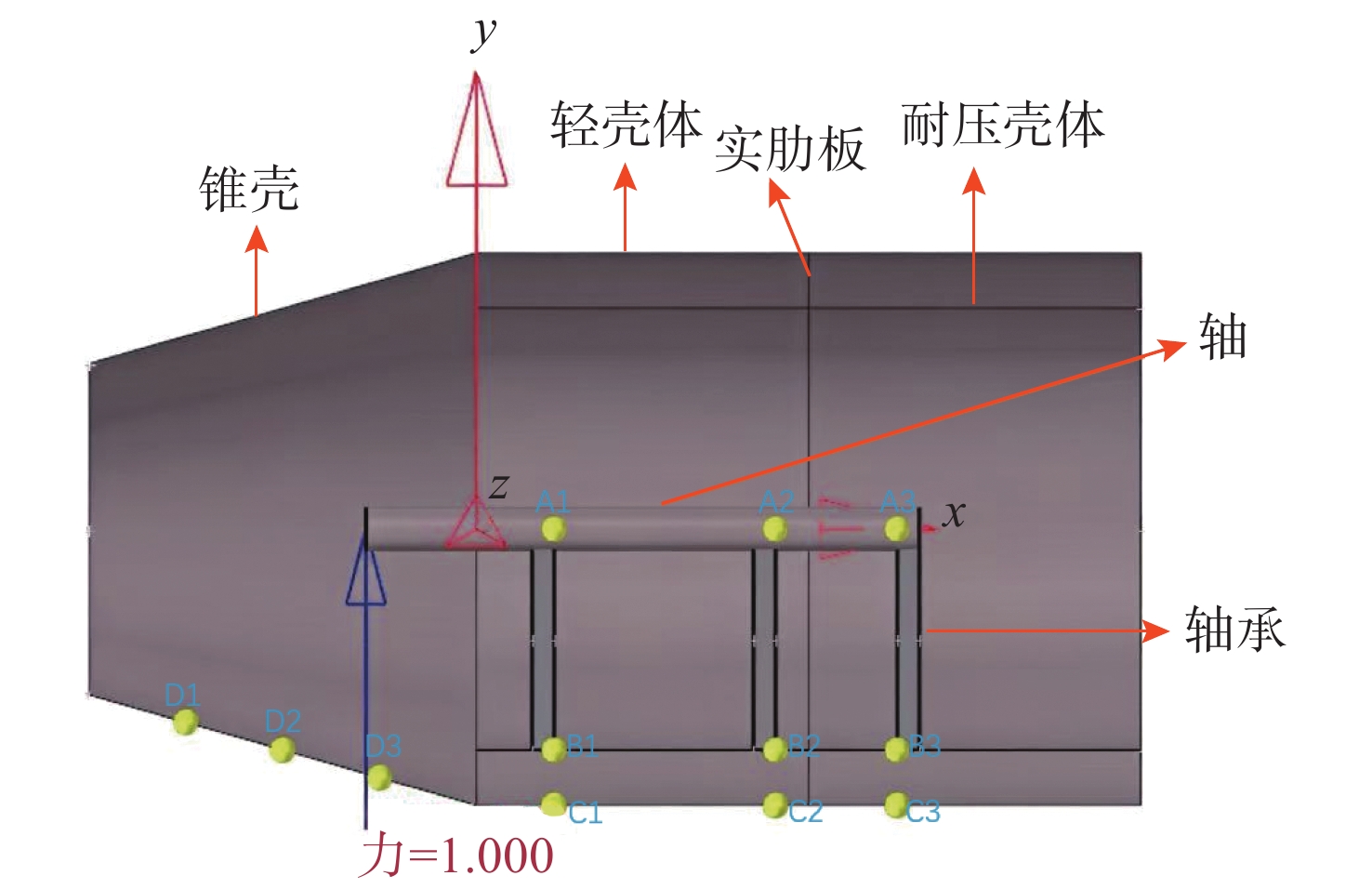

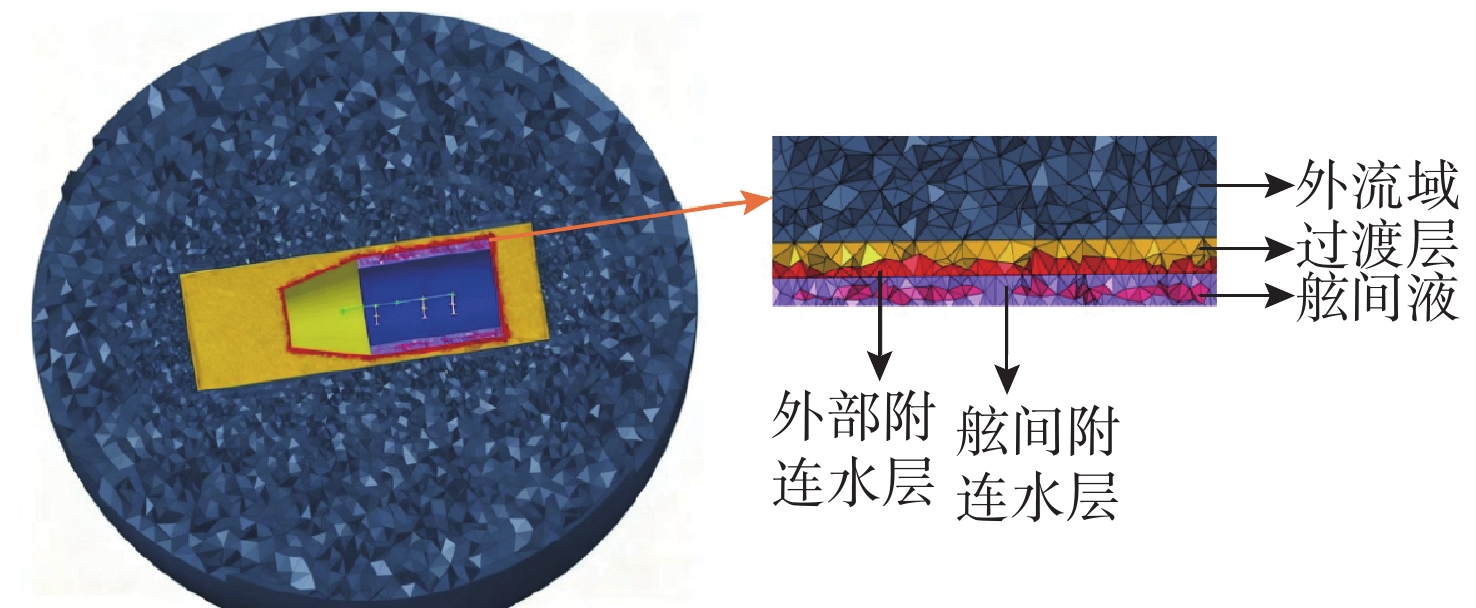

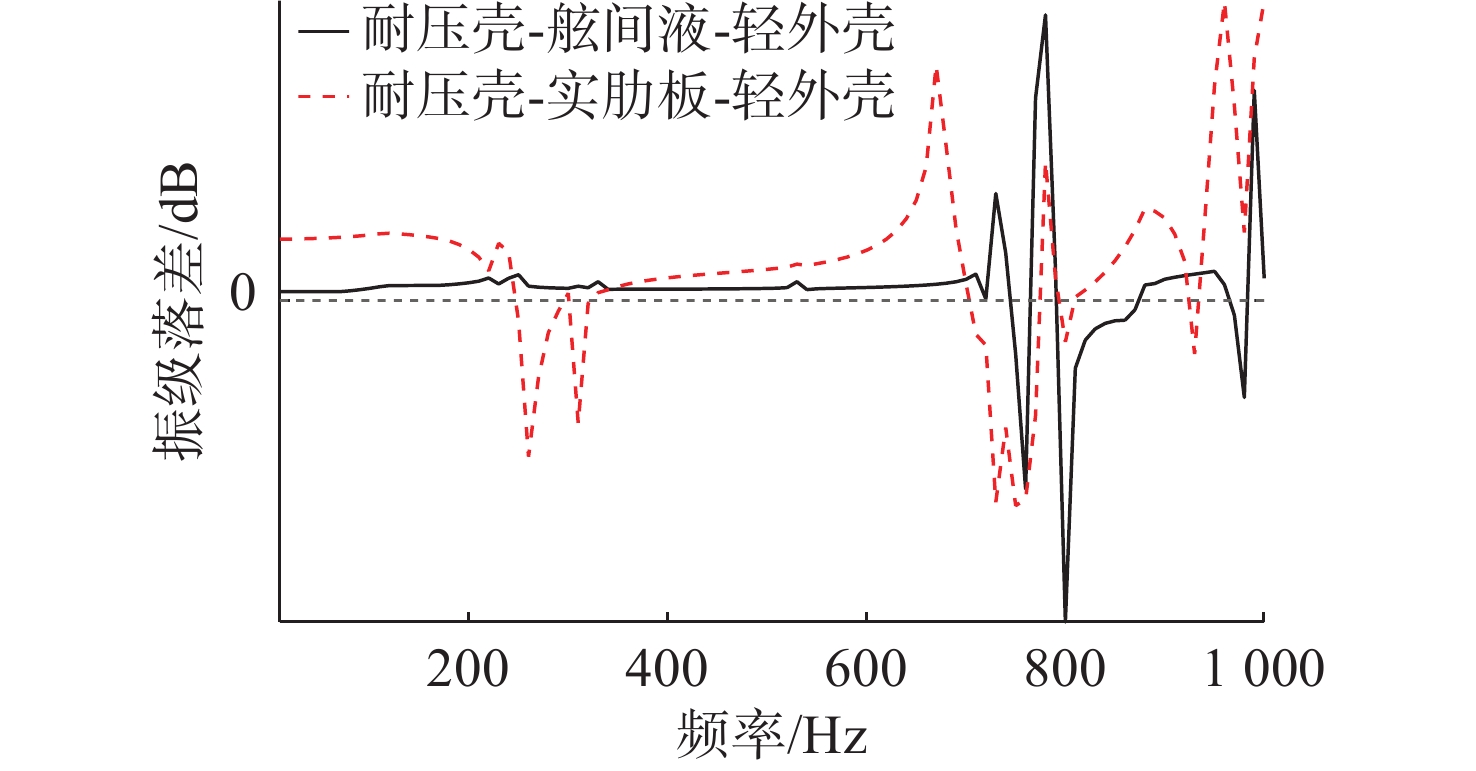

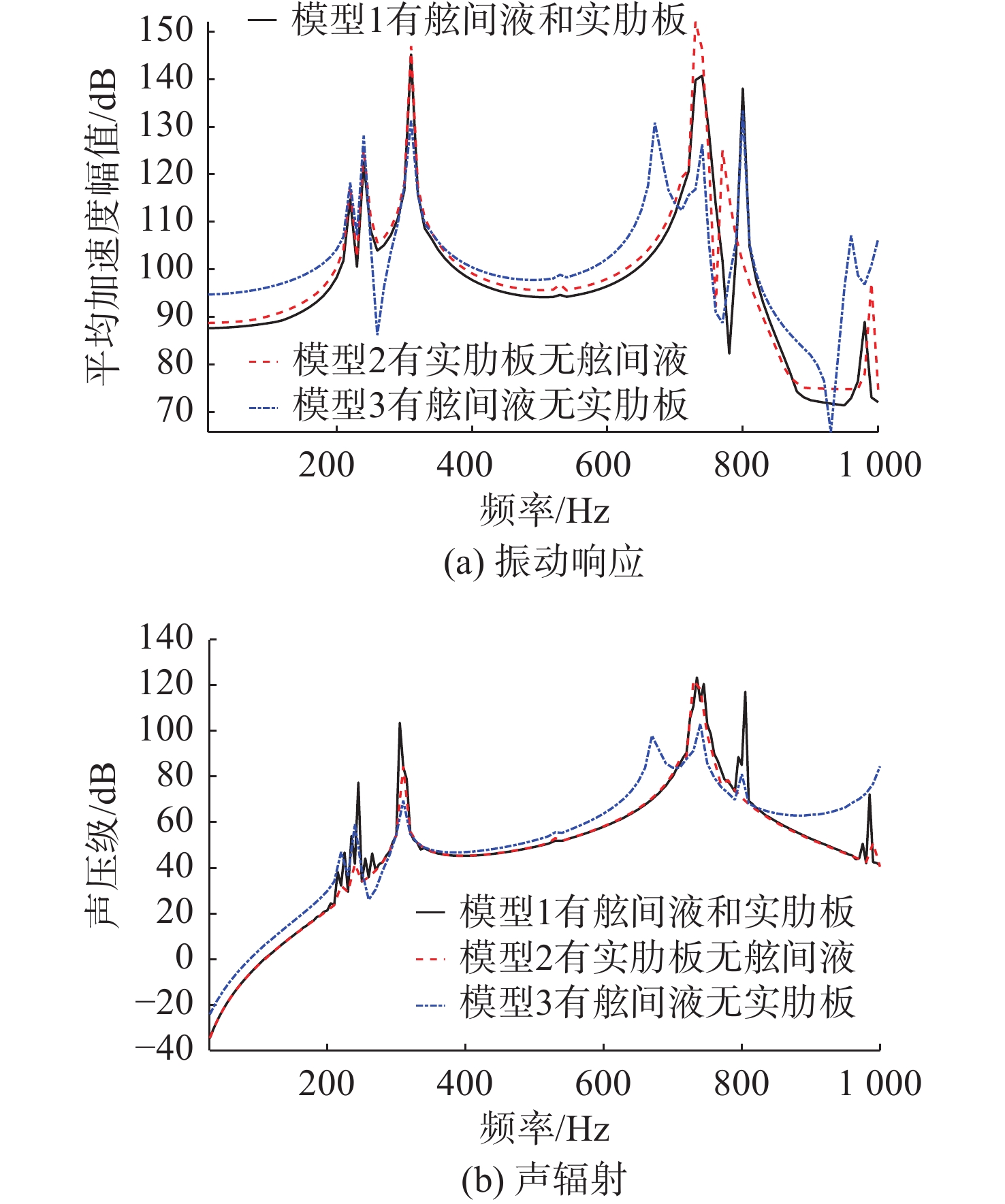

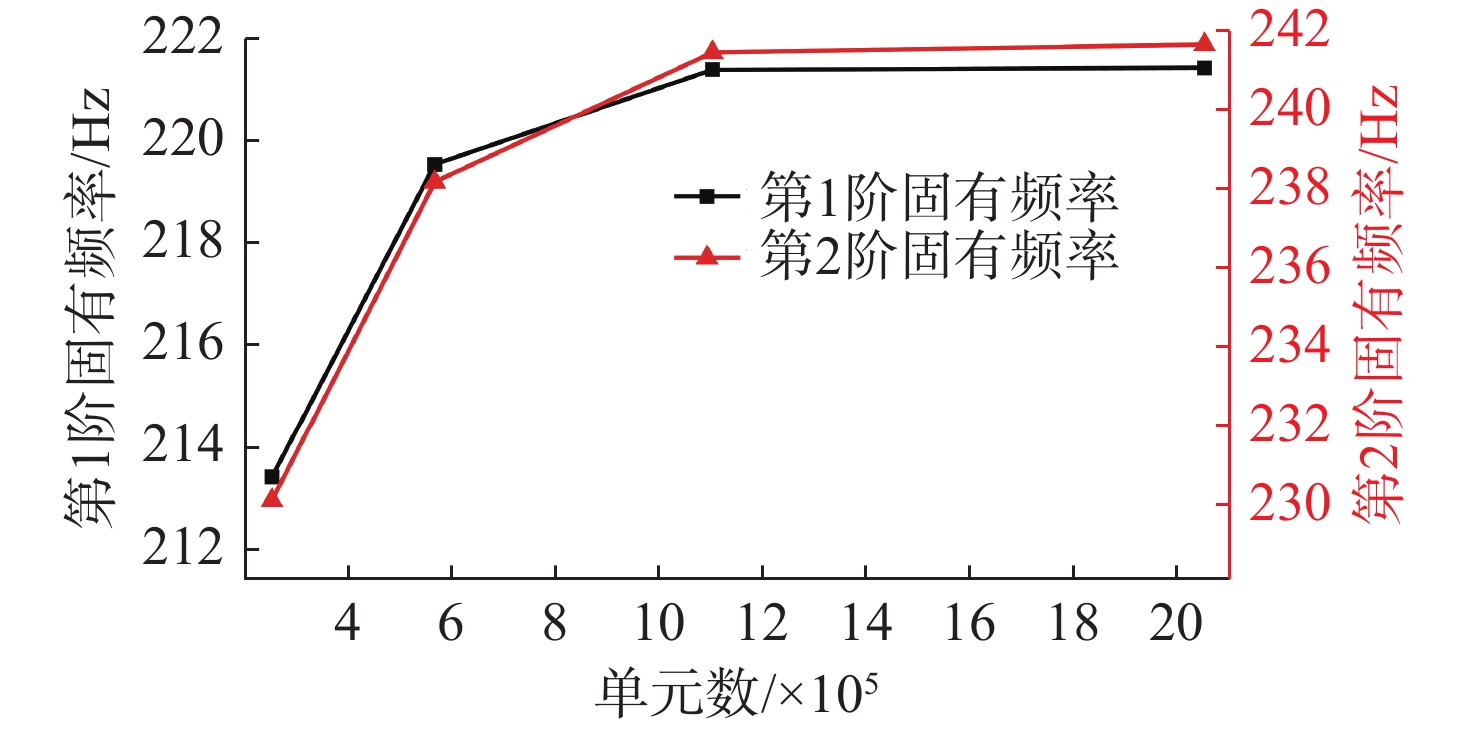

To investigate the vibration transmission characteristics of the underwater shaft-cone-cylinder double-layer shell structure, a fluid-solid coupling finite element model was constructed based on the HyperMesh-ANSYS co-simulation platform, so as to simulate the full-process dynamic behavior of shaft excitation, bearing transmission, shell, and liquid coupling. The effects of interhull fluid density, bearing stiffness, and internal and external fluids of the shell on structural vibration transfer were systematically analyzed. The results show that the interhull liquid reduces the resonance frequency of the system through the added mass effect and enhances the sound pressure level through the fluid-solid coupling effect. The increase in bearing stiffness can suppress the shaft system vibration but excites the high-frequency resonance of the shell. In the low-frequency band, the strong continuity of the interhull liquid enhances the vibration transmission between the double-layer shells, while the additional mass and damping effects block the vibration transmission in the high-frequency band. This study reveals the vibration transfer effect of the underwater shaft-cone-cylinder double-layer shell model and provides theoretical support for the acoustic vibration design and vibration and noise reduction optimization of undersea vehicles.
- undersea vehicle,
- shaft-cone-cylinder double-layer shell,
- interhull liquid,
- vibration transfer path,
- fluid-solid coupling

FullText(HTML)

References(16)

References

[1]	Kim J S, Om C L, Kang D, et al. Dynamic analysis of laminated composite double cylindrical and conical shells with bulkheads using meshfree method[J]. Acta Mechanica, 2023, 234(10): 4775-4800. doi: 10.1007/s00707-023-03628-w
[2]	Reaei S, Talebitooti R. Functionally graded viscoelastic core characteristics on vibroacoustic behavior of double-walled cylindrical shells in a subsonic external flow[J]. Journal of Vibration and Control, 2023, 29(1-2): 265-285. doi: 10.1177/10775463211046728
[3]	Cao X T. Acoustic radiation from stiffened double concentric large cylindrical shells: Part II Creeping Waves[J]. Journal of Vibration and Acoustics, 2023, 145(4): 041002. doi: 10.1115/1.4056634
[4]	Luo X W, Zhou H B, LI L, et al. Acoustic vibrations of underwater double-walled cylindrical shells with elastically restrained boundaries[J]. Applied Ocean Research, 2025, 154: 104426. doi: 10.1016/j.apor.2025.104426
[5]	谭路, 纪刚, 周其斗, 等. 基于波数谱的双层圆柱壳外壳振动与声辐射特性分析[J]. 中国舰船研究, 2015, 10(6): 68-73. Tan L, Ji G, Zhou Q D, et al. Analysis on the vibration and sound radiation characteristics of double cylindrical shells using wave number spectrums[J]. Chinese Journal of Ship Research, 2015, 10(6): 68-73.
[6]	张占阳, 吕世金, 白振国. 有限长圆柱壳水下声辐射与散射耦合特性研究[J]. 声学技术, 2019, 38(2): 76-79.
[7]	曹晓明, 喻卫宁, 王磊, 等. 环向加筋夹层圆柱壳体应力计算方法[J]. 哈尔滨工程大学学报, 2023, 44(2): 181-189. doi: 10.11990/jheu.202105005 Cao X M, Yu W N, Wang L, et al. Stress analysis of ring-stiffened sandwich cylindrical shells[J]. Journal of Harbin Engineering University, 2023, 44(2): 181-189. doi: 10.11990/jheu.202105005
[8]	王世彦, 俞孟萨. 舷间液舱模型声振耦合特性及声辐射控制[J]. 船舶力学, 2019, 23(1): 96-109. Wang S Y, Yu M S. Sound and vibration coupling characteristic and acoustic radiation control of water cabin[J]. Journal of Ship Mechanics, 2019, 23(1): 96-109.
[9]	Ye T G, Jin G Y, Su Z, et al. A unified Chebyshev-Ritz formulation for vibration analysis of composite laminated deep open shells with arbitrary boundary conditions[J]. A rchive of Applied Mechanics, 2015, 84(4): 441-471.
[10]	王献忠, 林鸿洲, 江晨半, 等. 计及层间水的水下双层圆柱壳声振特性研究[J]. 华中科技大学学报(自然科学版), 2020, 48(8): 109-114. doi: 10.13245/j.hust.200819 Wang X Z, Lin H Z, Jiang C B, et al. Vibro-acoustic responses analysis of submerged double-walled cylindrical shells with interlayer water[J]. Journal of Huazhong University of Science and Technology(Nature Science Edition), 2020, 48(8): 109-114. doi: 10.13245/j.hust.200819
[11]	Burroughs C B. Acoustic radiation from fluid-loaded infinite circular cylinders with doubly periodic ring supports[J]. Journal of the Acoustical Society of America, 1984, 75(3): 715-722.
[12]	Laylagnet B. Modal analysis of a shell’s acoustic radiation in light and heavy fluids[J]. Journal of Sound and Vibration, 1989, 131(3): 397-415. doi: 10.1016/0022-460X(89)91001-8
[13]	Yoshikawa S, Willams E G, Washburn K B. Vibration of two concentric submerged cylindrical shells coupled by the entrained fluid[J]. Journal of the Acoustical Society of America, 1994, 95(6): 3273-3286. doi: 10.1121/1.410021
[14]	Sorokin S V, Ershova O A. Analysis of the energy transmission in compound cylindrical shells with and without internal heavy fluid loading by boundary integral equations and by Floquet theory[J]. Journal of Sound and Vibration, 2006, 291(1): 81-99. doi: 10.1016/j.jsv.2005.05.031
[15]	白振国, 张峰, 丁灿龙. 水下有限长双层圆柱壳舷间声功率传递特性分析[J]. 船舶力学, 2014, 18(10): 1262-74. Bai Z G, Zhang F, Ding C L. On power transmission behavior of finite length double-layer cylindrical shells[J]. Journal of Ship Mechanics, 2014, 18(10): 1262-74.
[16]	Zhang X M, Frequency analysis of submerged cylindrical shells with the wave propagation approach[J]. International Journal of Mechanical Sciences, 2002, 44(7): 1259-73.
