Design and verification of end-face bidirectional self-sealing structure

LI Kaifu; GUAN Youliang; JIG Guotao; JIANG Quan; LIU Yunfan; JIAO Peng

doi:10.11993/j.issn.2096-3920.2025-0020

Article Contents

Article Navigation > Journal of Unmanned Undersea Systems > 2025 > Accepted Manuscript

LI Kaifu, GUAN Youliang, JIG Guotao, JIANG Quan, LIU Yunfan, JIAO Peng. Design and verification of end-face bidirectional self-sealing structure[J]. Journal of Unmanned Undersea Systems. doi: 10.11993/j.issn.2096-3920.2025-0020

Citation:

LI Kaifu, GUAN Youliang, JIG Guotao, JIANG Quan, LIU Yunfan, JIAO Peng. Design and verification of end-face bidirectional self-sealing structure[J]. Journal of Unmanned Undersea Systems. doi: 10.11993/j.issn.2096-3920.2025-0020

Citation:

PDF( 4562 KB)

Design and verification of end-face bidirectional self-sealing structure

doi: 10.11993/j.issn.2096-3920.2025-0020

LI Kaifu^1
,,
GUAN Youliang^{1
,
,},
JIG Guotao^1
,,
JIANG Quan^1
,,
LIU Yunfan^1
,,
JIAO Peng^2
,

1.
The 705 Research Institute, China Shipbuilding Industry Corporation, Kunming Yunnan 650032, China
2.
Institute of Advanced Equipment, Zhejiang university, Hangzhou 310027, China

Received Date: 2025-02-05
Accepted Date: 2025-03-24
Rev Recd Date: 2025-03-21

Available Online: 2025-09-12

Abstract

Abstract

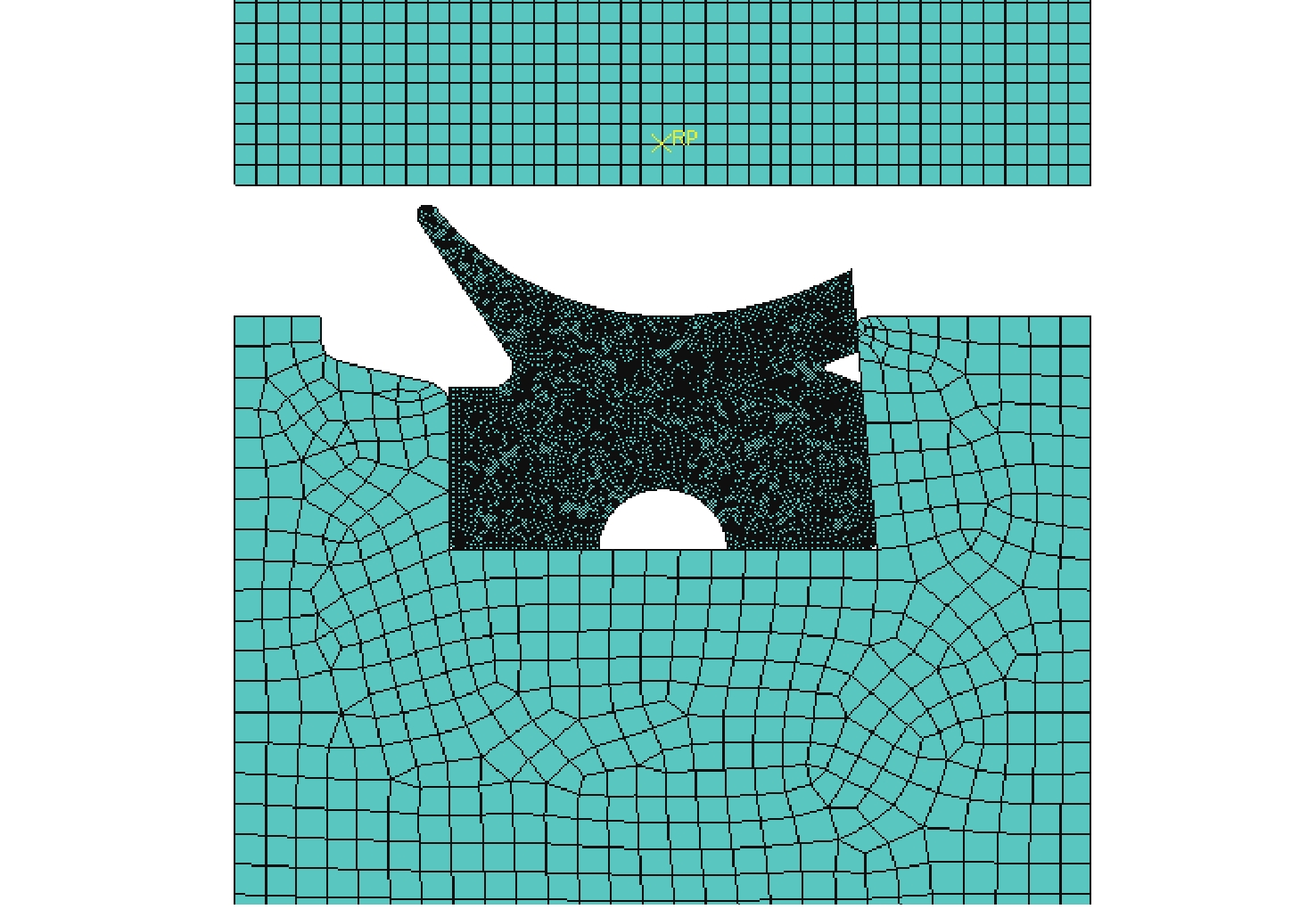

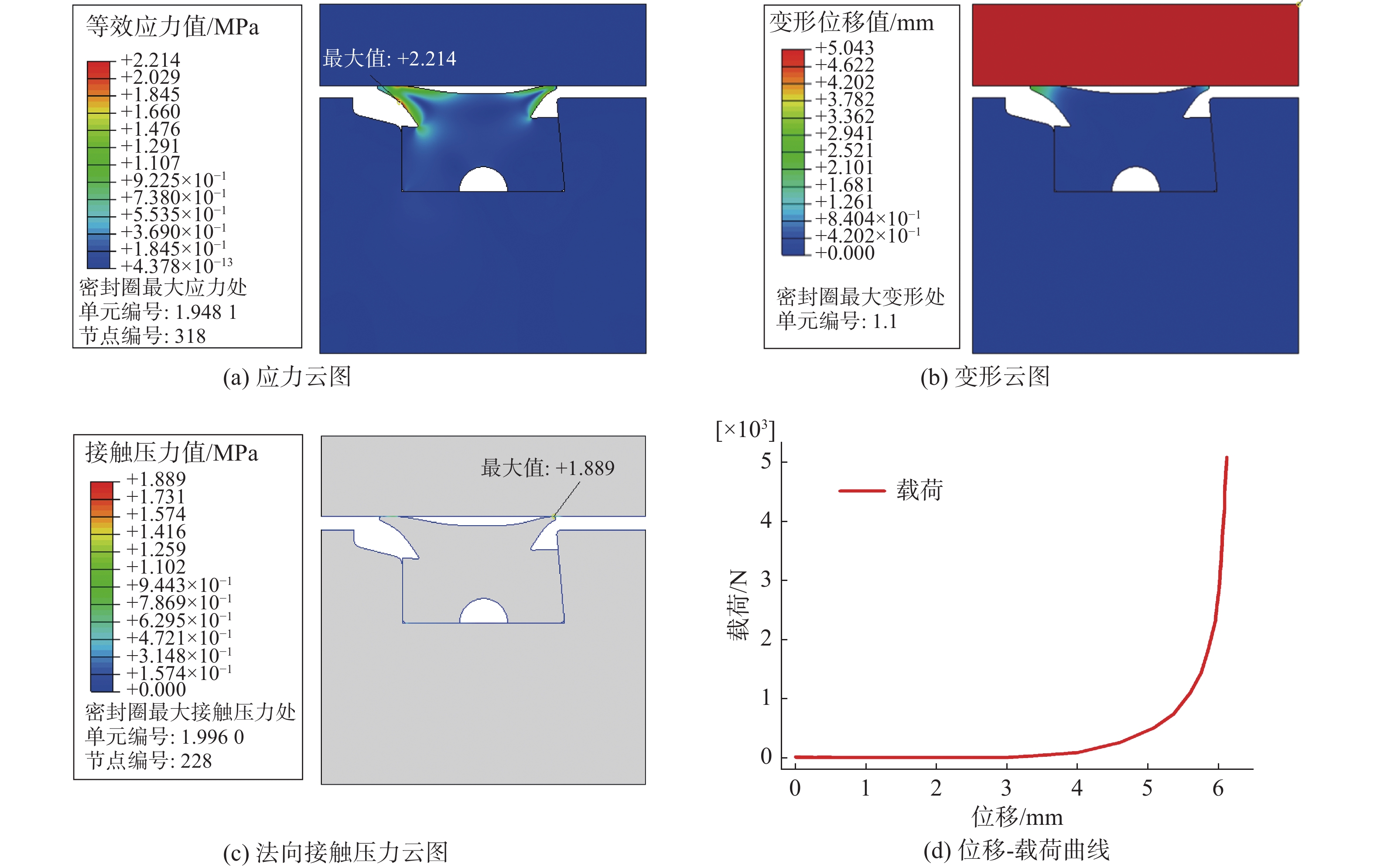

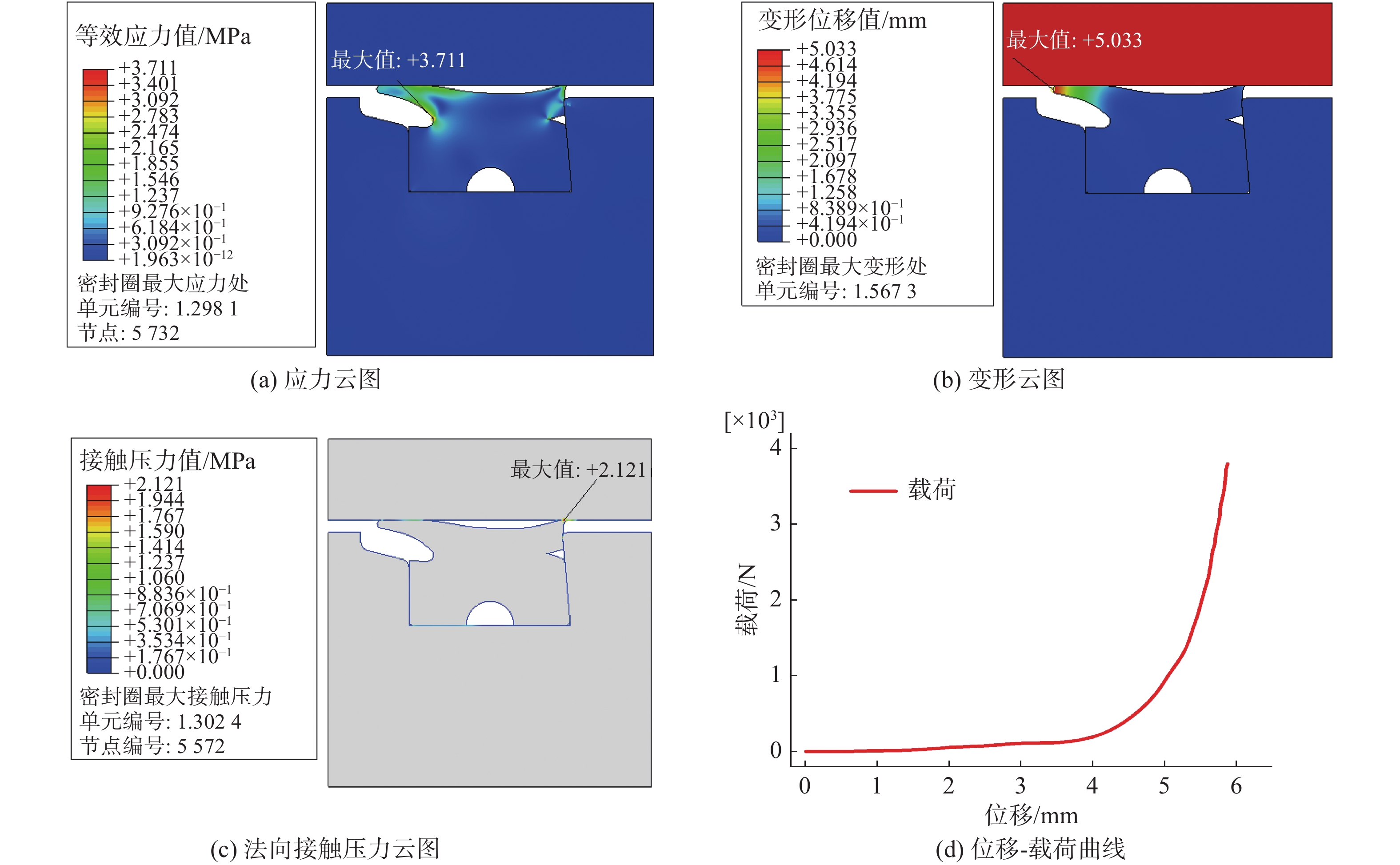

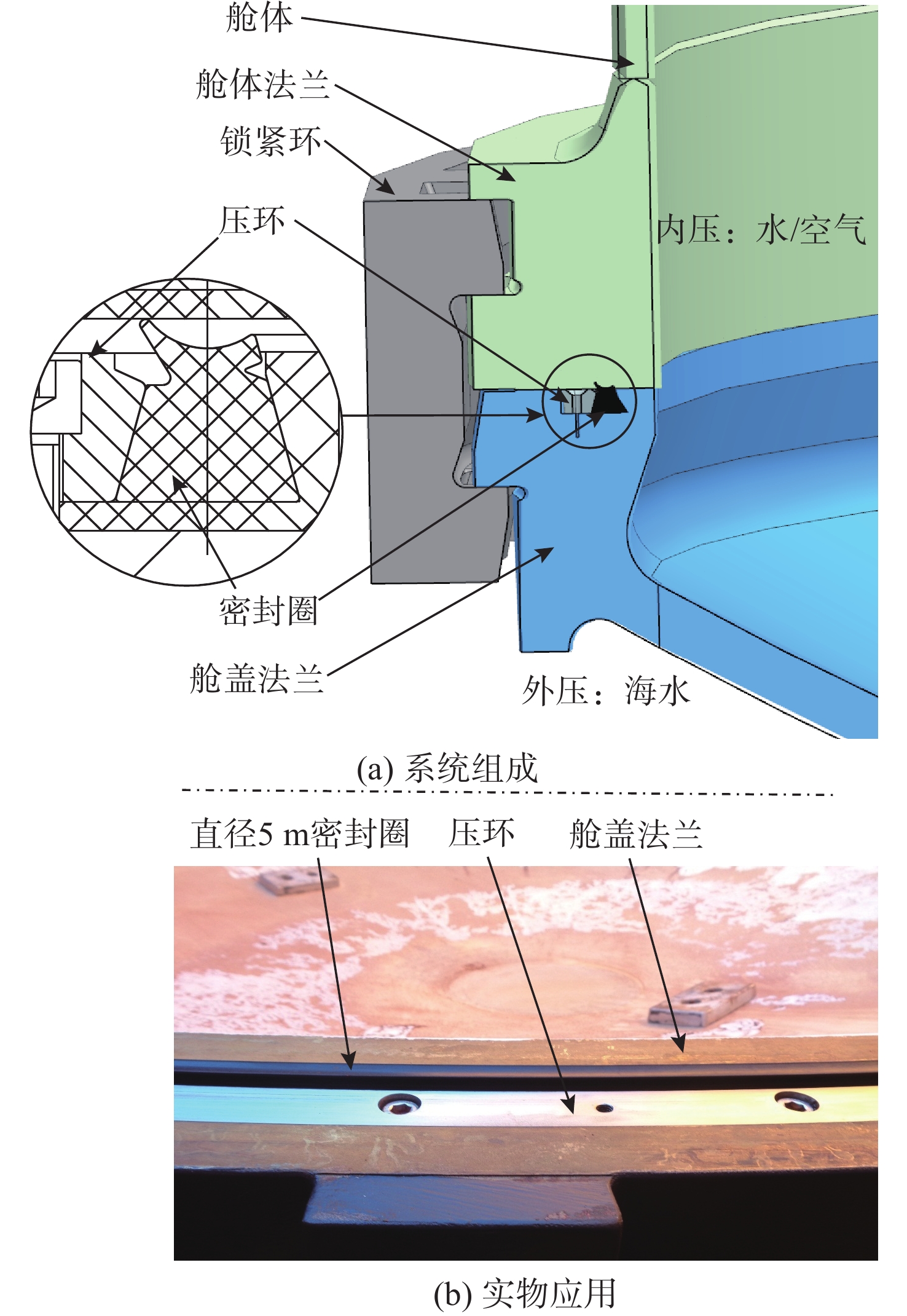

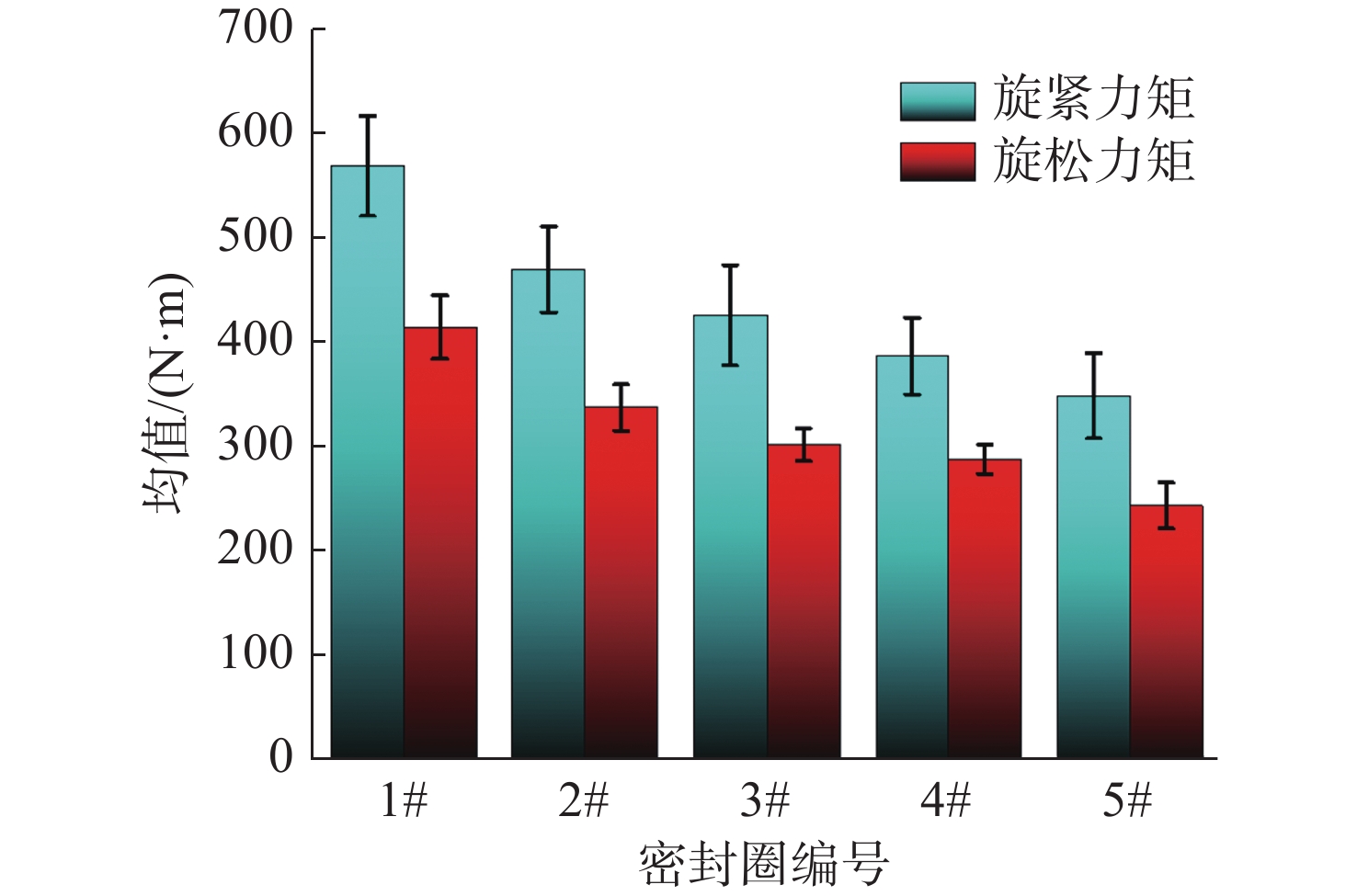

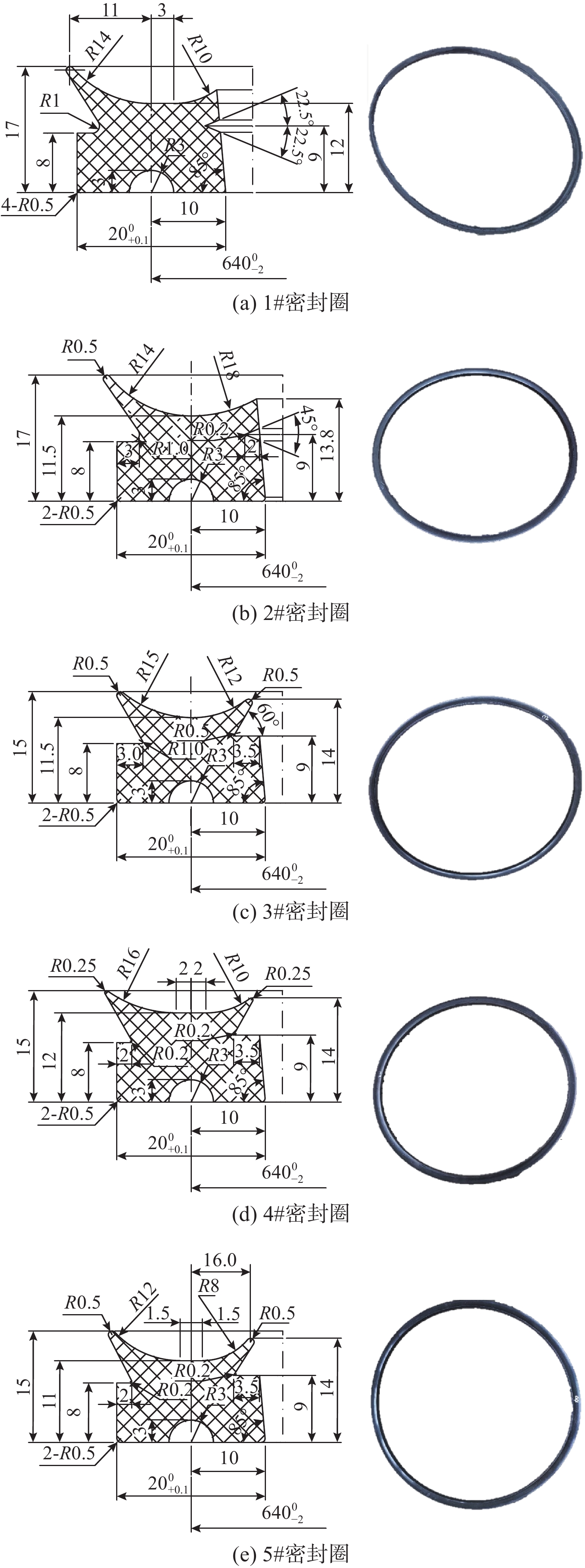

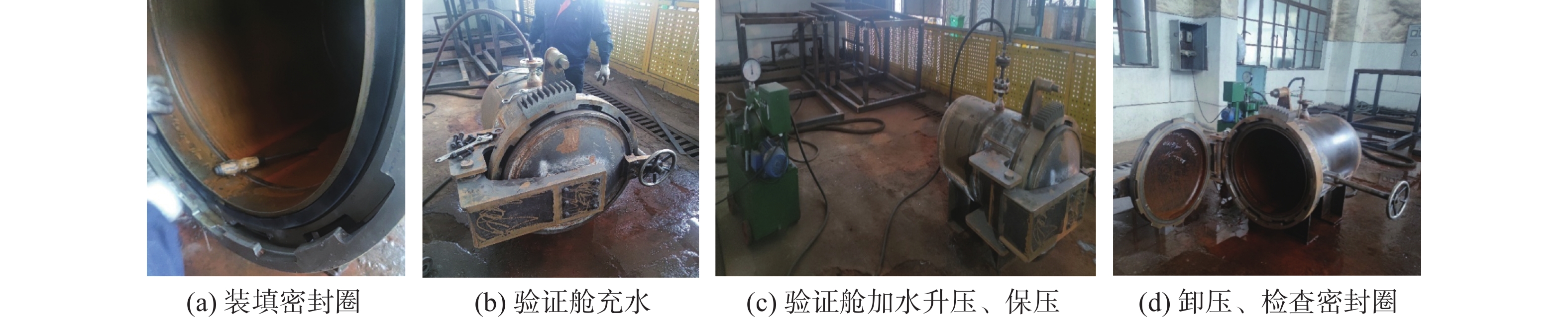

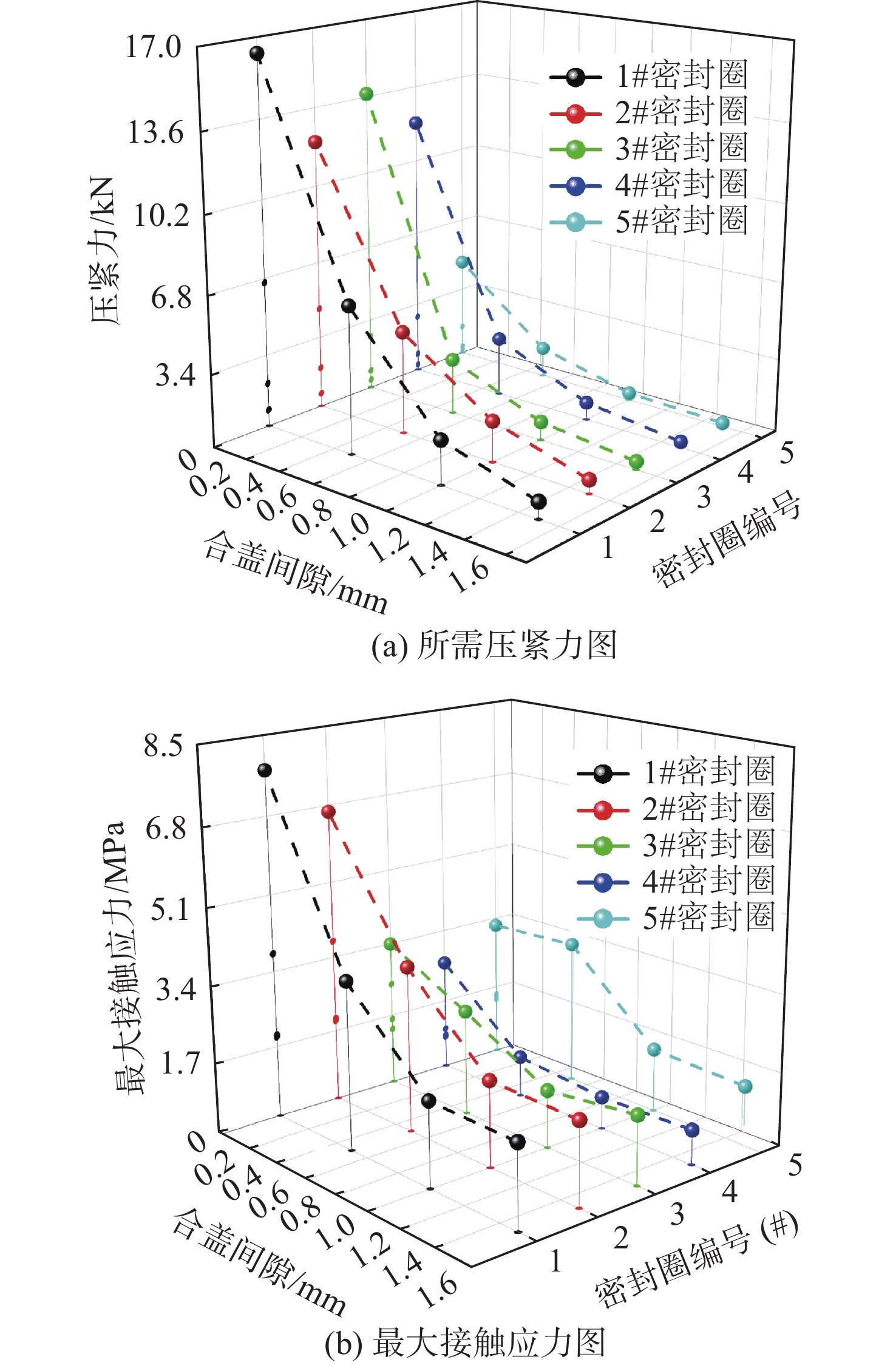

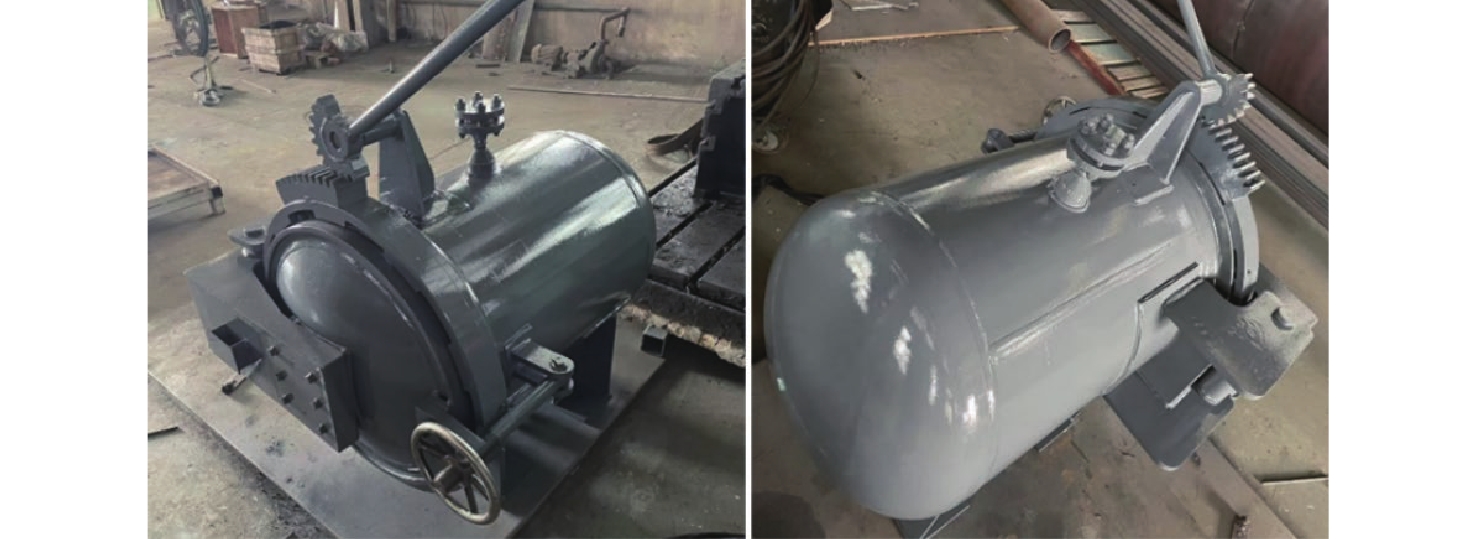

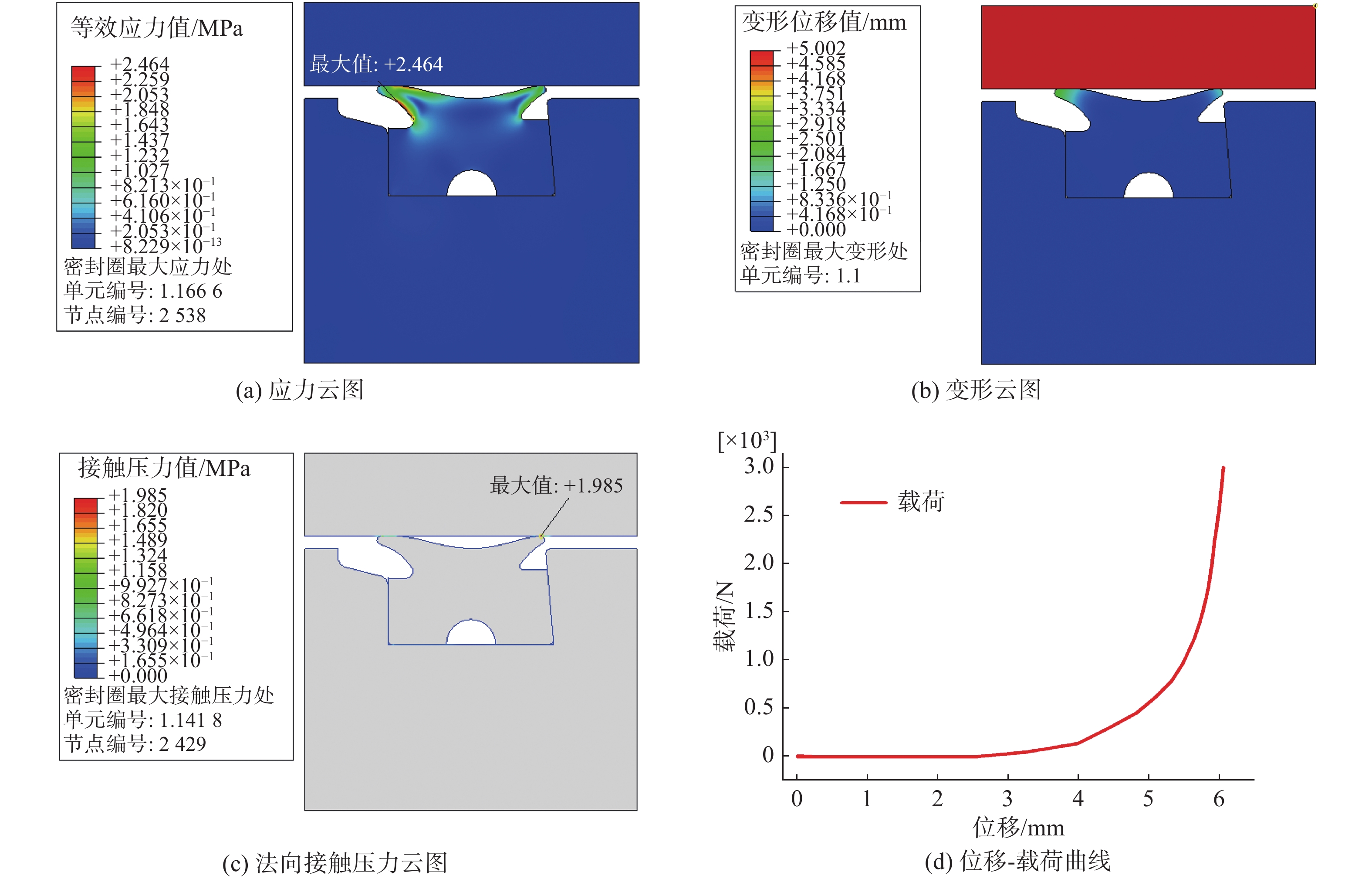

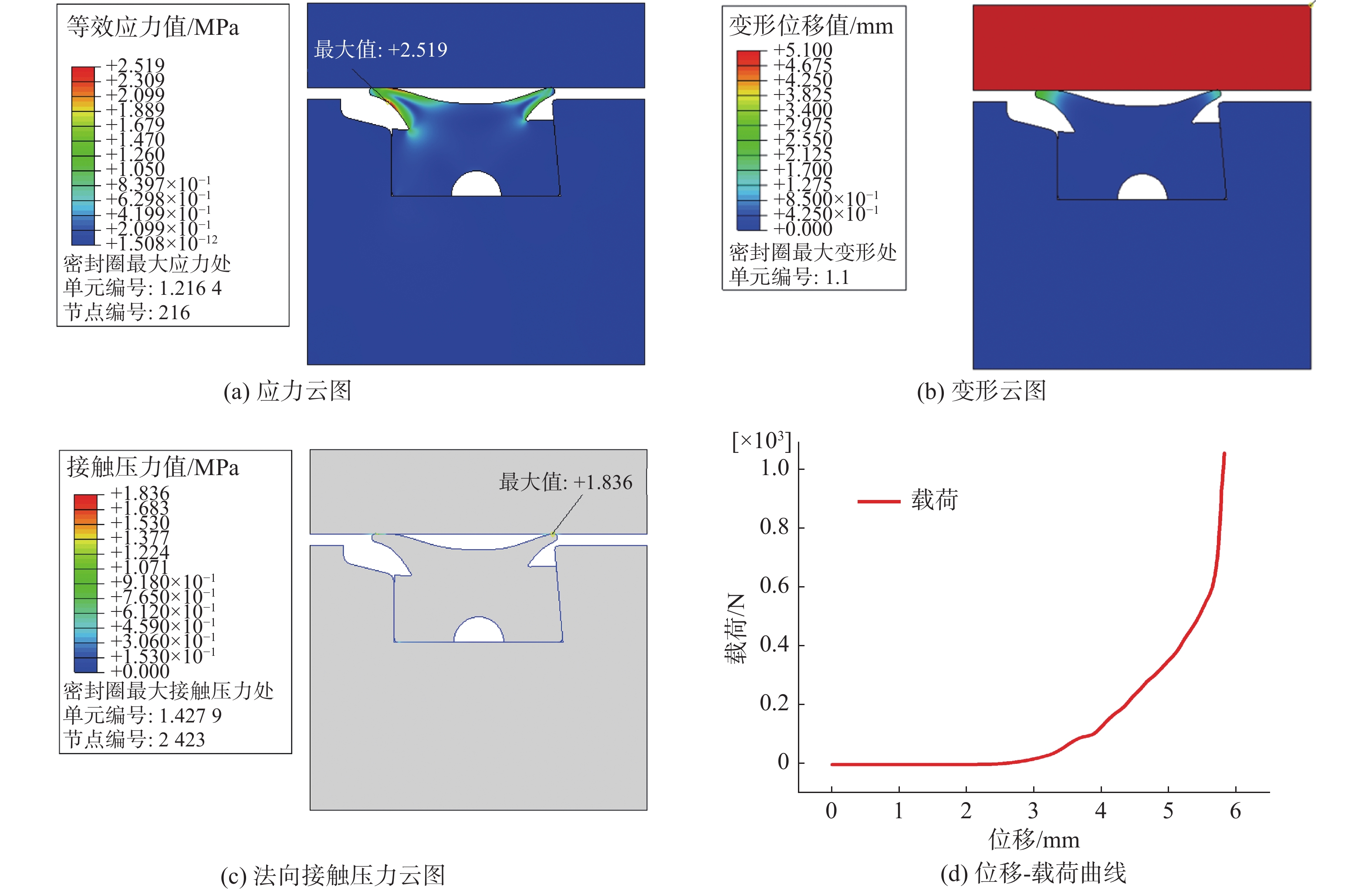

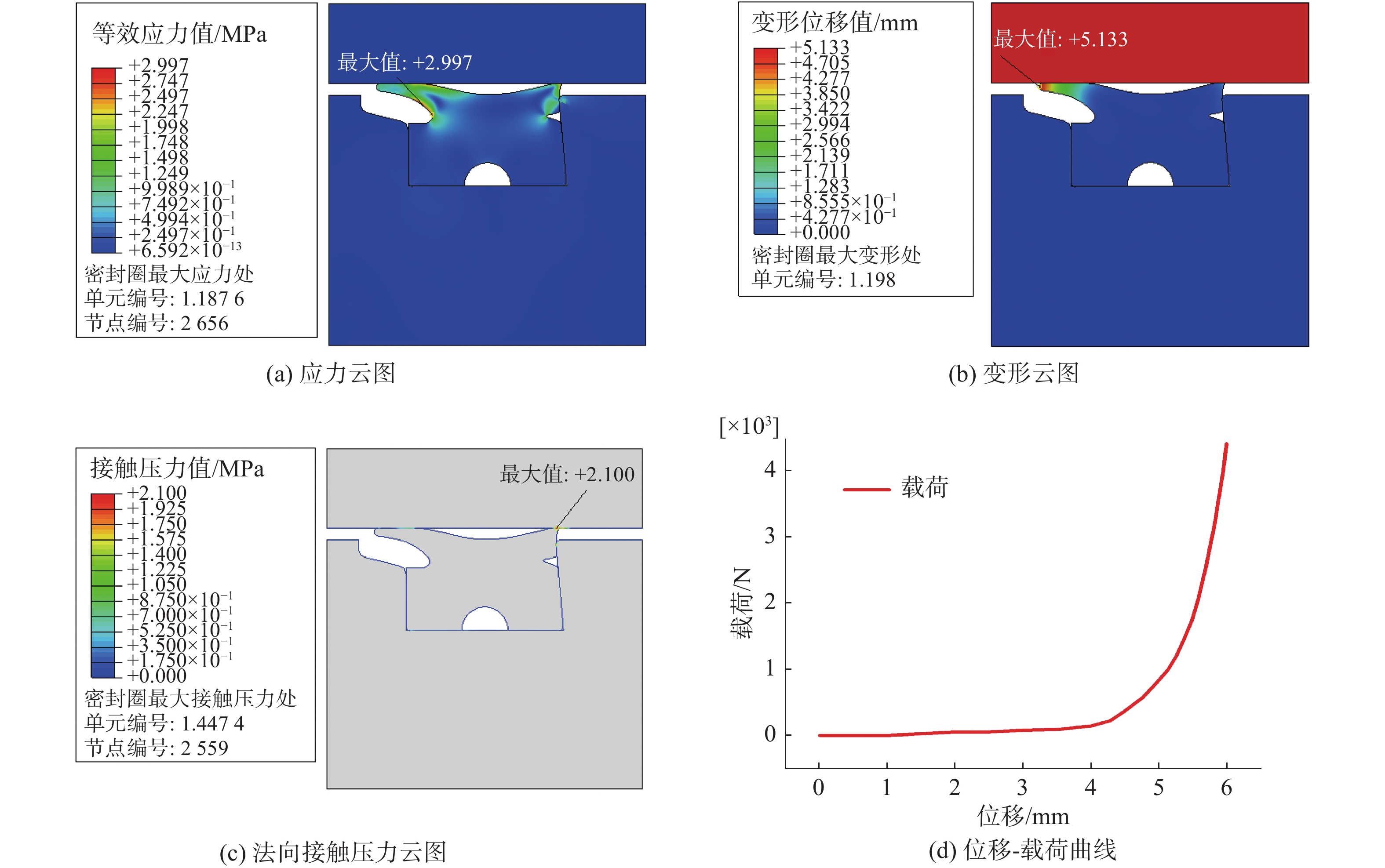

In order to achieve the bidirectional sealing of the end face of underwater large-caliber hatch covers and solve the problem of large reaction force of the sealing ring during the closing process. Innovatively combining the good self-sealing advantage of the tongue-shaped cross-section and the anti-ejection structure of the dovetail structure, five specifications of "high-low tongue" bidirectional self-sealing rings were designed. The stress, deformation, contact pressure and other simulation analyses of the sealing rings were carried out using ABAQUS, and a prototype was trial-produced to conduct internal and external pressure sealing tests as well as loosening and tightening torque tests. The test results are consistent with the results of finite element analysis. The "high-low tongue" sealing ring can achieve bidirectional self-sealing of the end face under low reaction force. The larger the chamfer of the "tongue-shaped" structure, the higher the contact stress value between the sealing ring and the sealing surface, and the better the sealing effect; the smaller the difference in the height of the "tongue" on both sides of the sealing ring, the lower the height of the middle platform, and the easier it is for the sealing ring to be sucked out; reducing the maximum height and the middle platform height of the sealing ring can effectively reduce the sealing reaction force and extend the service life of the sealing ring. Based on the test results, the sealing ring was improved and optimized, and a large-caliber sealing ring was trial-produced. After closing and pressing the cover for more than a thousand times, it can still achieve self-sealing of internal air pressure, internal water pressure and external water pressure. The research results provide a reference for the design and application of end face sealing of large underwater pressure-bearing equipment.
- tongue seal ring,
- structural design,
- finite element analysis,
- sealing performance

FullText(HTML)

References(14)

References

[1]	邱志明, 马焱, 孟祥尧, 等. 水下无人装备前沿发展趋势与关键技术分析[J]. 水下无人系统学报, 2023, 31(1): 1-9. doi: 10.11993/j.issn.2096-3920.2023-0018 QIU Z M, MA Y, MENG X Y, et al. Analysis on the development trend and key technologies of unmanned underwater equipment[J]. Journal of Unmanned Undersea Systems, 2023, 31(1): 1-9 doi: 10.11993/j.issn.2096-3920.2023-0018
[2]	陈旭光, 寇海磊, 牛小东, 等. 深海水下技术装备发展研究[J]. 中国工程科学, 2024, 26(2): 1-14 doi: 10.15302/J-SSCAE-2024.02.002 CHEN X G, KOU H L, NIU X D, et al. Development of deep-sea underwater technology and equipment[J]. Strategic Study of CAE, 2024, 26(2): 1-14 doi: 10.15302/J-SSCAE-2024.02.002
[3]	孙彭涛. 接触式机械密封摩擦磨损特性及性能分析[D]. 青岛: 中国石油大学(华东), 2021.
[4]	梁宇翔. 螺栓法兰接头垫片安全密封性能分析[D]. 兰州: 兰州理工大学, 2017.
[5]	陈凤官, 明友, 钱俊峰, 等. 阀杆填料密封系统性能分析与试验研究进展[J]. 流体机械, 2022, 50(8): 59-66. CHEN F G, MING Y, QIAN J F, et al. Progress in performance analysis and experimental research of valve stem packing seal system[J]. Fluid Machinery. 2022, 50(8): 59-66.
[6]	王永茂, 申展. 基于Ansys的不同截面密封圈密封性能仿真分析[J]. 包装工程, 2017, 38(19): 158-163. WANG Y M, SHEN Z. Simulation and analysis of sealing performance of different cross-section sealing ring based on Ansys[J]. Packing Engineering. 2017, 38(19): 158-163.
[7]	叶子波, 黄兴. 新型双向密封件的接触变形及应力分析[J]. 润滑与密封, 2007, 32(11): 142-145. doi: 10.3969/j.issn.0254-0150.2007.11.040 YE Z B, HUANG X. The contact deformation and stress analysis of new type of bidirectional seal ring[J]. Lubrication Engineering, 2007, 32(11): 142-145. doi: 10.3969/j.issn.0254-0150.2007.11.040
[8]	韩传军, 张瀚, 张杰. 星形橡胶密封圈的密封特性分析及截面改进[J]. 机械设计与研究, 2015, 31(4): 90-94. HAN C J, ZHANG H, ZHANG J. Sealing performance analysis and cross section melioration of X-ring[J]. Machine Design and Research, 2015, 31(4): 90-94.
[9]	方艳峰, 罗凯. 动静环双抛物线型机械密封性能理论研究[J]. 流体机械, 2024, 52(7): 98-104. doi: 10.3969/j.issn.1005-0329.2024.07.014 FANG Y F, LUO K. Theoretical study on performance of mechanical seals with double parabolic rotating and stationary rings[J]. Fluid Machinery, 2024, 52(7): 98-104. doi: 10.3969/j.issn.1005-0329.2024.07.014
[10]	陈飞, 李拓, 麻晓丹, 等. 基于数值模拟的矩形密封圈参数化分析[J]. 机械设计, 2020, 37(8): 91-96. CHEN F, LI T, MA X D, et al. Parametric analysis on the rectangular sealing ring based on numerical simulation[J]. Journal of Machine Design, 2020, 37(8): 91-96.
[11]	陈鑫, 吴福迪, 王立峰, 等. 大缝隙密封的几种异型截面橡胶密封结构的有限元分析[J]. 强度与环境, 2009, 36(4): 1-5. doi: 10.3969/j.issn.1006-3919.2009.04.001 CHEN X, WU F D, WANG L F, et al. FEM analysis on several hetero-shaped cross-section seal structures for large gaps sealing[J]. Structure and Environment Engineering, 2009, 36(4): 1-5. doi: 10.3969/j.issn.1006-3919.2009.04.001
[12]	田有良, 刘庆荣, 陈立军, 等. T-Bolt O型圈快开封头泄漏失效分析及改善措施[J]. 现代制造技术与装备, 2022, 58(1): 169-172. doi: 10.3969/j.issn.1673-5587.2022.01.054 TIAN Y L, LIU Q R, CHEN L J, et al. Analysis and improvement for the leak failure of the T-Bolt O-ring closure[J]. Modern Manufacturing Technology and Equipment, 2022, 58(1): 169-172. doi: 10.3969/j.issn.1673-5587.2022.01.054
[13]	李斌, 卢大伟, 张作鹏. 压缩式封隔器波浪形胶筒力学性能分析[J]. 应用力学学报, 2018, 35(4): 828-833. LI B, LU D W, ZHANG Z P. Analysis of mechanical properties of wave packer rubber[J]. Chinese Journal of Applied Mechanics, 2018, 35(4): 828-833.
[14]	张良, 李忠华, 马新强. 橡胶Mooney-Rivlin超弹性本构模型的参数特性研究[J]. 噪声与振动控制, 2018, 38(Z1): 427-430. doi: 10.3969/j.issn.1006-1355.2018.Z1.091 ZHANG L, LI Z H, MA X Q. Study on parameter characteristics of rubber Mooney-Rivlin model[J]. Noise and Vibration control, 2018, 38(Z1): 427-430. doi: 10.3969/j.issn.1006-1355.2018.Z1.091
