Study on Effect of Tandem Charges with Different Charge Mass Ratios on Underwater Explosion Power

ZHANG Wei; GUO Rui; CUI Hao

doi:10.11993/j.issn.2096-3920.2024-0142

Volume 33 Issue 3

Jun 2025

Turn off MathJax

Article Contents

Article Navigation > Journal of Unmanned Undersea Systems > 2025 > 33(3): 535-544

ZHANG Wei, GUO Rui, CUI Hao. Study on Effect of Tandem Charges with Different Charge Mass Ratios on Underwater Explosion Power[J]. Journal of Unmanned Undersea Systems, 2025, 33(3): 535-544. doi: 10.11993/j.issn.2096-3920.2024-0142

Citation:

ZHANG Wei, GUO Rui, CUI Hao. Study on Effect of Tandem Charges with Different Charge Mass Ratios on Underwater Explosion Power[J]. Journal of Unmanned Undersea Systems, 2025, 33(3): 535-544. doi: 10.11993/j.issn.2096-3920.2024-0142

Citation:

PDF( 2711 KB)

Study on Effect of Tandem Charges with Different Charge Mass Ratios on Underwater Explosion Power

doi: 10.11993/j.issn.2096-3920.2024-0142

School of Mechanical Engineering, Nanjing University of Science and Technology, Nanjing 210094, China

Received Date: 2024-09-26
Accepted Date: 2024-11-12
Rev Recd Date: 2024-10-21

Available Online: 2025-05-22

Abstract

Abstract

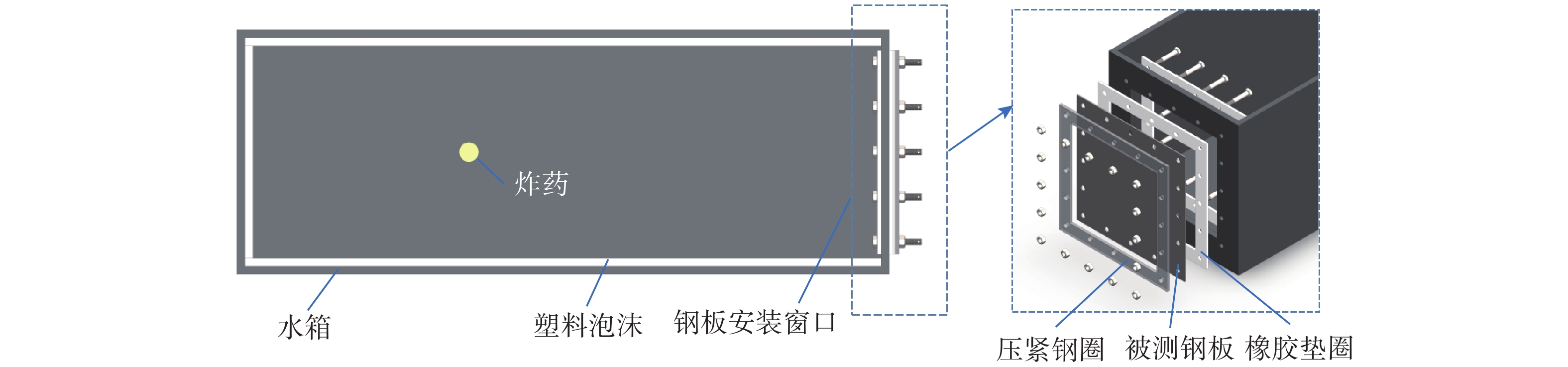

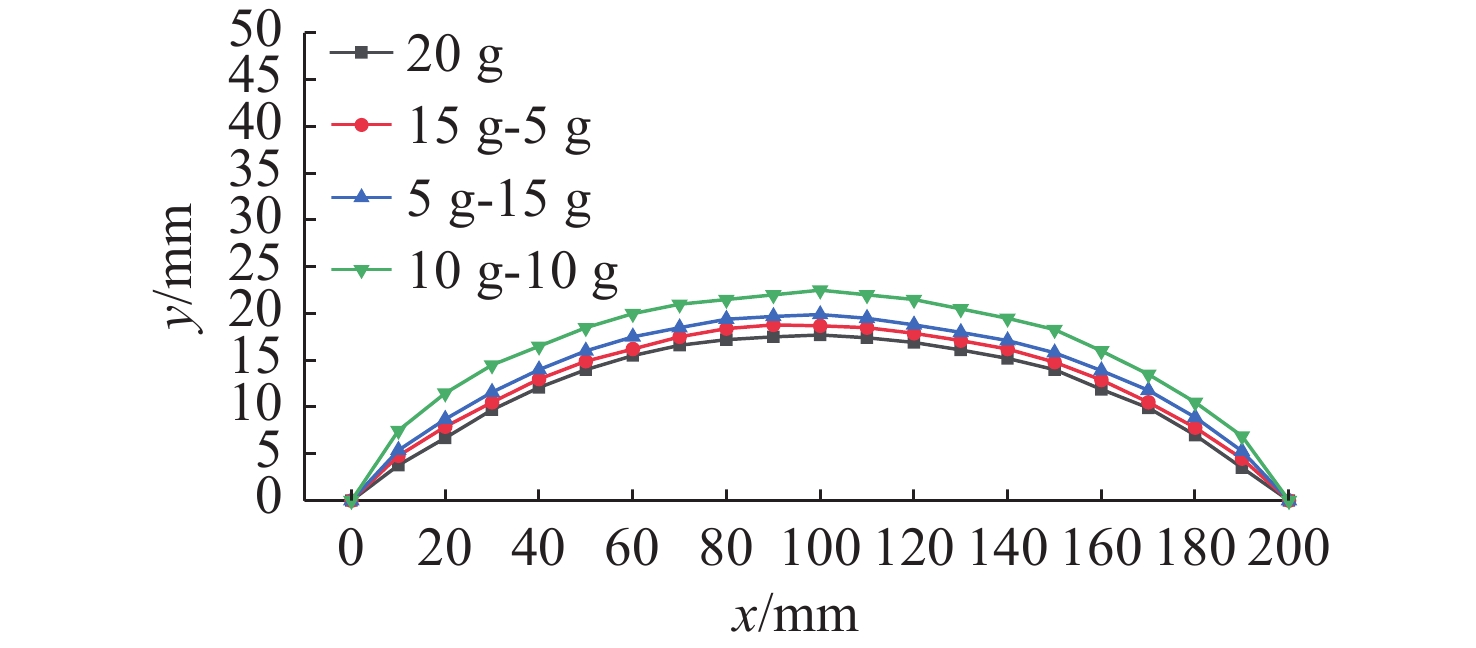

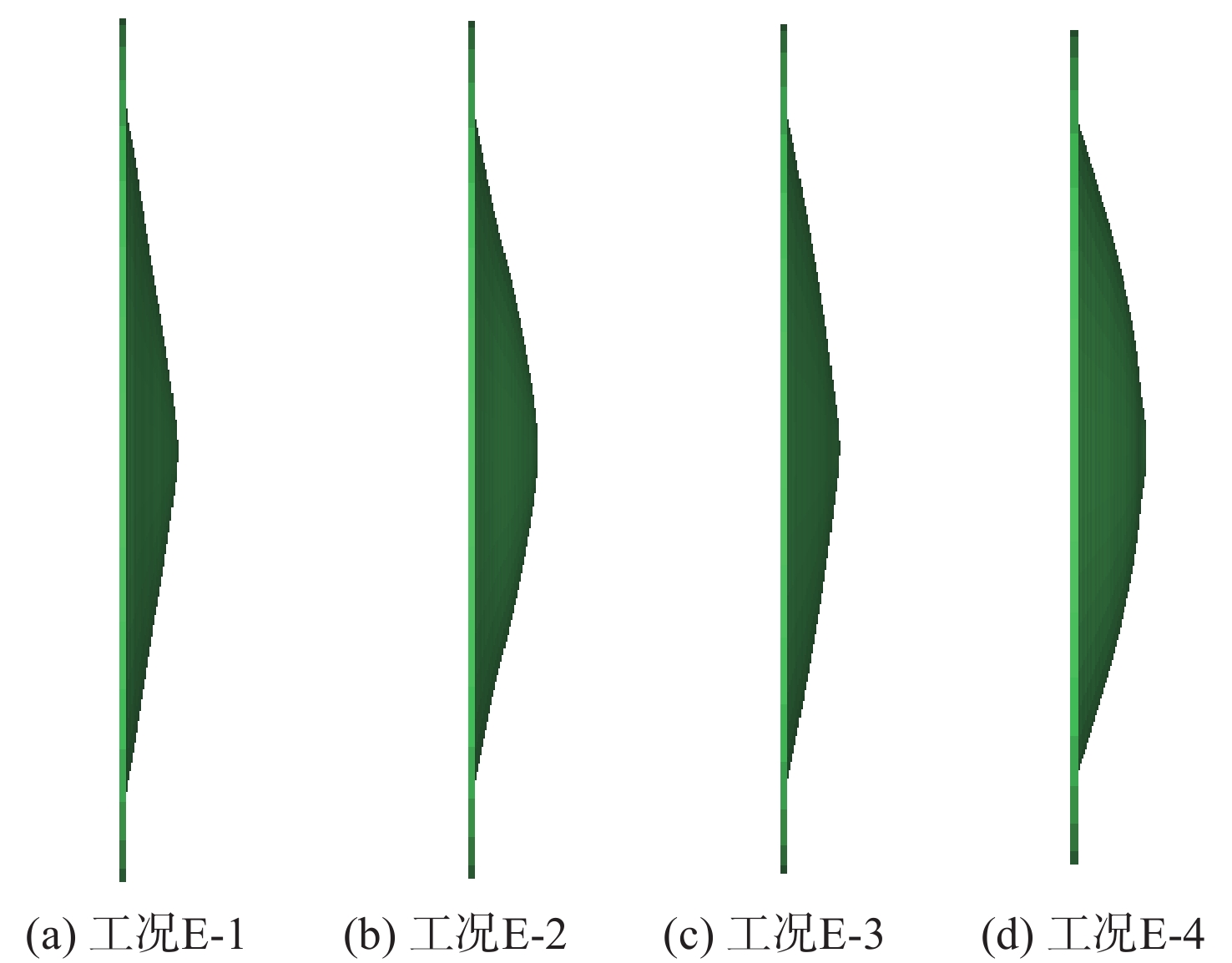

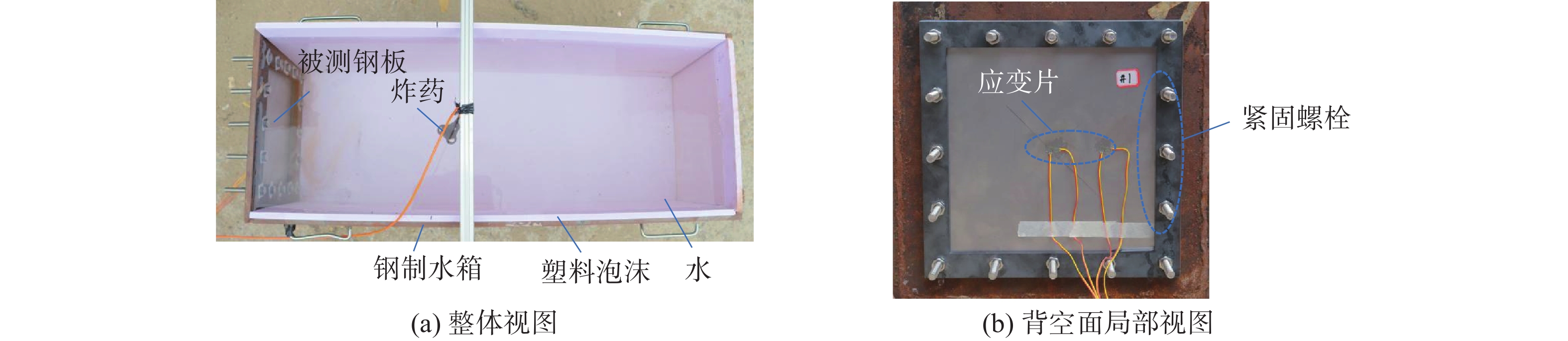

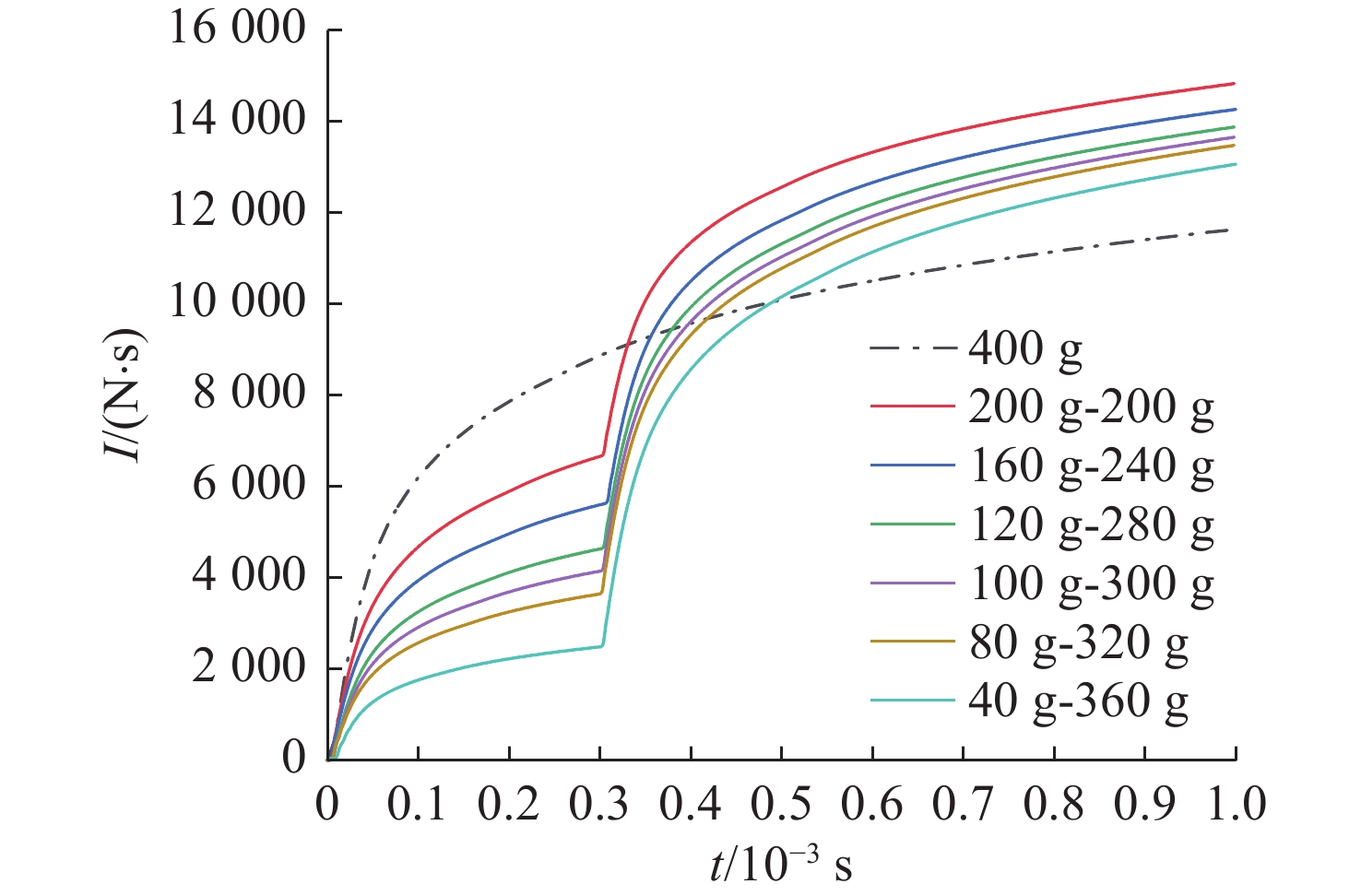

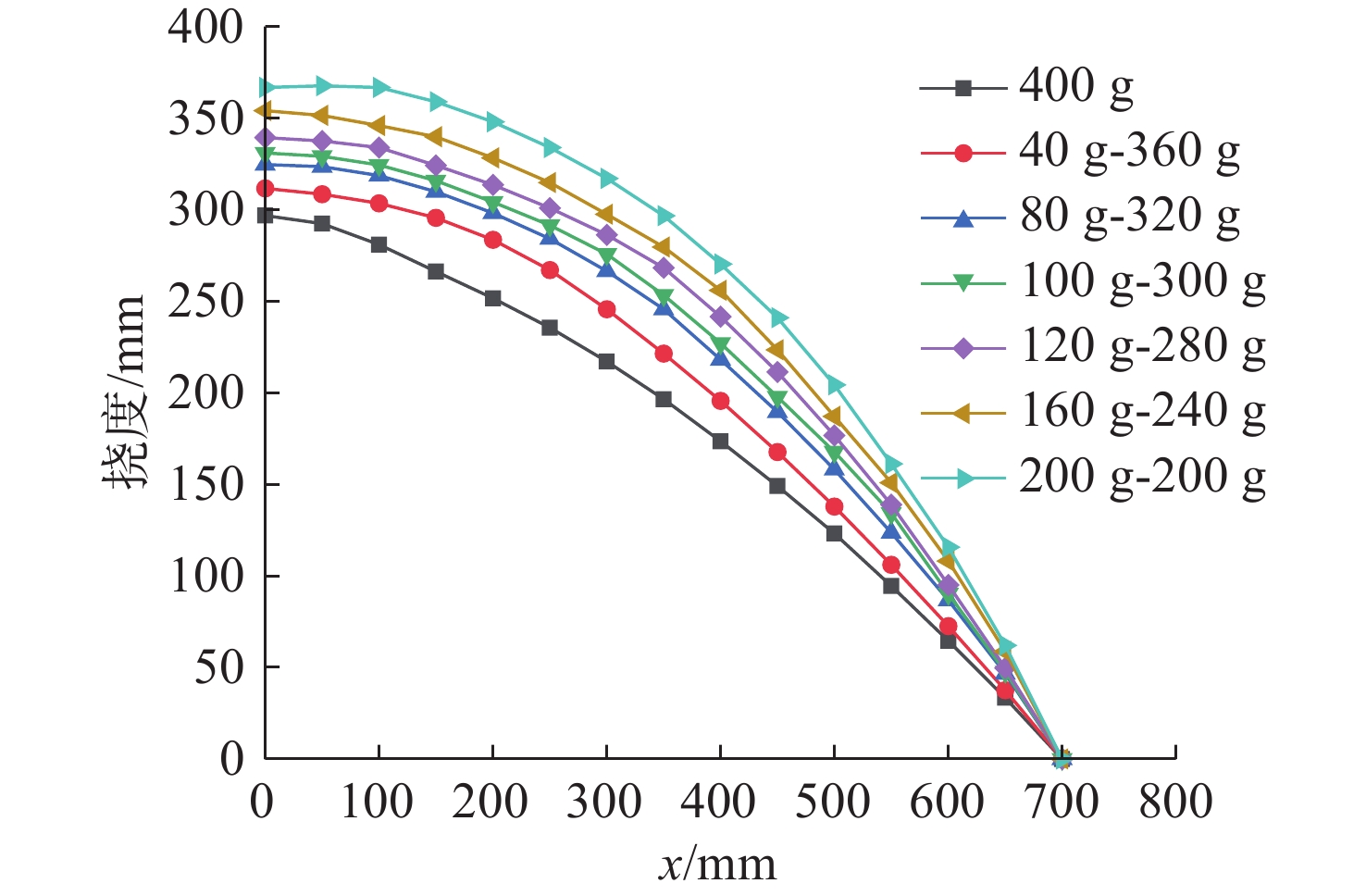

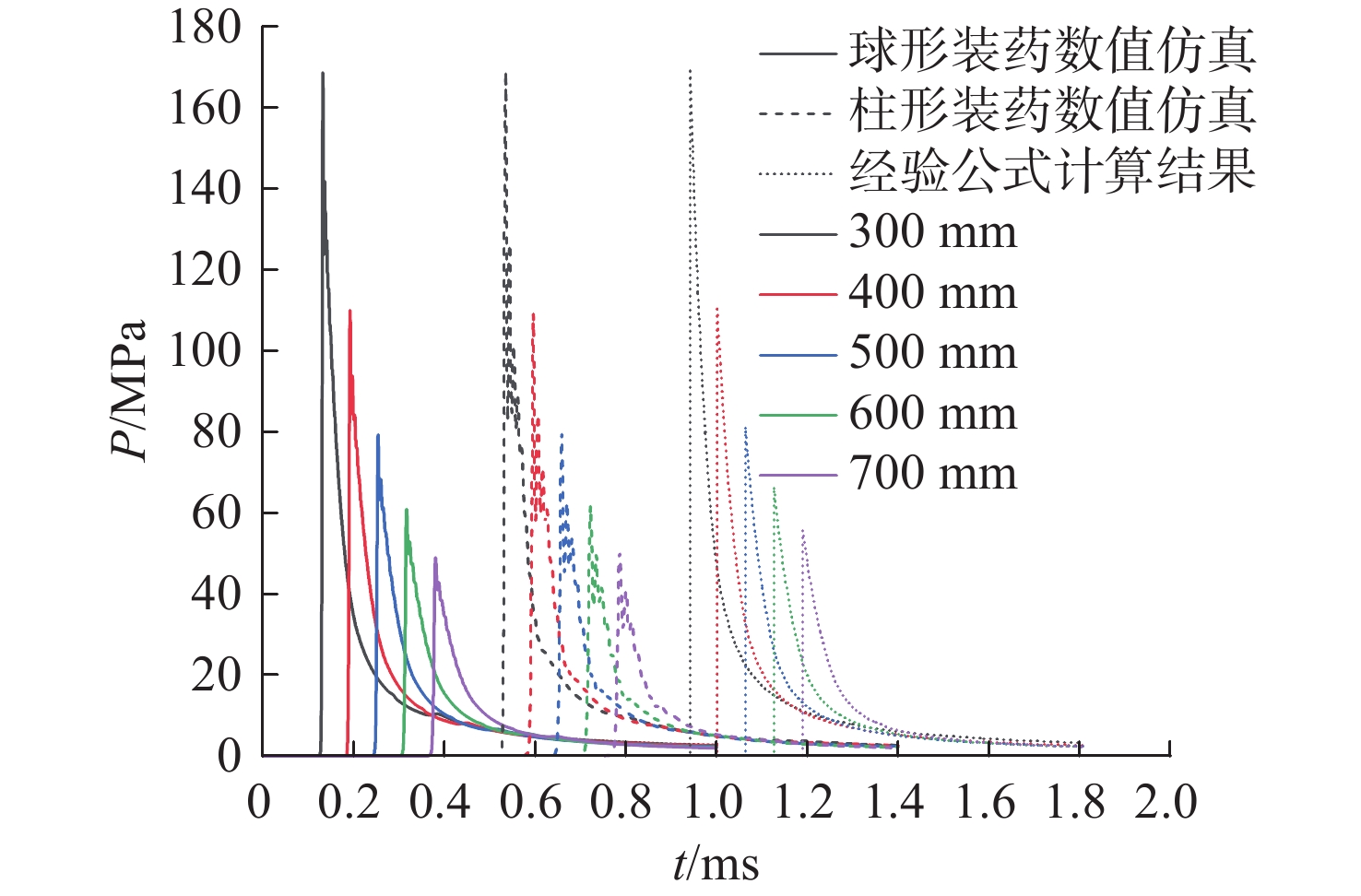

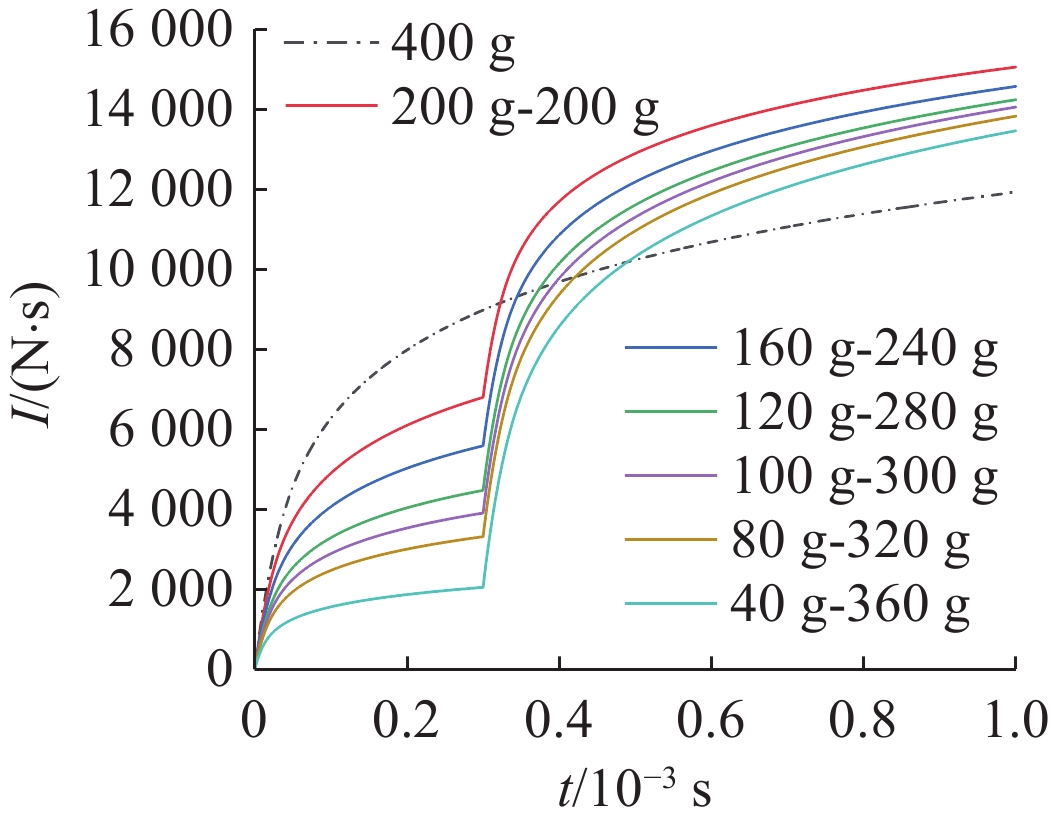

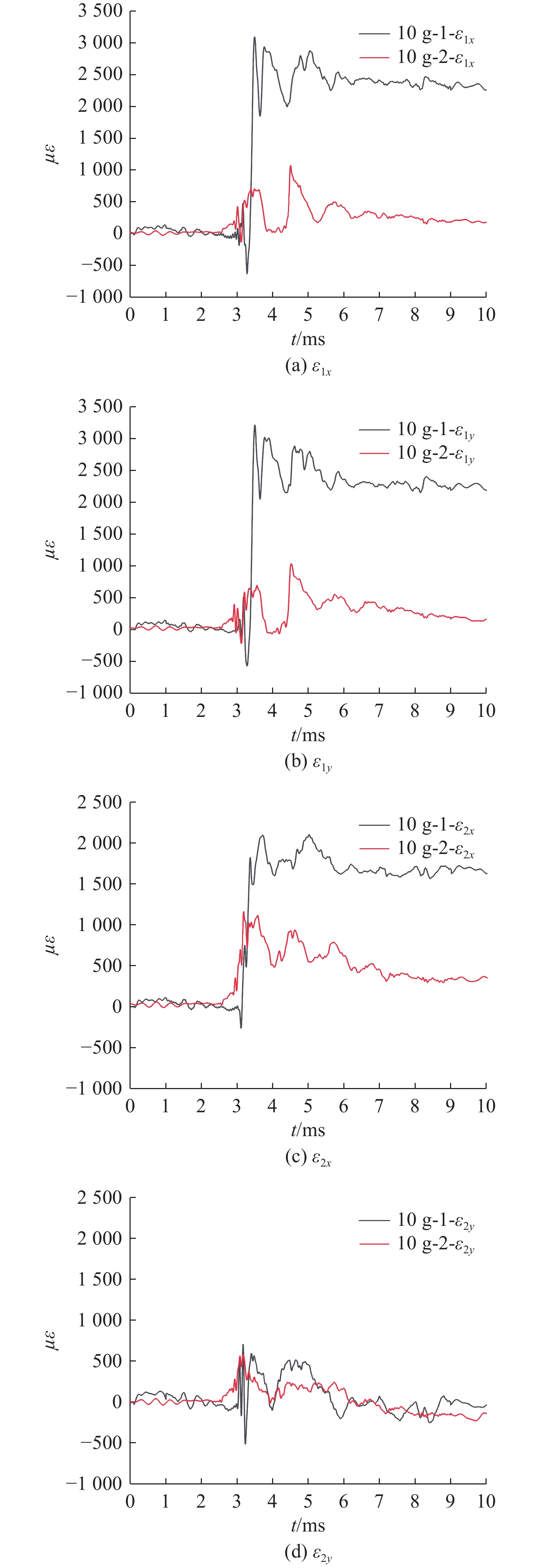

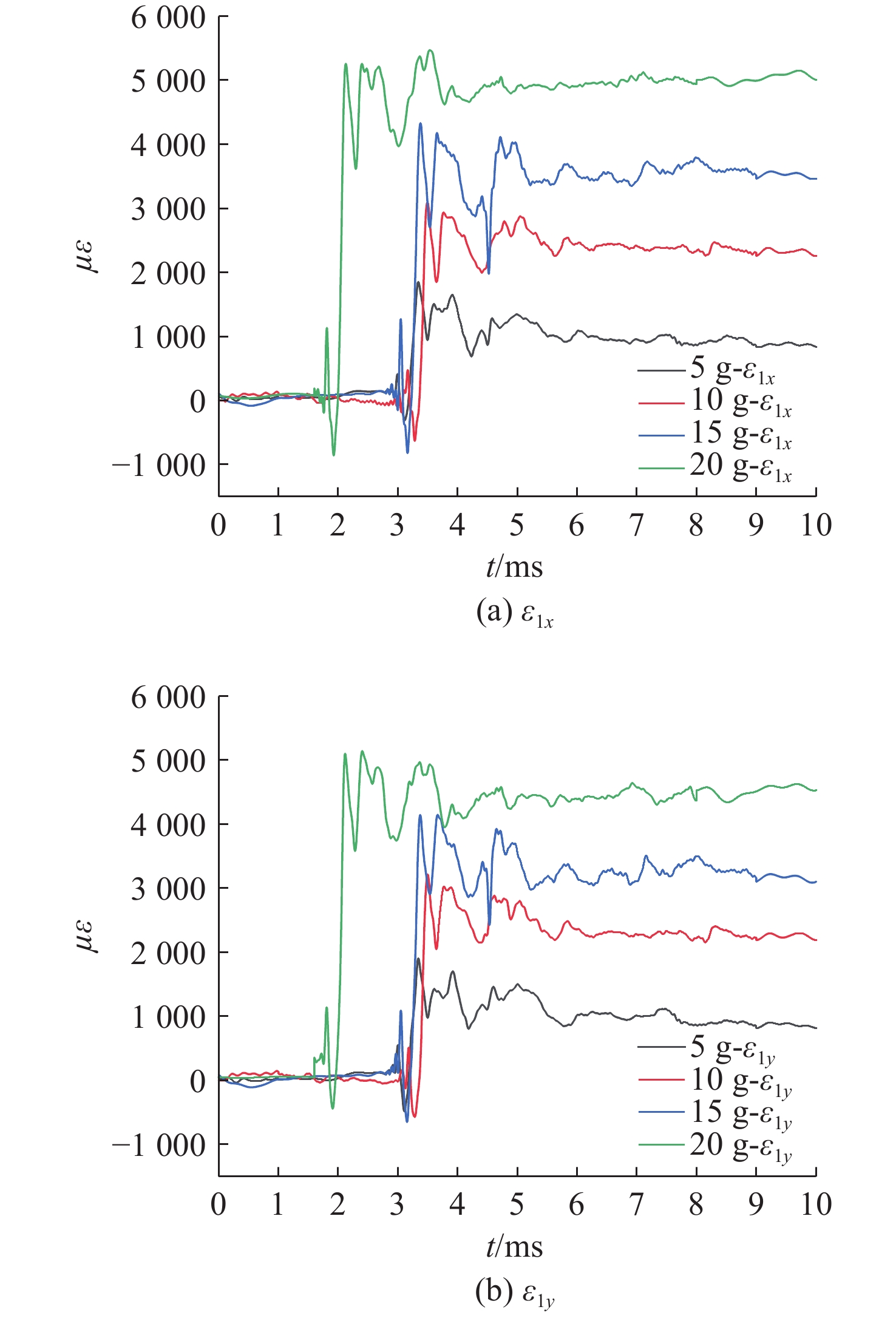

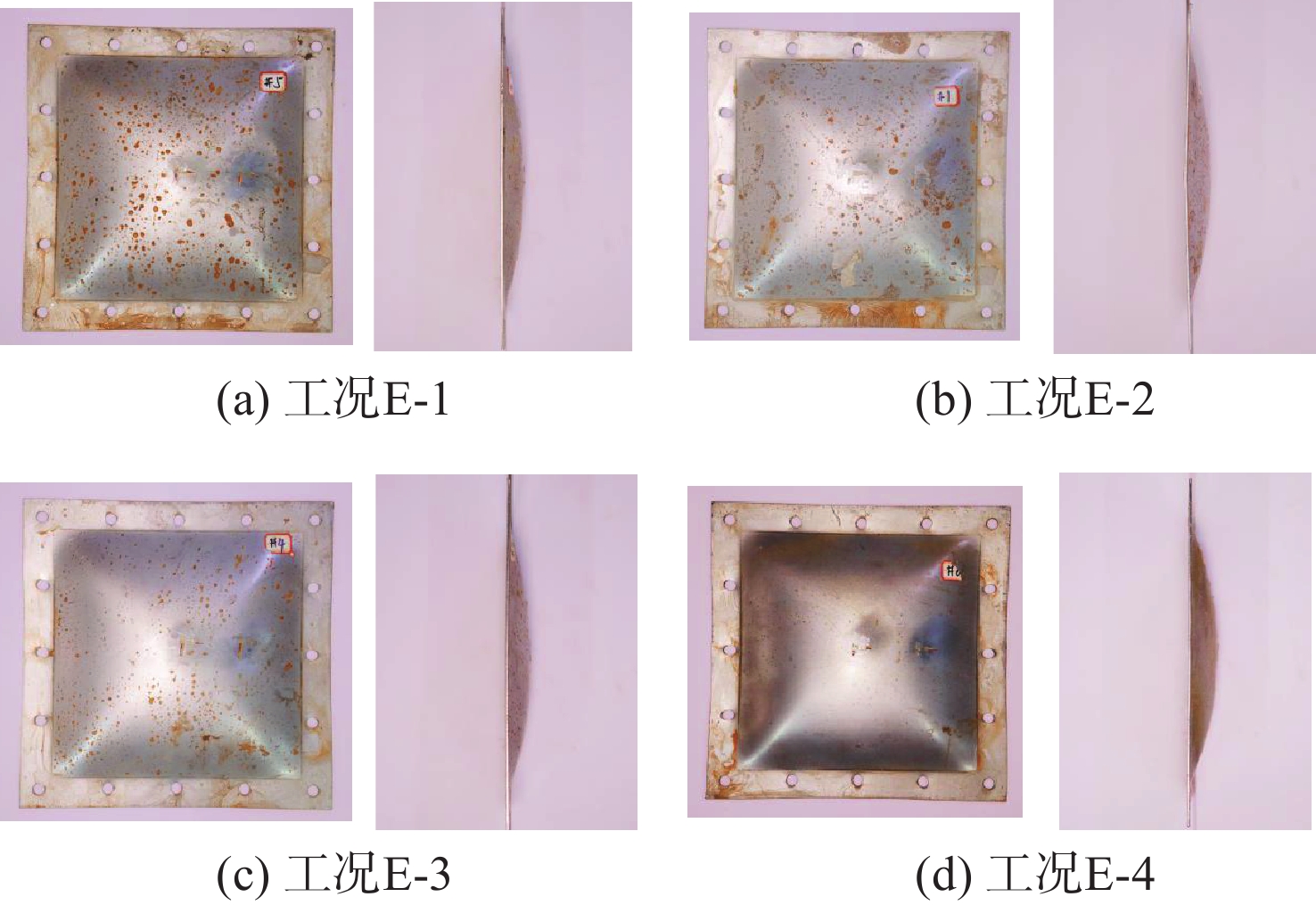

In order to explore the influence of different charge mass ratios of tandem charges on the underwater explosion power, theoretical analysis of the impulse of the underwater explosion shock wave induced by tandem charges was carried out according to the empirical formula of the underwater shock wave, and the underwater explosion power of tandem charges with different charge mass ratios was numerically simulated. Under the same charge mass, the underwater explosion output impulse laws and the damage effects on the target structure of the tandem charge with different charge mass ratios and single charge were compared. At the same time, a scaled-down water tank test on the damage to the target structure caused by the tandem charge was carried out. The results show that when the total charge is 400 g TNT, the underwater explosion output impulse of the tandem charge structure and its effect on the target panel are obviously better than that of a single charge, and the explosion power of the tandem charge increases with the increase in the charge ratio η. When η is 1:1, the impulse gain and the deflection of the target panel are the largest, and the impulse gain is increased by 27.43%; the deflection of the target panel is increased by 23.58%. The scaled-down experiment results of small charges show good agreement with the theoretical analysis and numerical simulation results.
- underwater explosion,
- tandem charge,
- charge mass ratio,
- target damage

FullText(HTML)

References(15)

References

[1]	顾文彬, 阳天海, 叶序双, 等. 单个装药浅层水中沉底爆炸的数值模拟[J]. 解放军理工大学学报(自然科学版), 2000(3): 51-55. GU W B, YANG T H, YE X S, et a1. Numerical simulation of single charge explosion on sea bed in shallow water[J]. Journal of PLA University of Science and Technology(Natural Science Edition), 2000(3): 51-55.
[2]	胡亮亮, 黄瑞源, 李世超, 等. 水下爆炸冲击波数值仿真研究[J]. 高压物理学报, 2020, 34(1): 015102. HU L L, HUANG R Y, LI S C, et al. Shock wave simulation of underwater explosion[J]. Chinese Journal of High Pressure Physics, 2020, 34(1): 015102.
[3]	毛致远, 段超伟, 胡宏伟, 等. 水下爆炸威力试验与评价方法综述[J]. 水下无人系统学报, 2022, 30(3): 384-390. MAO Z Y, DUAN C W, HU H W, et a1. Review of testing and evaluation methods for underwater explosion power[J]. Journal of Unmanned Undersea Systems, 2022, 30(3): 384-390.
[4]	郭涛, 吴亚军. 鱼雷战斗部技术研究现状及发展趋势[J]. 水下无人系统学报, 2012, 20(1): 74-77. doi: 10.3969/j.issn.1673-1948.2012.01.016 GUO T, WU Y J. Perspective of the technologies about torpedo warhead[J]. Journal of Unmanned Undersea Systems, 2012, 20(1): 74-77. doi: 10.3969/j.issn.1673-1948.2012.01.016
[5]	孙百连, 顾文彬, 蒋建平, 等. 浅层水中沉底的两个装药爆炸的数值模拟研究[J]. 爆炸与冲击, 2003, 23(5): 460-465. SUN B L, GU W B, JIANG J P, et a1. Numerical simulation of explosion shock wave interaction in shallow layer water[J]. Explosion and Shock Waves, 2003, 23(5): 460-465.
[6]	盛振新, 刘荣忠, 郭锐. 水下爆炸冲击波相互作用的仿真分析[J]. 火工品, 2012(3): 25-29. SHENG Z X, LIU R Z, GUO R. Study on the shock waves interaction of underwater explosions[J]. Initiators & Pyrotechnics, 2012(3): 25-29.
[7]	吴国群, 张明晓, 弓启祥, 等. 水下爆炸冲击波相互作用的研究[J]. 煤矿爆破, 2011(2): 12-15. WU G Q, ZHANG M X, GONG Q X, et al. Study on the interaction of the shock waves in underwater explosions[J]. Coal Mine Blasting, 2011(2): 12-15.
[8]	吴成, 廖莎莎, 高峰, 等. 分体串联装药水下爆炸对固支方板的复合作用及其分析[J]. 北京理工大学学报, 2009, 29(8): 659-662. WU C, LIAO S S‚ GAO F, et al. Dynamic response of clamped square plates under double loadings of tande m charges underwater explosion[J]. Journal of Beijing Institute of Technology, 2009, 29(8): 659-662.
[9]	HU H W, SONG P, GUO S F, et al. Shock wave and bubble characteristics of underwater array explosion of charges[J]. Defence Technology, 2022, 18(8): 1445-1453.
[10]	CUI P, WANG Q X, WANG S P, et al. Experimental study on interaction and coalescence of synchronized multiple bubbles[J]. Physics of Fluids, 2016, 28(1): 94.
[11]	RUNGSIYAPHORNRAT S, KLASEBOER E, KHOO B C, et al. The merging of two gaseous bubbles with an application to underwater explosions[J]. Computers & Fluids, 2003, 32(8): 1049-1074.
[12]	COLE P. 水下爆炸[M]. 罗耀杰, 译. 北京: 国防工业出版社, 1960.
[13]	ZAMYSHLYAEV B V, YAKOVLEV Y S. Dynamic loads in underwater explosion[R]. [S.l.]: [s.n.], 1973.
[14]	Century Dynamics Inc. Autodyn material library, Version 17.0[DB]. Los Angeles: Century Dynamics Inc., 2016.
[15]	李旭东, 尹建平, 杜志鹏, 等. 多次水下爆炸钢制圆板应变与挠度增长规律分析[J]. 振动与冲击, 2020, 39(5): 131-136. LI X D, YIN J P, DU Z P, et al. Growth law analysis for strain and deflection of steel circular plates subjected to multiple underwater explosions[J]. Journal of Vibration and Shock, 2020, 39(5): 131-136.
