基于神经网络状态估计器的高速AUV强化学习控制

郭可建 林晓波 郝程鹏 侯朝焕

郭可建, 林晓波, 郝程鹏, 等. 基于神经网络状态估计器的高速AUV强化学习控制[J]. 水下无人系统学报, 2022, 30(2): 147-156 doi: 10.11993/j.issn.2096-3920.2022.02.002
引用本文: 郭可建, 林晓波, 郝程鹏, 等. 基于神经网络状态估计器的高速AUV强化学习控制[J]. 水下无人系统学报, 2022, 30(2): 147-156 doi: 10.11993/j.issn.2096-3920.2022.02.002
GUO Ke-jian, LIN Xiao-bo, HAO Cheng-peng, HOU Chao-huan. Reinforcement-Learning Control for the High-Speed AUV Based on the Neural-Network State Estimator[J]. Journal of Unmanned Undersea Systems, 2022, 30(2): 147-156. doi: 10.11993/j.issn.2096-3920.2022.02.002
Citation: GUO Ke-jian, LIN Xiao-bo, HAO Cheng-peng, HOU Chao-huan. Reinforcement-Learning Control for the High-Speed AUV Based on the Neural-Network State Estimator[J]. Journal of Unmanned Undersea Systems, 2022, 30(2): 147-156. doi: 10.11993/j.issn.2096-3920.2022.02.002

基于神经网络状态估计器的高速AUV强化学习控制

doi: 10.11993/j.issn.2096-3920.2022.02.002
基金项目: 国家自然科学基金项目资助(61971412).
详细信息
    作者简介:

    郭可建(1997-), 男, 硕士, 主要研究方向为高速水下航行器控制

  • 中图分类号: U674.941; U661

Reinforcement-Learning Control for the High-Speed AUV Based on the Neural-Network State Estimator

  • 摘要: 随着海洋研究与开发的日益扩大, 高速自主水下航行器(AUV)作为重要的无人水下工作平台受到广泛关注。然而由于其模型具有多输入多输出、强耦合欠驱动以及强非线性特性, 因此依赖精确模型的传统控制方法在实际应用中常受到限制。针对此问题, 文中提出一种不依赖精确模型的强化学习位姿控制器, 该控制器通过姿态环和位置环的配合不仅可以实现高速AUV的快速姿态稳定, 还可以更快地完成下潜到指定深度的动作; 同时, 为了降低获取用于训练强化学习控制器数据的成本, 结合神经网络技术提出了一种改进的高速AUV状态估计器, 该估计器可以在已知当前时刻AUV的状态以及所受控制量的情况下估计出下一时刻的状态, 从而为强化学习控制方法提供大量的训练数据。仿真实验结果表明, 估计器达到了较高的估计精度, 基于神经网络状态估计器训练得到的强化学习控制器可以完成原AUV的平稳快速控制, 从而验证了所提方法的可行性及有效性。



  • 图  1  AUV运动坐标系

    Figure  1.  Motion coordinate system of the AUV

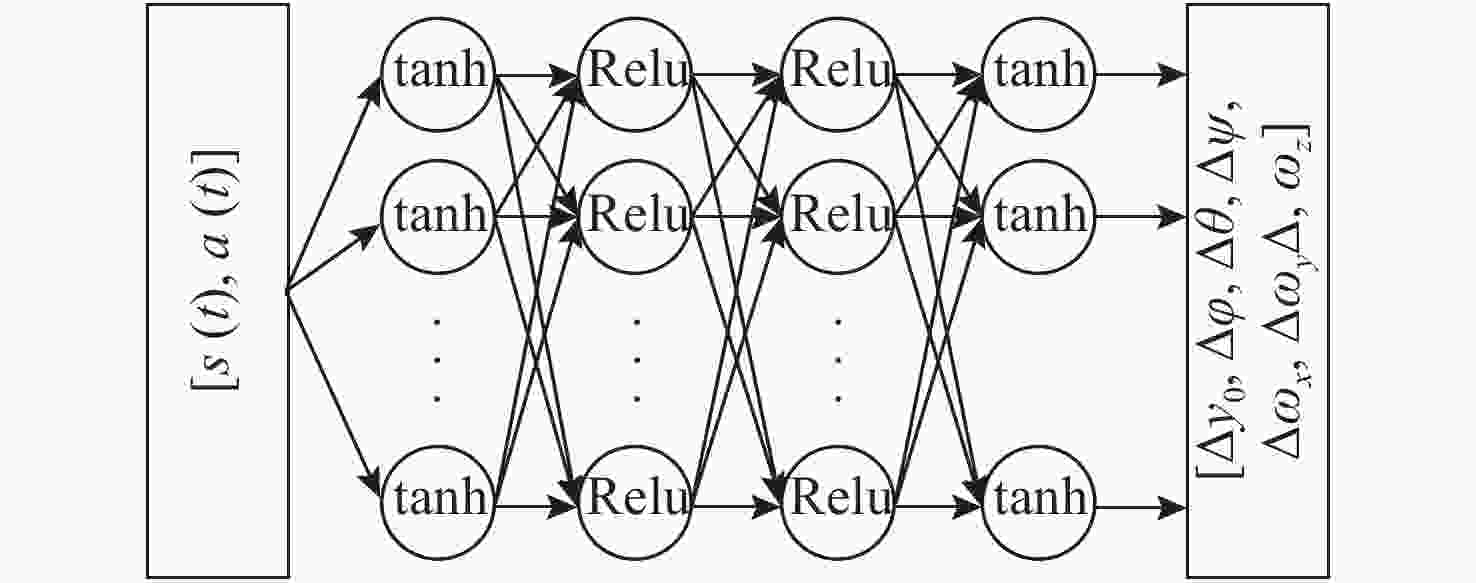

    图  2  估计器姿态网络

    Figure  2.  The attitude network of estimator

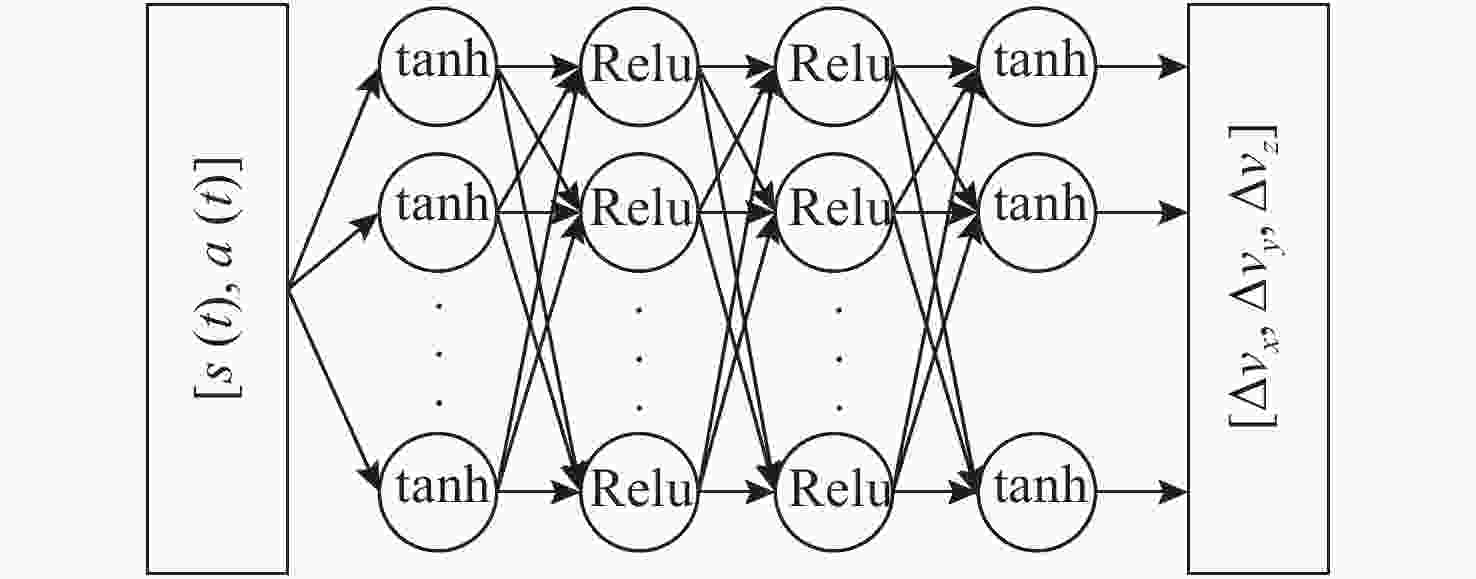

    图  3  估计器速度网络

    Figure  3.  The velocity network of estimator

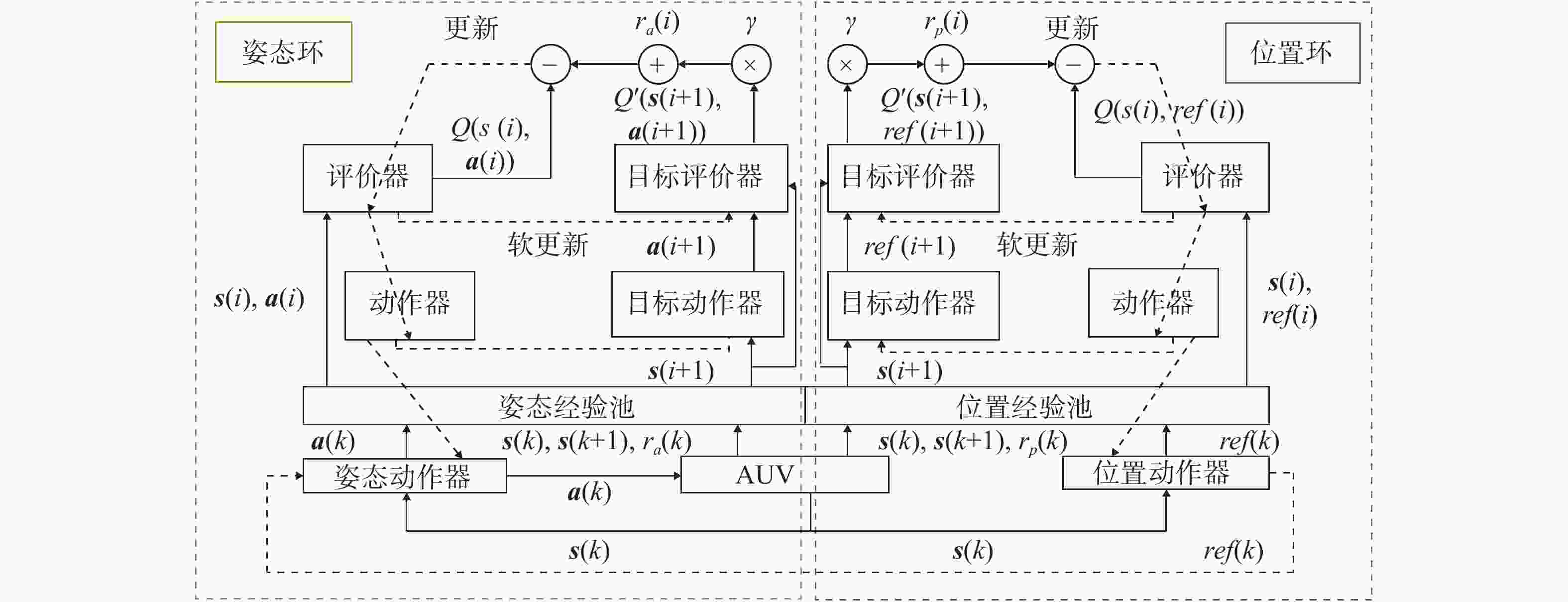

    图  4  双环强化学习控制器结构图

    Figure  4.  Structure of the double-loop controller with reinforcement learning

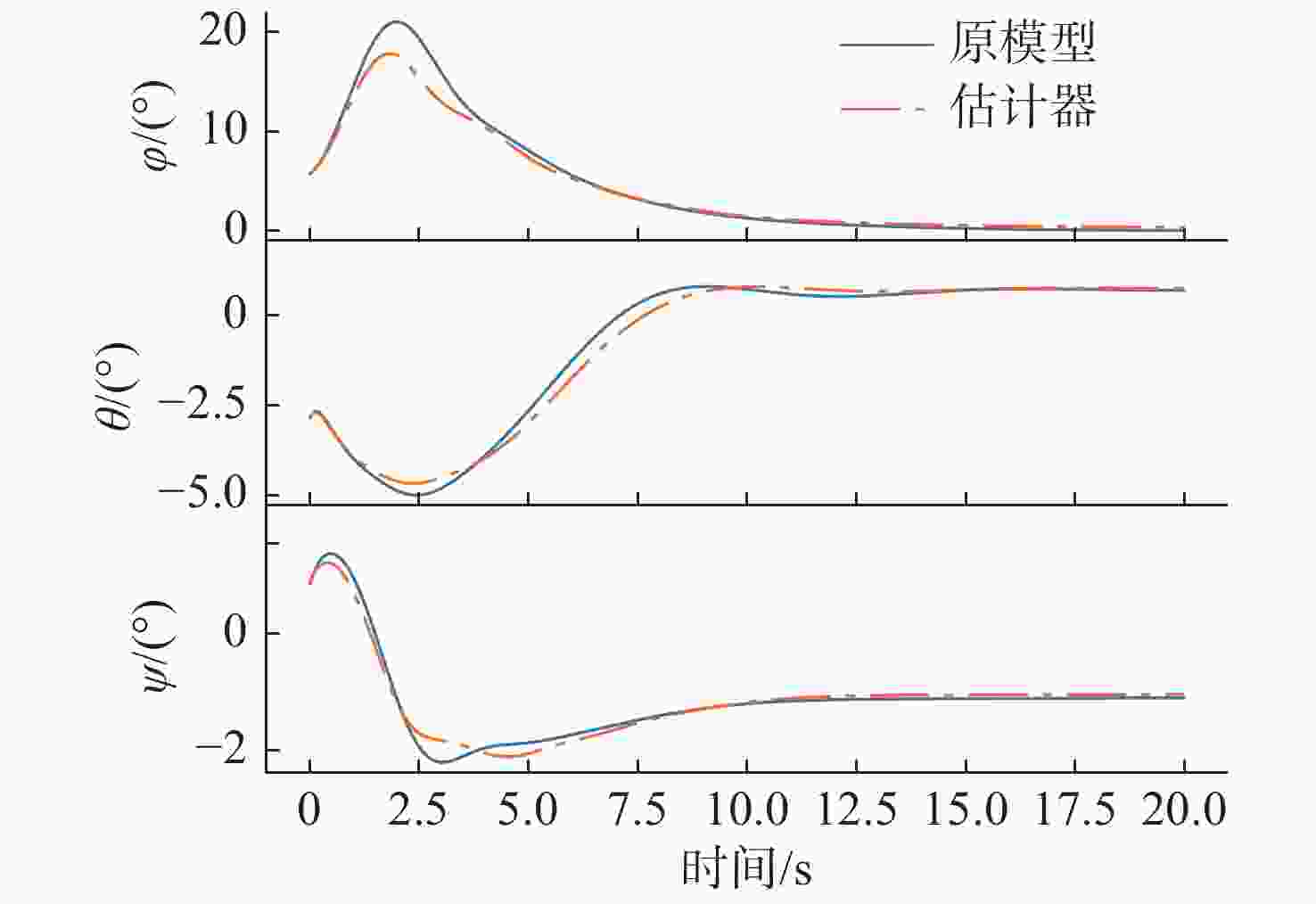

    图  5  基于原模型和估计器的姿态控制曲线

    Figure  5.  The attitude control curves of the original model and the estimator

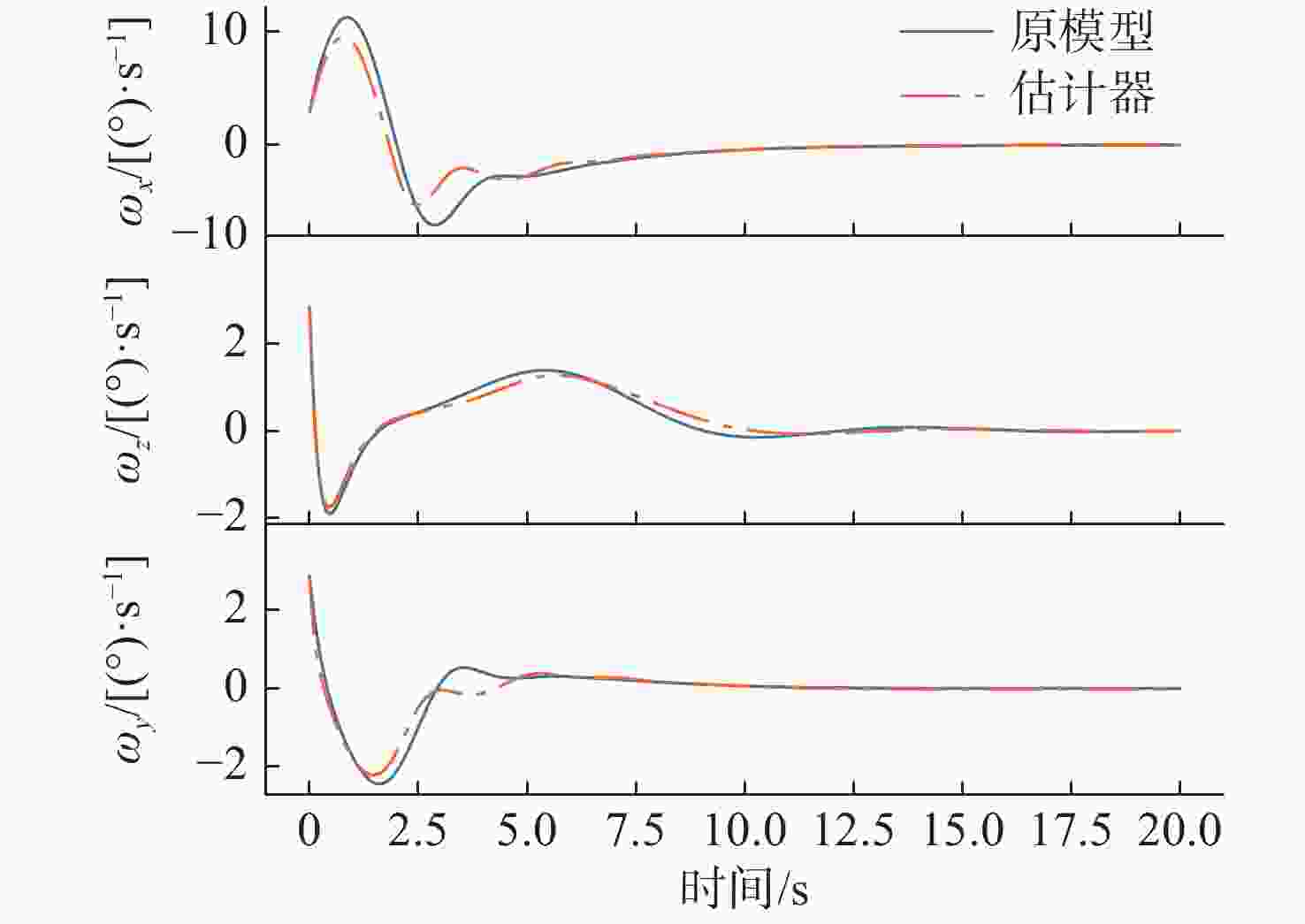

    图  6  基于原模型和估计器的角速度控制曲线

    Figure  6.  The angular speed control curves of the original model and the estimator

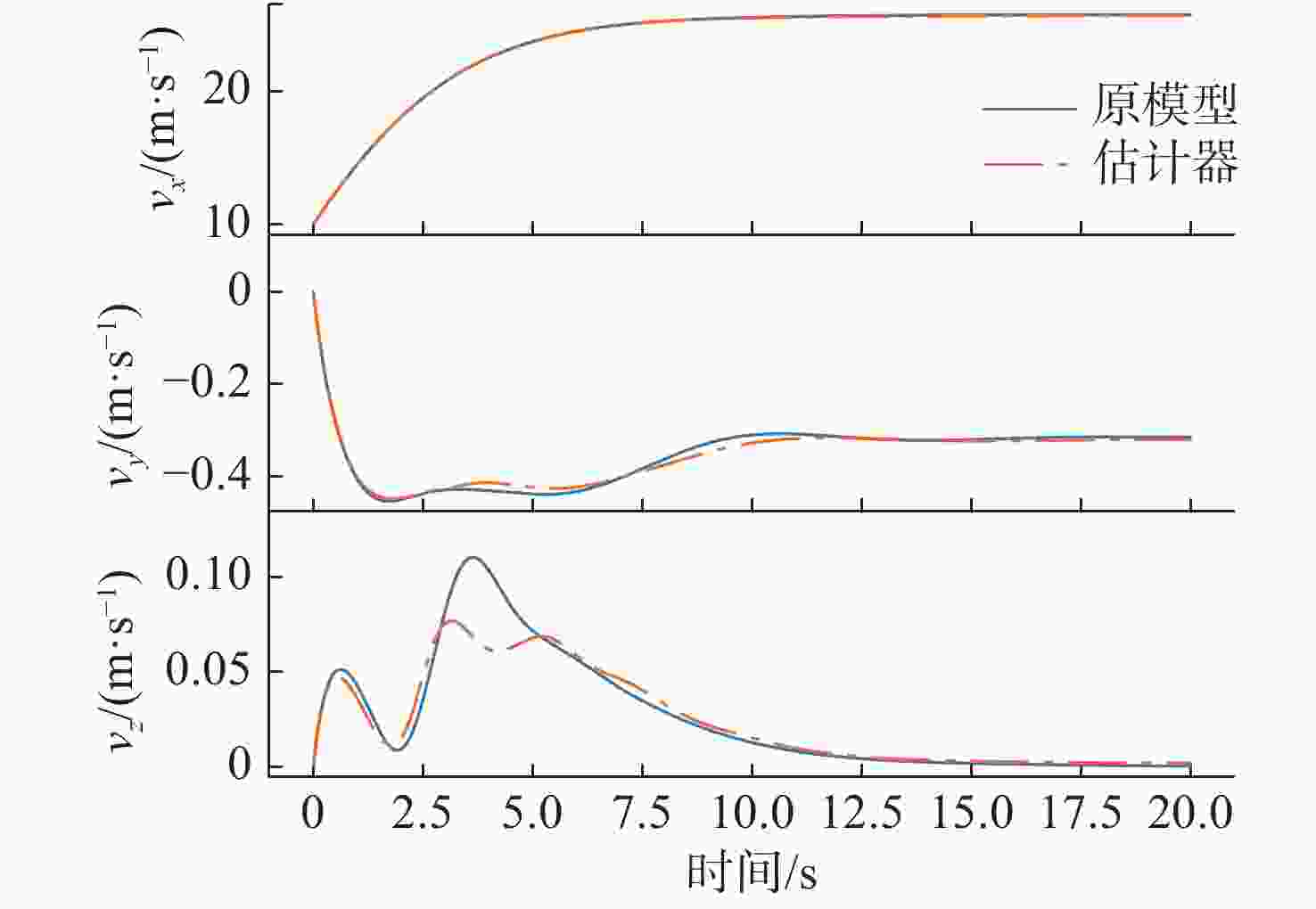

    图  7  基于原模型和估计器的速度控制曲线

    Figure  7.  The velocity control curves of the original model and the estimator

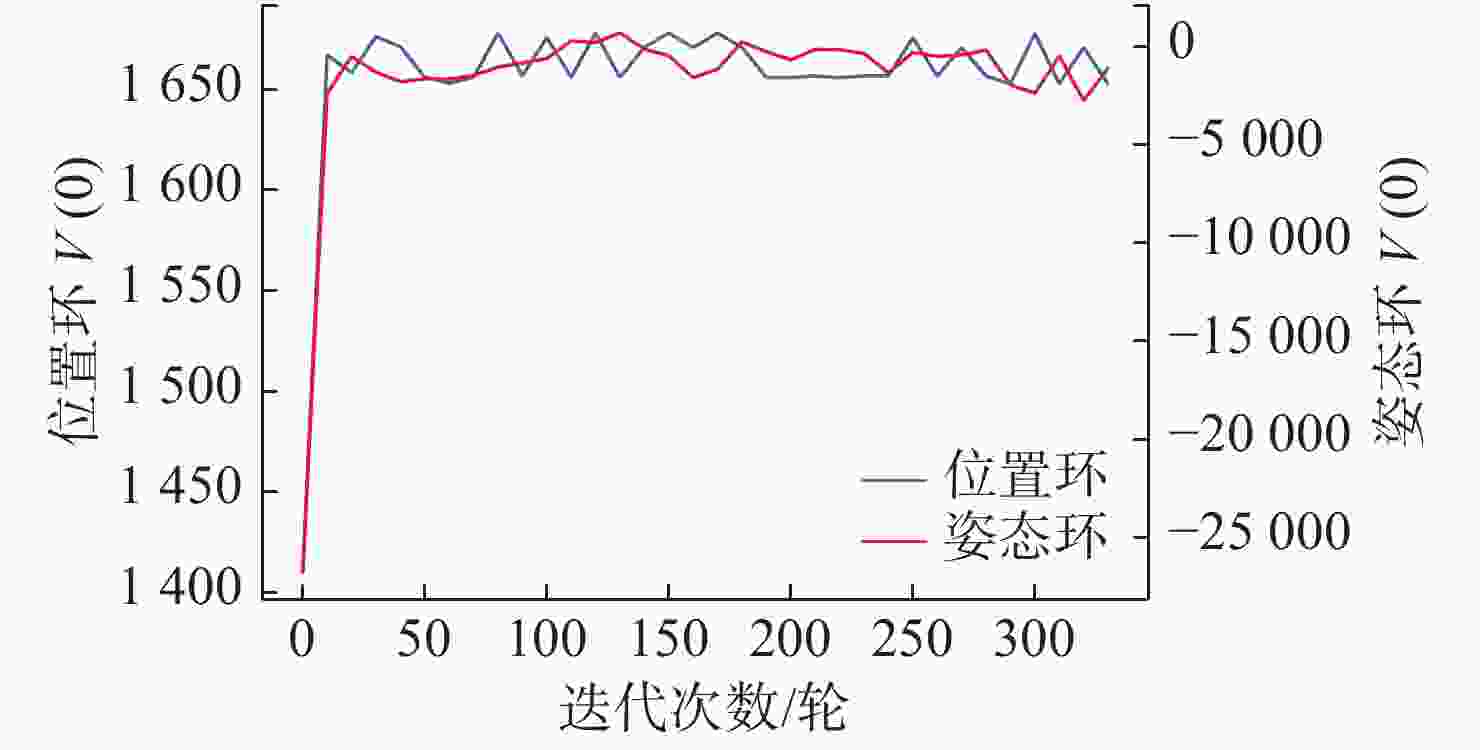

    图  8  控制器在训练过程中所获奖励值

    Figure  8.  The reward values during the training process of the controller

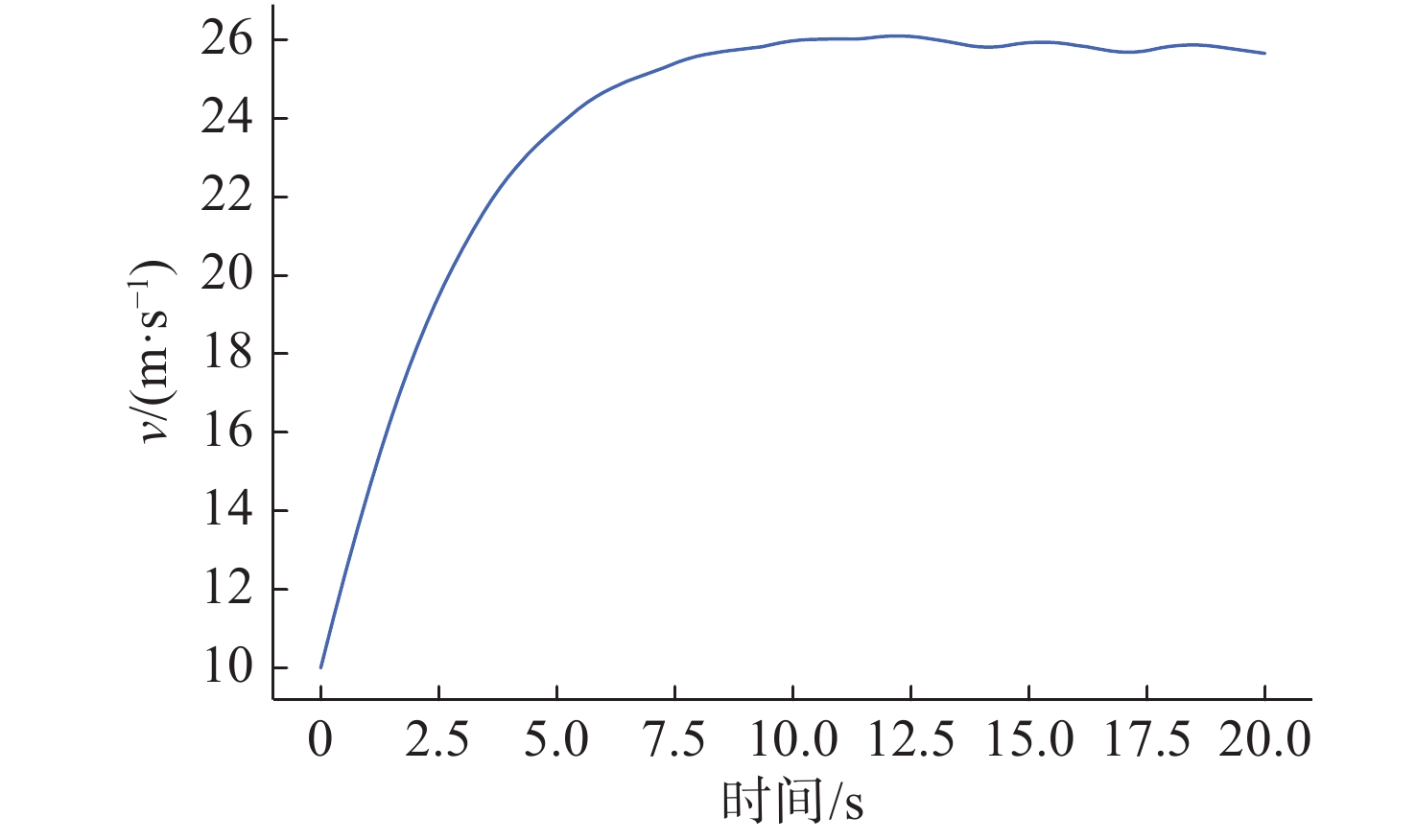

    图  9  AUV运行速度曲线

    Figure  9.  The velocity curves during the AUV running

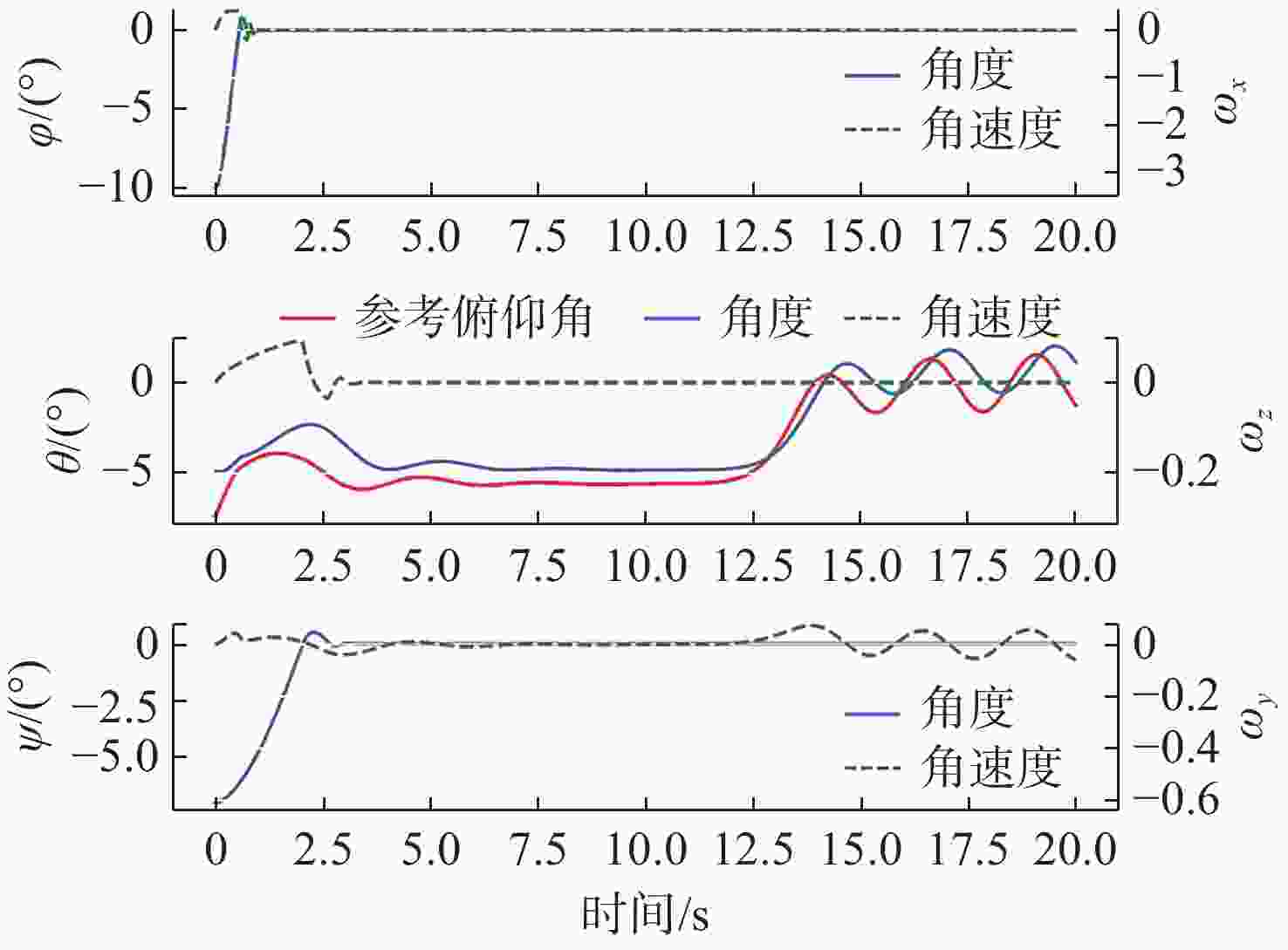

    图  10  双环补偿控制器下的AUV姿态控制曲线

    Figure  10.  The attitude curves of the AUV controlled by the double-loop complementary controller

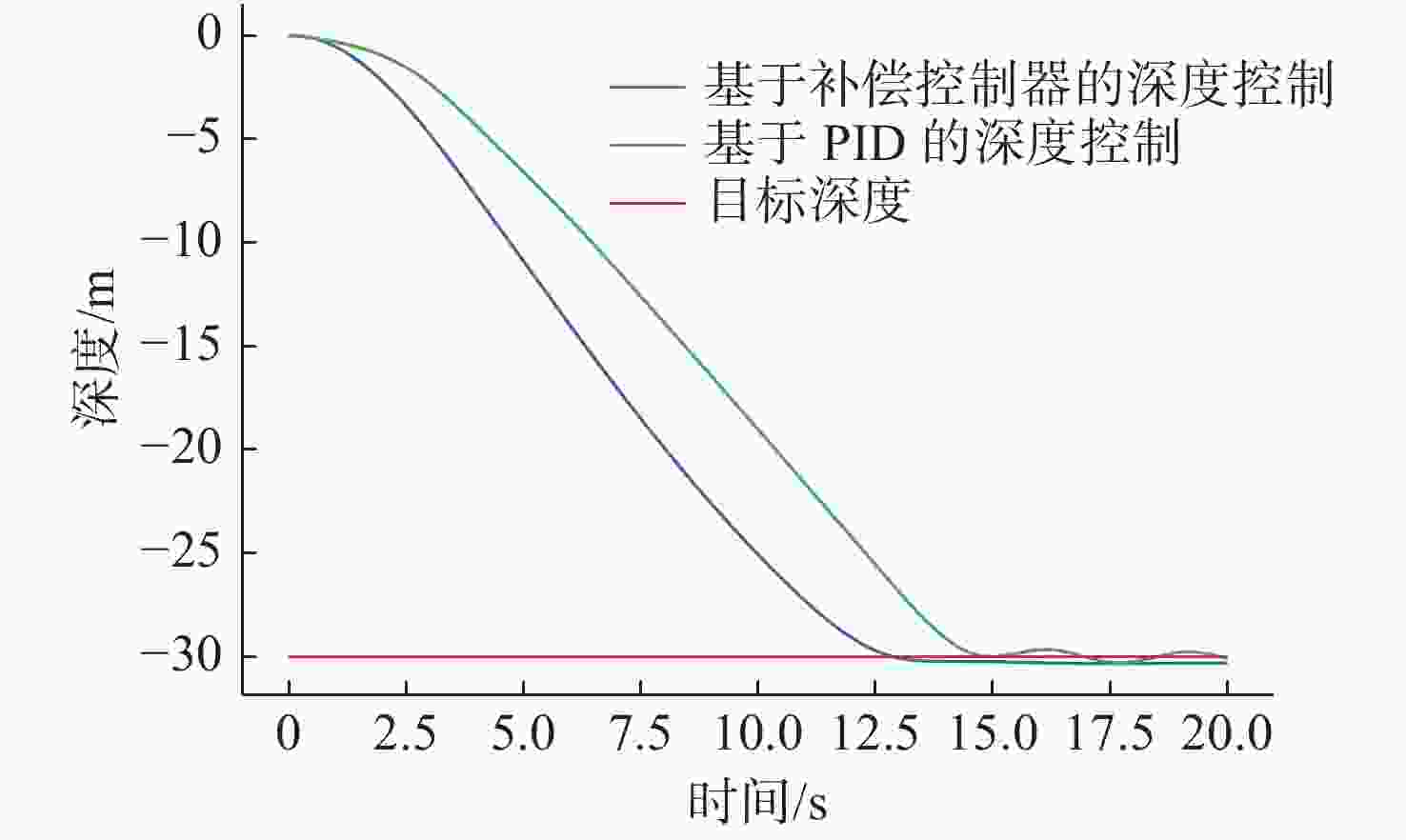

    图  11  基于双环补偿控制器与PID控制器的AUV深度控制曲线

    Figure  11.  The depth curves of the AUV controlled by the double-loop complementary controller and the PID controller

    表  1  高速AUV参考模型参数

    Table  1.   Parameters of the reference model of the high speed AUV

    参数名参数值参数名参数值
    $G/({\rm{N}}\cdot {\rm{kg}}^{-1})$ 9.8 $C_y^{{\delta _e}}$ 0.51
    $B/{\rm{N}}$ 14 671 $C_y^\alpha $ 2.32
    $m/{\rm{kg}}$ 1 840 $C_y^{{{\bar \omega }_z}}$ 1.17
    $\rho /({\rm{kg}} \cdot {{\rm{m}}^{ - 3}})$ 1 019.2 $m_y^\beta $ 0.69
    $S/{{\rm{m}}^2}$ 0.224 $m_y^{{\delta _r}}$ −0.11
    $L/{\rm{m}}$ 7.738 $m_y^{{{\bar \omega }_x}}$ 0
    $T /{\rm{N}}$ 10 672 $m_y^{{{\bar \omega }_y}}$ −0.61
    ${C_{xS}}$ 0.141 $m_z^{{\delta _r}}$ −0.20
    $m_x^\beta $ 0.001 52 $m_z^\beta $ −2.32
    $m_x^{{\delta _r}}$ −0.000 32 $m_z^{{{\bar \omega }_y}}$ −1.17
    $m_x^{{\delta _d}}$ −0.081 2 $m_z^\alpha $ 0.69
    $m_x^{{{\bar \omega }_x}}$ −0.004 4 $m_z^{{\delta _e}}$ −0.28
    $m_x^{{{\bar \omega }_y}}$ 0.000 8 $m_z^{{{\bar \omega }_z}}$ −0.61
    $\Delta {M_{xp}}$ 0
    下载: 导出CSV
